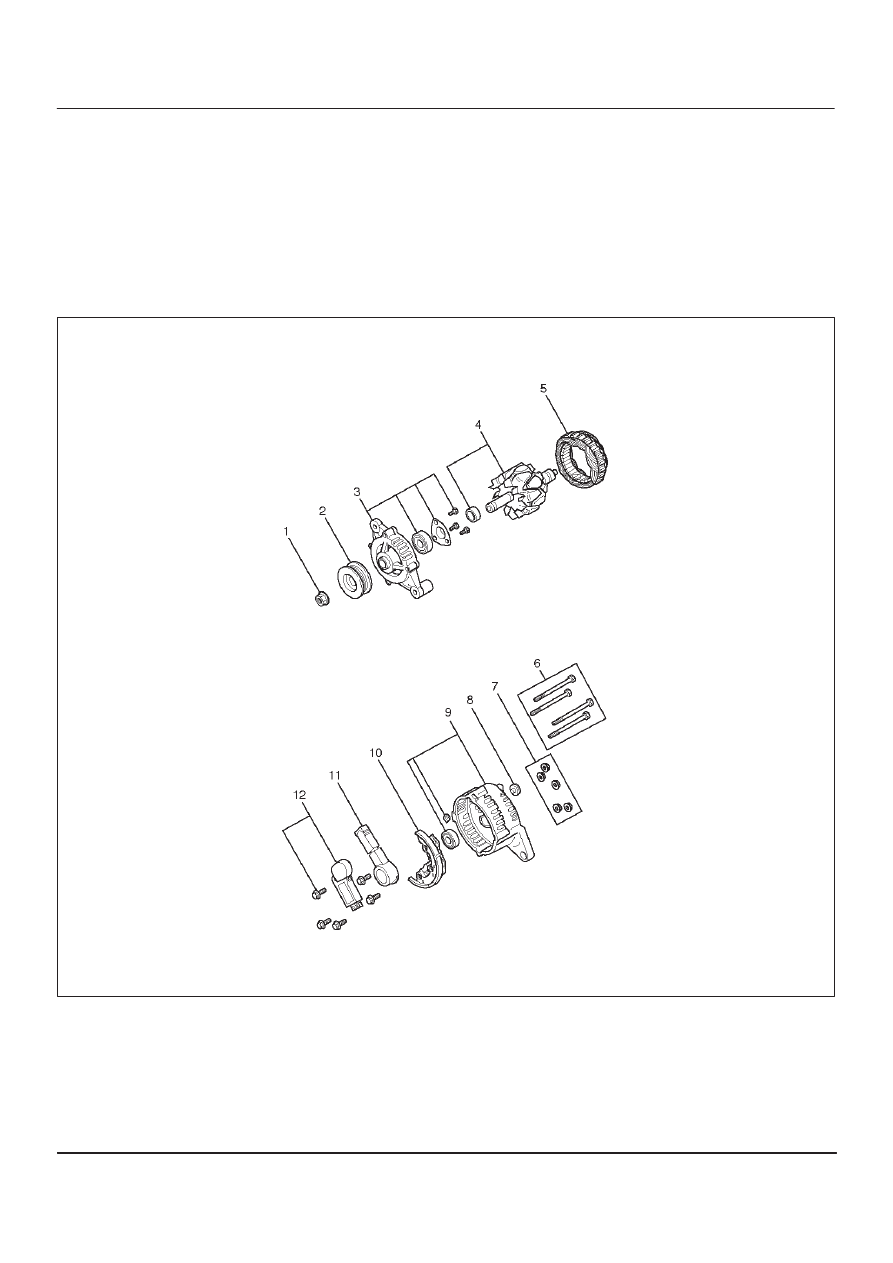

6D3–20 STARTING AND CHARGING SYSTEM (6VD1 3.2L) Installation 1. Install generator assembly to the position. to the specified torque. Torque: M10 bolt: 41 N·m (4.2 kg·m/30 Ib ft) M8 bolt: 21 N·m (2.1 kg·m/15 Ib ft) 3. Connect wiring harness connector and direct terminal “B”. 4. Move drive belt tensioner to loose side using wrench, then install drive belt to normal position. 5. Reconnect battery ground cable. Disassembled View 066RW022 Legend (1) Pulley Nut (7) Nut (10) Rectifier (11) Brush Holder Assembly (12) Regulator Assembly |
