X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

6. Push “On” soft key.

060RX022

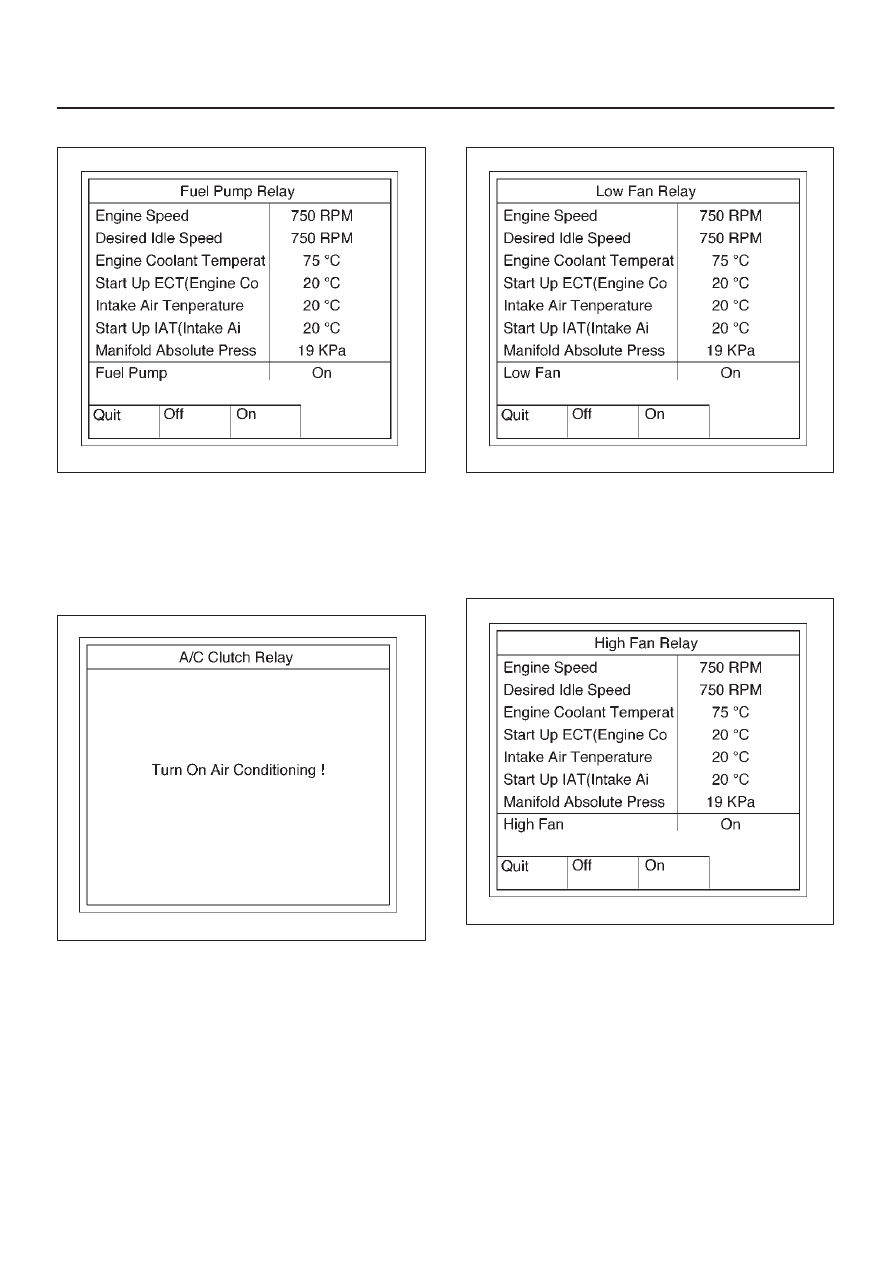

7. Control Fuel Pump Relay and check a data list.
8. If the data list chenges, the Fuel Pump Relay is

normal.

9. Select F1:A/C Clutch Relay.

10. *Run the Engine at idle.

11. Turn on Air Condtioning.

060RX023

12. Push “On” and “Off” of soft key.
13. Control A/C Clutch Relay and check a data list.
14. If the data list changes, the A/C Clutch Relay is

normal.

15. Select F2: Low Fan Relay.

060RX048

16. Push “On” and “Off” of soft key.
17. Control Low Fan Relay and check a data list.
18. If the data list changes, the Low Fan Relay is normal.
19. Run the Fan Motor.
20. Select F3: High Fan Relay.

060RX049

21. Push “On” and “Off” of soft key.
22. Control High Fan Relay and check a data list.

If the data list changes, the High Fan Relay is normal.

23. Run the Fan Motor.

6E1–40

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

EVAP Test

This test is conducted check EVAP system for its working.
Tech 2 must be used for this test.
Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Run the Engine at idle.
3. Select F3: Miscellaneous Test in the Application

Menu.

060RW228

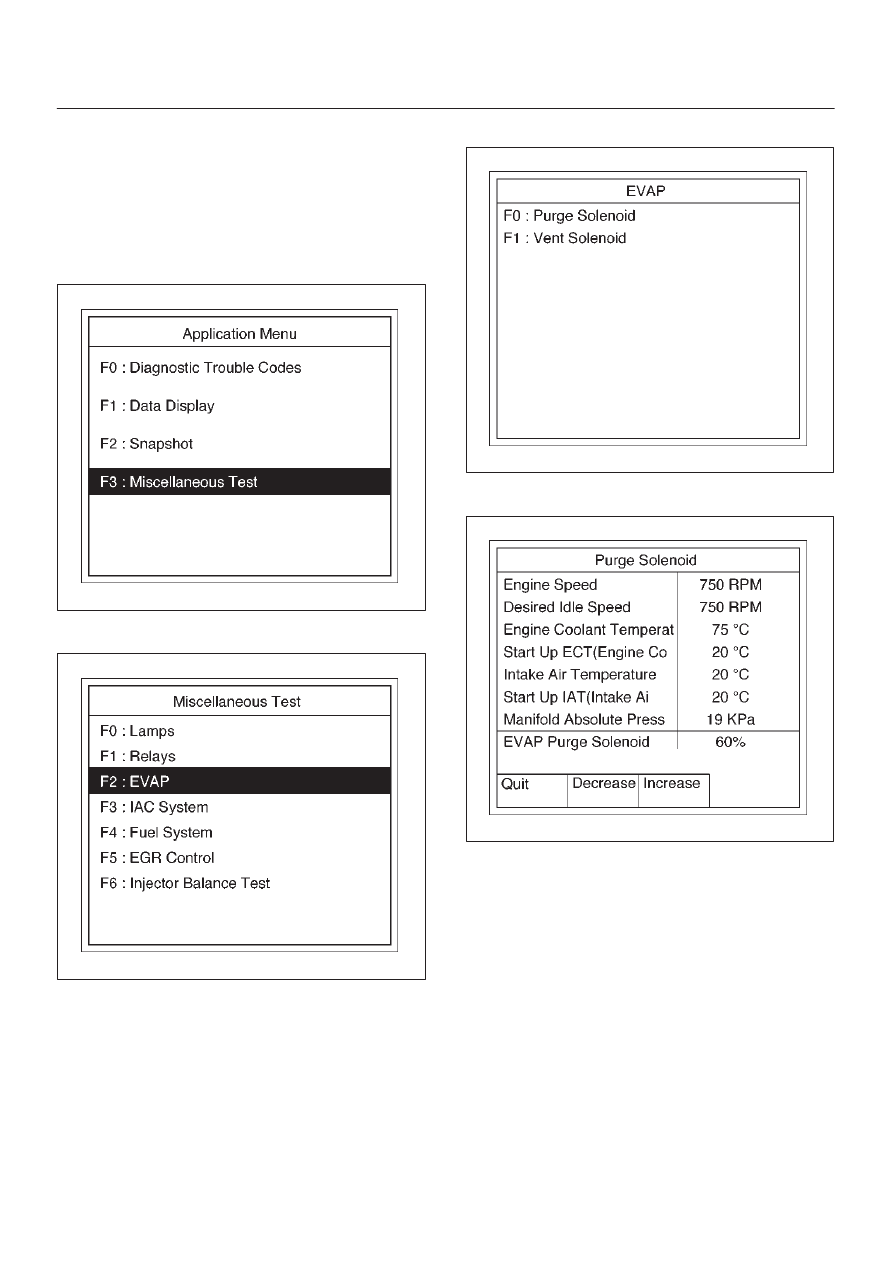

4. Select F2:EVAP Test in the Miscellaneous Test.

060RX050

5. Select F0: Purge Solenoid.

060RX025

6. Push “Decrease” or “Increase” soft key.

060RX026

7. Control EVAP Purge Solenoid and check a data list.
8. If the data list changes, the purge Solenoid is normal.

Ignition SW is “On”.

D

F1; Vent Solenoid = Not Used

Idle Air Control System Test

This test is conducted check to IAC system for proper
operation.
Tech 2 must be used for this test.
Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Run the Engine at idle.

6E1–41

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

3. Select F3: Miscellaneous Test in the Application

Menu.

060RW228

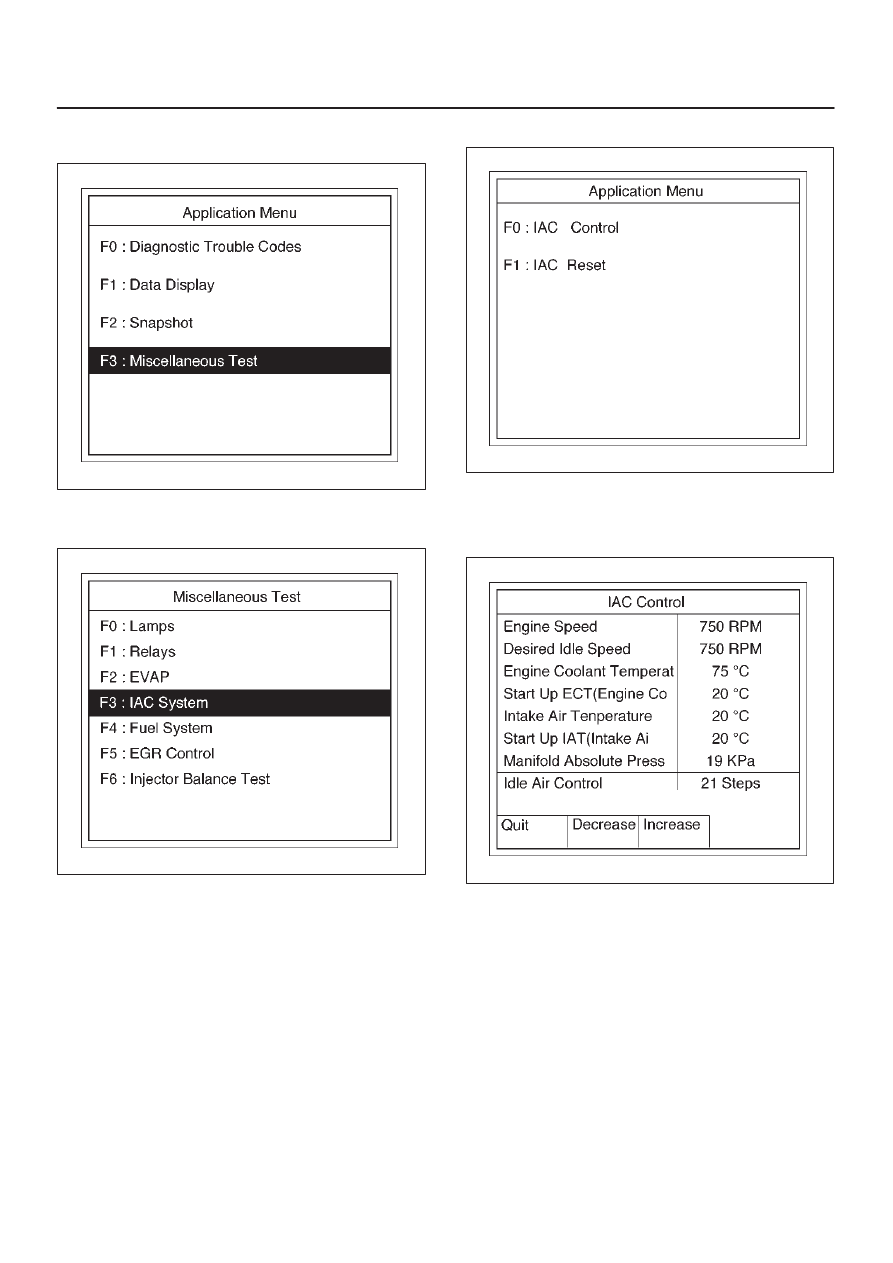

4. Select F3: IAC System Test in the Miscellaneous

Test.

060RX051

5. Select F1: IAC Control Test.

060RX052

6. Push “Increase” or “Decrease” soft key.
7. Control IAC system and check a data list.

D

F0: IAC Control

060RX015

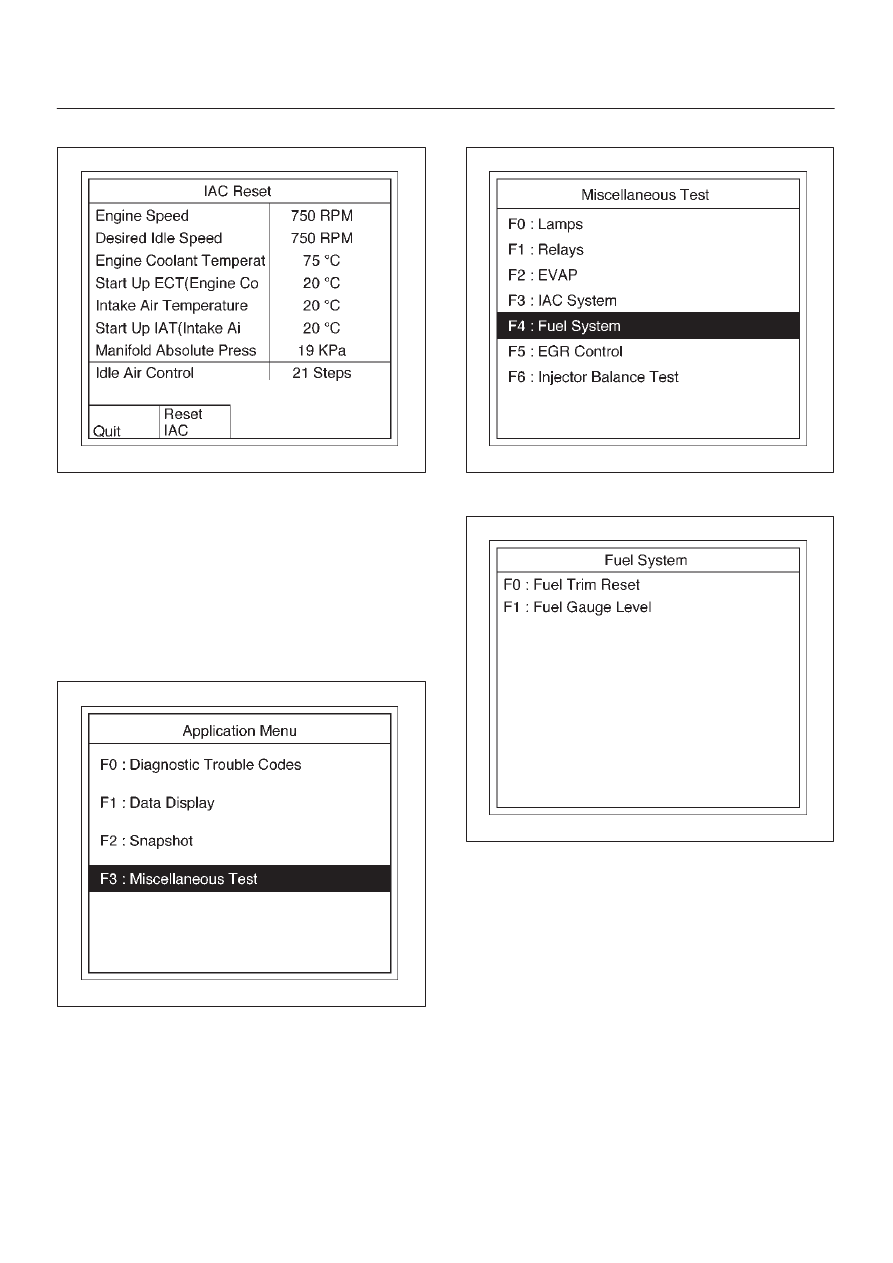

8. Select F1: IAC Reset.
9. Push “Reset IAC” soft key.

10. Control IAC Reset and check data list.

6E1–42

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

11. If data list changes, the IAC has been Reset.

060RW231–1

Fuel System Test

This test is conducted check Fuel Level Gauge for proper
operation.
Tech 2 must be used for this test.
Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Ignition SW is “On”.
3. Select F3: Miscellaneous Test in the Application

Menu.

060RW228

4. Select F4: Fuel System in the Miscellaneous Menu.

060RX053

5. Select F0: Fuel Trim Reset.

060RX028
