Opel Frontera UE. Manual - part 746





5C–54

POWER-ASSISTED BRAKE SYSTEM

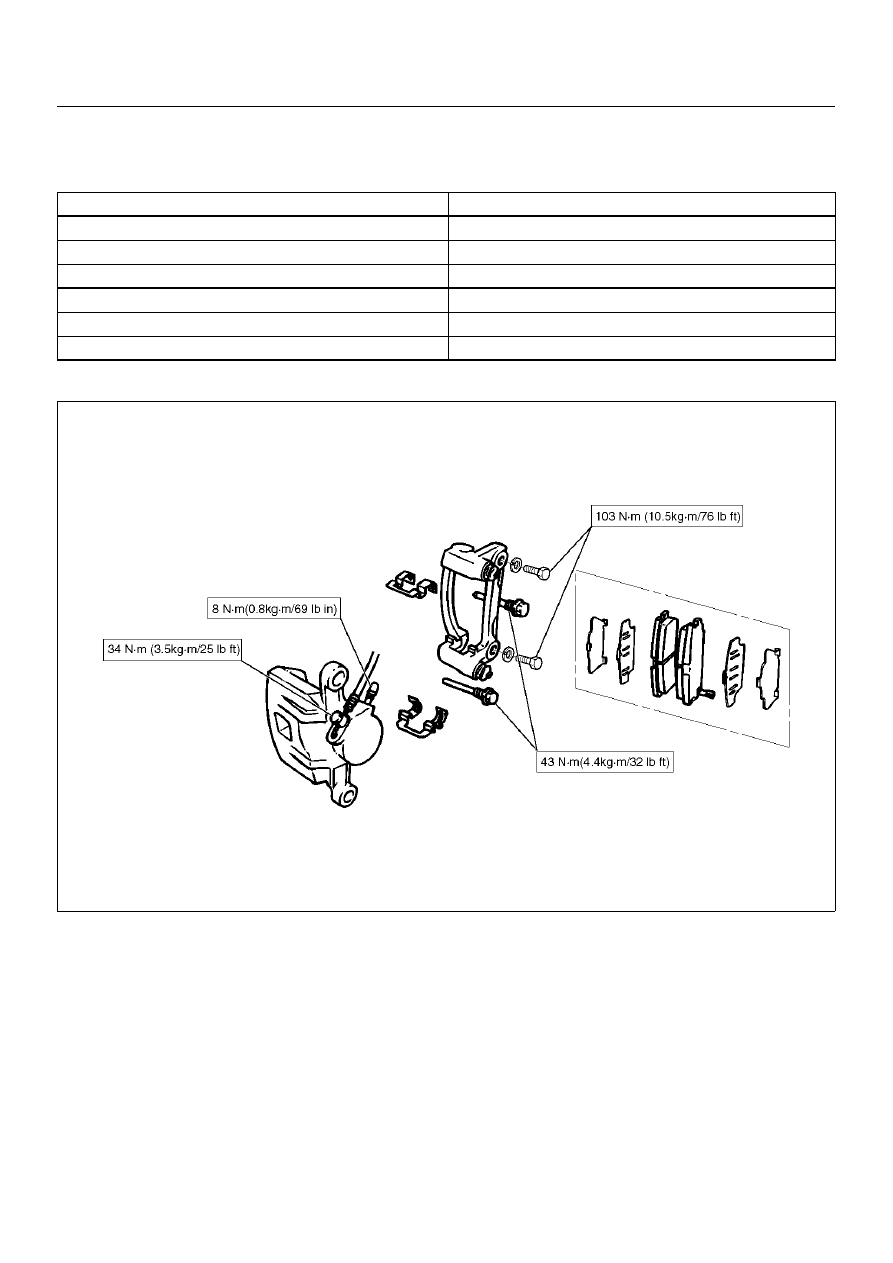

Main Data and Specifications

General Specifications

Torque Specifications

E05RX010

Type

Floating, pin slide

Pad dimension

33 cm

2

 (5.11 in

2

)

Adjusting method

Self–adjusting

Piston diameter

41.3 mm (1.63 in)

Disc type

Ventilated

Disc thickness

18 mm (0.71 in)

Disc effective diameter

269.2 mm (10.60 in)

5D–1

PARKING BRAKE SYSTEM

BRAKES

PARKING BRAKE SYSTEM

CONTENTS

Service Precaution

5D–1

. . . . . . . . . . . . . . . . . . . . . .

General Description

5D–1

. . . . . . . . . . . . . . . . . . . . .

Operation

5D–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Parking Brake Lever and Front Cable

5D–3

. . . . . .

Parking Brake Lever Assembly and
 Associated Parts

5D–3

. . . . . . . . . . . . . . . . . . . . . .

Removal

5D–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

5D–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Parking Brake Rear Cable

5D–4

. . . . . . . . . . . . . . . .

Parking Brake Rear Cable and
 Associated Parts

5D–4

. . . . . . . . . . . . . . . . . . . . . .

Removal

5D–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

5D–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

5D–6

. . . . . . . . . . . . . . . . . .

Parking Brake Adjustment

5D–6

. . . . . . . . . . . . . . . .

Main Data and Specifications

5D–7

. . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fasteners joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fasteners.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.

General Description

Pulling up the parking brake lever by hand will set the
parking brake. By means of a ratchet type lock, the lever
can be held in that position until it is released. The position
of the lever is transmitted through cable/lever systems to
the rear wheels. These parts are designed to obtain
sufficient braking force even when parking on slopes.
When the parking brake is set, or when the ignition SW is
in the“ON” position, the brake warning light illuminates.
The rear wheel parking brake is a duo–servo brake
(mechanical inside expansion type) built in the rear disc
brake. Parking brake adjustment is made through the
adjusting hole (bored through back plate). Parking brake
lever stroke should be adjusted to 6–8 notches. Refer to
“Parking Brake Adjustment” in this section.

SECTION

5D–2

PARKING BRAKE SYSTEM

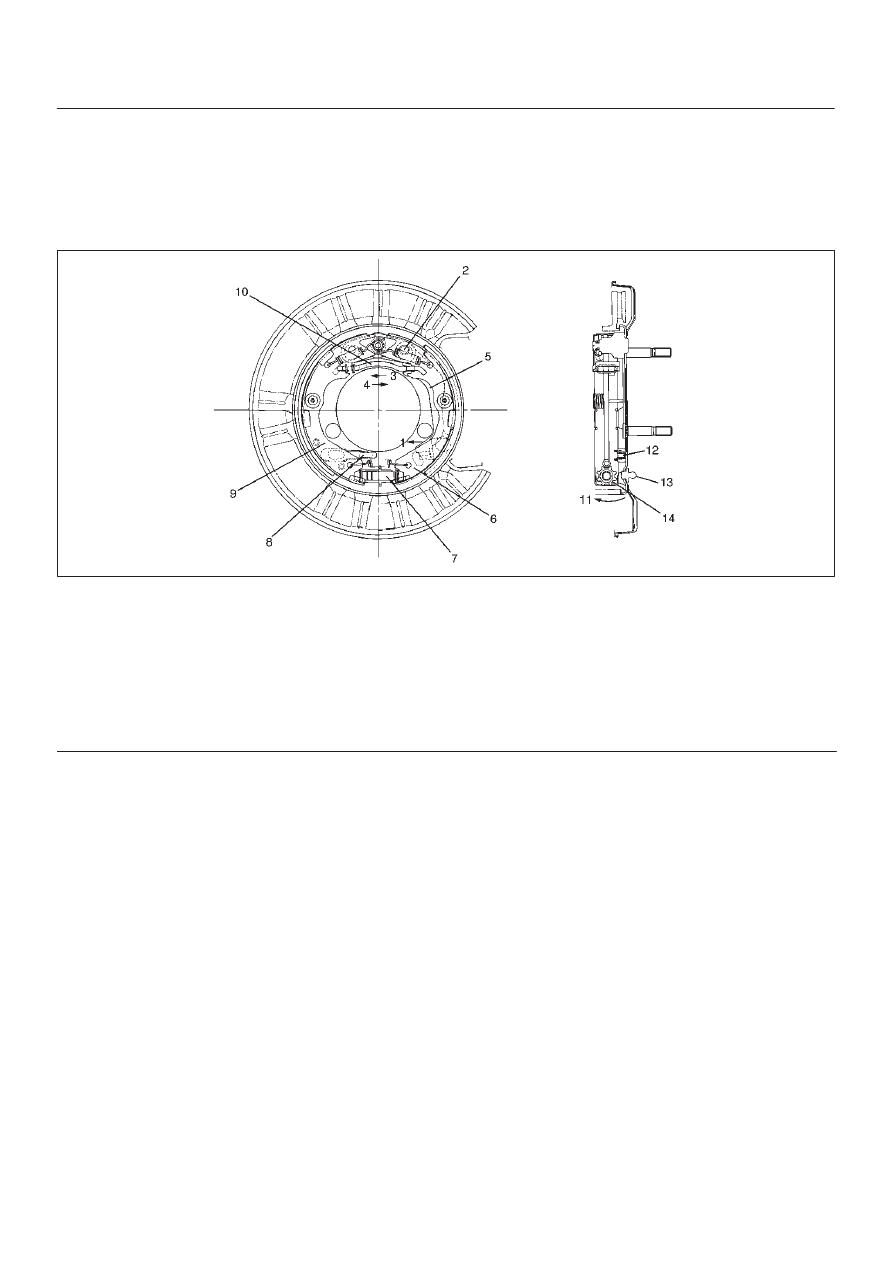

Operation

When pulled in the direction “A”, the parking lever presses
the secondary shoe against the brake drum using the
lever/shoe joint “B” as a fulcrum and pushes the strut in
the direction “C”. The strut ,in turn, presses the primary
shoe against the brake drum. Counter force “D” to the
primary shoe is transmitted again to the secondary shoe

through the fulcrum “B”. The secondary shoe contacts the
drum thereby producing braking effect. Clearance which
may result from worn parking brake shoe lining can be
adjusted by turning the adjusting screw. Refer to “Parking
Brake Adjustment” in this Section.

A05RS002

Legend

(1) Direction “A”
(2) Lever/Shoe Joint “B” as a fulcrum
(3) Direction “C”
(4) Counter Force “D”
(5) Parking Lever
(6) Secondary Shoe
(7) Adjusting Screw Notch

(8) Parking Cable Guide
(9) Primary Shoe

(10) Strut

(11) Shoe Expanding Direction

(12) Parking Brake Cable Guide
(13) Adjusting Hole Plug
(14) Adjusting Screw Notch

5D–3

PARKING BRAKE SYSTEM

Parking Brake Lever and Front Cable

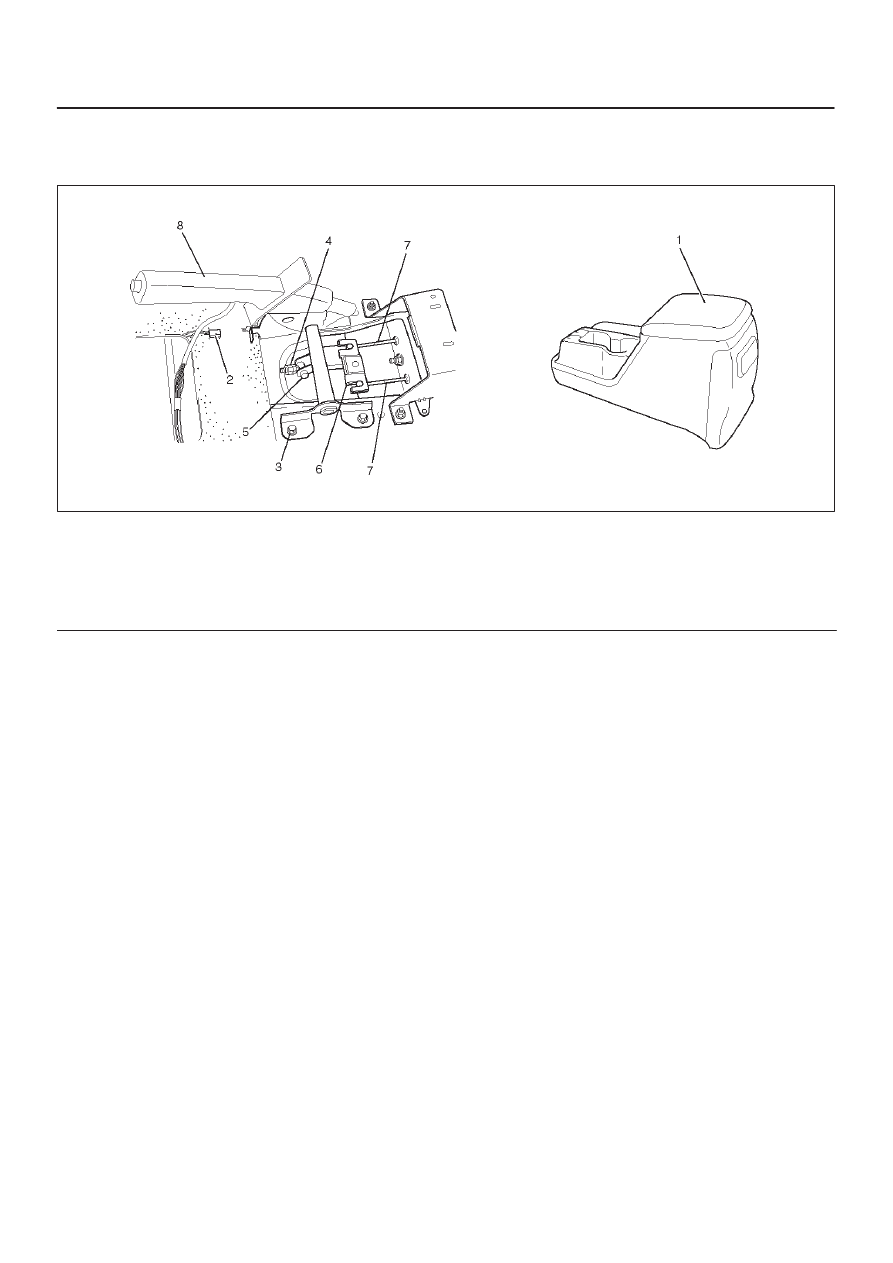

Parking Brake Lever Assembly and Associated Parts

311RW013–1

Legend

(1) Rear Console
(2) Switch Connector
(3) Bolt
(4) Adjust Nut and Lock Nut

(5) Trunnion Pin
(6) Equalizer
(7) Parking Brake Rear Cable
(8) Parking Brake Lever

Removal

1. Remove rear console (1).

D

Refer to Body and Accessories section.

2. Disconnect switch connector (2).
3. Remove bolt (3).
4. Remove adjust nut and lock nut (4).
5. Pull out equalizer (6) from trunnion pin (5).
6. Disconnect trunnion pin (5) from Parking brake lever

(8).

7. Disconnect parking brake rear cable (7).

Installation

1. Apply grease (BESCO L–2 or equivalent) to the

connecting portion of the rear cable (7) and equalizer
(6).

2. Connect parking brake rear cable (7) to equalizer
3. Install trunnion pin (5) to parking brake lever (8).
4. Insert equalizer (6) into trunnion pin (5) and tighten

adjust nut and lock nut (4).

D

To adjust the parking brake lever, see “Parking
Brake Adjustment” in this section.

Lock Nut Torque: 13 N·m (1.3 kg·m/113 lb in)

5. Tighten the parking brake lever fixing bolt (3) to the

specified torque.

Torque: 15 N·m (1.5 kg·m/11 lb ft)

6. Connect switch connector (2).
7. Install rear console (1).

D

Refer to Body and Accessories section.
