Opel Frontera UE. Manual - part 735





5C–10

POWER-ASSISTED BRAKE SYSTEM

15. Retighten the brake pipe, then release the brake

pedal slowly.

16. Repeat steps 13 through 15 until no air comes out of

the port when the brake pipe is loosened

NOTE:  Be very careful not to allow the brake fluid to
come in contact with painted surfaces.

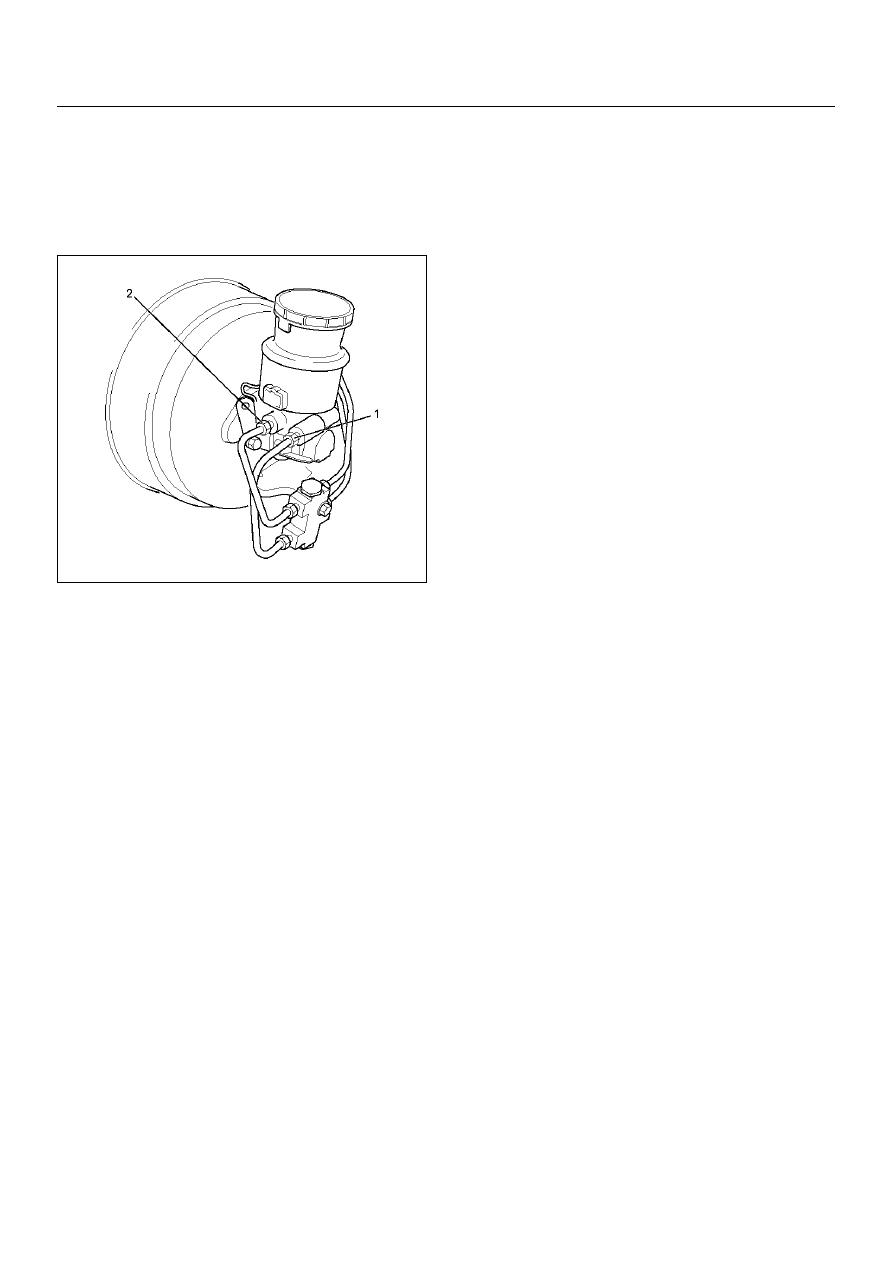

330RW012

17. Bleed the air from the front wheel brake pipe

connection (2) by repeating steps 7 through 16.

Bleeding the Caliper

18. Bleed the air from each wheel in the order listed

below:

• Right rear caliper or wheel cylinder

• Left rear caliper or wheel cylinder

• Right front caliper

• Left front caliper
Conduct air bleeding from the wheels in the above
order. If no brake fluid comes out, it suggests that air
is mixed in the master cylinder. In this case, bleed
air from the master cylinder. In this case, bleed air
from the master cylinder in accordance with steps 7
through 17, and then bleed air from the caliper or
wheel cylinder.

19. Place the proper size box end wrench over the

bleeder screw.

20. Cover the bleeder screw with a transparent tube,

and submerge the free end of the transparent tube
in a transparent container containing brake fluid.

21. Pump the brake pedal slowly three (3) times (once/

sec), then hold it depressed.

22. Loosen the bleeder screw until fluid flows through

the tube.

23. Retighten the bleeder screw.

24. Release the brake pedal slowly.

25. Repeat steps 21 through 24 until the air is

completely removed.
It may be necessary to repeat the bleeding

procedure 10 or more times for front wheels and 15
or more times for rear wheels.

26. Go to the next wheel in the sequence after each

wheel is bled.
Be sure to monitor reservoir fluid level.

27. Depress the brake pedal to check if you feel

“sponginess" after the air has been removed from all
wheel cylinders and calipers.
If the pedal feels “spongy", the entire bleeding
procedure must be repeated.

28. After the bleeding operation is completed on the

each individual wheel, check the level of the brake
fluid in the reservoir and replenish up to the “MAX"
level as necessary.

29. Attach the reservoir cap.

If the diaphragm inside the cap is deformed, reform
it and install.

30. Stop the engine.

Flushing Brake Hydraulic System

It is recommended that the entire hydraulic system be
thoroughly flushed with clean brake fluid whenever new
parts are installed in the hydraulic system.
Approximately one quart of fluid is required to flush the
hydraulic system.
The system must be flushed if there is any doubt as to
the grade of fluid in the system or if fluid has been used
which contains the slightest trace of mineral oil. All
rubber parts that have been subjected to a
contaminated fluid must be replaced.

Brake Pipes and Hoses

The hydraulic brake system components are
interconnected by special steel piping and flexible
hoses. Flexible hoses are used between the frame and
the front calipers, the frame and rear axle case and the
rear axle and the rear calipers.
When the hydraulic pipes have been disconnected for
any reason, the brake system must be bled after
reconnecting the pipe. Refer to “Bleeding the Brake
Hydraulic System" in this section.

Brake Hose Inspection

The brake hose should be inspected at least twice a
year. The brake hose assembly should be checked for
road hazard, cracks and chafing of the outer cover, and
for leaks and blisters. Inspect for proper routing and
mounting of the hose. A brake hose that rubs on
suspension components will wear and eventually fail. A
light and mirror may be needed for an adequate
inspection.  If any of the above conditions are observed
on the brake hose, adjust or replace the hose as
necessary.

CAUTION:  Never allow brake components such as
calipers to hang from the brake hoses, as damage
to the hoses may occur.

POWER-ASSISTED BRAKE SYSTEM

5C–11

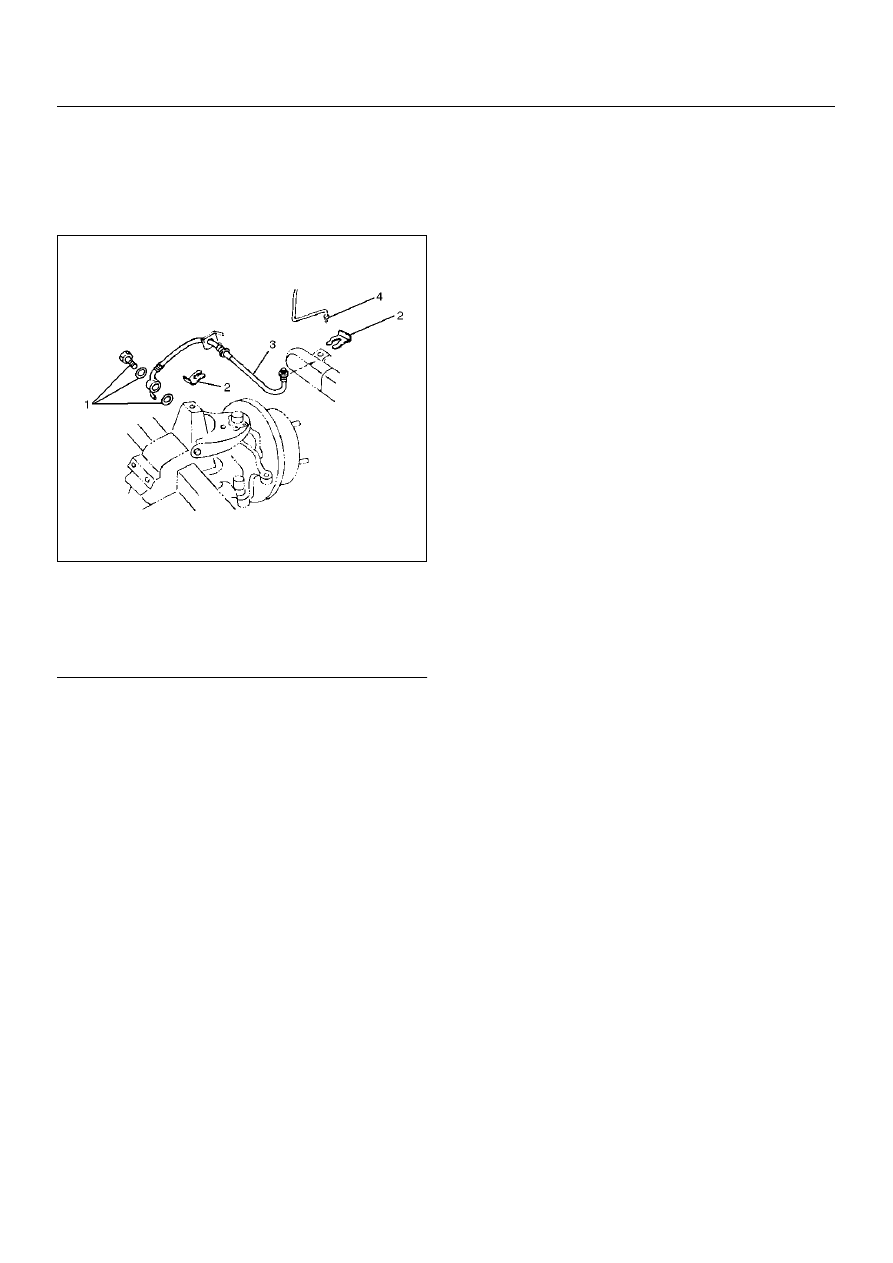

Front Caliper Brake Hose

Front Caliper Brake Hose and
Associated Parts

352RW001

Legend

EndOFCallout

Removal

1. Raise the vehicle and support it with suitable safety

stands.

2. Remove the wheel and tire assembly.

3. Clean dirt, grease, and other foreign material off the

hose fittings at both ends.

4. Disconnect brake pipe.

5. Remove clip.

6. Remove bolt and gasket.

7. Remove hose.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Tighten the brake pipes to the specified torque

Torque: 19 N·m (1.9 kg·m/14 lbft)

2. Tighten the bolt to the specified torque.

Torque: 34 N·m (3.5 kg·m/25 lbft)

NOTE:  Always use new gaskets and be sure to put the
hooked edge of the flexible hose end into the anti–
rotation cavity.
After installing the brake hoses, bleed the brakes as
described in this section.

(1) Bolt and Gasket
(2) Clip
(3) Hose
(4) Brake Pipe

5C–12

POWER-ASSISTED BRAKE SYSTEM

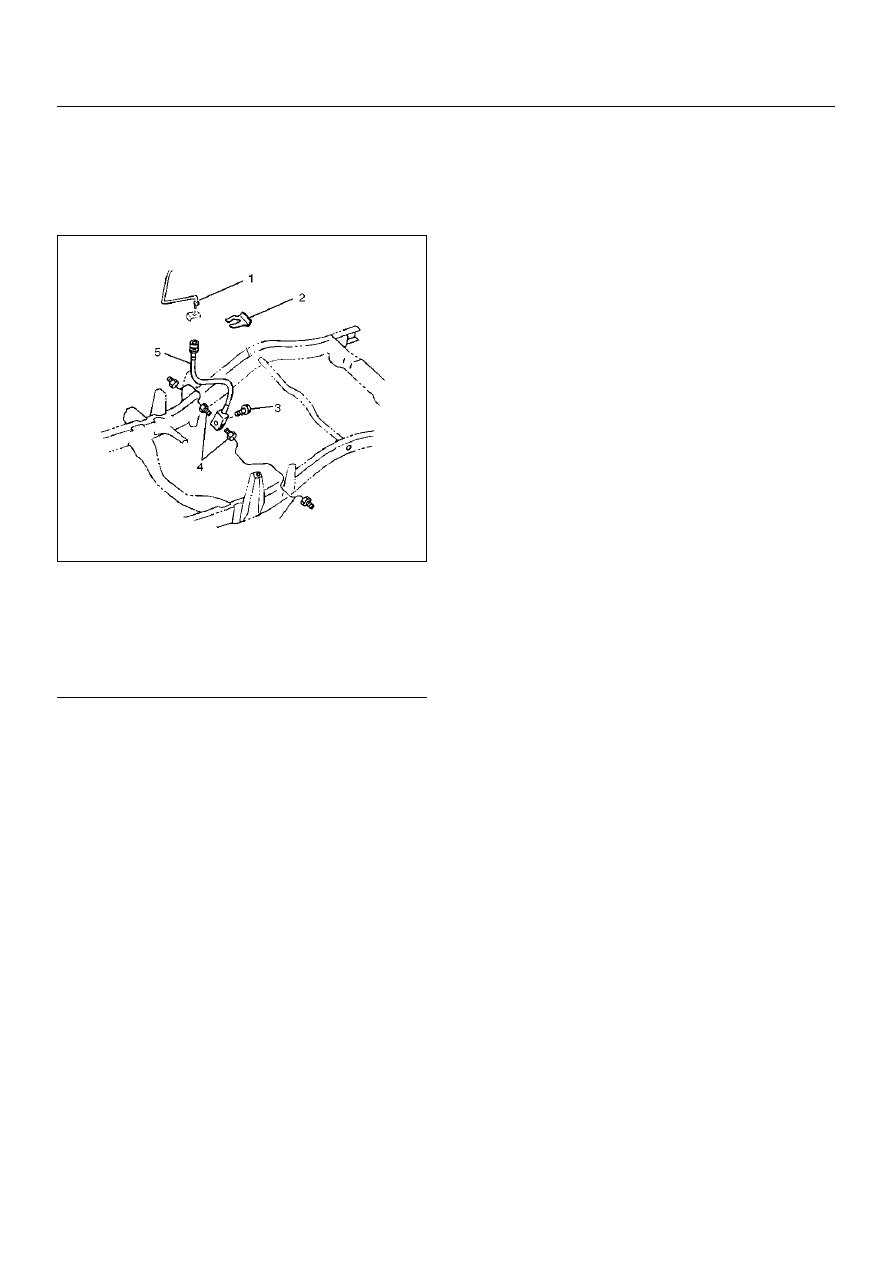

Rear Axle Brake Hose

Rear Axle Brake Hose and
Associated Parts

352RW002

Legend

EndOFCallout

Removal

1. Raise the vehicle and support it with suitable safety

stands.

2. Remove wheel and tire assembly.

3. Clean dirt, grease, and other foreign material off the

hose fittings at both ends.

4. Disconnect brake pipe.

5. Remove clip.

6. Remove brake pipe.

7. Remove bolt.

8. Remove hose.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Tighten the brake pipes to the specified torque

Torque: 19 N·m (1.9 kg·m/14 lbft)

2. Tighten the bolt to the specified torque.

Torque: 15 N·m (1.5 kg·m/11 lbft)

After installing the brake hoses, bleed the brakes as
described in this section.

(1) Brake Pipe
(2) Clip
(3) Bolt
(4) Brake Pipe
(5) Hose

POWER-ASSISTED BRAKE SYSTEM

5C–13

Brake Pipe

Removal

1. Raise the vehicle and support it with suitable safety

stands.

2. Remove wheel and tire assembly as necessary.

3. Clean dirt, grease, and other foreign material off the

pipe fittings at both ends.

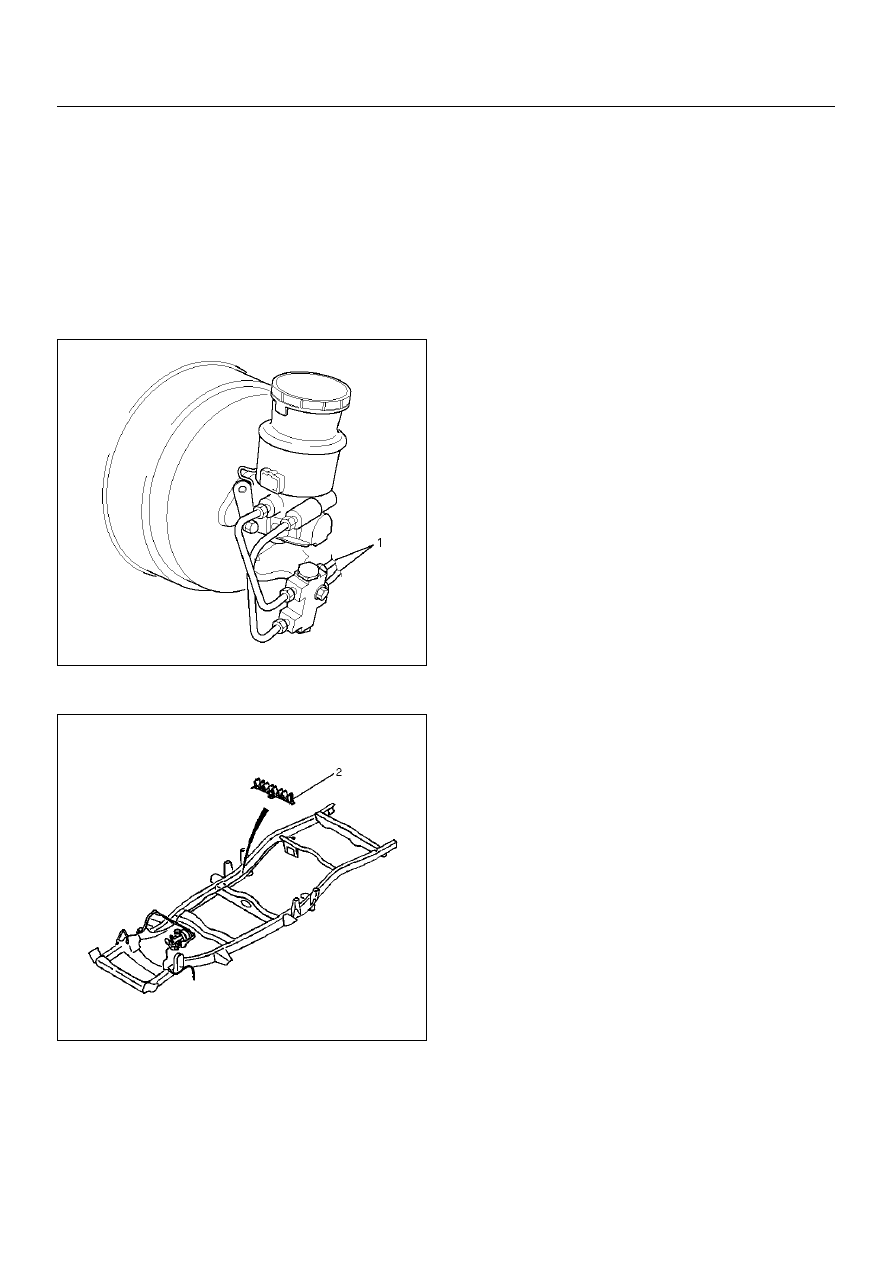

4. Remove brake pipe (1).

330RW011

5. Remove plastic clip (2).

330RW002

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Tighten the brake pipes to the specified torque.

Master cylinder and P&B valve sides

Torque: 15 N·m (1.5 kg·m/11 lbft)

Others

Torque: 16 N·m (1.6 kg·m/12 lbft)

After installing the brake pipes, bleed the brakes as
described in this section.
