Opel Frontera UE. Manual - part 731





BRAKE CONTROL SYSTEM

5A–55

Chart C-1-3 Rear Sensor Output Inspection Procedure

Chart TC-1 Sensor Output Inspection Procedure

Step

Action

Yes

No

1. Turn the key off.

2. Disconnect coil integrated module connector.

3. Jack up the vehicle with all four wheels off the ground

measure the AC voltage between coil integrated module
connector terminals while turning Rear wheel at a speed of 1
RPS:

Is the check between coil integrated module connector (C-4)
terminals 4 and 12 than under 200 mV?

Go to Step 2

OK.

Go to Step 3

1. Disconnect the wheel speed sensor.

2. Measure resistance between the wheel speed sensor

connector terminals 1 and 2.

Is the check between connector (F-4) terminals 1 and 2 within
1.2k - 2.0k ohms?

Connector is

faulty, or open

or short circuit

of harness

between wheel

speed sensor

connector and

coil integrated

module.

Inspect and

correct the

connector or

harness.

Go to Step 3

Wheel speed

sensor is faulty.

Replace the

wheel speed

sensor.

Go to Step 3

Reconnect all components, ensure all components are properly
mounted.
Was this step finished?

Repeat the “Basic

diagnostic flow

chart"

Go to Step 3

Step

Action

Yes

No

1. Connect TECH 2.

2. Check the wheel speed of each sensor by Data List.

Is the vehicle speed normal?

Go to Step 6

Go to Step 2

Check the sensor harness for suspected disconnection (check
while shaking harness/connector).
Is the sensor harness connection normal?

Replace speed

sensor.

Go to Step 4

Repair.

Go to Step 3

Check the wheel speed of each sensor by Data List.
Is the vehicle speed normal?

Go to Step 6

Go to Step 4

Check the sensor rotor.
Is the sensor rotor normal?

Replace speed

sensor.

Go to Step 5

Replace sensor

rotor.

Go to Step 5

Check the harness between coil integrated module and speed
sensor.
Is the harness connection normal?

Go to Step 6

Repair harness

or connector
between coil

integrated

module and

speed sensor.

Go to Step 6

Reconnect all components, ensure all components are properly
mounted.
Was this step finished?

Repeat the “Basic

diagnostic flow

chart"

Go to Step 6

5A–56

BRAKE CONTROL SYSTEM

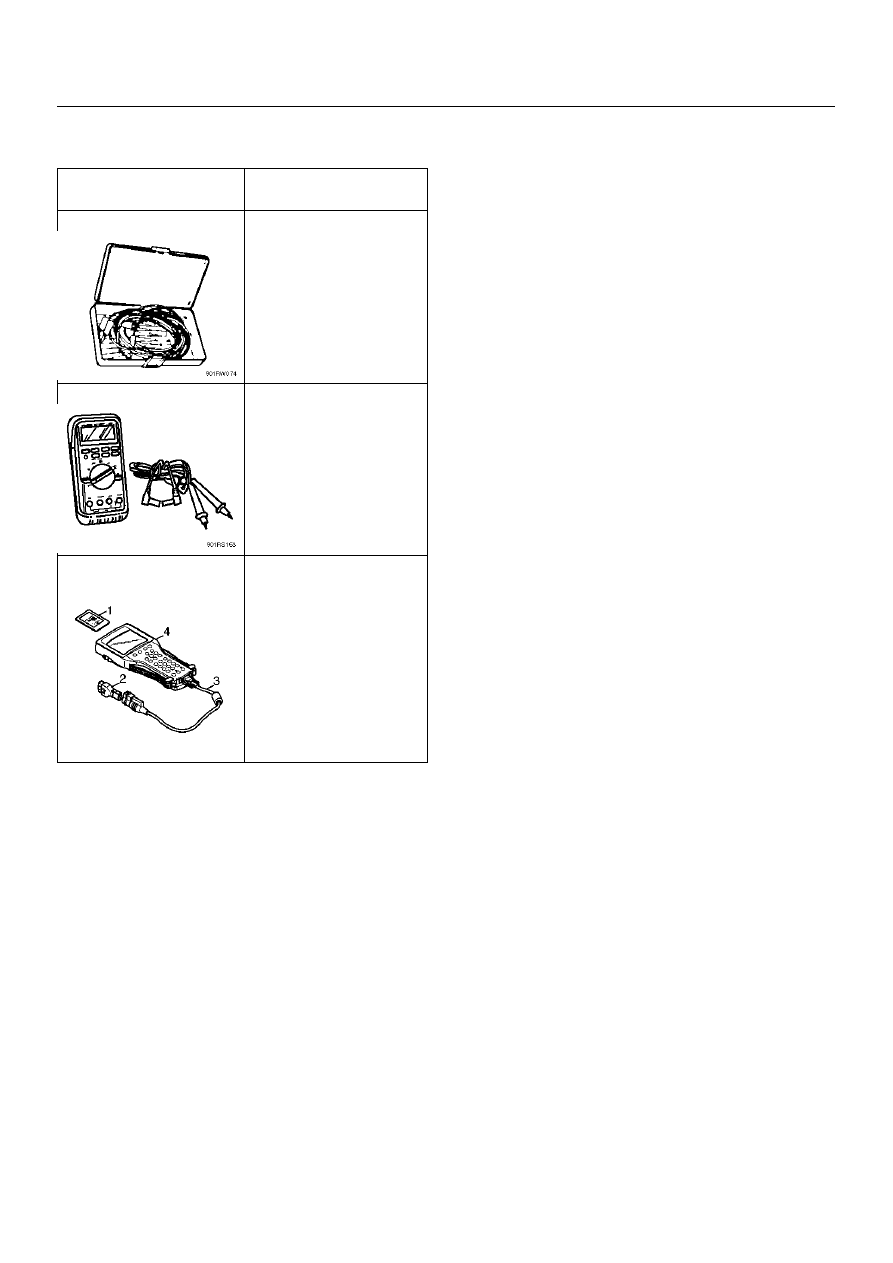

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–0385–0

(J–35616)

Connector test adapter kit

5–8840–0366–0

(J–39200)

High impedance

multimeter

7000086–ISU

Tech 2 Set

(1) PCMCIA Card

(2) SAE 16/19 Adapter

(3) DLC Cable

(4) Tech 2

ANTI-LOCK BRAKE SYSTEM

5B–1

BRAKES

ANTI-LOCK BRAKE SYSTEM

CONTENTS

Service Precaution......................................... 5B - 1

Electronic Hydraulic Control Unit .................. 5B - 2

Electronic Hydraulic Control Unit and

Associated Parts ....................................... 5B - 2

Removal ..................................................... 5B - 2
Disassembled View .................................... 5B - 3
Disassembly ............................................... 5B - 3
Reassembly ................................................ 5B - 3
Installation .................................................. 5B - 3

Front Wheel Speed Sensor ........................... 5B - 4

Front Wheel Speed Sensor and

Associated Parts ....................................... 5B - 4

Removal...................................................... 5B - 4
Inspection and Repair................................. 5B - 4
Installation................................................... 5B - 4

Rear Wheel Speed Sensor ........................... 5B - 5

Removal...................................................... 5B - 5
Inspection and Repair................................. 5B - 5
Installation................................................... 5B - 5

Service Precaution

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO  THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING  SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON  OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING, REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE  UNNEEDED SRS SYSTEM REPAIRS.

CAUTION:  Always use the correct fastener in the
proper location. When you replace a fastener,  use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement  after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant.  UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors)  on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque  and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts
and systems.

SECTION

5B–2

ANTI-LOCK BRAKE SYSTEM

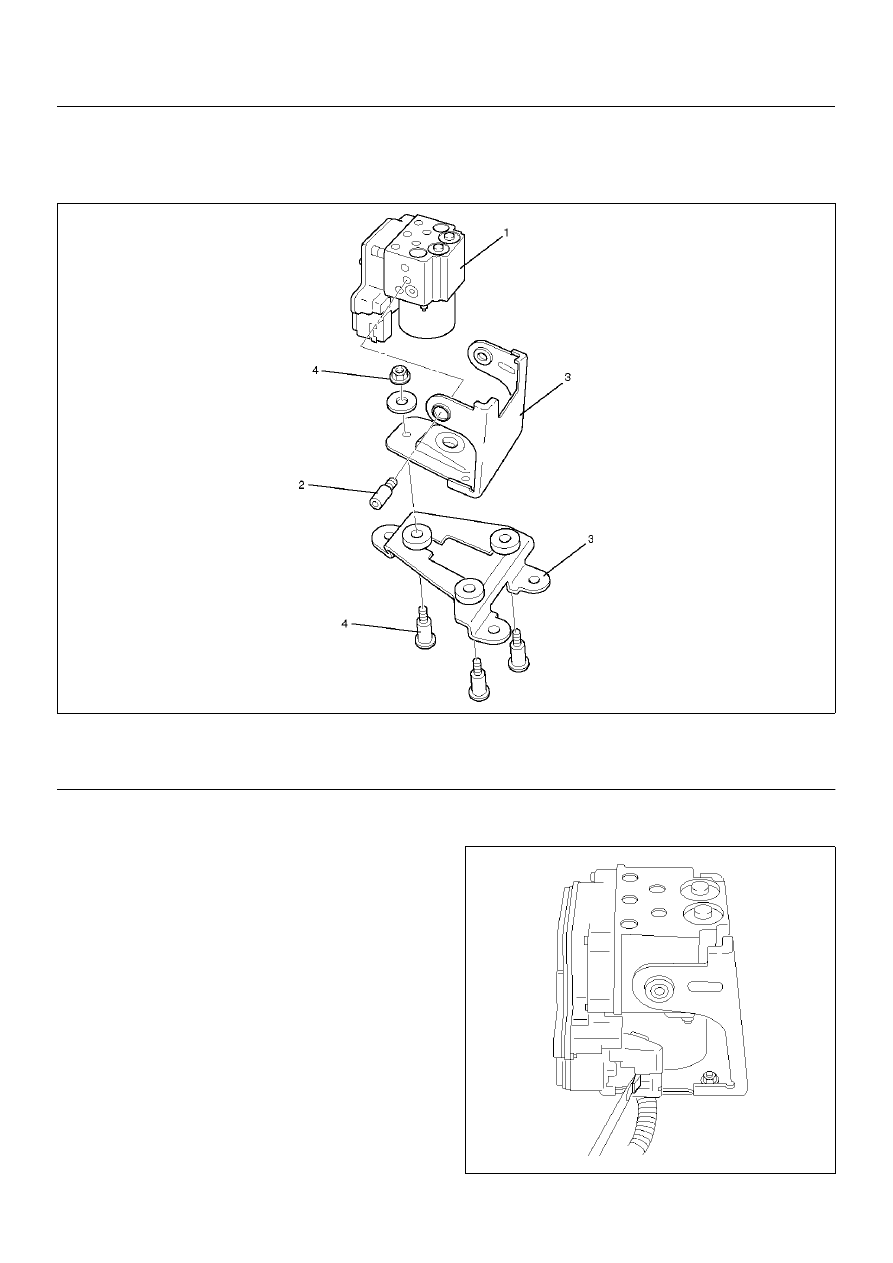

Electronic Hydraulic Control Unit

Electronic Hydraulic Control Unit and Associated Parts

350RW017

Legend

EndOFCallout

Removal

1. Remove brake pipes.

• After disconnecting brake pipe, cap or tape the

openings of the brake pipe to prevent the entry of
foreign matter.

2. Remove three bracke fixing bolts.

3. Disconnect red clip from harness connector.

350RW018

(1) EHCU
(2) Bolt

(3) Bracket
(4) Bolt and Nut
