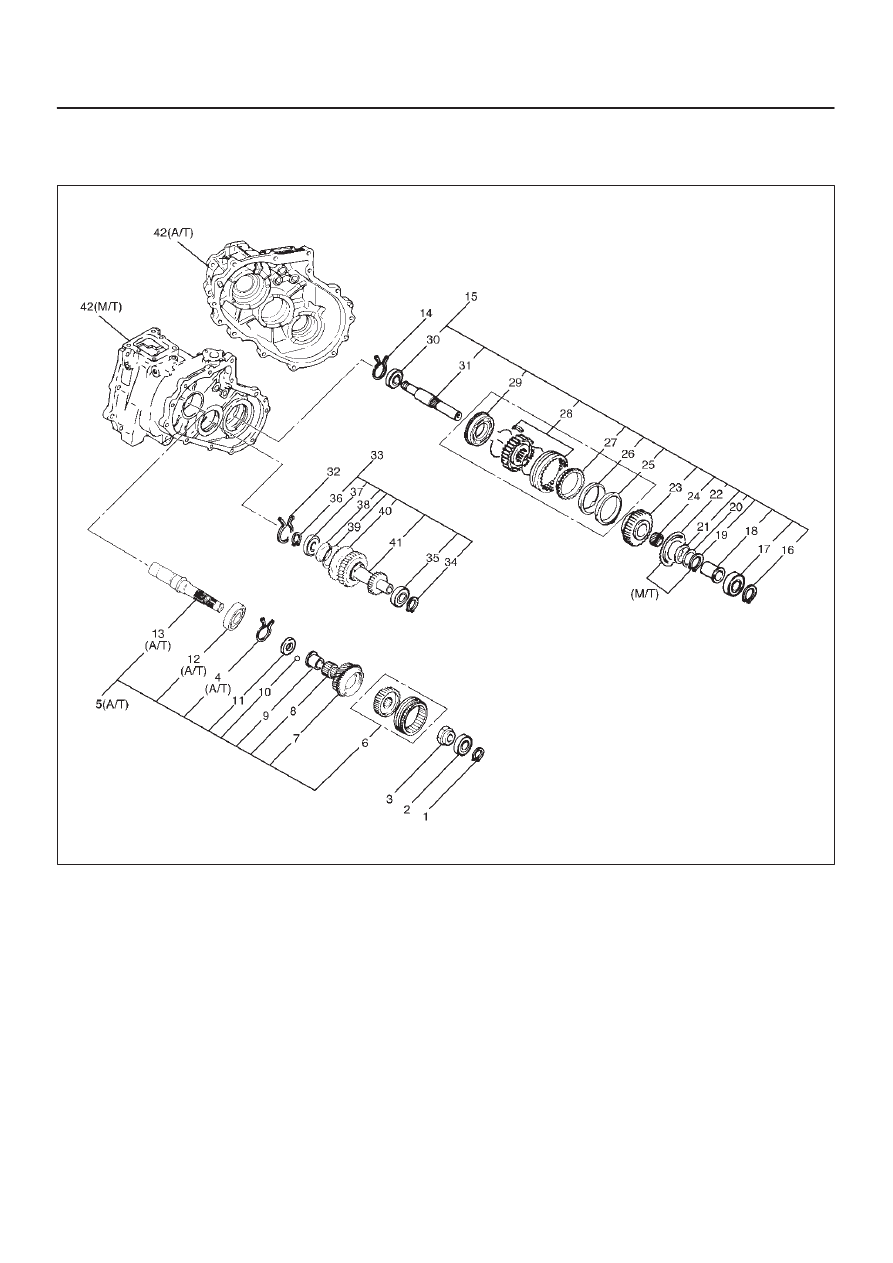

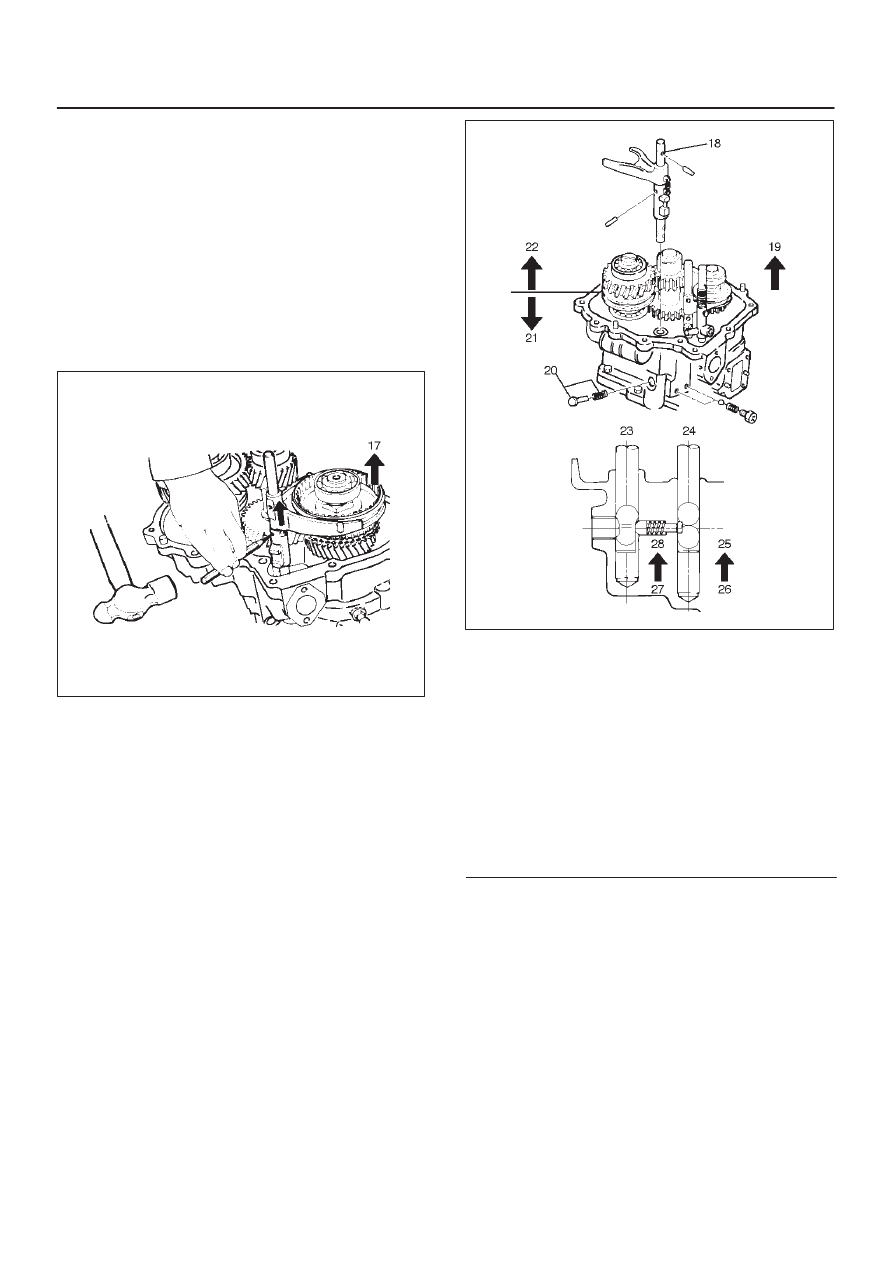

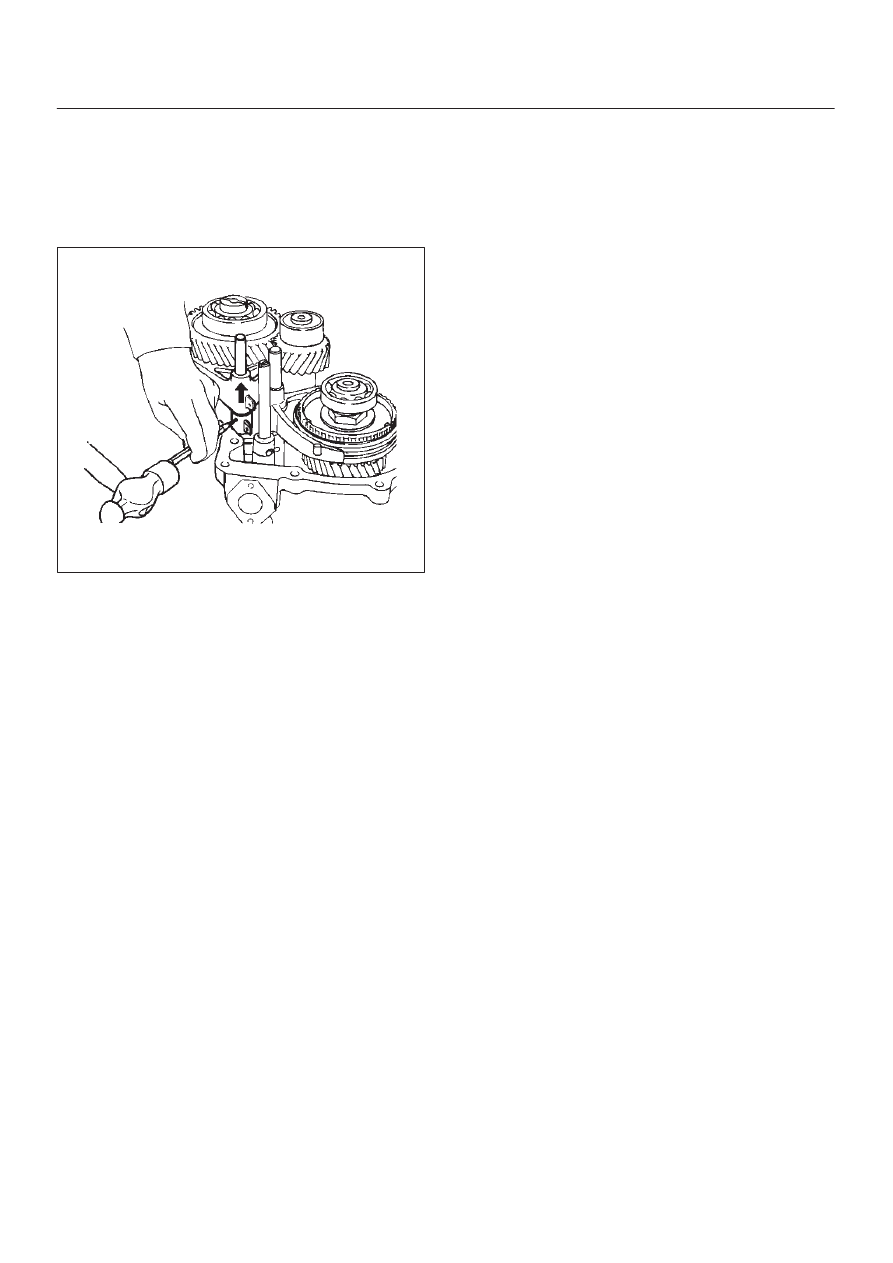

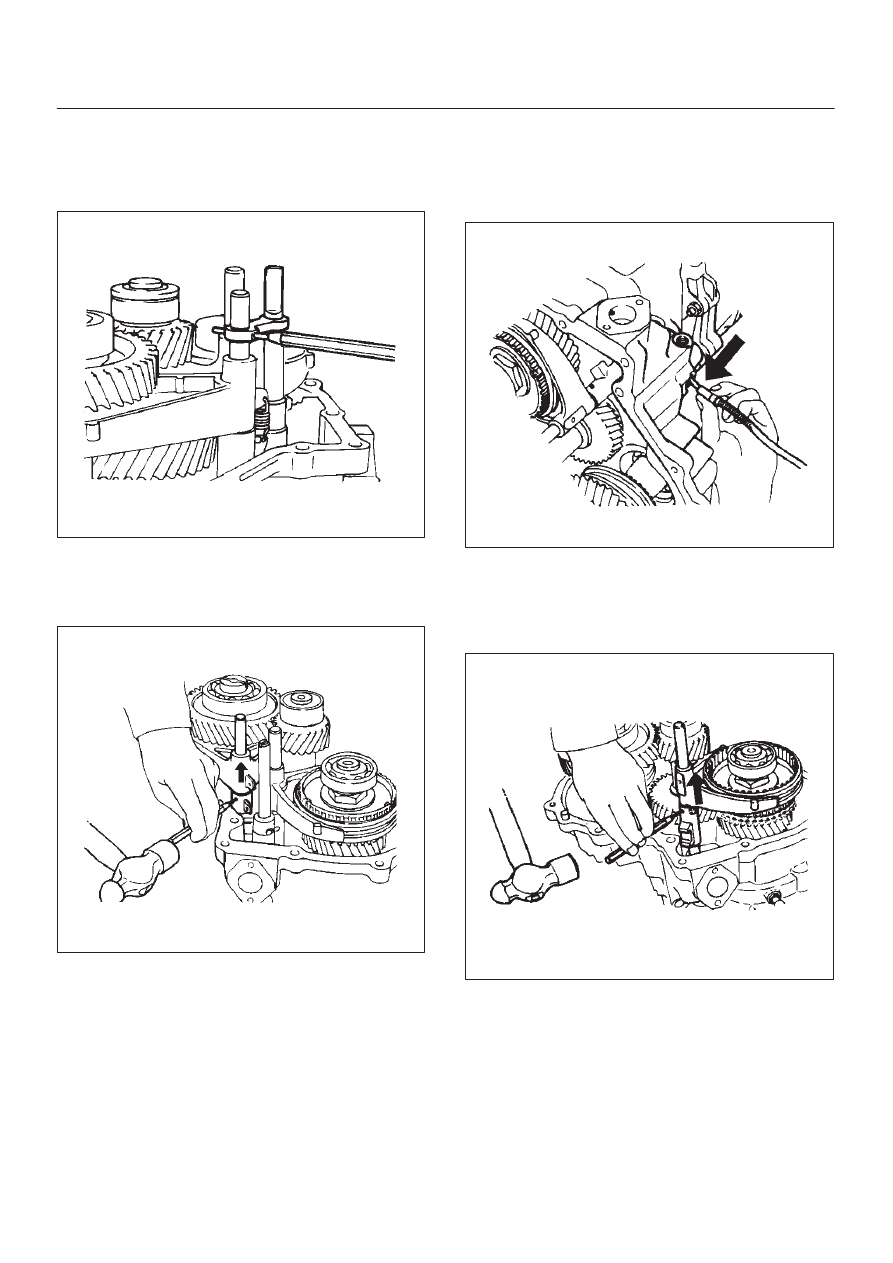

4D–20 TRANSFER CASE Disassembly 1. Remove detent ball, spring and plug (1). from the bridge (2). 262RW011 3. Remove spring (4). Remove the spring pin (3) from the block (7). Remove 262RW022 5. Remove shift arm (6). and spring (10) from the transfer case (16). 262RS005 9. Remove select rod assembly (11). 10. Use a spring pin remover to remove the shift arm spring pin (12) from the shift arm (14) and shift block 262RS006 11. Remove shift arm (14). 12. Remove shift block (15) from transfer case (16). |
