4A2–34

DIFFERENTIAL (REAR)

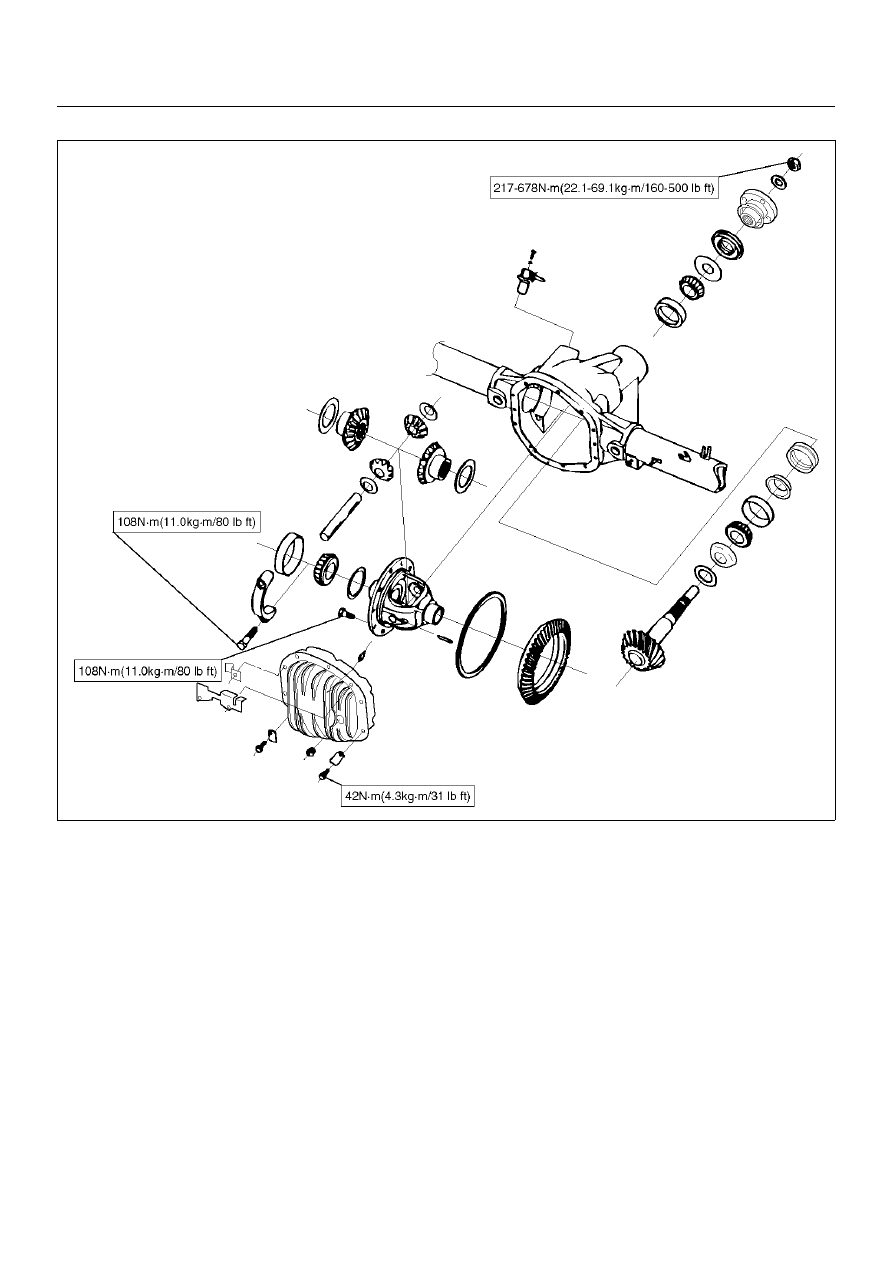

Torque Specifications

E04RX010

DIFFERENTIAL (REAR)

4A2–35

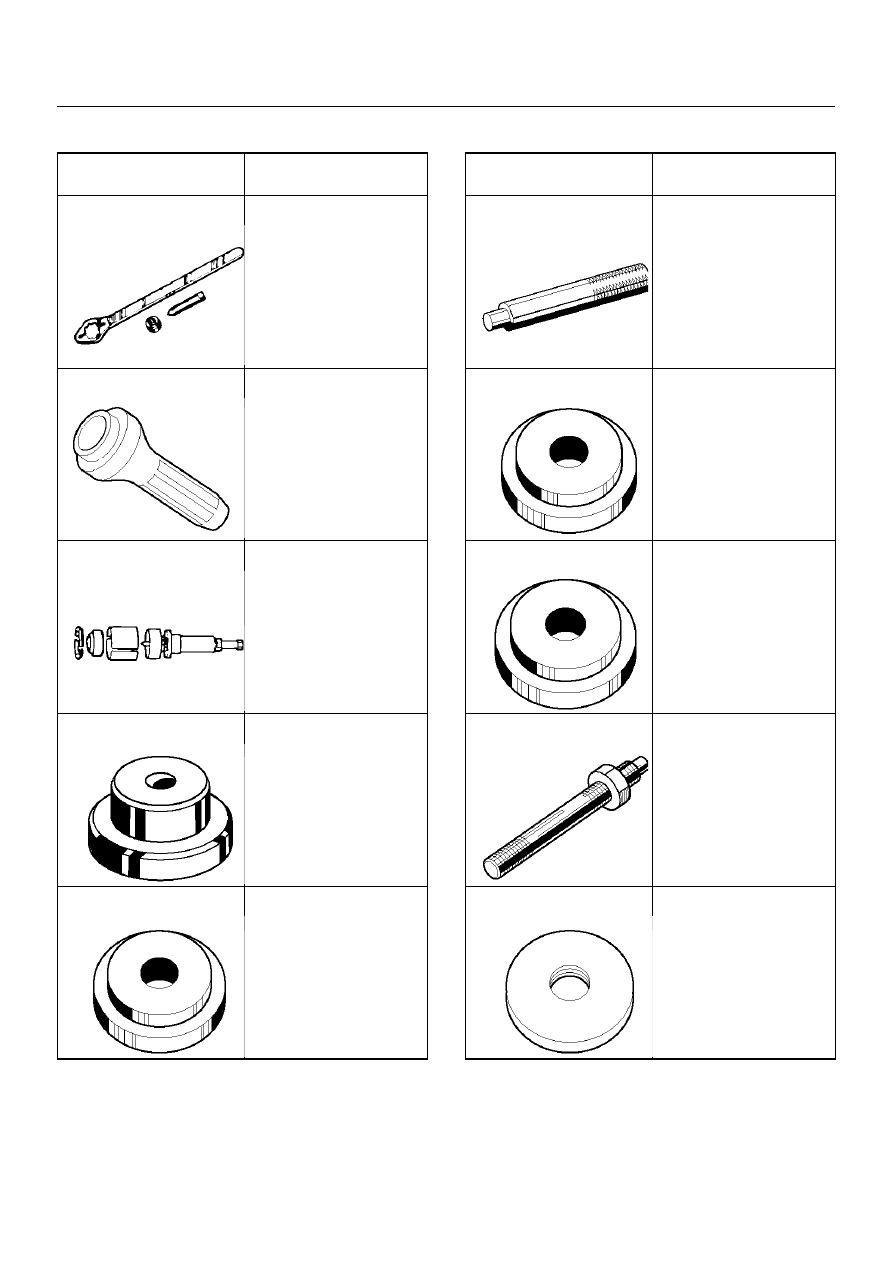

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–0133–0

(J–8614–01)

Pinion flange holder

5–8840–2165–0

(J–37263)

Installer; Pinion oil seal

5–8840–2587–0

(J–42379)

Remover; Bearing

5–8840–2585–0

(J–39830)

Adapter; Side bearing

plug

5–8840–0008–0

(J–8611–01)

Installer; Outer bearing

outer race

5–8840–0007–0

(J–8592)

Grip

5–8840–2569–0

(J–42836)

Installer; Inner bearing

outer race

5–8840–2575–0

(J–42824)

Pilot;Outer

5–8840–0127–0

(J–21777–43)

Nut & Stud

5–8840–2573–0

(J–42827)
Pilot;Inner

ILLUSTRATION

TOOL NO.

TOOL NAME

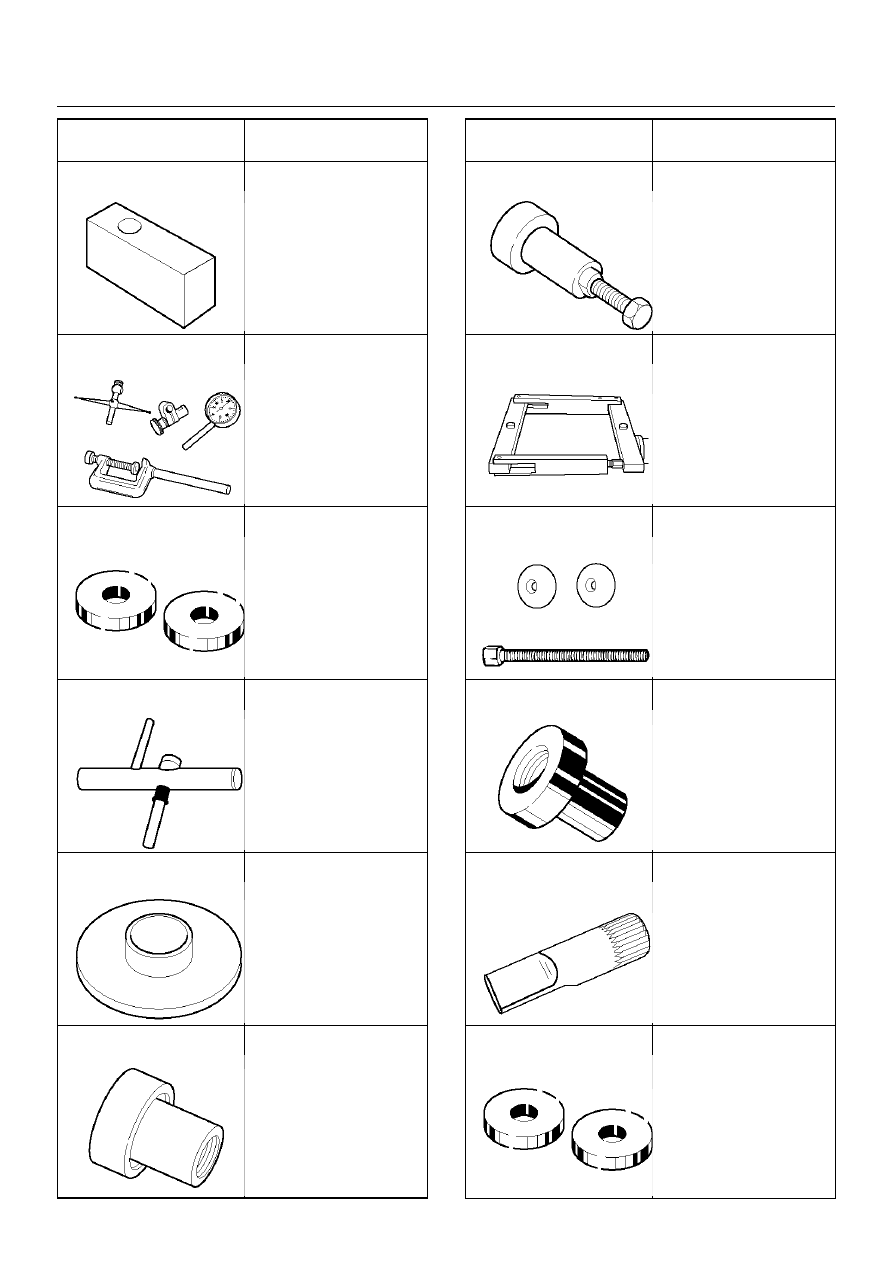

4A2–36

DIFFERENTIAL (REAR)

5–8840–2578–0

(J–39837–2)

Gauge plate

5–8840–0126–0

(J–8001)

Dial indicator

5–8840–2579–0

(J–39837–1)

Disc (2 required)

5–8840–0128–0

(J–23597–1)

Arbor

5–8840–2574–0

(J–42828)

Installer; Pinion bearing

5–8840–2580–0

(J–21784)

Installer; Side bearing

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–2323–0

(J–39602)

Remover; Outer bearing

5–8840–2581–0

(J–24385–B)

Spreader

5–8840–2586–0

(J–39858)

Clutch pack unloading

tool kit

5–8840–2582–0

(J–39834)

Limited–slip differential

(LSD) service adapter

5–8840–2583–0

(J–39824)

Holder

5–8840–2584–0

(J–39836)

Side bearing preload

master bearings

ILLUSTRATION

TOOL NO.

TOOL NAME

DRIVELINE CONTROL SYSTEM

4B–1

DRIVELINE/AXLE

DRIVELINE CONTROL SYSTEM

CONTENTS

Service Precaution......................................... 4B - 1

Shift On The Fly System ............................... 4B - 2

Outline of Shift on The Fly System ............. 4B - 2
Functions of Indicator Lamp ....................... 4B - 6
Diagnosis .................................................... 4B - 7

Shift On The Fly Vacuum Piping and

Electrical Equipment ................................ 4B - 18

Vacuum Piping Diagram ............................. 4B - 18

Actuator Assembly...................................... 4B - 18
Vacuum Tank.............................................. 4B - 18
Inspection and Repair................................. 4B - 19

4WD Control Unit .......................................... 4B - 22

4WD Control Unit Associated Parts............ 4B - 22
Removal...................................................... 4B - 23
Installation................................................... 4B - 23

Service Precaution

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).   REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER  YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING.  WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING,  REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT  IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.

CAUTION:  Always use the correct fastener in the
proper location.  When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will  call out those fasteners that require a
replacement after removal. ISUZU will also call out
the  fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do  not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors) on threaded  fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener  torque and the joint
clamping force, and may damage the fastener. When
you install fasteners,  use the correct tightening
sequence and specifications. Following these
instructions can help you  avoid damage to parts
and systems.
