4A2–10

DIFFERENTIAL (REAR)

Pinion Oil Seal

Pinion Oil Seal and Associated Parts

420RW013

Legend

EndOFCallout

Removal

1. Remove the rear propeller shaft.  Refer to Rear

Propeller Shaft in this section.

2. Drain the rear axle oil.

3. Check and record preload with an inch pound

torque wrench. This will give combined pinion
bearing, seal, carrier bearing, axle bearing and seal
preload.

425RW018

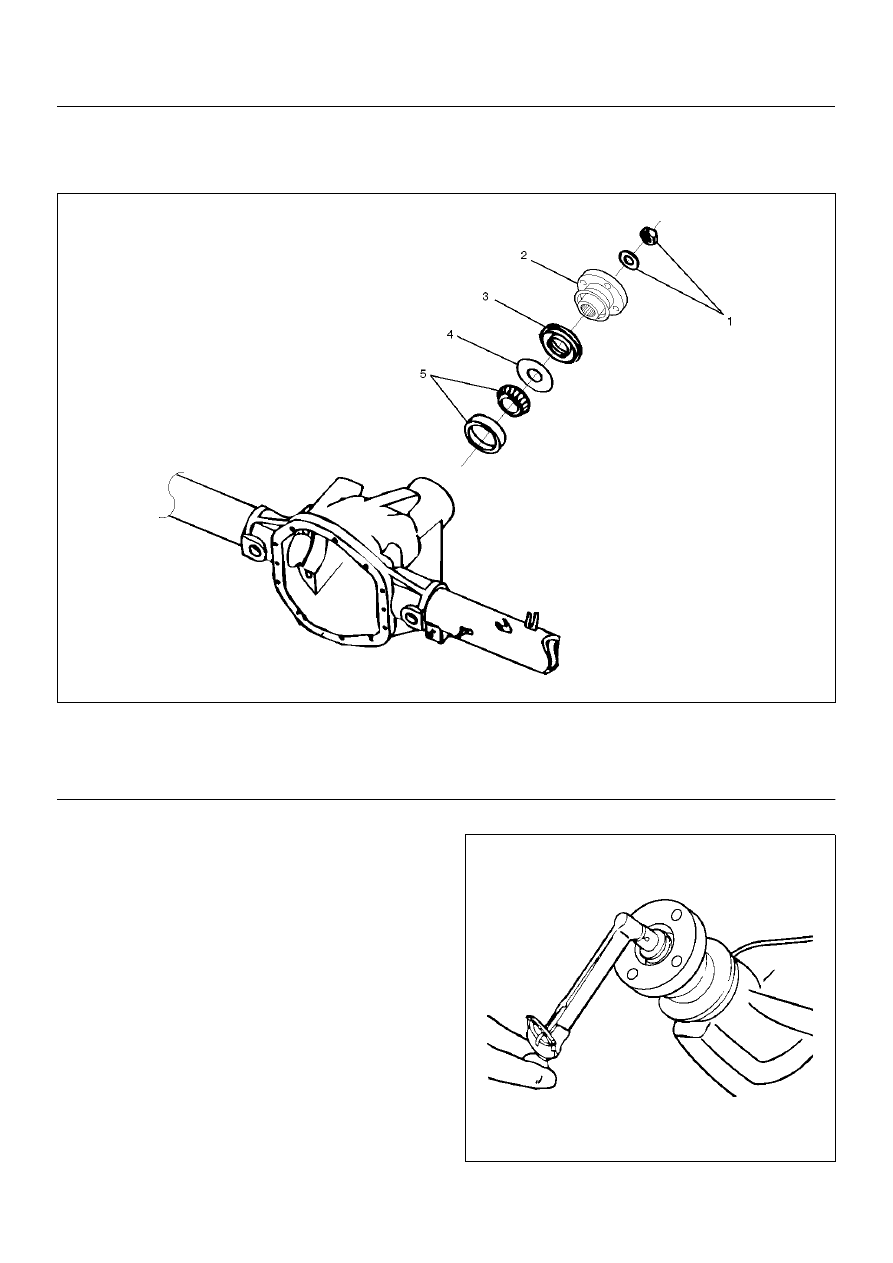

(1) Flange Nut and Washer
(2) Flange
(3) Oil Seal

(4) Outer Oil Seal Slinger
(5) Outer Pinion Bearing (Cup and Cone)

DIFFERENTIAL (REAR)

4A2–11

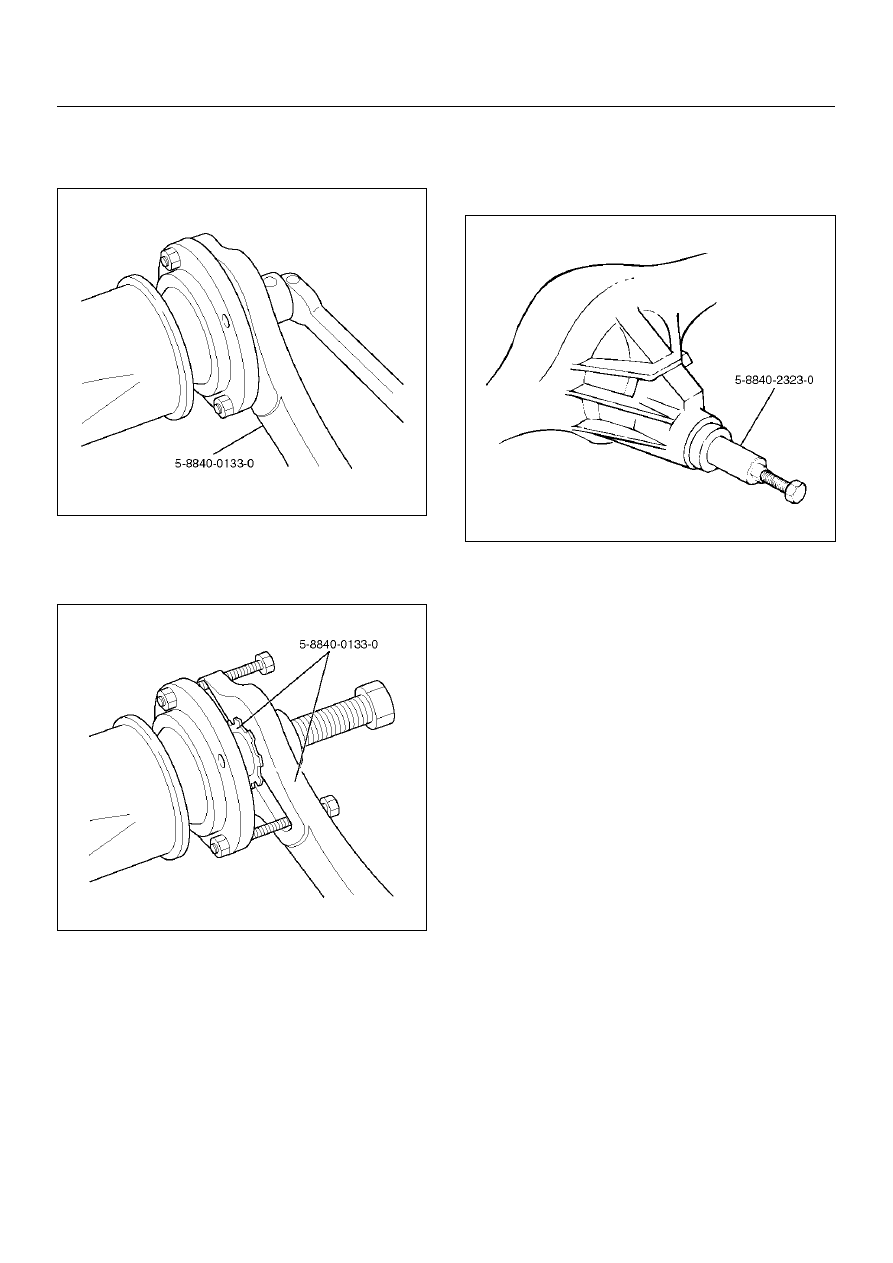

4. Remove flange nut and washer by using pinion

flange holder 5–8840–0133–0 after raising up its
staked parts completely.

425RW070

5. Remove flange by using 5–8840–0133–0.

• Have a suitable container in place to catch

lubricant.

425RW071

6. Remove oil seal.

7. Remove pinion oil seal slinger.

8. Remove outer bearing by using remover 5–8840–

2323–0.

425RW072

9. Remove collapsible spacer.

Inspection and Repair

Make necessary correction or parts replacement if
wear, damage, corrosion or any other abnormal
condition are found through inspection.
Check the following parts.

1. Seal surface of the flange.

2. Cage bore for burns.

Installation

1. Install collapsible spacer, discard the used

collapsible spacer and install a new one.

2. Install outer bearing.

4A2–12

DIFFERENTIAL (REAR)

NOTE:  Do not drive in, but just temporarily set in the
outer bearing by hand, which should be indirectly
pressed in finally by tightening the flange nut.

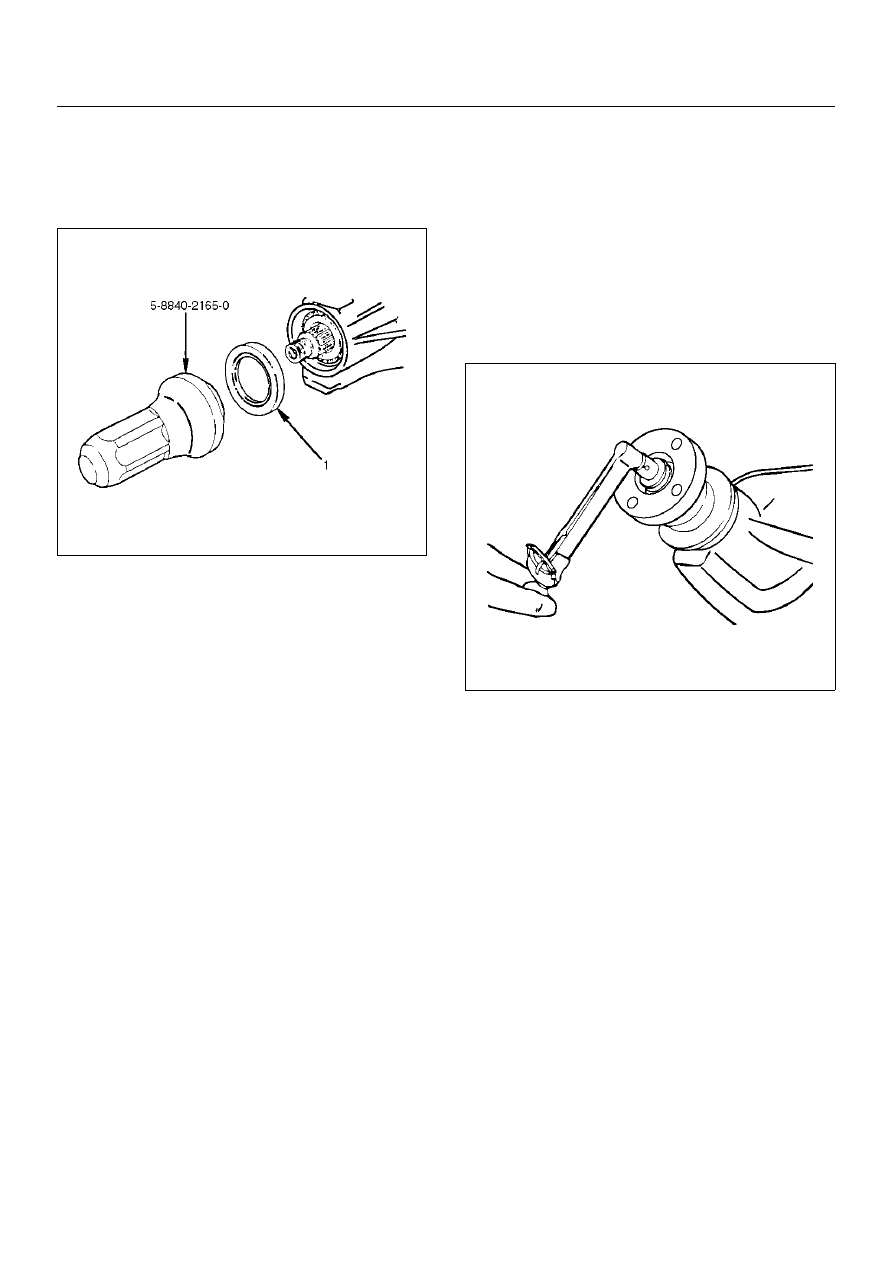

3. By using the seal installer 5–8840–2165–0, install a

new oil seal (1) that has grease on seal lip.

425RW050

4. Install flange.

5. The pinion washer and a new nut while holding the

pinion flange with 5–8840–0133–0.

• Tighten the nut until the pinion end play is just

taken up. Rotate the pinion while tightening the
nut to seat the bearings. Once there is not end
play in the pinion, the preload torque should be
checked.

• Remove 5–8840–0133–0. Using an inch-pound

torque wrench, check to make sure the pinion
preload is equal to or slightly over the reading
recorded during removal.

425RW018

6. Install propeller shaft to the frange.

7. Install bolt and nut. Tighten the bolt and nut to the

specified torque.

Torque: 63N·m (6.4kg·m/46lbft)

DIFFERENTIAL (REAR)

4A2–13

Differential Assembly

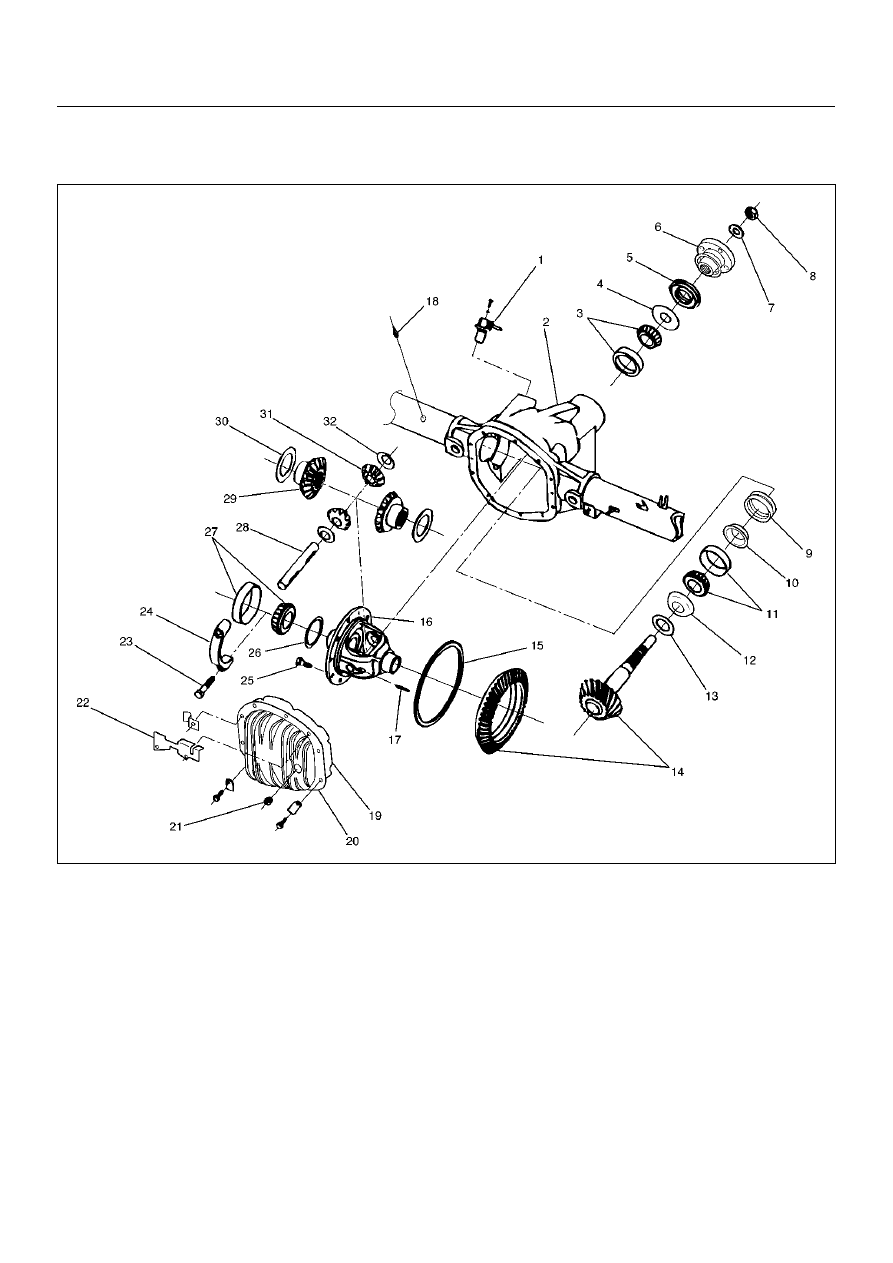

Disassembled View

420RW018

Legend

(1) ABS Speed Sensor
(2) Housing
(3) Outer Pinion Bearing (Cup and Cone)
(4) Outer Oil Slinger
(5) Oil Seal
(6) Companion Flange Assembly
(7) Pinion Nut Washer
(8) Pinion Nut
(9) Collapsible Spacer

(10) Baffle Plate
(11) Inner Pinion Bearing (Cup and Cone)
(12) Inner Oil Slinger
(13) Pinion gear adj. Shim-Selective (Position)
(14) Ring gear and Pinion Gear Assembly
(15) Exciter Ring

(16) Differential Case
(17) Lock Pin
(18) Axle Vent
(19) Gasket
(20) Cover and Clip Assembly
(21) Fill Plug (with Magnet)
(22) Mounting Bracket
(23) Side Bearing Cap Bolt
(24) Side Bearing Cap
(25) Drive Gear Bolts
(26) Differential Adjustment Shims (Side Bearing

Preload and Ring Gear/Pinion Backlash)

(27) Side Bearing (Cup and Cone)
(28) Differential Shaft
(29) Differential Side Gears
