POWER-ASSISTED STEERING SYSTEM

2A–29

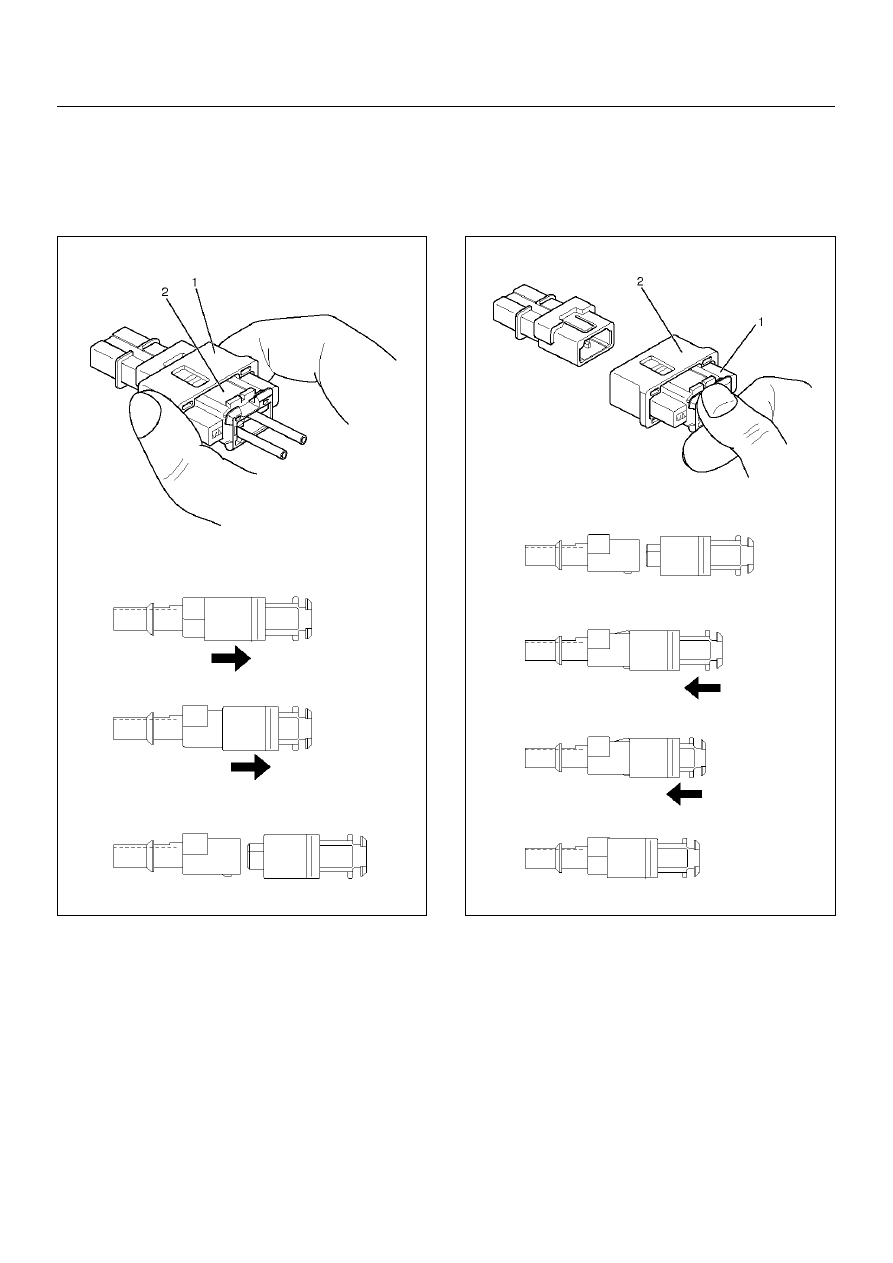

Removal

To remove the connector, hold the cover insulator(1) and
pull it. The cover insulator slides and lock will be
released.
Do not hold the socket insulator(2).

827RW028

Installation

To install the connector, hold the soket insulator(1) and
insert it. The cover insulator slides and connector will be
locked.
Do not hold the cover insulator(2).

827RW027

2A–30

POWER-ASSISTED STEERING SYSTEM

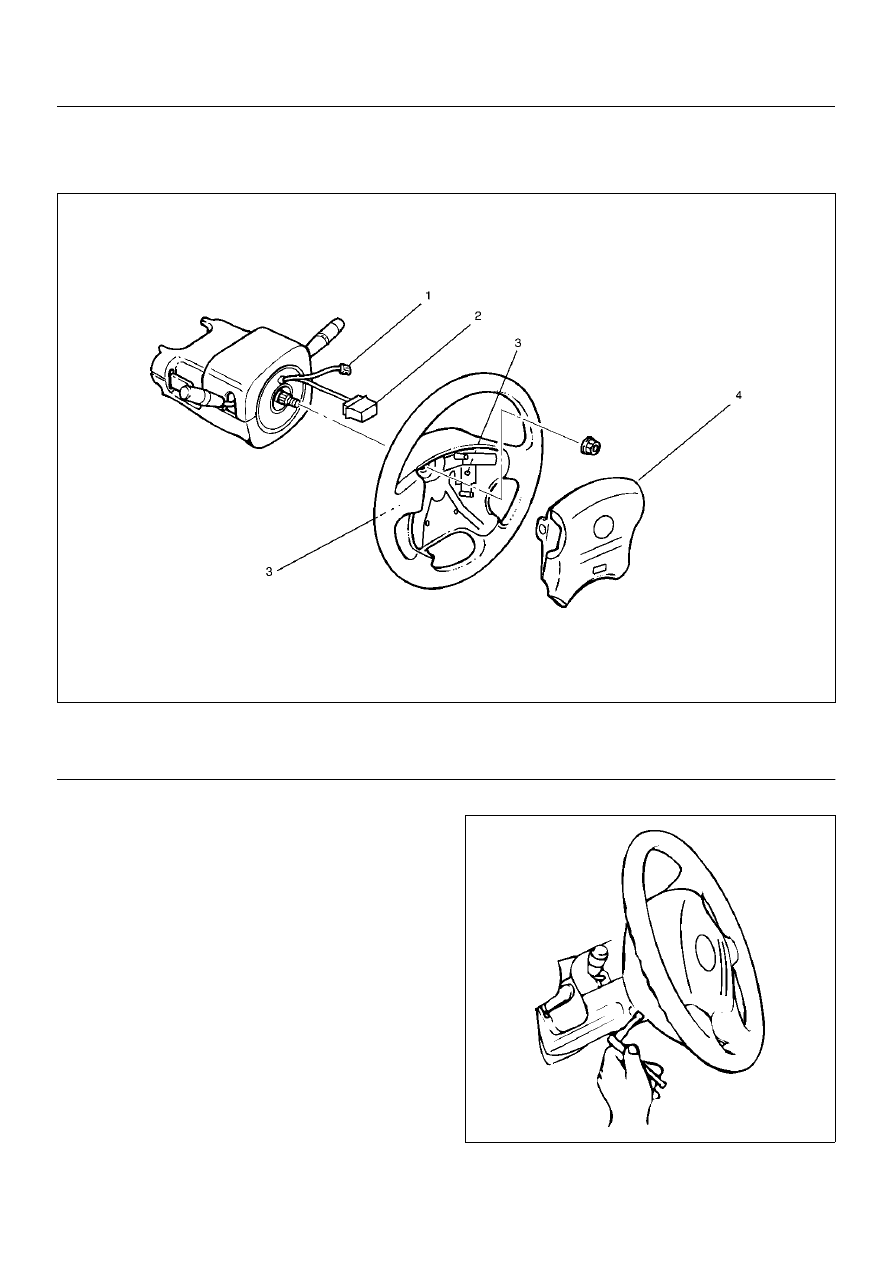

Inflator Module

Inflator Module and Associated Parts

827RW071

Legend

EndOFCallout

Removal

1. Turn the steering wheel so that the vehicle's wheels

are pointing straight ahead.

2. Turn the ignition switch to “LOCK".

3. Disconnect the battery “–" terminal cable, and wait

at least 5 minutes.

4. Disconnect the yellow 2-way SRS connector located

under the steering column.

5. Loosen the inflator module fixing bolt from behind

the steering wheel assembly using a TORX® driver
or equivalent until the inflator module can be
released from steering assembly .

827RW070

(1) Horn Lead
(2) SRS Connector

(3) Fixing Bolt
(4) Inflator Module

POWER-ASSISTED STEERING SYSTEM

2A–31

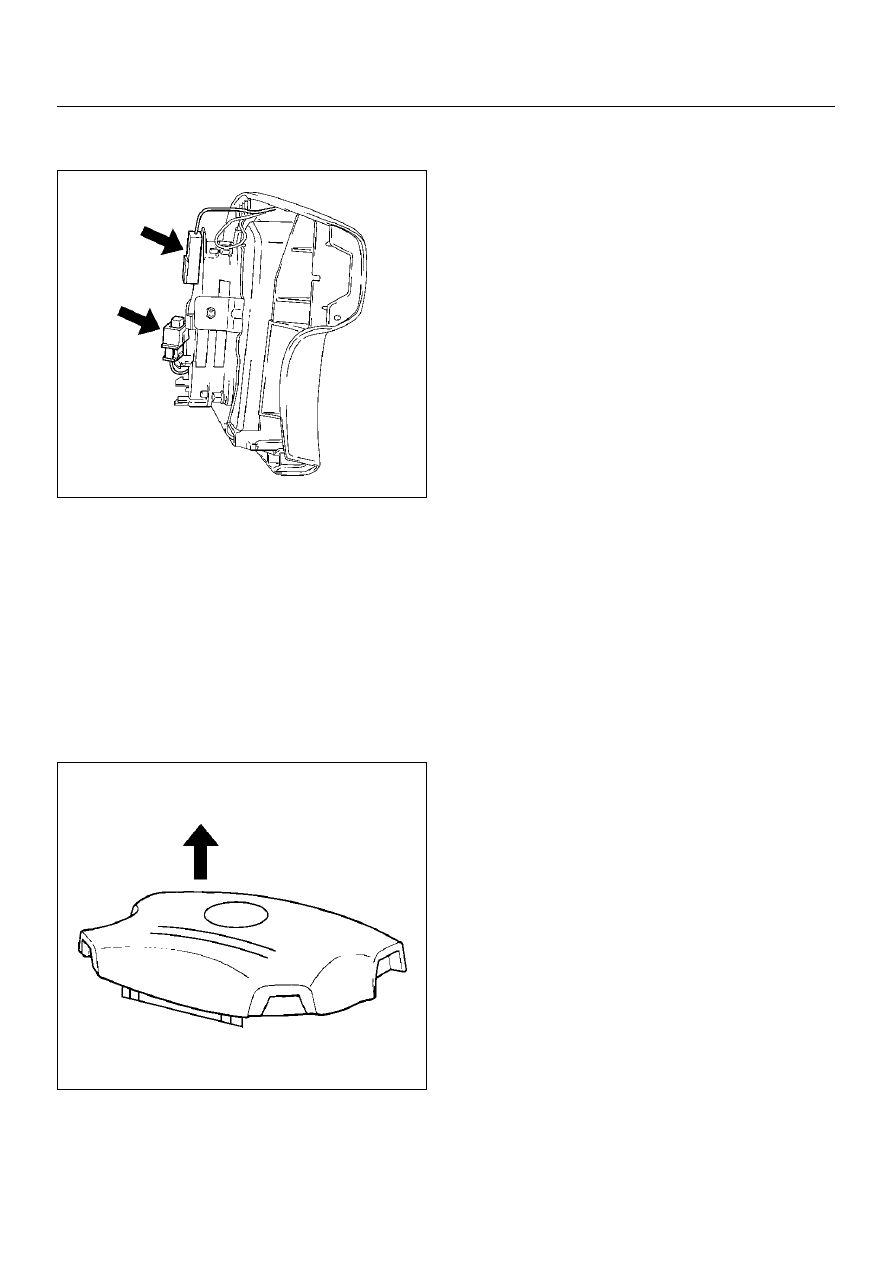

6. Disconnect the yellow 2-way SRS connector and

horn lead located behind the inflator module.

827RW073

7. Remove inflator module.

Inspection and Repair

WARNING:  THE INFLATOR MODULE SHOULD
ALWAYS BE CARRIED WITH THE URETHANE
COVER AWAY FROM YOUR BODY AND SHOULD
ALWAYS BE LAID ON A FLAT SURFACE WITH THE
URETHANE SIDE UP.   THIS IS NECESSARY
BECAUSE A FREE SPACE IS PROVIDED TO ALLOW
THE AIR CUSHION TO EXPAND IN THE UNLIKELY
EVENT OF ACCIDENTAL DEPLOYMENT.
OTHERWISE, PERSONAL INJURY MAY RESULT .

827RW072

The inflator module consists of a cover, air bag, inflator,
and retainer. Inspect the inflator module mainly for the
following:

• Check for holes, cracks, severe blemishes and

deformation on the cover.

• Check that the retainer is not deformed.

• Check for defects such as damage and breakage in

the lead wire for the igniter.

If an abnormality is found as the result of the inspection,
replace the inflator module with a new one.

Installation

1. Install inflator module.

2. Support the module and carefully connect the

module connector and horn lead.

NOTE:  Pass the lead wire through the tabs on the
plastic cover (wire protector) of inflator to prevent lead
wire from being pinched.

3. Tighten bolts to specified torque.

Torque: 9N·m (0.9kg·m/78 lbin)

4. Connect the yellow 2-way SRS connector located

under the steering column.

5. Connect the battery “–" terminal cable.

6. Set ignition to “ON" while watching warning light.

Light should flash 7 times and then go off.  If lamp
does not operate correctly, refer to Restraints
section.

2A–32

POWER-ASSISTED STEERING SYSTEM

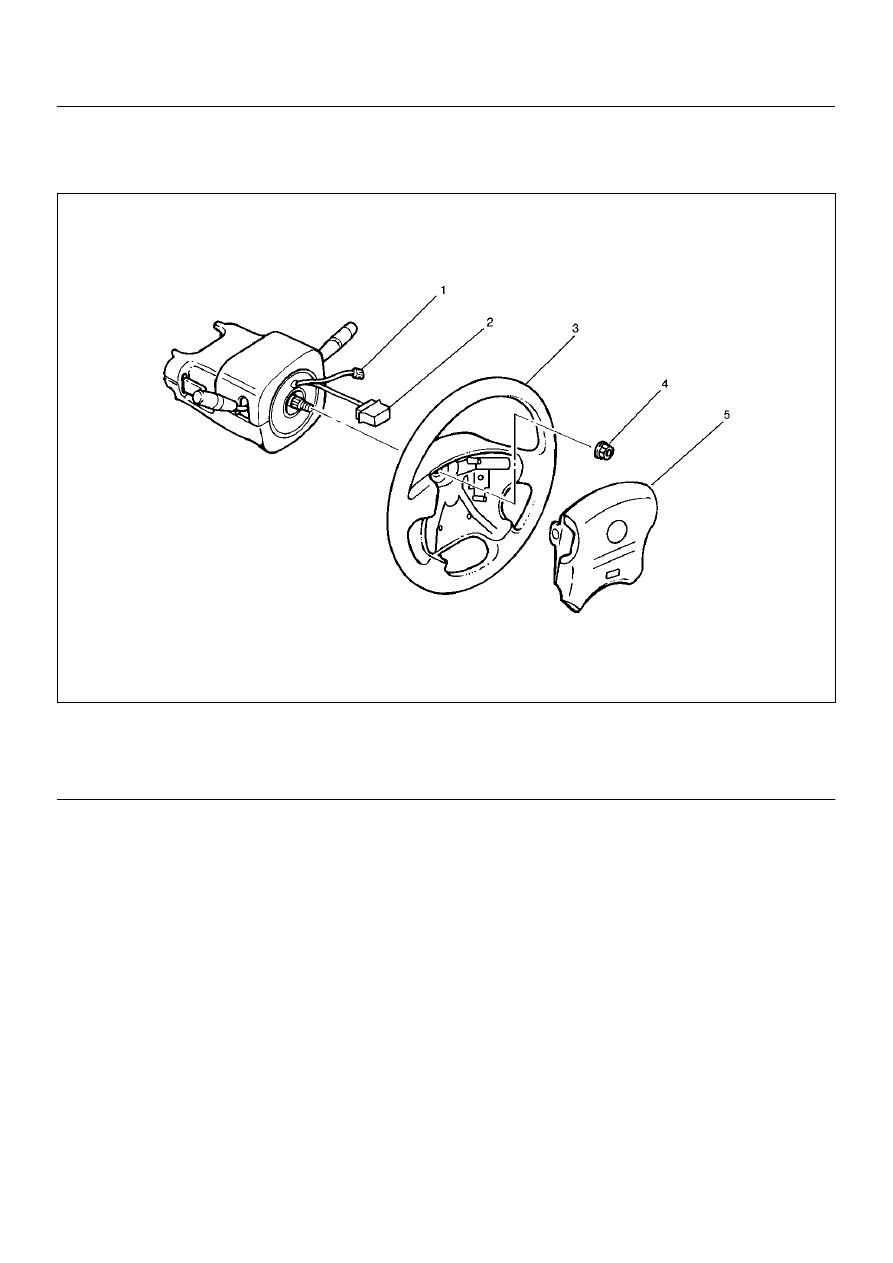

Steering Wheel

Steering Wheel and Associated Parts

827RW069

Legend

EndOFCallout

CAUTION:  Once the steering column is removed
from the vehicle, the column is extremely
susceptible to damage.  Dropping the column
assembly on its end could collapse the steering
shaft or loosen the slide block which maintains
column rigidity.  Leaning on the column assembly
could cause the jacket to bend or deform.  Any of
the above damage could impair the column's
collapsible design.  If it is necessary to remove the
steering wheel, use only the specified steering
wheel puller.  Under no conditions should the end of
the shaft be hammered upon, as hammering could
loosen slide block which maintains column rigidity.

Removal

1. Turn the steering wheel so that the vehicle's wheels

are pointing straight ahead.

2. Turn the ignition switch to “LOCK".

3. Disconnect the battery “–" terminal cable, and wait

at least 5 minutes.

4. Disconnect the yellow 2-way SRS connector located

under the steering column.

(1) Horn Lead
(2) SRS Connector
(3) Steering Wheel

(4) Steering Wheel Fixing Nut
(5) Inflator Module
