HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

1A–117

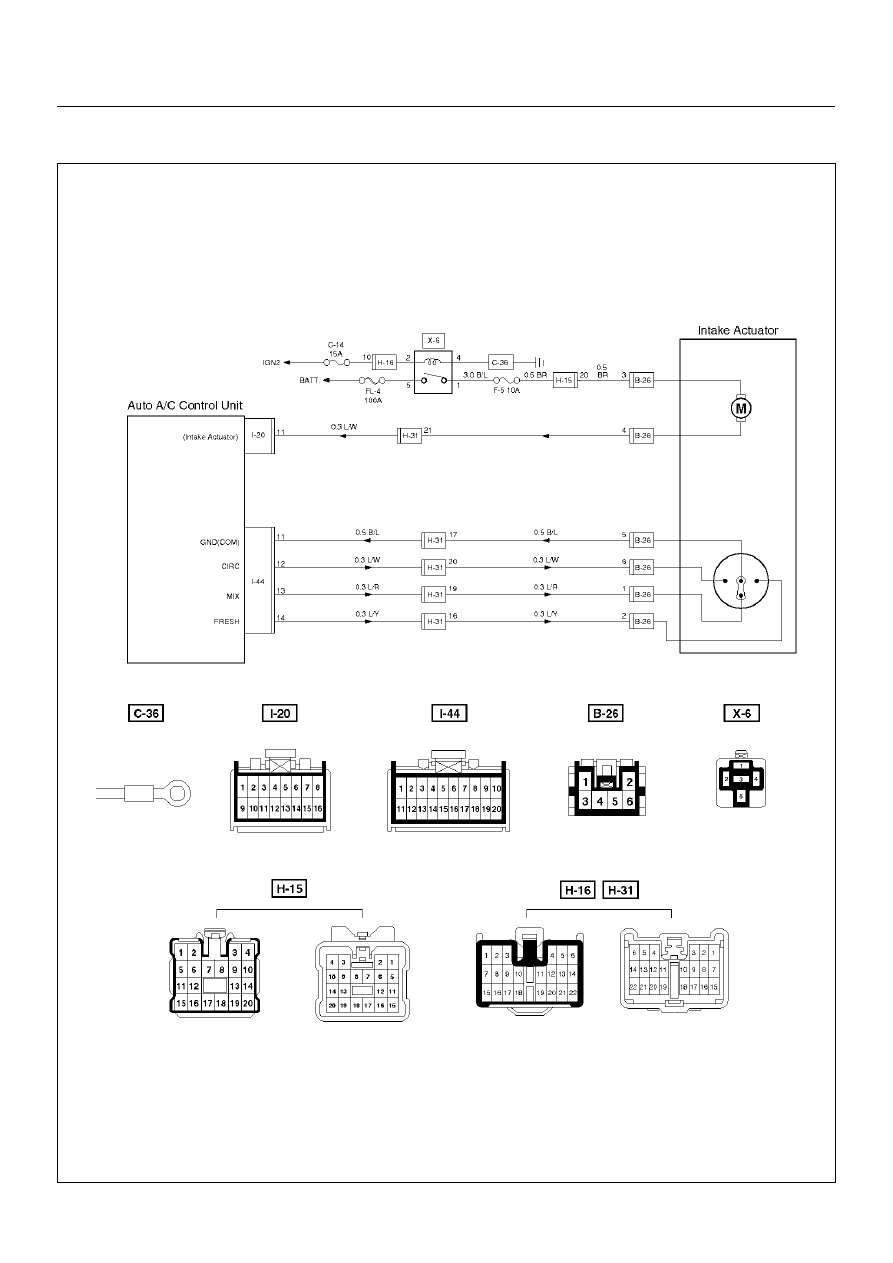

Inspection of the Intake Actuator System

D08RX230

1A–118

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

Chart A: Does Not Work At All

Condition

Possible cause

Correction

Does not work at all

—

Refer to Chart A

Control failure

—

Refer to Chart B

Step

Action

Value(s)

Yes

No

1

Is the fuse C–14 normal?

—

Go to Step 2

Replace the

fuse

2

Is the fuse F–5 normal?

—

Go to Step 3

Replace the

fuse

3

Is the relay X–6 normal?

—

Go to Step 4

Replace the

relay

4

Turn on the ignition switch. (the engine is run.)
Is the battery voltage applied between the harness
side connector terminal No.B26–3 and ground?

Approx 12V

Go to Step 6

Go to Step 5

5

Repair an open circuit between terminal No.B26–3
and No.X6–1.
Is the action complete?

—

Go to Step 4

—

6

Is the battery voltage applied between the harness
side connector terminal No.B26–4 and ground?

Approx 12V

Go to Step 8

Go to Step 7

7

Replace the intake actuator motor.
Is the action complete?

—

Go to Step 6

—

8

Is there continuity between the harness side
connector terminal No.I20–11 and No.B26–4?

—

Go to Step 10

Go to Step 9

9

Repair an open circuit between No.I20–11 and B26–4.
Is the action complete?

—

Verify repair

—

10

Replace the auto air conditioner control unit.
Is the action complete?

—

Verify repair

—

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

1A–119

Chart B: Failure on the Intake Control

Step

Action

Value(s)

Yes

No

1

Is the fuse No.C–14 normal?

—

Go to Step 2

Replace the

fuse

2

Is the fuse No.F–5 normal?

—

Go to Step 3

Replace the

fuse

3

Is the relay No.X–6 normal?

—

Go to Step 4

Replace the

relay

4

Turn on the ignition switch. (the engine is run.)
Is the intake actuator stopped?

—

Go to Step 6

Go to Step 5

5

Replace or repair the auto air conditioner control unit.
Is the action complete?

—

Verify repair

—

6

Is there continuity between the harness side
connector terminal No.B26–5 and No.I44–11?

—

Go to Step 8

Go to Step 7

7

Repair an open circuit between terminal No.B26–5
and No.I44–11.
Is the action complete?

—

Go to Step 6

—

8

Is there continuity between the harness side
connector terminal No.B26–6 and No.I44–12?

—

Go to Step 10

Go to Step 9

9

Repair an open circuit between terminal No.B26–6
and No.I44–12.
Is the action complete?

—

Go to Step 8

—

10

Is there continuity between the harness side
connector terminal No.B26–1 and No.I44–13?

—

Go to Step 12

Go to Step 11

11

Repair an open circuit between terminal No.B26–1
and I44-13.
Is the action complete?

—

Go to Step 10

–

12

Is there continuity between the harness side
connector terminal No.B26–2 and No.I44–14?

—

Go to Step 14

Go to Step 13

13

Repair an open circuit between harness No.B26–2
and No.I44–14.
Is the action complete?

—

Go to Step 12

—

14

1. Disconnect the intake actuator connector No.B–

26.

2. Is the battery voltage applied between harness

side connector terminal
No.B26–6 and ground?
No.B26–2 and ground?
No.B26–1 and ground?



—

Go to Step 15

Go to Step 16

15

Replace or repair the intake actuator.
Is the action complete?

—

Verify repair

—

16

Replace or repair the air conditioner control unit.
Is the action complete?

—

Verify repair

—

1A–120

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

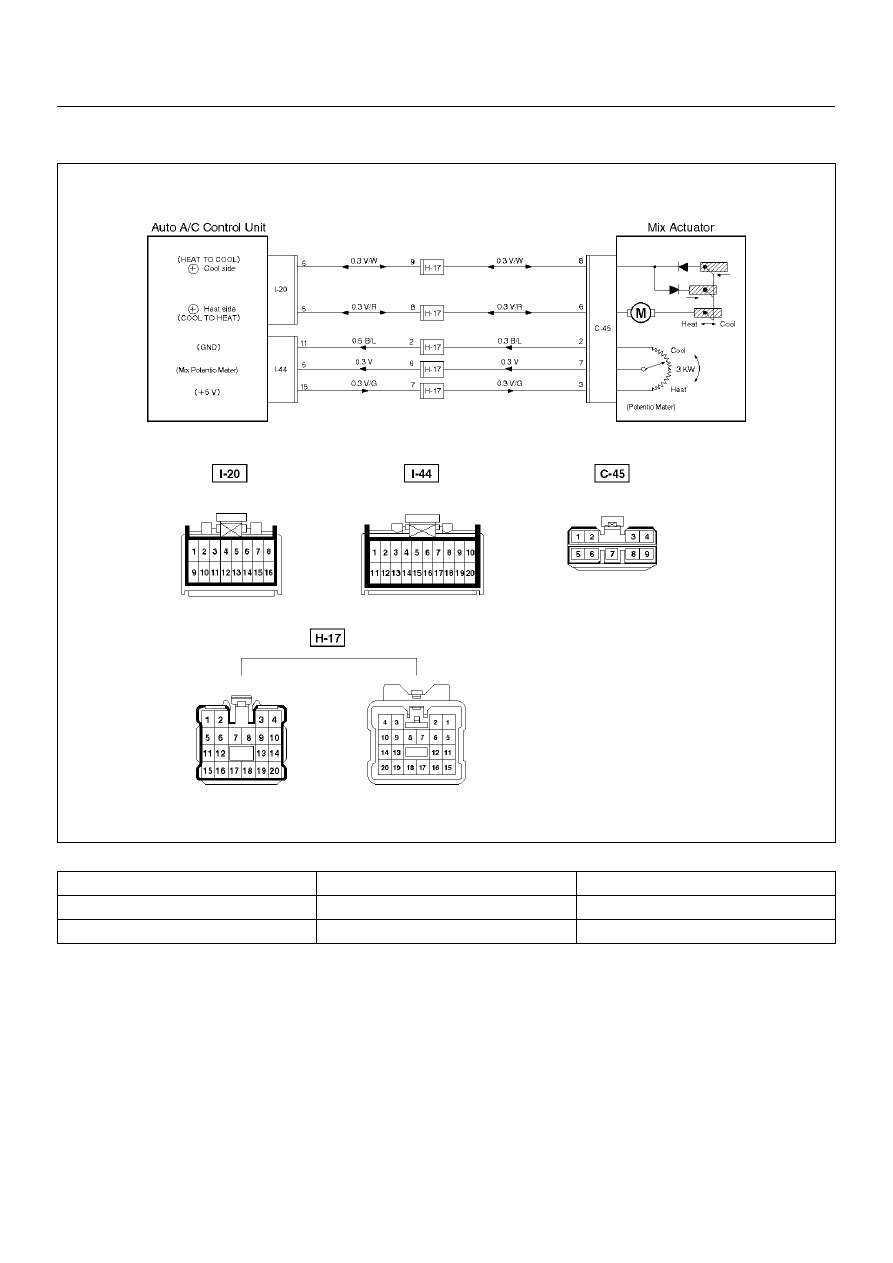

Inspection of the Mix Actuator System

D08RX229

Condition

Possible cause

Correction

Does not work at all

—

Refer to Chart A

Control failure

—

Refer to Chart B
