8D–248

WIRING SYSTEM

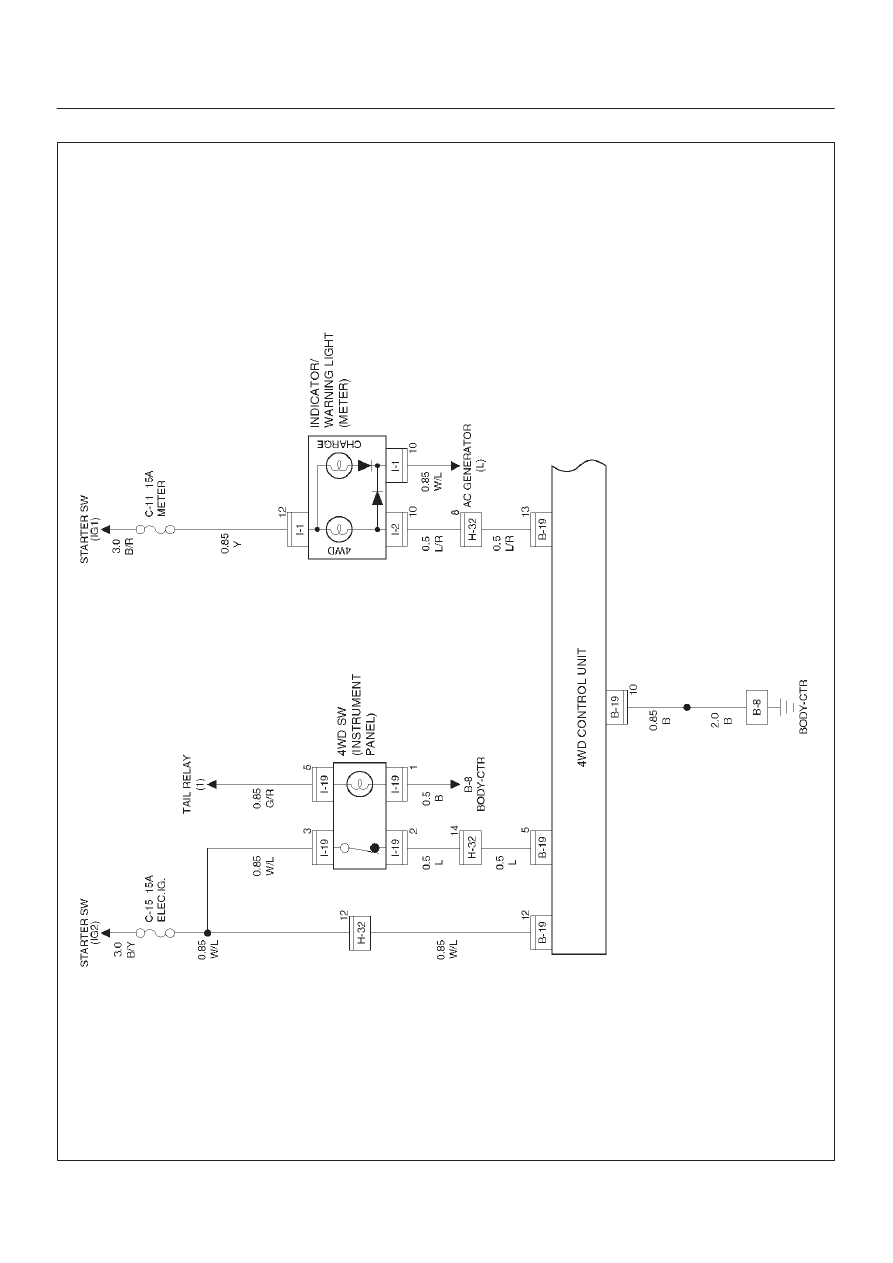

Circuit Diagram–1

D08RX272

8D–249

WIRING SYSTEM

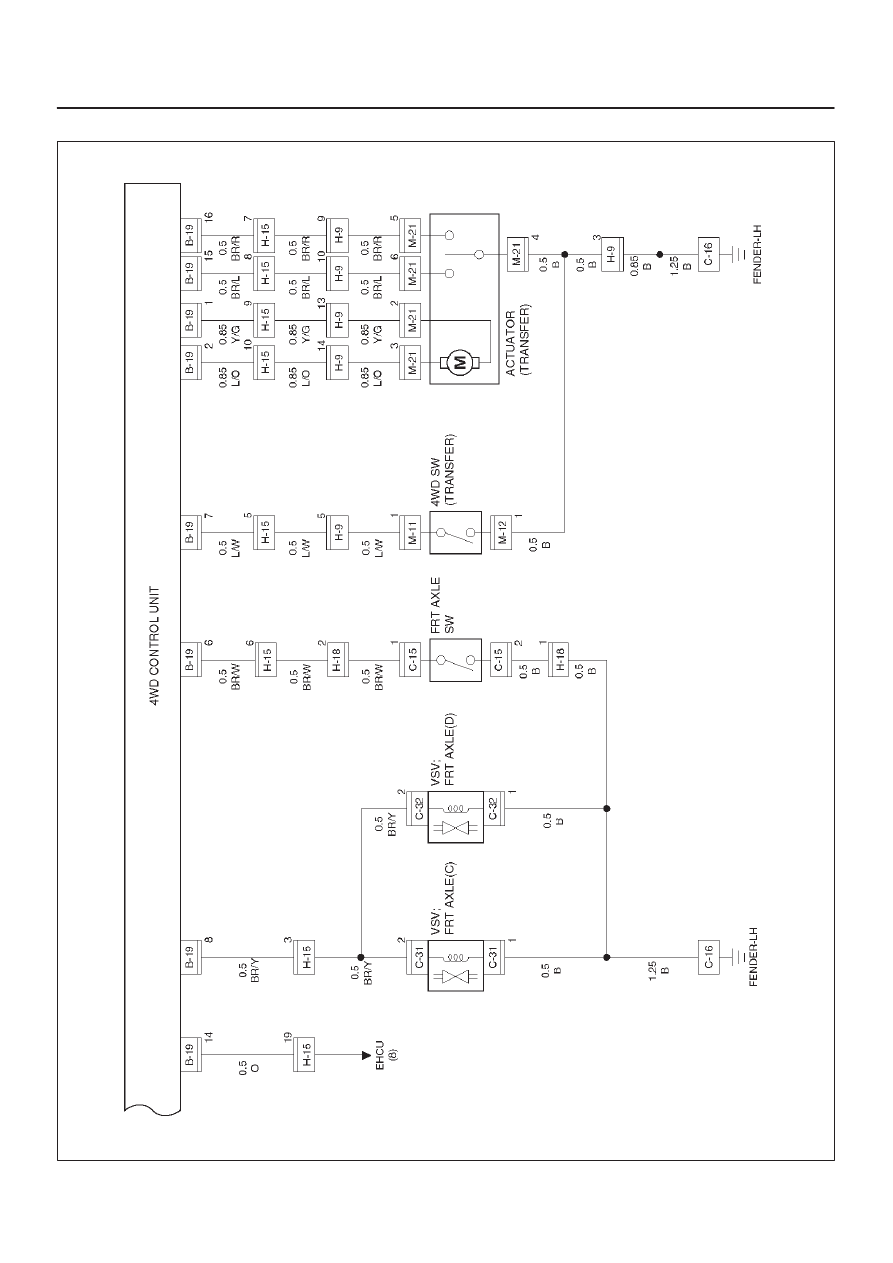

Circuit Diagram–2 (6VD1)

D08RX274

8D–250

WIRING SYSTEM

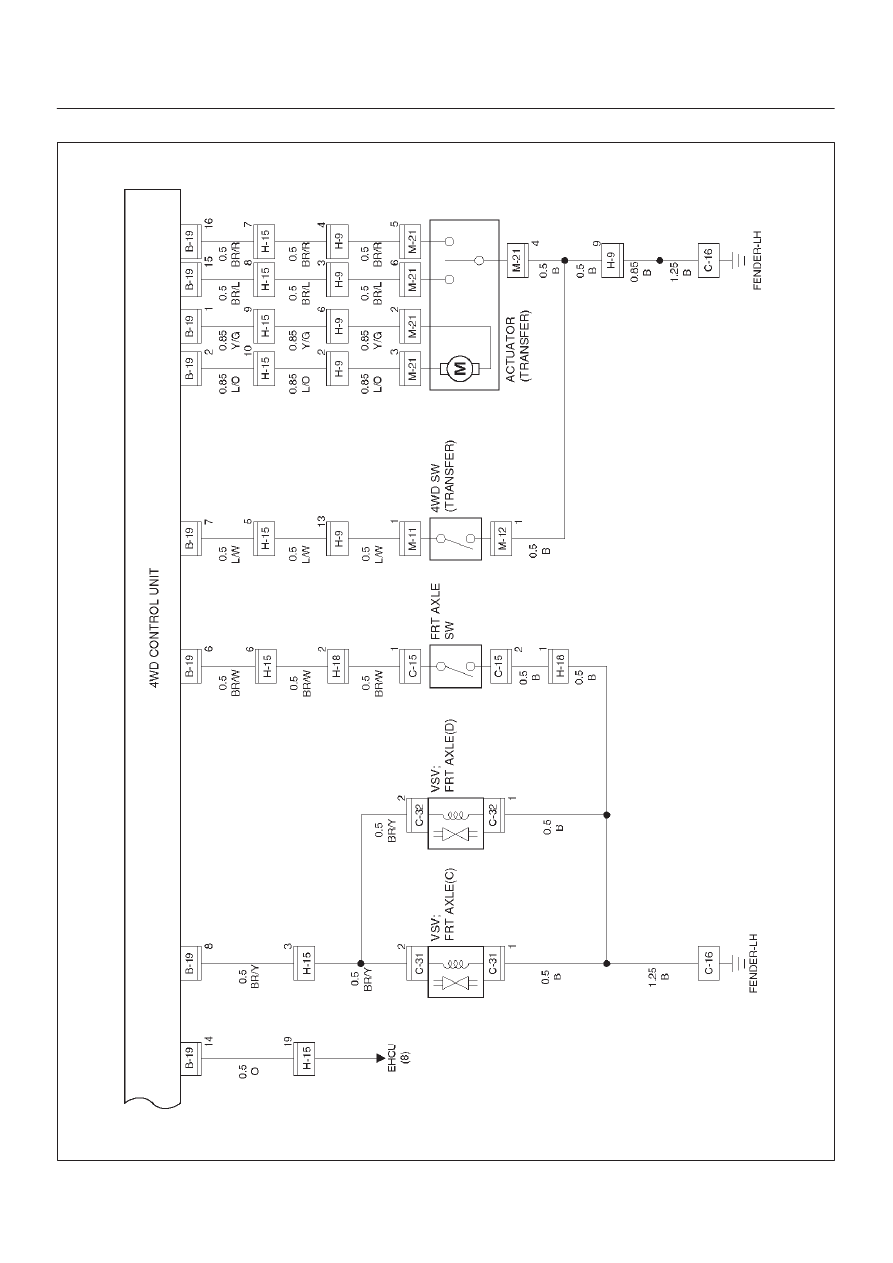

Circuit Diagram–2 (X22SE)

D08RX273

8D–251

WIRING SYSTEM

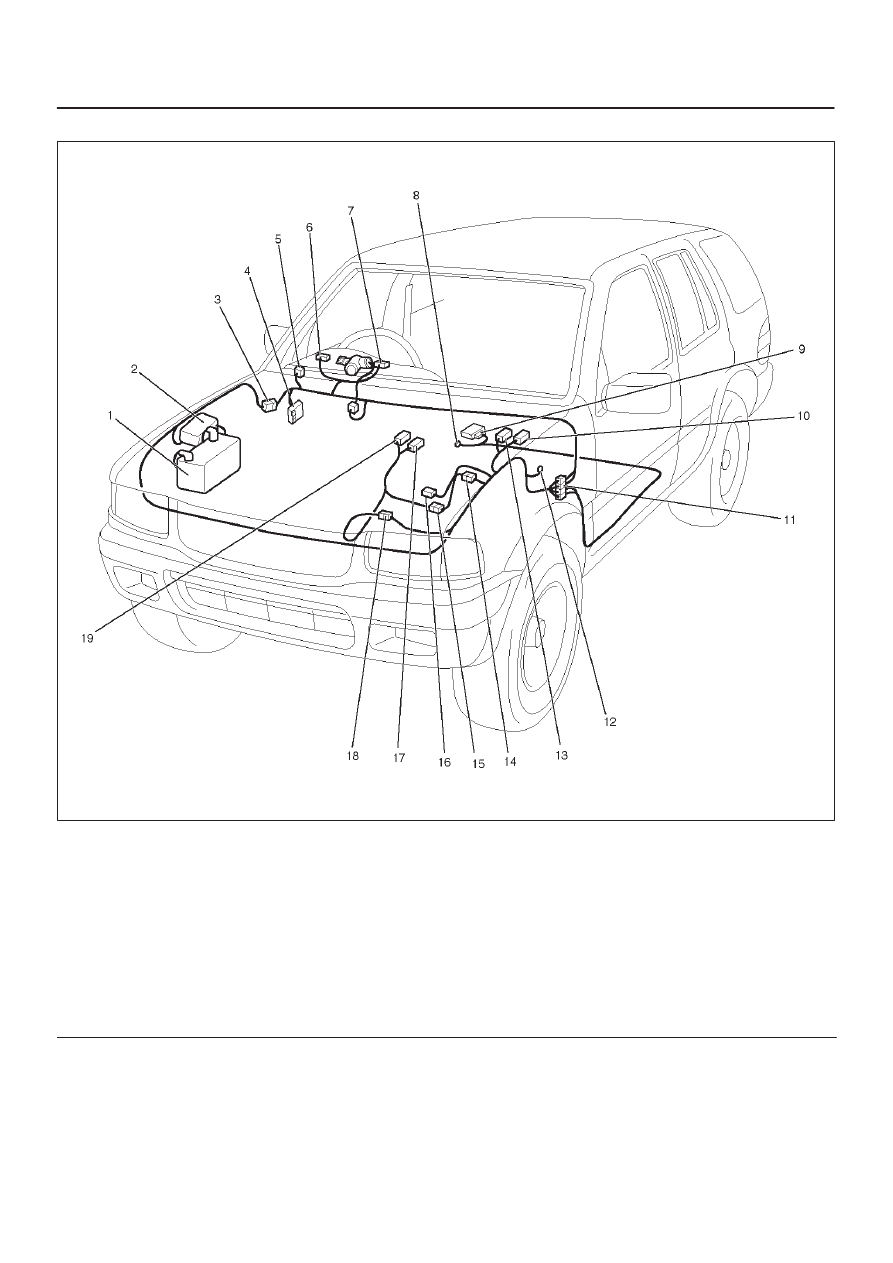

Parts Location

D08RX290

Legend

(1) Battery
(2) Relay & Fuse Box (Engine Room)
(3) H–32
(4) Relay & Fuse Box (Instrument Panel)
(5) I–19
(6) I–1
(7) I–2
(8) B–8
(9) B–19

(10) C–32

(11) H–15

(12) C–16
(13) C–31
(14) H–18
(15) H–9 (X22SE)
(16) C–15
(17) M–21
(18) H–9 (6VD1), H–10
(19) M–11, M–12
