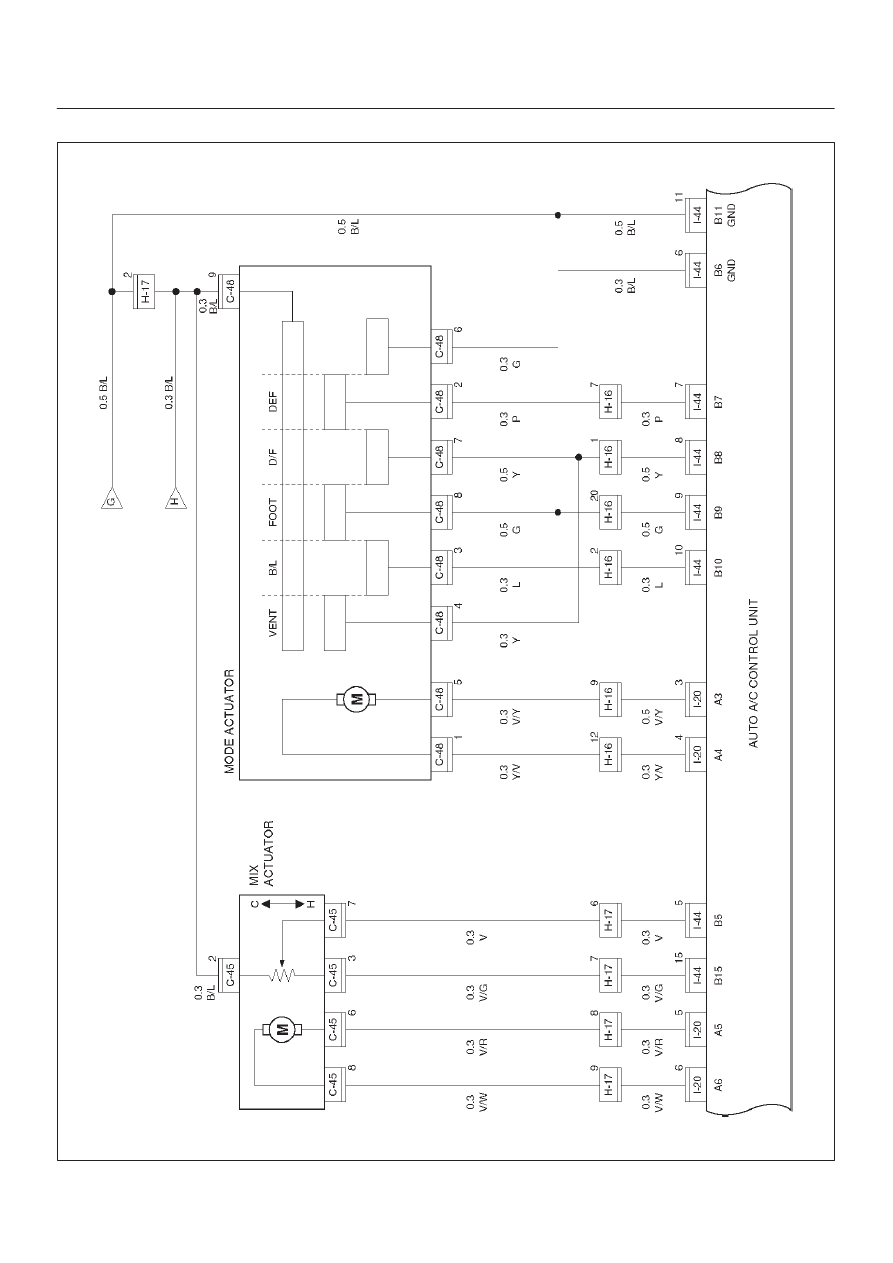

Circuit Diagram–4

D08RX148

8D–237

WIRING SYSTEM

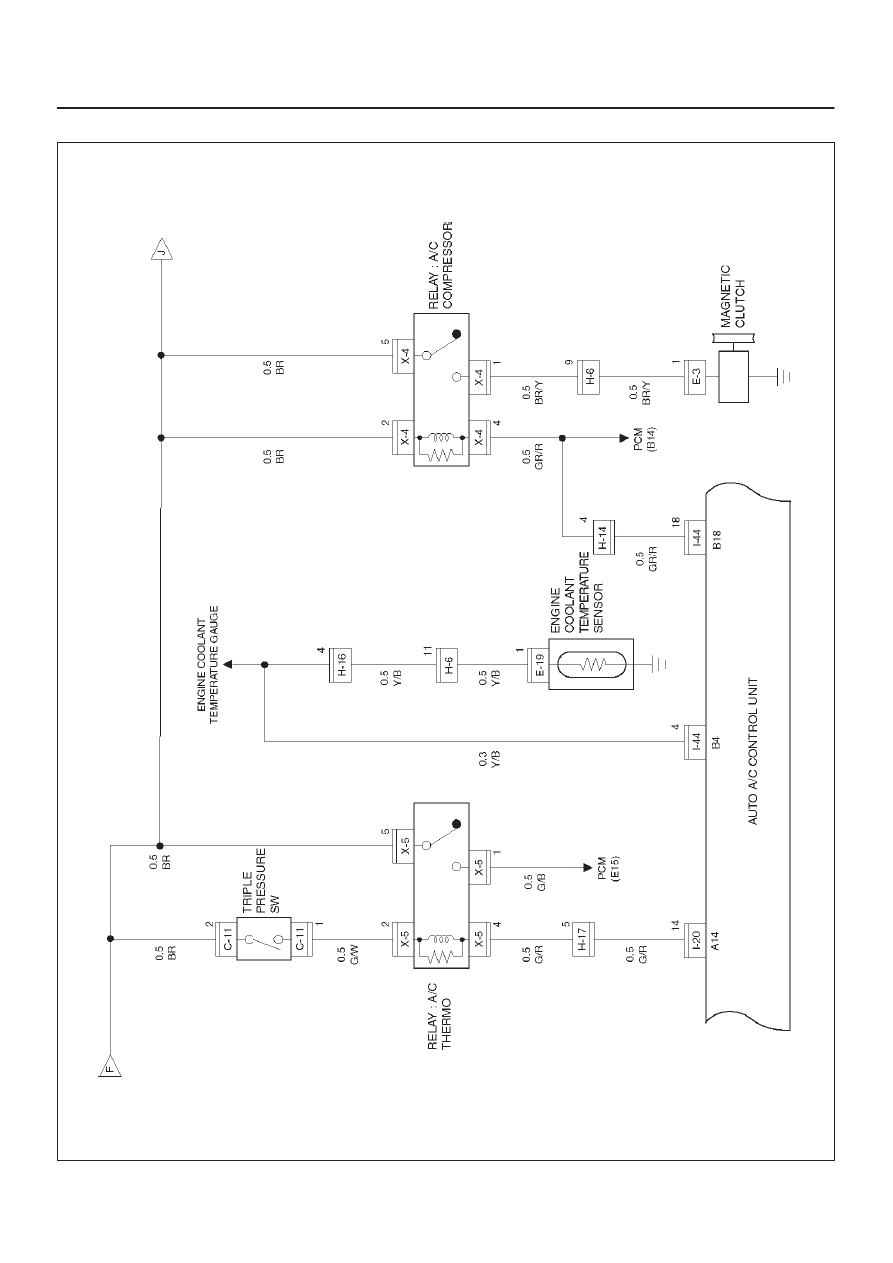

Circuit Diagram–5

D08RX144

8D–238

WIRING SYSTEM

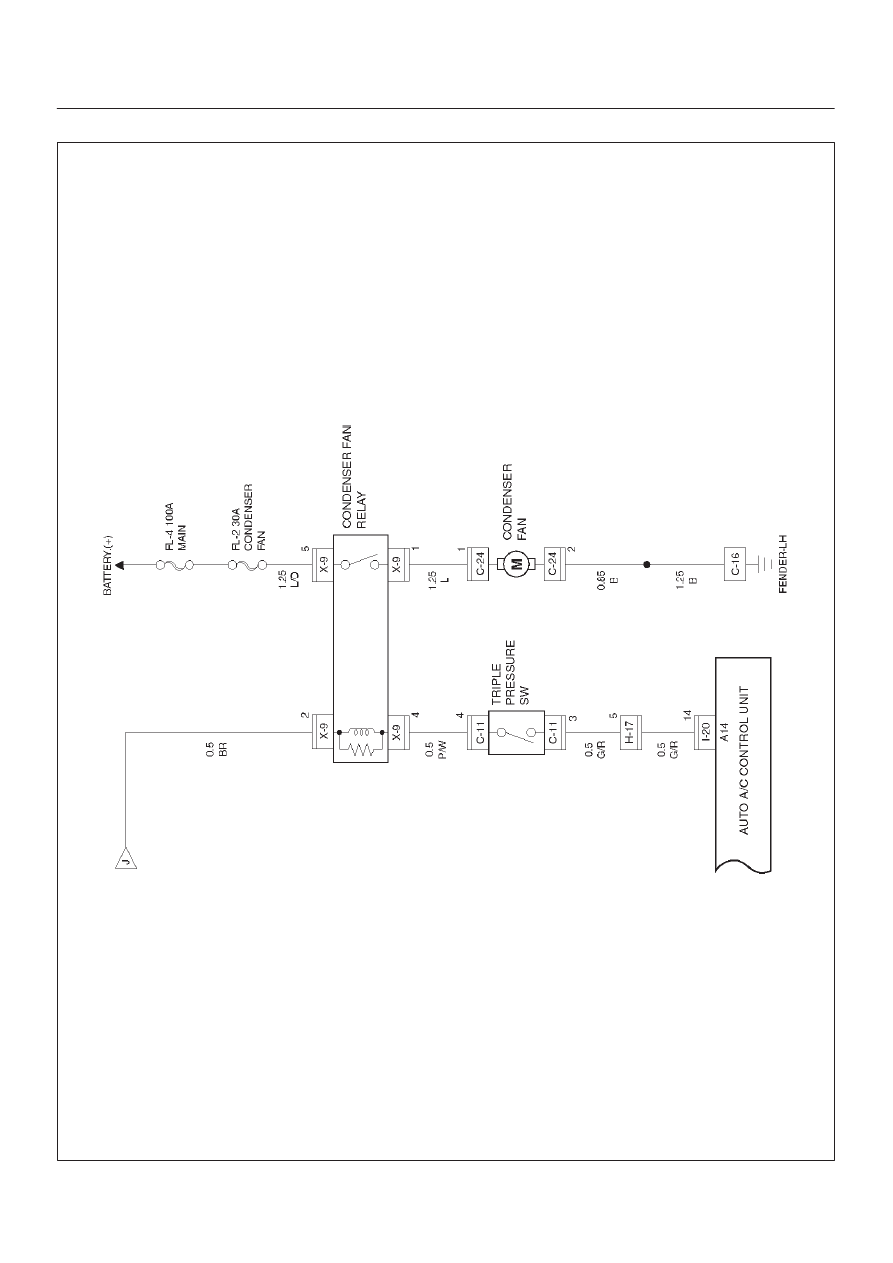

Circuit Diagram–6

D08RX143

8D–239

WIRING SYSTEM

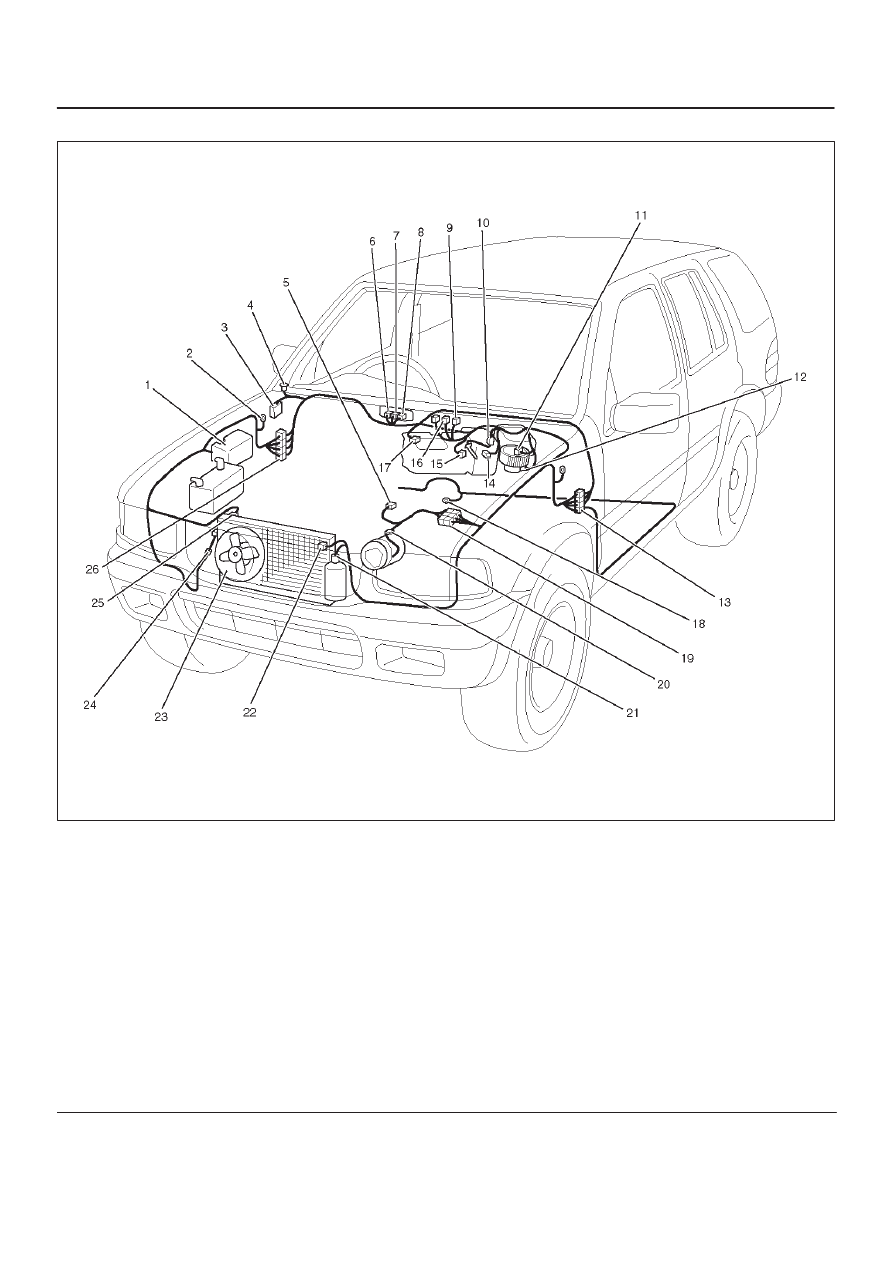

Parts Location

D08RX270

Legend

(1) Relay & Fuse Box (Engine Room)
(2) C–36
(3) Relay & Fuse Box (Instrument Panel)
(4) I–6
(5) E–19
(6) I–40
(7) I–20
(8) I–4
(9) C–45

(10) B–26

(11) B–25

(12) B–5
(13) H–15, H–16, H–17, H–31

(14) B–27
(15) B–18
(16) C–45
(17) C–48
(18) B–8
(19) H–6
(20) E–3
(21) C–11
(22) C–8
(23) Condenser Fan
(24) C–24
(25) C–7
(26) H–14, H–32
