WIRING SYSTEM

A/T Shift Indicator

General Description

The circuit consists of the starter switch, mode switch,
alarm & relay control unit and A/T shift indicator (meter).

8D–225

WIRING SYSTEM

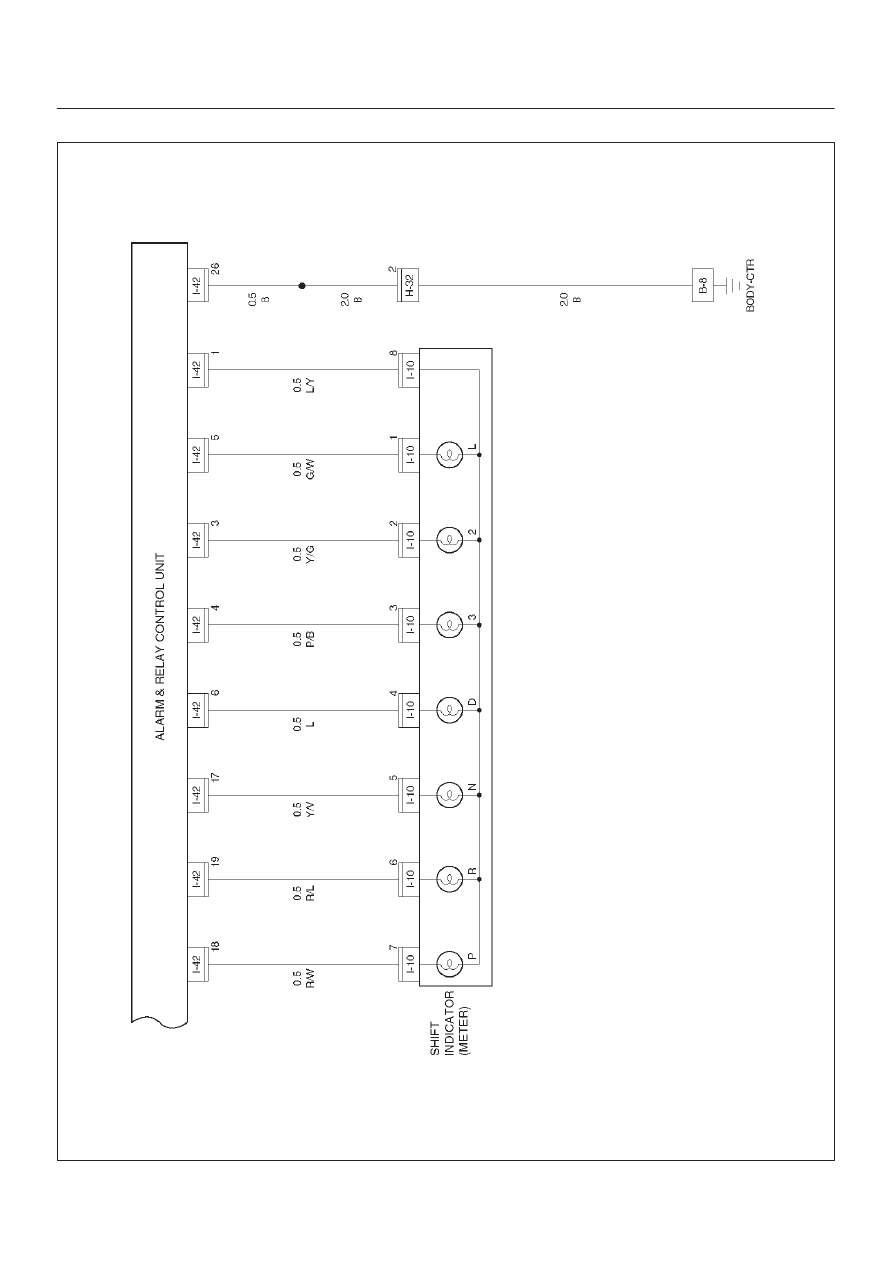

Circuit Diagram–1

D08RX263

8D–226

WIRING SYSTEM

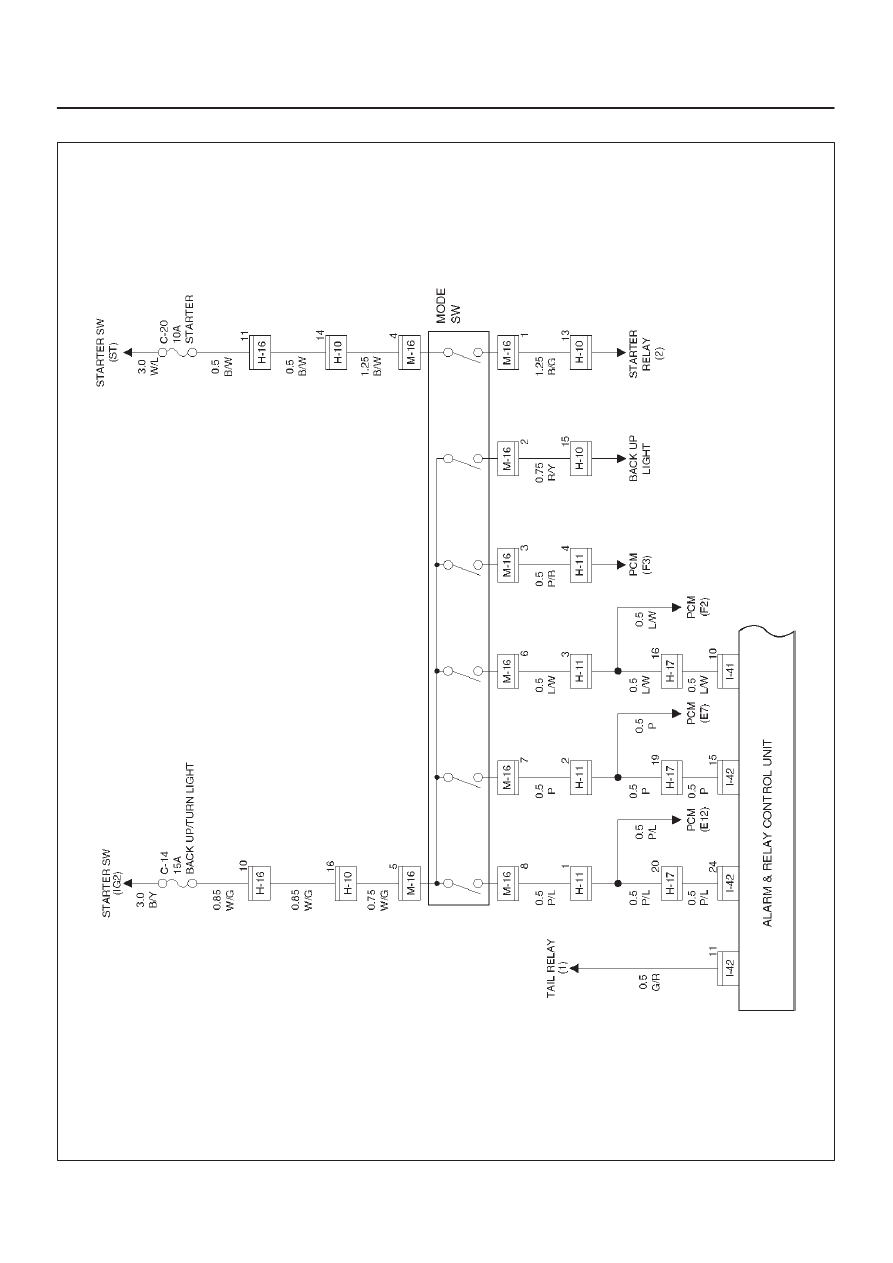

Circuit Diagram–2

D08RX264

8D–227

WIRING SYSTEM

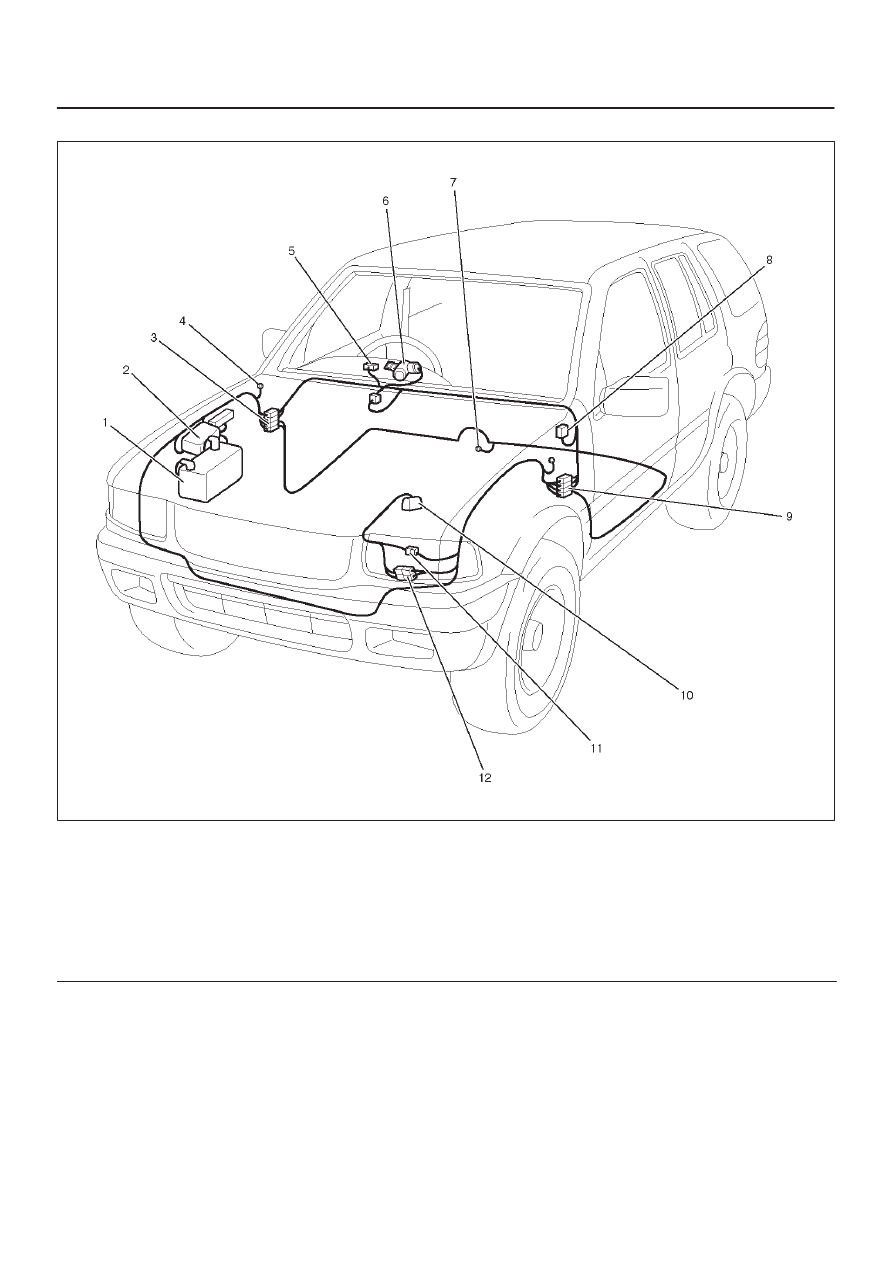

Parts Location

D08RX266

Legend

(1) Battery
(2) Relay & Fuse Box (Engine Room)
(3) H–32
(4) C–36
(5) I–10
(6) Starter Switch

(7) B–8
(8) Alarm & Relay Control Unit
(9) H–16, H–17

(10) M–16

(11) H–10

(12) H–11
