WIRING SYSTEM

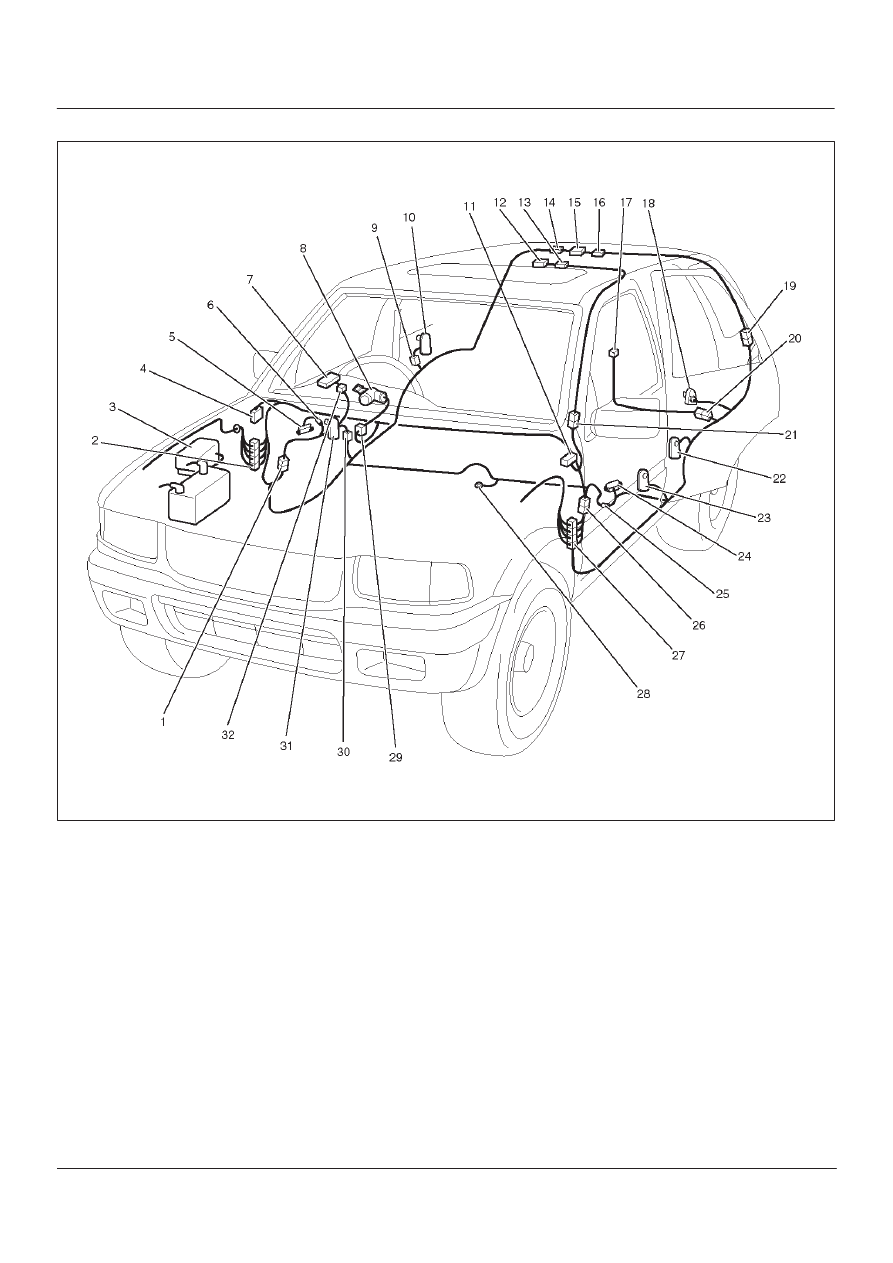

Parts Location

D08RWD27

Legend

(1) H–28
(2) H–14, H–19, H–32
(3) Relay & Fuse Box (Engine Room)
(4) Relay & Fuse Box (Instrument Panel)
(5) Courtesy Light – RH
(6) D–7
(7) FRT Door Lock Switch – RH
(8) Starter Switch
(9) B–27

(10) RR Door Switch – RH

(11) I–26

(12) Dome Light
(13) L–3
(14) B–11 (4Door Model)
(15) Luggage Room Light
(16) G–13 (2Door Model)

(17) G–1
(18) B–20
(19) H–37
(20) H–22
(21) H–30
(22) B–16
(23) B–17 (FRT Door Switch – LH)
(24) Courtesy Light – LH
(25) D–18
(26) H–33
(27) H–31
(28) B–8
(29) I–46
(30) B–1
(31) FRT Door Switch – RH
(32) D–5

8D–209

WIRING SYSTEM

Keyless Entry System

ID Code Registration

This procedure registers a new ID code. When total
number of registered ID codes and newly registered ID
code exceed four, they are erased in order of older one.

Step

Action

Value(s)

Yes

No

1

1. Confirm that all the doors are closed and unlocked.
2. Open the driver’s side door.
3. Insert the key into the starter switch.

Is the action complete?

—

Go to Step 2

Go to Step 1

2

Turn the starter switch to ACC position and then to OFF
position three times.

NOTE: This step must be carried out within five
seconds after step 1.

Is the action complete?

—

Go to Step 3

Go to Step 1

3

Close the driver’s side door and then open it two times.

NOTE: This  step must be carried out within ten
seconds after step 2.

Is the action complete?

—

Go to Step 4

Go to Step 1

4

1. Turn the starter switch to ACC position and then to

OFF position three times.

2. Close the driver’s side door and then open it.

NOTE: This  step must be carried out within ten
seconds after step 3.

Is the action complete?

—

Go to Step 5

Go to Step 1

5

The control unit lock and unlocks the doors one times.

Does the control unit work normally?

—

Go to Step 6

Go to Step 1

6

Operate the lock or unlock button of the transmitter.

NOTE: This step must be carried out within twenty
seconds after step 5.

Is the action complete?

—

Go to Step 7

Go to Step 1

7

The control unit locks and unlock the doors one times.

Does the control unit work normally?

—

Go to Step 8

Go to Step 1

8

Operate the lock or unlock button of the transmitter.

NOTE: This step must be carried out within twenty
seconds after step 7.

Is the action complete?

—

Go to Step 9

Go to Step 1

9

The control unit compares the two codes sent from the
transmitter.
If the code succeeds in registration, the control unit
locks and unlocks the doors one time.
If the two codes are different from each other or fails in
registration, the control unit locks and unlocks the
doors three times.

NOTE: In any case, this procedure is finished.

—

Go to Step 1

Go to Step 1

8D–210

WIRING SYSTEM

Meter and Warning/Indicator Light

General Description

The circuit consists of the starter switch, meter assembly,
vehicle speed sensor, alarm & relay control unit, lighting
switch, turn signal switch, engine coolant temperature
unit, oil pressure unit, Powertrain Control Module, fuel
tank unit, 4WD control unit, oil pressure switch, parking
brake switch, brake fluid switch, seat belt switch,
illumination controller.
The meter ASM contains the speedometer, tachometer,
voltmeter, engine coolant temperature gauge, oil
pressure gauge, fuel gauge and warning/indicator lights.
The meter warning/indicator lights and their bulb sockets
are a unit, they are installed from the back of the
speedometer assembly.

8D–211

WIRING SYSTEM

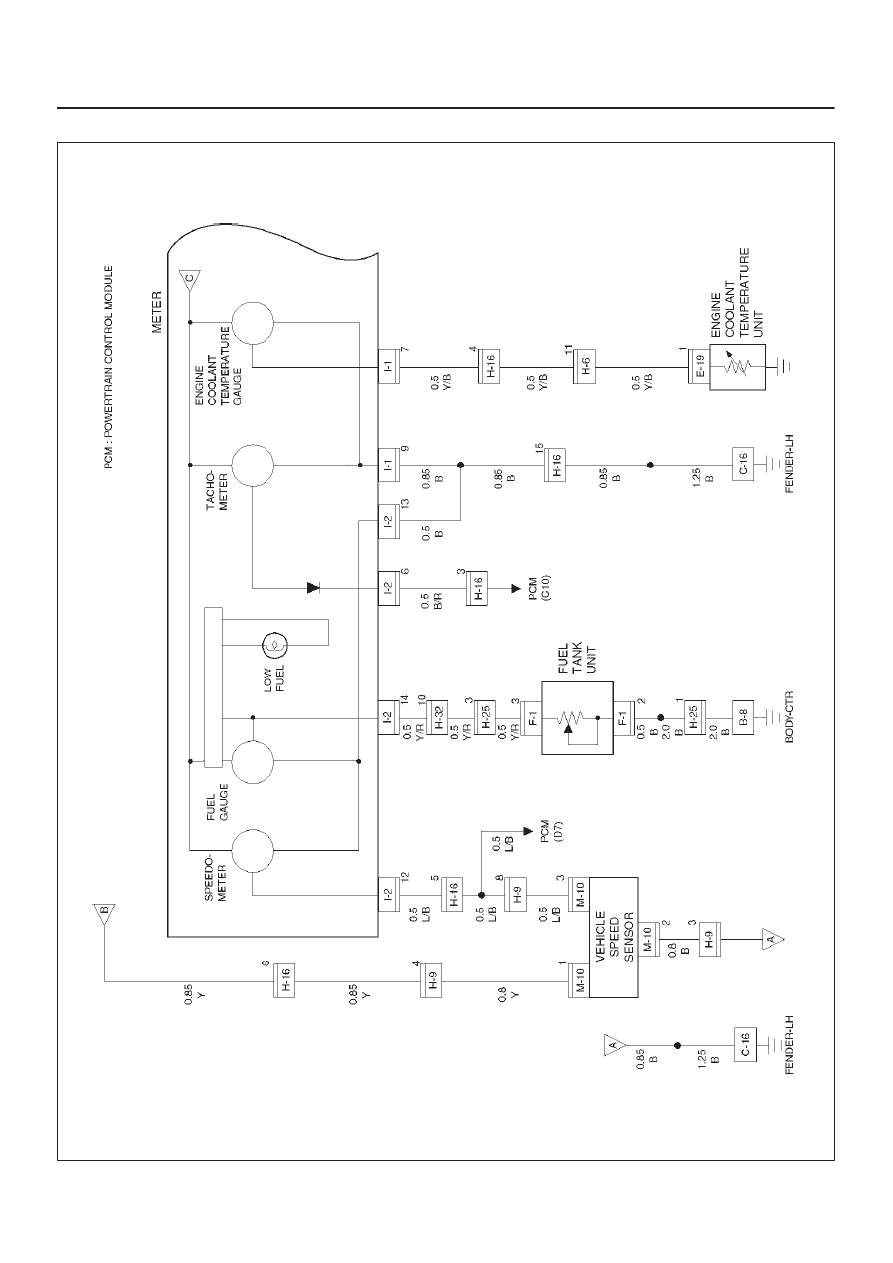

Circuit Diagram – 1 (6VD1 M/T)

D08RX257
