8D–184

WIRING SYSTEM

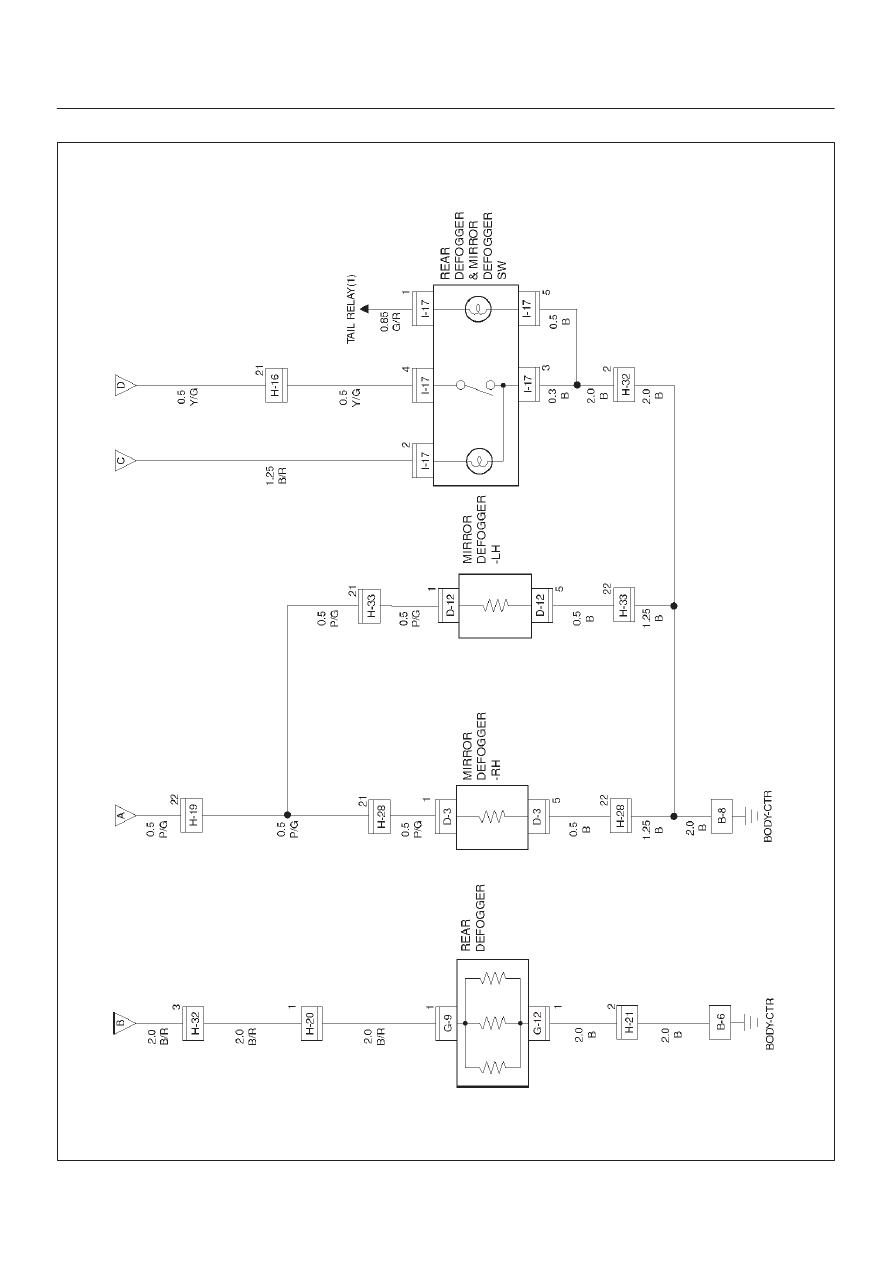

Circuit Diagram–2 (4Door Model)

D08RX241

8D–185

WIRING SYSTEM

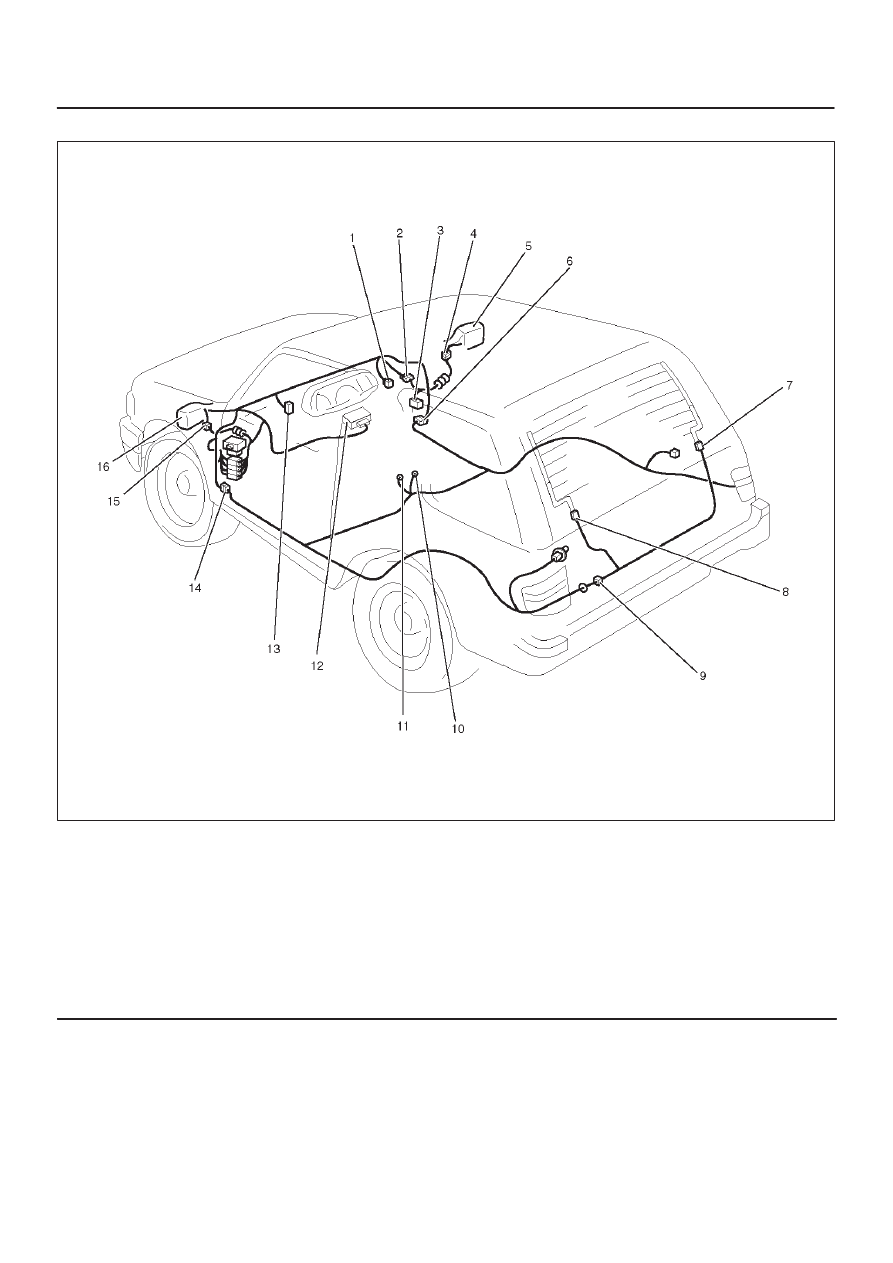

Parts Location (2Door Model)

D08RX239

Legend

(1) Rear Defogger & Mirror Defogger Switch
(2) H–19, H–32
(3) Relay & Fuse Box (Instrument Panel)
(4) D–3
(5) Door Mirror – RH
(6) H–28
(7) G–12
(8) G–9

(9) H–21

(10) B–8

(11) B–6

(12) PCM
(13) I–17
(14) H–33
(15) D–12
(16) Door Mirror – LH

8D–186

WIRING SYSTEM

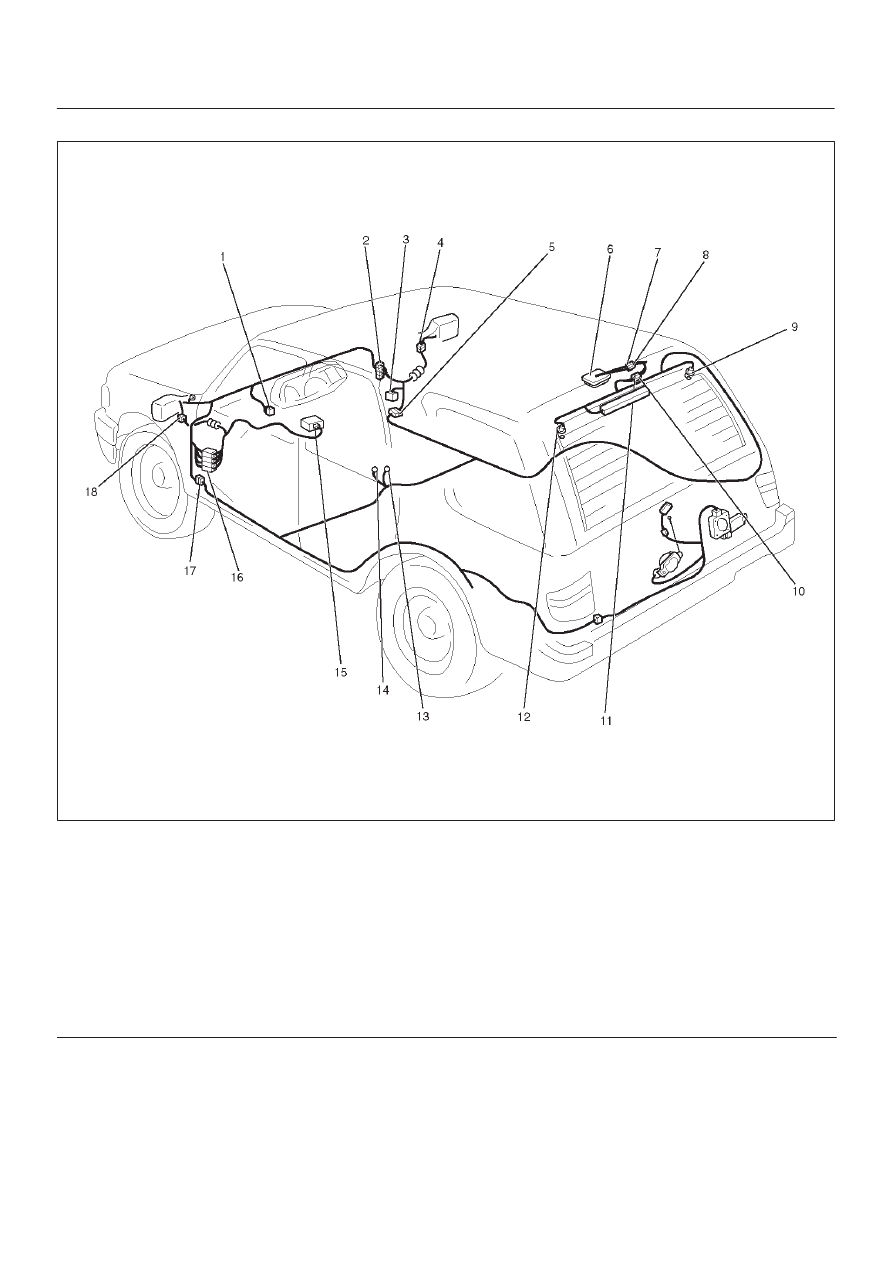

Parts Location (4Door Model)

D08RWD10

Legend

(1) RR Defogger & Mirror Defogger Switch
(2) H–19, H–32
(3) Relay & Fuse Box (Instrument Panel)
(4) D–3
(5) H–28
(6) Luggage Room Light
(7) H–10
(8) H–21
(9) G–9

(10) G–10

(11) G–11

(12) G–12
(13) B–8
(14) B–6
(15) PCM
(16) H–31
(17) H–33
(18) D–12

8D–187

WIRING SYSTEM

Diagnosis

Rear Defogger Does Not Operate

Step

Action

Value(s)

Yes

No

1

Are the fuse C–9, C–10 and C–17 normal?

Go to Step 2

Replace the

fuse(s)

2

Are B–6 and/or B–8 grounded securely?

Go to Step 3

Ground it

(them)

securely

3

Remove the rear defogger relay.

Is the battery voltage applied between the rear
defogger relay harness side connector I–39 terminal 2
and the ground?

Approx. 12V

Go to Step 5

Go to Step 4

4

Repair an open circuit between the battery and
connector I–39 terminal 2.

Is the action complete?

Go to Step 3

5

Turn the starter switch on.

Is the battery voltage applied between harness side
connector I–39 terminal 4 and the ground?

Approx. 12V

Go to Step 7

Go to Step 6

6

Repair an open circuit between the fuse C–17 and
connector I–39 terminal 4.

Is the action complete?

Go to Step 5

7

Disconnect the PCM connector C–1, C–2 and C–3.

Is there continuity between harness side connector
I–39 terminal 3 and harness side connector C–2
terminal C12 or connector C–1 terminal A14?

Go to Step 9

Go to Step 8

8

Repair an open circuit between connector I–39
terminal 3 and connector C–2 terminal C12 or
connector C–1 terminal A14.

Is the action complete?

Go to Step 7

9

Is there continuity between harness side connector
I–17 terminal 4 and connector C–3 terminal F9 or
connector C–3 terminal E12?

Go to Step 11

Go to Step 10

10

Repair an open circuit between connector I–17
terminal 4 and connector C–3 terminal F9 or connector
C–3 terminal E12.

Is the action complete?

Go to Step 9

11

Is there continuity between harness side connector
I–17 terminal 3 and the ground?

Go to Step 13

Go to Step 12

12

Repair an open circuit between connector I–17
terminal 3 and the ground B–8.

Is the action complete?

Go to Step 11

13

1. Reconnect the rear defogger relay.
2. Ground the PCM harness side connector C–2

terminal C12 or connector C–1 terminal A14.

Is the battery voltage applied between the rear
defogger harness side connector G–9 terminal 1 and
the ground?

Approx. 12V

Go to Step 14

Repair an

open circuit

between the

fuse C–9 or

C–10 and the
rear defogger

14

Is there continuity between the rear defogger harness
side connector G–12 terminal 1 and the ground?

Go to Step 16

Go to Step 15
