Opel Frontera UE. Manual - part 477





8D–48

WIRING SYSTEM

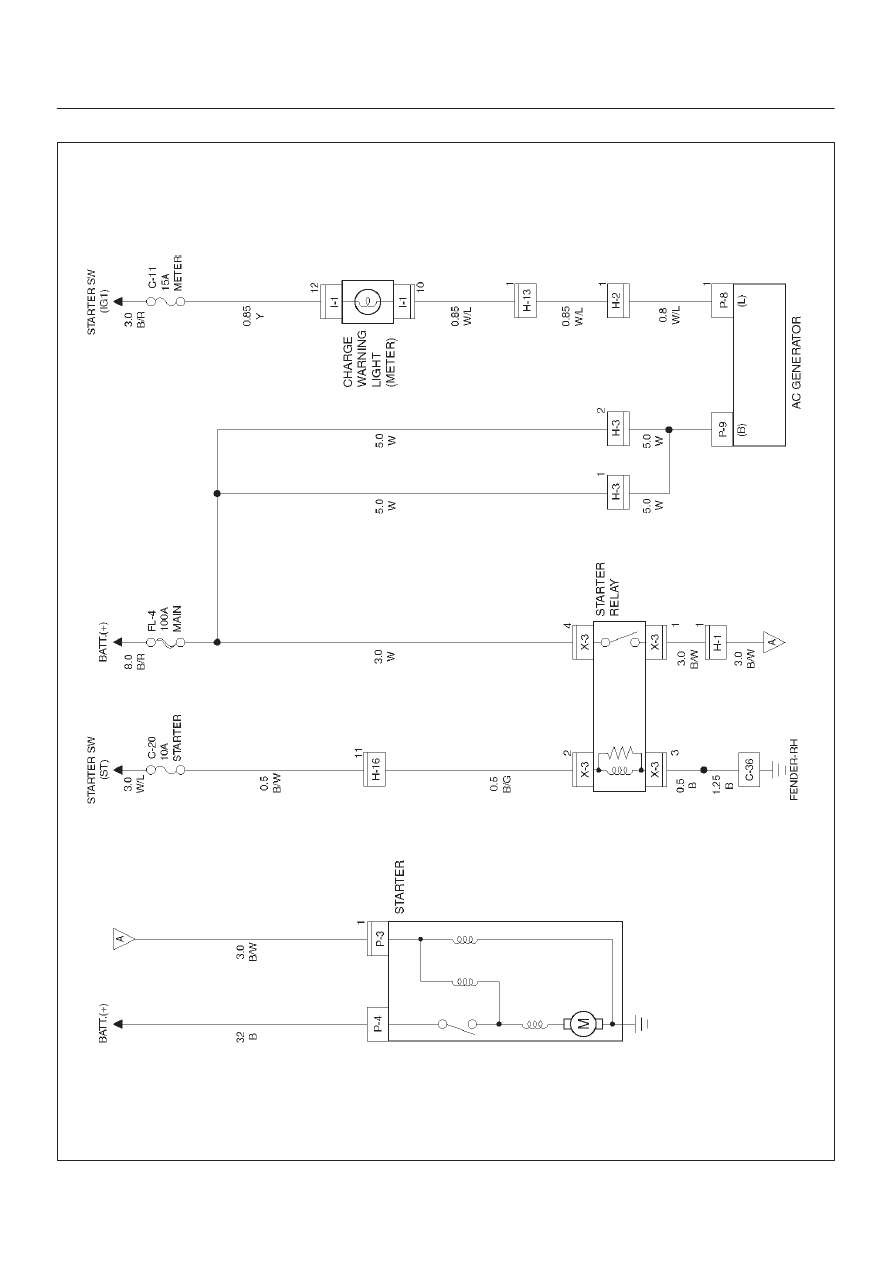

Circuit Diagram–1 (X22SE)

D08RX188

8D–49

WIRING SYSTEM

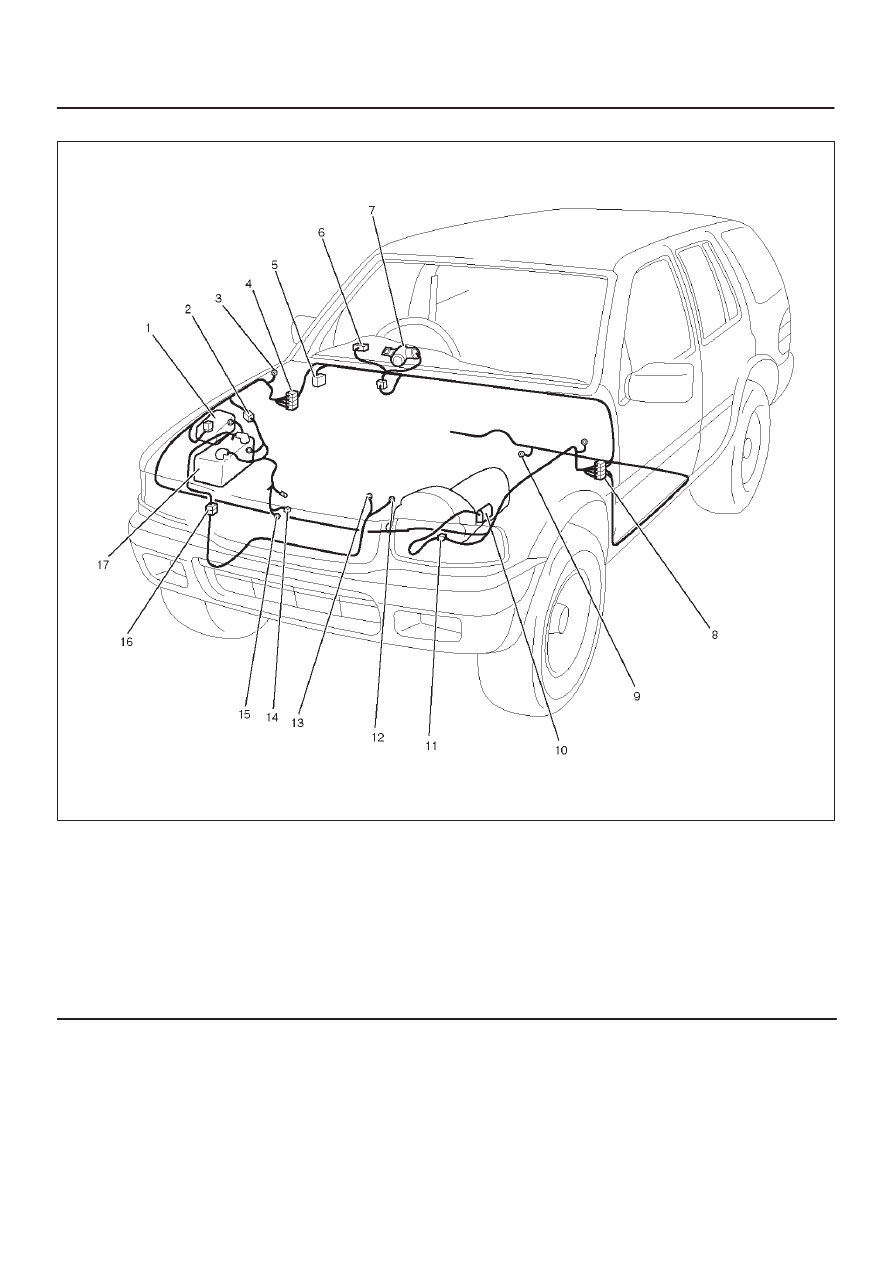

Parts Location

D08RX190

Legend

(1) X–3
(2) H–2, H–3
(3) C–36
(4) H–13
(5) Relay & Fuse Box (C–11, C–20)
(6) I–1
(7) Starter Switch
(8) H–16

(9) B–8

(10) Mode Switch (M–16)

(11) H–10

(12) P–4
(13) P–3
(14) P–8
(15) P–9
(16) H–1
(17) Battery

8D–50

WIRING SYSTEM

Powertrain Control Module (PCM)

General Description

The Powertrain Control Module (PCM) is located in the
passenger compartment.
The PCM constantly monitors the information from
various sensors, and controls the systems that affect
vehicle performance.
The PCM performs the diagnostic function of the system.
It can recognize operational problems, alert the driver
through the Malfunction Indicator Light (MIL) and store a
Diagnostic Trouble Code (DTC) or DTC(s) which identify
the problem areas to aid the technician in making repairs.
The PCM is designed to process the various input
informations and then send the necessary electrical
responses to control fuel delivery, spark timing and other
emission control systems. The input information has an
interrelation to more than one output therefore, if the one
input failed, it could affect more than one system
operation.
Refer to Driveability and Emission in Engine Section and
Automatic Transmission in Transmission section.

8D–51

WIRING SYSTEM

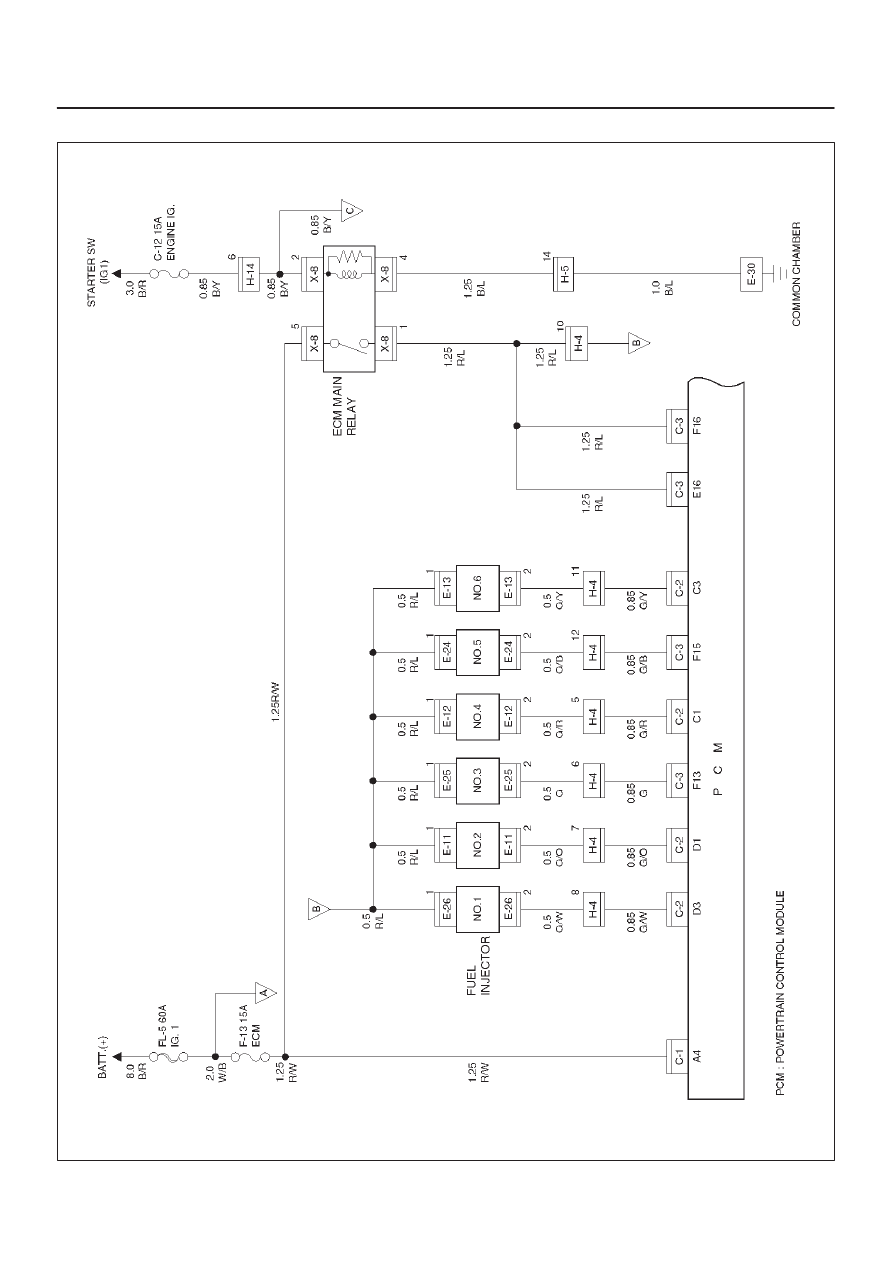

Circuit Diagram–1 (6VD1)

D08RX158
