8D–4

WIRING SYSTEM

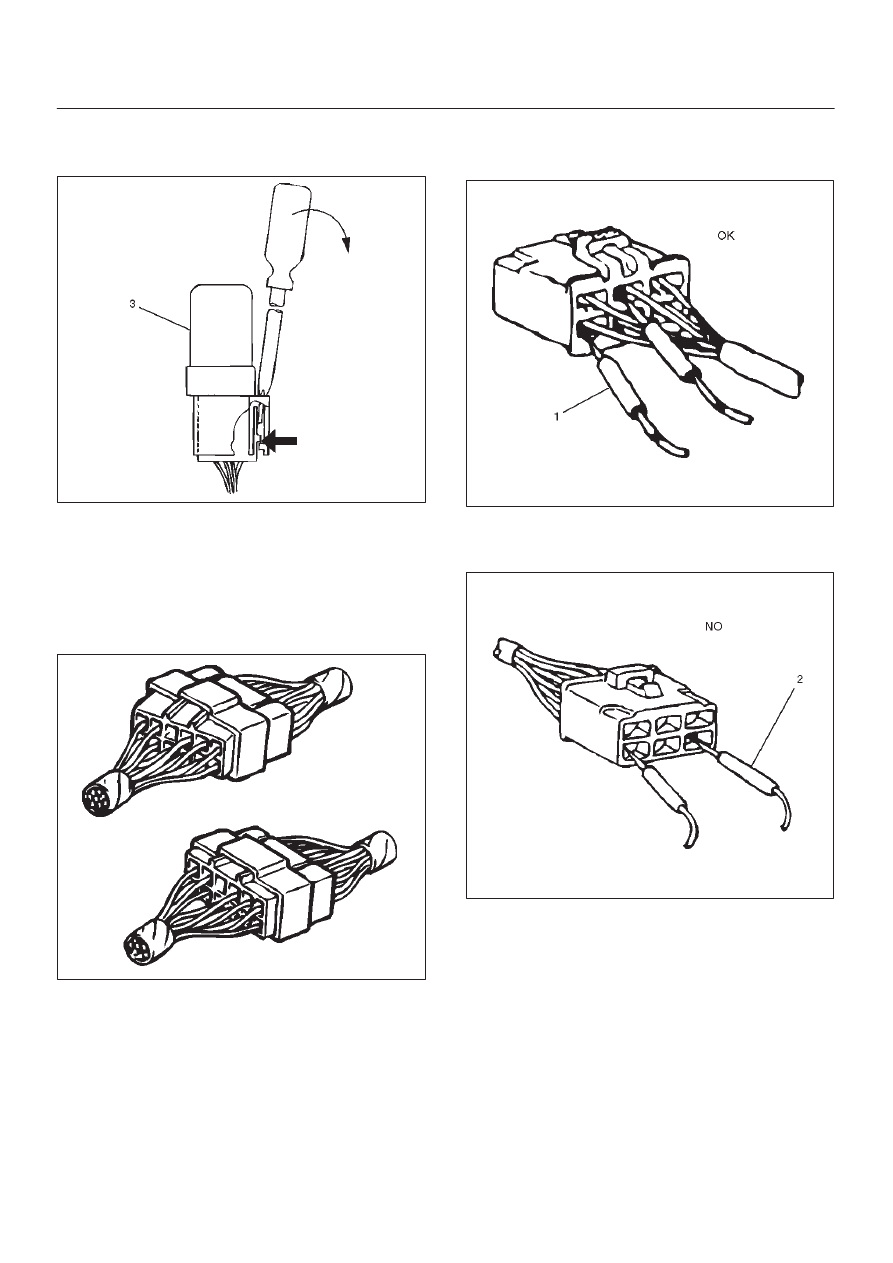

When removing the connector for relay (MR5B type) (3),
unfasten the tang lock of the connector by using a
screwdriver, then pull the relay out as shown in the figure.

D08RW131

Connecting the Connector
Firmly grasp both sides (male and female) of the
connector. Be sure that the connector pins and pin holes
match, Be sure that both sides of the connector are
aligned with each other.
Firmly but carefully push the two sides of the connector
together until a distinct click is heard.

D08RW130

Connector Inspection
Use a circuit tester to check the connector for continuity.
Insert the test probes (1) from the connector wire side.

D08RW132

Never insert the circuit tester test probes (2) into the
connector open end to test the continuity.
Broken or open connector terminals will result.

D08RW133

8D–5

WIRING SYSTEM

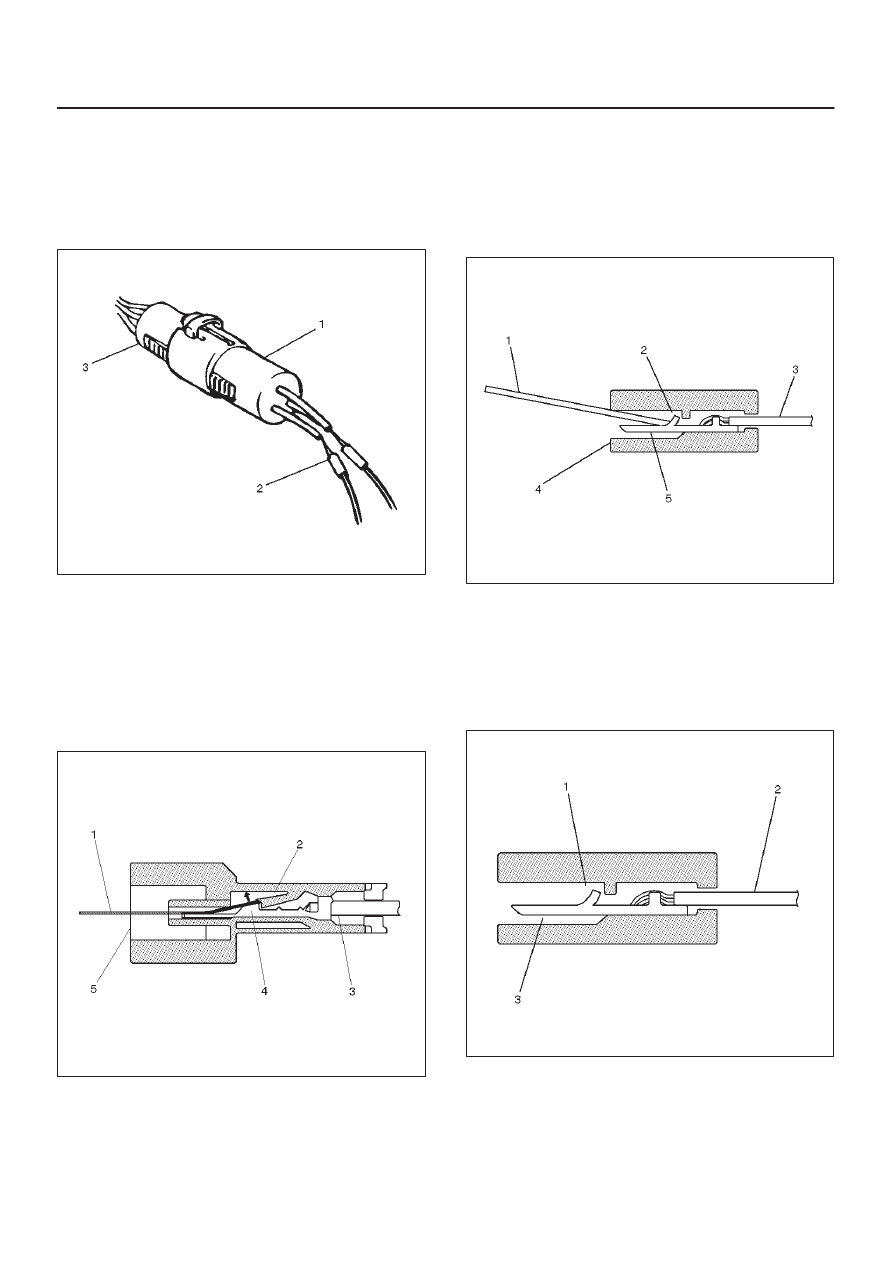

Waterproof Connector Inspection
It is not possible to insert the test probes (2) into the
connector wire side of a waterproof connector.
Use one side of a connector (1) with its wires cut to make
the test. Connect the test connector (3) to the connector
to be tested. Connect the test probes to the cut wires to
check the connector continuity.

D08RW134

Connector Pin Removal – Connector Housing Tang
Lock Type

1. Insert a slender shaft (1) into the connector housing

open end (5).

2. Push the tang lock (2) up (in the direction of the arrow

in the illustration).
Pull the wire (3) with pin (4) free from the wire side of
the connector.

D08RW135

Connector Pin Removal – Pin Tang Lock Type

1. Insert a slender shaft (1) into the connector housing

open end (5).

2. Push the tang lock (2) flat (toward the wire (3) side of

the connector.
Pull the wire with pin (4) free from the wire side of the
connector.

D08RW136

Connector Pin Insertion

1. Check that the tang lock (1) is fully up.
2. Insert the pin (3) from the connector wire (2) side.

Push the pin in until the tang lock closes firmly.

3. Gently pull on the wires to make sure that the

connector pin is firmly set in place.

D08RW137

8D–6

WIRING SYSTEM

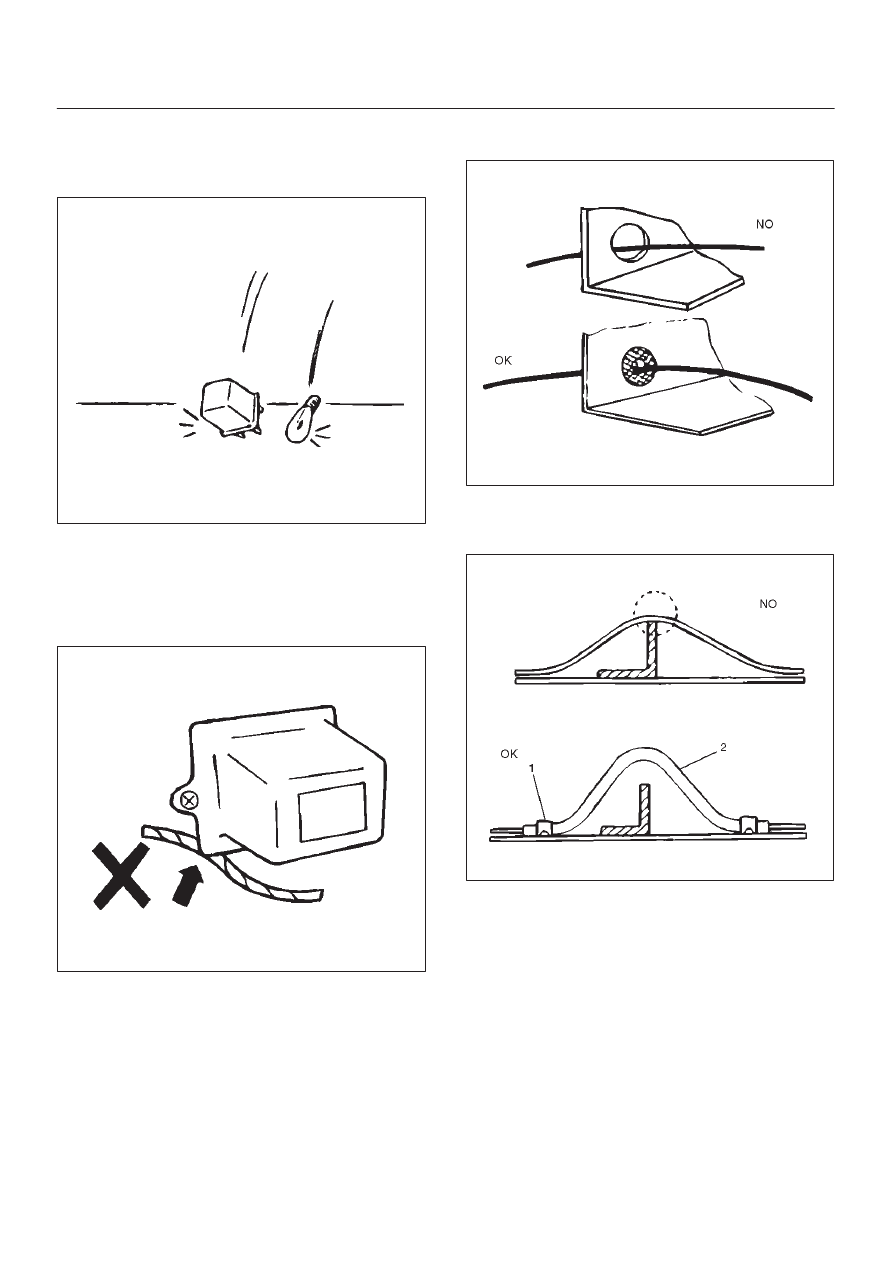

Parts Handling
Be careful when handling electrical parts. They should not
be dropped or thrown, because short circuiting or other
damage may result.

D08RW138

Cable Harness

1. When installing the parts, be careful not to pinch or

wedge the wiring harness.

2. All electrical connections must be kept clean and

tight.

D08RW139

3. Use a grommet or guard tube to protect the wiring

harness from contacting a sharp edge or surface.

D08RW139

4. Position the wiring harness with enough clearance

from the other parts and guard the wiring harness with
a vinyl tube (2) and clips (1) to avoid direct contact.

D08RW141

8D–7

WIRING SYSTEM

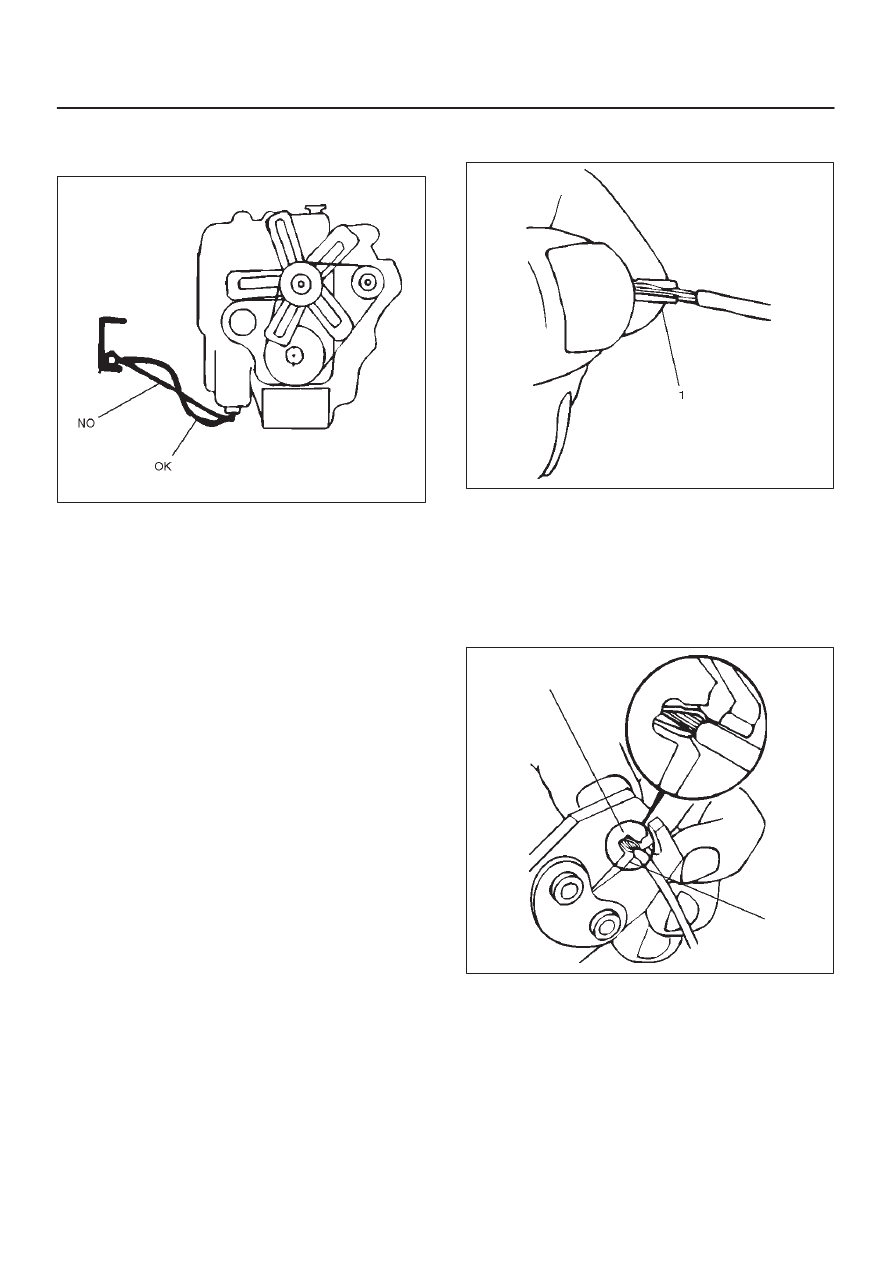

5. The wiring harness between engine and chassis

should be long enough to prevent chafing or damage
due to various vibrations.

D08RW142

Splicing Wire

1. If the harness is taped, remove the tape. To avoid wire

insulation damage, use a sewing “seam ripper”
(available from sewing supply stores) to cut open the
harness.
If the harness has a black plastic conduit, simply pull
out the desired wire.

2. Begin by cutting as little wire off the harness as

possible. You may need the extra length of wire later if
you decide to cut more wire off to change the location
of a splice. You may have to adjust splice locations to
make certain that each splice is at least 1–1/2” (40
mm) away from other splices, harness branches, or
connectors.

3. When replacing a wire, use a wire of the same size as

the original wire.
Check the stripped wire for nicks or cut stands. If the
wire is damaged, repeat the procedure on a new
section of wire. The two stripped wire ends should be
equal in length.

4. Select the proper clip to secure the splice.

To determine the proper clip size for the wire being
spliced, follow the directions included with your clips.
Select the correct anvil on the crimper. (On most
crimpers your choice is limited to either a small or
large anvil.)
Overlap the two stripped wire ends and hold them
between your thumb and forefinger as shown in the
figure.

The center the spline clip (1) under the stripped wires
and hold it in place.

D08RW143

D

Open the crimping tool to its full width and rest one
handle on a firm flat surface.

D

Center the back of the splice clip on the proper anvil
and close the crimping tool to the point where the
back of the splice clip touches the wings of the clip.

D

Make sure that the clip and wires are still in the correct
position. Then, apply steady pressure until the
crimping tool closes as shown in the figure.

D08RW144
