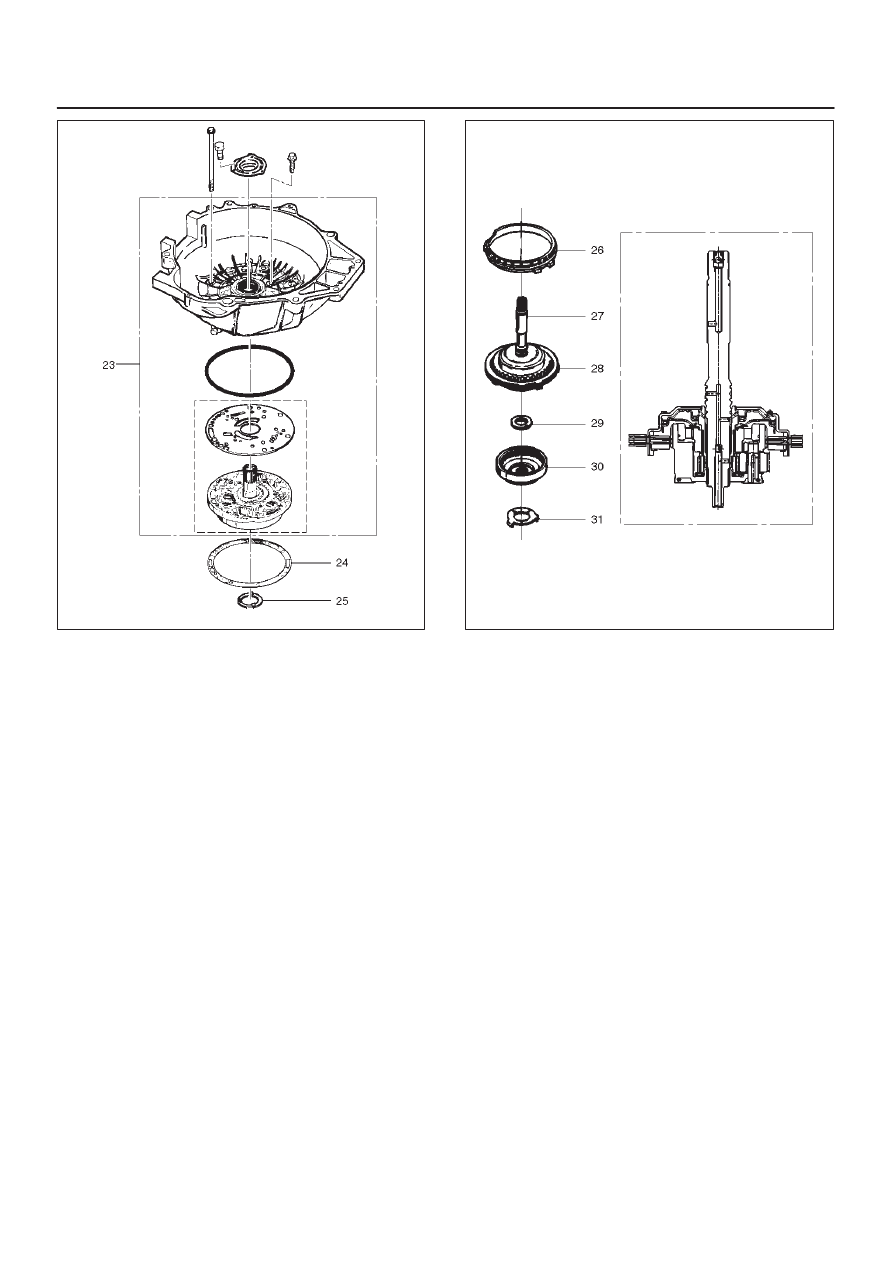

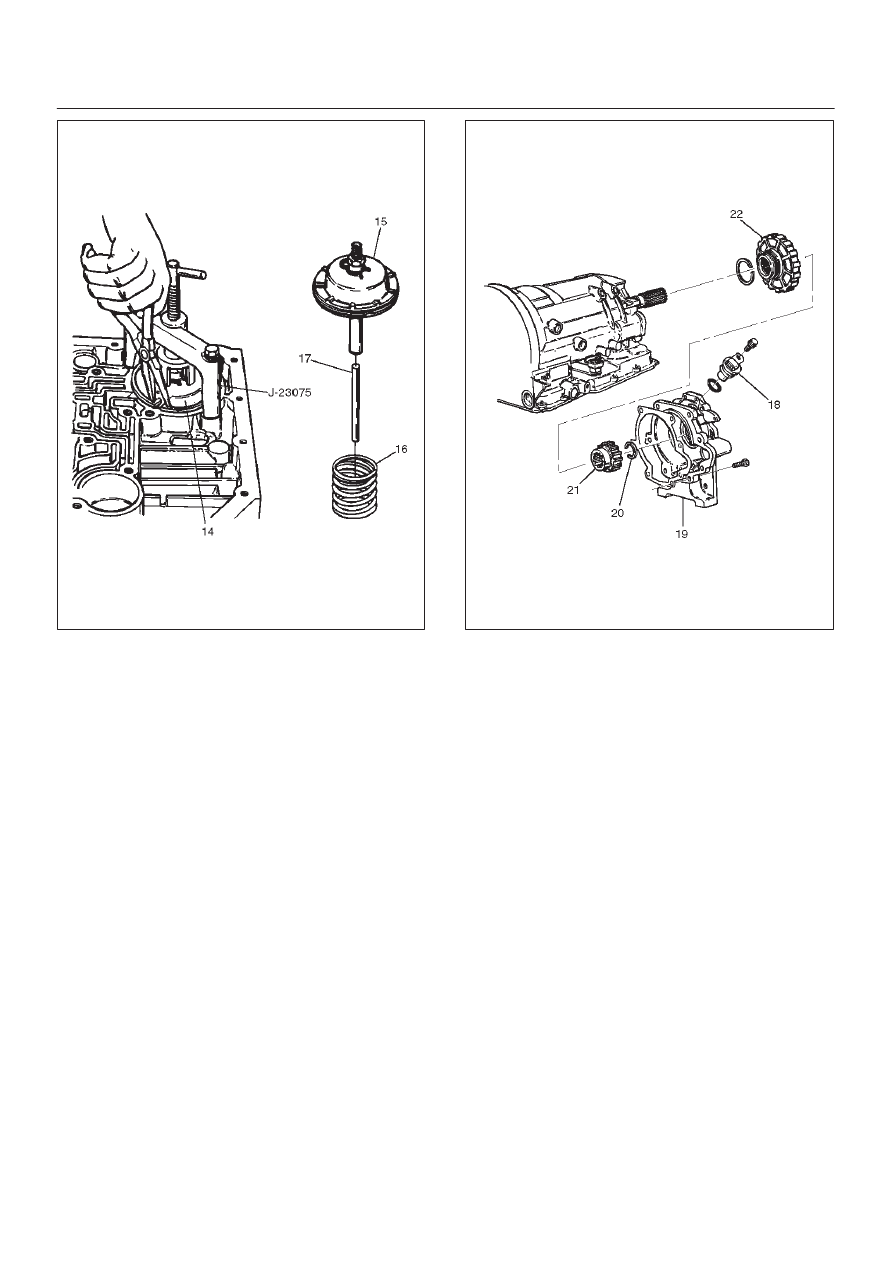

7A–52 AUTOMATIC TRANSMISSION (4L30–E) 242RS002 16. Rotate transmission to horizontal position, pan side down. D Remove one 10mm screw, and speed sensor (18) 17. Remove seven 8mm extension housing hexagon socket head screws, extension housing assembly 18. Remove retaining ring (20). NOTE: Use extra long, needle nose pliers. 19. Remove speed wheel (21). 241RS002 21. Rotate transmission to vertical position, converter housing up. D Loosen the converter housing and oil pump D Remove seven outer screws. D Remove converter housing and oil pump assembly 22. Remove gasket (24). |
