6E2–286

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

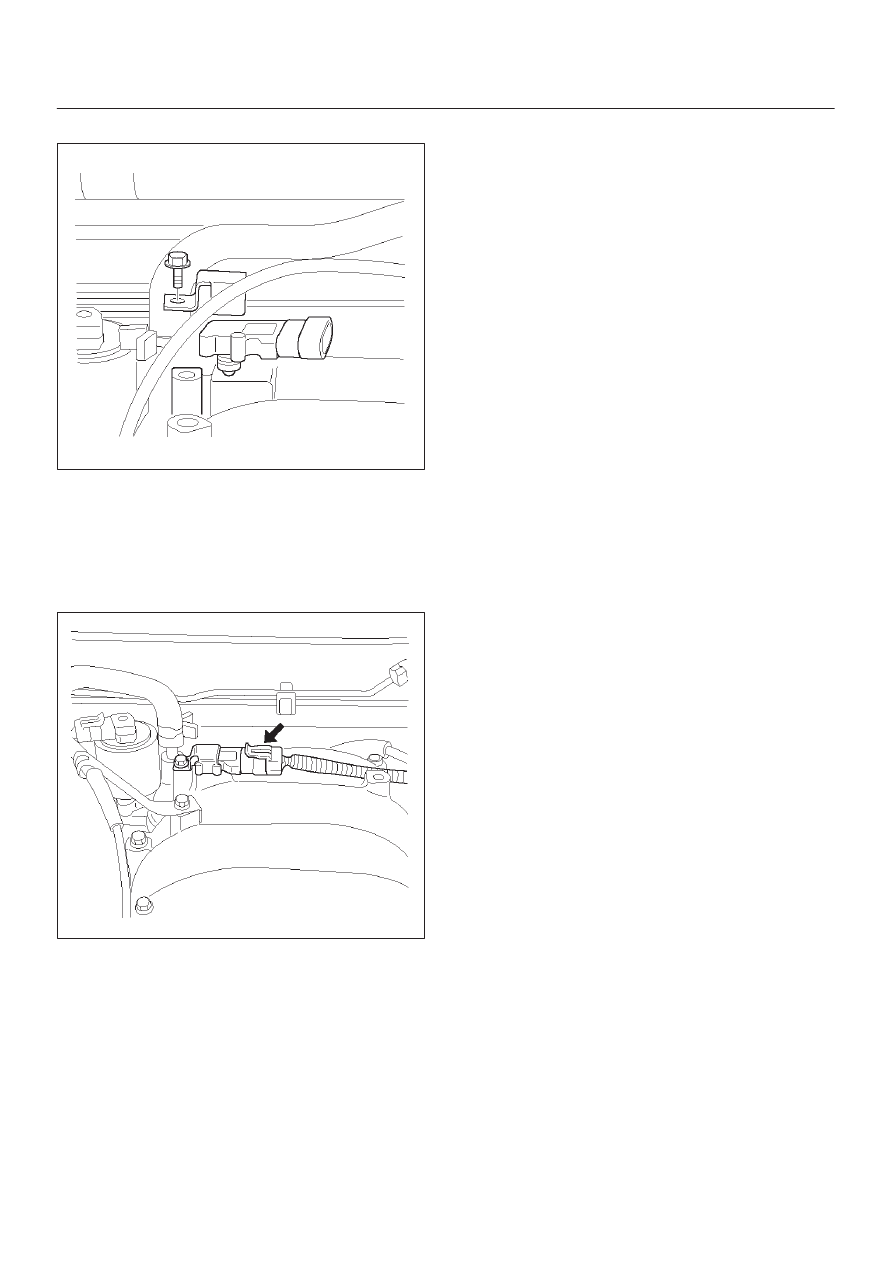

4. Remove the MAP sensor from the mounting bracket.

055RW002

Installation Procedure

1. Install the MAP sensor in the mounting bracket.
2. Install the mounting bracket retaining bolt on the

common chamber.

3. Connect the MAP electrical connector.

055RW005

4. Connect the negative battery cable.

Malfunction Indicator Lamp

(MIL)

Removal and Installation Procedure

Refer to Warning light bulb, indicator light valve,
illumination light bulb, A/T indicator light bulb in Meter and
Gauge.

Powertrain Control Module

(PCM)

Service Precaution

NOTE: To prevent possible electrostatic discharge
damage to the PCM, do not touch the connector pins or
soldered components on the circuit board.

Electrostatic Discharge (ESD)
Damage

Electronic components used in the control systems are
often designed to carry very low voltage.  Electronic
components are susceptible to damage caused by
electrostatic discharge.  Less than 100 volts of static
electricity can cause damage to some electronic
components.  By comparison, it takes as much as 4,000
volts for a person to even feel the zap of a static
discharge.
There are several ways for a person to become statically
charged.  The most common methods of charging are by
friction and by induction.  An example of charging by
friction is a person sliding across a car seat.
Charging by induction occurs when a person with well
insulated shoes stands near a highly charged object and
momentarily touches ground.  Charges of the same
polarity are drained off leaving the person highly charged
with the opposite polarity.  Static charges can cause
damage, therefore, it is important to use care when
handling and testing electronic components.

NOTE: To prevent possible Electrostatic Discharge
damage, follow these guidelines:

D

Do not touch the control module connector pins or
soldered components on the control module circuit
board.

D

Do not open the replacement part package until the
part is ready to be installed.

D

Before removing the part from the package, ground
the package to a known good ground on the vehicle.

D

If the part has been handled while sliding across the
seat, or while sitting down from a standing position, or
while walking a distance, touch a known good ground
before installing the part.

NOTE: To prevent internal PCM damage, the ignition
must be in the “OFF” position in order to disconnect or
reconnect power to the PCM (for example: battery cable,
PCM pigtail, PCM fuse, jumper cables, etc.).

IMPORTANT:

When replacing the production PCM

with a service PCM, it is important to transfer the
broadcast code and production PCM number to the
service PCM label.  This will allow positive identification of
PCM parts throughout the service life of the vehicle.  Do
not record this information on the metal PCM cover.

IMPORTANT:

The ignition should always be in the

“OFF” position in order to install or remove the PCM
connectors.

6E2–287

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

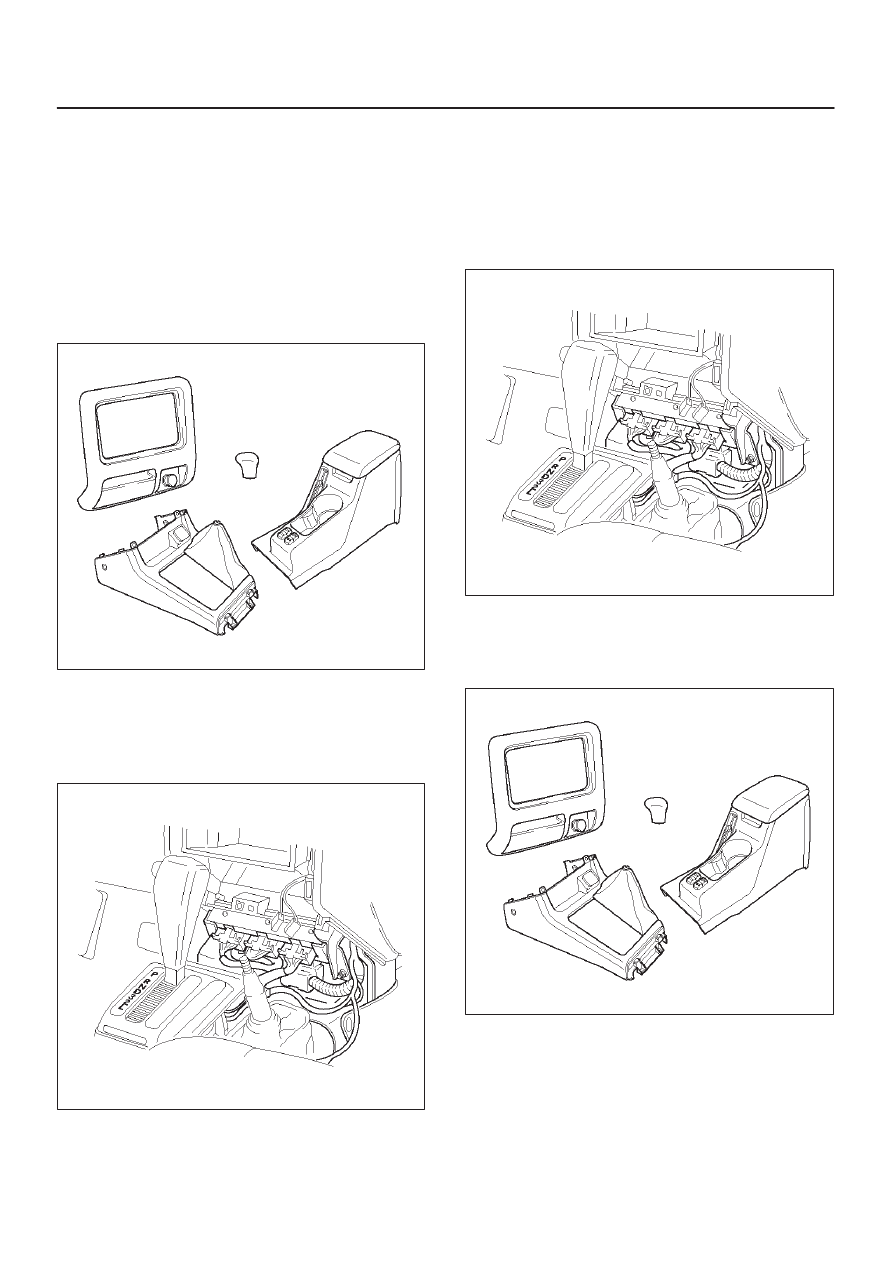

Removal Procedure

1. Disconnect the negative battery cable.
2. Block the wheels.
3. Remove the two screws attaching the rear console

and lift the upward rear console, then disconnect the
switch connector.

4. Remove the lower cluster assembly by pulling the

cover toward the rear.

5. Remove the transfer knob.
6. Remove the six screws attaching the upper console

and front console.

745RX008

7. Disconnect the red, white, and blue electrical

connectors at the PCM.

8. Remove the two screws in the front of the PCM.
9. Remove the one screws at the left rear of the PCM.

10. Pull the PCM straight out from the dashboard.

014RW111

Installation Procedure

1. Insert the PCM into the dashboard.

D

Line up the holes in front for the mounting screws.

2. Install the PCM with two screws in the front and one

screw at the left rear.

3. Plug the red, white, and blue connectors into the

appropriate sockets.

014RW111

4. Install the front console and lower console.
5. Install the transfer knob.
6. Connect the switch connector and install the rear

console.

745RX008

If the PCM is replaced, the new PCM will need to be
programmed.

6E2–288

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

EEPROM

General Description

The Electronically Erasable Programmable Read Only
Memory (EEPROM) is a permanent memory that is
physically soldered within the PCM.  The EEPROM
contains program and calibration information that the
PCM needs to control powertrain operation.

Functional Check

1. Perform the On-Board Diagnostic System Check.
2. Start the engine and run for one minute.
3. Scan for DTCs using the Tech 2.

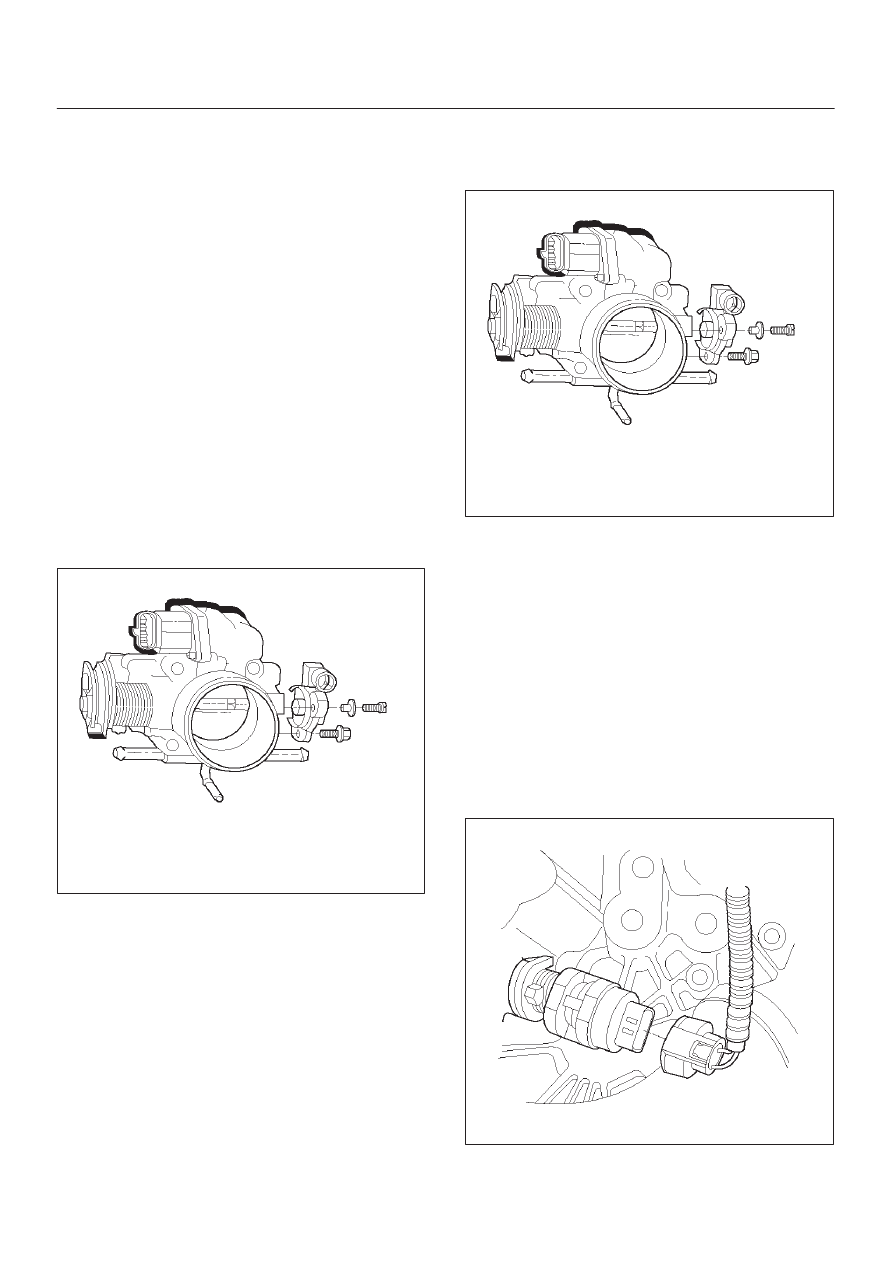

Throttle Position (TP) Sensor

Removal Procedure

1. Disconnect the negative battery cable.
2. Disconnect the TPS electrical connector.
3. Remove the bolts and the TP sensor from the throttle

body.

TS23747

NOTE: Do not clean the TP sensor by soaking it in
solvent.  The sensor will be damaged as a result.

Function Check

Use a Tech 2 to check the TP sensor output voltage at
closed throttle.

D

The voltage should be under 0.85 volt.

D

If the reading is greater than 0.85 volt, check the
throttle shaft to see if it is binding.  Check that the
throttle cable is properly adjusted, also.  Refer to
Throttle Cable Adjustment.

D

If the throttle shaft is not binding and the throttle cable
is properly adjusted, install a new TP sensor.

Installation Procedure

1. Install the TP sensor on the throttle body with the

bolts.

TS23747

2. Connect the TP electrical connector.
3. Install the negative battery cable.

Vehicle Speed Sensor (VSS)

Removal Procedure

CAUTION: The VSS is located on the right side of
the transfer case just ahead of the rear propeller
shaft and very close to the exhaust pipes.  Be sure
that the exhaust pipes are cool enough to touch
before trying to remove the VSS.  If the pipes are hot,
you could be burned.

1. Disconnect the negative battery cable.
2. Disconnect the VSS electrical connector.

TS23748

6E2–289

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

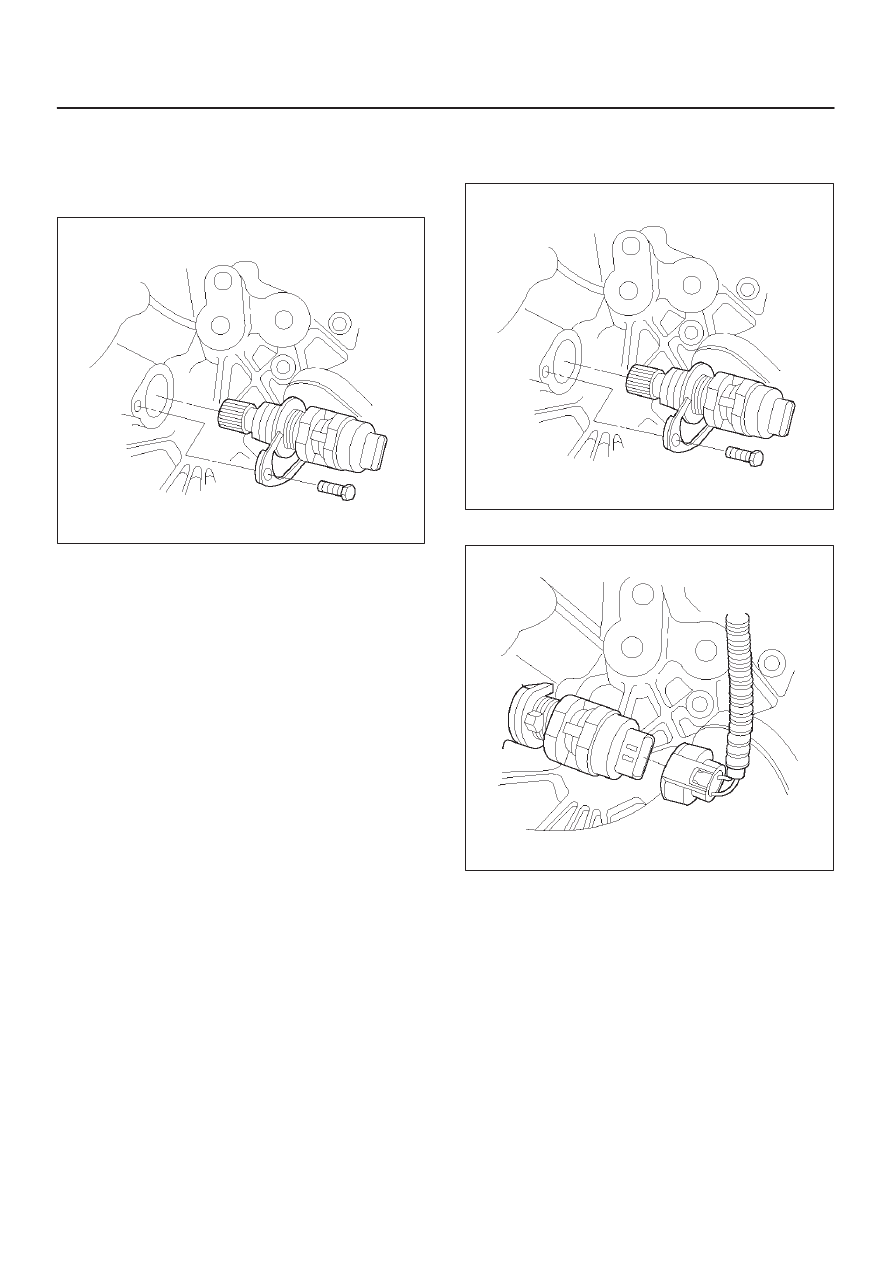

3. Remove the bolt and the clamp securing the VSS in

place.

IMPORTANT:

Have a container ready to catch any fluid

that leaks out when the VSS is removed from the transfer
case.

TS23780

4. Remove the VSS from the transfer case by wiggling it

slightly and pulling it straight out.

Inspection Procedure

1. Inspect the electrical connector for signs of corrosion

or warping.  Replace the VSS if the electrical
connector is corroded or warped.

2. Inspect the VSS driven gear for chips, breaks, or worn

condition.  Replace the VSS if the driven gear is
chipped, broken or worn.

3. Inspect the O-ring for wear, nicks, tears, or

looseness.  Replace the O-ring if necessary.

Installation Procedure

1. Install the VSS in the transfer case with the notch for

the connector facing the rear.

2. Secure the VSS in place with the clamp and the bolt.

Tighten

D

Tighten the bolt to 16 N·m (1.6 kg·m/12 lb ft.).

TS23780

3. Connect the VSS electrical connector.

TS23748

4. Check the transfer case oil level.  Add fluid if

necessary.

5. Connect the negative battery cable.
