6E1–262

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

Symptoms

Initial Diagnosis

Default Section(s)

Misfire

1. OBD system check.
2. Ignition system.
3. Fuel system diagnosis.
4. Fuel injector and fuel injector

balance test.

Vibrations, Transmission,
Driveshaft and Axle

Catalyst Monitor

1. OBD system check.
2. Careful visual/physical inspection.
3. Heated oxygen sensors.

Exhaust System

Fuel Trim

1. OBD system check.
2. Careful visual/physical inspection.
3. Fuel system diagnosis.
4. Heated oxygen sensors.

Exhaust System Intake Air
System

Evaporative Emissions

1. OBD system check.
2. Careful visual/physical inspection.
3. Fuel system diagnosis.

—

Heated Oxygen Sensors

1. OBD system check.
2. Careful visual/physical inspection.

Exhaust System

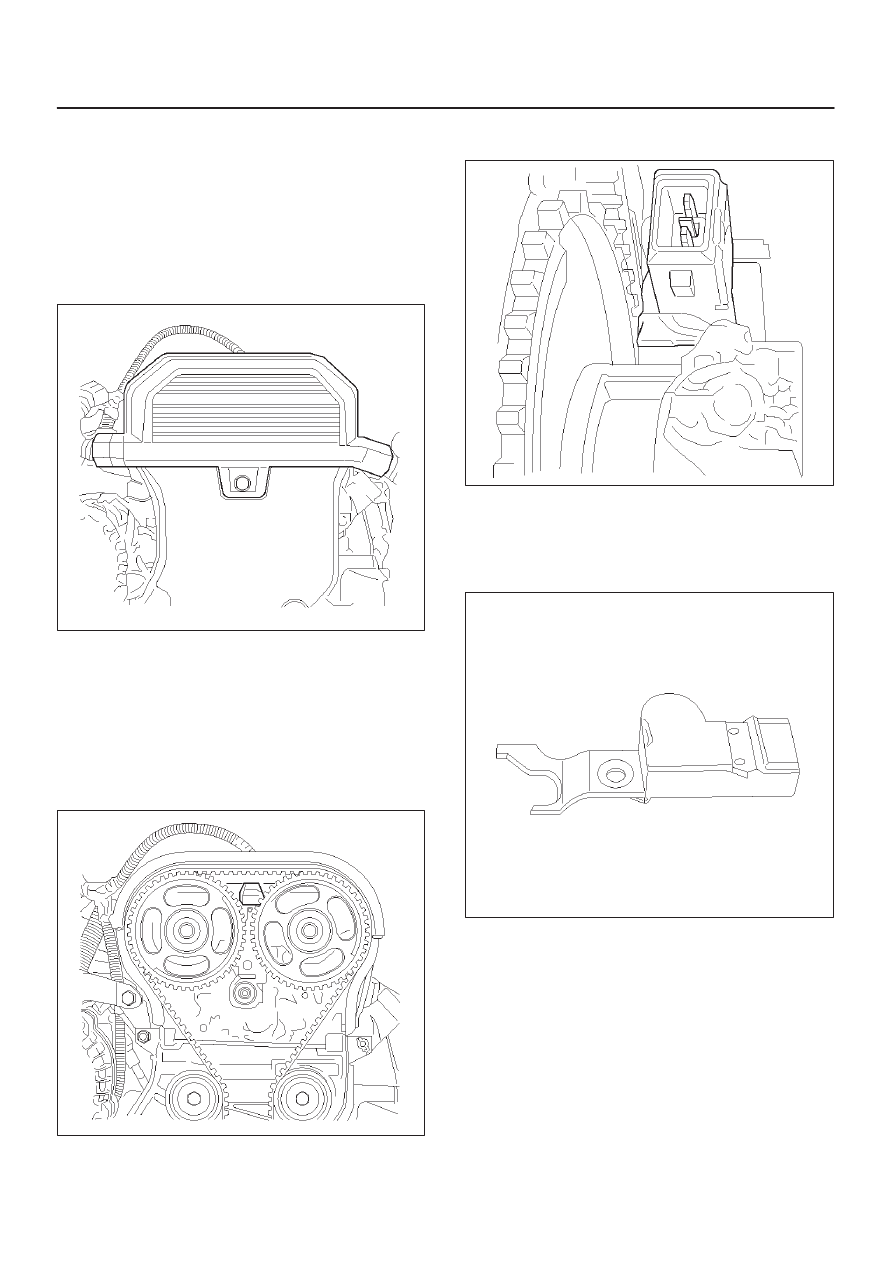

6E1–263

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

Camshaft Position (CMP)

 Sensor

Removal Procedure

1. Disconnect the negative battery cable.
2. Remove spark plug cover on top of valve cover by

removing four retaining bolts.

3. Disconnect electrical connector from the sensor.

014RX003

4. Remove drive belt. Refer to Engine Mechanical

Section.

5. Remove top harness cover installed on timing belt

cover by removing a retaining screw.

6. Remove the retaining bolts holding crankshaft pulley,

and pull crankshaft pulley while wiggling. Refer to
Engine Mechanical Section.

7. Remove the retaining screws for timing belt cover and

timing belt cover.

014RX004

8. Remove the retaining bolt for the sensor and pull up

camshaft position sensor.

014RX005

Installation Procedure

1. Insert camshaft position sensor in position.
2. Install retaining bolt.

014RX007

3. Install the timing belt cover and the retaining screws.
4. Install the crank shaft pulley and the mounting bolts.

Holes for mounting bolts are off the pitch. The pulley
can be mounted only one way to install all mounting
bolts. Tighten the bolts. Refer to Engine Mechanical
section.

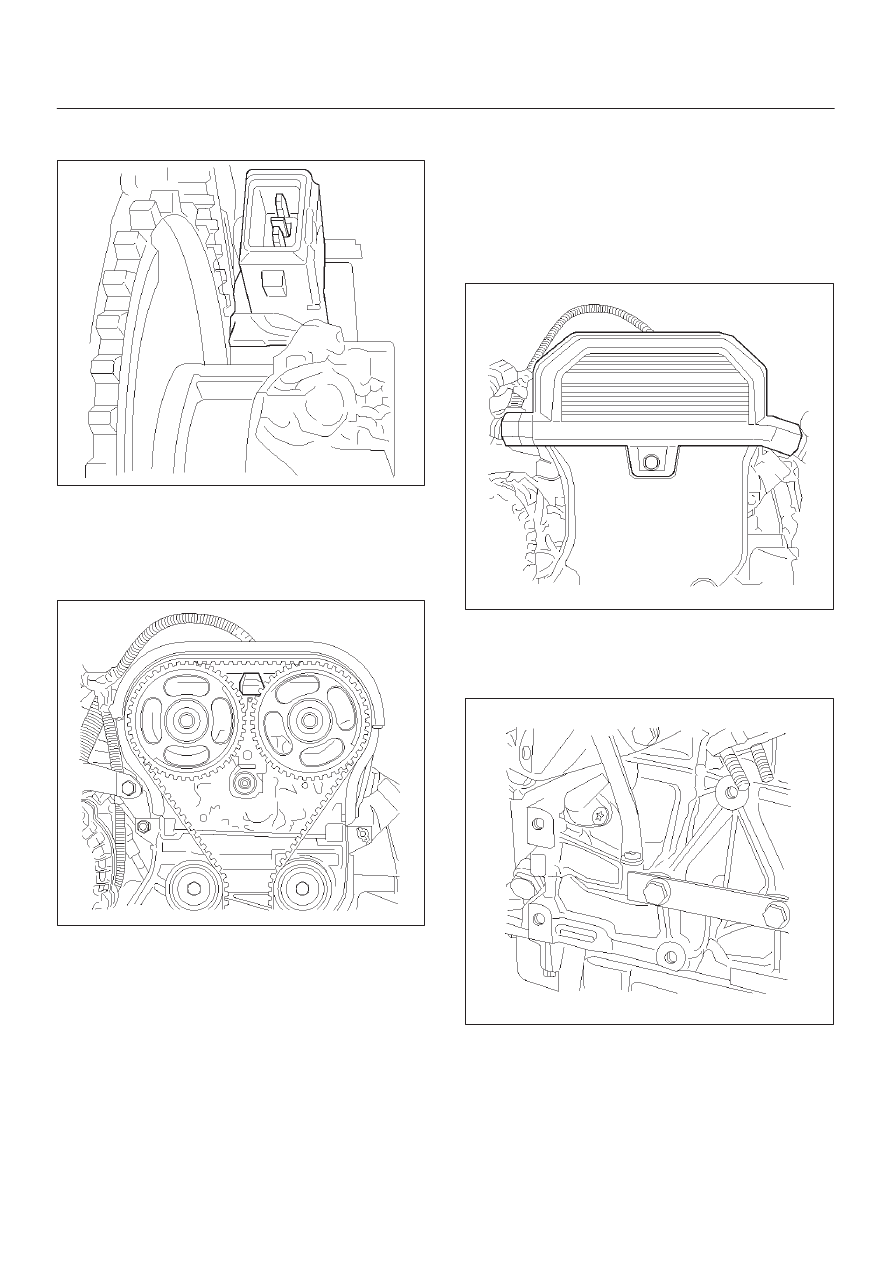

6E1–264

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

5. Install the drive belt. Refer to Engine Mechanical

Section.

014RX005

6. Install the top harness cover onto timing belt cover.
7. Connect electrical connector to the sensor and

securely lock it.

8. Install the spark plug cover.
9. Connect the negative battery cable.

014RX004

Crankshaft Position (CKP)

Sensor

Removal Procedure

1. Disconnect the negative battery cable.
2. Remove the drive belt. Refer to Engine Mechanical

Section.

014RX003

3. Remove the pwer steering pump and

mounting–bracket from engine. Refer to Engine
Mechanical Section.

4. Disconnect electrical connector from the sensor.

014RX006

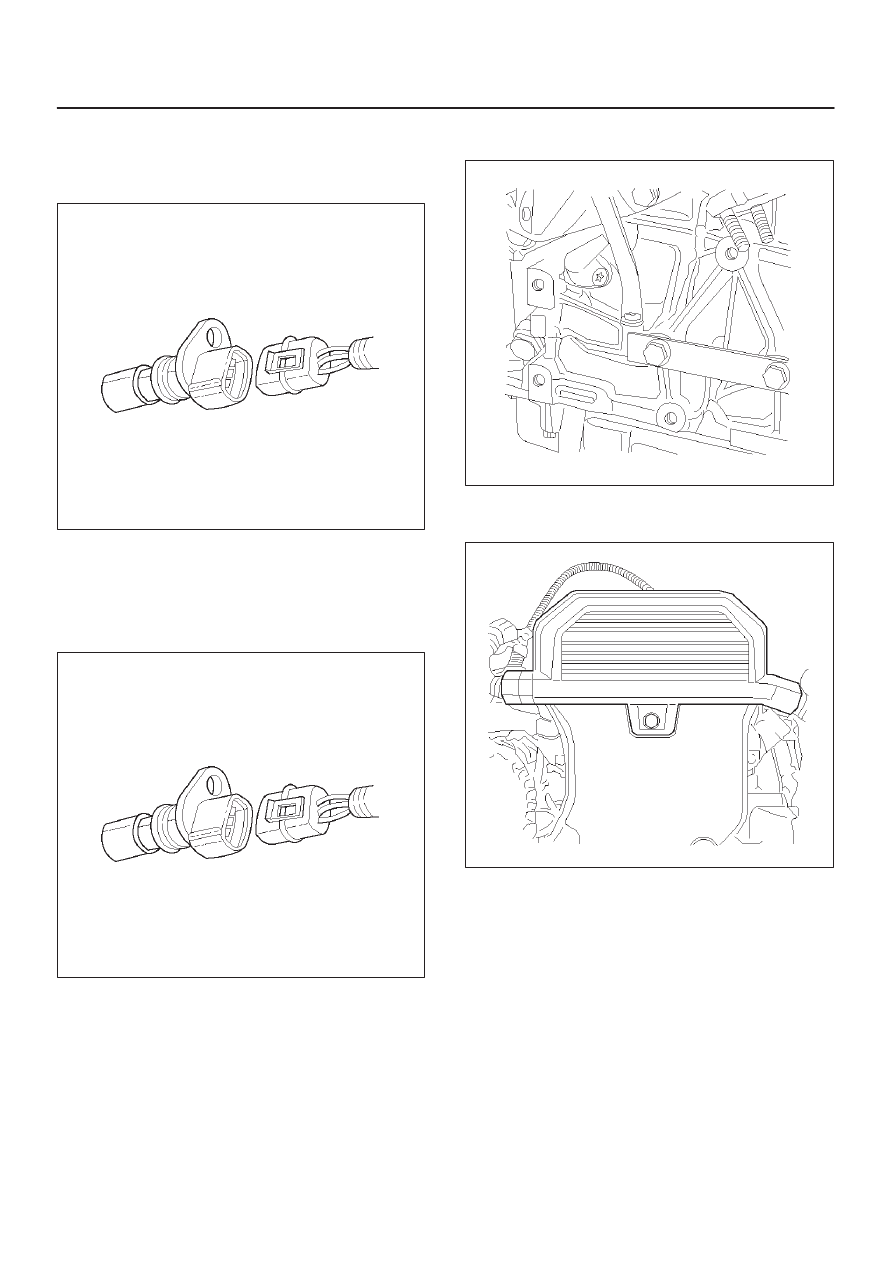

6E1–265

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

5. Remove the retaining bolt and sensor from the engine

block.

NOTE: Use caution to avoid any hot oil that might drip
out.

0013

Installation Procedure

1. Install the crank shaft position sensor to its position.
2. Install and tighten the mounting bolt. Refer to Engine

Mechanical Section.

0013

3. Reinstall the power steering pump and bracket to the

engine.

014RX006

4. Reinstall the accessory drive belt.
5. Connect the negative battery cable.

014RX003
