8D–182

WIRING SYSTEM

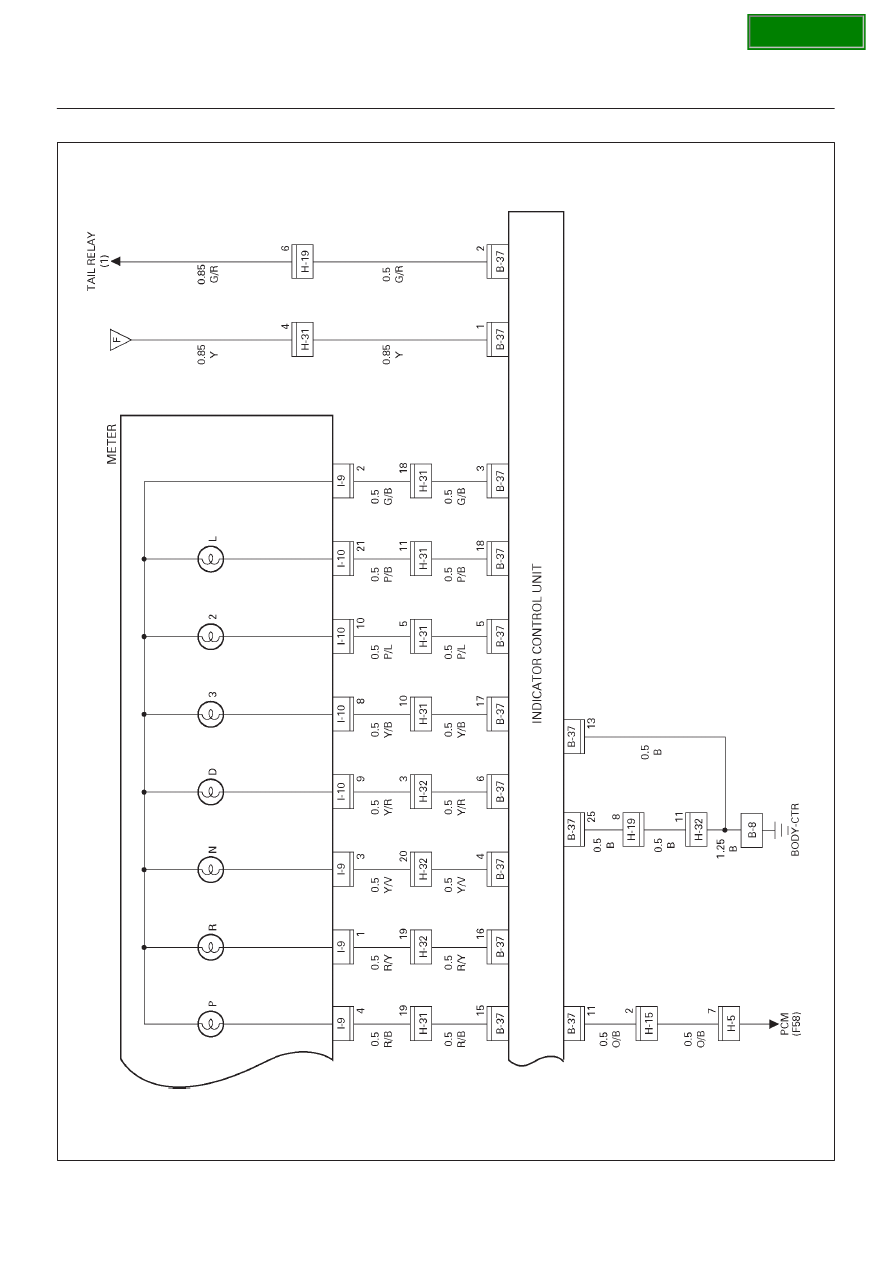

Circuit Diagram – 5

D08R100153

SECTION

8D–183

WIRING SYSTEM

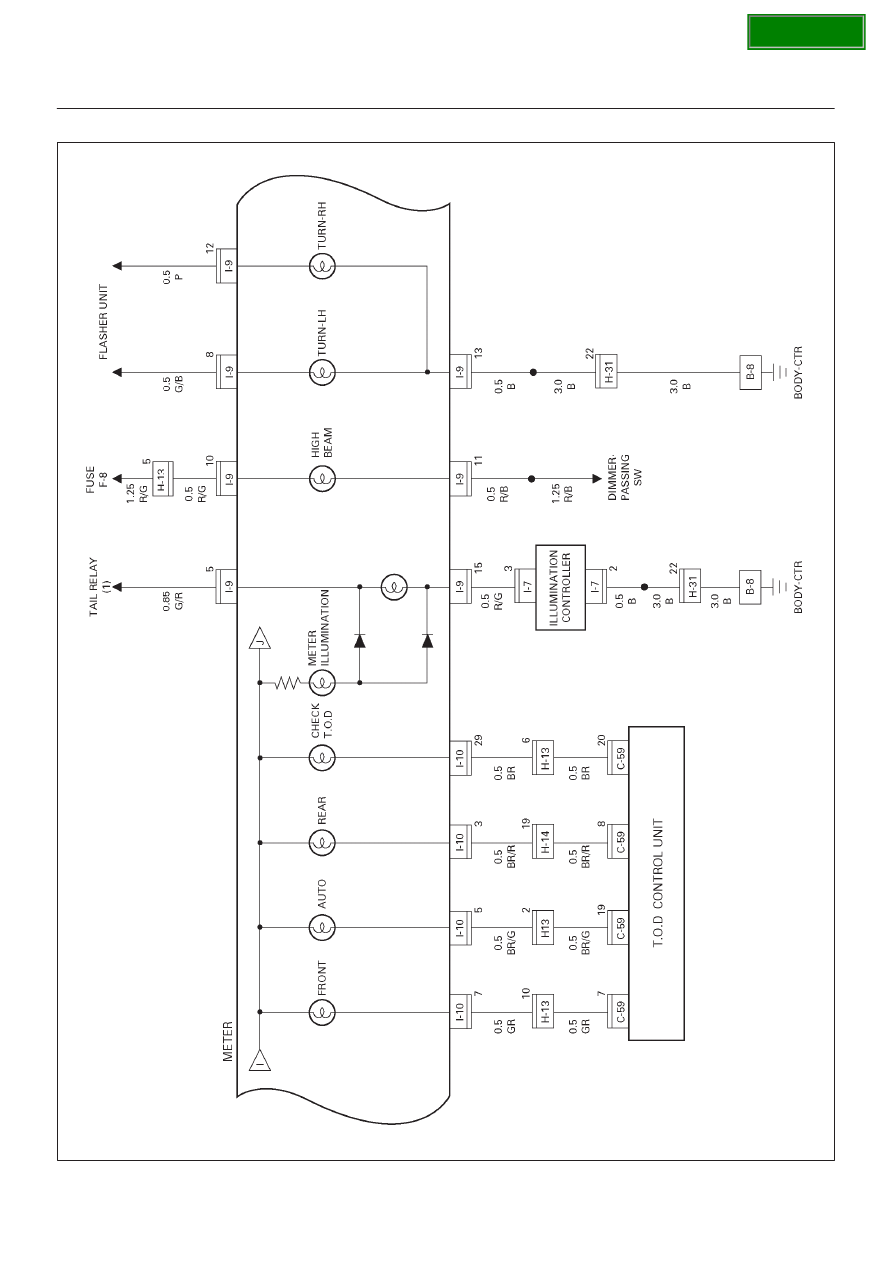

Circuit Diagram – 6

D08R100226

SECTION

8D–184

WIRING SYSTEM

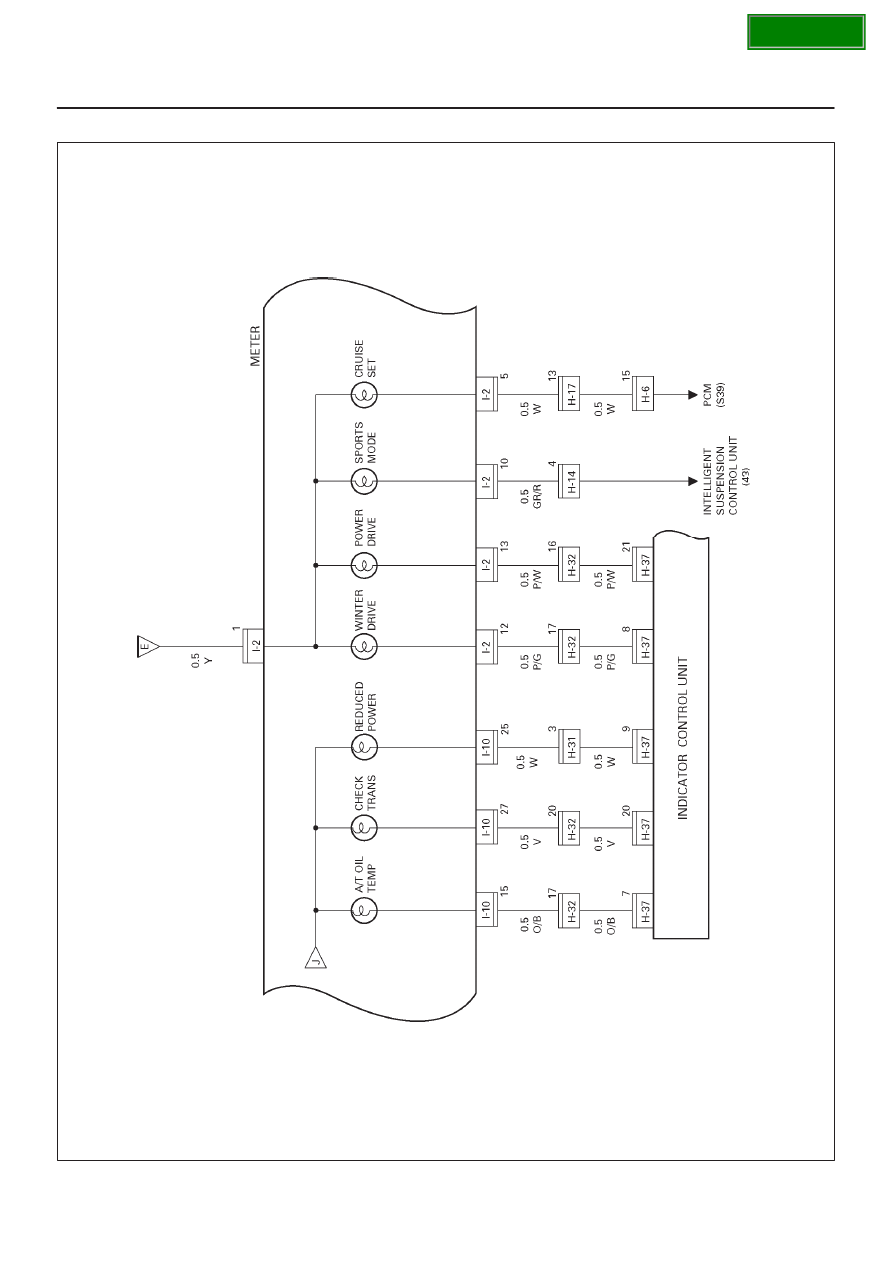

Circuit Diagram – 7

D08R100155

SECTION

8D–185

WIRING SYSTEM

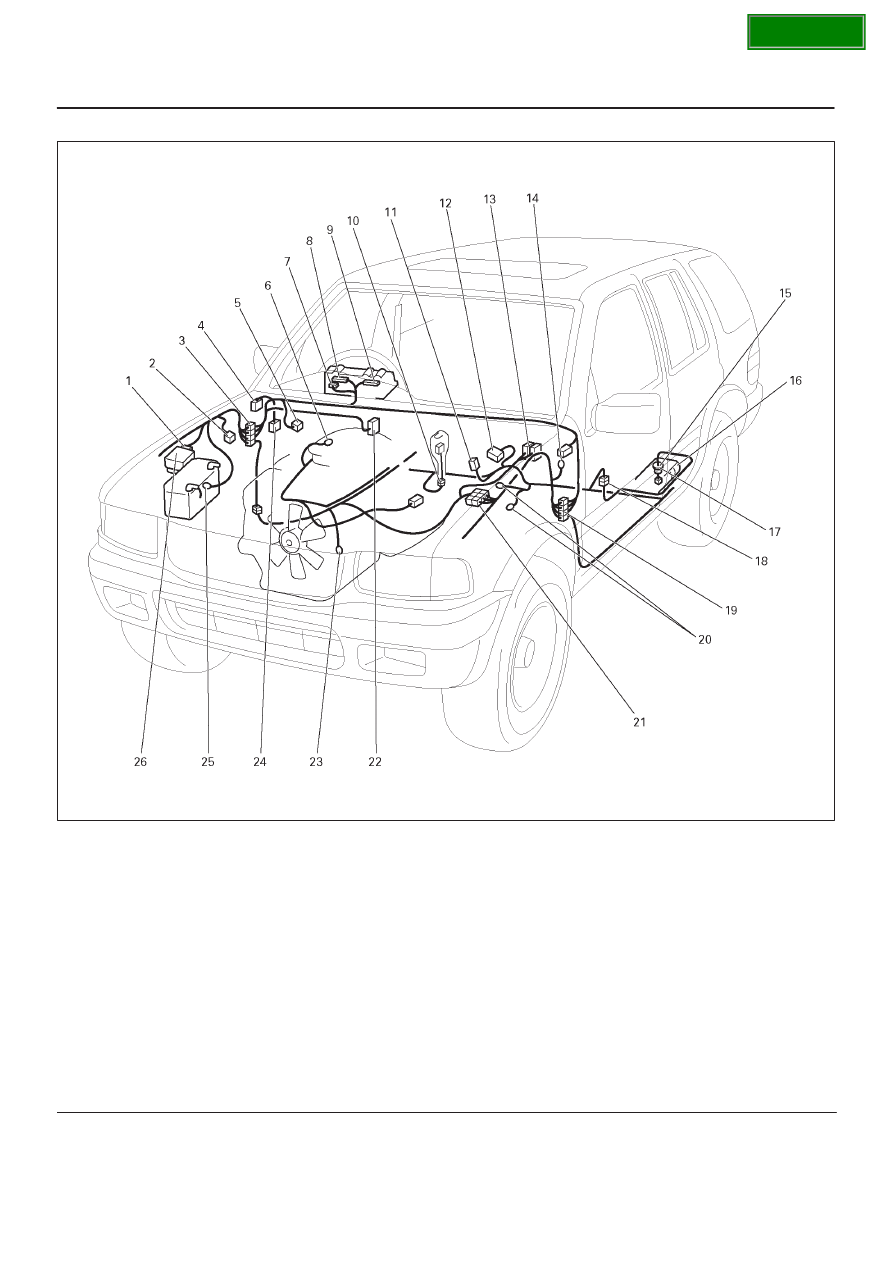

Parts Location

D08R100202

Legend

(1) H–2
(2) C–6
(3) H–13, H–14, H–19, H–32, H–45
(4) Relay & Fuse Box (Instrument Panel)
(5) I–17
(6) E–30
(7) I–2
(8) I–9
(9) I–10

(10) B–22

(11) B–23

(12) B–27
(13) E–21, E–22

(14) C–16
(15) Fuel Tank Unit
(16) Fuel Tank
(17) F–1
(18) H–25
(19) H–16, H–17, H–31
(20) B–6, B–8
(21) H–5, H–6, H–39
(22) C–59
(23) E–1
(24) I–55
(25) C–36
(26) Relay & Fuse Box (Engine Room)

SECTION
