8D–146

WIRING SYSTEM

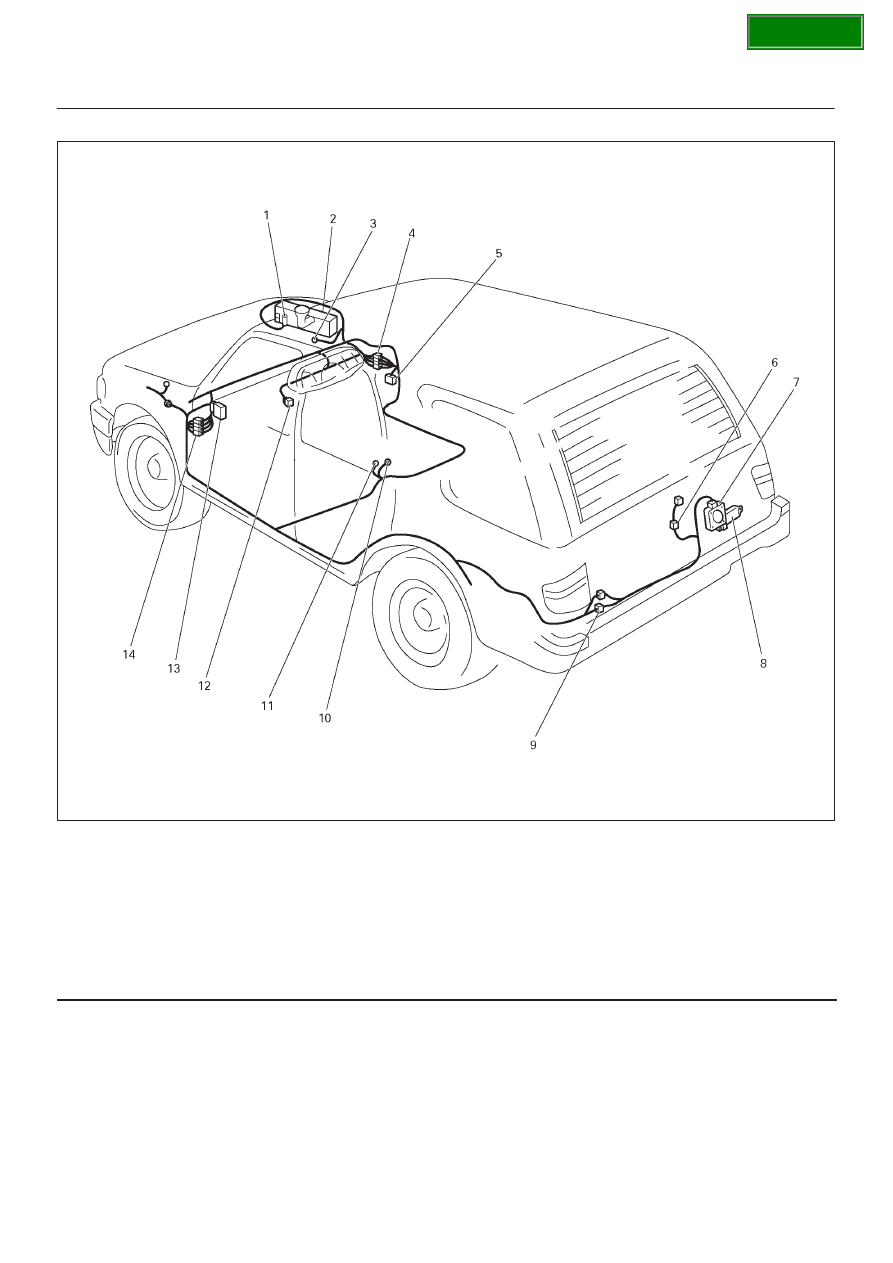

Parts Location

D08R100198

Legend

(1) C–30
(2) FRT & Rear Washer Tank
(3) C–36
(4) H–13, H–19
(5) Relay & Fuse Box (Instrument Panel)
(6) G–1
(7) G–6

(8) Rear Wiper Motor
(9) H–22

(10) B–6

(11) B–8

(12) I–16
(13) I–41, I–42
(14) H–31

SECTION

8D–147

WIRING SYSTEM

Diagnosis

Rear Wiper Motor Does Not Operate

Step

Action

Value(s)

Yes

No

1

Is the fuse C–16 normal?

Go to Step 2

Replace the

fuse

2

1. Disconnect the rear wiper/washer switch connector

I–16.

2. Turn the rear wiper switch on.

Is there continuity between switch side connector I–16
terminal 8 and 7?

Go to Step 3

Repair or

replace the

switch

3

Turn the starter switch on

Is the battery voltage applied between harness side
connector I–16 terminal 8 and the ground?

Approx. 12V

Go to Step 5

Go to Step 4

4

Repair an open circuit between the fuse C–16 and
connector I–16 terminal 8.

Is the action complete?

Go to Step 3

5

Disconnect the alarm & relay control unit connector
I–41 and I–42.

Is the battery voltage applied between harness side
connector I–41 terminal 6 and the ground?

Approx. 12V

Go to Step 7

Go to Step 6

6

Repair an open circuit between the fuse C–16 and
connector I–41 terminal 6.

Is the action complete?

Go to Step 5

7

Is there continuity between harness side connector
I–16 terminal 7 and harness side connector I–42
terminal 20?

Go to Step 9

Go to Step 8

8

Repair an open circuit between connector I–16
terminal 7 and connector I–42 terminal 20.

Is the action complete?

Go to Step 7

9

1. Disconnect the rear wiper motor connector G–6.
2. Connect the battery positive terminal with the motor

side connector G–6 terminal 4 and the battery
negative terminal with the motor side connector
G–6 terminal 6.

Does the motor operate?

Go to Step 10

Repair or

replace the

motor

10

Is there continuity between harness side connector
I–41 terminal 5 and harness side connector G–6
terminal 4?

Go to Step 12

Go to Step 11

11

Repair an open circuit between connector I–41
terminal 5 and connector G–6 terminal 4.

Is the action complete?

Go to Step 10

12

Is there continuity between harness side connector
I–41 terminal 12 and harness side connector G–6
terminal 6?

Replace the

alarm & relay

control unit

Go to Step 13

13

Repair an open circuit between connector G–6 terminal
6 and connector I–41 terminal 12.

Is the action complete?

Verify repair

SECTION

8D–148

WIRING SYSTEM

Auto-Stop Function Of The Rear Wiper Motor Does Not Operate

Step

Action

Value(s)

Yes

No

1

1. Disconnect the rear wiper motor connector G–6
2. Connect the battery positive terminal with the motor

side connector G–6 terminal 4 and the battery
negative terminal with terminal 6.

3. While the motor is operating, disconnect the battery

positive terminal from terminal 4 and then connect it
with terminal 5 again.

4. Under this condition, connect the motor side

connector terminal 1 with terminal 4.

Does the motor stop operating?

Go to Step 2

Repair or

replace the

motor

2

1. Connect the battery positive terminal with the motor

side connector G–6 terminal 5 and the battery
negative terminal with terminal 4.

2. Under this condition, connect the motor side

connector terminal 2 with 6.

Does the motor stop at the correct position?

Go to Step 2

Repair or

replace the

motor

3

Turn the start switch on

Is the battery voltage applied between harness side
connector G–6 terminal 5 and the ground?

Adpprox. 12V

Go to Step 5

Go to Step 4

4

Repair an open circuit between connector I–42
terminal 4 and connector G–6 terminal 5.

Is the action complete?

Go to Step 3

5

Disconnect the alarm & relay control unit connector
I–41 and I–42.

Is there continuity between harness side connector
G–6 terminal 1 and harness side connector I–42
terminal 2, harness side connector G–6 terminal 2 and
harness side connector I–42 terminal 13?

Replace the

alarm & relay

control unit

Go to Step 4

6

Repair an open circuit between connector G–6 terminal
1 and connector I–42 terminal 2.

Is the action complete?

Verify repair

Rear Wiper Motor Does Not Operate With Rear Wiper/Washer Switch At Wiper Position

Step

Action

Value(s)

Yes

No

1

1. Disconnect the rear wiper/washer switch connector

I–16.

2. Turn the switch to rear wiper position.

Is there continuity between the switch side connector
I–16 terminal 8 and 7?

Go to Step 2

Repair or

replace the

switch

2

1. Reconnect the rear wiper/washer switch connector

I–16.

2. Disconnect the alarm & relay control unit connector

I–41 and I–42.

3. Turn the starter switch on.

Is the battery voltage applied between harness side
connector I–42 terminal 20 and the ground?

Approx. 12V

Replace the

alarm & relay

control unit

Go to Step 3

3

Repair an open circuit between connector I–16
terminal 7 and connector I–42 terminal 20.

Is the action complete?

Verify repair

SECTION

8D–149

WIRING SYSTEM

Rear Wiper Motor Does Not Operate With Rear Wiper/Washer Switch At Washer Position

Step

Action

Value(s)

Yes

No

1

1. Disconnect the rear wiper/washer switch connector

I–16.

2. Turn the switch to the washer position.

Is there continuity between the switch side connector
I–16 terminal 5 and 4?

Go to Step 2

Repair or

replace the

switch

2

1. Reconnect the rear wiper/washer switch connector

I–16.

2. Disconnect the alarm & relay control unit connector

I–41 and I–42.

3. Turn the starter switch on.

Is the battery voltage applied between harness side
connector I–42 terminal 19 and the ground?

Approx. 12V

Replace the

alarm & relay

control unit

Go to Step 3

3

Repair an open circuit between connector I–16
terminal 4 and connector I–42 terminal 19.

Is the action complete?

Verify repair

Rear Wiper Motor Does Not Stop Operating

Step

Action

Value(s)

Yes

No

1

1. Disconnect the rear wiper/washer switch connector

I–16.

2. Turn the switch to the off position.

NOTE: There should be no continuity.

Is there continuity between the switch side connector
I–16 terminal 8 and 7?

Repair or

replace the

switch

Replace the

alarm& relay

control unit

SECTION
