8B–10

WIPER/WASHER SYSTEM

Rear Washer Motor

Removal

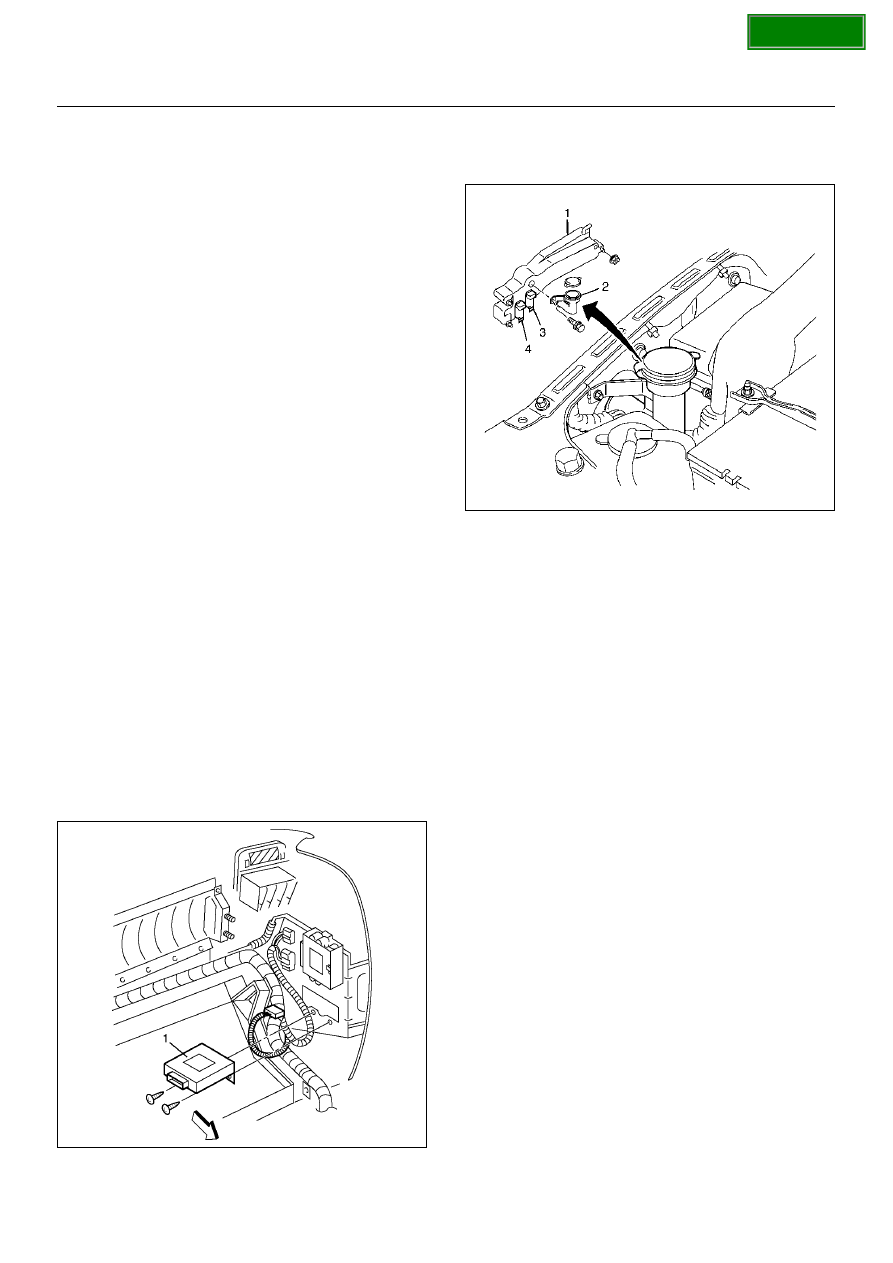

1. Disconnect the battery ground cable.

2. Remove the fender inner liner (right side).

3. Disconnect the windshield washer motor connector

and the rear washer motor connector.

4. Disconnect the windshield washer hose connector

and the rear washer hose connector.

5. Remove the filler neck (2).

• Remove the bolt.

6. Remove the washer tank (1).

• Remove the three nuts.

7. Pull out the rear washer motor (3) from the washer

tank.

880RW028

Installation

To install, follow the removal steps in the reverse order.

Alarm and Relay Control Unit

Removal

1. Disconnect the battery ground cable.

2. Remove the glove box.

3. Remove the alarm and relay control unit (1).

• Remove the fixing screw and disconnect the

connector.

826R100030

Installation

To install, follow the removal steps in the reverse order.

SECTION

WIPER/WASHER SYSTEM

8B–11

Rear Wiper Arm/Blade

Removal

1. Remove the arm nut(2).

2. Remove the wiper arm/blade(1).

885RW007

Rear Washer Nozzle

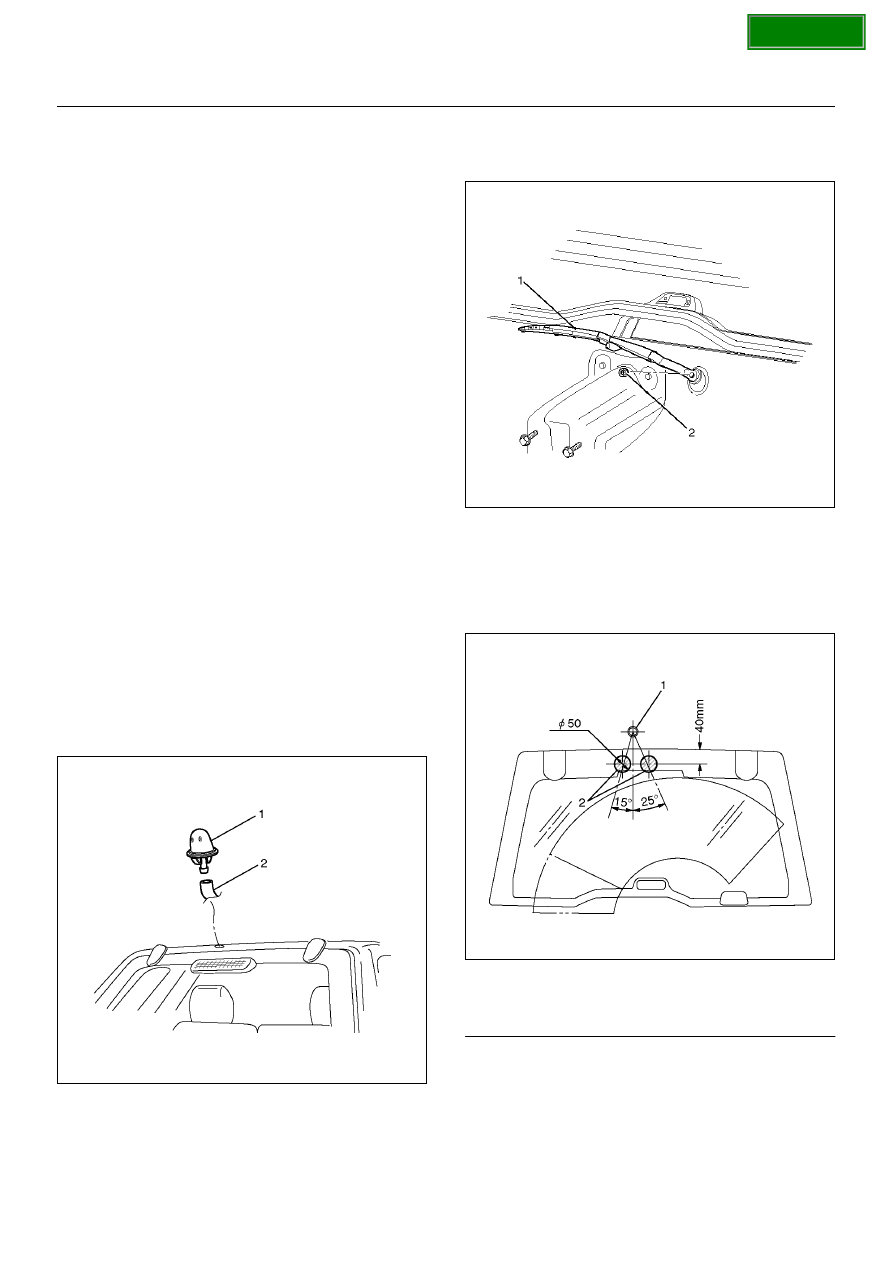

Removal

1. Remove the rear roof trim cover.

• Refer to Interior Trim Panel in Interior and Exterior

Panel section.

2. Remove the washer nozzle(1).

• Pull out the washer nozzle from the washer hose

(2).

885R100003

Installation

To install, follow the removal steps in the reverse order.

Rear Washer Spray Pattern

885R100002

Legend

EndOFCallout

(1) Washer Nozzle
(2) Spray Target

SECTION

8B–12

WIPER/WASHER SYSTEM

Rear Wiper Blade Rubber

Removal

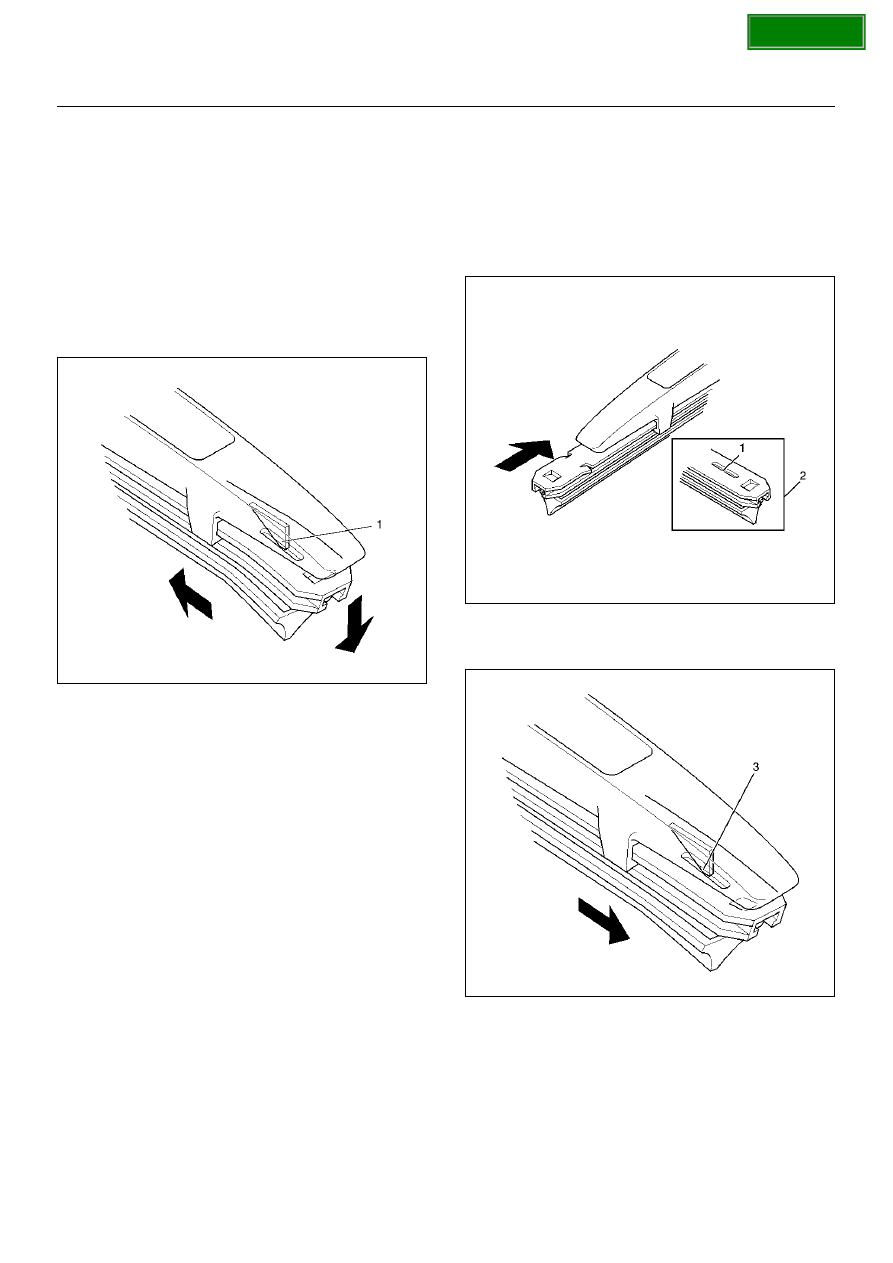

1. Remove the wiper blade from the wiper arm.

2. Push out the wiper rubber from the wiper blade by

sliding it horizontally while holding down the rubber
on the wiper blade convex (1) side.

CAUTION:  When the wiper blade has been
removed, wrap the tip of the wiper arm with cloth, to
avoid damaging the glass.

880RW022

Installation

1. Install the wiper blade rubber.

• Insert the tip of wiper rubber (2) from the opposite

side of removal in the arrow direction.

880RX001

• Check if the convex part (3) of wiper blade is

installed in the groove of the wiper rubber.

880RX002

SECTION

WIPER/WASHER SYSTEM

8B–13

Main Data and Specifications

Torque Specifications

Application

N·m

kg·m

LbFt

LbIn

Windshield Wiper Arm Nuts

23

2.3

17

Rear Wiper Motor Shaft Nut

10

1.0

87

Rear Wiper Arm Nut

14

1.4

122
