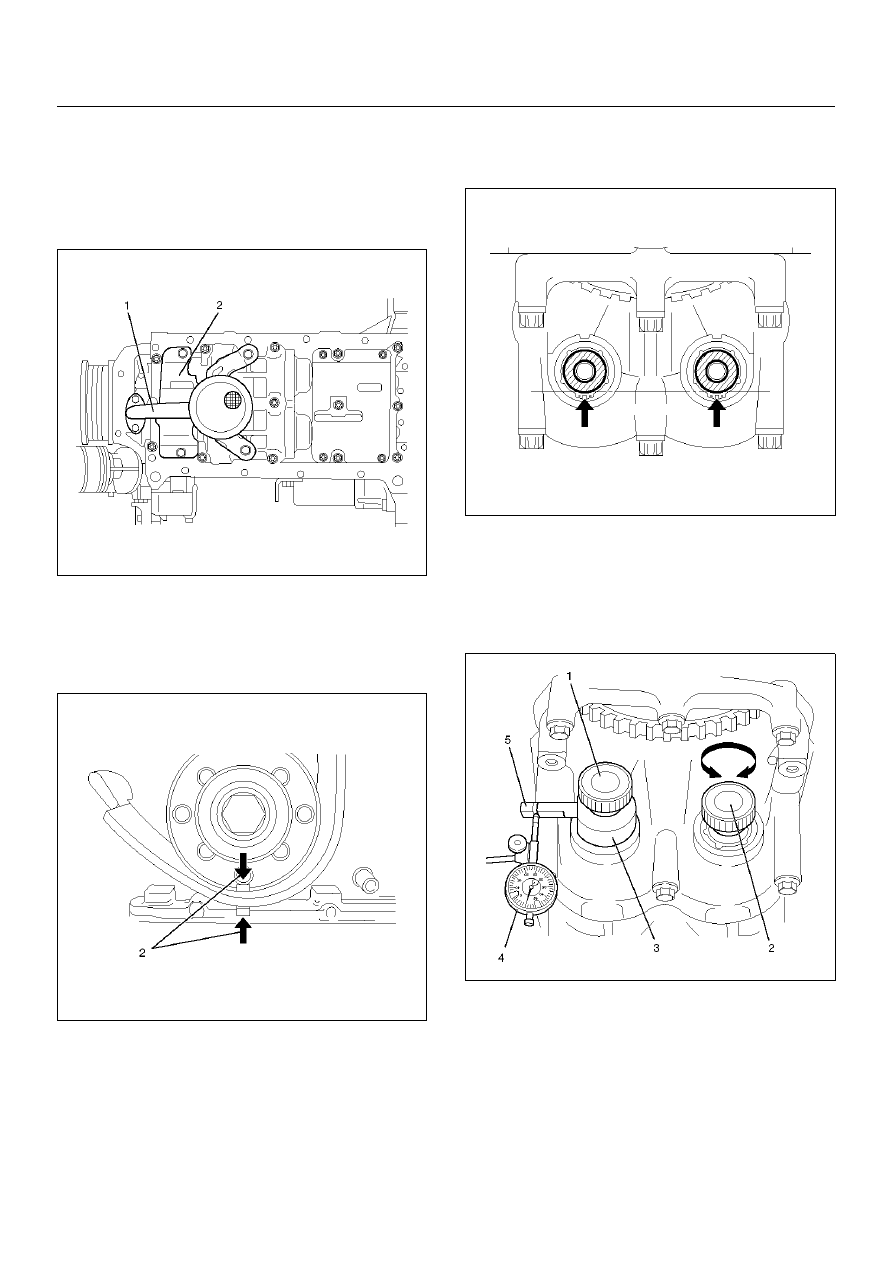

6A–68

ENGINE MECHANICAL (X22SE 2.2L)

Disassembly

1. Remove the oil pan.

2. Remove the oil pan support.

3. Remove the oil strainer (1) from oil pump and the oil

baffle plate (2).

051RW009

Adjustment

1. Turn crankshaft in engine rotational direction to

alignment mark (2) 1st cylinder “TDC".

014RW066

2. In this crankshaft position, the flattened side

(arrows) of both balancer shafts must face
downward and must be on a horizontal line.

051RW010

3. Screw measuring device 5–8840–2671–0 (3) with

long knurled bolt (1) into 1st balancer shaft (intake
side) and tighter hard–tight measuring arm (5) must
point in “9 o'clock" direction shown in this illustration.
Install dial gauge holder with dial gauge (4) on
cylinder block.

051RW007

ENGINE MECHANICAL (X22SE 2.2L)

6A–69

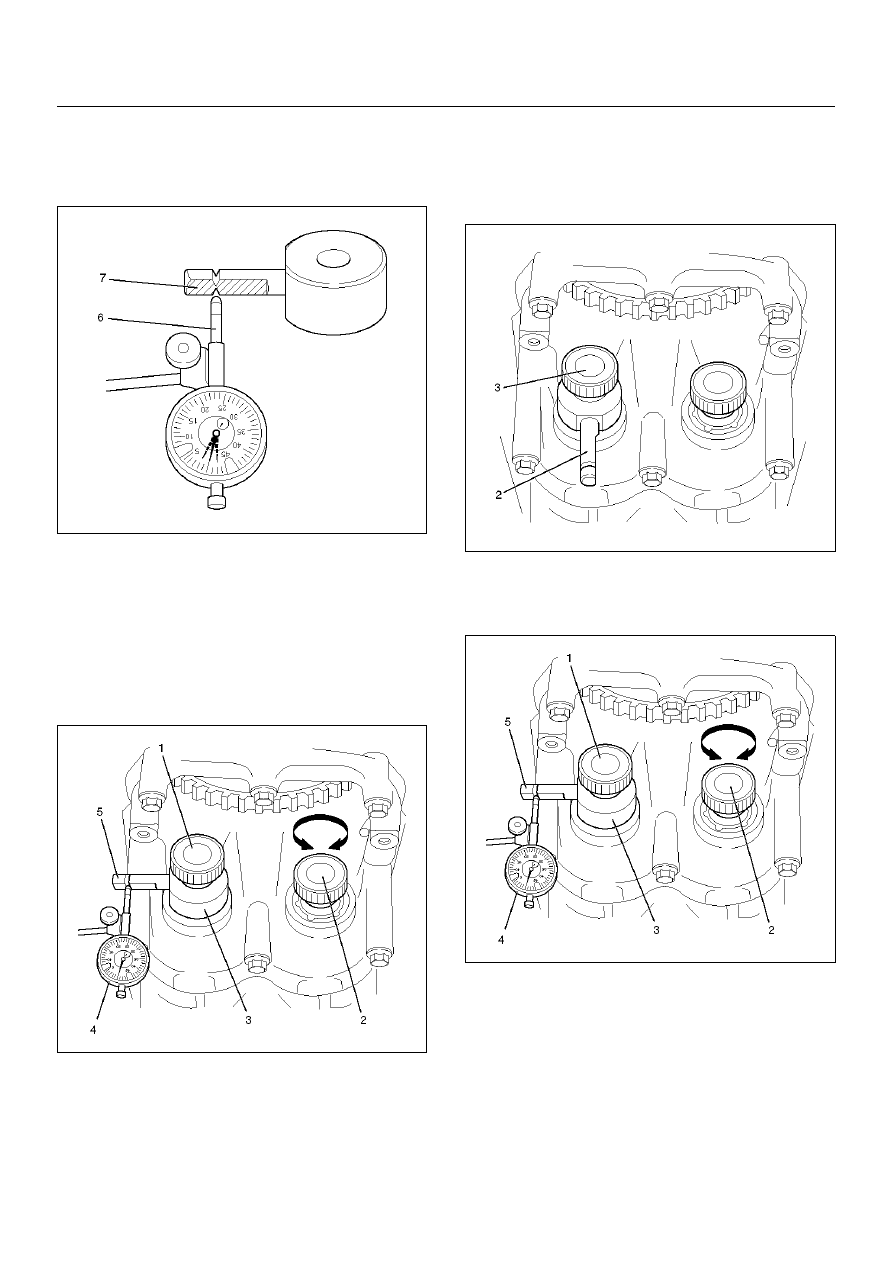

4. Place pre tensioned probe (6) of gauge on

measuring arm of measuring device 5–8840–2671–
0. The probe must be set precisely between the
notch marks, square to the plane surface (7).

051RW006

5. Determine the left and right stops by turning the

knurled bolt (2).
Set the dial of the gauge to zero.
Use the knurled bolt (2) to move the 2nd balancer
shaft (exhaust side) back and forth. Again —
simultaneously read off the tooth backlash from the
gauge.
The permissible tooth backlash is: 0.02 mm to
0.06mm (0.0008 to 0.0024in).

051RW007

6. The tooth backlash must be measured in 4 different

positions — turn the crankshaft further at the
fastening bolt of the timing belt drive gear by 45

°

 in

the engine rotational direction until the measuring
arm (2) is at “6 o'clock".

051RW008

7. Then loosen the knurled bolt (3) fix the measuring

arm at “9 o'clock" again and repeat the
measurement.

051RW007

8. If the value determined in one of the 4

measurements lies outside the tolerance 0.02mm to
0.06mm (0.0008 to 0.0024in), the tooth backlash
must be adjusted.

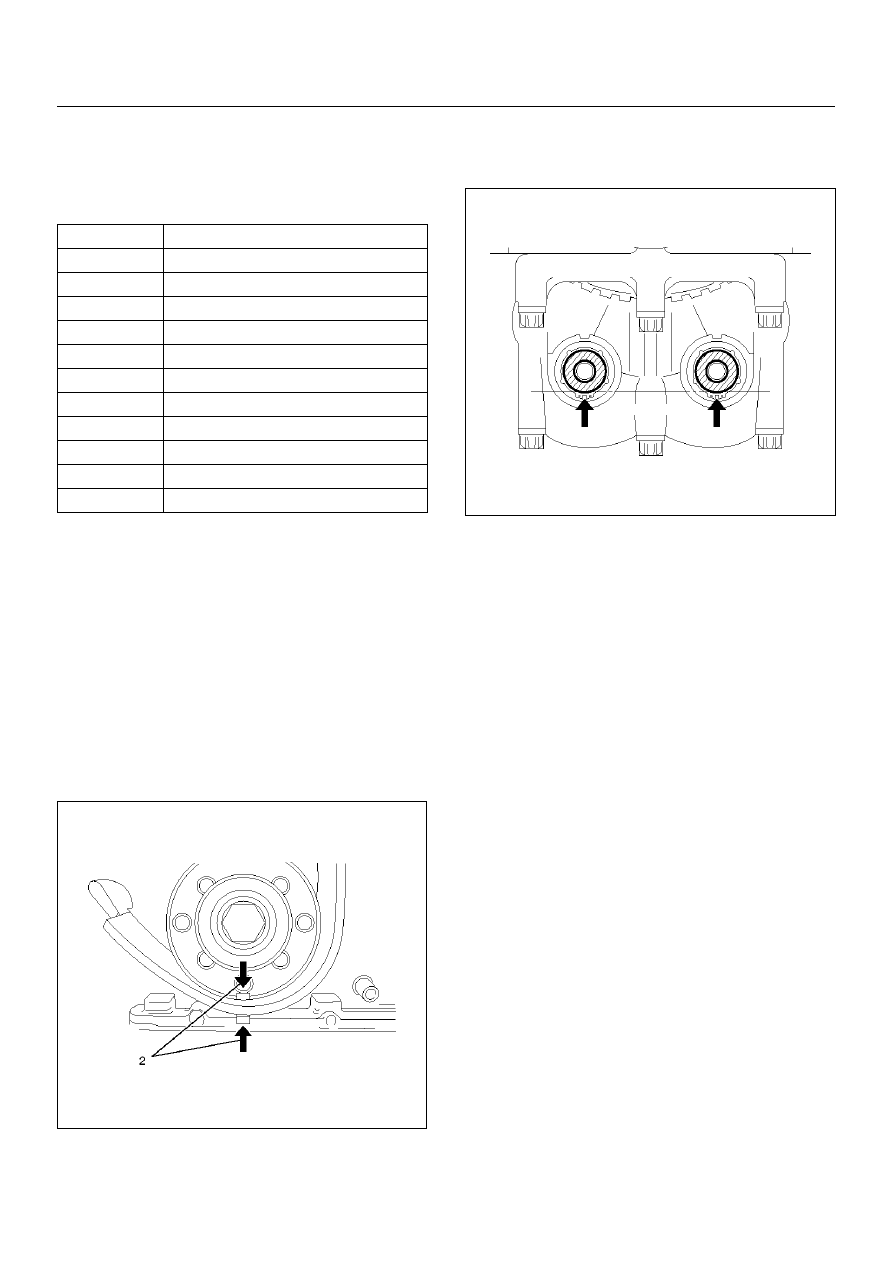

6A–70

ENGINE MECHANICAL (X22SE 2.2L)

9. Remove balance unit from cylinder block/crankshaft

bearing caps and remove with balancer piece. The
balancer piece has a number (code), for easy
assignment. The tooth backlash can be adjusted by
using a balancer piece with a different thickness.

CAUTION:  The next larger or smaller balancer
alters the tooth backlash by 0.02mm (0.0008 in).
Example of selection of balancer piece: The
installed balancer piece with the code “70" gave a
tooth backlash of 0.08mm (0.0031in).
If a balancer piece with the code “67" is now
installed, the tooth backlash will be approx. 0.06mm
(0.0024in).

NOTE:  Only one balancer piece may be installed.

Reassembly

1. Turn crankshaft in engine rotational direction to

alignment mark (2) 1st cylinder “TDC".

014RW066

2. Turn balancer shafts until the flattened sides

(arrows) of both balancer shafts face downward and
are on a horizontal line.

051RW010

3. Install selected balancer piece (2) with balancer

shaft unit to cylinder block/crankshaft bearing cap —
tighten all fixing bolts to the specified torque.

Torque: 20 N·m (2.0Kg·m/15lbft)

4. After installing the balancer shaft unit, recheck the

tooth backlash and readjust if necessary.

CAUTION:  If the balancer shaft unit has to be
replaced, use the thickest balancer piece with the
code “85" for the initial assembly — this guarantees
tooth backlash in all conditions.

5. Install oil strainer to oil pump with new seal ring and

insert fixing bolts with locking agent to the specified
torque.

Torque: 8 N·m (0.8Kg·m/6lbft)

Code

Thickness of balancer piece in mm

55

0.535 to 0.565

58

0.565 to 0.595

61

0.595 to 0.625

64

0.625 to 0.655

67

0.655 to 0.685

70

0.685 to 0.715

73

0.715 to 0.745

76

0.745 to 0.775

79

0.775 to 0.805

82

0.805 to 0.835

85

0.835 to 0.865

ENGINE MECHANICAL (X22SE 2.2L)

6A–71

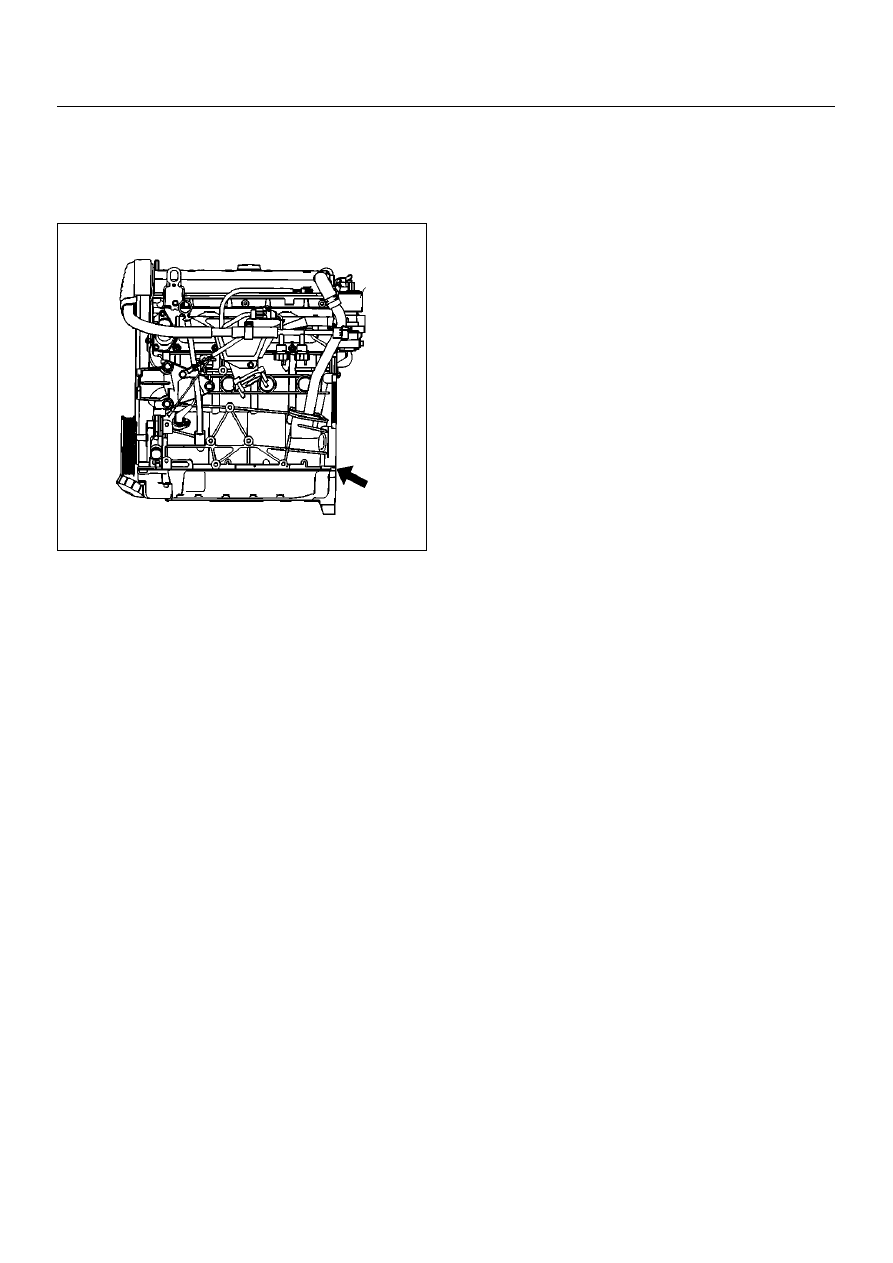

6. Install oil pan support.

Torque: 20 N·m (2.0Kg·m/14lbft)

• Adjust surfaces of the cylinder block and the oil

pan support.

035RW026

7. Install oil pan.

1st step: 8 N·m (0.8Kg·m/5.8lbft)

2nd step: 30

°°°°
