Opel Frontera UE. Manual - part 1468





6E–87

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

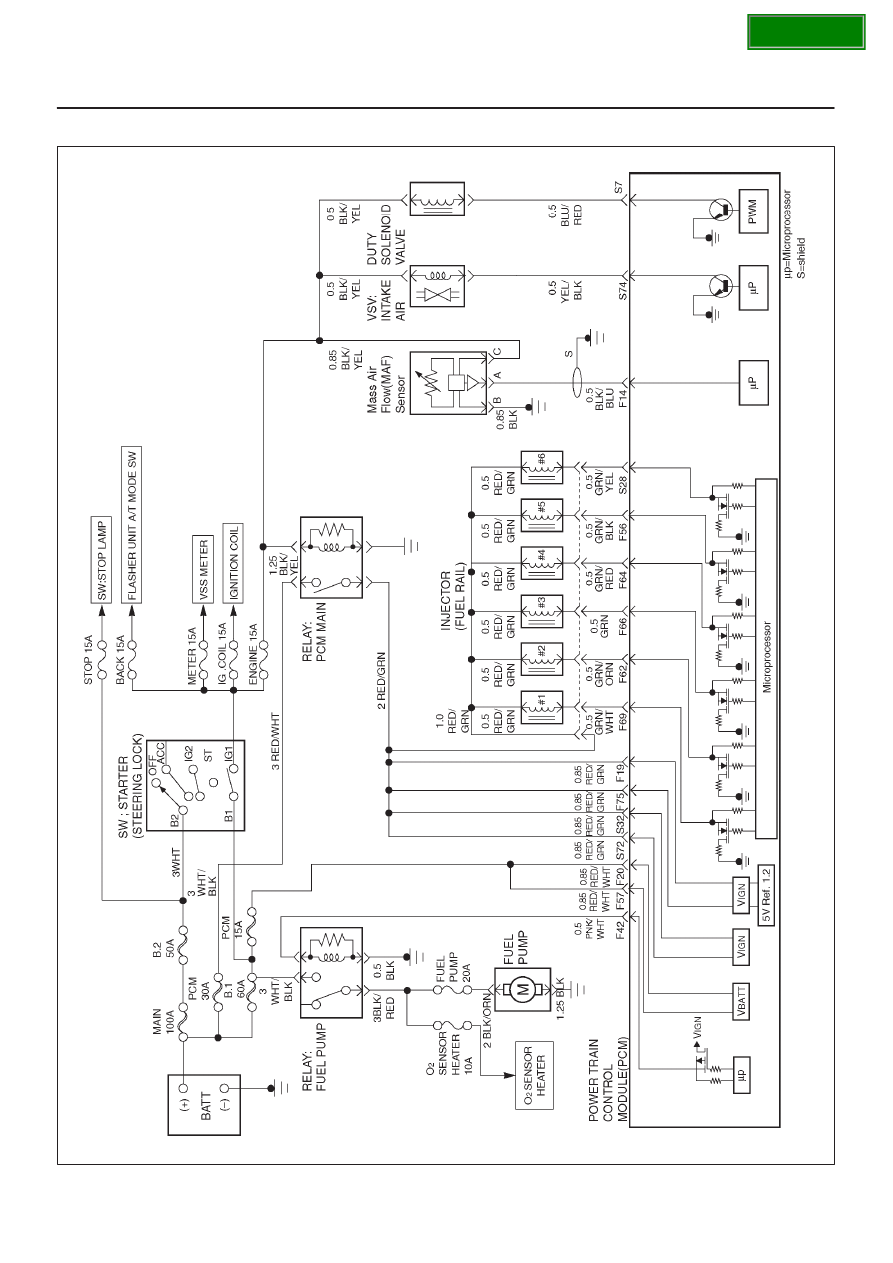

Engine Cranks But Will Not Run

060R100121

SECTION

6E–88

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

060R100122

SECTION

6E–89

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

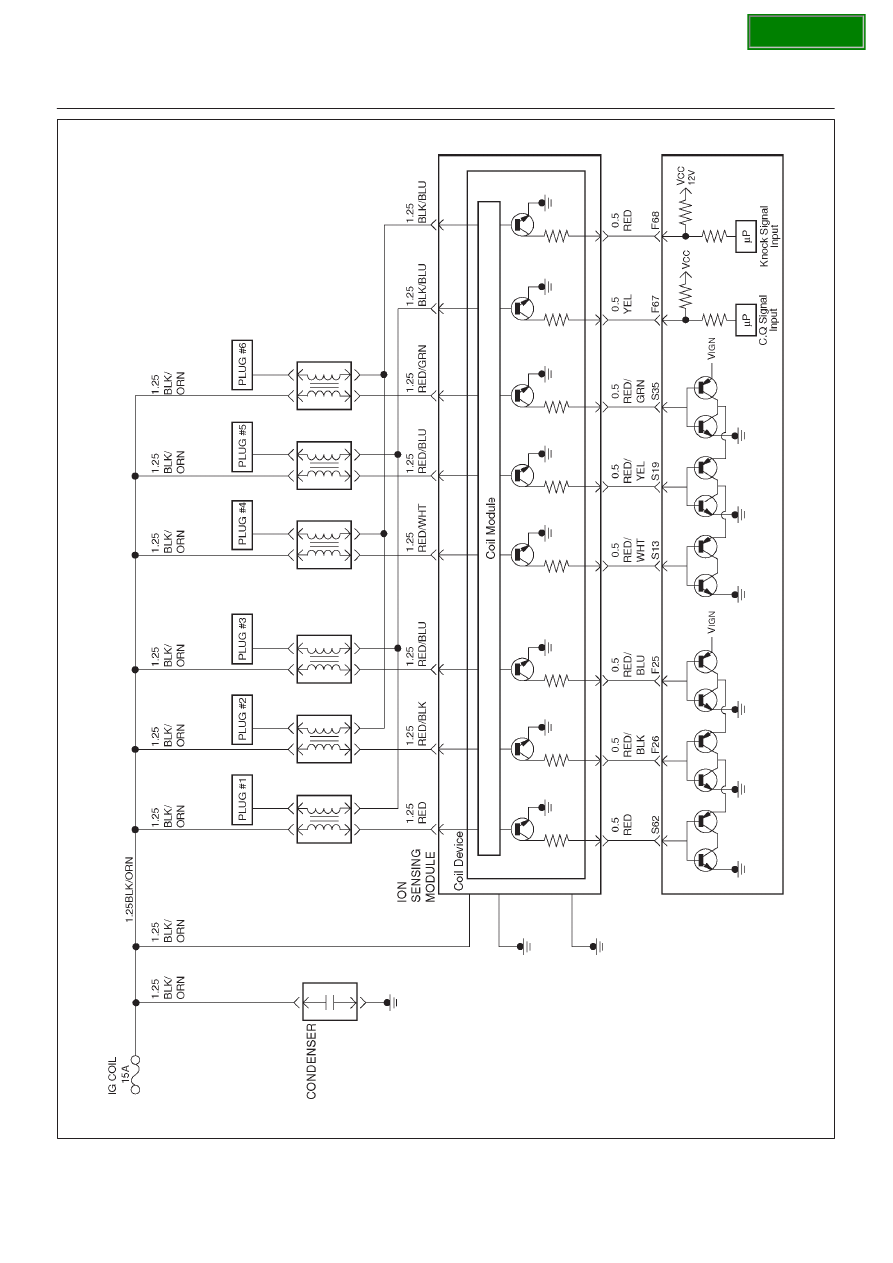

Circuit Description

The electronic Ignition system uses a coil -at-plug method
of spark distribution. In this type of ignition system, the
powertrain control module (PCM) triggers the correct
driver outside the Ignition Current Sense System (ICSS),
which then triggers the correct ignition coil based on the
58X signal received from the crankshaft position sensor
(CKP). The spark plug connected to the coil fires when
the ICSS opens the ground circuit for the coil’s primary
circuit.
During crank, the PCM monitors the CKP 58X signal. The
CKP signal is used to determine which cylinder will fire
first. After the CKP 58X signal has been processed by the
PCM, it will command all six injectors to allow a priming
shot of fuel for all the cylinders. After the priming, the
injectors are left “OFF” during the next six 58X reference
pulses from the CKP. This allows each cylinder a chance
to use the fuel from the priming shot. During this waiting
been received by the PCM. The ION sensor signal allows
the PCM to operate the injectors sequentially based on
camshaft position. If the camshaft position signal is not
present at start - up, the PCM will begin sequential fuel
delivery with a 1 -in-6 chance that fuel delivery is correct.
The engine will run without a ION sensor signal, but will
set a DTC code.

Diagnostic Aids

An intermittent problem may be caused by a poor
connection, rubbed - through wire insulation or a wire
broken inside the insulation. Check for the following
items:

D

Poor connection or damaged harness-Inspect the
PCM harness and connectors for improper mating,
broken locks, improperly formed or damaged
terminals, poor terminal-to-wire connection, and
damaged harness.

D

Faulty engine coolant temperature sensor-Using a
Tech 2, compare engine coolant temperature with
intake air temperature on a completely cool engine.
Engine coolant temperature should be within 10

°

 C of

intake air temperature. If not, replace the ECT sensor.

Test Description

Number(s) below refer to the step number(s) on the
Diagnostic Chart.
5. An obvious cause of low fuel pressure would be an

empty fuel tank.

6. A blinking test light verifies that the PCM is

monitoring the 58X crankshaft reference signal and
is capable of activating the injectors. If there is an
open or shorted driver circuit, DTCs 201 – 206 and
a misfire DTC 300 – 306 should be set.

18. By using a spark tester, each ignition coil’s ability to

produce 25,000 volts is verified.

24. If there is an open or shorted driver circuit, DTCs

201 – 206 and a misfire DTC 301 – 306 should be
set. All six injector driver circuits can be checked at
one time without removing the intake manifold if a J
39021 – 95 test light is available. This is the
alternative procedure:

D

With the ignition “OFF”, disconnect the gray
connector located at the rear of the air filter, attached
to a bracket on the purge canister.

D

Connect test light 5-8840-2636-0 to the connector.
Do any of the light constantly illuminate or fail to blink
when the engine is cranked? If so, repair the short or
open circuit, or replace the PCM if indicated.

This procedure only tests the driver circuit as far as the
test connection, so step 31 is added to test the circuit all
the way to the injector.

Engine Cranks But Will Not Run



Step

Action

Value(s)

Yes

No

1

Was the “On-Board Diagnostic (OBD) System Check”
performed?

Go to

Step 2

Go to

OBD

System

Check

2

Check the ignition coil fuse (15A), the engine fuse
(15A), and the PCM fuse (30A).

Was a fuse blown?

Go to

Step 3

Go to

Step 4

3

Check for a short to ground and replace the fuse.

Is the action complete?

Verify repair

4

1. Ignition “OFF”, install a fuel pressure gauge at the

test fitting on the fuel supply line in the engine
compartment. (Use a shop cloth to absorb any fuel
leakage while making the connection.)

2. Ignition “ON”, observe the fuel pressure.

Is the fuel pressure within the specified values, and
does it hold steady?

285 - 375 kPa

(43 – 55 psi)

Go to

Step 6

Go to

Step 5

5

Is any fuel pressure indicated?

Go to

Fuel

System

Electrical Test

Go to

Fuel

System

Diagnosis

SECTION

6E–90

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

Engine Cranks But Will Not Run

  (Cont'd)

Step

No

Yes

Value(s)

Action

6

Install an injector test light at the #2 cylinder injector
harness connector (or install 5-8840-2636-0 test light
to the injector test connector).

Does the light blink when the engine is cranked?

Go to

Step 8

Go to

Step 24

7

1. Ignition “ OFF”.
2. Disconnect the 11-pin connector at the ION sensing

module.

3. With a test light to B + , probe each of the 6 exposed

ION sensing module pins, one at a time, while the
engine is cranked. (Use the gray narrow Metri - Pak

 flexible female connector from the J - 35616 kit to

make the pin accessible.)

Does the light flash at each pin when the engine is
cranked?

Go to

Step 11

Go to

Step 8

8

1. Remove the 4-pin connector at the ION sensing

module.

2. Ignition “ ON”.
3. Use a test light at the harness connector to verify

that the module is being supplied with B + and
ground.

Was a problem found?

Go to

Step 9

Go to

Step 10

9

Repair the open ignition feed circuit or ground circuit to
the ION sensing module.

Is the action complete?

Verify repair

10

Repair the ION sensing module.

Is the action complete?

Verify repair

11

1. Reconnect the ION sensing module 11-pin

connector.

2.  Remove the electrical connector from each coil.
3. With a test light to B+, probe each of the coil

connectors at the wire which runs to the ION
sensing   module.

Does the light flash at each coil connector when the
engine is cranked?

Go to

Step 13

Go to

Step 12

12

Check for an open circuit between the coil and ION
sensing module.

Is the action complete?

Verify repair

13

1. Ignition “ON”.
2. While the coil connectors are disconnected, touch

each coil connector’s ignition feed terminal with a
grounded test light (the ignition feed wire is YEL
tracer).

Did the test light illuminate?

Go to

Step 15

Go to

Step 14

14

Repair the open ignition feed circuit.

Is the action complete?

Verify repair

15

While the coil connectors are disconnected, touch
each connector’s secondary ground terminal with a
test light to B +. (The ground wires are black.)

Did the test light illuminate at each coil connector?

Go to

Step 17

Go to

Step 16

SECTION
