6D2–4

IGNITION SYSTEM (6VD1 3.2L)

CAUTION: Ignition coil assembly #6 is different
from ignition coil assembly from #1 to #5. Ignition
coil assembly #6 is short type. So, note it when
installing ignition coil assembly of #6.

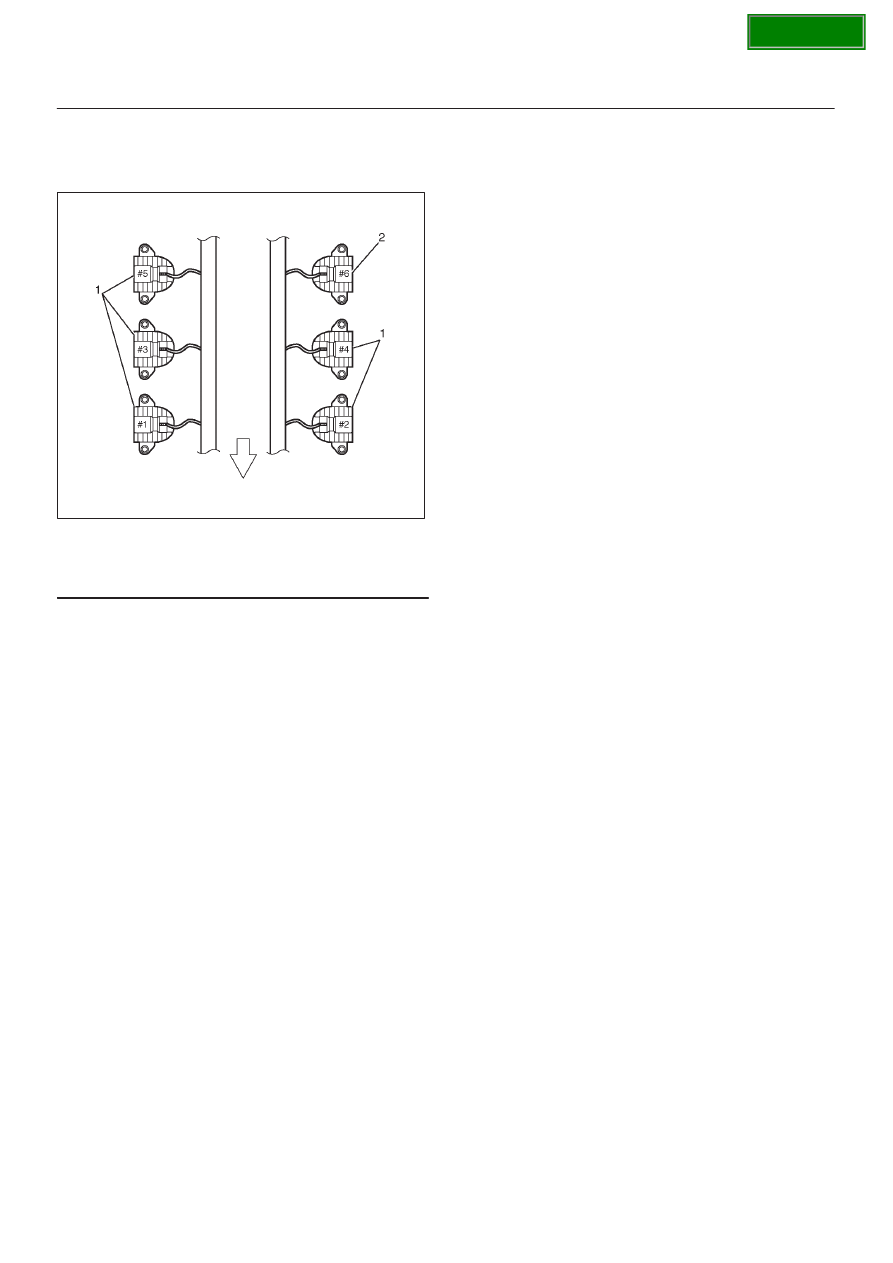

060R100117

Legend

(1) Long type Ignition Coil Assemblies (#1

∼

 #5)

(2) Short type Ignition Coil Assembly (#6)

2. Connect battery ground cable.

SECTION

6D2–5

IGNITION SYSTEM (6VD1 3.2L)

Spark Plug

Inspection

Poor spark plug condition adversely affects engine
performance. Carefully inspect each spark plug following
the procedure outlined below.

1. Remove the spark plug.
2. Check the plug for dirt and other foreign material.

If the plug is extremely dirty, the fuel and electrical
systems must be checked.

3. If necessary, clean the spark plugs by placing them in

a spark plug cleaning machine for no more than 20
seconds.

4. Check the electrode and insulator for wear and/or

cracking. If there is significant wear or cracking, the
plug must be replaced.

5. Check the gasket for damage. Replace the gasket if

necessary.

6. Measure the insulation resistance with a 500-volt

megaohm meter. Replace the plug if the resistance is
less than the specified value.

Insulation resistance: 50 M

W

 or more

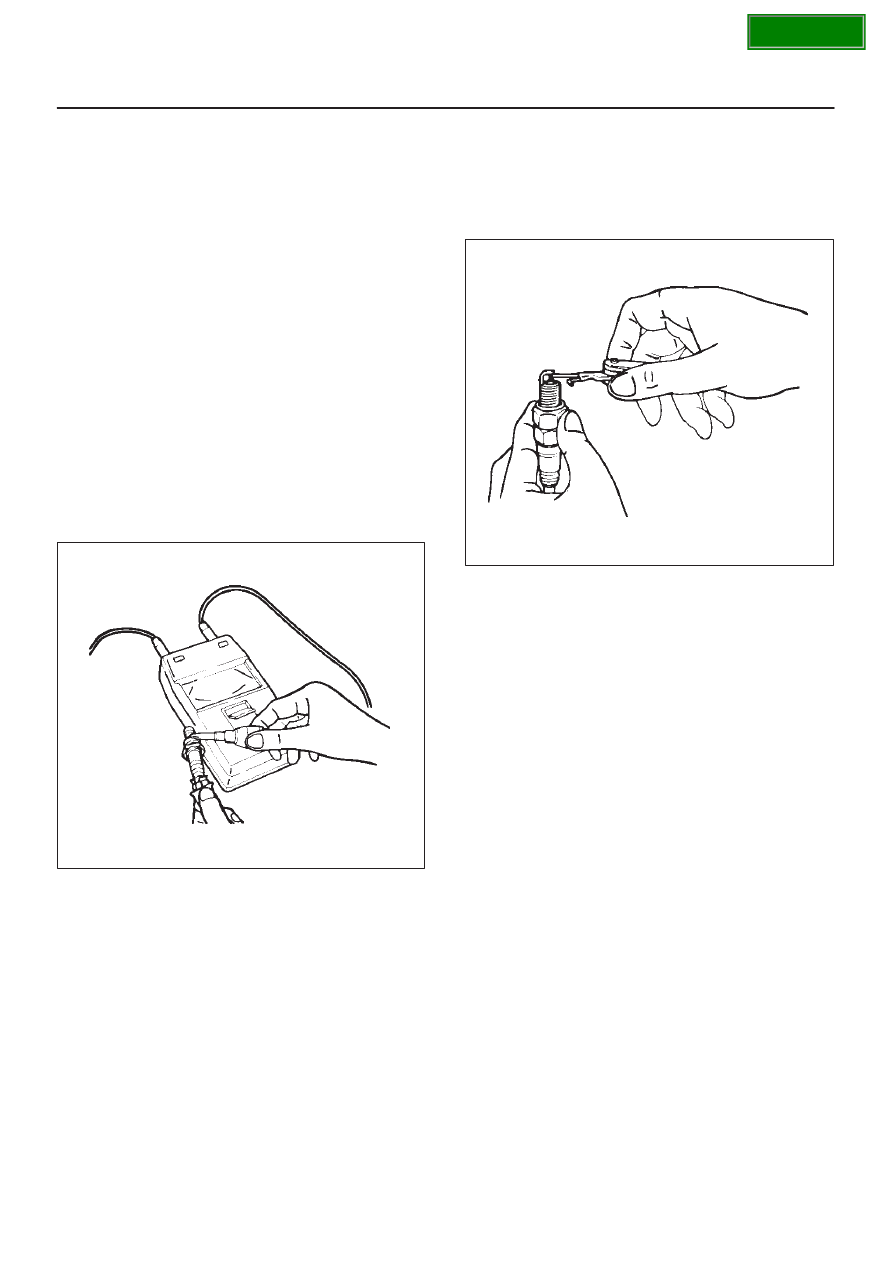

011RS010

7. Check the spark plug gap. Replace  the spark plug the

if gap is not as specified.

Standard: 1.0–11 mm (0.04–0.043 in)
Limit: 1.3 mm (0.05 in)

011RS011

D

Do not attempt to adjust the gap of an old spark
plug. Replace the plug and adjust the gap of the
new plug if required.

D

Take care not to damage the spark plug tip during
handling.

8. Tighten the spark plugs to the specified torque.

Torque: 18 N·m (13 lb ft)

Replacement spark plugs

D

Under normal conditions (no problem with the fuel
and/or electrical systems), use replacement spark
plugs with a low heat value (hot-type plug).

D

If insulator and electrode scorching is significant, use
replacement spark plugs plugs with a high heat value
(cold-type plug).

SECTION

6D2–6

IGNITION SYSTEM (6VD1 3.2L)

Crankshaft Position Sensor

Removal

1. Disconnect battery ground cable
2. Wiring connector from crankshaft angle sensor.
3. Remove crankshaft angle sensor from cylinder block.

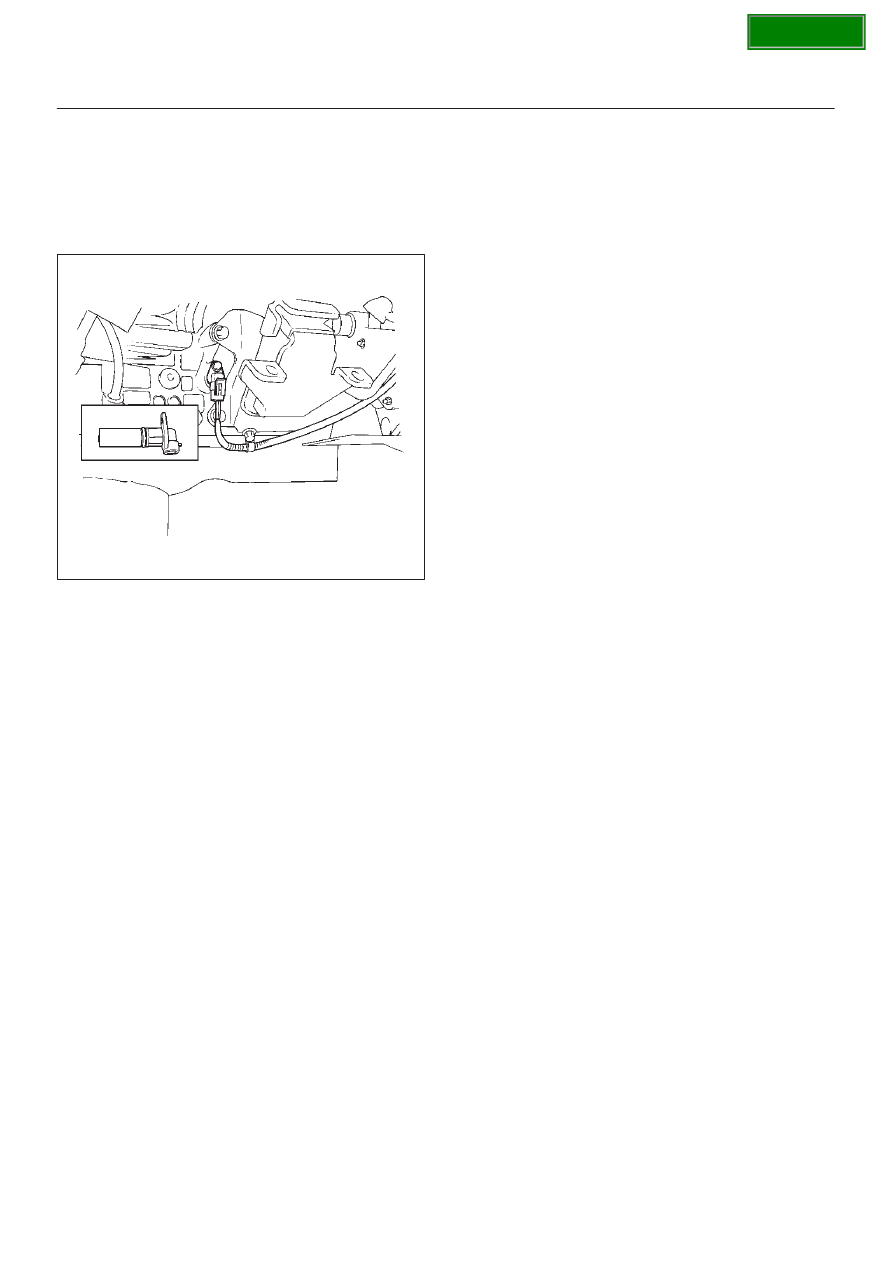

012RS008

Installation

1. Install crankshaft angle sensor into the cylinder block.

Before installation,apply small amount of engine oil to
the O–ring.

Torque: 10 N·m (1.0 kg·m/87 lb in)

2. Reconnect wiring connector to crankshaft position

sensor.

SECTION

6D2–7

IGNITION SYSTEM (6VD1 3.2L)

Main Data and Specifications

General Specifications

Ignition System

Ignition Form

Electronic Ignition System (El system) with Crankshaft Position Sensor

Spark Plug

Type

K16PR–P11
RC10PYP4
PK16PR11

Plug gap

1.0 mm (0.04 in) – 1.1 mm (0.043 in)

Torque

18 N·m (1.8 kg·m/13 lb ft)

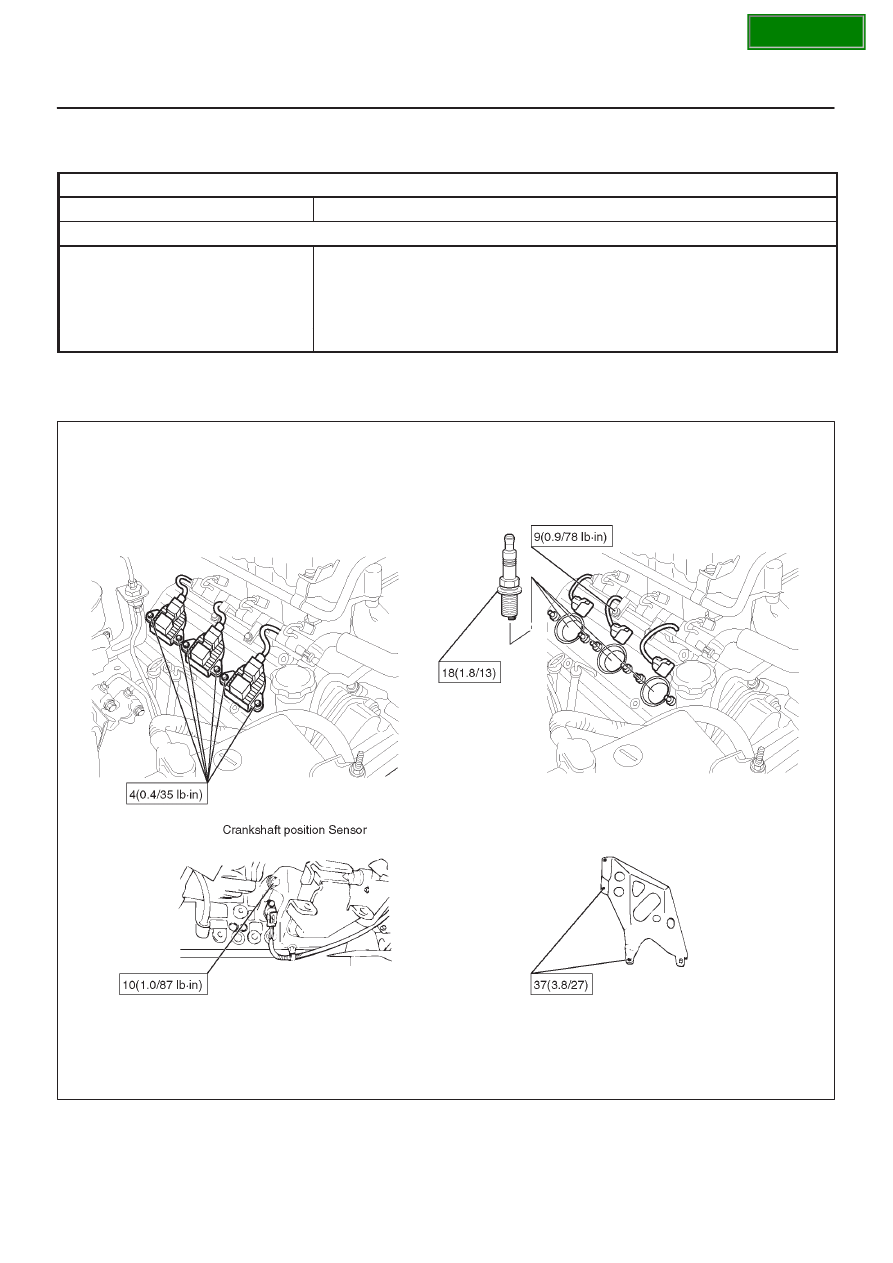

Torque Specifications

N·m (kg·m/lb ft)

060R100115
