ENGINE FUEL (6VD1 3.2L)

Fuel Filter

Removal

CAUTION: When repair to the fuel system has been
completed, start engine and check the fuel system
for loose connection or leakage. For the fuel system
diagnosis, see Section “Driveability and Emission”.

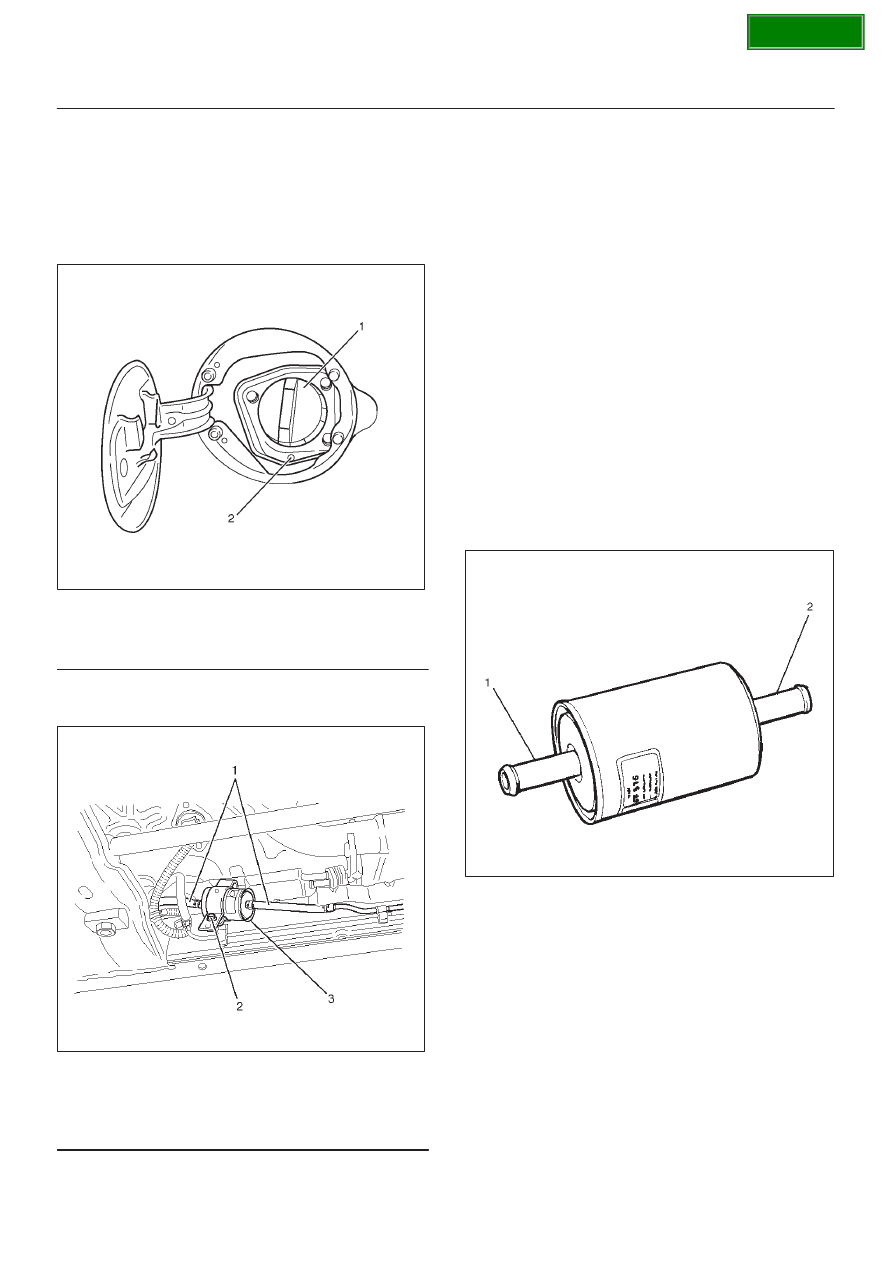

140R100050

Legend

(1) Fuel Filler Cap
(2) Receiver Rubber Drain

1. Disconnect battery ground cable.
2. Remove Fuel filler cap(1).

041RW003

Legend

(1) Fuel Hose
(2) Fuel Filter Fixing Bolt
(3) Fuel Filter

3. Disconnect fuel hoses(1) from fuel filter on both

engine side and fuel tank side.

4. Fuel filter fixing bolt(2).

D

Remove the fuel filter fixing bolt(2) on fuel filter
holder.

5. Remove fuel filter(3).

Inspection

1. Replace the fuel filter if the fuel leaks from fuel filter

body or if the fuel filter body itself is damaged.

2. Replace the filter if it is clogged with dirt or sediment.
3. Check the drain of receive rubber and if it is clogged

with dust, clean it up with air.

Installation

1. Install the fuel filter in the proper direction.
2. Install fuel filter holder fixing bolt.
3. Connect fuel hoses on engine side(1) and fuel tank

side(2).

041RW001

4. Install fuel filler cap
5. Connect the battery ground cable.

Inspection

After installation, start engine and check for fuel leakage.

In–Tank Fuel Filter

The filter is located on the lower end of fuel pickup tube in
the fuel tank. It prevents dirt from entering the fuel pipe
and also stops water unless the filter is completely
submerged in the water. It is a selfcleaning type, not
requiring scheduled maintenance. Excess water and
sediment in the tank restricts fuel supply to the engine,
resulting in engine stoppage. In such a case, the tank
must be cleaned thoroughly.

SECTION

6C–5

ENGINE FUEL (6VD1 3.2L)

Fuel Pump Flow Test

If reduction of fuel supply is suspected, perform the
following checks.

1. Make sure that there is fuel in the tank.
2. With the engine running, check the fuel feed pipe and

hose from fuel tank to injector for evidence of
leakage. Retighten, if pipe or hose connection is
loose. Also, check pipes and hoses for squashing or
clogging.

3. Insert the hose from fuel feed pipe into a clean

container, and check for fuel pump flow rate.

4. Connect the pump relay terminals with a jumper

wire(1) as shown and start the fuel pump to measure
delivery.

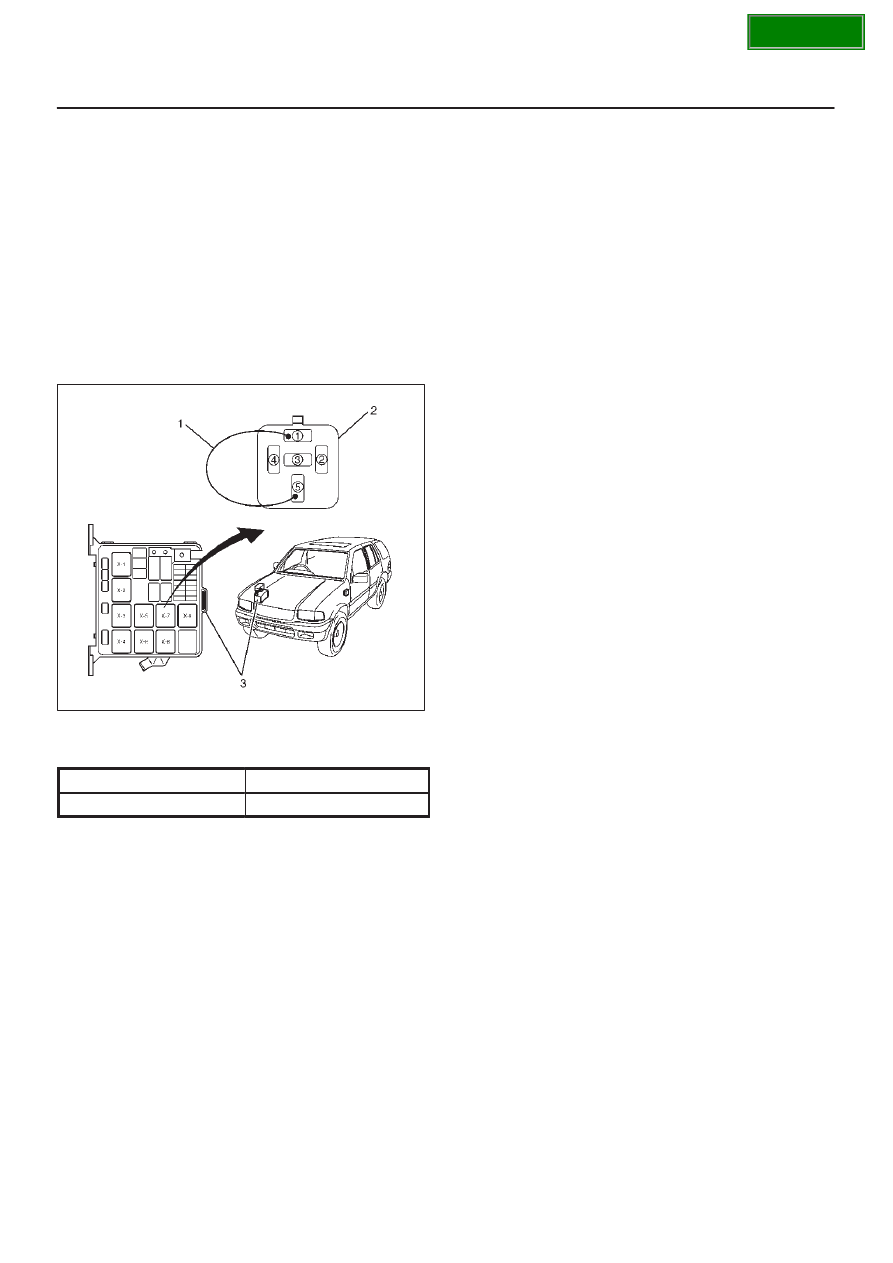

140RX020

CAUTION: Never generate sparks when connecting
a jumper wire.

Delivery

Delivery

15 seconds

0.38 liters minimum

If the measure value is out of standard, conduct the
pressure test.

Pressure test

For the pressure test to the fuel system, see Section 6E
“Fuel Control System”.

SECTION

6C–6

ENGINE FUEL (6VD1 3.2L)

Fuel Pump

Fuel Pump and Associated Parts

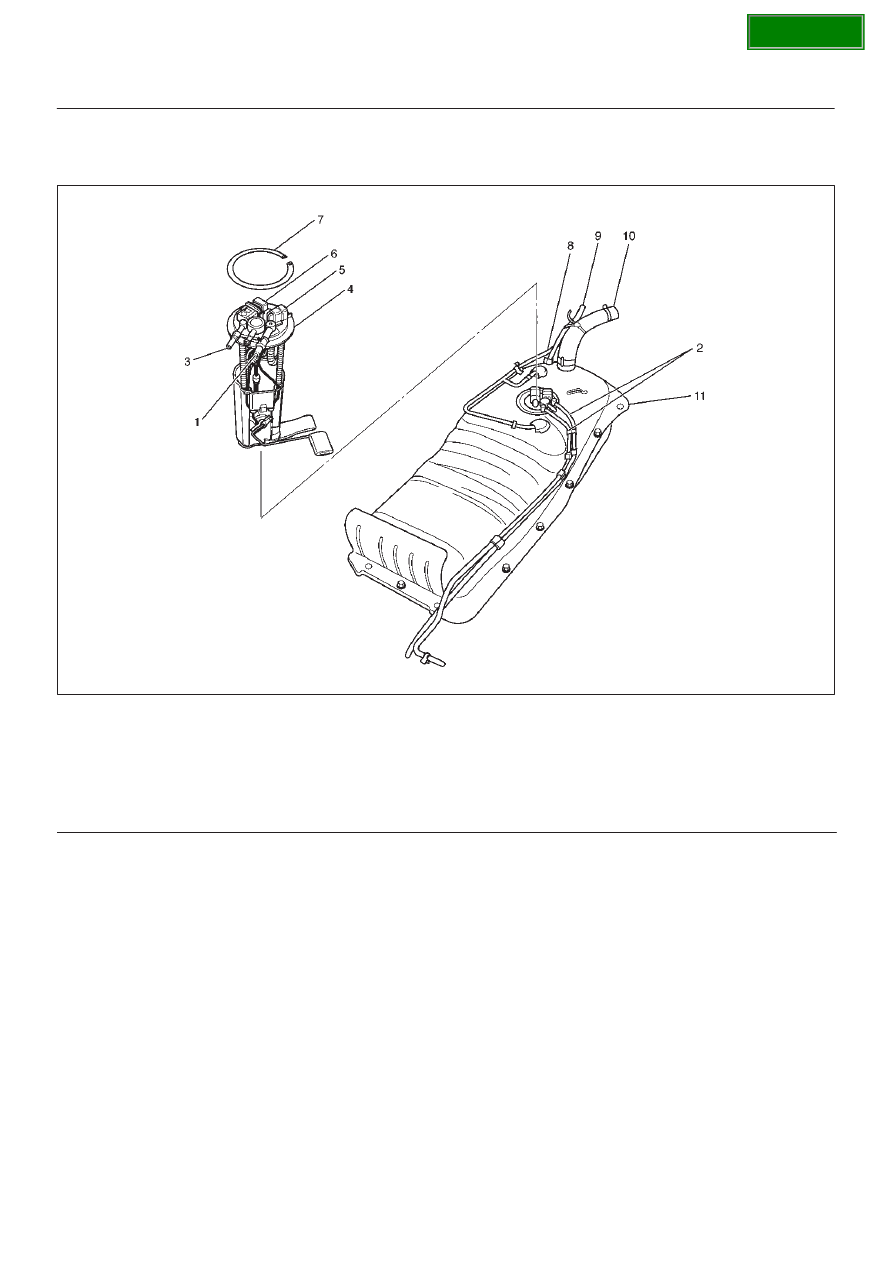

140RX004

Legend

(1) Fuel Feed Port
(2) Fuel Tube/Quick Connector
(3) Fuel Return Port
(4) Fuel Pump and Sender Assembly
(5) Connector; Fuel Feed Pump

(6) Connector; Fuel Level Sensor
(7) Snap Ring
(8) Hose; Evaporative Fuel
(9) Hose; Air Breather

(10) Hose; Fuel Filler

(11) Fuel Tank Assembly

Removal

CAUTION: When repair to the fuel system has been
completed, start engine and check the fuel system
for loose connection or leakage. For the fuel system
diagnosis, see Section “Driveability and Emission”.

1. Disconnect battery ground cable.
2. Loosen fuel filler cap.
3. Support underneath of the fuel tank assembly (11)

with a lifter.

4. Remove fuel tank assembly(11). Refer to “Fuel Tank

Removal” in this section.

5. Remove Fuel Tube/Quick Connector (2).

NOTE: Handling of the fuel tube sure to refer “Fuel
Tube/Quick Connector Fittings” in this section.

6. Remove fuel pump and sender (FPAS) assembly (4)

fixing snap ring and remove the FPAS assembly.

NOTE: After removing pump assembly (4), cover fuel
tank to prevent any dust entering.

Installation

1. Install FPAS assembly(4).
2. Install Fuel Tube/Quick Connector (2).

NOTE: Handling of the fuel tube sure to refer “Fuel
Tube/Quick Connector Fittings” in this section.

3. Install fuel tank assembly(11). Refer to “Fuel Tank

Installation”.

4. Fill the tank with fuel and tighten fuel filler cap.
5. Connect battery ground cable.

SECTION

6C–7

ENGINE FUEL (6VD1 3.2L)

Fuel Tube / Quick – Connector Fittings

Precautions

D

Lighting of Fires Prohibited.

D

Keep flames away from your work area to prevent the
inflammable from catching fire.

D

Disconnect the battery negative cable to prevent
shorting during work.

D

When welding or conducting other heat-generating
work on other parts, be sure to provide pretreatment
to protect the piping system from thermal damage or
spattering.

Cautions During Work

Do not expose the assembly to battery electrolyte or do
not wipe the assembly with a cloth used to wipe off spilt
battery electorolyte.
The piping wet with battery electrolyte cannot be used.
Be careful not to give a bending or twisting force to the
piping during the work. If deformed, replace with a new
piping.

Removal

1. Open the fuel cap to relieve the fuel pressure in the

tank.
If the fuel quick-connect fittings are dusty, clean with
an air blower, etc. and then remove it.

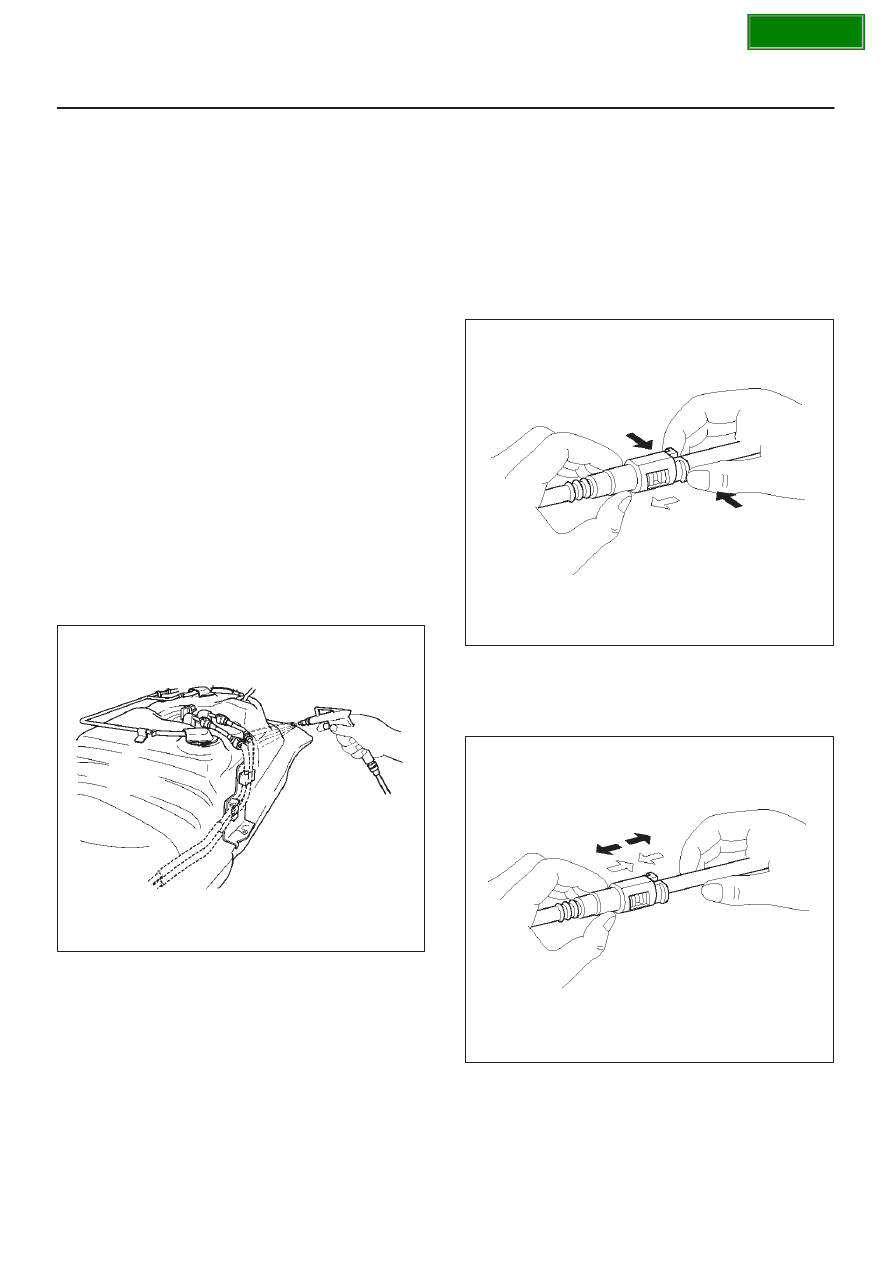

141RW036

As some pressure may remain in the piping, cover the
connector with a cloth, etc. to prevent the splashing
of fuel in the first disconnection of the piping.

2. For removal of the delivery pipe (feeding fuel to the

engine), and return pipe (returning fuel to the tank)
hold the connector in one hand, and hold the retainer
tab with the other hand and pull out the connector, as
illustrated. The pipe can be removed with the retainer
attached.

141RW019

NOTE: This work should be done by hands. Do not use
any tools. Should the pipe can hardly be removed from
the connector, use a lubricant (light oil) and/or push and
pull the connector longitudinally until the pipe is removed.

141RW021
