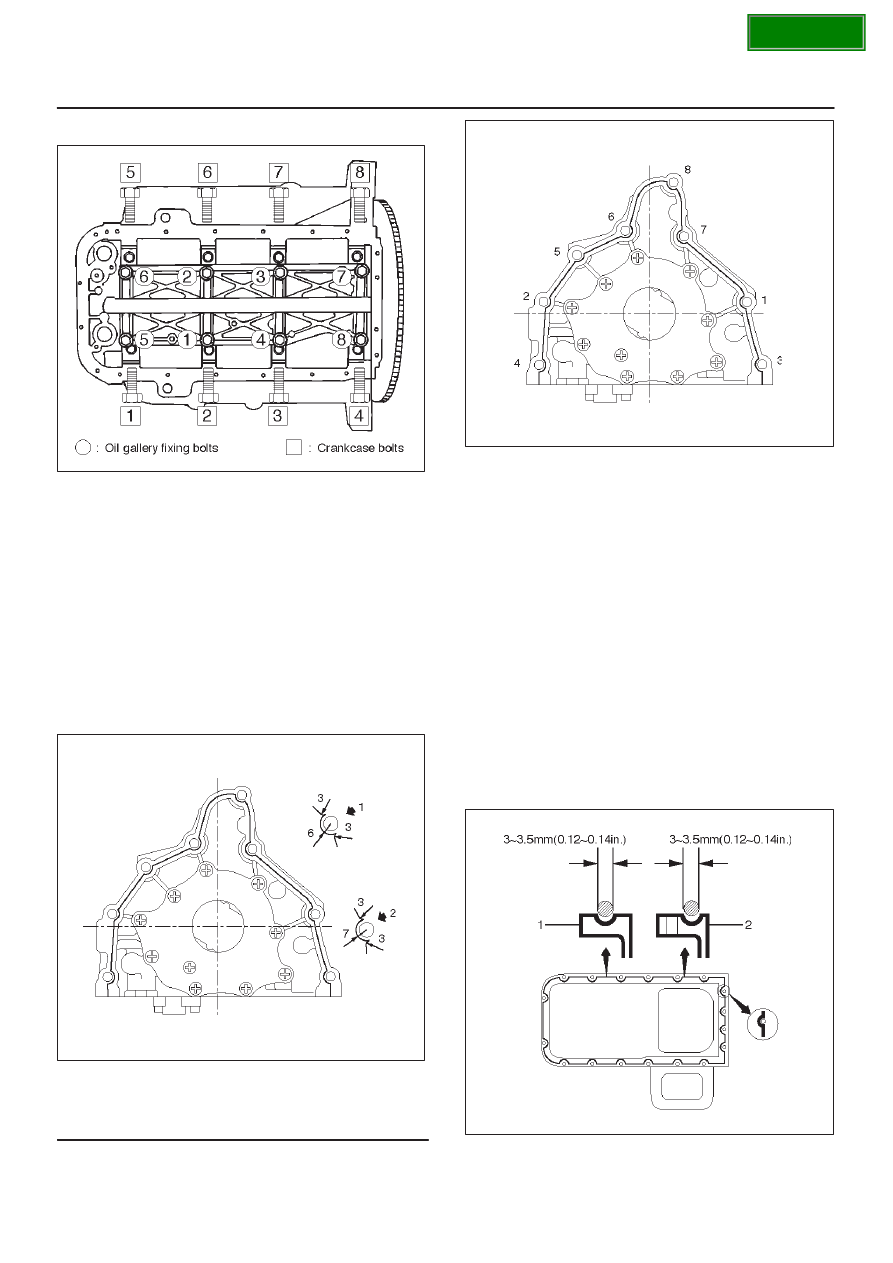

6A–49 ENGINE MECHANICAL (6VD1 3.2L) NOTE: Do not apply the oil to the bolts. 012RS007 8. Install oil pump assembly. D Remove oil on cylinder block and oil pump mounting D Apply sealant (TB1207B or equivalent) to the oil D The oil pump assembly must be installed within 5 D Apply engine oil to oil seal lip. D Install oil pump in the cylinder block and tighten Torque : 25 N·m (2.5 kg·m/18 lb ft) 051RW002 Legend (1) Around Bolt Holes 051RW001 9. Install oil strainer with O-ring, tighten to the specified torque. Torque : 25 N·m (2.5 kg·m/18 lb ft) 10. Install oil pipe with O-ring, tighten fixing bolts to the specified torque. Torque : 25 N·m (2.5 kg·m/18 lb ft) 11. Install crankcase. D Remove oil on crankcase mounting surface and dry D Properly apply a 4.5 mm (0.7 in) wide bead of D The crankcase must be installed within 5 minutes D Tighten fixing bolts to the specified torque. Torque : 10 N·m (1.0 kg·m/87 lb in) 013RW010 |
