5C–42

POWER-ASSISTED BRAKE SYSTEM

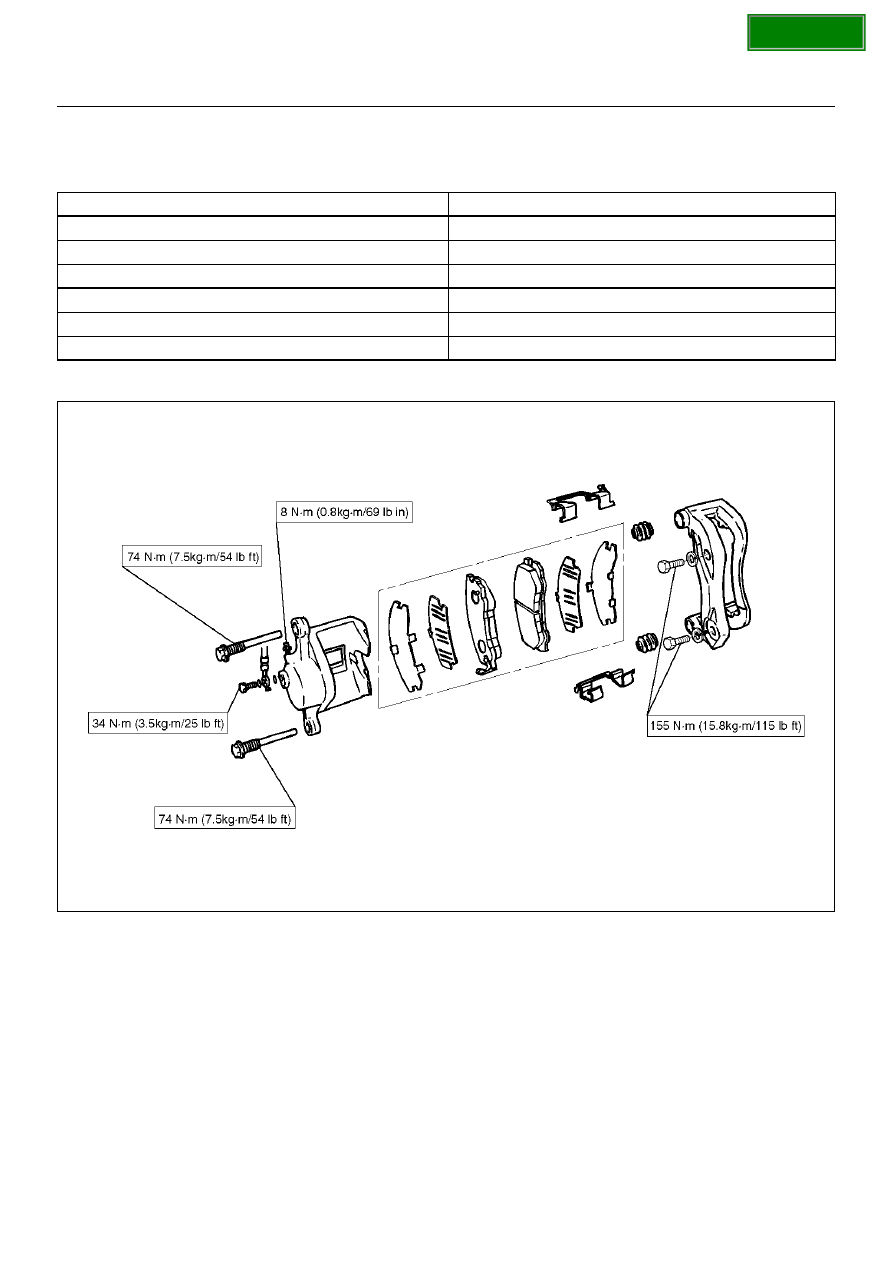

Main Data and Specifications

General Specifications

Torque Specifications

E05RX009

Type

Floating, pin slide

Pad dimension

55 cm

2

 (8.52 in

2

)

Adjusting method

Self–adjusting

Piston diameter

60.33 mm (2.38 in)

Disc type

Ventilated

Disc thickness

26 mm (1.02 in)

Disc effective diameter

222 mm (8.74 in)

SECTION

POWER-ASSISTED BRAKE SYSTEM

5C–43

Rear Disc Brake Pads

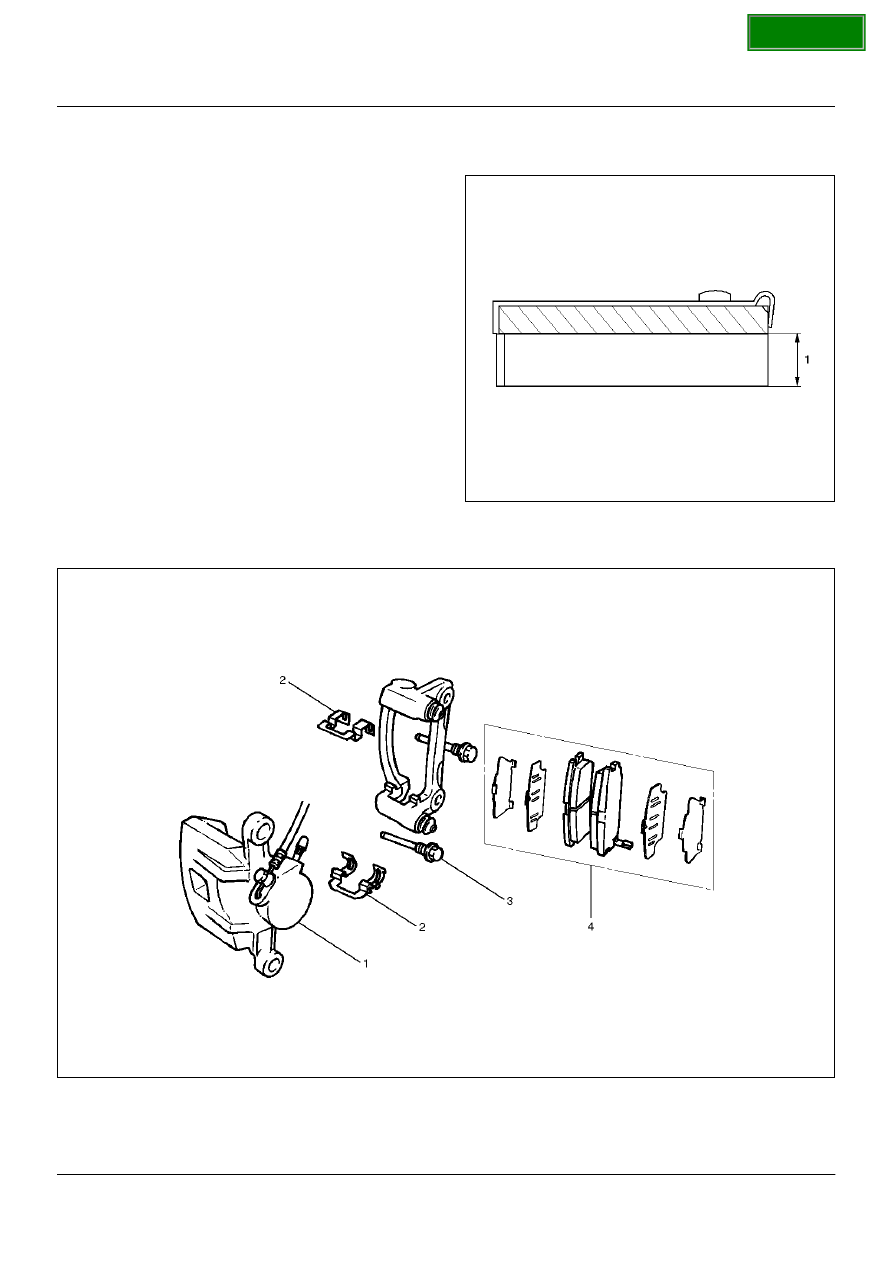

Brake Pads Inspection

Check the outer pads by looking at each caliper from
above. Check the thickness on the inner pad by looking
down through the inspection hole in the top of the
caliper. Whenever the pad is worn to about the
thickness of the pad base, the pad should be removed
for further measurements. The pad should be replaced
anytime the pad thickness (1) is worn to within 1.0 mm
(0.039 in) of the pad itself.
The disc pads have a wear indicator that makes a noise
when the pad wears to where replacement is required.

Minimum limit (1): 1.0 mm (0.039 in)

302RW016

Brake Pads and Associated Parts

306RW001

Legend

EndOFCallout

(1) Caliper Assembly
(2) Clip

(3) Lock Bolt
(4) Pad Assembly

SECTION

5C–44

POWER-ASSISTED BRAKE SYSTEM

Removal

NOTE:  If a squealing noise occurs from the rear brake
while driving, check the pad wear indicator plate. If the
indicator plate contacts the rotor, the disc pad assembly
should be replaced.

• Draw out two–thirds of the brake fluid from the

reservoir.

• Raise the vehicle and support it with suitable safety

stands.

1. Remove wheel and tire assembly, referring to

“

Wheels and Tires System

" in Section 3E.

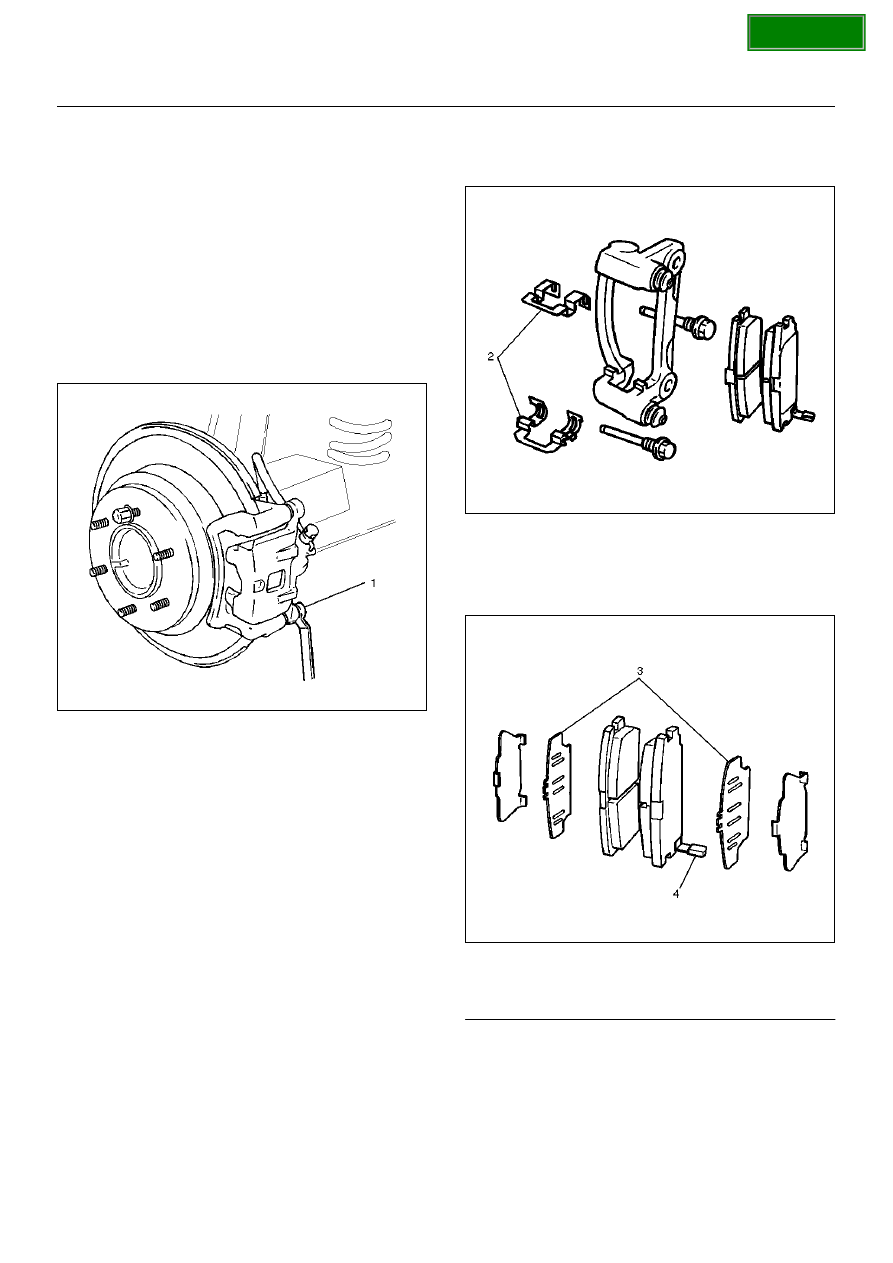

2. Remove lock bolt (1)

306RW002

3. Rotate caliper assembly and support the caliper

assembly so that the brake hose is not stretched or
damaged.

4. Remove pad assembly with shim.

5. Remove clip.

Installation

1. Install clip (2).

306RW003

2. Apply special grease (approximately 0.2g) to both

contacting surfaces of the inner shims. Wipe off
extruded grease after installing. Install pad
assembly with shim.

306RW004

Legend

EndOFCallout

(3) Inner Shim
(4) Wear Indicator

SECTION

POWER-ASSISTED BRAKE SYSTEM

5C–45

306RW005

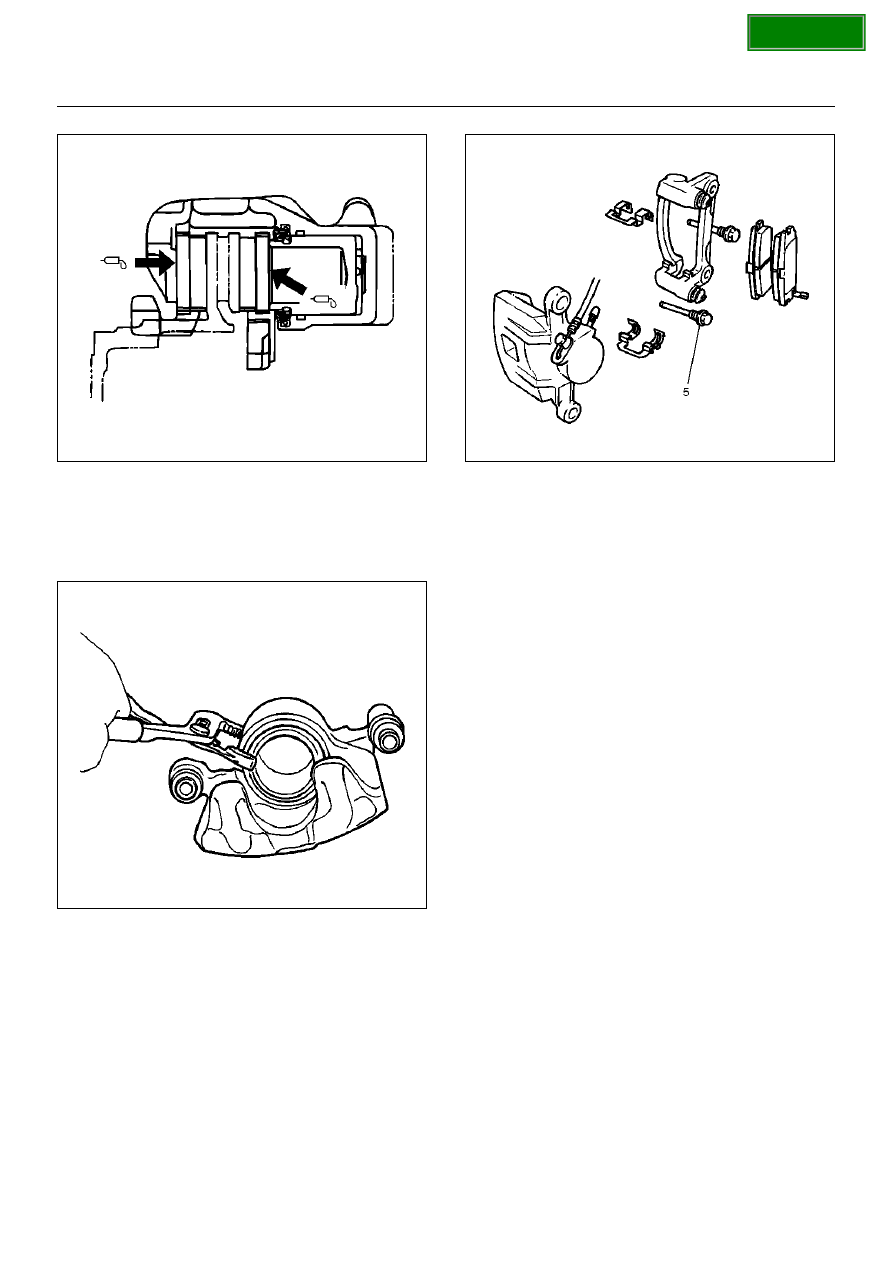

3. Use adjustable pliers to bottom the piston into the

caliper bore. Be careful not to damage the piston
dust boot and do not damage the flexible hose by
twisting or pulling it. Install caliper assembly.
Set caliper assembly in place.

302RS008

4. Install lock bolt (5) and tighten the bolt to the

specified torque.

Torque: 43 N·m (4.4 kg·m/32 lbft)

5. Install wheel and tire assembly, referring to “

Wheels

and Tires System

" in Section 3E.

6. Pump the brake pedal several times to make sure

that the pedal is firm.  Check the brake fluid level in
the reservoir after pumping the brakes.

306RW006
