Opel Frontera UE. Manual - part 131





POWER-ASSISTED BRAKE SYSTEM

5C–9

Hydraulic Brakes

Filling Master Cylinder Reservoir

CAUTION:  Use only specified brake fluid. Do not
use any fluid which contains a petroleum base. Do
not use a container which has been used for
petroleum based fluids or a container which is wet
with water. Petroleum based fluid will cause
swelling and distortion of rubber parts in the
hydraulic brake system. Water mixed with brake
fluid lowers the fluid boiling point. Keep all fluid
containers capped to prevent contamination.
Always fill the master cylinder reservoir when the
engine is cold.
Never allow the brake fluid to come in contact with
the painted surfaces.
The master cylinder reservoir must be kept properly
filled to ensure adequate reserve and to prevent air
and moisture from entering the hydraulic system.
However, because of expansion due to heat
absorbed from the brakes and the engine, the
reservoir must not be overfilled. The brake fluid
reservoir is on the master cylinder, which is located
under the hood on the left side of the cowl.
Thoroughly clean reservoir cap before removal to
avoid getting dirt into reservoir. Remove the
diaphragm. Add fluid as required to bring level to
the “MAX" mark on the reservoir tank. Use “DOT 3"
Hydraulic Brake Fluid. If the fluid cap diaphragm is
stretched, return it to the original position before
installing.

Deterioration of Brake Fluid

Using any other brake fluid than specified or brake fluid
with mineral oil or water mixed in will drop the boiling
point of brake fluid. It may, in turn, result in vapor lock or
deteriorated rubber parts of the hydraulic system. Be
sure to change the brake fluid at specified intervals.
If the rubber parts are deteriorated, remove all the
system parts and clean them with alcohol. Prior to
reassembly, dry the cleaned parts with air to remove the
alcohol. Replace all the hoses and rubber parts of the
system.

Leakage of Brake Fluid

With engine idling, set shift lever in the neutral position
and continue to depress brake pedal at a constant pedal
application force.
Should the pedal stroke become deeper gradually,
leakage from the hydraulic pressure system is possible.
Make sure by visual check that there is no leak.

Bleeding Brake Hydraulic System

A bleeding operation is necessary to remove air from
the hydraulic  brake system whenever air is introduced
into the hydraulic system. It may be necessary to  bleed
the hydraulic system at all four brakes if air has been

introduced through a low fluid level or by  disconnecting
brake pipes at the master cylinder. If a brake pipe is
disconnected at one wheel,  only that wheel cylinder/
caliper needs to be bled. If the pipes are disconnected
at any fitting located  between the master cylinder and
brakes, then the brake system served by the
disconnected pipe  must be bled.

1. For 4–Wheel Antilock Brake System (ABS)

equipped vehicle, be sure to remove the ABS main
fuse 60A located at the relay and fuse box before
bleeding air. If you attempt to bleed air without
removing the main fuse, air cannot be let out
thoroughly, and this may cause damage to the
hydraulic unit. After bleeding air, be sure to replace
the ABS main fuse back to its original position.

2. Set the parking brake completely, then start the

engine.

NOTE:  The vacuum booster will be damaged if the
bleeding operation is performed with the engine off.

3. Remove the master cylinder reservoir cap.

4. Fill the master cylinder reservoir with brake fluid.

Keep the reservoir at least half full during the air
bleeding operation

5. Always use new brake fluid for replenishment.

6. In replenishing brake fluid, take care that air bubbles

do not enter the brake fluid.
When the master cylinder is replaced or overhauled,
first bleed the air from the master cylinder, then from
each wheel cylinder and caliper following the
procedures described below.

Bleeding the Master Cylinder

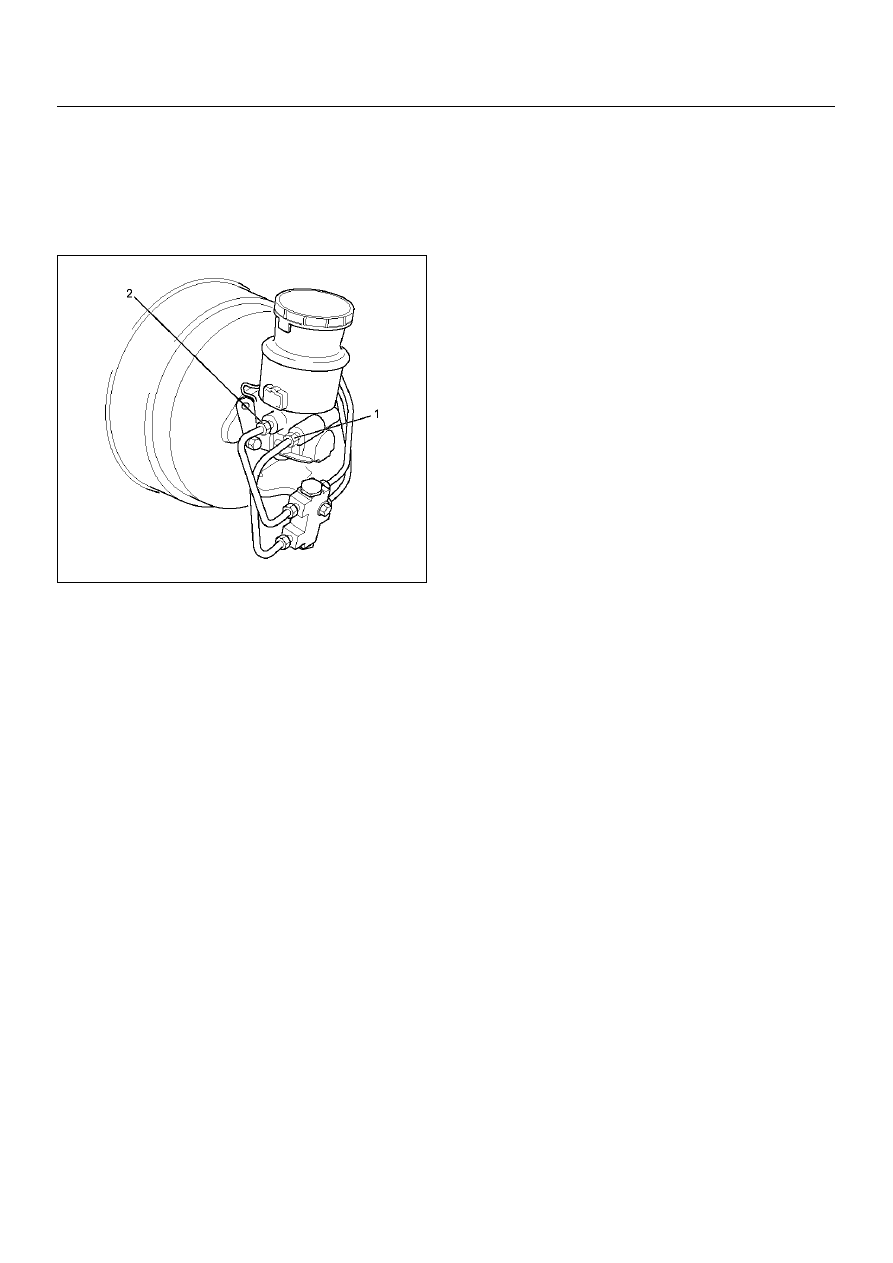

7. Disconnect the rear wheel brake pipe (1) from the

master cylinder.
Check the fluid level and replenish as necessary. If
replenished, leave the system for at least one
minute.

8. Depress the brake pedal slowly once and hold it

depressed.

9. Completely seal the delivery port of the master

cylinder with your finger, where the pipe was
disconnected then release the brake pedal slowly.

10. Release your finger from the delivery port when the

brake pedal returns completely.

11. Repeat steps 8 through 10 until the brake fluid

comes out of the delivery port during step 8.

NOTE:  Do not allow the fluid level in the reservoir to go
below the half–way mark.

12. Reconnect the brake pipe (1) to the master cylinder

and tighten the pipe.

13. Depress the brake pedal slowly once and hold it

depressed.

14. Loosen the rear wheel brake pipe (1) at the master

cylinder.

5C–10

POWER-ASSISTED BRAKE SYSTEM

15. Retighten the brake pipe, then release the brake

pedal slowly.

16. Repeat steps 13 through 15 until no air comes out of

the port when the brake pipe is loosened

NOTE:  Be very careful not to allow the brake fluid to
come in contact with painted surfaces.

330RW012

17. Bleed the air from the front wheel brake pipe

connection (2) by repeating steps 7 through 16.

Bleeding the Caliper

18. Bleed the air from each wheel in the order listed

below:

• Right rear caliper or wheel cylinder

• Left rear caliper or wheel cylinder

• Right front caliper

• Left front caliper
Conduct air bleeding from the wheels in the above
order. If no brake fluid comes out, it suggests that air
is mixed in the master cylinder. In this case, bleed
air from the master cylinder. In this case, bleed air
from the master cylinder in accordance with steps 7
through 17, and then bleed air from the caliper or
wheel cylinder.

19. Place the proper size box end wrench over the

bleeder screw.

20. Cover the bleeder screw with a transparent tube,

and submerge the free end of the transparent tube
in a transparent container containing brake fluid.

21. Pump the brake pedal slowly three (3) times (once/

sec), then hold it depressed.

22. Loosen the bleeder screw until fluid flows through

the tube.

23. Retighten the bleeder screw.

24. Release the brake pedal slowly.

25. Repeat steps 21 through 24 until the air is

completely removed.
It may be necessary to repeat the bleeding

procedure 10 or more times for front wheels and 15
or more times for rear wheels.

26. Go to the next wheel in the sequence after each

wheel is bled.
Be sure to monitor reservoir fluid level.

27. Depress the brake pedal to check if you feel

“sponginess" after the air has been removed from all
wheel cylinders and calipers.
If the pedal feels “spongy", the entire bleeding
procedure must be repeated.

28. After the bleeding operation is completed on the

each individual wheel, check the level of the brake
fluid in the reservoir and replenish up to the “MAX"
level as necessary.

29. Attach the reservoir cap.

If the diaphragm inside the cap is deformed, reform
it and install.

30. Stop the engine.

Flushing Brake Hydraulic System

It is recommended that the entire hydraulic system be
thoroughly flushed with clean brake fluid whenever new
parts are installed in the hydraulic system.
Approximately one quart of fluid is required to flush the
hydraulic system.
The system must be flushed if there is any doubt as to
the grade of fluid in the system or if fluid has been used
which contains the slightest trace of mineral oil. All
rubber parts that have been subjected to a
contaminated fluid must be replaced.

Brake Pipes and Hoses

The hydraulic brake system components are
interconnected by special steel piping and flexible
hoses. Flexible hoses are used between the frame and
the front calipers, the frame and rear axle case and the
rear axle and the rear calipers.
When the hydraulic pipes have been disconnected for
any reason, the brake system must be bled after
reconnecting the pipe. Refer to “Bleeding the Brake
Hydraulic System" in this section.

Brake Hose Inspection

The brake hose should be inspected at least twice a
year. The brake hose assembly should be checked for
road hazard, cracks and chafing of the outer cover, and
for leaks and blisters. Inspect for proper routing and
mounting of the hose. A brake hose that rubs on
suspension components will wear and eventually fail. A
light and mirror may be needed for an adequate
inspection.  If any of the above conditions are observed
on the brake hose, adjust or replace the hose as
necessary.

CAUTION:  Never allow brake components such as
calipers to hang from the brake hoses, as damage
to the hoses may occur.

POWER-ASSISTED BRAKE SYSTEM

5C–11

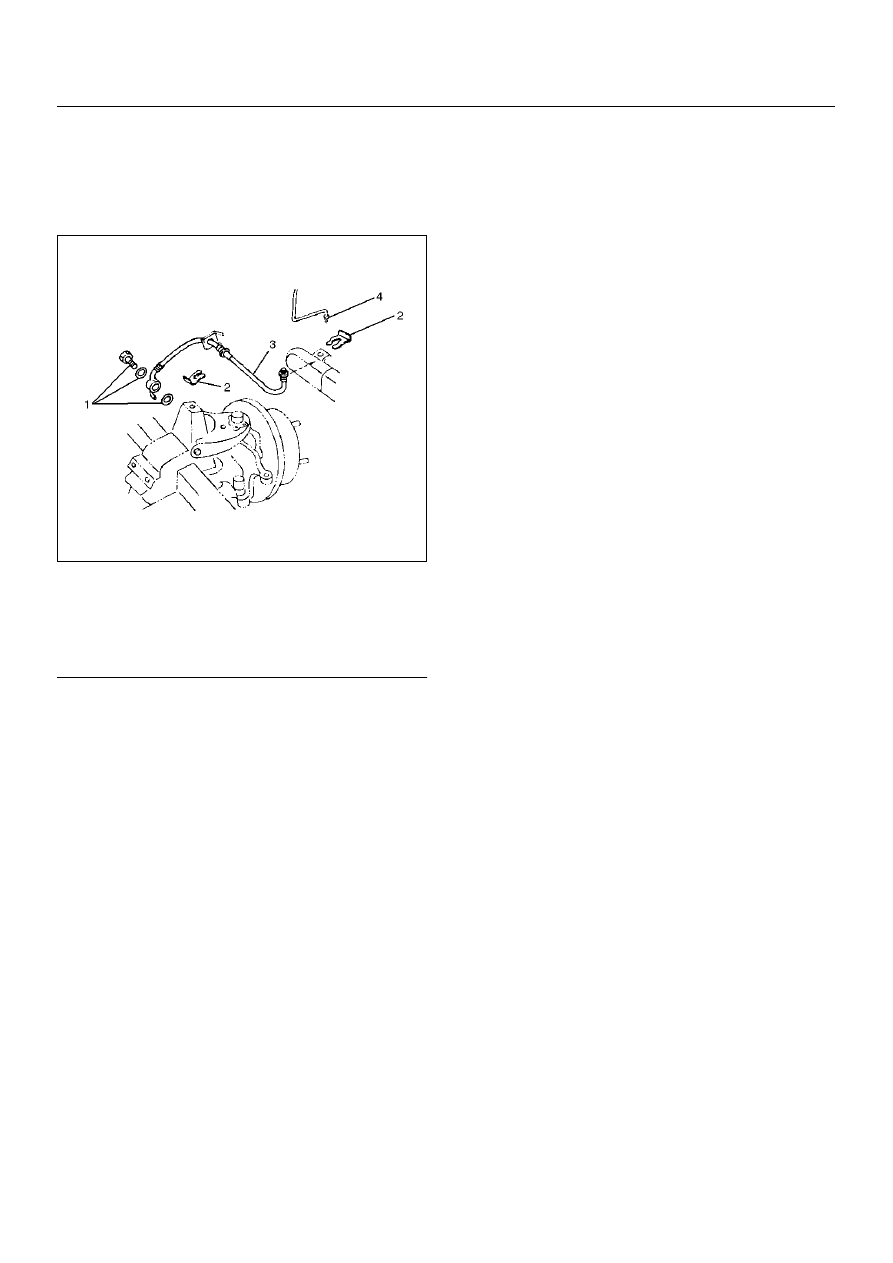

Front Caliper Brake Hose

Front Caliper Brake Hose and
Associated Parts

352RW001

Legend

EndOFCallout

Removal

1. Raise the vehicle and support it with suitable safety

stands.

2. Remove the wheel and tire assembly.

3. Clean dirt, grease, and other foreign material off the

hose fittings at both ends.

4. Disconnect brake pipe.

5. Remove clip.

6. Remove bolt and gasket.

7. Remove hose.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Tighten the brake pipes to the specified torque

Torque: 16 N·m (1.6 kg·m/12 lbft)

2. Tighten the bolt to the specified torque.

Torque: 34 N·m (3.5 kg·m/25 lbft)

NOTE:  Always use new gaskets and be sure to put the
hooked edge of the flexible hose end into the anti–
rotation cavity.
After installing the brake hoses, bleed the brakes as
described in this section.

(1) Bolt and Gasket
(2) Clip
(3) Hose
(4) Brake Pipe

5C–12

POWER-ASSISTED BRAKE SYSTEM

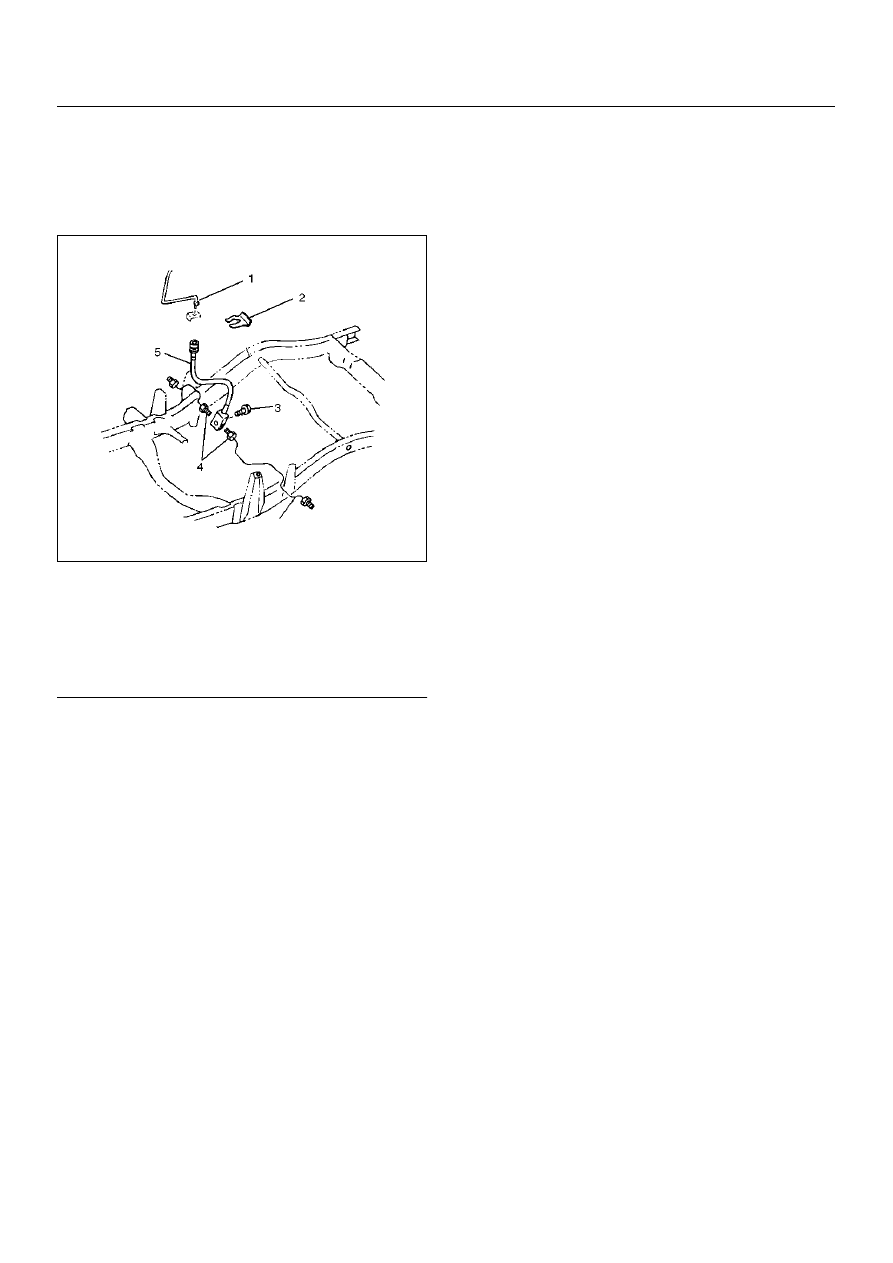

Rear Axle Brake Hose

Rear Axle Brake Hose and
Associated Parts

352RW002

Legend

EndOFCallout

Removal

1. Raise the vehicle and support it with suitable safety

stands.

2. Remove wheel and tire assembly.

3. Clean dirt, grease, and other foreign material off the

hose fittings at both ends.

4. Disconnect brake pipe.

5. Remove clip.

6. Remove brake pipe.

7. Remove bolt.

8. Remove hose.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Tighten the brake pipes to the specified torque

Torque: 16 N·m (1.6 kg·m/12 lbft)

2. Tighten the bolt to the specified torque.

Torque: 15 N·m (1.5 kg·m/11 lbft)

After installing the brake hoses, bleed the brakes as
described in this section.

(1) Brake Pipe
(2) Clip
(3) Bolt
(4) Brake Pipe
(5) Hose
