4A1–22

DIFFERENTIAL (FRONT)

Clearance between the side gear and the
differential box:

Standard: 0.03 - 0.10 mm (0.001 - 0.004 in)

Limit: 0.15 mm (0.006 in)

425RS046

Legend

EndOFCallout

Play in splines between the side gear and
the axle shaft:

Standard: 0.08 - 0.36 mm (0.003 - 0.014 in)

Limit: 0.5 mm (0.02 in)

425RS047

Reassembly

1. Install thrust washer.

2. Install side gear.

3. Install the pinion gear with thrust washer by

engaging it with the side gears while turning both
pinion gears simultaneously in the same direction.

425RS048

4. Install cross pin.

1. Be sure to install the cross pin so that it is in

alignment with the lock pin hole in the differential
cage.

425RS049

(1) Side Gear
(2) Differential Box

SECTION

DIFFERENTIAL (FRONT)

4A1–23

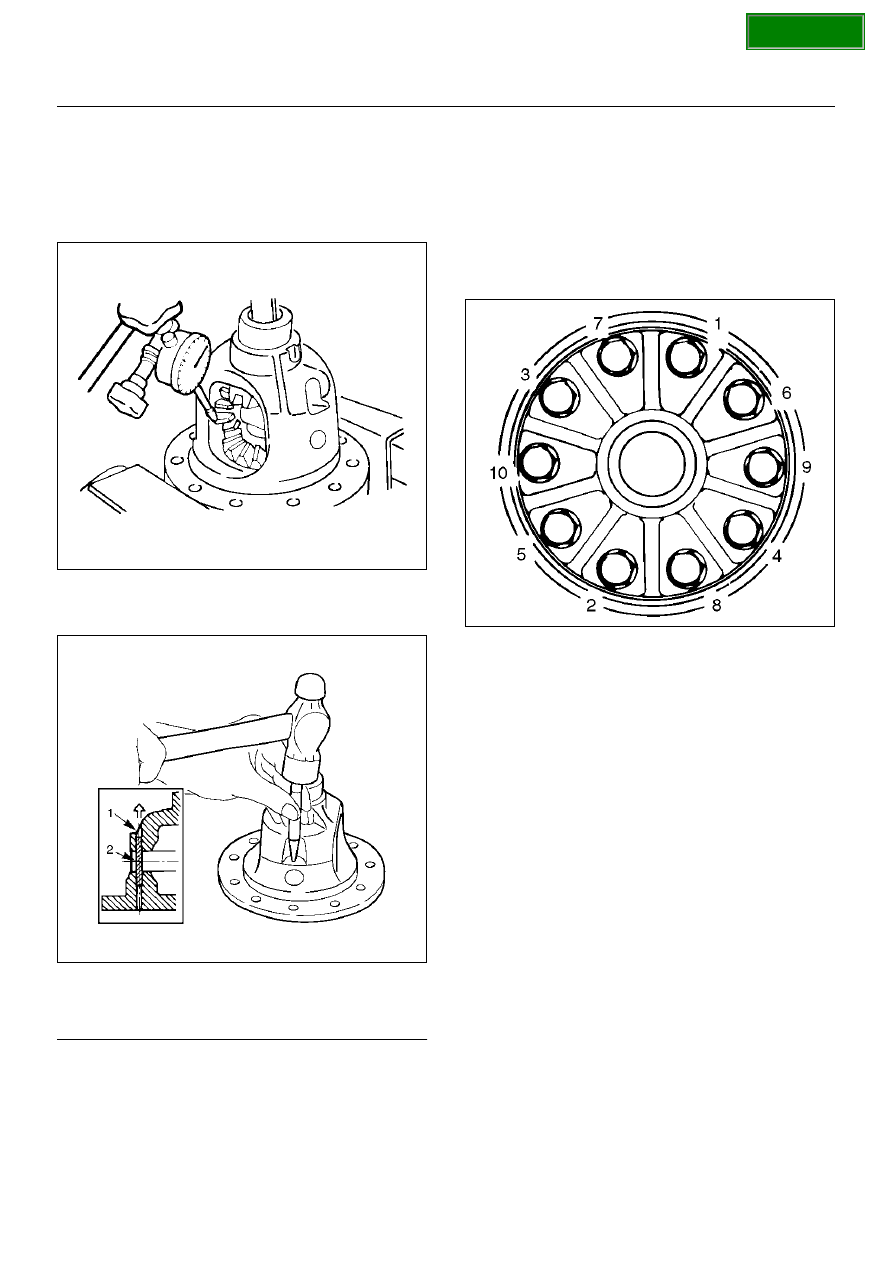

2. Adjust the backlash between the side gear and

the pinion gear.
Backlash: 0.03 - 0.08 mm (0.001 - 0.003 in)
Thickness of thrust washers available:
1.00mm, 1.05 mm, 1.10mm(0.039in, 0.041 in,
0.043in)

425RS050

5. Install lock pin. After lock pin installation, stake the

cage to secure the lock pin.

425RS051

Legend

EndOFCallout

6.  Clean the ring gear threaded holes to remove the

locking agent. When installing the ring gear, apply
LOCTITE 271 or equivalent to all the threaded area
and half of the unthreaded area of the bolt.

7. Tighten the bolts in diagonal sequence as

illustrated.

Torque:108N·m(11.0kg·m/80lbft)

NOTE:  Discard used bolts and install new ones.

415RS016

(1) Staked Portion
(2) Lock Pin

SECTION

4A1–24

DIFFERENTIAL (FRONT)

Main Data and Specifications

General Specifications

Axle tube Type

It consists of the duct, a cast iron housing and the axle

tube.

Gear type

Hypoid

Gear ratio

(to 1)

4.100 (6VD1 with A/T)

4.300 (6VD1 with M/T)

Differential type

Two pinion

Oil capacity

liter (US qt)

1.25 (1.32) (Differential)

0.12 (0.13) (Actuator Housing: Shift on the fly)

Type of lubricant

GL–5 (75W–90)

Axle shaft type

Constant velocity joint (Birfield joint type and double offset

joint)

Hub locking Type

Rigid

SECTION

DIFFERENTIAL (FRONT)

4A1–25

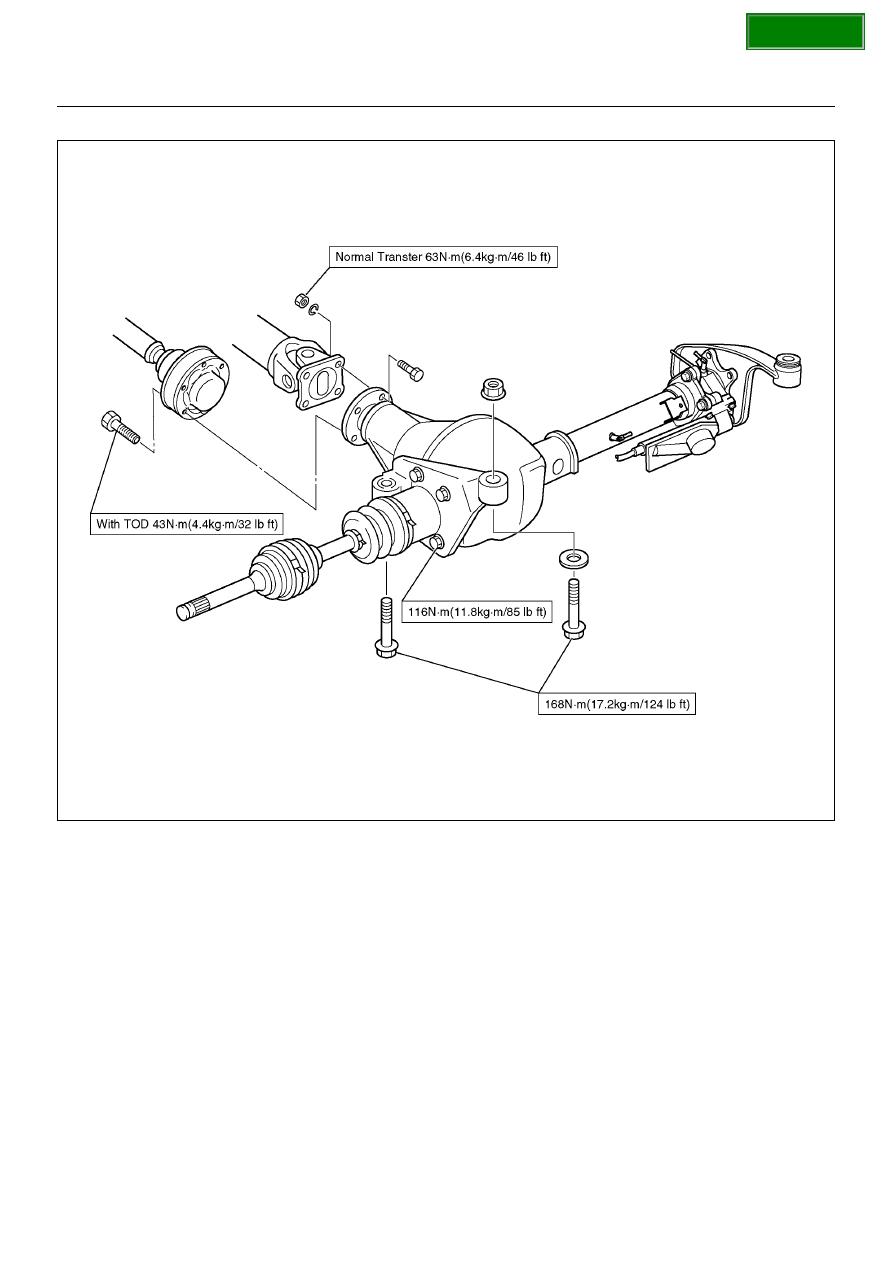

Torque Specifications

412R100002
