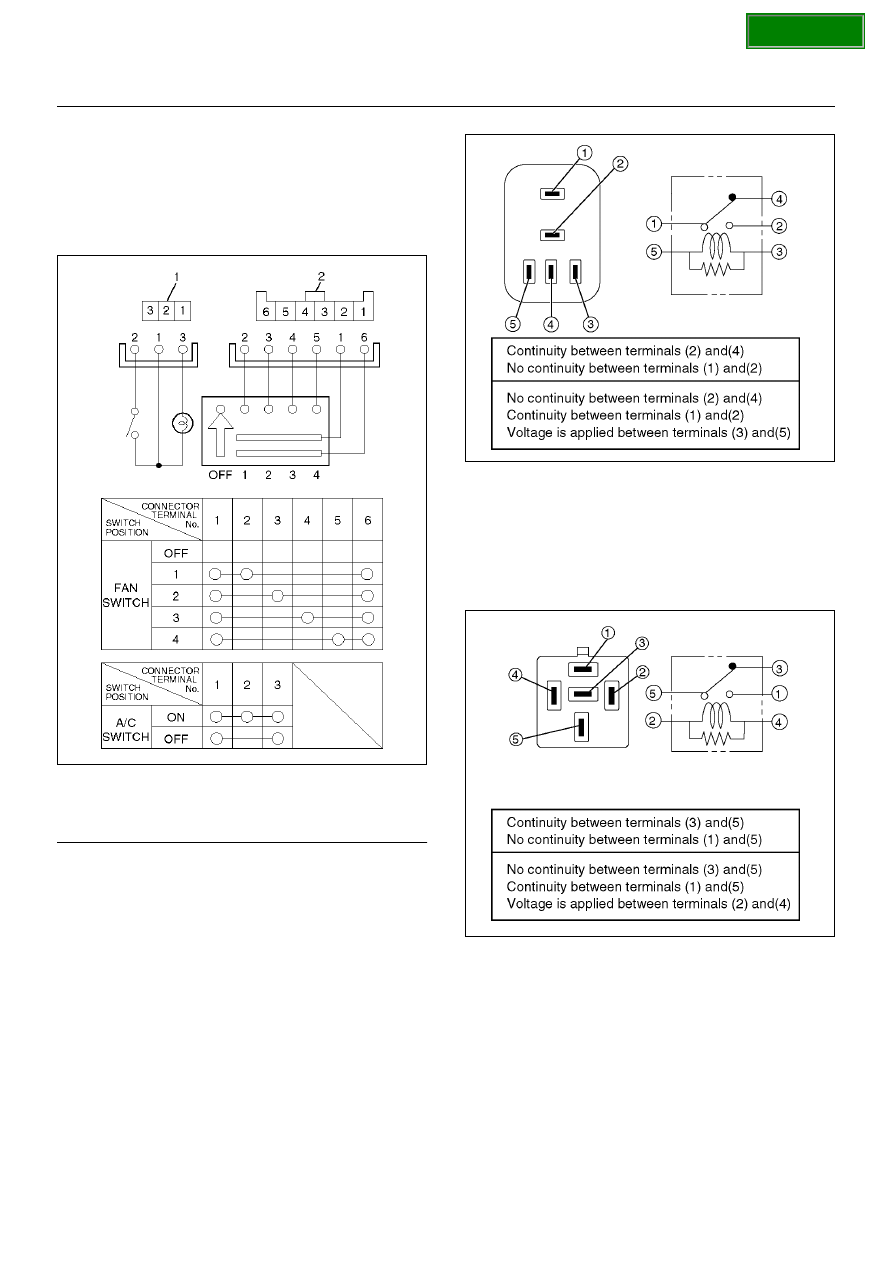

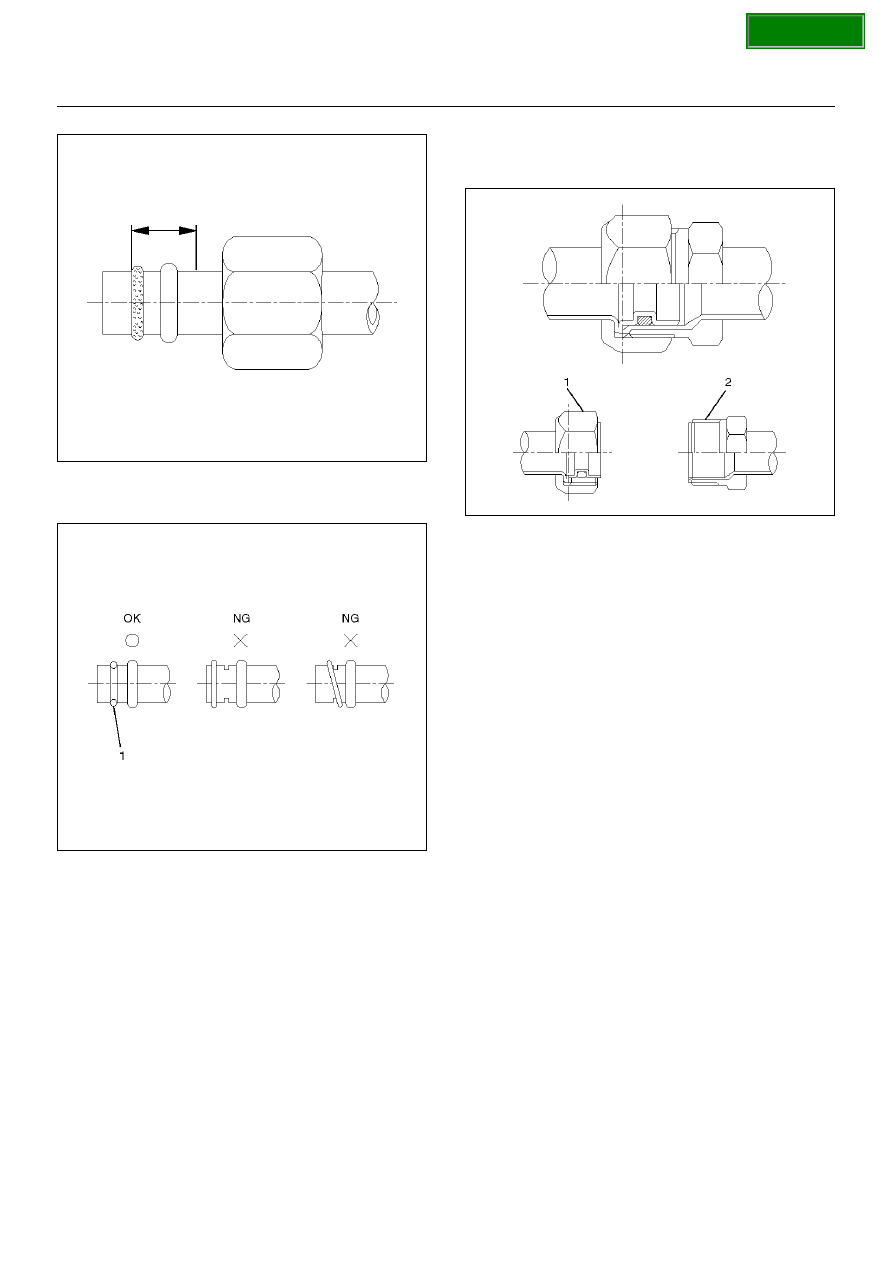

HEATING, VENTILATION AND AIR CONDITIONING (HVAC) 1A–49 Individual Inspection Fan Control Knob (Fan Switch) And Air 1. Check for continuity between the fan switch and the A/C switch side connector terminals. D08RX254 EndOFCallout Thermostat (X-8), Condenser Fan (X-11) 1. Disconnect relays and check for continuity and resistance between relay terminals. • For handling of these relays, refer to Heater Relay in this section . C01R100002 Heater (X-1), Compressor (X-2) Relay 1. Disconnect relays and check for continuity and resistance between relay terminals. • For handling of these relays, refer to Heater Relay in this section. C01R200011 Legend (1) A/C Switch Connector (switch side) |
