Opel Frontera UE. Manual - part 1118





8D–183

WIRING SYSTEM

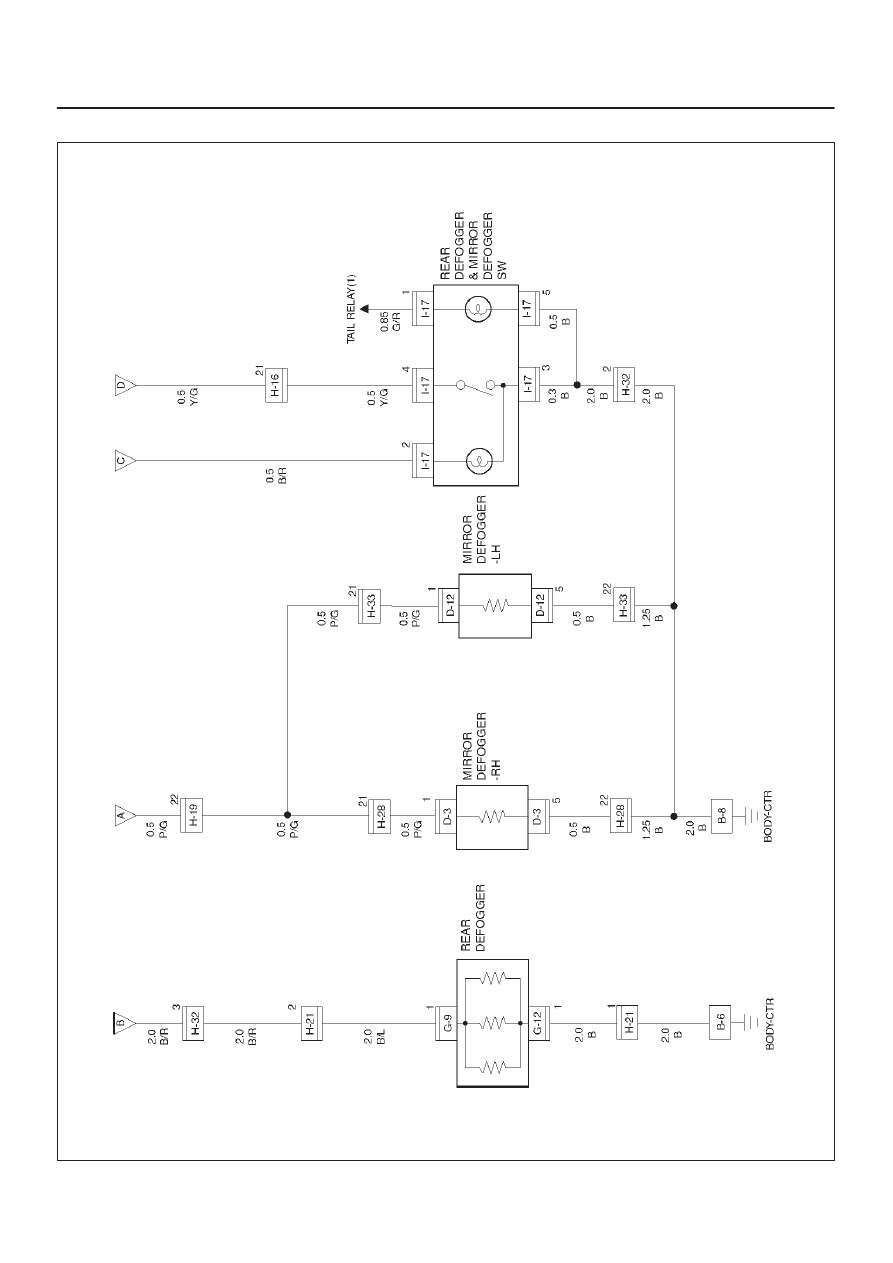

Circuit Diagram–2 (2Door Model)

D08RX238

8D–184

WIRING SYSTEM

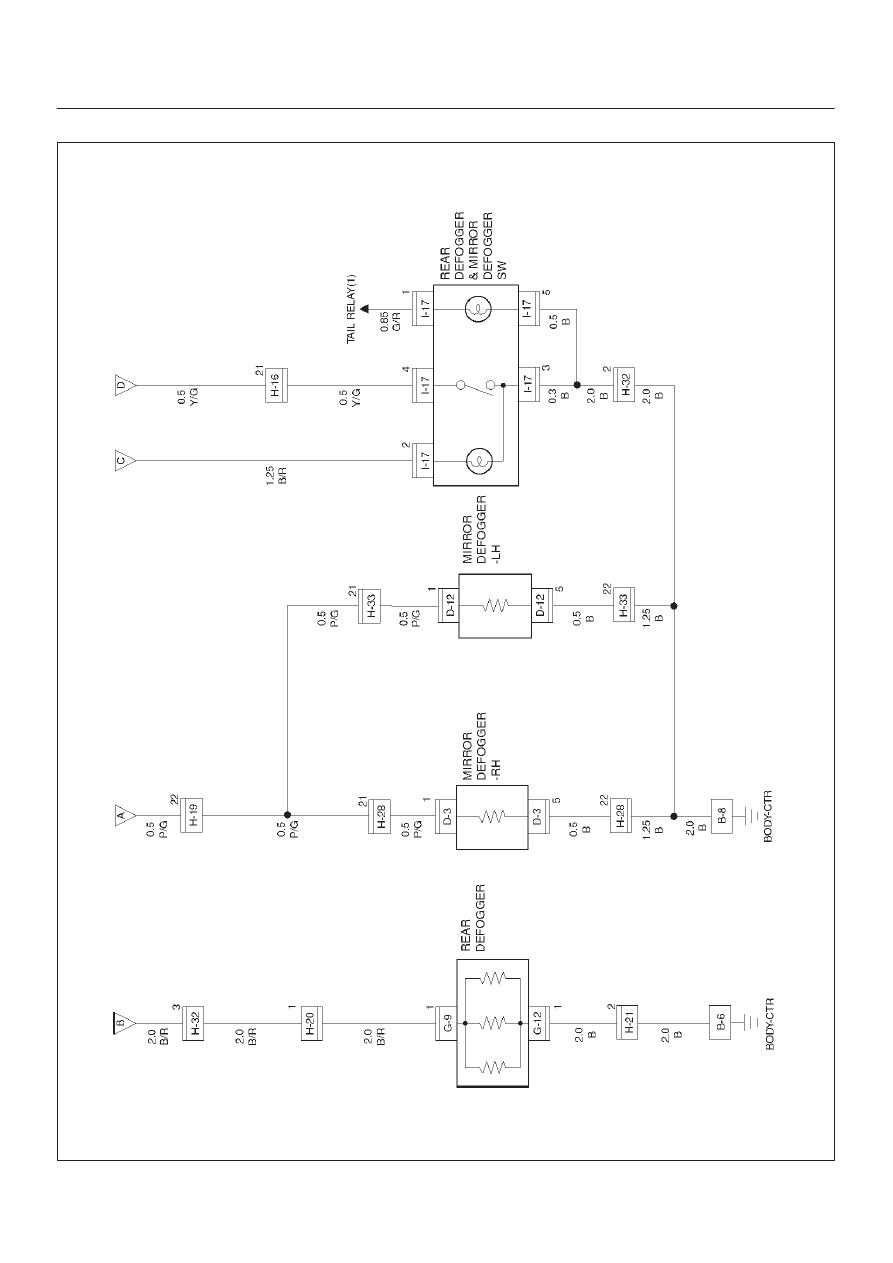

Circuit Diagram–2 (4Door Model)

D08RX241

8D–185

WIRING SYSTEM

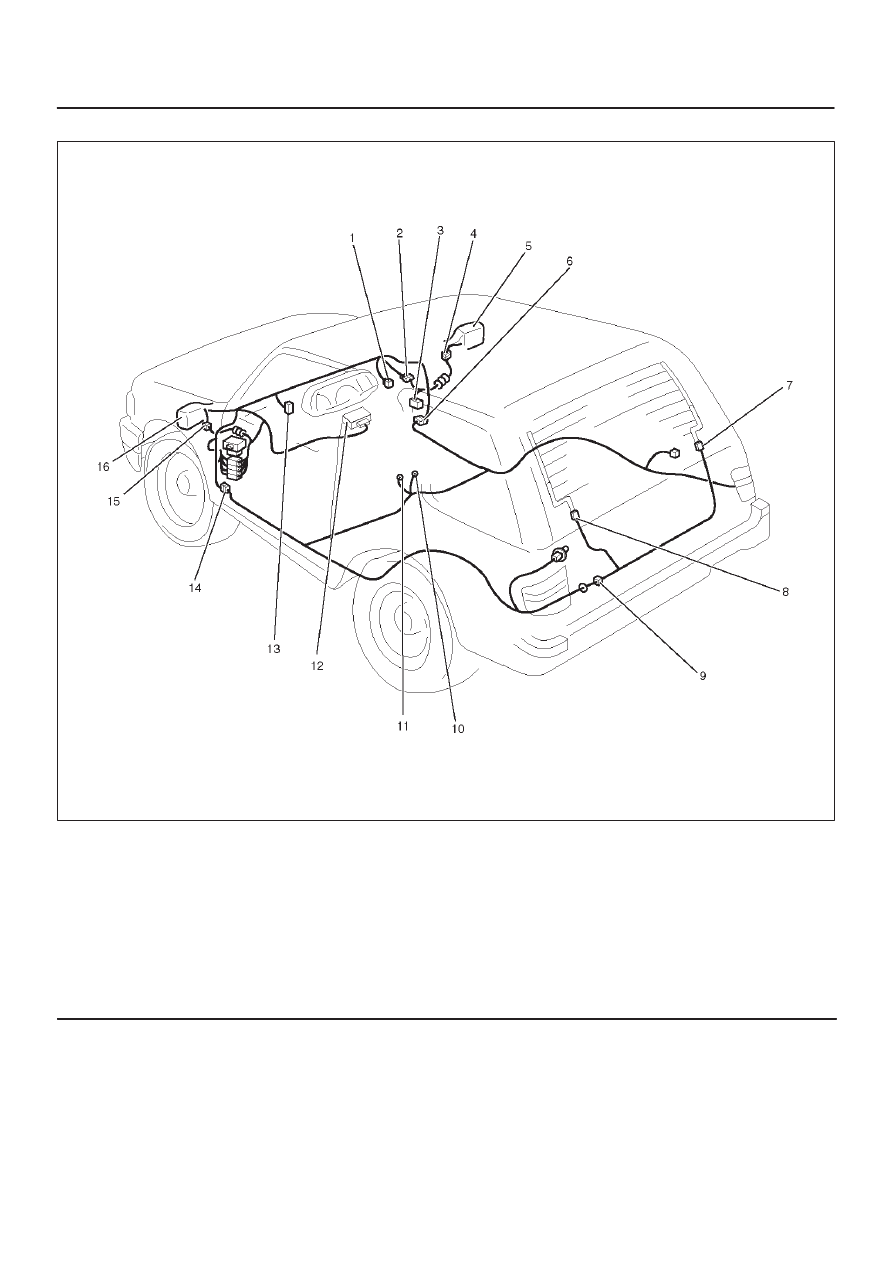

Parts Location (2Door Model)

D08RX239

Legend

(1) Rear Defogger & Mirror Defogger Switch
(2) H–19, H–32
(3) Relay & Fuse Box (Instrument Panel)
(4) D–3
(5) Door Mirror – RH
(6) H–28
(7) G–12
(8) G–9

(9) H–21

(10) B–8

(11) B–6

(12) PCM
(13) I–17
(14) H–33
(15) D–12
(16) Door Mirror – LH

8D–186

WIRING SYSTEM

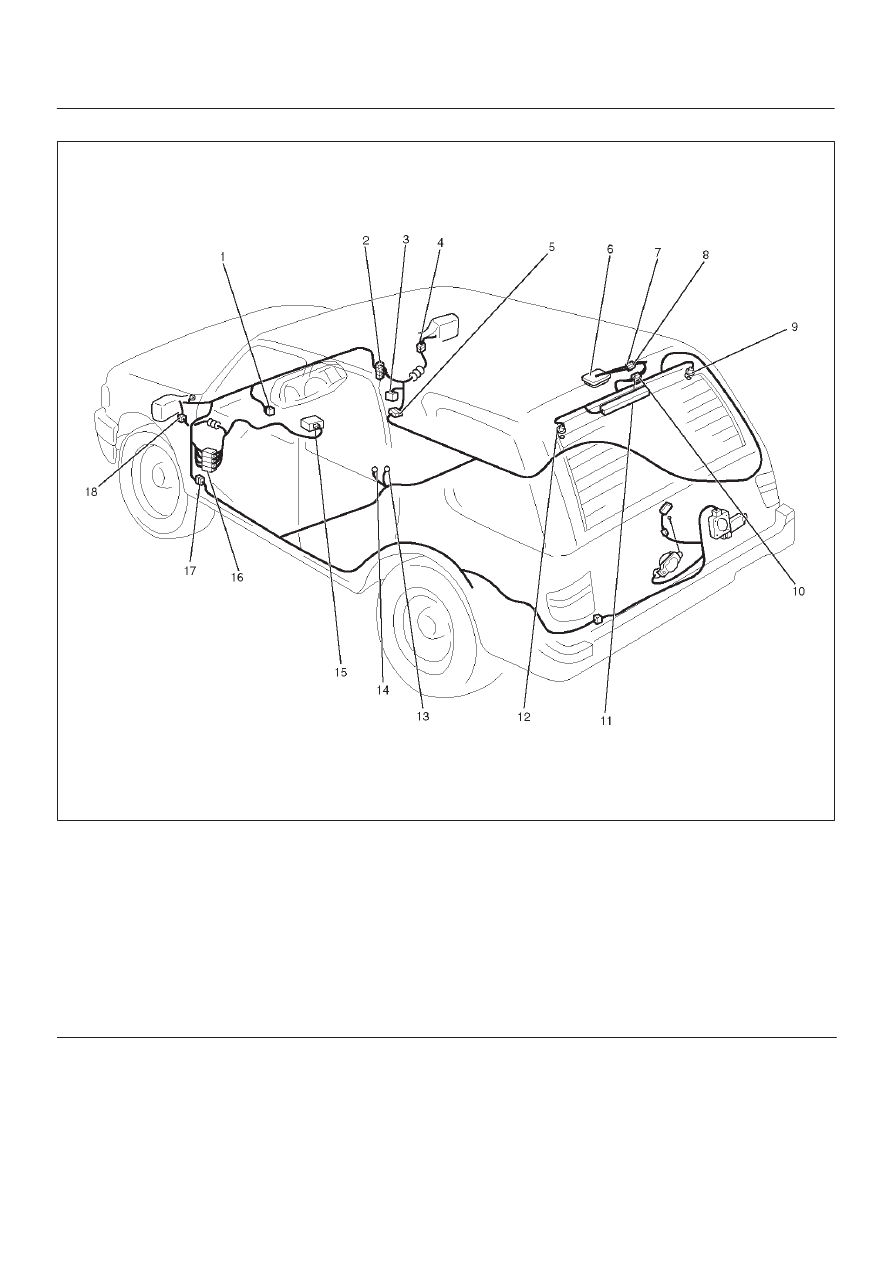

Parts Location (4Door Model)

D08RWD10

Legend

(1) RR Defogger & Mirror Defogger Switch
(2) H–19, H–32
(3) Relay & Fuse Box (Instrument Panel)
(4) D–3
(5) H–28
(6) Luggage Room Light
(7) H–10
(8) H–21
(9) G–9

(10) G–10

(11) G–11

(12) G–12
(13) B–8
(14) B–6
(15) PCM
(16) H–31
(17) H–33
(18) D–12
