8D–115

WIRING SYSTEM

Backup Lights Remain On

Step

Action

Value(s)

Yes

No

1

Repair or replace the mode switch or the backup light
switch.

Is the action complete?

—

Verify repair

—

8D–116

WIRING SYSTEM

Horn

General Description

The circuit consists of horn (high note), horn (low note),
horn relay (alarm & relay control unit) and horn switch.
When horn switch is pushed, (independent of position of
starter switch) horn relay is activated to sound horns.

8D–117

WIRING SYSTEM

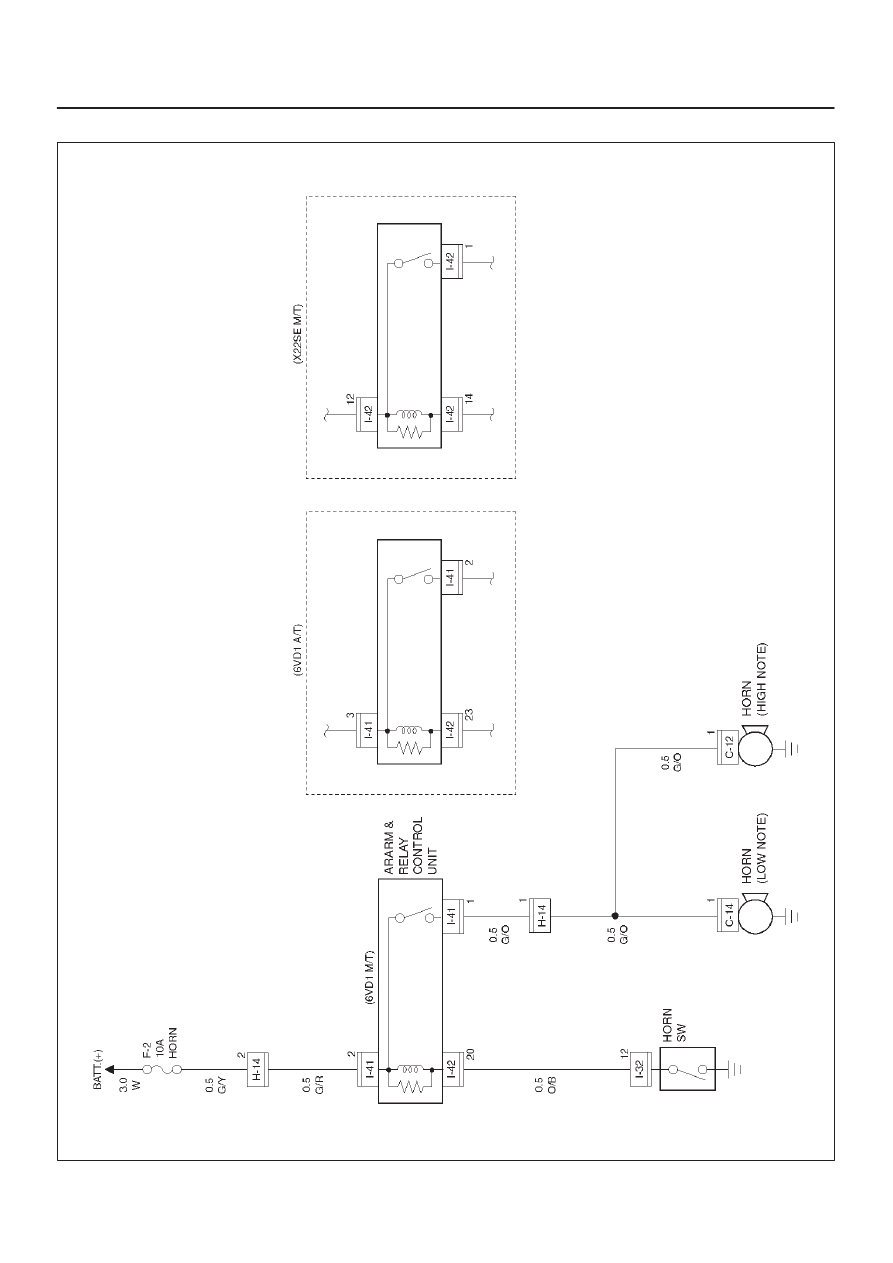

Circuit Diagram

D08RX205

8D–118

WIRING SYSTEM

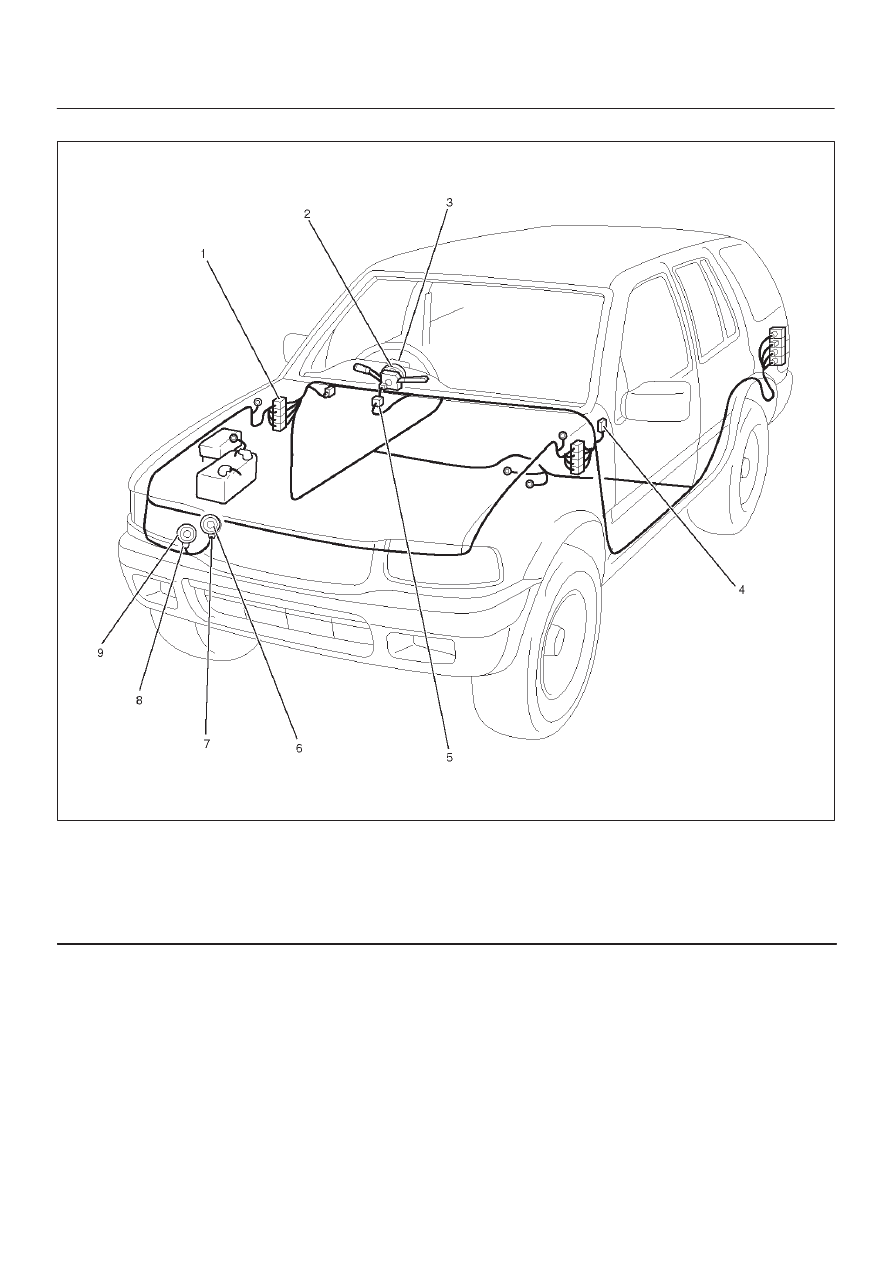

Parts Location

D08RWD18

Legend

(1) H–14
(2) SRS Coil ASM
(3) Horn Switch
(4) I–41, I–42

(5) I–32
(6) Horn (Low note)
(7) C–14
(8) C–12
(9) Horn (High note)
