8D–75

WIRING SYSTEM

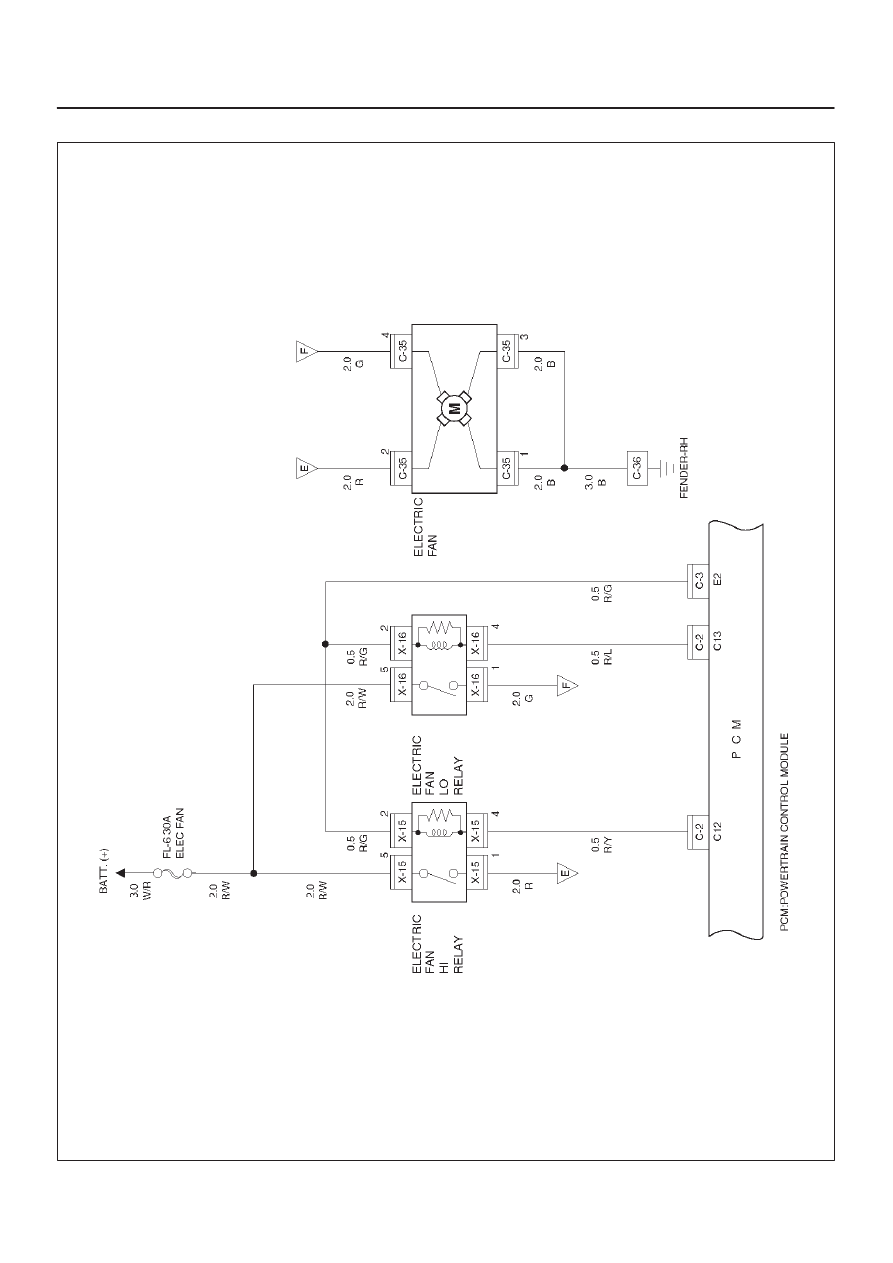

Circuit Diagram–9 (X22SE)

D08RX185

8D–76

WIRING SYSTEM

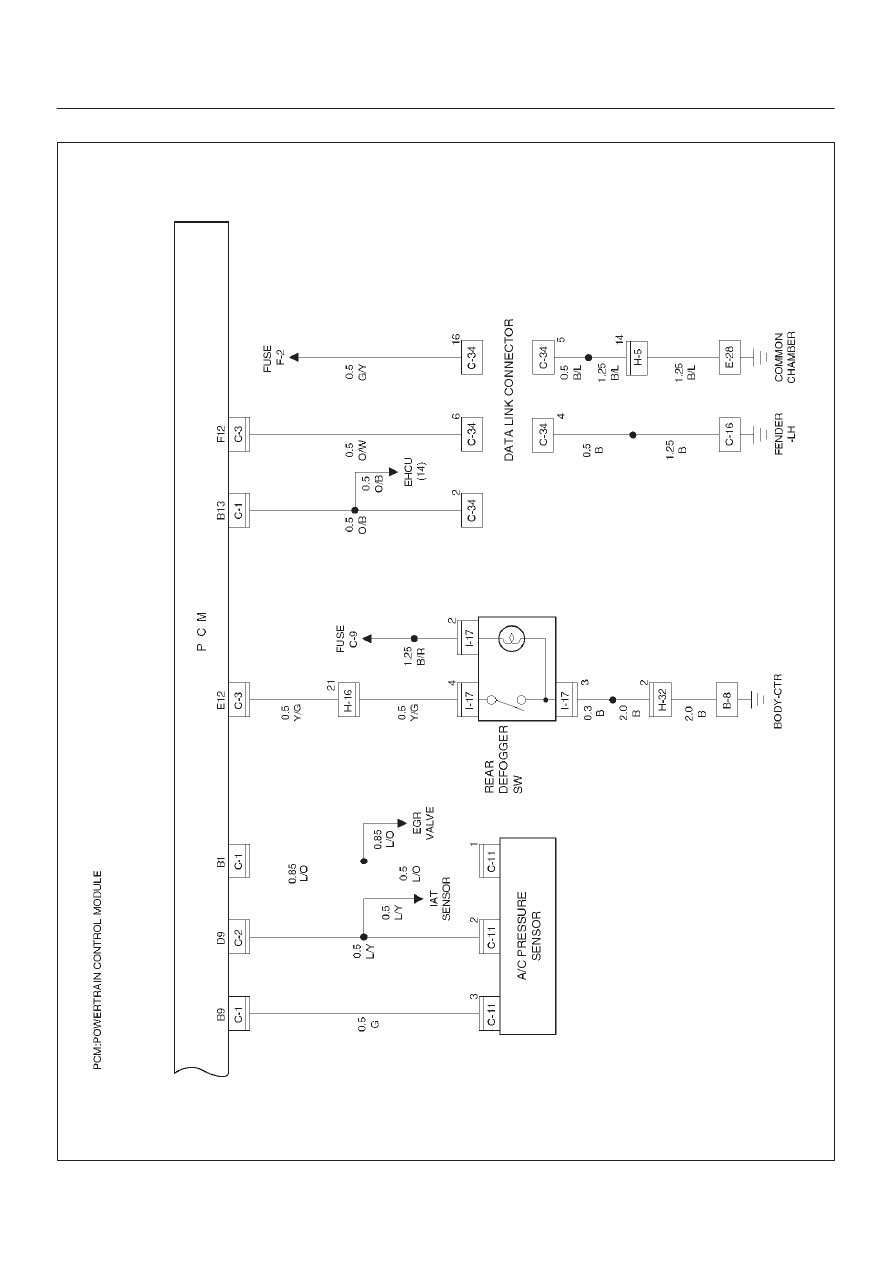

Circuit Diagram–10 (X22SE)

D08RX186

8D–77

WIRING SYSTEM

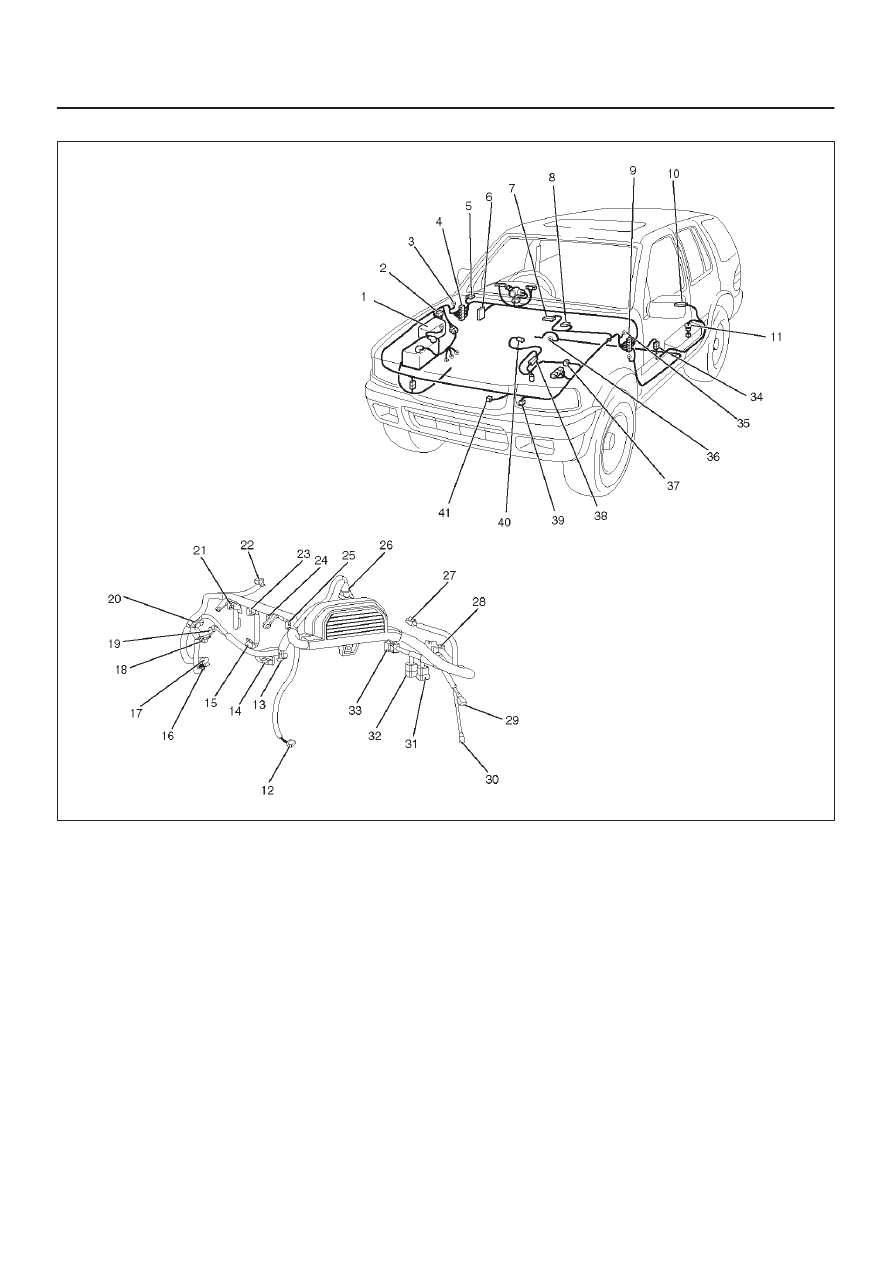

Parts Location

D08RX187

Legend

(1) X–7, X–8
(2) X–15, X–16
(3) C–36
(4) H–32
(5) I–41, I–42
(6) Relay & Fuse Box
(7) C–1, C–2, C–3 (PCM)
(8) C–37
(9) H–16

(10) F–3

(11) F–1

(12) E–1
(13) E–14
(14) E–27
(15) E–7
(16) E–28, E–30
(17) E–37
(18) E–8

(19) E–5
(20) E–6
(21) E–12
(22) E–33
(23) E–25
(24) E–11
(25) E–26
(26) E–32
(27) E–43
(28) E–9
(29) E–4
(30) E–3
(31) H–6
(32) H–5
(33) H–4
(34) H–25
(35) C–16
(36) B–8
(37) H–9

8D–78

WIRING SYSTEM

(38) M–13
(39) C–11

(40) M–10
(41) C–35
