8D–63

WIRING SYSTEM

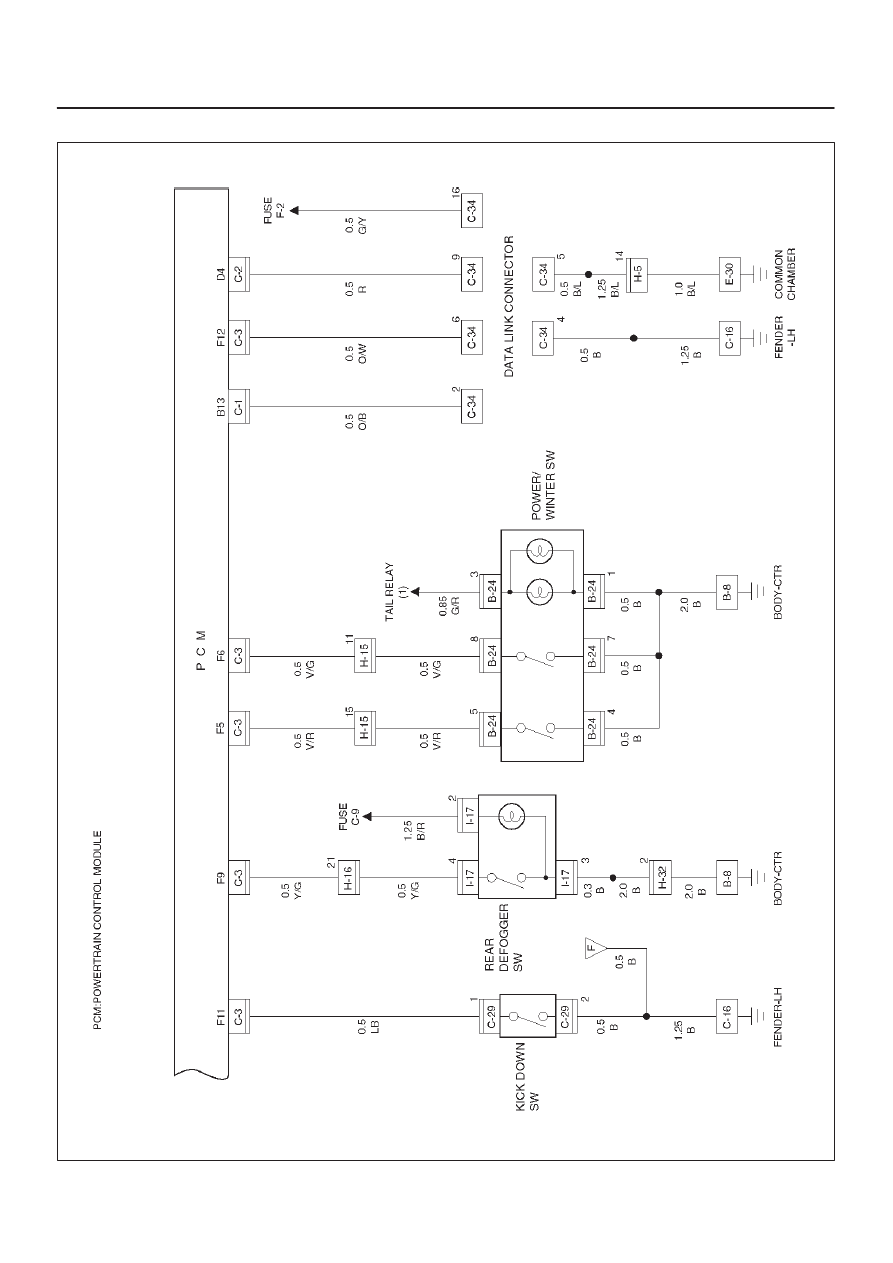

Circuit Diagram–12 (6VD1)

D08RX169

8D–64

WIRING SYSTEM

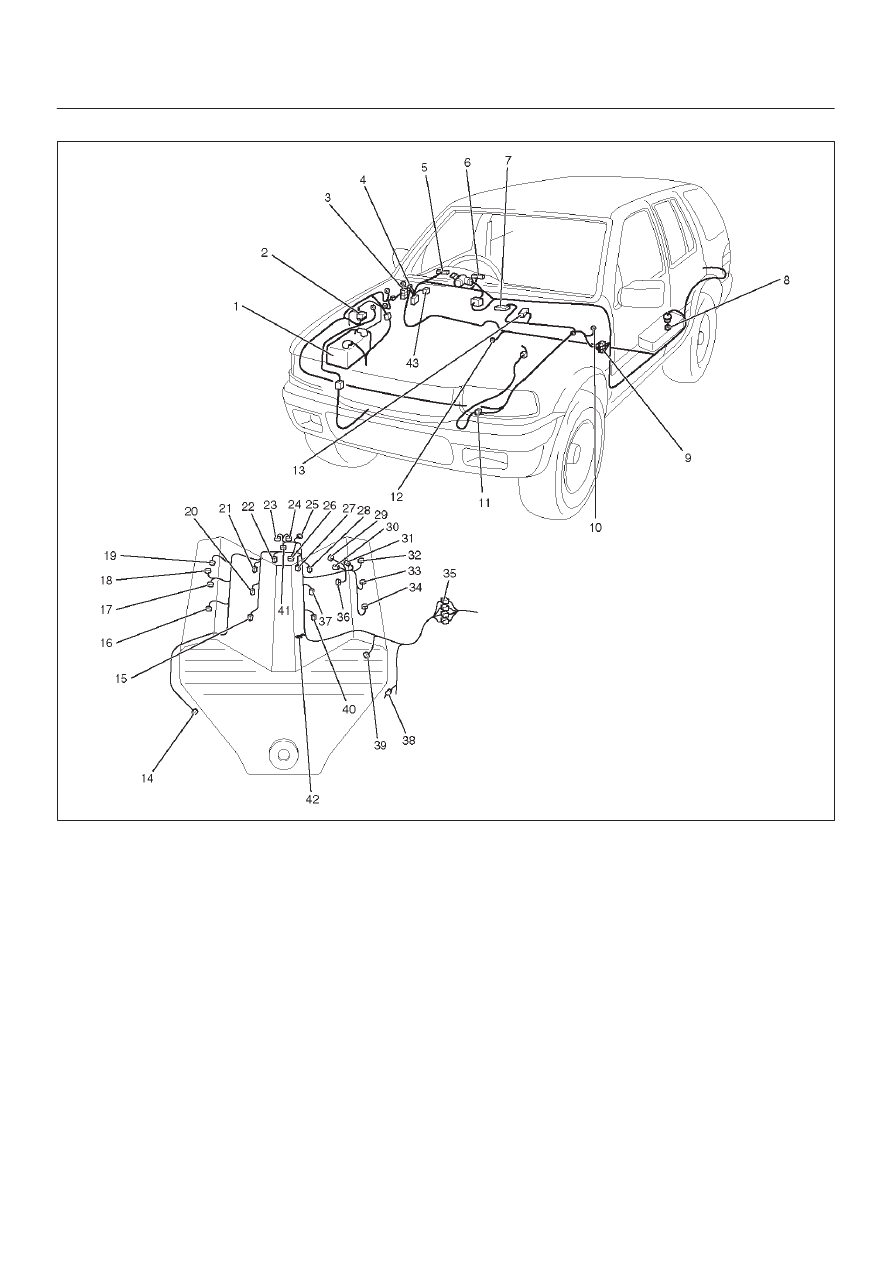

Parts Location – 1 (6VD1)

D08RX170

Legend

(1) Battery
(2) X–7, X–8
(3) H–12, H–13, H–14, H–19, H–32
(4) Relay & Fuse Box (I–34, I–39)
(5) I–1
(6) I–9
(7) PCM (C–1, C–2, C–3)
(8) F–1
(9) H–15, H–16, H–17

(10) C–16

(11) H–9, H–10, H–11

(12) B–8
(13) C–37
(14) E–27
(15) E–26
(16) E–37
(17) E–38
(18) E–7

(19) E–39
(20) E–25
(21) E–24
(22) E–20
(23) E–34
(24) E–35
(25) E–30
(26) E–8
(27) E–14
(28) E–13
(29) E–33
(30) E–5
(31) E–43
(32) E–42
(33) E–41
(34) E–40
(35) H–4, H–5, H–6
(36) E–6
(37) E–12

8D–65

WIRING SYSTEM

(38) E–4
(39) E–32
(40) E–11

(41) E–36
(42) E–28
(43) C–34

8D–66

WIRING SYSTEM

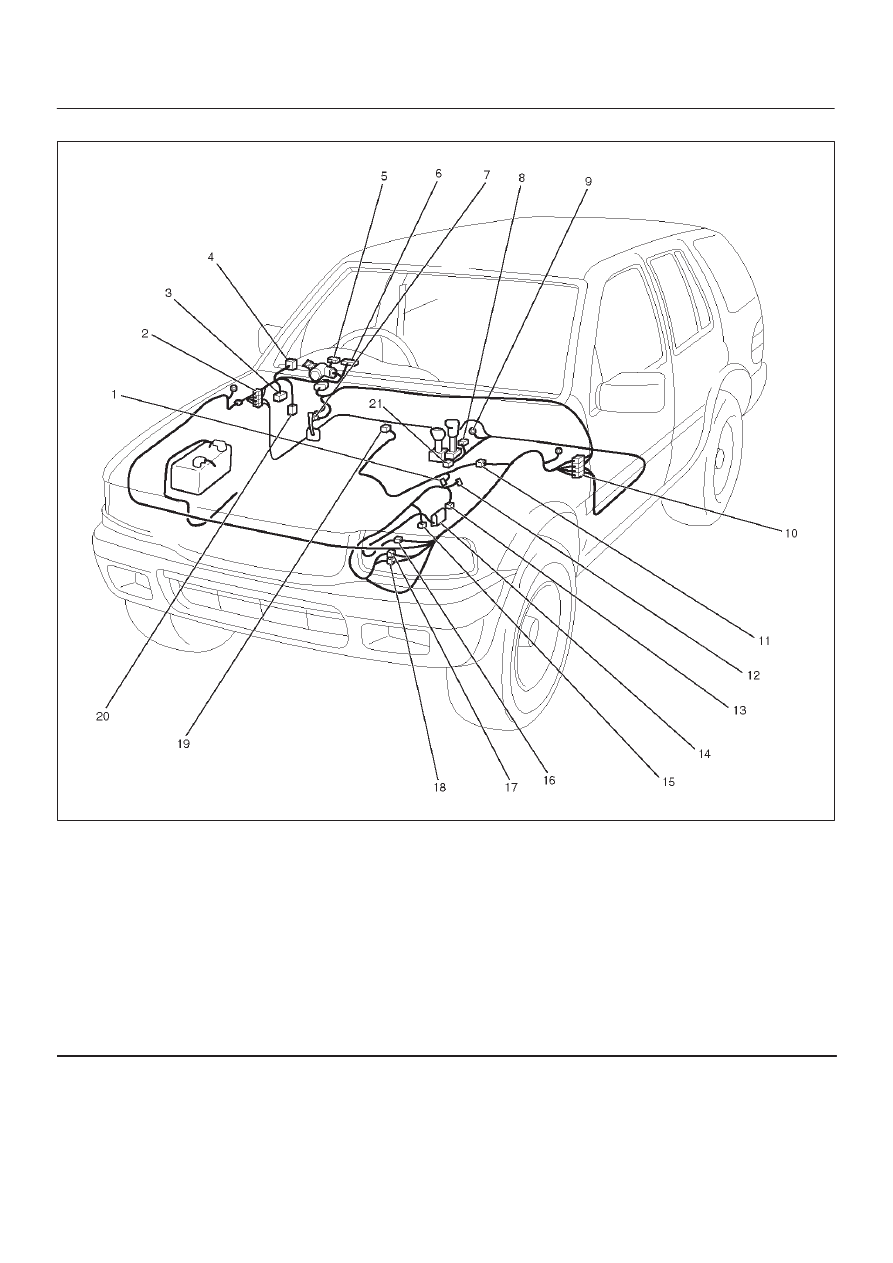

Parts Location – 2 (Transmission control)

D08RX171

Legend

(1) M–10
(2) H–12, H–13, H–14, H–19, H–32
(3) C–34
(4) I–17
(5) I–1
(6) I–9
(7) I–18
(8) B–19
(9) B–8

(10) H–15, H–16, H–17

(11) M–10

(12) M–15
(13) M–7
(14) M–16
(15) M–6
(16) M–17
(17) M–18
(18) H–9, H–10, H–11
(19) E–5
(20) C–29
(21) B–24
