8D–43

WIRING SYSTEM

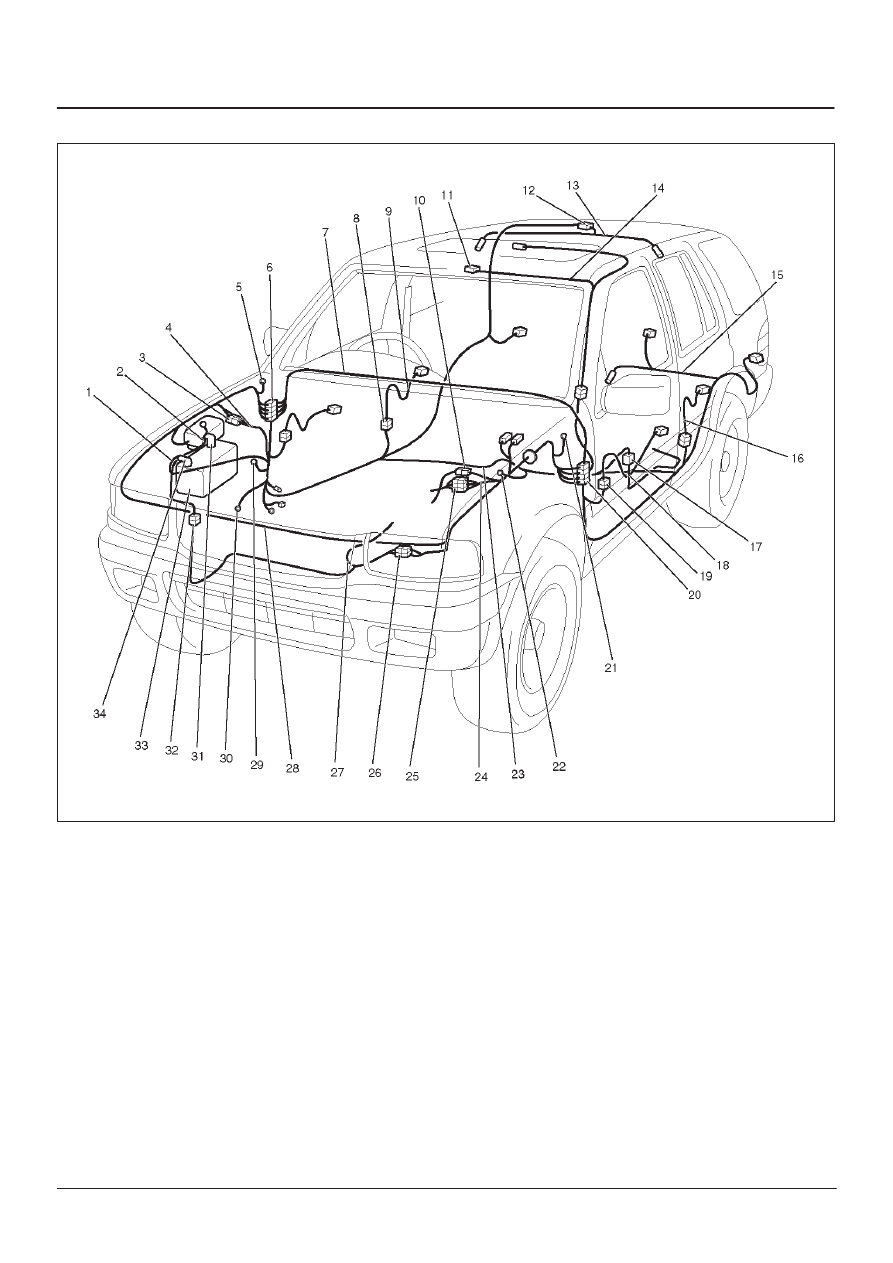

Cable Harness Routing

D08RX275

Legend

(1) Battery (–) Cable
(2) Battery (+) Cable
(3) H–2,  H–3
(4) Battery Cable Harness
(5) C–36
(6) H–13, H–14, H–19, H–32
(7) Instrument Harness
(8) H–24
(9) RR Door Harness – RH

(10) Transmission Harness (X22SE)

(11) L–2 (Map Light)

(12) H–21
(13) Hatch Galss Harness
(14) Roof Harness
(15) Tair Gate Harness
(16) RR Door Harness – LH
(17) Chassis Harness

(18) FRT Door Harness – LH
(19) H–33
(20) H–15, H–16, H–17, H–31
(21) C–16
(22) B–8
(23) Body Harness
(24) Engine Harness
(25) H–4, H–5, H–6
(26) H–9, H–10, H–11 (6VD1)
(27) Transmission Harness (6VD1)
(28) Engine Room Harness
(29) P–7
(30) P–9
(31) P–1
(32) H–1
(33) Battery
(34) P–5

8D–44

WIRING SYSTEM

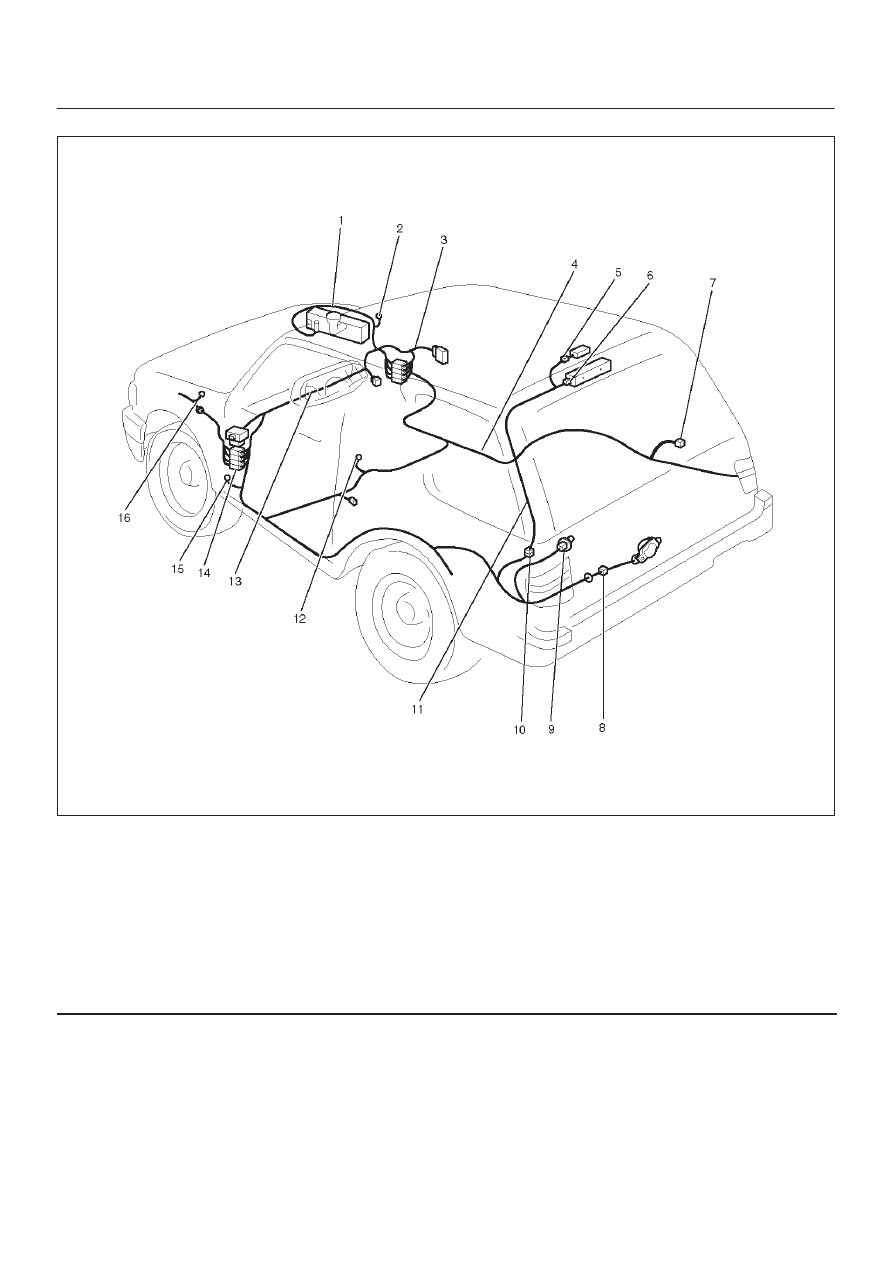

(2Door Model)

D08RX277

Legend

(1) Engine Room Harness
(2) C–36
(3) Instrument Harness
(4) Body Harness
(5) B–11
(6) Hight Mounted Stoplight (G–4)
(7) Tailer Connector
(8) H–34 (Tail Gate Harness Connector)

(9) B–20

(10) H–37

(11) Resin Harness

(12) B–8
(13) Instrument Harness
(14) Body Harness & Engine Room Harness

Connector

(15) I–43
(16) C–16

8D–45

WIRING SYSTEM

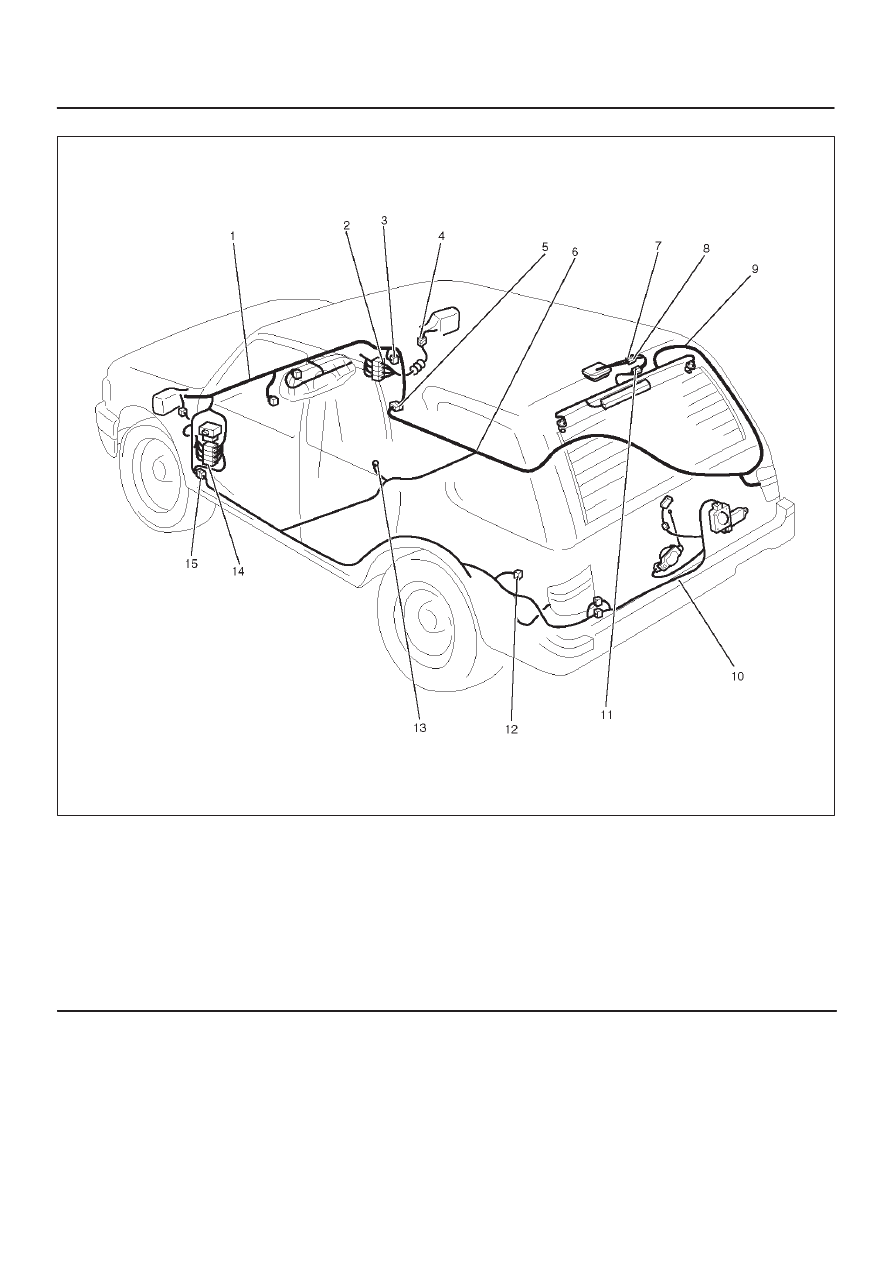

(4Door Model)

D08RX276

Legend

(1) Instrument Harness
(2) Engine Room Harness & Body Harness

Connector

(3) Relay & Fuse Box (Instrument Panel)
(4) FRT Door Harness – RH
(5) H–28
(6) Body Harness
(7) H–20

(8) H–21
(9) Hatch Glass Harness

(10) Tail Gate Harness

(11) G–11

(12) TRAILER Connector
(13) B–8
(14) Body Harness & Engine Room Harness

Connector

(15) H–33

8D–46

WIRING SYSTEM

Start and Charging

General Description

This system consists of starter, AC generator, starter
relay, clutch start SW (M/T), mode SW (A/T) and heater &
A/C relay.
When starter SW is set to “ST” position with A/T select
lever at “P” (Parking) or “N” (Neutral) position (Mode SW
“ON”), or clutch pedal depressed (Clutch start SW “ON”),
battery positive voltage is applied to starter solenoid coil
through starter relay to start starter. At the some time,
starter relay cuts off blower motor and A/C circuit.
