CLUTCH

7C–31

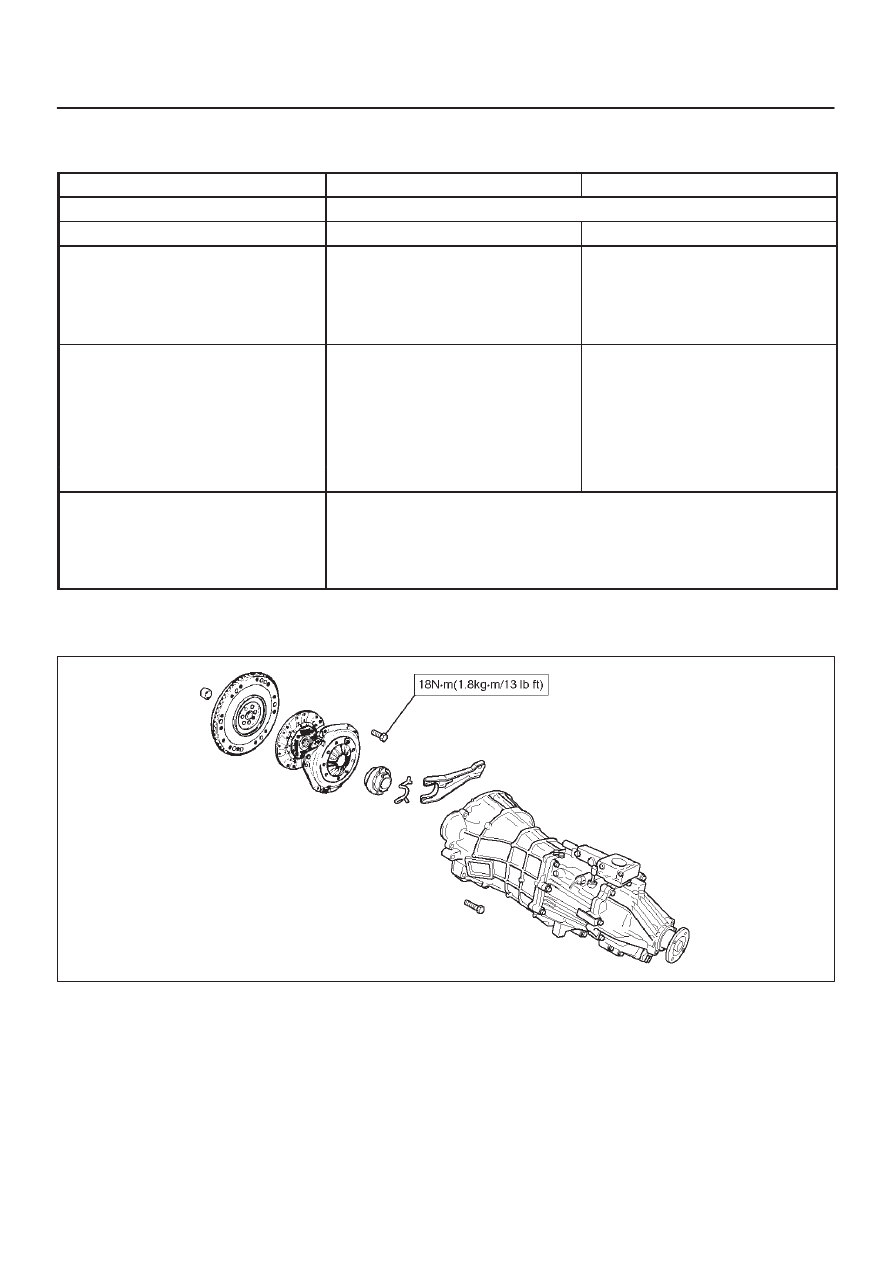

Main Data and Specifications

General Specifications

Engine

X22SE

6VD1

Type

Dry single plate type with diaphragm spring

Size

240 mm (9.45 in)

260 mm (10.24 in)

Pressure plate

Outside diameter

299 mm (11.77 in)

332 mm (13.07 in)

Clamping force

5488 N (1235 lb)

7208 N (1621 lb)

Spring finger height

37.5 – 39.5 mm (1.476 – 1.555 in)

49.9 – 51.9 mm (1.965 – 2.043 in)

Driven plate

Outside diameter

×

 inside diameter

240

×

 160 mm (9.45

×

 6.30 in)

260

×

 170 mm (10.24

×

 6.70 in)

Thickness

Clutch disengaged

7.3 mm (0.287 in)

8.6 mm (0.339 in)

Clutch engaged

7.0 mm (0.276 in)

8.0 mm (0.315 in)

Total friction area

251

×

 2 cm

@

 (39

×

 2 in

@

)

304

×

 2 cm

@

 (47

×

 2 in

@

)

Clutch control type

Hydraulic

Clutch pedal free play

5 – 15 mm (0.20 – 0.59 in)

Clutch pedal stroke

165.5 –175.5 mm (6.52 – 6.91 in)

Clutch pedal height

178 – 188 mm (7.01 – 7.40 in)

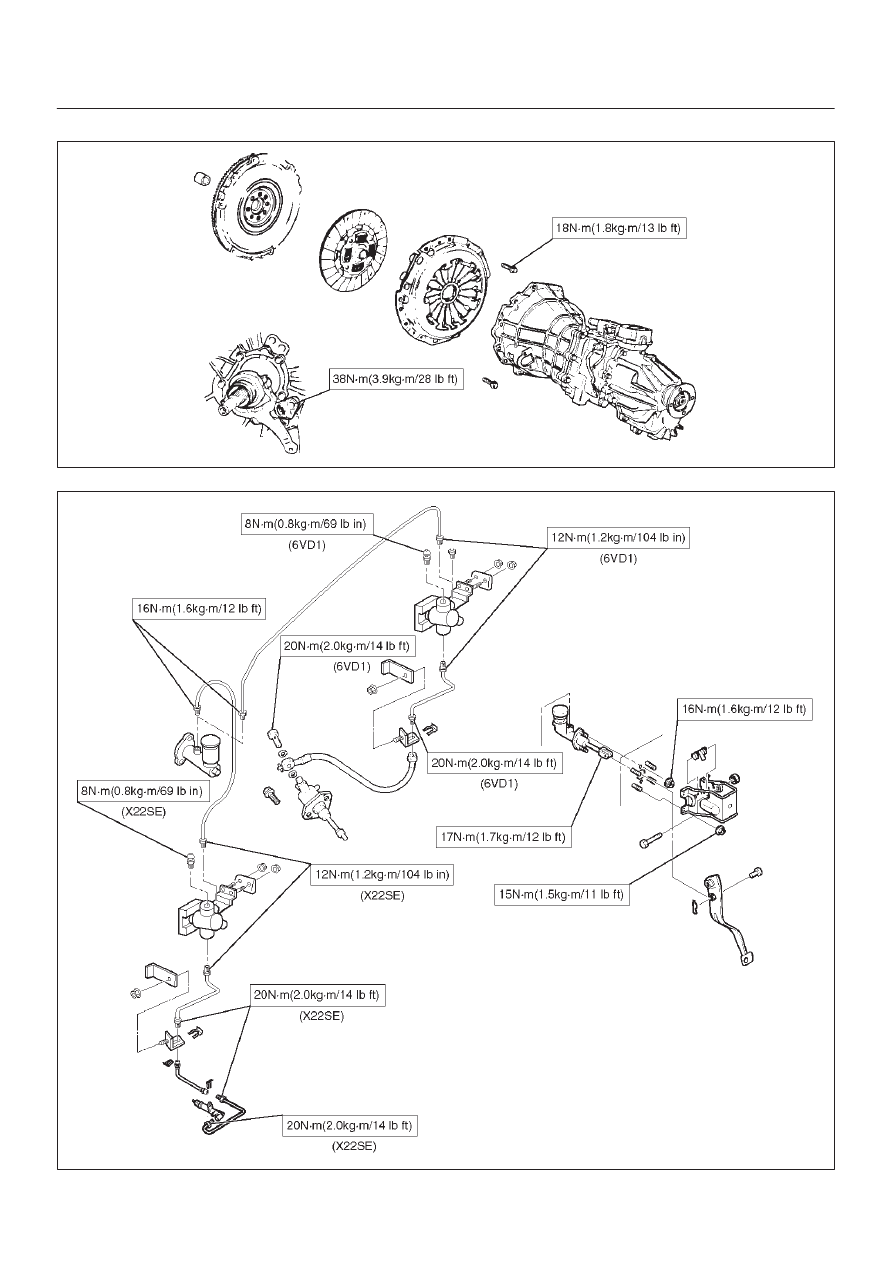

Torque Specifications

X22SE, MUA

E07RX019

7C–32

CLUTCH

6VD1, MUA

E07RX020

205RY00001

CLUTCH

7C–33

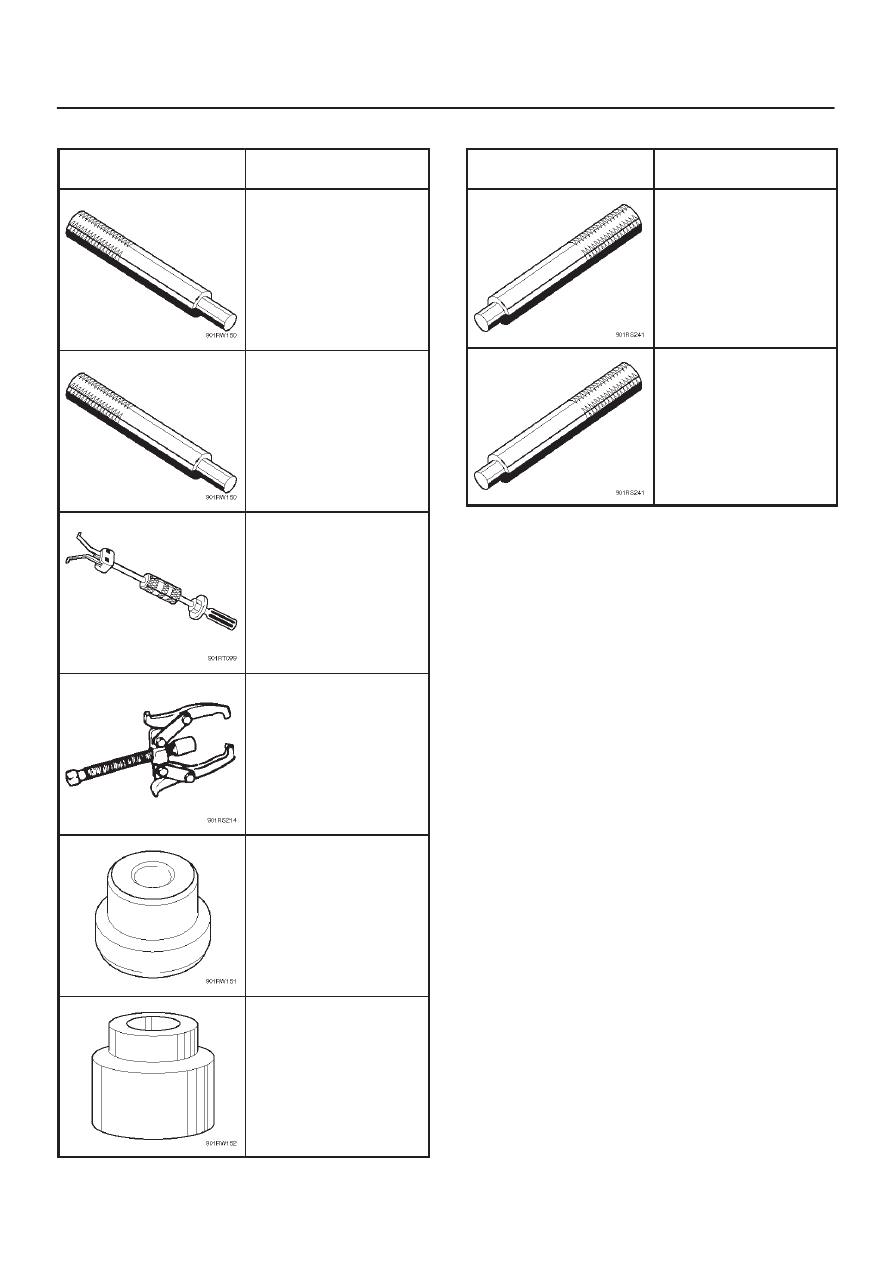

Special Tools

ILLUSTRATION

PART NO.

PART NAME

5–85253–001–0

Driven plate aligner

(6VD1)

J–42877

Driven plate aligner

(X22SE MUA)

5–8840–2000–0
5–8840–0019–0

Pilot bearing remover

and Sliding hammer

5–8840–0013–0

Bearing puller

5–8840–0124–0

Adapter

5–8840–0007–0

Crankshaft pilot bearing

installer (6VD1)

ILLUSTRATION

PART NO.

PART NAME

J–1522

Crankshaft pilot bearing

installer (X22SE)

5–8840–0007–0

Driver handle
