7A–28

AUTOMATIC TRANSMISSION (4L30–E)

11. Remove selector lever subassembly.

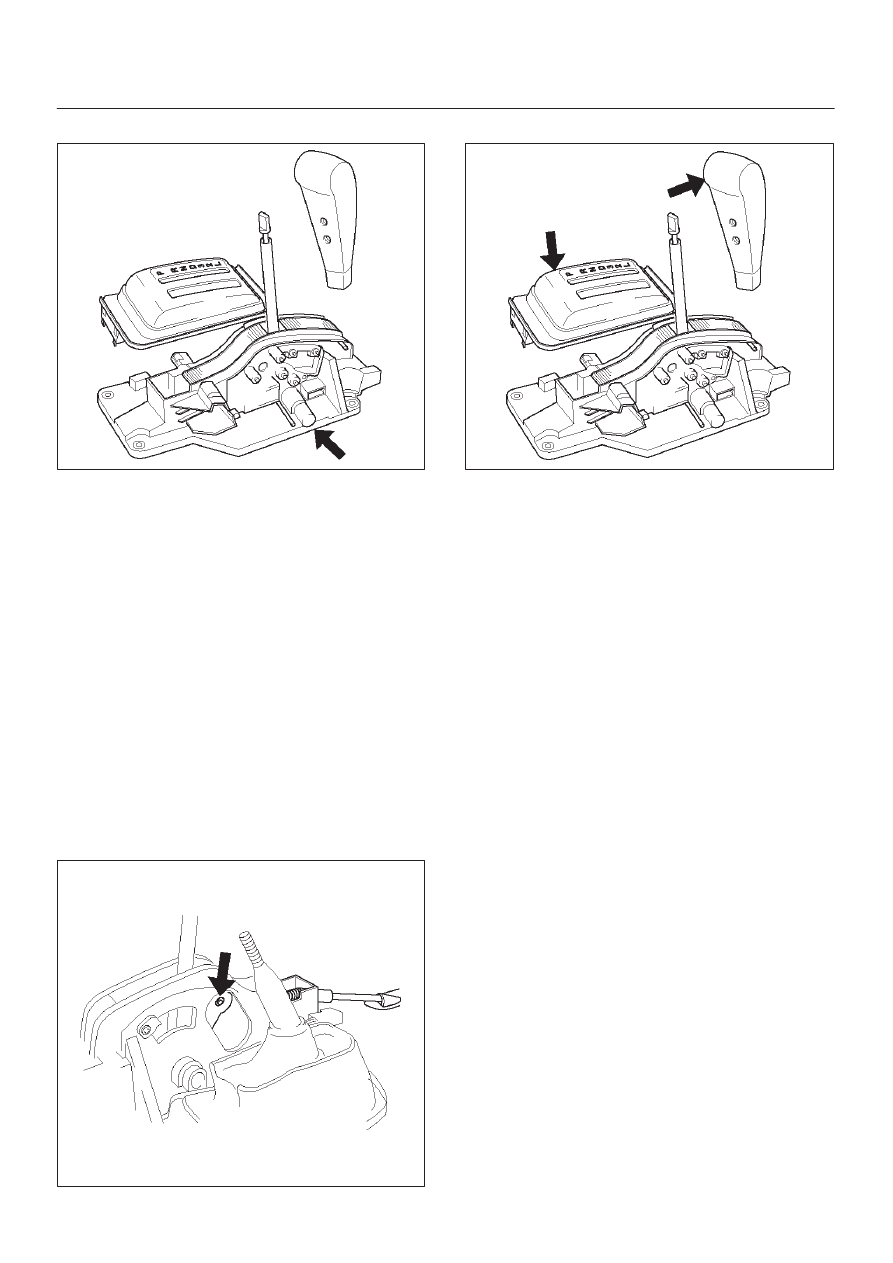

256RW044

Installation

1. Install selector lever subassembly.
2. Connect harness connector.
3. Connect shift lock cable.

D

Refer to Shift Lock Cable in this section.

4. Connect select cable.

D

Refer to Select Cable in this section.

5. Install selector lever knob and cover.

256RW043

6. Install center console.
7. Install rear console.
8. Install lower cluster assembly.
9. Install transfer control lever knob.

10. Connect negative (–) battery cable.

11. After installation, make sure that the selector lever

operates normally, and that each selector position is
properly indicated. (The red mark shows through the
window.)

Select Cable

Removal

1. Set selector lever in “P” position.
2. Remove transfer control lever knob, lower cluster

assembly, rear console, center console, selector
lever knob and cover.

D

Refer to Selector Lever in this section.

3. Disconnect inner cable by pulling projection on pin.

256RW022

7A–29

AUTOMATIC TRANSMISSION (4L30–E)

4. Press down claws and disconnect cable assembly.

A07RW017

5. Disconnect PCM harness connectors and remove

nuts that fasten grommet in select cable assembly.

6. Disconnect inner cable.

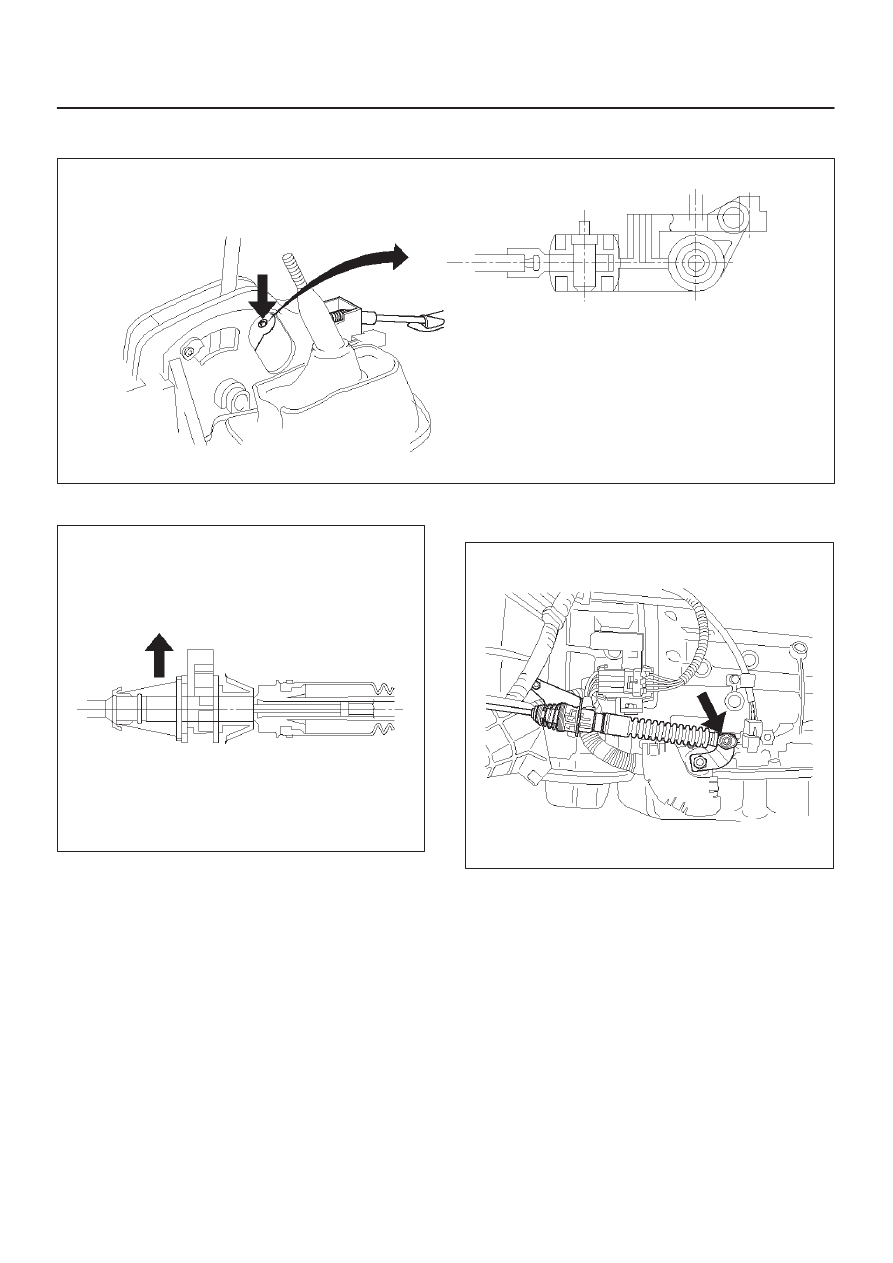

210RW013

7. Pull lock.

A07RW015

7A–30

AUTOMATIC TRANSMISSION (4L30–E)

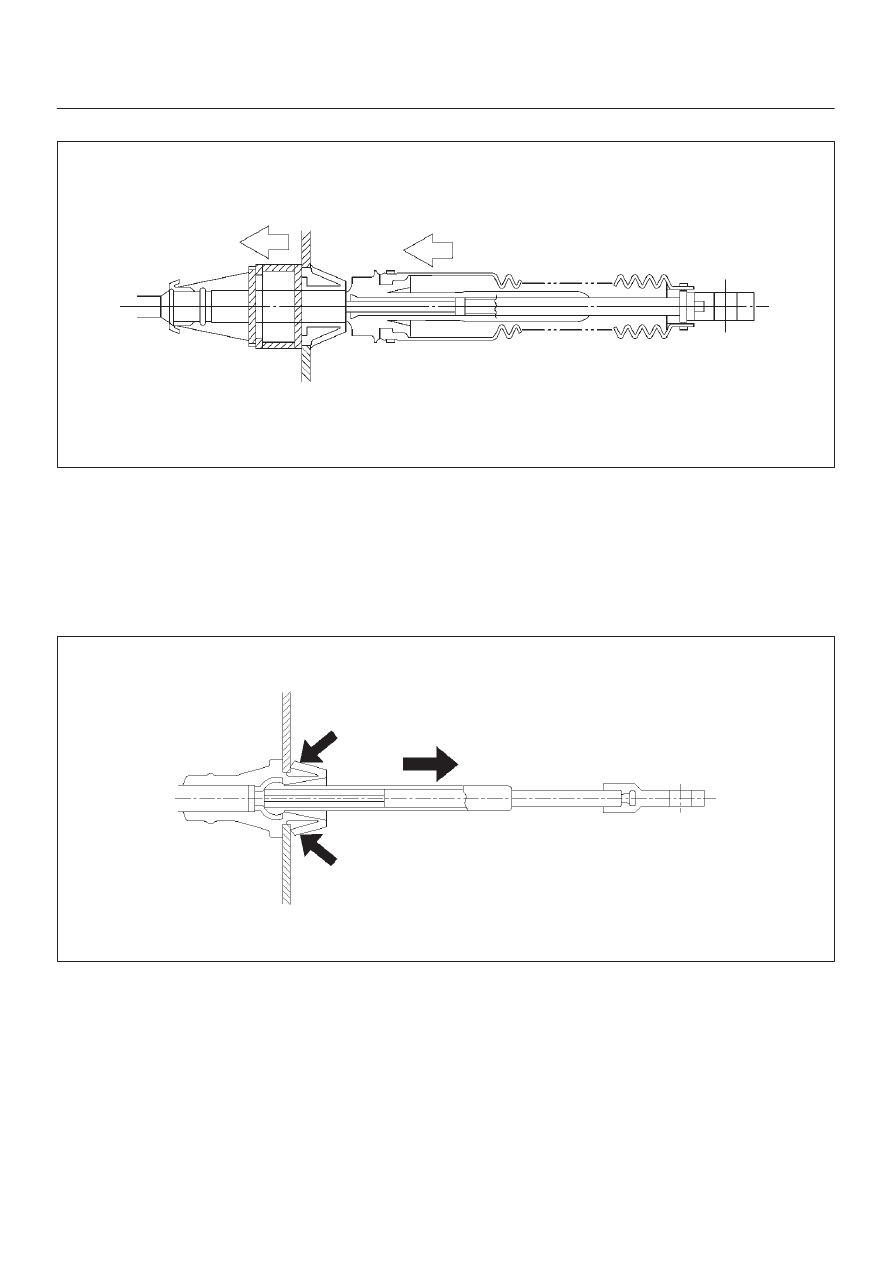

8. Slide sleeve and disconnect cable assembly.

A07RW082

9. Draw select cable assembly into the interior side.

Installation

1. Set selector lever in “P” position.
2. Let out select cable transmission side end from floor

hole.

3. Fit outer cable into bracket in selector lever assembly.

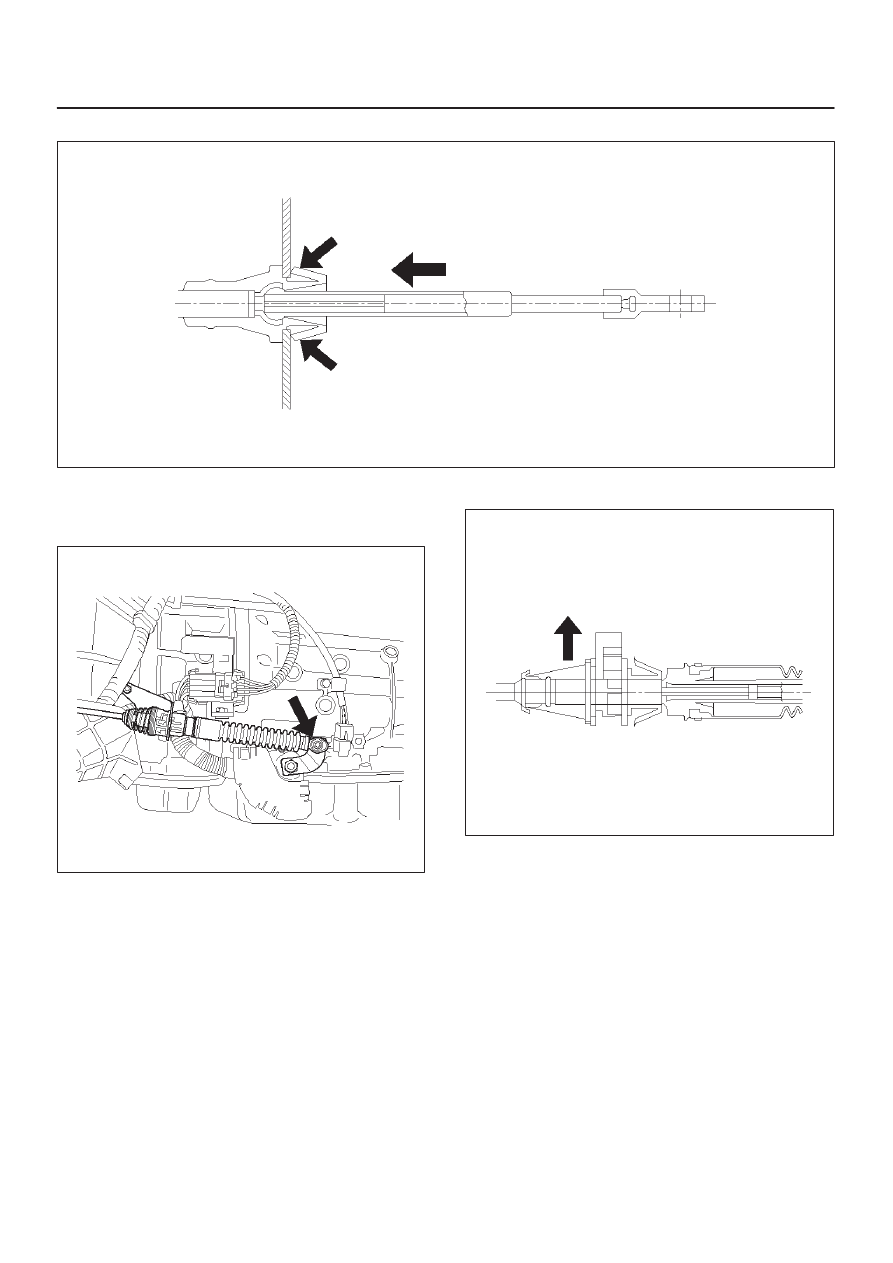

A07RW016

7A–31

AUTOMATIC TRANSMISSION (4L30–E)

4. Set inner cable end in selector lever and push pin into

selector lever hole and inner cable end.

256RW023

5. Check that lock projects.

A07RW015

6. Connect adjust end fitting attachment to the bracket

on transmission.

7. Set selector lever “P” position and connect inner

cable to selector lever.

210RW013
