DIFFERENTIAL (REAR)

4A2–5

Axle Housing

Axle Housing and Associated Parts

420RW030

Legend

EndOFCallout

Removal

1. Raise the vehicle and support it with suitable safety

stands.
The hoist must remain under the rear axle housing.

2. Take out brake fluid.  Refer to Hydraulic Brakes in

Brake section.

3. Remove rear wheels and tires.  Refer to Wheel

Replacement in Suspension section.

4. Remove propeller shaft.  Refer to Rear Propeller

Shaft in this section.

5. Drain the rear axle oil into a proper container.

6. Remove parking brake cable, release the

connection between the cable fixing clip equalizer.
Refer to Parking Brakes in Brake section.

7. Move the clip aside and pull out the breather hose.

8. Disconnect the ABS connectors (1) and remove the

brackets attached to the frame and  center link.

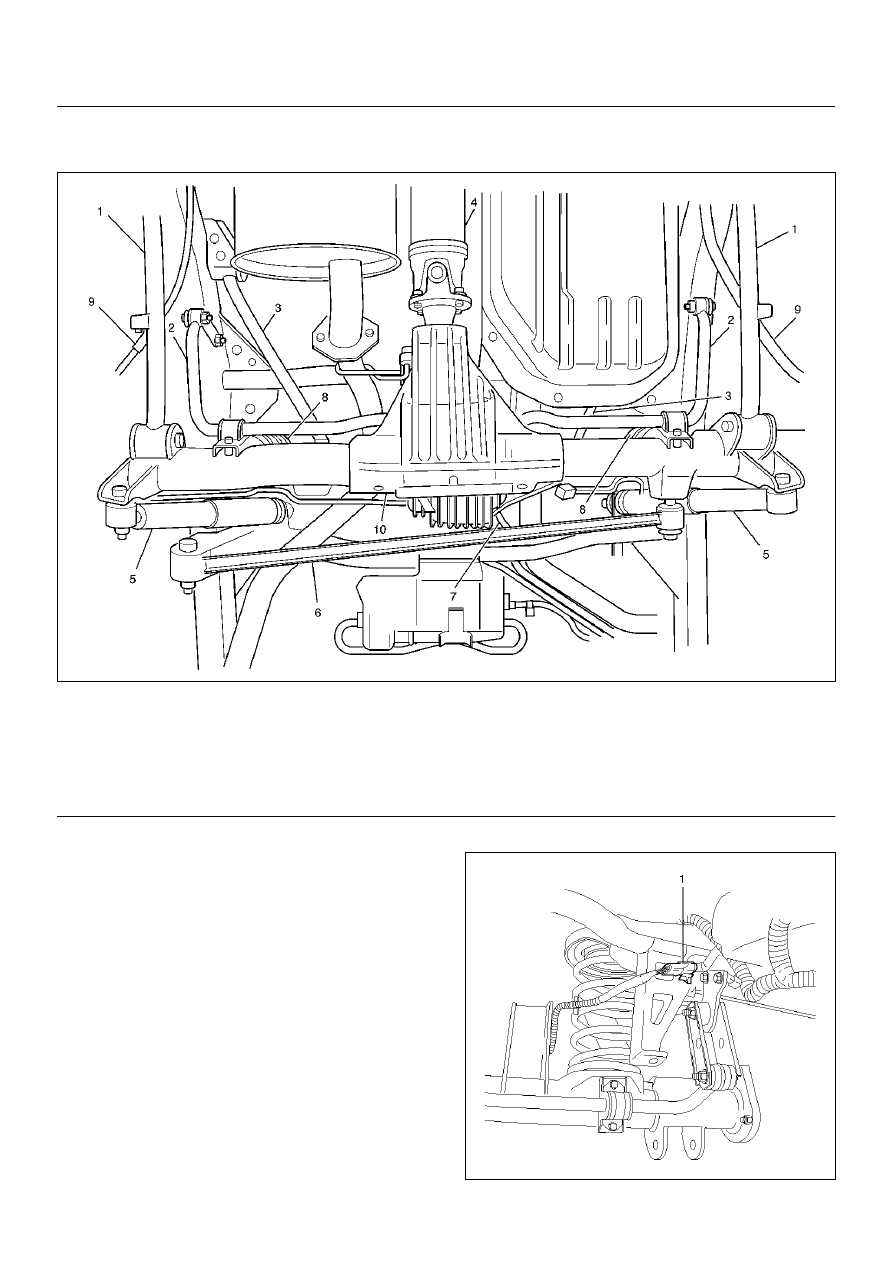

350RW023

(1) Lower Link
(2) Stabilizer
(3) Upper Link
(4) Rear Propeller shaft
(5) Shock Absorber

(6) Lateral Rod
(7) Brake Hose
(8) Coil Spring
(9) Parking Cable

(10) Axle Assembly

4A2–6

DIFFERENTIAL (REAR)

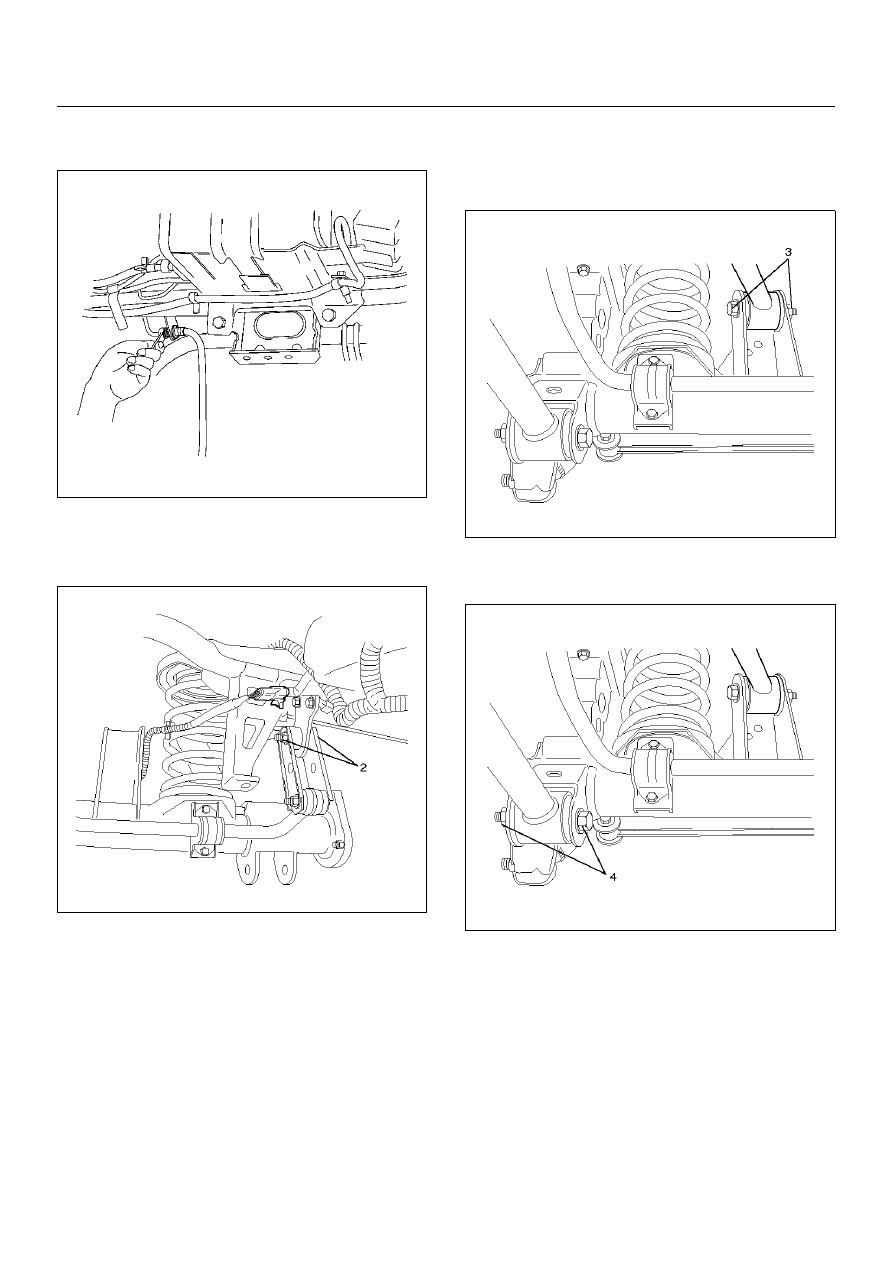

9. Loosen the brake tube flare nut, remove the clip and

take out the brake tube.

350RW020

10. Remove the shock absorber.

11. Remove the stabilizer linkage mounting bolts and

nuts (2) from the frame side.

350RW024

12. Remove the lateral rod fixing bolt and nut from the

frame.

13. Remove the upper link mounting bolt and nut (3)

from the axle housing.

460RW015

14. Remove the lower link fixing bolt and nut (4) from

the axle housing.

460RW016

15. Jack down and remove the coil spring and insulator.

16. Axle housing assembly can be separated from the

vehicle on completion of steps 1 – 15.

17. Remove the brake caliper fixing bolt, loosen the

flare nut, release the clip and take out the brake
caliper together with the flexible hose.

18. Remove brake disc.

19. Remove antilock brake system speed sensor fixing

bolt and the clip and bracket on the axle housing.

20. Remove the brake pipe clip and fixing bolt on the

axle housing and take out the brake pipe.

DIFFERENTIAL (REAR)

4A2–7

Installation

1. Install brake pipe.

2. Connect Antilock brake system (ABS) speed sensor

and harness, refer to Anti–Lock Brake System in
Brake section.

3. Install brake disc.

4. Install brake caliper. Refer to Disk Brakes in Brake

section.

5. Install axle housing assembly.

6. Install coil spring and insulator.

7. Install the lower link fixing bolt and nut to the axle

housing. For the procedures in items 7–11, refer to
Suspension section.

8. Install the upper link bolt and nut to the axle

housing.

9. Install the lateral rod fixing nut and bolt to the frame

side.

10. Install the stabilizer linkage mounting nut and bolt to

the frame side.

11. Install the shock absorber.

12. Install brake tube flare nut, Refer to Disk Brakes in

Brake section.

13. Install ABS connector and bracket.

14. Connect breather hose.

15. Install parking brake cable, Refer to Parking Brakes

in Brake section.

16. Bleed brakes. Refer to Hydraulic Brakes in Brake

section.

Axle Shaft, Oil Seal and Bearing

Axle Shaft and Associated Parts

420RW008

Legend

EndOFCallout

Removal

1. Raise the vehicle.

2. Remove rear wheels and brake calipers or drums.

Do not let calipers hang from the vehicle by the
brake line or hose. Wire them to frame of vehicle to
prevent damage.

3. Remove four nuts and lockwashers.

4. Remove shaft assembly from the axle housing.

5. Remove snap ring and bearing cup.

6. Break retainer ring with hammer and chisel.

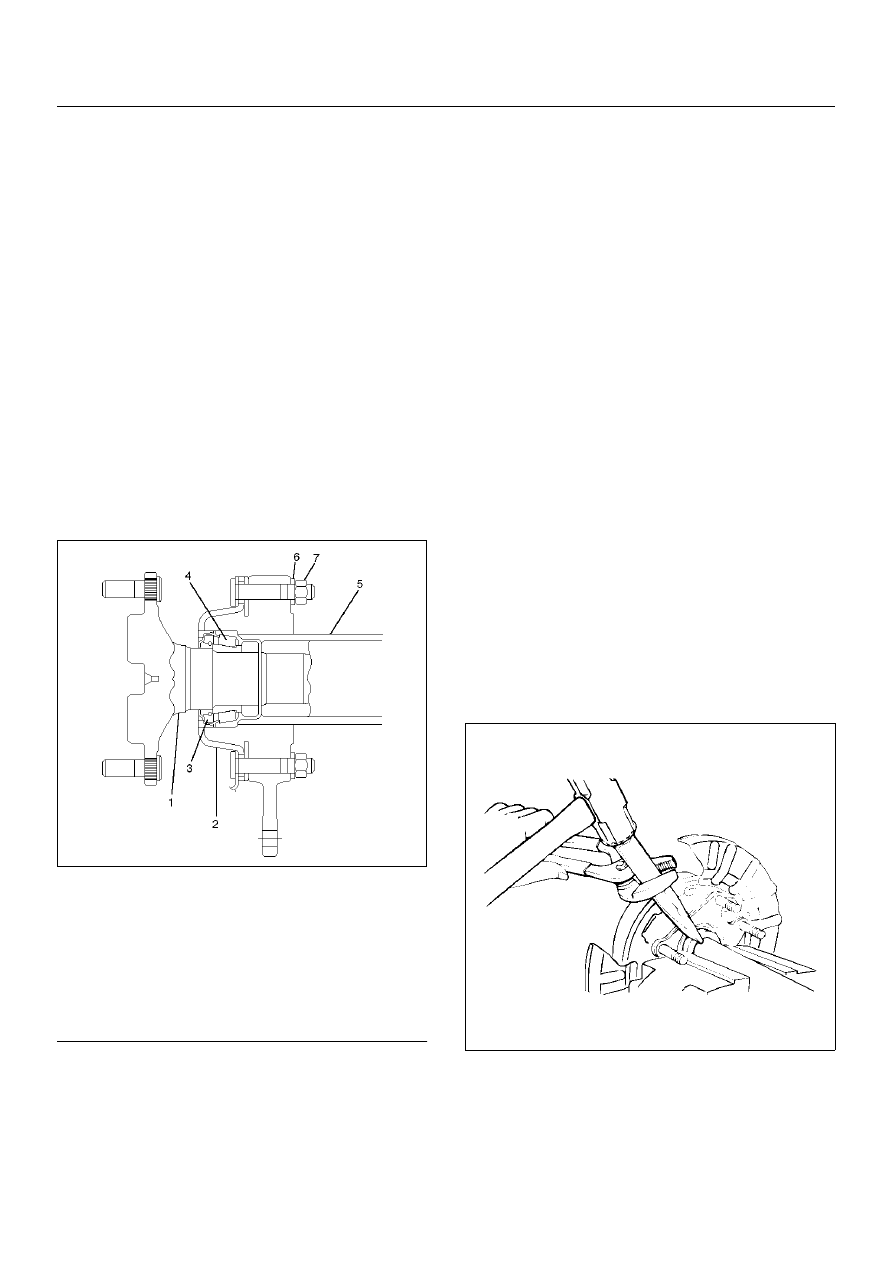

420RS026

(1) Axle Shaft
(2) Backing Plate
(3) Oil Seal
(4) Bearing
(5) Axle Housing
(6) Lock Washer
(7) Nut

4A2–8

DIFFERENTIAL (REAR)

7. Break bearing cage with hammer and chisel.

420RS027

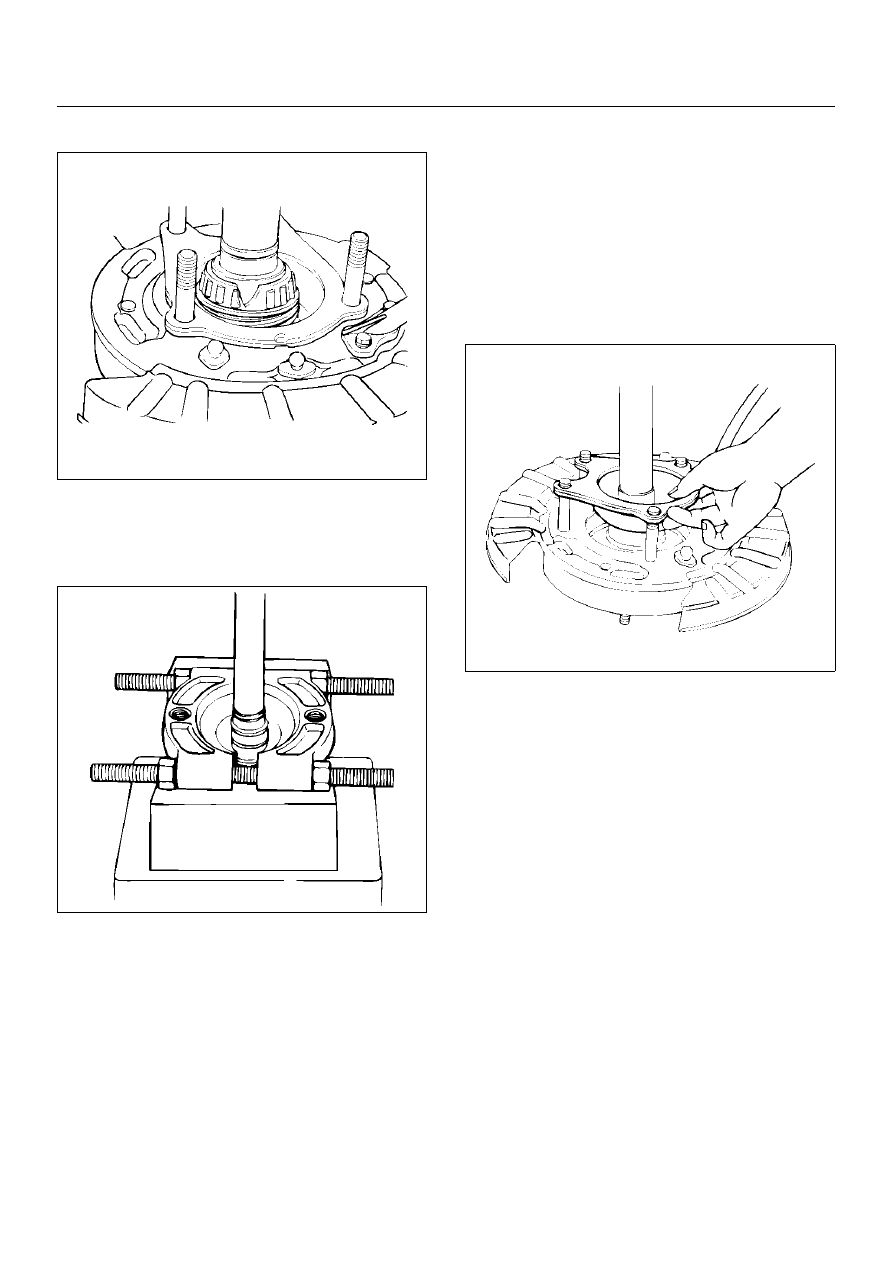

8. Remove oil seal, retainer, and emergency brake

assembly.

9. Remove inner race from shaft with OTC–1126

bearing splitter and press.

420RS028

Inspection

• Shaft for spalling or grooves from seal wear.

• Retainer – bent or damaged.

• Replace items if required.

Installation

1. Emergency brake assembly.

2. Install retainer.

Note direction – do not install backwards.

420RS029

3. Install oil seal. Note direction.
