1A–112

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

*

3

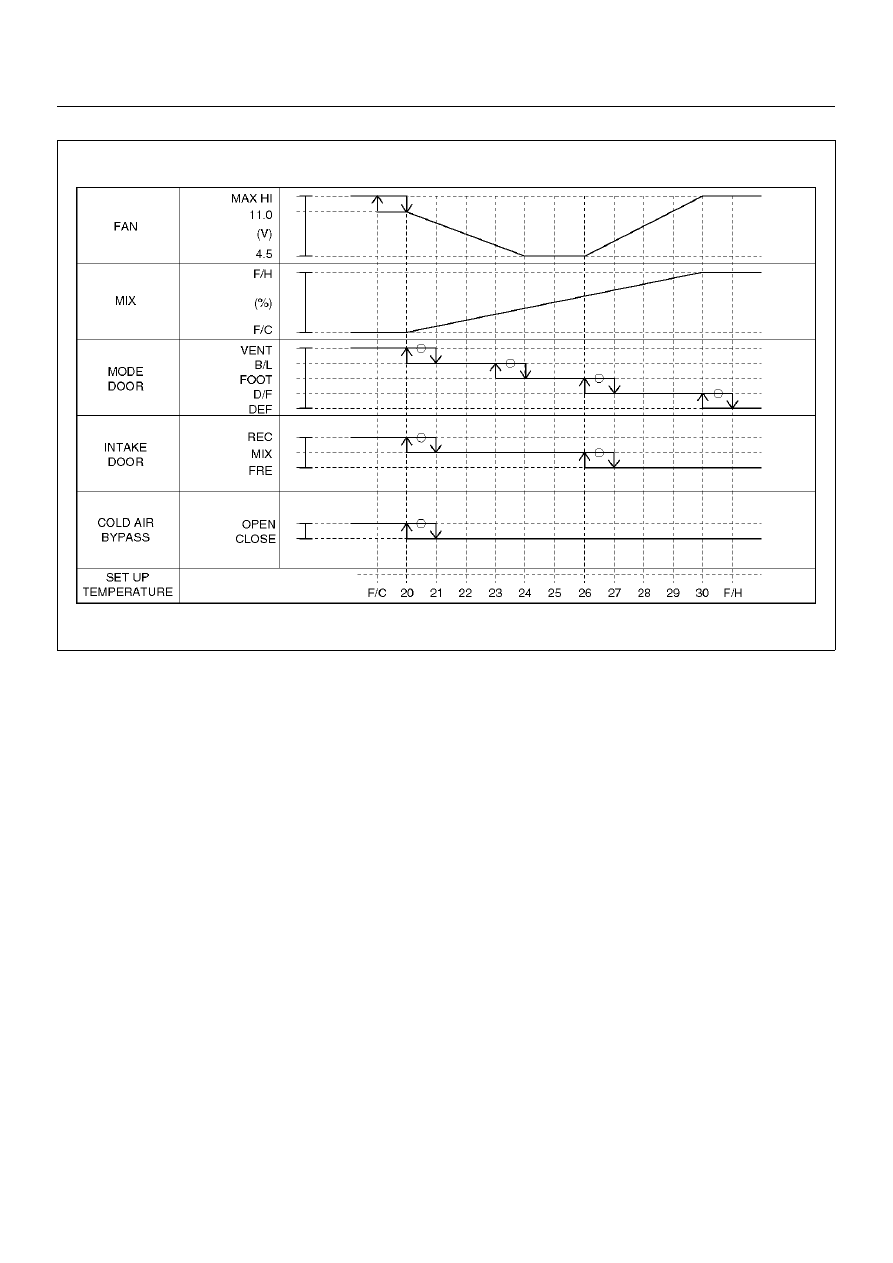

Check of Output Equipment

F01RX015

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

1A–113

Inspection By Failed Location

Inspection of the Sensors

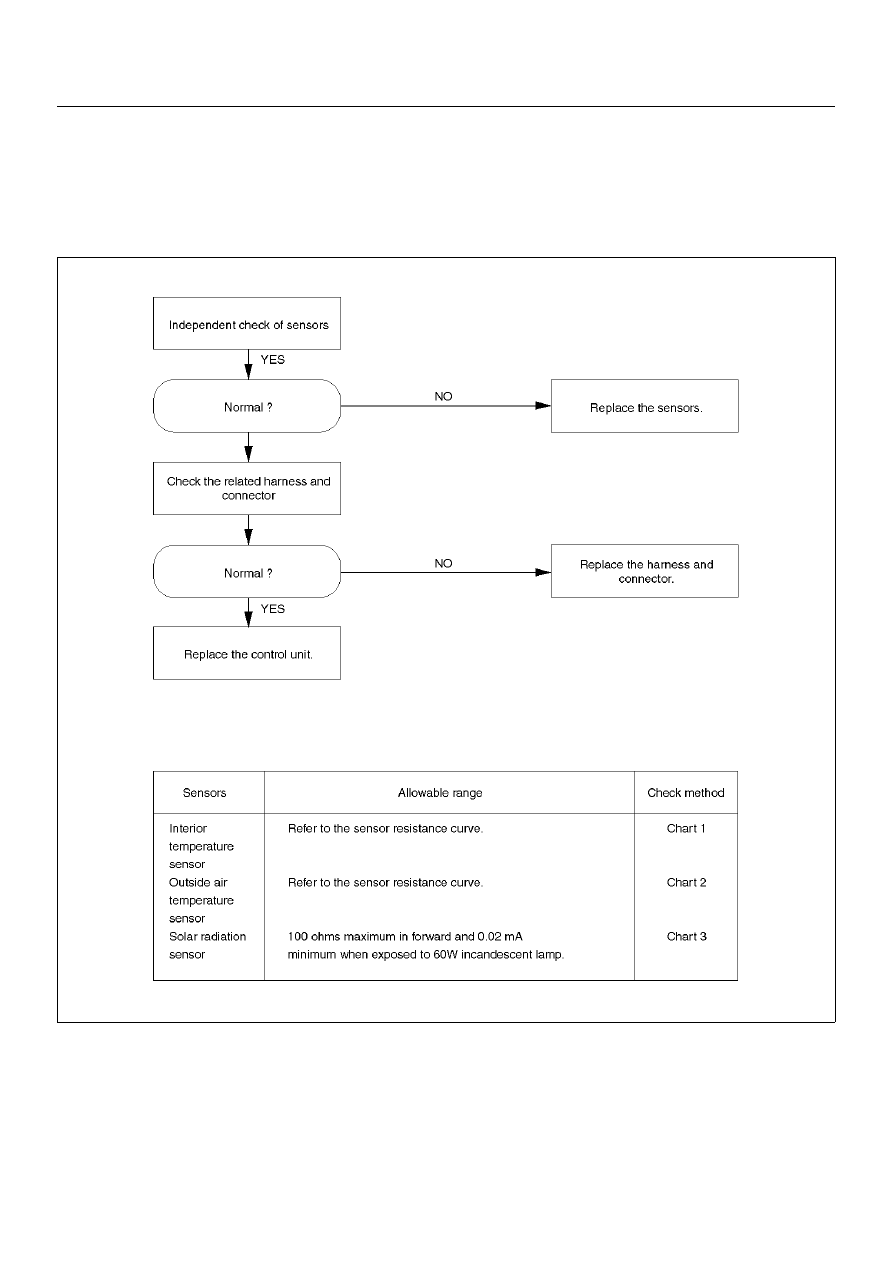

When the self-diagnosis function has determined that
trouble is present on the sensors, check them according
to the following flow chart.

F01RX013

1A–114

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

Chart 1: Interior Temperature Sensor

D08RX233

Step

Action

Value(s)

Yes

No

1

Disconnect the interior temperature sensor connector.
(No.I-4)
Is performance of the sensor normal? (Refer to the
later section on “Individual Inspection")

—

Go to Step 2

Replace the
temperature

sensor

2

Is there continuity between the harness side
connector No.I44–1 and No.I4–3?

—

Go to Step 4

Go to Step 3

3

Repair an open circuit between terminal No.44–1 and
No.I4–3.
Is the action complete?

—

Go to Step 2

—

4

Is there continuity between the harness side
connector No.I44–11 and No.I4–4?

—

Go to Step 6

Go to Step 5

5

Repair an open circuit between terminal No.I44–11
and No.I4–4.
Is the action complete?

—

Verify repair

—

6

Replace the auto air conditioner control unit.
Is the action complete?

—

Verify repair

—

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

1A–115

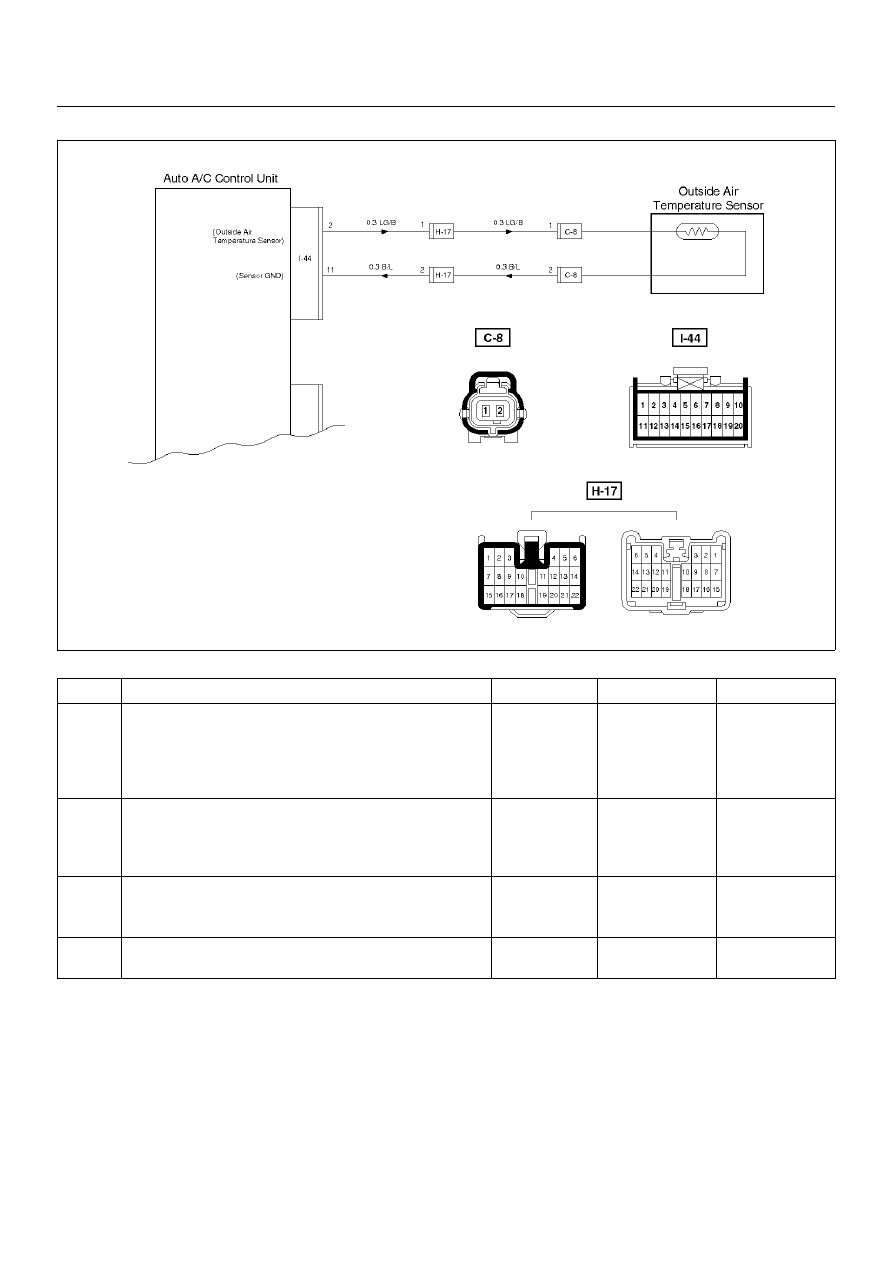

Chart 2: Outside Air Temperature Sensor

D08RX232

Step

Action

Value(s)

Yes

No

1

Disconnect outside air temperature sensor connector.
(No.C–8)
Is performance of the outside air temperature sensor
normal? (Refer to the later section on “Individual
inspection")

—

Go to Step 2

Replace the

outside air

temperature

sensor

2

Connect the outside air temperature sensor
connector.
Is resistance between the harness side connector
No.I44–2 and No.I44–11 normal?

Refer to the

later section

on “Individual

inspection"

Go to Step 4

Go to Step 3

3

Repair an open circuit between terminal No.I44–2 and
No.C8–1 or No.I44–11 and No.C8–2.
Is the action complete?

—

Verify repair

—

4

Replace the auto air conditioner control unit.
Is the action complete?

—

Verify repair

—
