Opel Frontera UE. Manual - part 6





0B–10

MAINTENANCE AND LUBRICATION

Lubricant Viscosity Chart

Lubricants should be carefully selected according to the

lubrication  chart. It is also important to select viscosity
of lubricants according to  the ambient temperature by
referring to the following table.

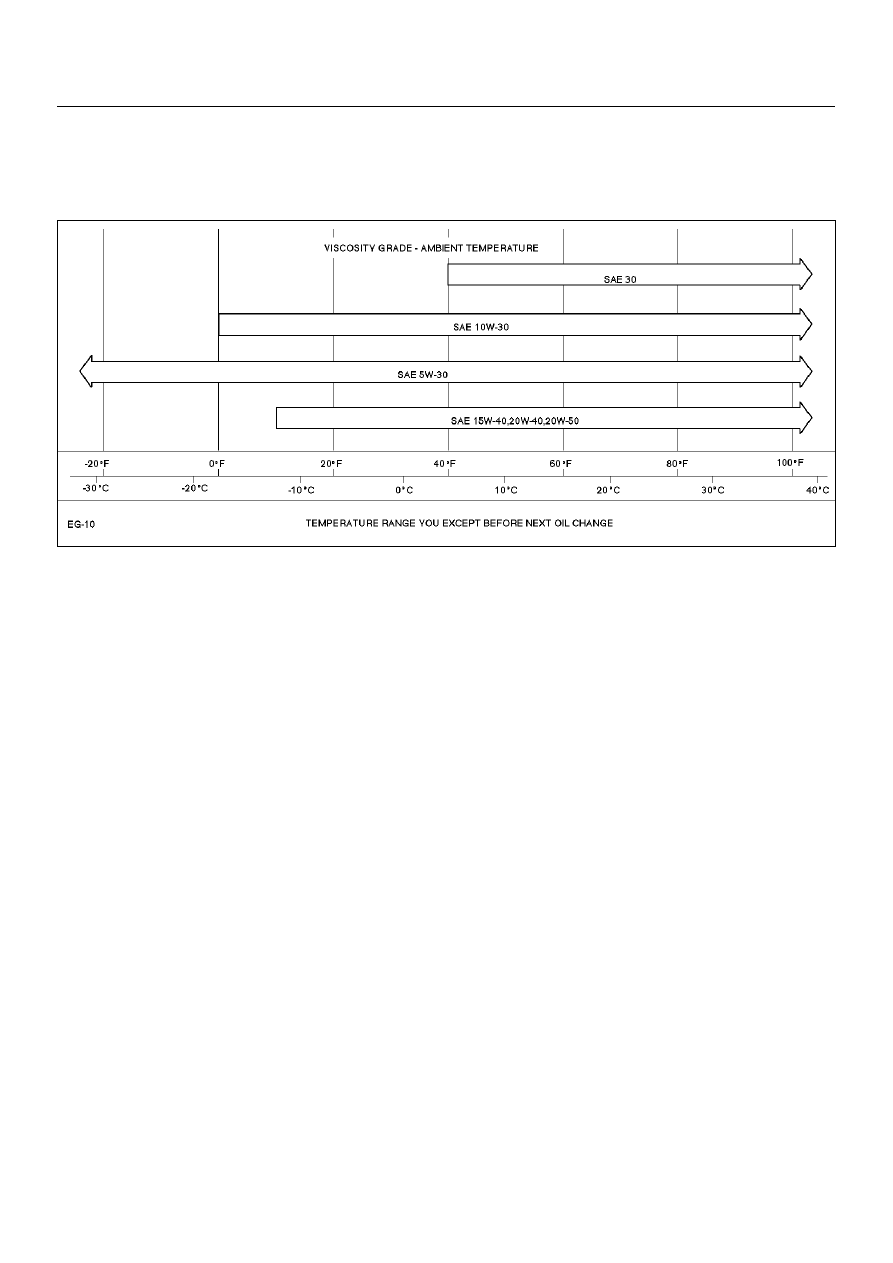

Oil Viscosity Chart for Gasoline Engine

905RT011

MAINTENANCE AND LUBRICATION

0B–11

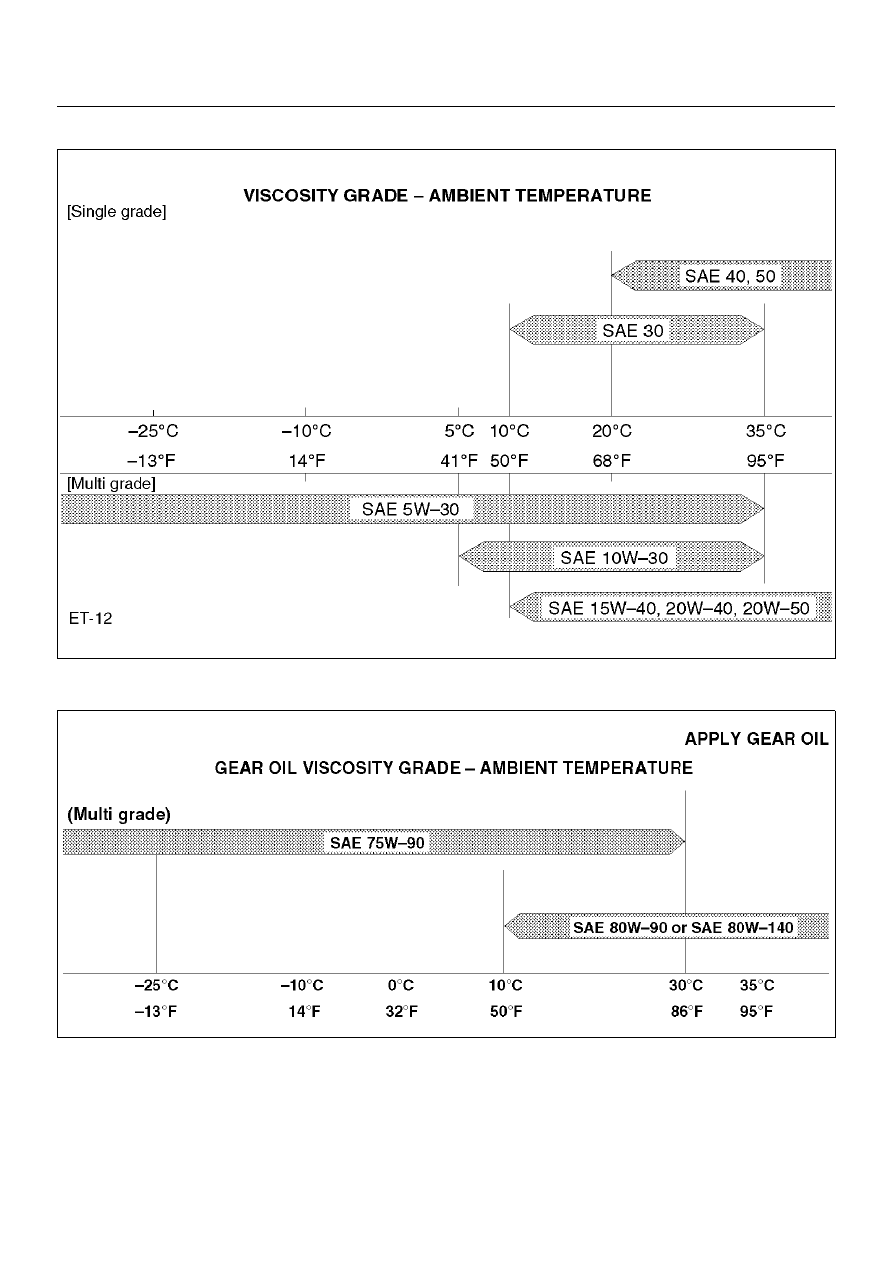

Oil Viscosity Chart for Manual Transmission and Transfer Case

B00RW002

Oil Viscosity Chart for Front Axle

B00RW003

0B–12

MAINTENANCE AND LUBRICATION

Oil Viscosty Chart for Rear Axle

B00RW004

Recommended Liquid Gasket

* RTV: Room Temperature Vulcanizer

NOTE:

1. It is very important that the liquid gaskets listed

above or their exact equivalent be used on the
vehicle.

2. Be careful to use the specified amount of liquid

gasket.
Follow the manufacturer's instructions at all times.

3. Be absolutely sure to remove all lubricants and

moisture from the connecting surfaces before
applying the liquid gasket.
The connecting surfaces must be perfectly dry.

4. Do not apply LOCTITE 17430, LOCTITE 515 and

LOCTITE 518 between two metal  surfaces having a
clearance of greater than 0.25 mm (0.01 in). Poor
adhesion will result.

Type

Brand Name

Manufacturer

Remarks

RTV*
Silicon Base

Three Bond 1207B
Three Bond 1207C
Three Bond 1215
Three Bond 1280
Three Bond 1281

Three Bond
Three Bond
Three Bond
Three Bond
Three Bond

For Engine Repairs

For Axle Case
Repairs T/M
Repairs T/M

Water Base

Three Bond 1141E

Three Bond

For Engine Repairs

Solvent

Three Bond 1104
Belco Bond 4
Belco Bond 401
Belco Bond 402

Three Bond
Isuzu
Isuzu
Isuzu

For Engine Repairs

Anaerobic

LOCTITE 515
LOCTITE 518
LOCTITE 17430

Loctite
Loctite
Loctite

All

MAINTENANCE AND LUBRICATION

0B–13

Recommended Thread Locking
Agents

Application Steps

1. Completely remove all lubricant and moisture from

the bolts and the female-threaded surfaces of the
parts to be joined.
The surfaces must be perfectly dry.

2. Apply LOCTITE to the bolts.

F00RW014

3. Tighten the bolts to the specified torque.

After tightening, be sure to keep the bolts free from
vibration and torque for at least an hour until
LOCTITE hardens.

NOTE:  When the application procedures are specified
in this manual, follow them.

LOCTITE Type

LOCTITE Color

LOCTITE 242

Blue

LOCTITE 262

Red

LOCTITE 271

Red
