Nissan Maxima (2020 year). Manual

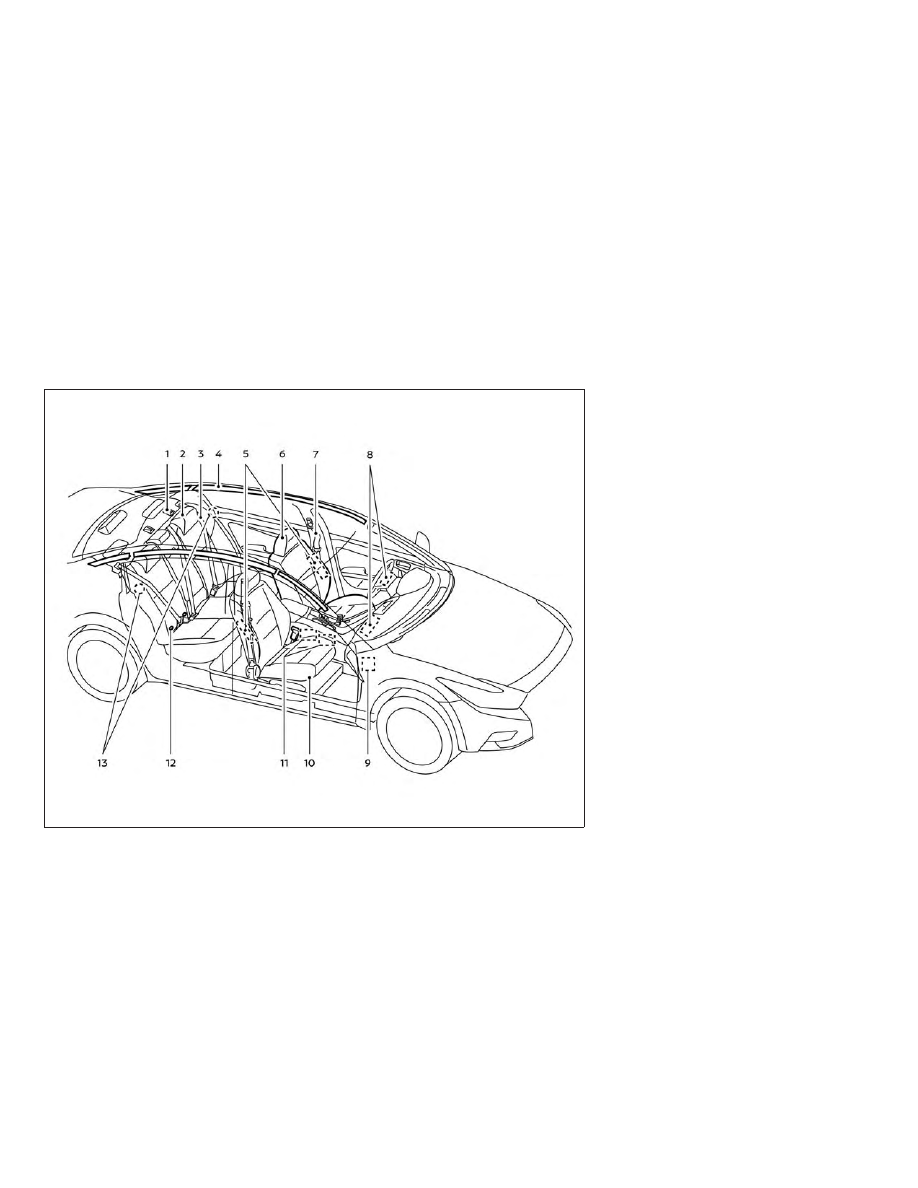

Top tether strap anchor (P. 1-22)

Rear head restraints/headrests
(P. 1-7)

Rear outboard seat belts with
pretensioner(s) (P. 1-11)

Roof-mounted curtain side-impact
and rollover supplemental air bag
(P. 1-44)

Front seat-mounted side-impact
supplemental air bags (P. 1-44)

Front head restraints/headrests
(P. 1-7)

Front seat belt with pretensioner(s)
and shoulder height adjuster
(P. 1-11, 1-44)

Supplemental air bags (P. 1-44)

Side-impact pressure sensor
(passenger’s side shown, driver’s
side similar) (P. 1-44)

10.

Seats (P. 1-2)

11.

Occupant classification sensor
(weight sensor) (P. 1-44)

12.

LATCH (Lower Anchors and Tethers
for CHildren) system (P. 1-22)

13.

Rear outboard seat-mounted
side-impact supplemental air bags
(P. 1-44)

Refer to the page number indicated in
parentheses for operating details.

LII2570

AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS

0-2

Illustrated table of contents

-------------------------------------------------------------------------------------------------------------------------------------------------------------

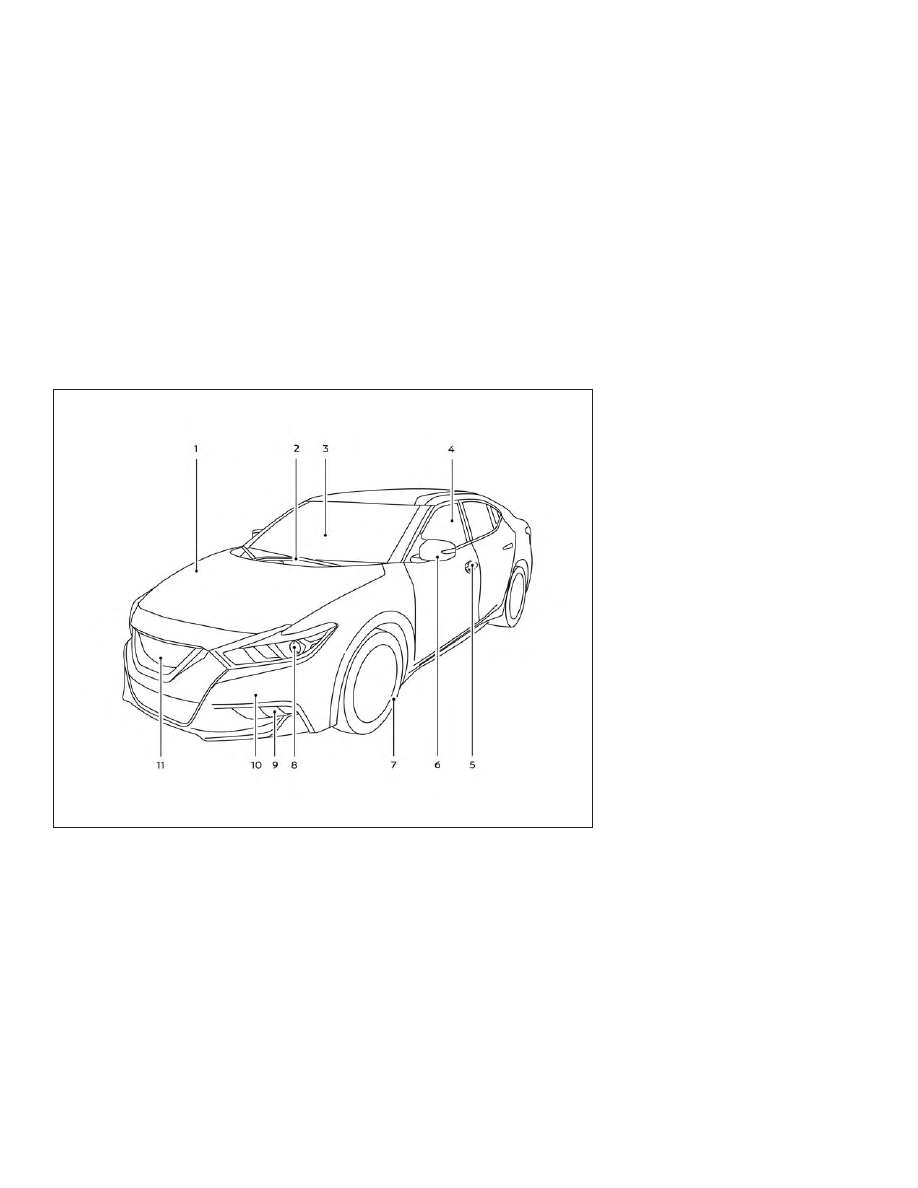

Engine hood (P. 3-21)

Wiper and washer switch (P. 2-45)

Windshield (P. 8-17)

Power windows (P. 2-68)

Door locks (P. 3-4)
NISSAN Intelligent Key® (P. 3-7)
Keys (P. 3-2)

Mirrors (P. 3-28)
Side view camera (if so equipped)
(P. 4-11)

Tire pressure (P. 8-26)
Flat tire (P. 6-3)
Tire chains (P. 8-26)

Headlight and turn signal switch
(P. 2-48)
LED Daytime Running Lights (DRL)
system (P. 2-48)
Replacing bulbs (P. 8-23)

Fog light switch (if so equipped)
(P. 2-48)

10.

Front sonar sensors
(if so equipped) (P. 5-126)

11.

Front view camera (if so equipped)
(P. 4-11)
Front sonar sensor (if so equipped)
(P. 5-126)

Refer to the page number indicated in
parentheses for operating details.

LII2566

EXTERIOR FRONT

Illustrated table of contents

0-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

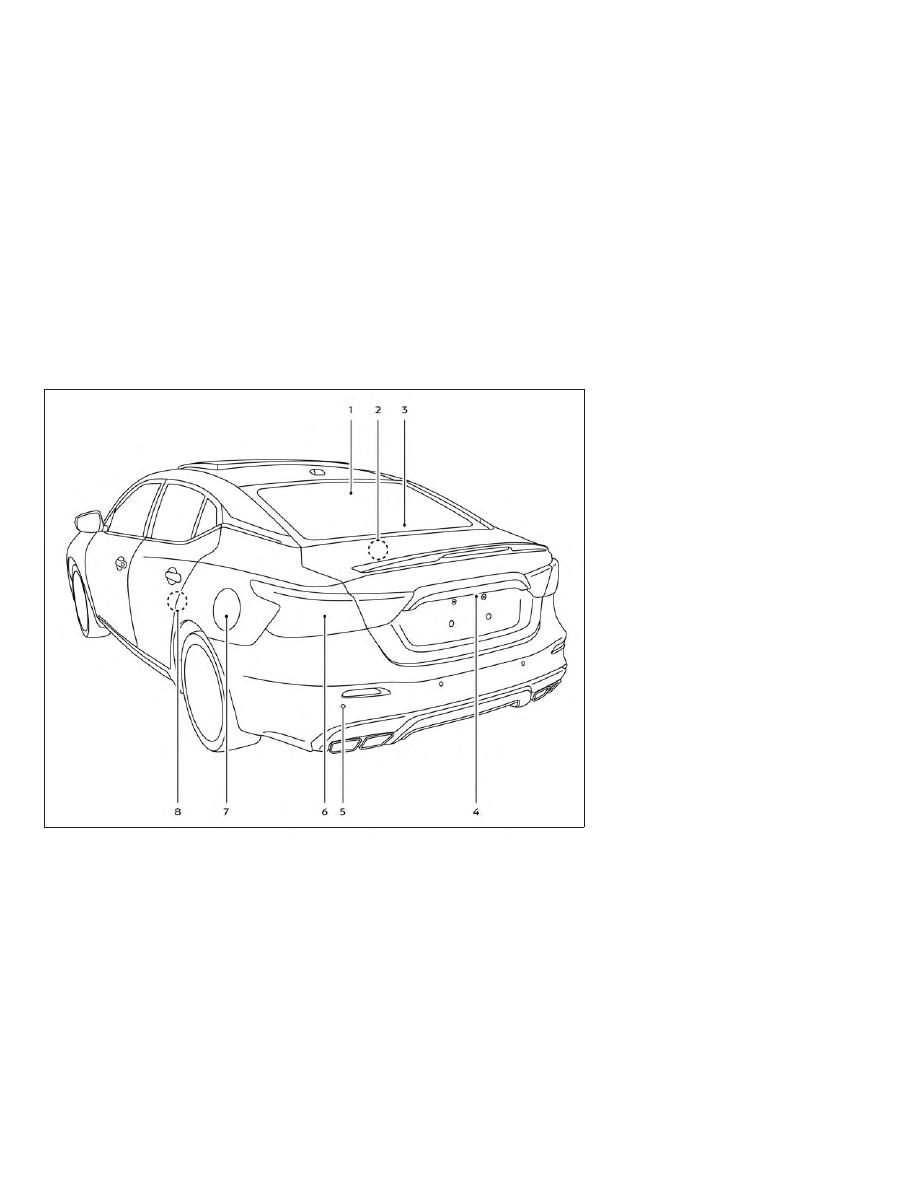

Rear window defroster switch
(P. 2-48)

Interior trunk lid release (P. 3-21)

High-mounted stop light (P. 8-23)

Exterior trunk lid release/request
button (P. 3-7)
Rearview camera (P. 4-3, 4-11)
Trunk lid (P. 3-21)

Rear sonar sensors (P. 5-126)

Replacing bulbs (P. 8-23)

Fuel-filler door (P. 3-23)
Fuel recommendation (P. 10-2)

Child safety rear door locks (P. 3-4)

Refer to the page number indicated in
parentheses for operating details.

LII2609

EXTERIOR REAR

0-4

Illustrated table of contents

-------------------------------------------------------------------------------------------------------------------------------------------------------------

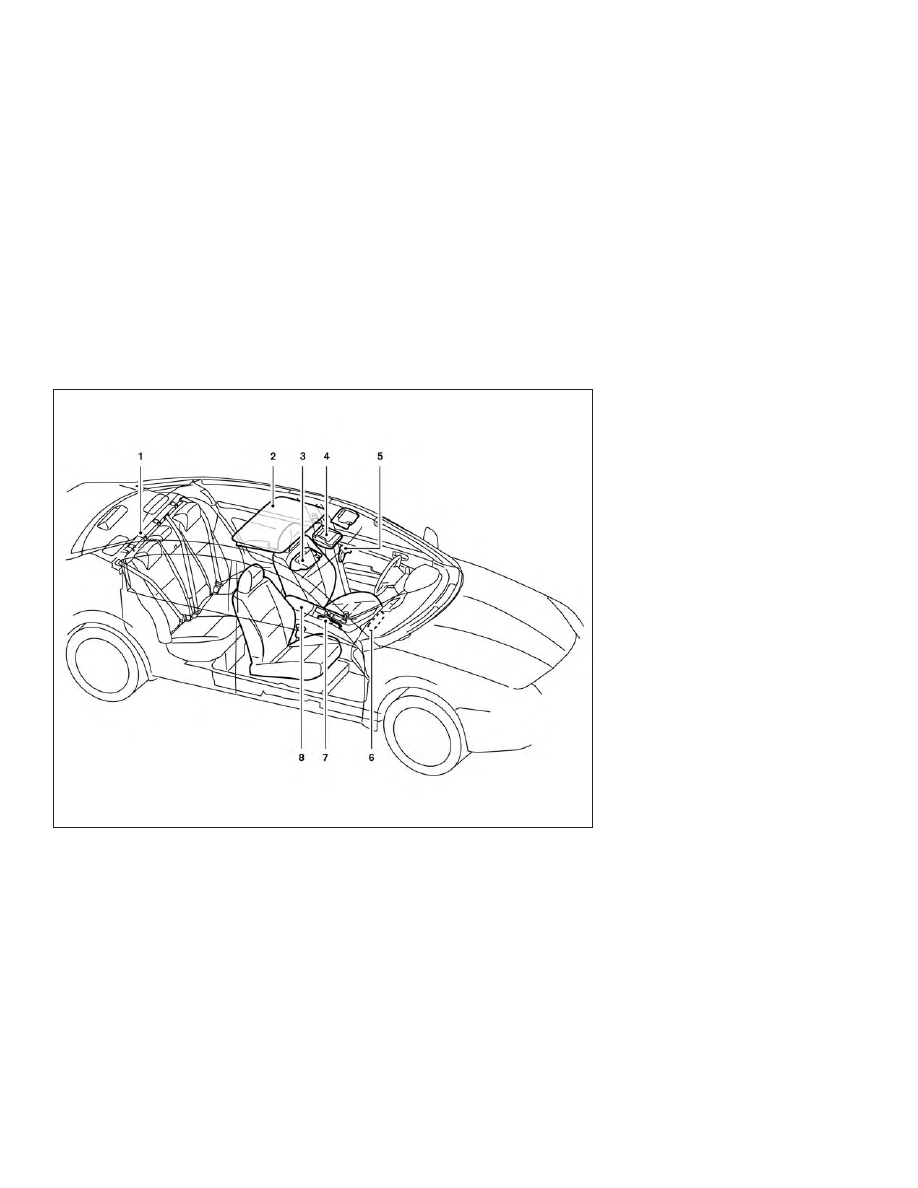

Interior trunk access (P. 1-2)

Power moonroof (if so equipped)
(P. 2-71)

Sun visors (P. 3-27)

Map lights (P. 2-74)

Rearview mirror (P. 3-28)
HomeLink® Universal Transceiver
(if so equipped) (P. 2-76)

Glove box (P. 2-64)

Cup holders (P. 2-64)

Console box (P. 2-64)

Refer to the page number indicated in
parentheses for operating details.

LII2444

PASSENGER COMPARTMENT

Illustrated table of contents

0-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

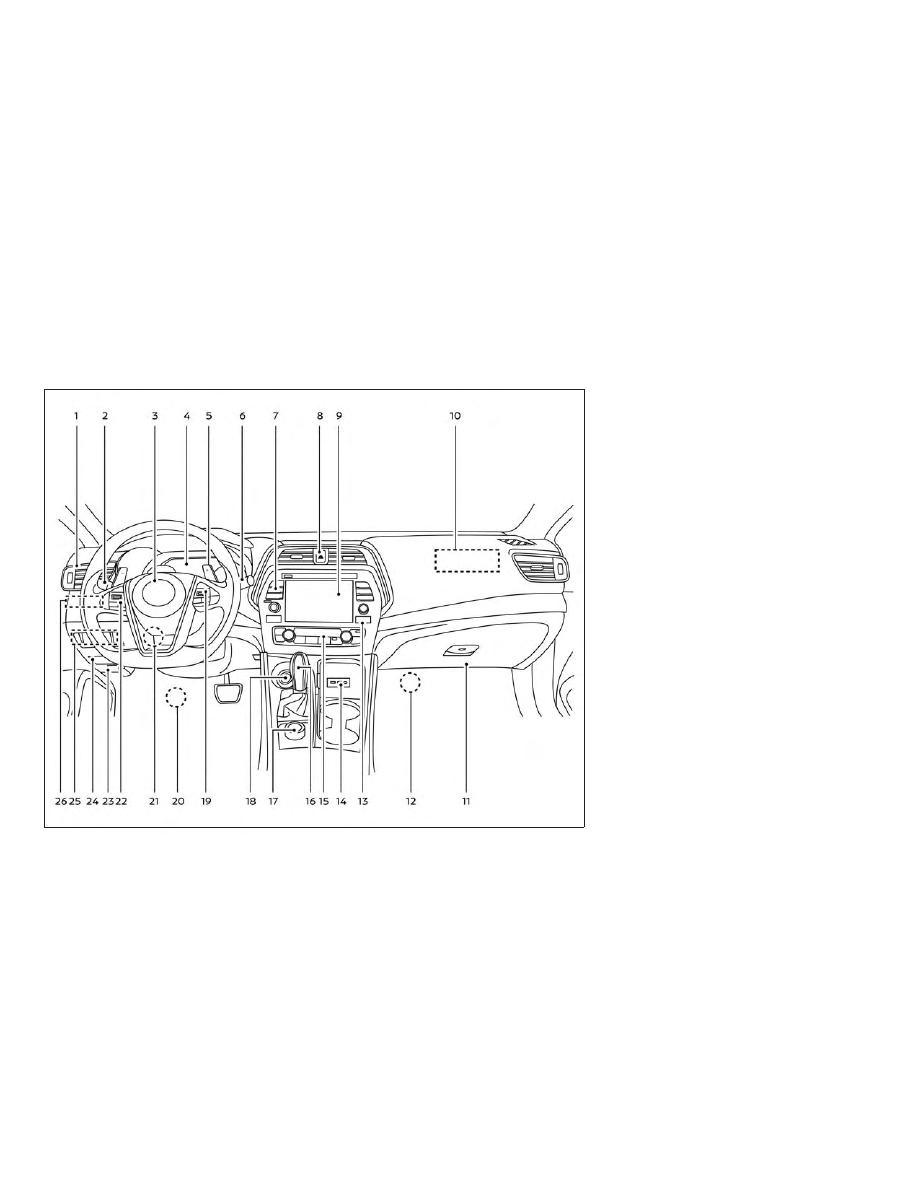

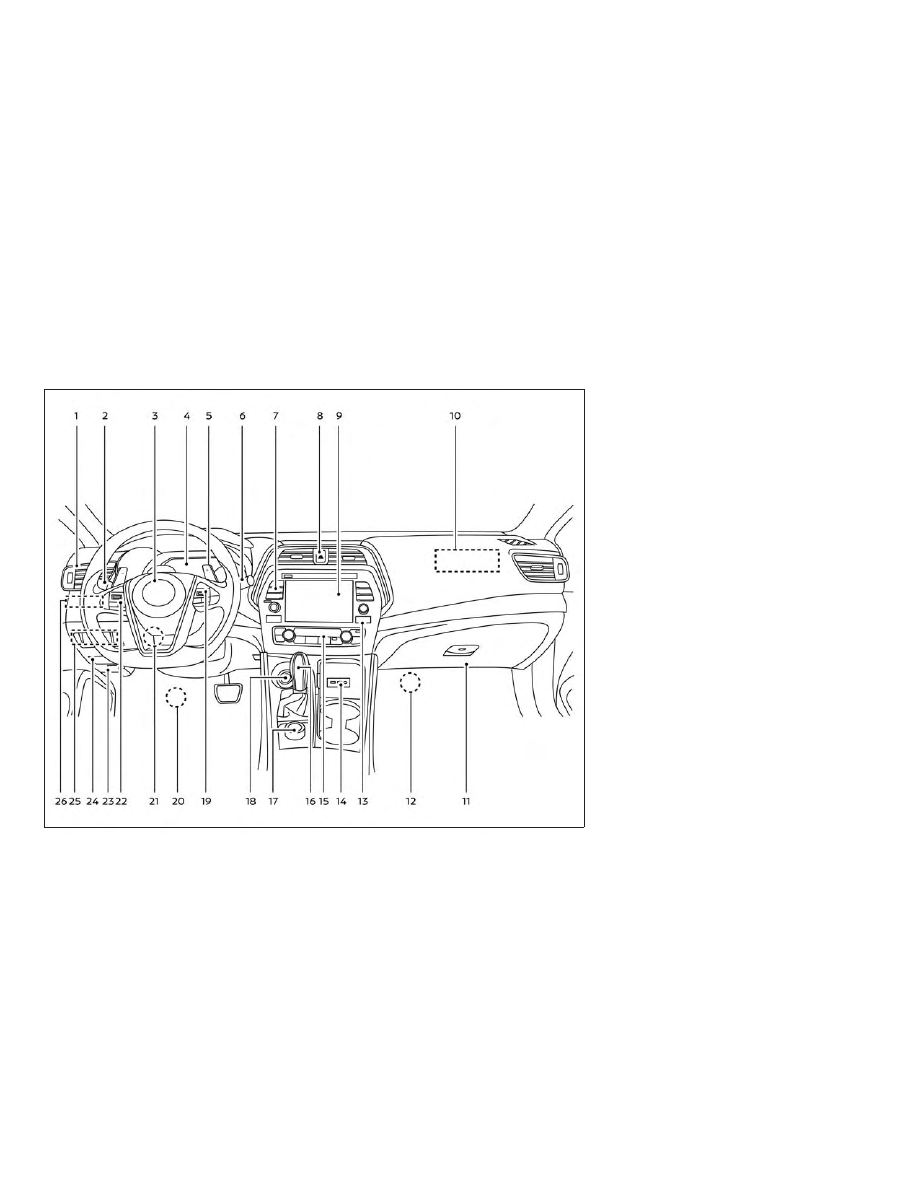

Vent (P. 4-27)

Headlight/fog light/turn signal
switch (P. 2-48)

Supplemental front-impact air bag
(P. 1-44)
Horn (P. 2-55)

Meters and gauges (P. 2-4)
Warning and indicator lights (P. 2-8)
Vehicle information display (P. 2-17)

Paddle shifters (if so equipped)
(P. 5-16)

Wiper and washer switch (P. 2-45)

Audio controls*
Navigation controls*

Hazard warning flasher switch
(P. 6-2)

Navigation display*
Audio display*

10.

Front passenger supplemental air
bag (P. 1-44)

11.

Glove box (P. 2-64)

12.

Passenger supplemental knee air
bag (P. 1-44)

13.

Front passenger air bag status
light (P. 1-44)

14.

AUX input/USB ports*

15.

Heater and air conditioning
controls (P. 4-29)

16.

Shift lever (P. 5-16)

LII2577

INSTRUMENT PANEL

0-6

Illustrated table of contents

-------------------------------------------------------------------------------------------------------------------------------------------------------------

17.

Display Commander*
Vehicle Dynamic Control (VDC OFF)
switch (P. 2-60)
SPORT mode button (P. 5-23)

18.

Push-button ignition switch
(P. 5-11)

19.

Bluetooth® Hands-Free Phone
System*
Cruise control switches
(if so equipped) (P. 5-57)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-60)

20.

Driver supplemental knee air bag
(P. 1-44)

21.

Tilt and telescopic steering (P. 3-25)

22.

Audio control switches*
Vehicle information display control
switches (P.2-17)

23.

Hood release (P. 3-21)

24.

Fuse box (P. 8-19)

25.

Heated steering wheel switch
(if so equipped) (P. 2-58)
Dynamic Driver Assistance switch
(if so equipped) (P. 2-59)
Trunk release switch (P. 3-21)
Rear power sunshade switch
(if so equipped) (P. 2-73)

26.

Instrument brightness control
(P. 2-48)
Twin trip odometer reset switch
(P. 2-5)

*: Refer to the separate NissanConnect®
Owner’s Manual.

Refer to the page number indicated in
parentheses for operating details.

Illustrated table of contents

0-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

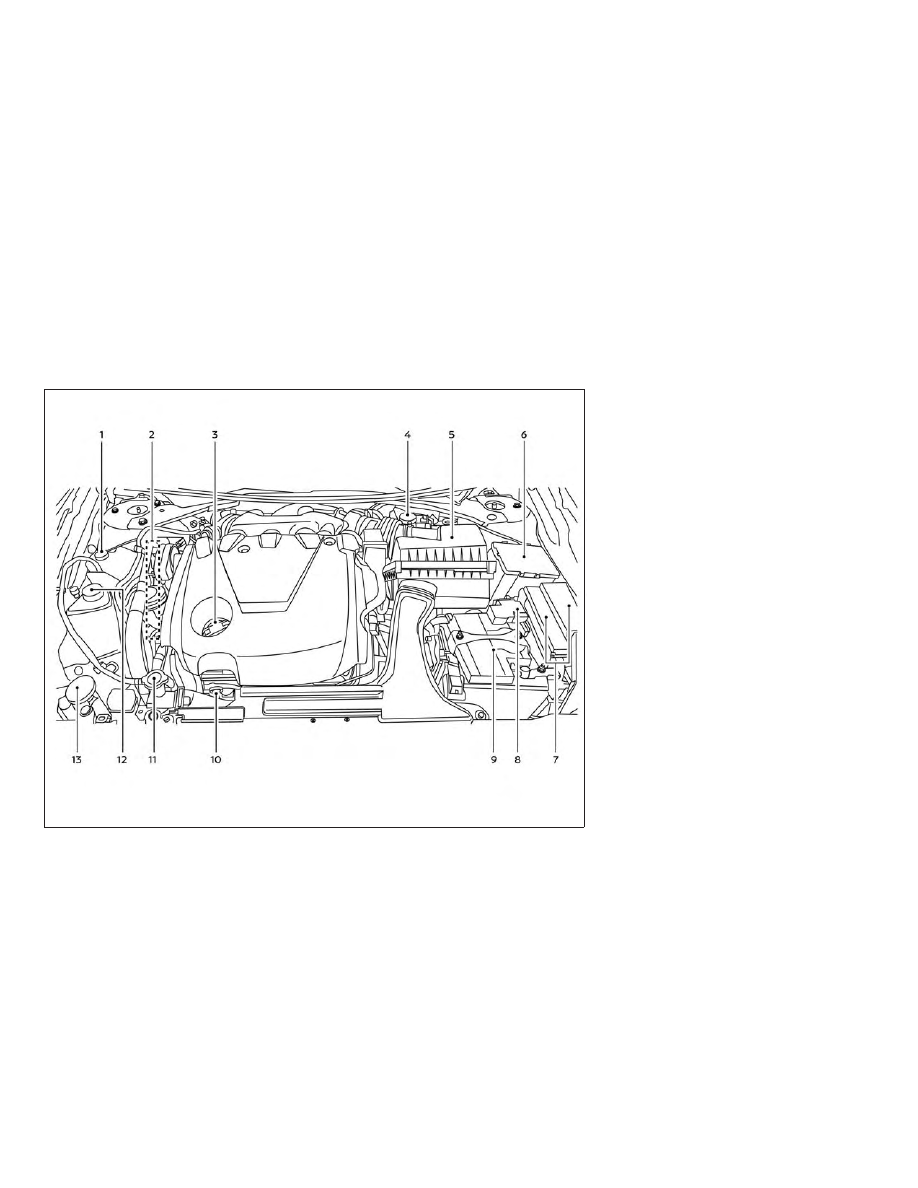

VQ35DE engine

Engine coolant reservoir (P. 8-4)

Drive belt location (P. 8-15)

Engine oil filler cap (P. 8-6)

Brake fluid reservoir (P. 8-11)

Air cleaner (P. 8-16)

Fuse box (P. 8-19)

Fuse box/Fusible links (P. 8-19)

Fusible links (P. 8-19)

Battery (P. 8-13)

10.

Engine oil dipstick (P.8-6)

11.

Radiator cap (P. 8-4)

12.

Power steering fluid reservoir
(P. 8-11)

13.

Windshield-washer fluid reservoir
(P. 8-12)

Refer to the page number indicated in
parentheses for operating details.

LDI3419

ENGINE COMPARTMENT CHECK
LOCATIONS

0-8

Illustrated table of contents

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Warning

light

Name

Page

Anti-lock Braking
System (ABS)
warning light

2-9

Automatic Emer-
gency Braking
(AEB) with Pedes-
trian Detection
system warning
light

2-9

Brake warning
light

2-9

Charge warning
light

2-10

Engine oil pres-
sure warning light

2-10

Warning

light

Name

Page

Low tire pressure
warning light

2-10

Master warning
light

2-12

Power steering
warning light

2-12

Rear Automatic
Braking (RAB)
warning light

2-12

Seat belt warning
light and chime

2-13

Supplemental air
bag warning light

2-13

Indicator

light

Name

Page

Front fog light in-
dicator light
(green) (if so
equipped)

2-13

Front passenger
air bag status
light

2-13

High Beam Assist
indicator light
(green)

2-14

High beam indi-
cator light (blue)

2-14

Malfunction Indi-
cator Light (MIL)

2-14

Security indicator
light

2-15

Side light and
headlight indica-
tor light (green)

2-15

WARNING AND INDICATOR LIGHTS

Illustrated table of contents

0-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Indicator

light

Name

Page

Slip indicator light

2-15

Turn signal/
hazard indicator
lights

2-15

Vehicle Dynamic
Control (VDC) OFF
indicator light

2-15

0-10

Illustrated table of contents

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

∙ Do not ride in a moving vehicle when

the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries.

∙ For the most effective protection

when the vehicle is in motion, the seat
should be upright. Always sit well
back and upright in the seat with both
feet on the floor and adjust the seat
properly. For additional information,
refer to “Precautions on seat belt us-
age” in this section.

∙ After adjustment, gently rock in the

seat to make sure it is securely locked.

∙ Do not leave children unattended in-

side the vehicle. They could unknow-
ingly activate switches or controls or
make the vehicle move. Unattended
children could become involved in se-
rious accidents.

∙ To help avoid risk of injury or death

through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require the
assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly be-
come high enough to cause a signifi-
cant risk of injury or death to people
and pets.

∙ Do not adjust the driver’s seat while

driving so full attention may be given
to vehicle operation. The seat may
move suddenly and could cause loss
of control of the vehicle.

∙ The seatback should not be reclined

any more than needed for comfort.
Seat belts are most effective when the
passenger sits well back and straight
up in the seat. If the seatback is re-
clined, the risk of sliding under the lap
belt and being injured is increased.

ARS1152

SEATS

1-2

Safety—Seats, seat belts and supplemental restraint system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.

FRONT POWER SEAT ADJUSTMENT

Operating tips

∙ The power seat motor has an auto-

reset overload protection circuit. If the
motor stops during operation, wait
30 seconds then reactivate the switch.

∙ Do not operate the power seat switch

for a long period of time when the en-
gine is off. This will discharge the bat-
tery.

For additional information, refer to “Auto-
matic drive positioner” in the “Pre-driving
checks and adjustments” section of this
manual.

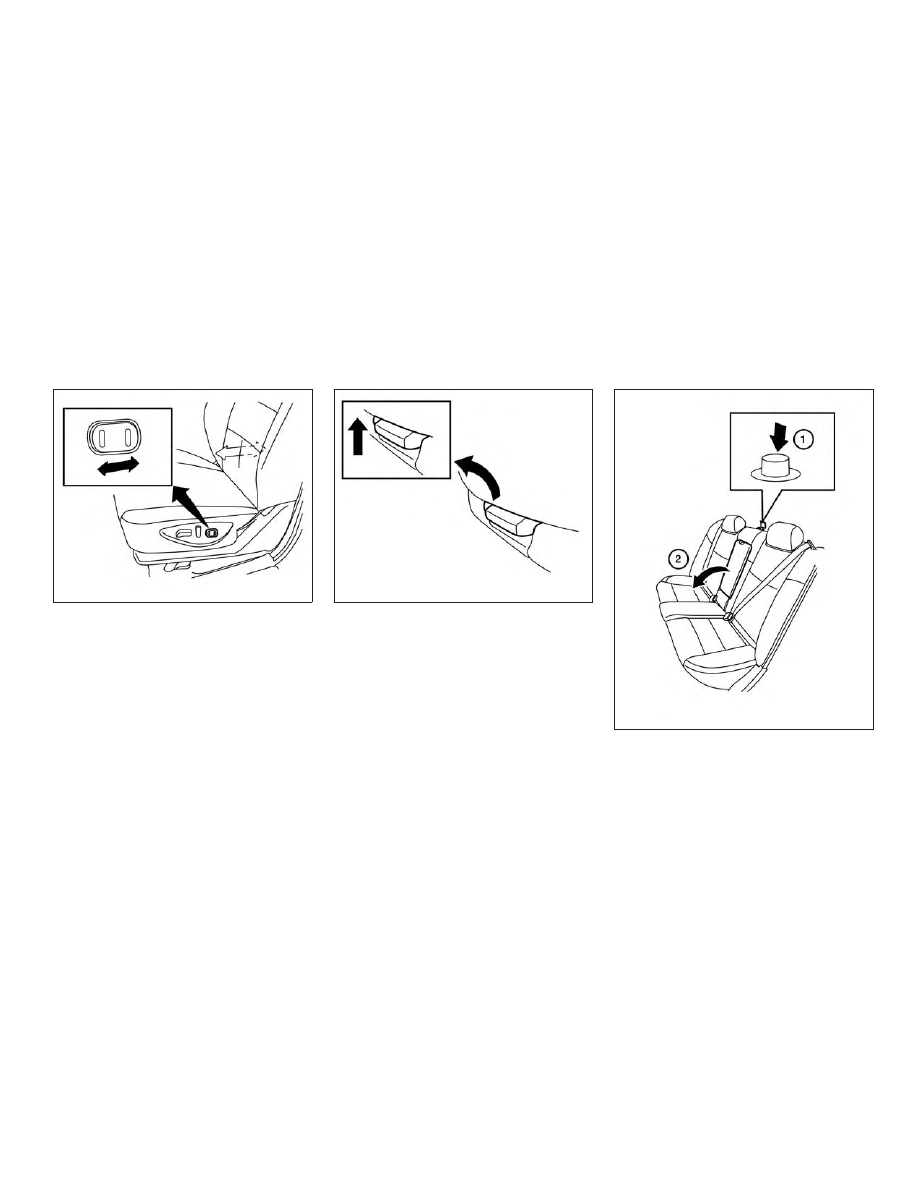

Forward and backward

Moving the switch as shown will slide the
seat forward or backward to the desired
position.

LRS2692

Safety—Seats, seat belts and supplemental restraint system

1-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Reclining

Move the recline switch as shown until the
desired angle is obtained.

The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the shift
lever is in P (Park).

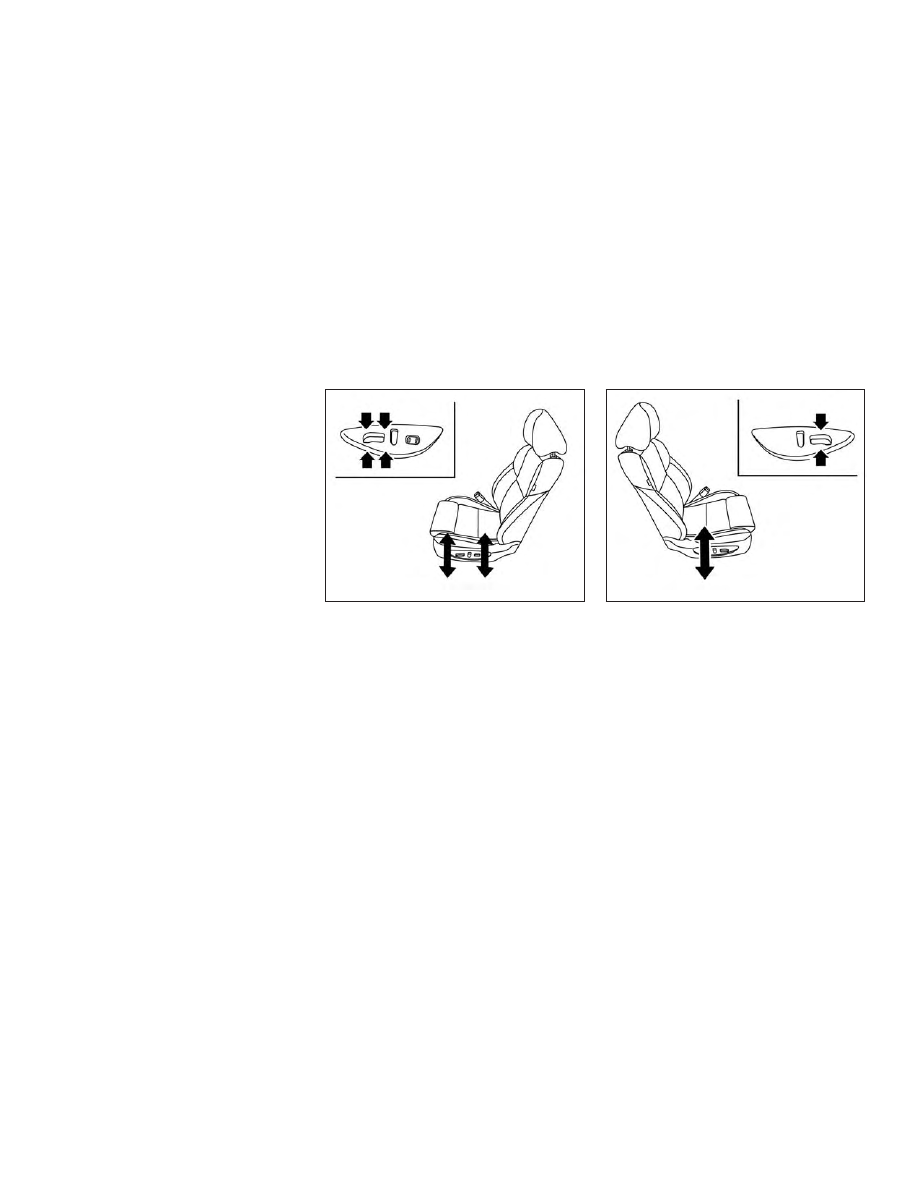

Seat lifter (for driver’s seat and if
so equipped for passenger’s seat)

Move the switch as shown to adjust the
angle (if so equipped) and height of the
seat cushion.

Driver’s seat

LRS2693

Passenger’s seat

LRS2938

1-4

Safety—Seats, seat belts and supplemental restraint system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Lumbar support (if so equipped
for driver’s seat)

The lumbar support feature provides ad-
justable lower back support to the driver.
Push the switch as shown to adjust the
seat lumbar area.

Thigh extension (if so equipped
for driver’s seat)

Pull up and hold the lever to extend the
front portion to the desired position.

FOLDING REAR SEAT

Interior trunk access

The trunk can be accessed from the pas-
senger side of the rear seat for loading and
unloading, as shown.

LRS2669

LRS2666

LRS2691

Safety—Seats, seat belts and supplemental restraint system

1-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1. Move the front passenger seat to the

most forward position.

2. Open the access cover on the rear par-

cel shelf.

3. Push down on the button

䊊

on the

rear parcel shelf.

4. Fold down the passenger’s side seat-

back

䊊

WARNING

∙ Never allow anyone to ride in the

cargo area or on the rear seat when it
is in the fold-down position. Use of
these areas by passengers without
proper restraints could result in seri-
ous injury or death in an accident or
sudden stop.

∙ Properly secure all cargo with ropes or

straps to help prevent it from sliding
or shifting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury.

∙ When returning the seatbacks to the

upright position, be certain they are
completely secured in the latched po-
sition. If they are not completely se-
cured, passengers may be injured in
an accident or sudden stop.

∙ Closely supervise children when they

are around cars to prevent them from
playing and becoming locked in the
trunk where they could be seriously
injured. Keep the car locked, with the
rear seatback and trunk lid securely
latched when not in use, and prevent
children’s access to car keys.

To fold down either side of the rear seat,
open the trunk and pull on the strap

䊊

For additional information, refer to “Interior
trunk access” in the “Pre-driving checks
and adjustments” section of this manual.

LRS2168

1-6

Safety—Seats, seat belts and supplemental restraint system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CENTER ARMREST

To use the center armrest on the rear seat,
pull on the tab in the center of the seat and
fold it down as shown.

WARNING

Head restraints/headrests supplement
the other vehicle safety systems. They
may

provide

additional

protection

against injury in certain rear end colli-
sions.

Adjustable

head

restraints/headrests must be adjusted
properly, as specified in this section.
Check the adjustment after someone
else uses the seat. Do not attach any-
thing to the head restraint/headrest
stalk, except for genuine NISSAN acces-
sories specifically tested for use with
the vehicle’s head restraint/headrest
stalk.

not

remove

the

head

restraint/headrest. Do not use the seat
if the head restraint/headrest has been
removed. If the head restraint/headrest
was removed, reinstall and properly ad-
just the head restraint/headrest before
an occupant uses the seating position.
Failure to follow these instructions can
reduce the effectiveness of the head
restraints/headrests.

This

may

in-

crease the risk of serious injury or death
in a collision.

The illustration shows the seating positions
equipped with head restraints/headrests.

䉱 Indicates the seating position is
equipped with a head restraint.

䡲 Indicates the seating position is equipped
with a headrest.

+ Indicates the seating position is not
equipped with a head restraint or headrest
(if applicable).

∙ Your vehicle is equipped with a head

restraint/headrest that may be inte-
grated, adjustable or non-adjustable.

LRS2978

LRS2695

HEAD RESTRAINTS/HEADRESTS

Safety—Seats, seat belts and supplemental restraint system

1-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Nissan Maxima (2020 year). Manual - part 1
