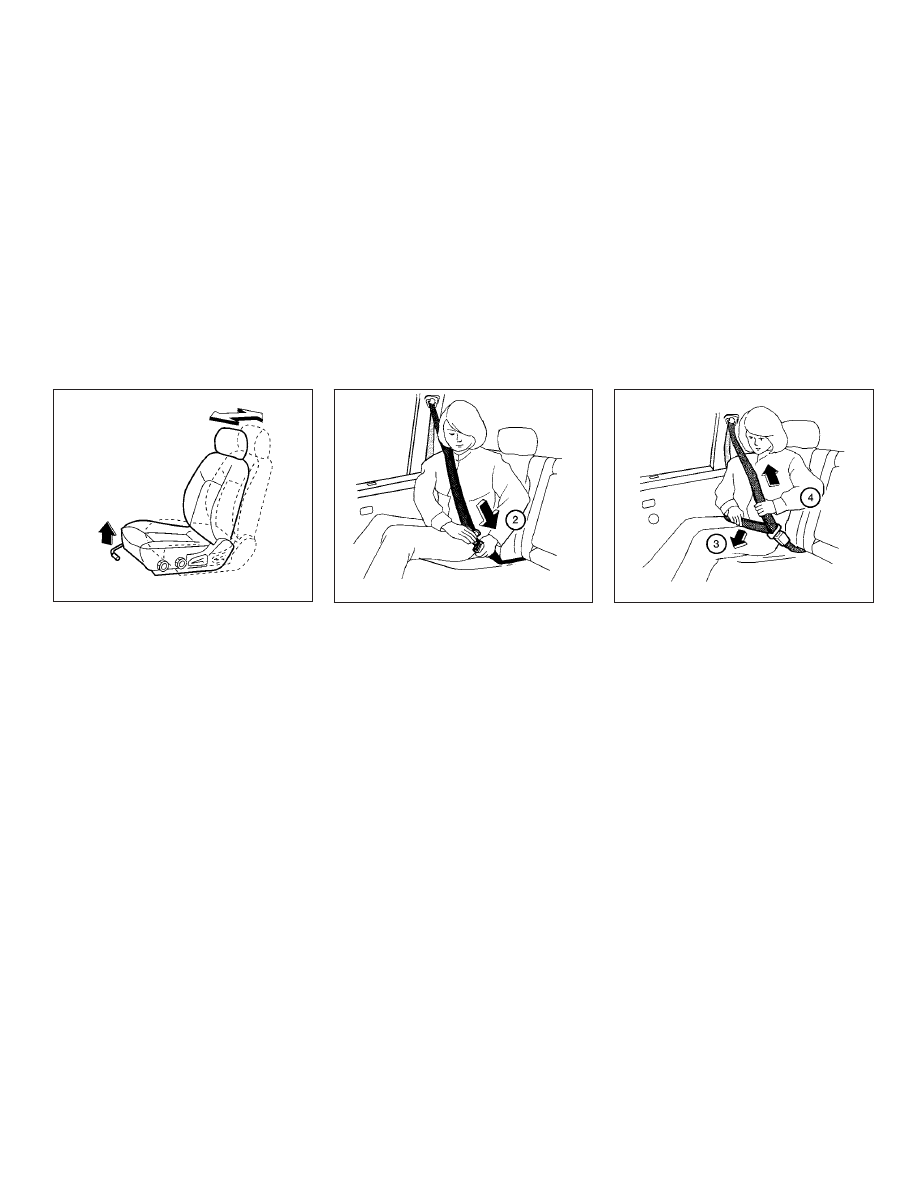

Fastening the seat belts

1. Adjust the seat. For additional information,

refer to “Seats” in this section.

䊊

Slowly pull the seat belt out of the retractor
and insert the tongue into the buckle until
you hear and feel the latch engage.

● The retractor is designed to lock dur-

ing a sudden stop or on impact. A
slow pulling motion permits the seat
belt to move and allows you some
freedom of movement in the seat.

● If the seat belt cannot be pulled from

its fully retracted position, firmly pull
the

belt

and

release

it.

Then

smoothly pull the belt out of the re-
tractor.

䊊

Position the lap belt portion low and snug
on the hips as shown.

䊊

Pull the shoulder belt portion toward the
retractor to take up extra slack. Be sure the
shoulder belt is routed over your shoulder
and across your chest.

The front passenger seat and the rear seating
positions three-point seat belts have two modes
of operation:

● Emergency Locking Retractor (ELR)
● Automatic Locking Retractor (ALR)

The ELR mode allows the seat belt to extend and
retract to allow the driver and passengers some

Front seat shown

WRS0175

LRS0594

LRS0595

Safety—Seats, seat belts and supplemental restraint system

1-17

freedom of movement in the seat. The ELR locks
the seat belt when the vehicle slows down rapidly
or during certain impacts.

The ALR mode (child restraint mode) locks the
seat belt for child restraint installation.

When the ALR mode is activated, the seat belt
cannot be extended again until the seat belt
tongue is detached from the buckle and fully
retracted. The seat belt returns to the ELR mode
after the seat belt fully retracts. For additional
information, refer to “Child restraints” in this sec-
tion.

The ALR mode should be used only for
child restraint installation. During normal
seat belt use by an occupant, the ALR mode
should not be activated. If it is activated, it
may cause uncomfortable seat belt ten-
sion. It can also change the operation of
the front passenger air bag. For additional
information, refer to “Front passenger air
bag and status light” in this section.

WARNING

When fastening the seat belts, be certain
that the seatbacks are completely secured
in the latched position. If they are not
completely secured, passengers may be
injured in an accident or sudden stop.

Unfastening the seat belts

䊊

To unfasten the seat belt, press the button on
the buckle. The seat belt automatically re-
tracts.

Checking seat belt operation

Seat belt retractors are designed to lock seat belt
movement by two separate methods:

● When the seat belt is pulled quickly from the

retractor

● When the vehicle slows down rapidly

To increase your confidence in the seat belts,
check the operation as follows:

● Grasp the shoulder belt and pull forward

quickly. The retractor should lock and re-
strict further belt movement.

If the retractor does not lock during this check or
if you have any questions about seat belt opera-
tion, see a NISSAN dealer.

WRS0139

1-18

Safety—Seats, seat belts and supplemental restraint system

Connector tongue

Seat belt tongue

Center of the rear bench seat

The center seat belt has a connector tongue and
a seat belt tongue. Both the connector tongue
and the seat belt tongue must be securely
latched for proper seat belt operation.

WARNING

● Always fasten the connector tongue

and the seat belt in the order shown.

● Always make sure both the connector

tongue and the seat belt tongue are
secured when using the seat belt or
installing a child restraint. Do not use
the seat belt or child restraint with only
the seat belt tongue attached. This
could result in serious personal injury in
case of an accident or a sudden stop.

LRS2484

SSS0241

LRS2485

Safety—Seats, seat belts and supplemental restraint system

1-19

Stowing the center seat belt

When folding down the rear seat, the rear center
seat belt can be retracted into a stowed position
as follows:

1. Hold the connector tongue

䊊

so that the

seat belt does not retract suddenly when the
tongue is released from the connector
buckle.

2. Insert a suitable tool such as a key

䊊

into

the connector buckle and release the con-
nector tongue

䊊

3. Fold the connector as illustrated

䊊

4. Then secure the connector tongue into the

retractor base

䊊

in the ceiling.

WARNING

● Do not unfasten the rear center seat

belt connector except when folding
down the rear seat.

● When attaching the rear center seat belt

connector, be certain that the seat-
backs are completely secured in the
latched position and the rear center
seat

belt

connector

completely

secured.

● If the rear center seat belt connector

and the seatbacks are not secured in
the correct position, serious personal
injury may result in an accident or sud-
den stop.

LRS2523

1-20

Safety—Seats, seat belts and supplemental restraint system

Attaching the center seat belt

Always be sure the center seat belt connector
tongue and connector buckle are attached. Dis-
connect only when folding down the rear seat.

To connect the buckle:

1. Pull out the seat belt tongue

䊊

from the

retractor base.

2. Pull out the connector tongue

䊊

from the

molded retractor base.

3. Pull the seat belt

䊊

and secure the receiver

buckle until it clicks.

The center seat belt connector tongue and re-
ceiver buckle are indicated by the > and < mark.

The center seat belt connector tongue can be
attached only into the rear center seat belt con-
nector buckle.

To fasten the seat belt, for additional information,
refer to “Fastening the seat belts” in this section.

WARNING

● Do not unfasten the rear center seat

belt connector except when folding
down the rear seat.

● When attaching the rear center seat belt

connector, be certain that the seat-
backs are completely secured in the
latched position and the rear center
seat

belt

connector

completely

secured.

● If the rear center seat belt connector

and the seatbacks are not secured in
the correct position, serious personal
injury may result in an accident or sud-
den stop.

Rear center seat belt comfort guide

When using the rear seat center seat belt it may
be necessary to use the comfort guide to adjust
the shoulder belt height for occupants of different
sizes for added comfort and to help obtain proper
seat belt fit.

1. Raise the head restraint/headrest

䊊

on the

rear seat driver’s side seating position. Re-
move the comfort guide

䊊

from the stowed

position by pulling the cord from the chan-
nel.

LRS2493

Safety—Seats, seat belts and supplemental restraint system

1-21

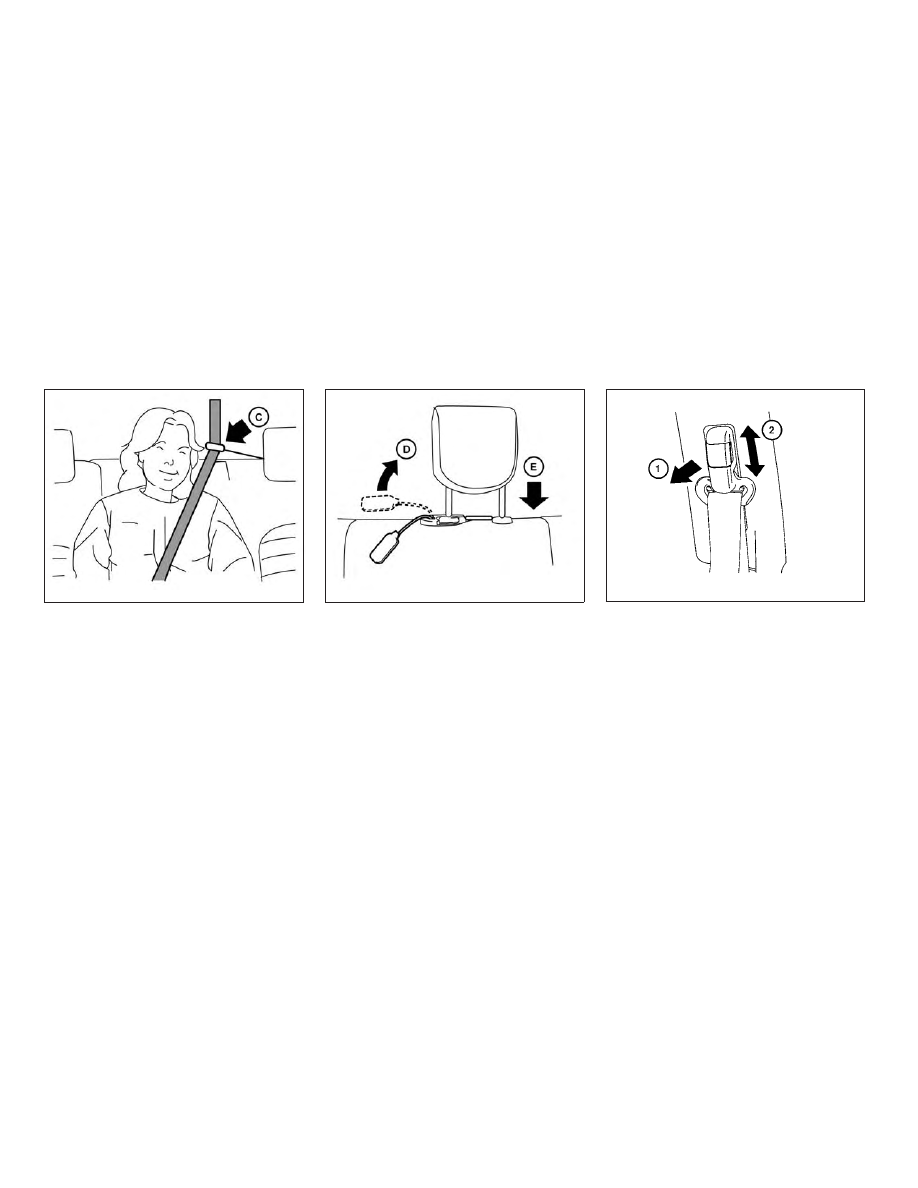

2. Insert the shoulder belt into the back of the

comfort guide

䊊

so that the seat belt lays

flat in the guide. Be sure that the comfort
guide routes the seat belt properly over the
center of your shoulder and across your
chest. The belt should be away from your
face and neck, but not falling off of your
shoulder.

3. To return the seat belt comfort guide to the

stowed position, route the comfort guide
strap

䊊

in the channel under the rear seat

driver’s

side

seating

position

head

restraint/headrest and attach the guide in
the clip. Lower the head restraint/headrest

䊊

on the rear seat driver’s side seating

position.

Shoulder belt height adjustment (front
and rear outboard seats)

The shoulder belt anchor height should be ad-
justed to the position best for you. For additional
information, refer to “Precautions on seat belt
usage” in this section. To adjust, pull out

䊊

the

adjustment button and move the shoulder belt
anchor

䊊

to the desired position so the belt

passes over the center of the shoulder. The belt
should be away from your face and neck, but not
falling off your shoulder. Release the adjustment
button to lock the shoulder belt anchor into posi-
tion.

LRS2494

LRS2495

Front and rear outboard seats

LRS0242

1-22

Safety—Seats, seat belts and supplemental restraint system

WARNING

● After adjustment, release the adjust-

ment button and try to move the shoul-
der belt anchor up and down to make
sure it is securely fixed in position.

● The shoulder belt anchor height should

be adjusted to the position best for you.
Failure to do so may reduce the effec-
tiveness of the entire restraint system
and increase the chance or severity of
injury in an accident.

Seat belt hook

When the seat belt is not in use and when folding
down the rear seats, hook the rear seat belts on
the seat belt hooks.

SEAT BELT EXTENDERS

If, because of body size or driving position, it is
not possible to properly fit the lap/shoulder belt
and fasten it, an extender that is compatible with
the installed seat belts is available for purchase.
The extender adds approximately 8 in (200 mm)
of length and may be used for either the driver or
front passenger seating position. See a NISSAN
dealer for assistance with purchasing an ex-
tender if an extender is required.

WARNING

● Only NISSAN seat belt extenders, made

by the same company which made the
original equipment seat belts, should
be used with NISSAN seat belts.

● Adults and children who can use the

standard seat belt should not use an
extender. Such unnecessary use could
result in serious personal injury in the
event of an accident.

● Never use seat belt extenders to install

child restraints. If the child restraint is
not secured properly, the child could be
seriously injured in a collision or a sud-
den stop.

SEAT BELT MAINTENANCE

● To clean the seat belt webbing, apply a

mild soap solution or any solution recom-
mended for cleaning upholstery or carpet.
Then wipe with a cloth and allow the seat
belts to dry in the shade. Do not allow the
seat belts to retract until they are completely
dry.

● If dirt builds up in the shoulder belt

guide of the seat belt anchors, the seat
belts may retract slowly. Wipe the shoulder
belt guide with a clean, dry cloth.

LRS0583

Safety—Seats, seat belts and supplemental restraint system

1-23

● Periodically check to see that the seat

belt and the metal components, such as
buckles, tongues, retractors, flexible wires
and anchors, work properly. If loose parts,
deterioration, cuts or other damage on the
webbing is found, the entire seat belt as-
sembly should be replaced.

WARNING

Do not allow children to play with the seat
belts. Most seating positions are equipped
with Automatic Locking Retractor (ALR)
mode seat belts. If the seat belt becomes
wrapped around a child’s neck with the ALR
mode activated, the child can be seriously
injured or killed if the seat belt retracts and
becomes tight. This can occur even if the
vehicle is parked. Unbuckle the seat belt to
release the child. If the seat belt cannot be
unbuckled or is already unbuckled, release
the child by cutting the seat belt with a
suitable tool (such as a knife or scissors) to
release the seat belt.

Children need adults to help protect them.
They need to be properly restrained.

In addition to the general information in this
manual, child safety information is available from
many other sources, including doctors, teachers,
government traffic safety offices, and community
organizations. Every child is different, so be sure
to learn the best way to transport your child.

There are three basic types of child restraint
systems:

● Rear-facing child restraint
● Forward-facing child restraint

● Booster seat

The proper restraint depends on the child’s size.
Generally, infants up to about 1 year and less
than 20 lbs (9 kg) should be placed in rear-facing
child restraints. Forward-facing child restraints
are available for children who outgrow rear-
facing child restraints and are at least 1 year old.
Booster seats are used to help position a vehicle
lap/shoulder belt on a child who can no longer
use a forward-facing child restraint.

WARNING

Infants and children need special protec-
tion. The vehicle’s seat belts may not fit
them properly. The shoulder belt may
come too close to the face or neck. The lap
belt may not fit over their small hip bones.
In an accident, an improperly fitting seat
belt could cause serious or fatal injury.
Always use appropriate child restraints.

All U.S. states and Canadian provinces or territo-
ries require the use of approved child restraints
for infants and small children. For additional infor-
mation, refer to “Child restraints” in this section.

A child restraint may be secured in the vehicle by
using either the LATCH (Lower Anchors and
Tethers for CHildren) system or with the vehicle
seat belt. For additional information, refer to
“Child restraints” in this section.

CHILD SAFETY

1-24

Safety—Seats, seat belts and supplemental restraint system

NISSAN recommends that all pre-teens
and children be restrained in the rear seat.
Studies show that children are safer when
properly restrained in the rear seat than in
the front seat.

This is especially important because your
vehicle has a supplemental restraint sys-
tem (air bag system) for the front passen-
ger. For additional information, refer to
“Supplemental restraint system (SRS)” in
this section.

INFANTS

Infants up to at least 1 year old should be placed
in a rear-facing child restraint. NISSAN recom-
mends that infants be placed in child restraints
that comply with Federal Motor Vehicle Safety
Standards or Canadian Motor Vehicle Safety
Standards. You should choose a child restraint
that fits your vehicle and always follow the manu-
facturer’s instructions for installation and use.

SMALL CHILDREN

Children that are over 1 year old and weigh at
least 20 lbs (9 kg) should remain in a rear-facing
child restraint as long as possible up to the height
or weight limit of the child restraint. Children who
outgrow the height or weight limit of the rear-
facing child restraint and are at least 1 year old
should be secured in a forward-facing child re-

straint with a harness. Refer to the manufactur-
er’s instructions for minimum and maximum
weight and height recommendations. NISSAN
recommends that small children be placed in
child restraints that comply with Federal Motor
Vehicle Safety Standards or Canadian Motor Ve-
hicle Safety Standards. You should choose a
child restraint that fits your vehicle and always
follow the manufacturer’s instructions for instal-
lation and use.

LARGER CHILDREN

Children should remain in a forward-facing child
restraint with a harness until they reach the maxi-
mum height or weight limit allowed by the child
restraint manufacturer.

Once a child outgrows the height or weight limit
of the harness-equipped forward-facing child re-
straint, NISSAN recommends that the child be
placed in a commercially available booster seat to
obtain proper seat belt fit. For a seat belt to fit
properly, the booster seat should raise the child
so that the shoulder belt is properly positioned
across the chest and the top, middle portion of
the shoulder. The shoulder belt should not cross
the neck or face and should not fall off the shoul-
der. The lap belt should lie snugly across the
lower hips or upper thighs, not the abdomen. A
booster seat can only be used in seating posi-
tions that have a three-point type seat belt. The

booster seat should fit the vehicle seat and have
a label certifying that it complies with Federal
Motor Vehicle Safety Standards or Canadian Mo-
tor Vehicle Safety Standards. Once the child has
grown so the shoulder belt is no longer on or near
the face and neck and the lap belt can be posi-
tioned properly across the lower hips or upper
thighs, use the seat belt without the booster seat.

WARNING

Never let a child stand or kneel on any seat
and do not allow a child in the cargo area.
The child could be seriously injured or
killed in a sudden stop or collision.

Safety—Seats, seat belts and supplemental restraint system

1-25

PRECAUTIONS ON CHILD
RESTRAINTS

WARNING

● Failure to follow the warnings and in-

structions for proper use and installa-
tion of child restraints could result in
serious injury or death of a child or
other passengers in a sudden stop or
collision:

– The child restraint must be used and

installed properly. Always follow all
of the child restraint manufacturer’s
instructions for installation and use.

– Infants and children should never be

held on anyone’s lap. Even the stron-
gest adult cannot resist the forces of
a collision.

– Do not put a seat belt around both a

child and another passenger.

– NISSAN recommends that all child

restraints be installed in the rear
seat. Studies show that children are
safer when properly restrained in the
rear seat than in the front seat. If you
must install a forward-facing child
restraint in the front seat, refer to
“Forward-facing child restraint in-
stallation using the seat belts” in this
section.

– Even with the NISSAN Advanced Air

Bag System, never install a rear-
facing child restraint in the front seat.
An inflating air bag could seriously
injure or kill a child. A rear-facing
child restraint must only be used in
the rear seat.

– Be sure to purchase a child restraint

that will fit the child and vehicle.
Some child restraints may not fit
properly in your vehicle.

ARS1098

WRS0256

CHILD RESTRAINTS

1-26

Safety—Seats, seat belts and supplemental restraint system

– Child restraint anchorages are de-

signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances are
they to be used to attach adult seat
belts, or other items or equipment to
the vehicle. Doing so could damage
the child restraint anchorages. The
child restraint will not be properly
installed using the damaged anchor-
age, and a child could be seriously
injured or killed in a collision.

– Never use the anchor points for adult

seat belts or harnesses.

– A child restraint with a top tether

strap should not be used in the front
passenger seat.

– Keep seatbacks as upright as pos-

sible after fitting the child restraint.

– Infants and children should always

be placed in an appropriate child re-
straint while in the vehicle.

● When the child restraint is not in use,

keep it secured with the LATCH system
or a seat belt. In a sudden stop or colli-
sion, loose objects can injure occupants
or damage the vehicle.

CAUTION

A child restraint in a closed vehicle can
become very hot. Check the seating sur-
face and buckles before placing a child in
the child restraint.

This vehicle is equipped with a universal child
restraint anchor system, referred to as the LATCH
(Lower Anchors and Tethers for CHildren) sys-
tem. Some child restraints include rigid or
webbing-mounted attachments that can be con-
nected to these anchors. For additional informa-
tion, refer to “LATCH (Lower Anchors and Teth-
ers for CHildren) system” in this section.

If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used.

Several manufacturers offer child restraints for
infants and children of various sizes. When se-
lecting any child restraint, keep the following
points in mind:

● Choose only a restraint with a label certifying

that it complies with Federal Motor Vehicle
Safety Standard 213 or Canadian Motor
Vehicle Safety Standard 213.

● Check the child restraint in your vehicle to be

sure it is compatible with the vehicle’s seat
and seat belt system.

● If the child restraint is compatible with your

vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child’s height and weight.
Always follow all recommended procedures.

● If the combined weight of the child and child

restraint is less than 65 lbs (29.5 kg), you
may use either the LATCH anchors or the
seat belt to install the child restraint (not both
at the same time).

● If the combined weight of the child and child

restraint is greater than 65 lbs (29.5 kg), use
the vehicle’s seat belt (not the lower an-
chors) to install the child restraint.

● Be sure to follow the child restraint manufac-

turer’s instructions for installation.

All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated. Canadian law requires the
top tether strap on forward-facing child re-
straints be secured to the designated an-
chor point on the vehicle.

Safety—Seats, seat belts and supplemental restraint system

1-27

LATCH (Lower Anchors and Tethers
for CHildren) SYSTEM

Your vehicle is equipped with special anchor
points that are used with the LATCH system
compatible child restraints. This system may also
be referred to as the ISOFIX or ISOFIX compat-
ible system. With this system, you do not have to
use a vehicle seat belt to secure the child re-
straint unless the combined weight of the child
and child restraint exceeds 65 lbs (29.5 kg). If the
combined weight of the child and child restraint is
greater than 65 lbs (29.5 kg) use the vehicles
seat belt (not the lower anchors) to install the

child restraint. Be sure to follow the child restraint
manufacturer’s instructions for installation.

The LATCH anchor points are provided to install
child restraints in the rear outboard seating posi-
tions only. Do not attempt to install a child re-
straint in the center position using the LATCH
anchors.

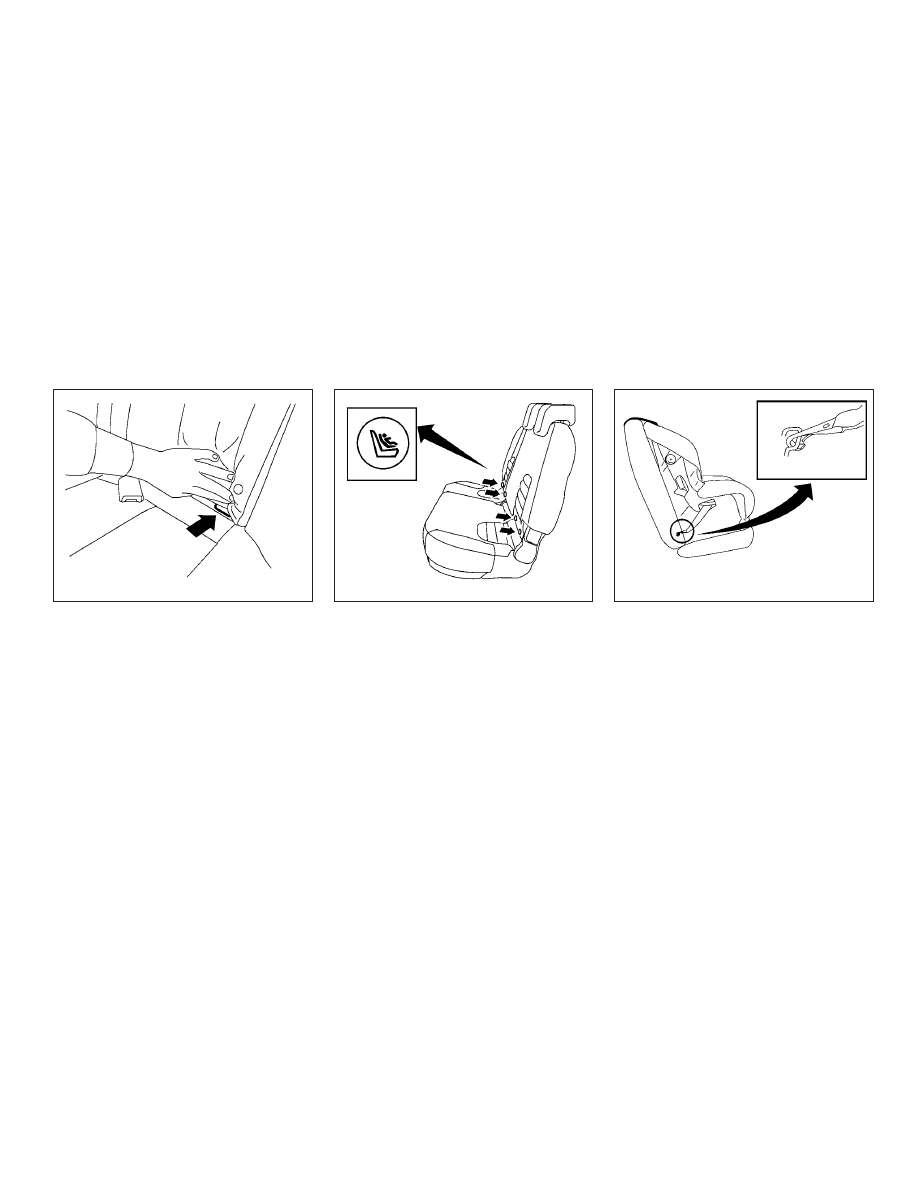

LATCH lower anchor

WARNING

Failure to follow the warnings and instruc-
tions for proper use and installation of
child restraints could result in serious in-
jury or death of a child or other passen-
gers in a sudden stop or collision:

– Attach LATCH system compatible

child restraints only at the locations
shown in the illustration.

– Do not secure a child restraint in the

center rear seating position using the
LATCH lower anchors. The child re-
straint will not be secured properly.

– Inspect the lower anchors by insert-

ing your fingers into the lower anchor
area. Feel to make sure there are no
obstructions over the anchors such
as seat belt webbing or seat cushion
material. The child restraint will not
be secured properly if the lower an-
chors are obstructed.

– Child restraint anchorages are de-

LATCH system lower anchor locations

WRS0438

1-28

Safety—Seats, seat belts and supplemental restraint system

LATCH lower anchor location

The LATCH lower anchors are located at the rear
of the seat cushion near the seatback. A label is
attached to the seatback to help you locate the
LATCH lower anchors.

Installing child restraint LATCH lower
anchor attachments

LATCH compatible child restraints include two
rigid or webbing-mounted attachments that can
be connected to two anchors located at certain
seating positions in your vehicle. With this sys-
tem, you do not have to use a vehicle seat belt to
secure the child restraint. Check your child re-
straint for a label stating that it is compatible with
LATCH. This information may also be in the in-
structions provided by the child restraint manu-
facturer.

LATCH lower anchor location

WRS0700

LATCH lower anchor point locations

LRS0589

LATCH webbing-mounted attachment

LRS0661

Safety—Seats, seat belts and supplemental restraint system

1-29

When installing a child restraint, carefully read
and follow the instructions in this manual and
those supplied with the child restraint.

Top tether anchor

WARNING

● Do not allow cargo to contact the top

tether strap when it is attached to the
top tether anchor. Properly secure the
cargo so it does not contact the top
tether strap. Cargo that is not properly
secured or cargo that contacts the top
tether strap may damage it during a
collision. A child could be seriously in-
jured or killed in a collision if the top
tether strap is damaged.

● Child restraint anchorages are de-

signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances are
they to be used to attach adult seat
belts, or other items or equipment to
the vehicle. Doing so could damage the
child restraint anchorages. The child re-
straint will not be properly installed us-
ing the damaged anchorages, and a
child could be seriously injured or killed
in a collision.

1. Top tether straps

2. Anchor points

Top tether anchor point locations

Anchor points are located in the following loca-
tions:

● Rear bench on the floor behind the outboard

seating positions as shown.

● Rear bench center seatback as shown.

If you have any questions when installing a
top tether strap, consult your NISSAN
dealer for details.

LATCH rigid-mounted attachment

LRS0662

Rear bench seat

LRS2236

1-30

Safety—Seats, seat belts and supplemental restraint system

REAR-FACING CHILD RESTRAINT
INSTALLATION USING LATCH

For additional information, refer to all Warnings
and Cautions in the “Child Safety” and “Child
Restraint” sections before installing a child re-
straint.

NISSAN does not recommend the use of the
lower anchors if the combined weight of the child
and the child restraint exceeds 65 lbs (29.5 kg). If
the combined weight of the child and the child
restraint is greater than 65 lbs (29.5 kg), use the
vehicle’s seat belt (not the lower anchors) to
install the child restraint. Be sure to follow the
child restraint manufacturer’s instructions for in-
stallation.

Follow these steps to install a rear-facing child
restraint in the rear seats using the LATCH sys-
tem:

1. Position the child restraint on the seat. Al-

ways follow the child restraint manufactur-
er’s instructions.

2. Secure the child restraint anchor attach-

ments to the LATCH lower anchors. Check
to make sure the LATCH attachment is prop-
erly attached to the lower anchors.

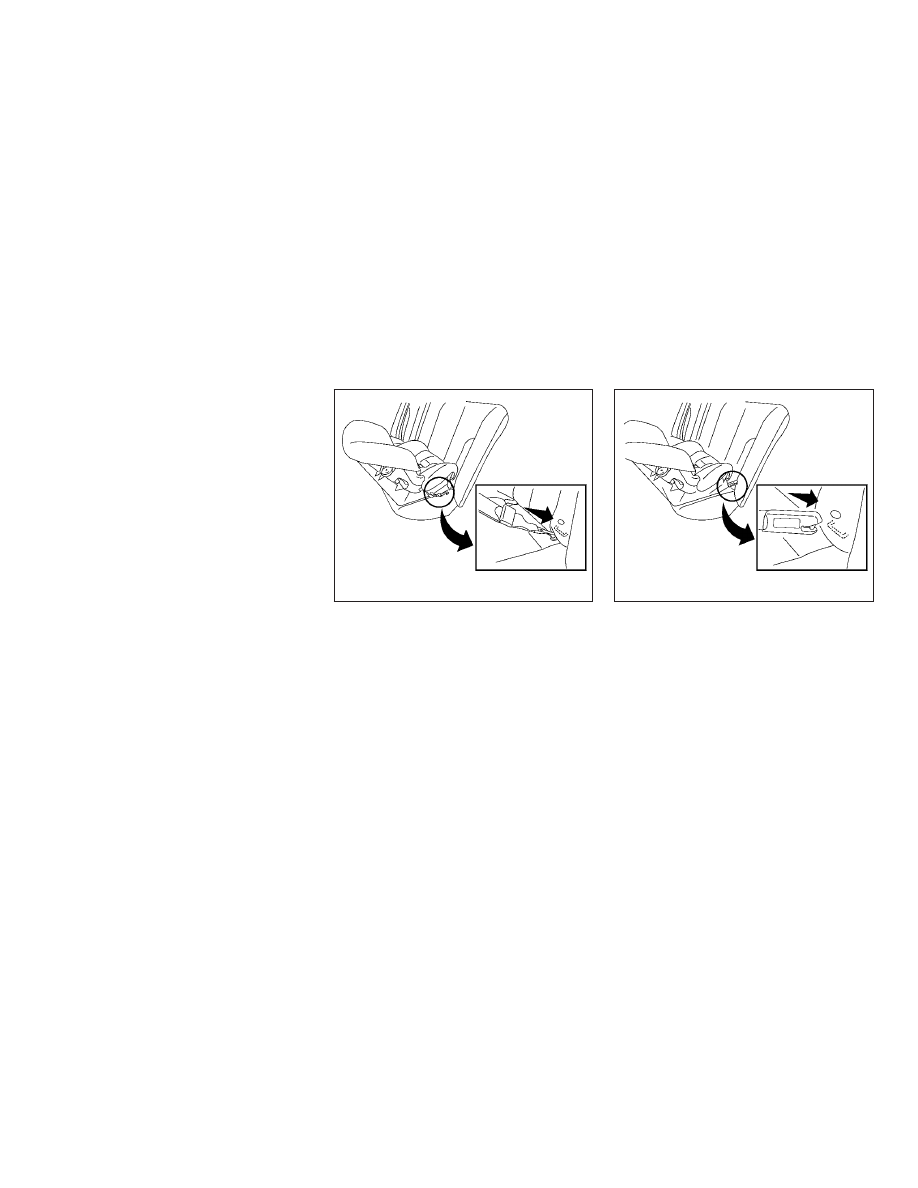

Rear-facing webbing-mounted – step 2

WRS0801

Rear-facing rigid-mounted – step 2

WRS0802

Safety—Seats, seat belts and supplemental restraint system

1-31

3. For child restraints that are equipped with

webbing-mounted attachments, remove any
additional slack from the anchor attach-
ments. Press downward and rearward firmly
in the center of the child restraint with your
hand to compress the vehicle seat cushion
and seatback while tightening the webbing
of the anchor attachments.

4. After attaching the child restraint, test it be-

fore you place the child in it. Push it from side
to side while holding the child restraint near
the LATCH attachment path. The child re-
straint should not move more than 1 inch
(25 mm), from side to side. Try to tug it
forward and check to see if the LATCH at-
tachment holds the restraint in place. If the
restraint is not secure, tighten the LATCH
attachment as necessary, or put the restraint
in another seat and test it again. You may
need to try a different child restraint or try
installing by using the vehicle seat belt (if
applicable). Not all child restraints fit in all
types of vehicles.

5. Check to make sure the child restraint is

properly secured prior to each use. If the
child restraint is loose, repeat steps 2
through 4.

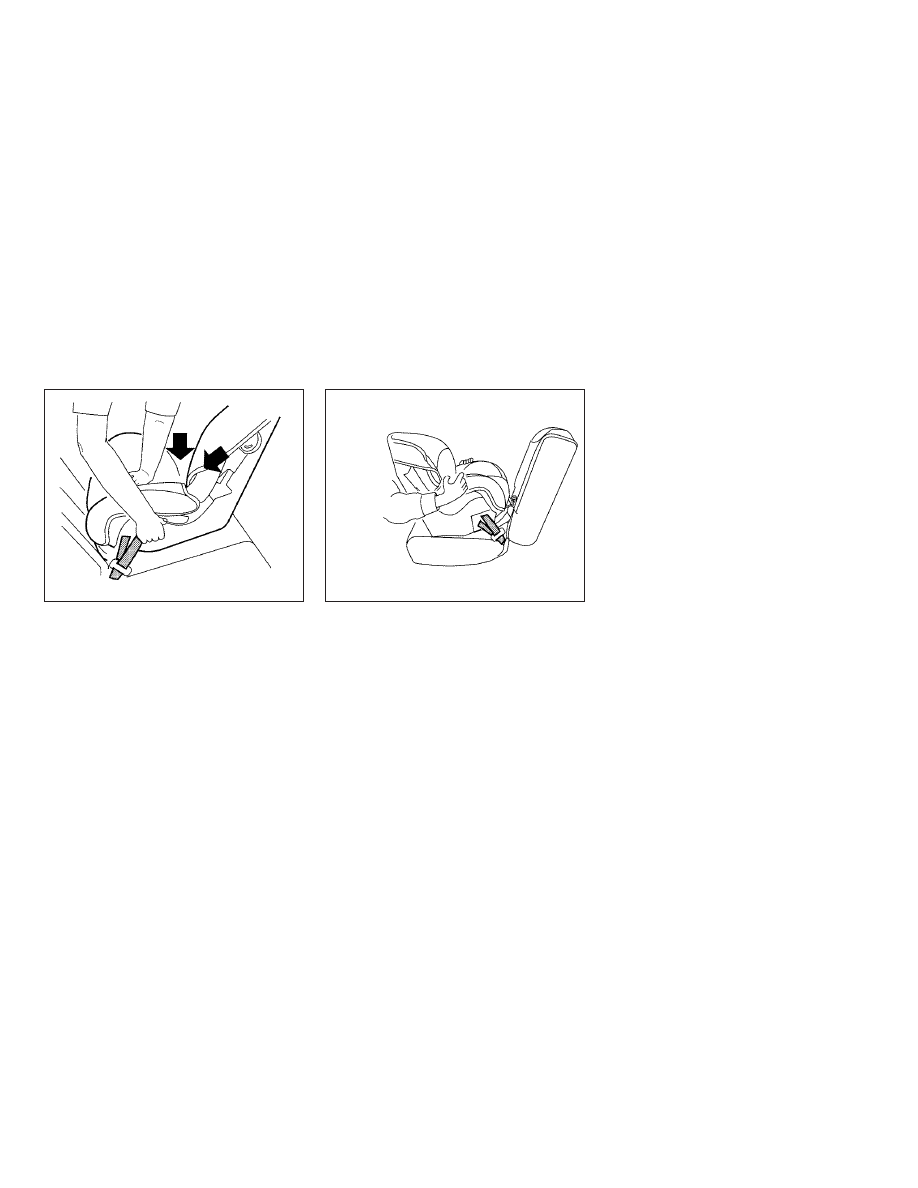

Rear-facing – step 3

LRS0673

Rear-facing – step 4

LRS0674

1-32

Safety—Seats, seat belts and supplemental restraint system

Content .. 1 2 3 4 ..
