Extended storage switch

If any electrical equipment does not oper-
ate, remove the extended storage switch
and check for an open fuse.

NOTE:

The extended storage switch is used for
long term vehicle storage. Even if the ex-
tended storage switch is broken it is not
necessary to replace it. Replace only the
open fuse in the switch with a new fuse.

How to replace the extended storage
switch:

1. To

remove

the

extended

storage

switch, be sure the ignition switch is in
the OFF or LOCK position.

2. Be sure the headlight switch is in the

OFF position.

3. Remove the fuse box cover.

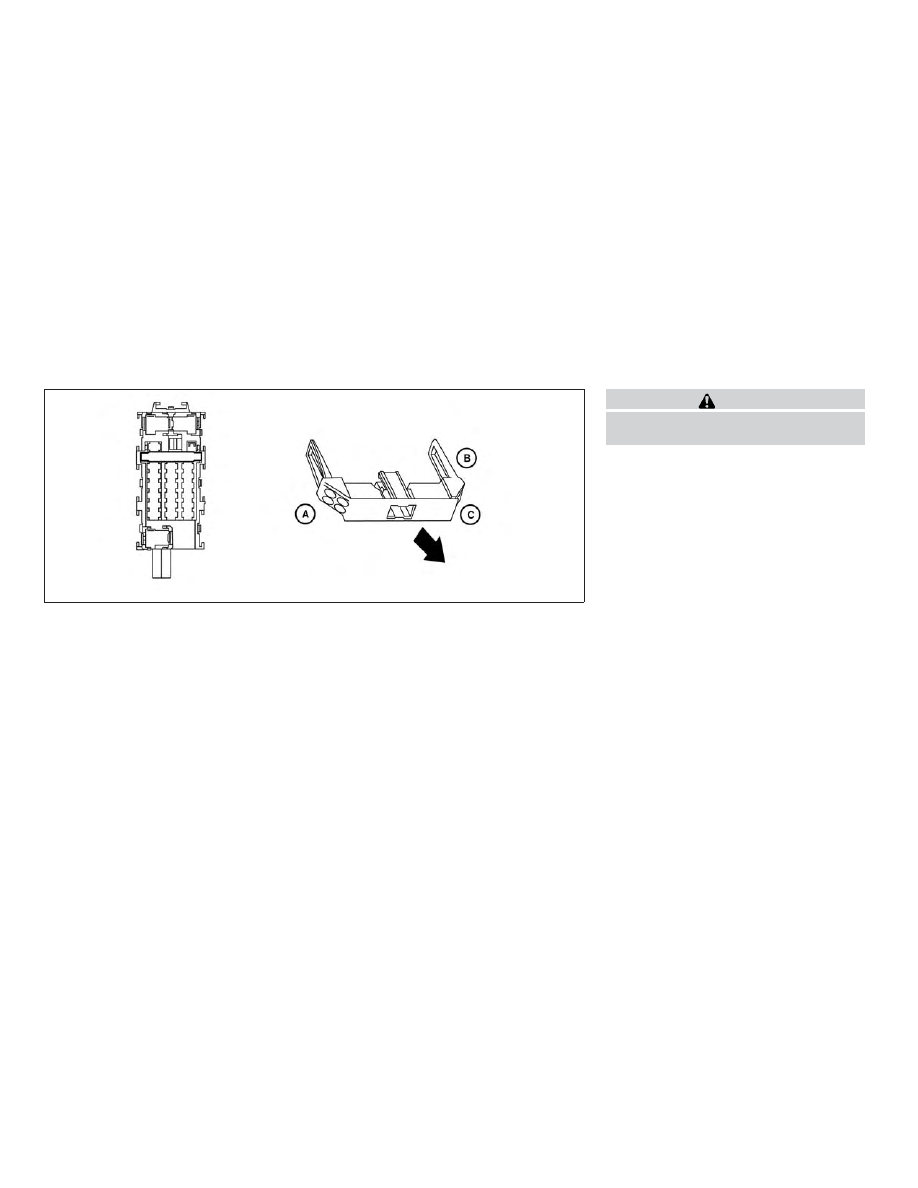

4. Pinch the locking tabs

䊊

and

䊊

found

on each side of the storage switch.

5. Pull the storage switch straight out

from the fuse box

䊊

CAUTION

Be careful not to allow children to swal-
low the battery or removed parts.

LDI2747

BATTERY REPLACEMENT

8-22

Do-it-yourself

KEY FOB (if so equipped)

Replace the battery in the key fob as fol-
lows:

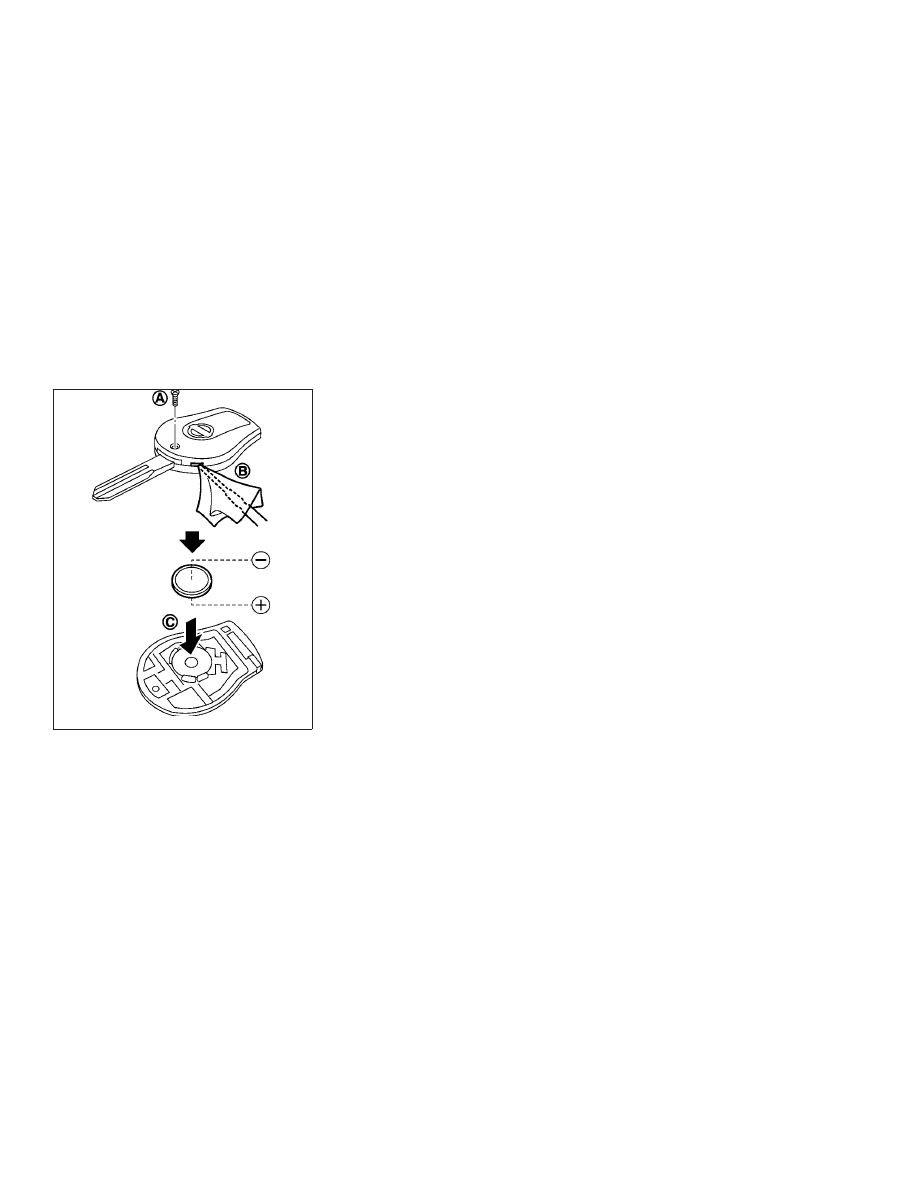

1. Remove the screw

䊊

2. Insert a small screwdriver into the slit of

the corner

䊊

and twist it to separate

the upper part from the lower part. Use
a cloth to protect the casing.

3. Replace the battery with a new one.

∙ Do not touch the internal circuit and

electric terminals as doing so could
cause a malfunction.

∙ Make sure that the + side faces the

bottom of the case

䊊

Recommended battery: CR1620 or equiva-
lent.

4. Close the lid and install the screw se-

curely.

5. Operate the buttons to check its op-

eration.

If you need assistance for replacement, it is
recommended that you visit a NISSAN
dealer for this service.

If the battery is removed for any reason
other than replacement, perform step 5.

∙ An improperly disposed battery can

hurt the environment. Always con-
firm local regulations for battery dis-
posal.

∙ The key fob is water-resistant; how-

ever, if it does get wet, immediately
wipe completely dry.

∙ The operational range of the key fob

extends to approximately 33 ft (10 m)
from the vehicle. This range may vary
with conditions.

Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device
must accept any interference received,
including interference that may cause
undesired operation of the device.

FCC Notice:

For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.

Note:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s author-
ity to operate the equipment.

SDI2134A

Do-it-yourself

8-23

For Canada:
This

device

complies

with

Industry

Canada licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any interference, including interfer-
ence that may cause undesired opera-
tion of the device.

NISSAN INTELLIGENT KEY® (if so
equipped)

Replace the battery in the Intelligent Key as
follows:

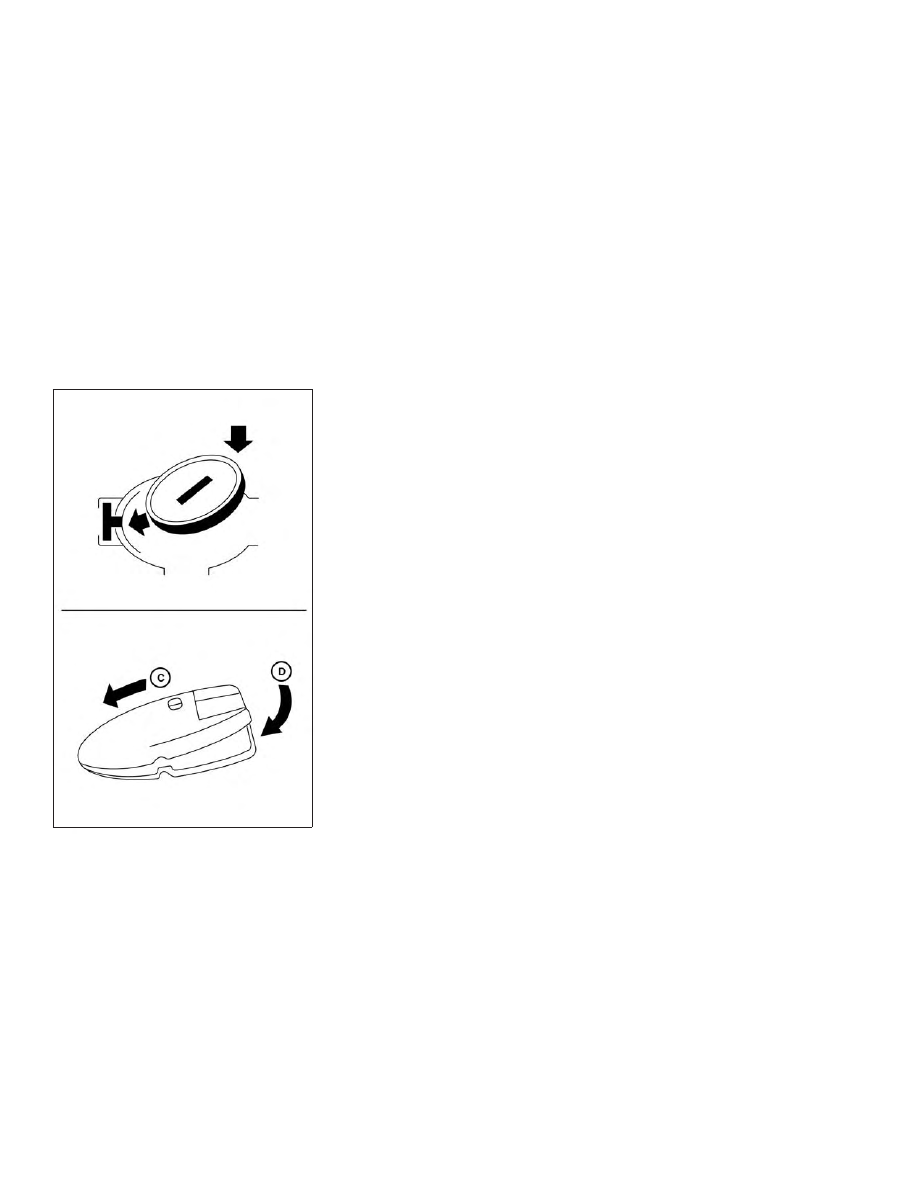

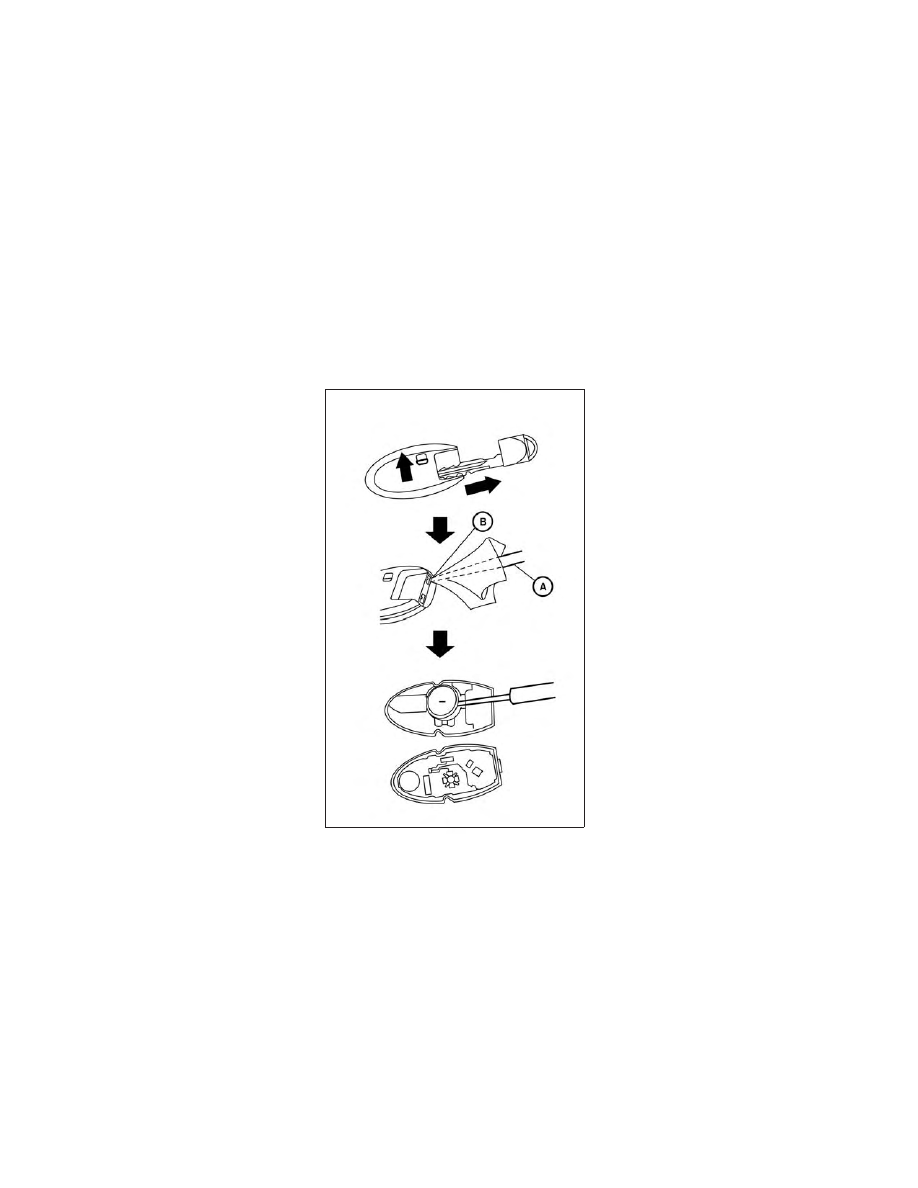

1. Remove the mechanical key from the

Intelligent Key.

2. Insert a small flathead screwdriver

䊊

into the slit

䊊

of the corner and twist it

to separate the upper part from the
lower part. Place a cloth over the
screwdriver to protect the casing.

LDI2001

8-24

Do-it-yourself

3. Replace the battery with a new one.

Recommended battery: CR2025 or
equivalent.

∙ Do not touch the internal circuit and

electric terminals as doing so could
cause a malfunction.

∙ Hold the battery by the edges. Hold-

ing the battery across the contact
points will seriously deplete the stor-
age capacity.

∙ Make sure that the + side faces the

bottom of the lower part.

4. Close the lid securely as illustrated with

䊊

and

䊊

5. Operate the buttons to check the op-

eration.

If you need assistance for replacement, it is
recommended that you visit a NISSAN
dealer for this service.

FCC Notice:

ence received, including interference
that may cause undesired operation.

Note:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s author-
ity to operate the equipment.

For Canada:
This

device

complies

with

Industry

LDI2637

Do-it-yourself

8-25

HEADLIGHTS

For additional information on headlight
bulb replacement, refer to the instructions
outlined in this section.

Replacing the halogen headlight
bulb

The headlight is a semi-sealed beam type
which uses a replaceable headlight (halo-
gen) bulb. They can be replaced from inside

the engine compartment without remov-
ing the headlight assembly.

CAUTION

∙ High-pressure halogen gas is sealed

inside the bulb. The bulb may break if
the glass envelope is scratched or the
bulb is dropped.

∙ Aiming should not be necessary after

replacing the H4 bulb. When aiming
adjustment is necessary, it is recom-
mended that you visit a NISSAN dealer
for this service.

∙ Do not leave the headlight assembly

open without a bulb installed for a
long period of time. Dust, moisture,
smoke, etc. entering the headlight
body may affect bulb performance.
Remove the bulb from the headlight
assembly just before a replacement
bulb is installed.

∙ Only touch the base when handling

the bulb. Never touch the glass enve-
lope. Touching the glass could signifi-
cantly affect bulb life and/or head-
light performance.

∙ Use the same number and wattage as

shown in the chart.

JVM0002X

LIGHTS

8-26

Do-it-yourself

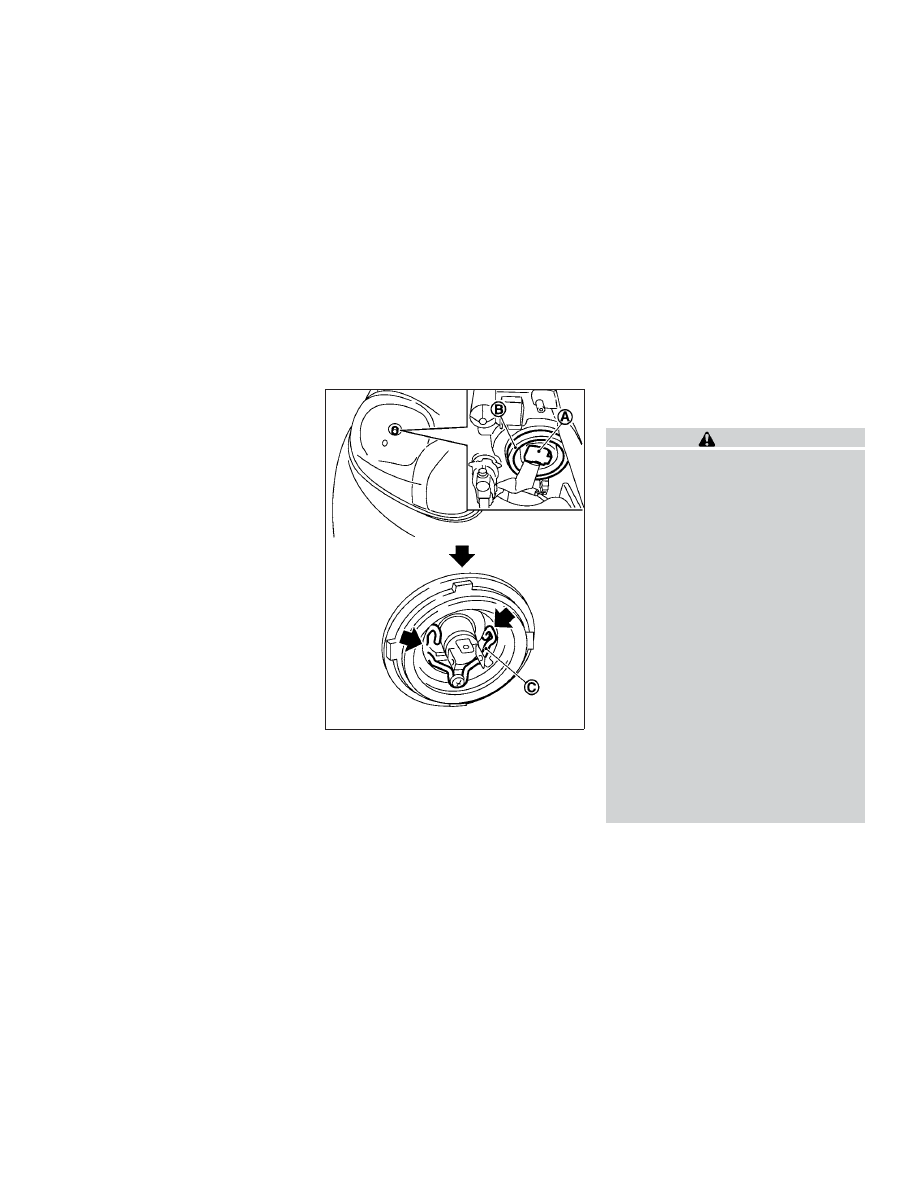

1. Disconnect the battery negative cable.

2. Disconnect the electrical connector

䊊

from the rear end of the bulb.

3. Pull off the rubber cap

䊊

4. Push and turn the retaining pin

䊊

loosen it.

5. Remove the headlight bulb. Do not

shake or rotate the bulb when remov-
ing it.

6. Install the new bulb in the reverse order

of removal.

Fog may temporarily form inside the lens
of the exterior lights in the rain or in a car
wash. A temperature difference between
the inside and the outside of the lens
causes the fog. This is not a malfunction. If
large drops of water collect inside the lens,
it is recommended that you visit a NISSAN
dealer for servicing.

FOG LIGHTS (if so equipped)

For additional information on fog light bulb
replacement, refer to the instructions out-
lined in this section.

Replacing the fog light bulb

If fog light bulb replacement is required, it is
recommended that you visit a NISSAN
dealer for this service.

CAUTION

∙ High pressure halogen gas is sealed

inside the halogen bulb. The bulb may
break

the

glass

envelope

scratched or the bulb is dropped.

∙ When handling the bulb, do not touch

the glass envelope.

∙ Use the same number and wattage as

originally installed as shown in the
chart.

∙ Do not leave the bulb out of the fog

light for a long period of time as dust,
moisture and smoke may enter the
fog light body and affect the perfor-
mance of the fog light.

Do-it-yourself

8-27

EXTERIOR AND INTERIOR LIGHTS

Item

Wattage (W)

Bulb No.

Headlight assembly*

High/Low

60/55

HB2

Turn/Position

28/8

3457A

Side marker

W5W

Fog light (if so equipped)*

H11

Room light

—

Map light

W5W

Trunk light

3.4

158

High-mounted stop light*

Inside (if so equipped)

W16W

Spoiler (if so equipped)

—

Rear combination light*

Turn

PY21W

Stop/Tail

21/5

P21/5W

Backup (reversing)

P21W

License plate light*

W5W

Always check with the Parts Department at a NISSAN dealer for the latest parts informa-
tion.

* It is recommended that you visit a NISSAN dealer for replacement.

8-28

Do-it-yourself

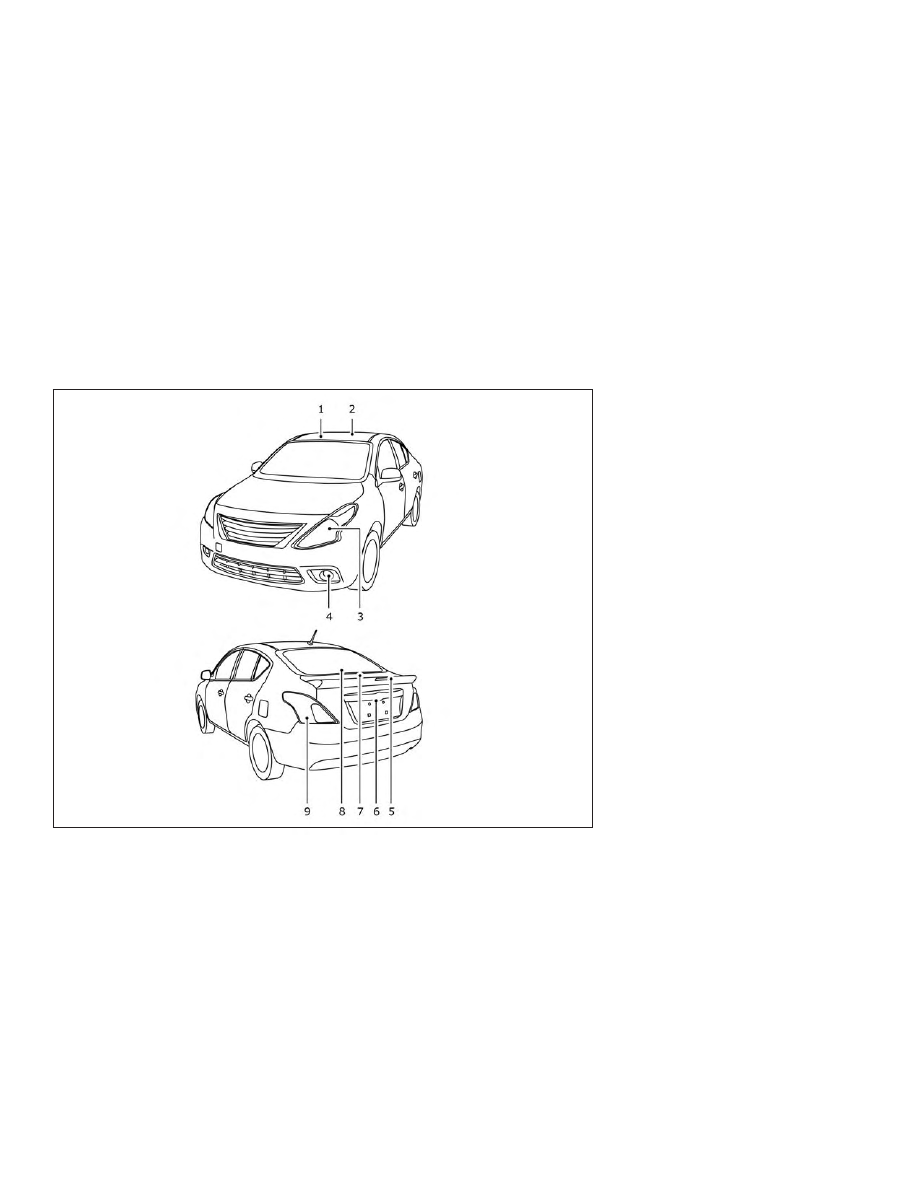

Map light

Room light

Headlight assembly

Fog light (if so equipped)

High-mounted stop light (spoiler)
(if so equipped)

License plate light

Trunk light

High-mounted stop light (inside)
(if so equipped)

Rear combination light

LDI3124

Do-it-yourself

8-29

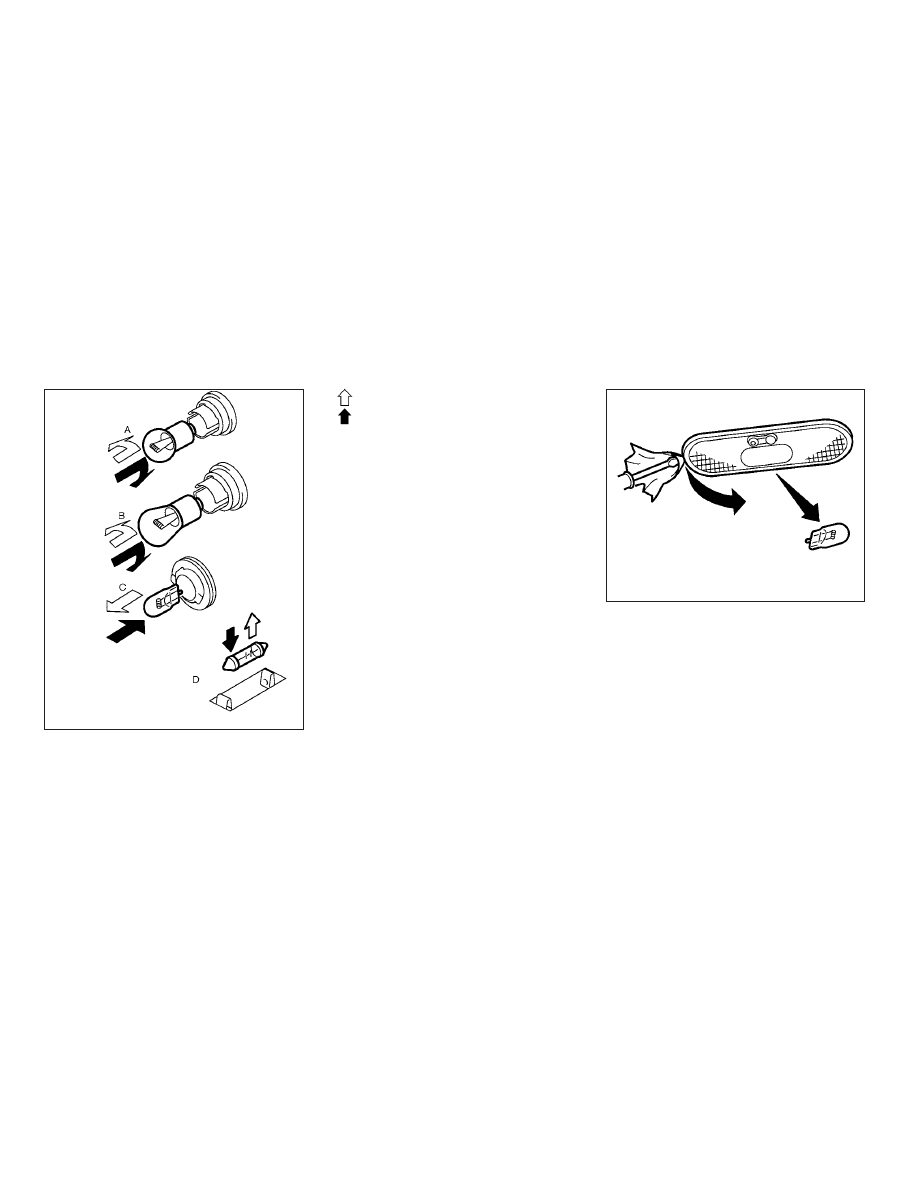

Replacement procedures

All other lights are either type A, B, C or D.
When replacing a bulb, first remove the
lens, lamp and/or cover.

Indicates bulb removal

Indicates bulb installation

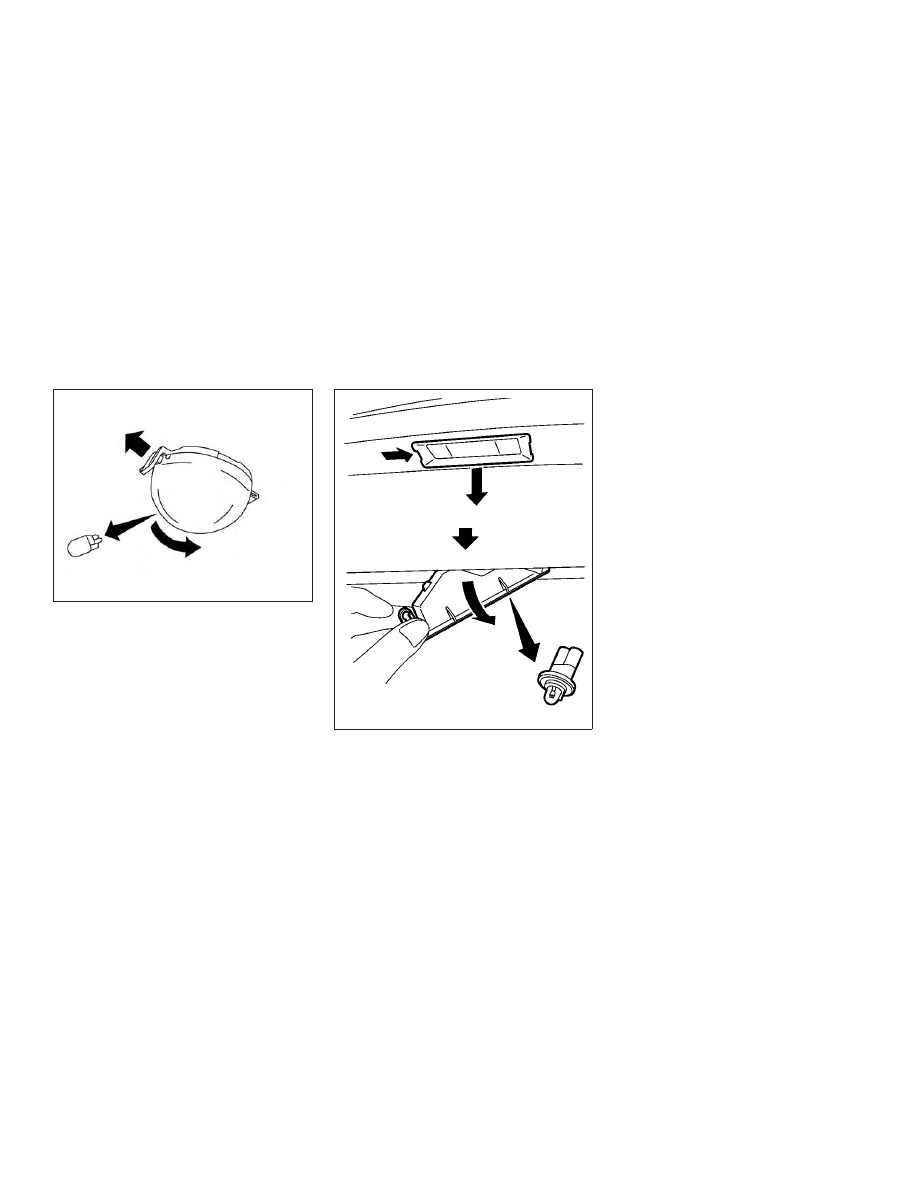

Use a cloth to protect the housing.

SDI1805

Map light

LDI2044

8-30

Do-it-yourself

Trunk light

LDI2135

License plate light

JVC0014X

Do-it-yourself

8-31

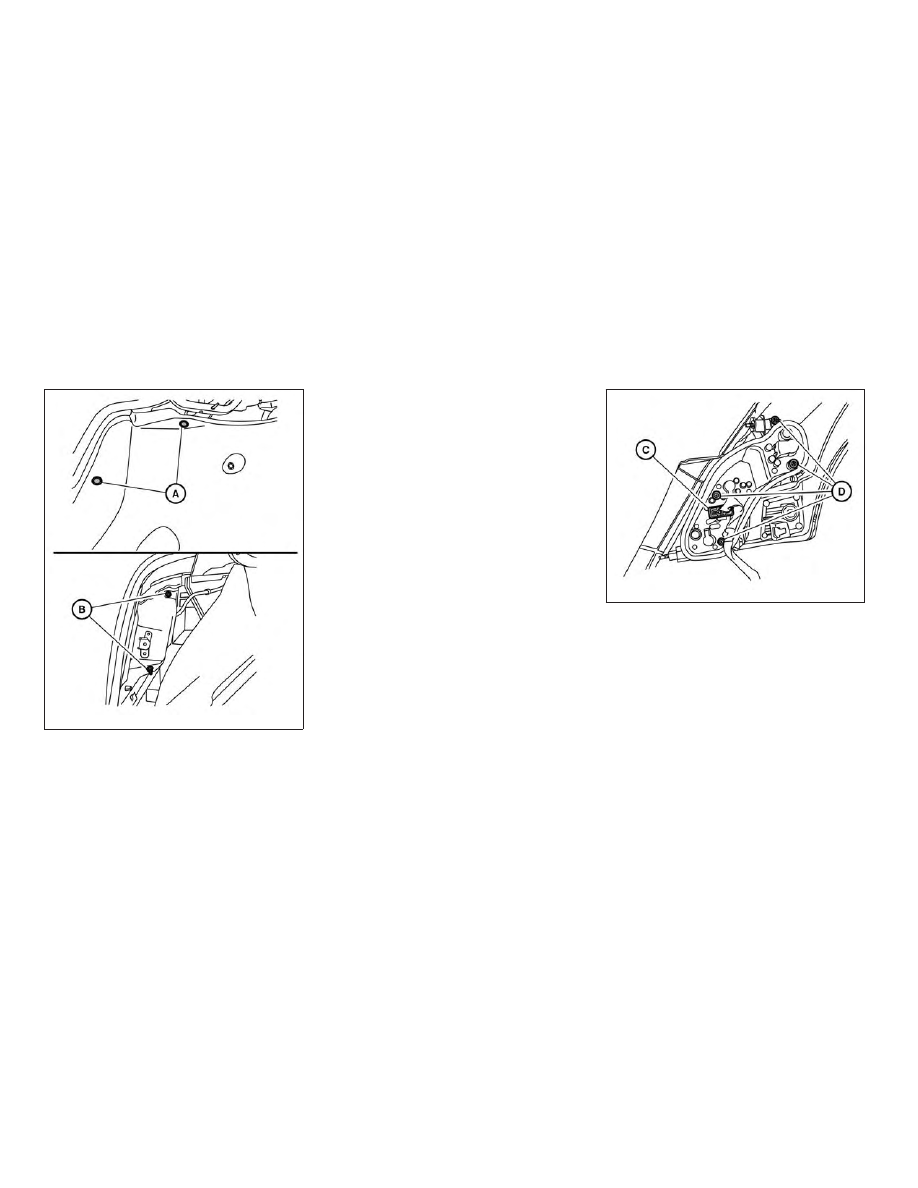

To change the stop/tail, turn signal or
backup (reversing) light bulbs, perform the
following:

1. Disconnect the negative battery cable.

2. Remove the two clips

䊊

and carefully

pull the carpet back.

3. Remove the two nuts

䊊

and the rear

combination light from the vehicle.

4. Disconnect the electrical connector

䊊

from the rear combination light.

5. Remove four screws

䊊

and the hous-

ing from the rear combination light.

6. Replace the necessary bulbs.

Follow the instruction in reverse order to
install the rear combination light and car-
pet.

Rear combination light

LDI2807

LDI2808

8-32

Do-it-yourself

If you have a flat tire, refer to “Flat tire” in
the “In case of emergency” section of
this manual.

TIRE PRESSURE

Tire Pressure Monitoring System
(TPMS)

WARNING

Radio waves could adversely af-
fect electric medical equipment.
Those who use a pacemaker
should contact the electric medi-
cal equipment manufacturer for
the possible influences before
use.

This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS).
It monitors tire pressure of all tires
except the spare. When the low tire
pressure warning light is lit and the
“CHECK TIRE PRES” warning is dis-
played in the odometer, one or more
of your tires is significantly under-
inflated.

The TPMS will activate only when the
vehicle is driven at speeds above

16 mph (25 km/h). Also, this system
may not detect a sudden drop in tire
pressure (for example a flat tire while
driving).

For additional information, refer to
“Low tire pressure warning light” in
the “Instruments and controls” sec-
tion, “Tire Pressure Monitoring Sys-
tem (TPMS)” in the “Starting and driv-
ing” section, and “Flat tire” in the “In
case of emergency” section of this
manual.

Tire inflation pressure

Check the tire pressures (including
the spare) often and always prior to
long distance trips. The recom-
mended tire pressure specifications

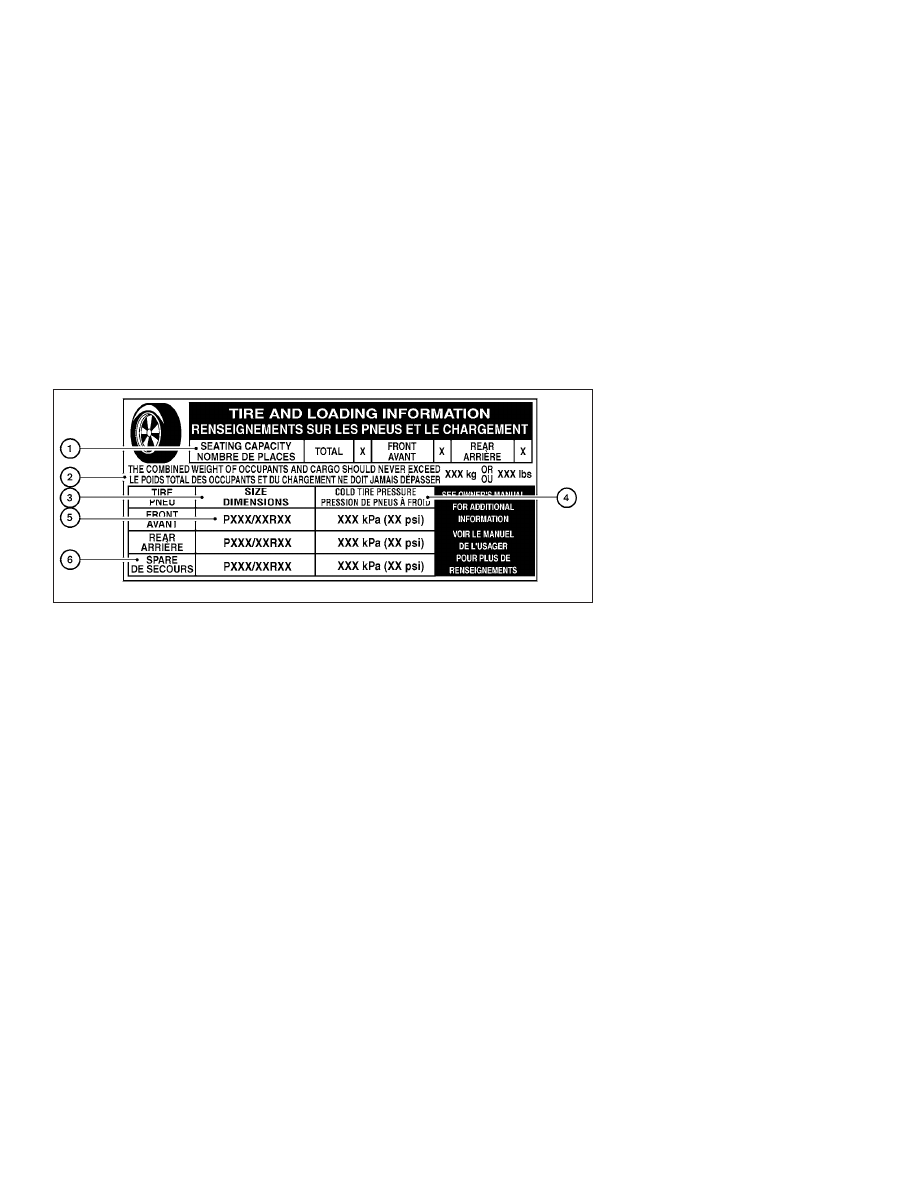

are shown on the F.M.V.S.S. certifica-
tion label or the Tire and Loading
Information label under the “Cold
Tire Pressure” heading. The Tire and
Loading Information label is affixed
to the driver side center pillar. Tire
pressures should be checked regu-
larly because:

∙ Most tires naturally lose air over

time.

∙ Tires can lose air suddenly when

driven over potholes or other ob-
jects or if the vehicle strikes a
curb while parking.

The

tire

pressures

should

checked when the tires are cold. The
tires are considered COLD after the
vehicle has been parked for 3 or
more hours, or driven less than 1 mile
(1.6 km) at moderate speeds.

The TPMS with Easy-Fill Tire Alert (if
so equipped) provides visual and au-
dible signals outside the vehicle for
inflating tires to the recommended
COLD tire pressure. For additional in-
formation, refer to “TPMS with Easy-
Fill Tire Alert” in the “Starting and driv-
ing” section of this manual.

Incorrect tire pressure, including
under inflation, may adversely af-
fect tire life and vehicle handling.

WHEELS AND TIRES

Do-it-yourself

8-33

WARNING

∙ Improperly inflated tires can fail

suddenly

and

cause

accident.

∙ The Gross Vehicle Weight Rating

(GVWR) is located on the F.M-
.V.S.S. certification label. The ve-
hicle weight capacity is indi-
cated on the Tire and Loading
Information label. Do not load
your vehicle beyond this capac-
ity. Overloading your vehicle
may result in reduced tire life,
unsafe

operating

conditions

due to premature tire failure, or
unfavorable handling charac-
teristics and could also lead to a
serious accident. Loading be-
yond

the

specified

capacity

may also result in failure of
other vehicle components.

∙ Before taking a long trip, or

whenever you heavily load your
vehicle, use

tire

pressure

gauge to ensure that the tire
pressures are at the specified
level.

∙ For additional information re-

garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.

8-34

Do-it-yourself

Tire and Loading Information
label

䊊

Seating capacity: The maximum
number of occupants that can
be seated in the vehicle.

䊊

Vehicle load limit: For additional
information, refer

“Vehicle

information”

the

“Technical and consumer infor-
mation” section of this manual.

䊊

Tire size: Refer to “Tire labeling” in
this section.

䊊

Cold tire pressure: Inflate the
tires to this pressure when the
tires are cold. Tires are consid-
ered COLD after the vehicle has
been parked for 3 or more hours,
or driven less than 1 mile (1.6 km)
at moderate speeds. The rec-
ommended cold tire inflation is
set by the manufacturer to pro-
vide the best balance of tire
wear, vehicle handling, driveabil-
ity, tire noise, etc., up to the vehi-
cle’s GVWR.

䊊

Original tire size: The size of the
tires originally installed on the
vehicle at the factory.

䊊

Spare tire size.

LDI2007

Do-it-yourself

8-35

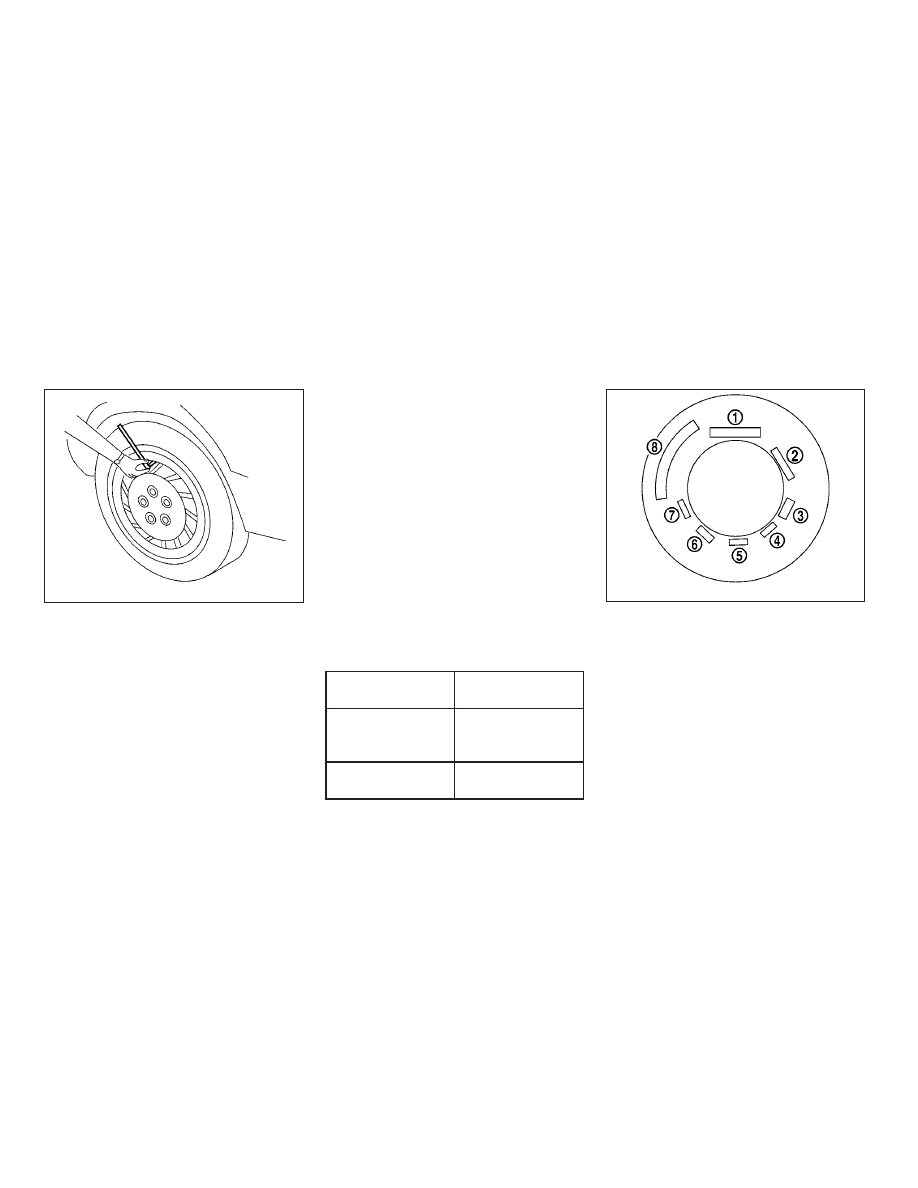

Checking tire pressure

1. Remove the valve stem cap from

the tire.

2. Press

the

pressure

gauge

squarely onto the valve stem. Do
not press too hard or force the
valve stem sideways, or air will
escape. If the hissing sound of air
escaping from the tire is heard
while checking the pressure, re-
position the gauge to eliminate
this leakage.

3. Remove the gauge.

4. Read the tire pressure on the

gauge stem and compare to the
specification shown on the Tire
and Loading Information label.

5. Add air to the tire as needed. If

too much air is added, press the
core of the valve stem briefly
with the tip of the gauge stem to
release pressure. Recheck the
pressure and add or release air
as needed.

6. Install the valve stem cap.

7. Check the pressure of all other

tires, including the spare.

Size

Cold Tire Infla-
tion Pressure

Front and Rear
Original Tires:
P185/65R15

33 PSI, 230 kPa

Spare Tire:
T125/70D15

60 PSI, 420 kPa

TIRE LABELING

Federal law requires tire manufac-
turers to place standardized infor-
mation on the sidewall of all tires.
This information identifies and de-
scribes the fundamental character-
istics of the tire and also provides the
Tire Identification Number (TIN) for
safety standard certification. The TIN
can be used to identify the tire in
case of a recall.

LDI0393

Example

WDI0394

8-36

Do-it-yourself

䊊

Tire size (example: P215/65R15

95H)

1. P: The “P” indicates the tire is de-

signed for passenger vehicles
(not all tires have this informa-
tion).

2. Three-digit number (215): This

number gives the width in milli-
meters of the tire from sidewall
edge to sidewall edge.

3. Two-digit

number

(65):

This

number, known as the aspect
ratio, gives the tire’s ratio of
height to width.

4. R: The “R” stands for radial.

5. Two-digit number (15): This num-

ber is the wheel or rim diameter
in inches.

6. Two- or three-digit number (95):

This number is the tire’s load in-
dex. It is a measurement of how
much weight each tire can sup-
port. You may not find this infor-
mation on all tires because it is
not required by law.

7. H: Tire speed rating. You should

not drive the vehicle faster than
the tire speed rating.

Example

WDI0395

Do-it-yourself

8-37

Content .. 17 18 19 20 ..
