WARNING

∙ The VDC system is designed to help

the driver maintain stability but does
not prevent accidents due to abrupt
steering operation at high speeds or
by careless or dangerous driving
techniques. Reduce vehicle speed and
be especially careful when driving and
cornering on slippery surfaces and al-
ways drive carefully.

∙ Do not modify the vehicle’s suspen-

sion. If suspension parts such as
shock absorbers, struts, springs, sta-
bilizer bars, bushings and wheels are
not NISSAN recommended for your
vehicle or are extremely deteriorated,
the VDC system may not operate
properly. This could adversely affect
vehicle handling performance, and
the

indicator light may flash or

illuminate.

∙ If brake related parts such as brake

pads, rotors and calipers are not
NISSAN recommended or are ex-
tremely deteriorated, the VDC system
may

not

operate

properly

and

the

indicator

light

may

illuminate.

∙ If engine control related parts are not

NISSAN recommended or are ex-
tremely deteriorated, the

indi-

cator light may illuminate.

∙ When driving on extremely inclined

surfaces such as higher banked cor-
ners, the VDC system may not operate
properly and the

indicator light

may flash or illuminate. Do not drive
on these types of roads.

∙ When driving on an unstable surface

such as a turntable, ferry, elevator or
ramp, the

indicator light may

flash or illuminate. This is not a mal-
function. Restart the engine after
driving onto a stable surface.

∙ If wheels or tires other than the

NISSAN recommended ones are used,
the VDC system may not operate
properly and the

indicator light

may flash or illuminate.

∙ The VDC system is not a substitute for

winter tires or tire chains on a snow
covered road.

FREEING A FROZEN DOOR LOCK

To prevent a door lock from freezing, apply
de-icer through the key hole. If the lock
becomes frozen, heat the key before in-
serting it into the key hole or use the re-
mote keyless entry key fob.

ANTIFREEZE

In the winter when it is anticipated that the
temperature will drop below 32°F (0°C),
check the antifreeze to assure proper win-
ter protection. For additional information,
refer to “Engine cooling system” in the “Do-
it-yourself ” section of this manual.

BATTERY

If the battery is not fully charged during
extremely cold weather conditions, the
battery fluid may freeze and damage the
battery. To maintain maximum efficiency,
the battery should be checked regularly.
This vehicle is equipped with a sealed
maintenance free battery. It is recom-
mended that you visit a NISSAN dealer for
service.

COLD WEATHER DRIVING

5-34

Starting and driving

DRAINING OF COOLANT WATER

If the vehicle is to be left outside without
antifreeze, drain the cooling system, includ-
ing the engine block. Refill before operating
the vehicle. For additional information, refer
to “Changing engine coolant” in the “Do-it-
yourself ” section of this manual.

TIRE EQUIPMENT

1. SUMMER tires have a tread designed to

provide superior performance on dry
pavement. However, the performance
of these tires will be substantially re-
duced in snowy and icy conditions. If
you operate your vehicle on snowy or
icy roads, NISSAN recommends the use
of MUD & SNOW or ALL SEASON TIRES
on all four wheels. It is recommended
that you visit a NISSAN dealer for the tire
type, size, speed rating and availability
information.

2. For additional traction on icy roads,

studded tires may be used. However,
some U.S. states and Canadian prov-
inces prohibit their use. Check local,
state and provincial laws before install-
ing studded tires.

Skid and traction capabilities of studded
snow tires on wet or dry surfaces may be
poorer than that of non-studded snow
tires.

3. Tire chains may be used. For additional

information, refer to “Tire chains” in the
“Do-it-yourself ” section of this manual.

SPECIAL WINTER EQUIPMENT

It is recommended that the following items
be carried in the vehicle during winter:

∙ A scraper and stiff-bristled brush to re-

move ice and snow from the windows
and wiper blades.

∙ A sturdy, flat board to be placed under

the jack to give it firm support.

∙ A shovel to dig the vehicle out of snow-

drifts.

∙ Extra

washer

fluid

to

refill

the

windshield-washer fluid reservoir.

DRIVING ON SNOW OR ICE

WARNING

∙ Wet ice (32°F, 0°C and freezing rain),

very cold snow or ice can be slick and
very hard to drive on. The vehicle will
have much less traction or “grip” un-
der these conditions. Try to avoid driv-
ing on wet ice until the road is salted
or sanded.

∙ Whatever the condition, drive with

caution. Accelerate and slow down
with care. If accelerating or down-
shifting too fast, the drive wheels will
lose even more traction.

∙ Allow more stopping distance under

these conditions. Braking should be
started sooner than on dry pavement.

∙ Allow greater following distances on

slippery roads.

∙ Watch for slippery spots (glare ice).

These may appear on an otherwise
clear road in shaded areas. If a patch
of ice is seen ahead, brake before
reaching it. Try not to brake while on
the ice, and avoid any sudden steering
maneuvers.

Starting and driving

5-35

∙ Do not use the cruise control (if so

equipped) on slippery roads.

∙ Snow can trap dangerous exhaust

gases under your vehicle. Keep snow
clear of the exhaust pipe and from
around your vehicle.

5-36

Starting and driving

Push the switch on to warn other drivers
when you must stop or park under emer-
gency conditions. All turn signal lights flash.

WARNING

∙ If stopping for an emergency, be sure

to move the vehicle well off the road.

∙ Do not use the hazard warning flash-

ers while moving on the highway un-
less unusual circumstances force you
to drive so slowly that your vehicle
might become a hazard to other
traffic.

∙ Turn signals do not work when the

hazard warning flasher lights are on.

The flashers will operate with the ignition
switch placed in any position.

Some jurisdictions may prohibit the use
of the hazard warning flasher switch
while driving.

TIRE PRESSURE MONITORING
SYSTEM (TPMS)

This vehicle is equipped with the Tire Pres-
sure Monitoring System (TPMS). It monitors
tire pressure of all tires except the spare.
When the low tire pressure warning light is
lit, and the CHECK TIRE PRES (pressure)
warning message is displayed in the trip
computer, one or more of your tires is sig-
nificantly under-inflated. If the vehicle is be-
ing driven with low tire pressure, the TPMS
will activate and warn you of it by the low
tire pressure warning light. This system will
activate only when the vehicle is driven at
speeds above 16 mph (25 km/h). For addi-
tional information, refer to “Warning lights,
indicator lights and audible reminders” in
the “Instruments and controls” section, and
“Tire Pressure Monitoring System (TPMS)” in
the “Starting and driving” section of this
manual.

WARNING

∙ Radio waves could adversely affect

electric medical equipment. Those
who use a pacemaker should contact
the

electric

medical

equipment

manufacturer for the possible influ-
ences before use.

LIC0394

HAZARD WARNING FLASHER SWITCH

FLAT TIRE

6-2

In case of emergency

∙ If the low tire pressure warning light

illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull off
the road to a safe location and stop
the vehicle as soon as possible. Driv-
ing with under-inflated tires may per-
manently damage the tires and in-
crease the likelihood of tire failure.
Serious vehicle damage could occur
and may lead to an accident and could
result

in

serious

personal

injury.

Check the tire pressure for all four
tires. Adjust the tire pressure to the
recommended COLD tire pressure
shown on the Tire and Loading Infor-
mation label to turn the low tire pres-
sure warning light OFF. If you have a
flat tire, replace it with a spare tire as
soon as possible.

∙ When replacing a wheel without the

TPMS such as the spare tire, the TPMS
will not function and the low tire pres-
sure warning light will flash for ap-
proximately 1 minute. The light will re-
main on after 1 minute. Have your
tires replaced and/or TPMS system
reset as soon as possible. It is recom-
mended that you visit a NISSAN dealer
for these services.

∙ Do not inject any tire liquid or aerosol

tire sealant into the tires, as this may
cause a malfunction of the tire pres-
sure sensors.

∙ Replacing tires with those not origi-

nally specified by NISSAN could affect
the proper operation of the TPMS.

CHANGING A FLAT TIRE

If you have a flat tire, follow the instructions
below:

Stopping the vehicle

1. Safely move the vehicle off the road and

away from traffic.

2. Turn on the hazard warning flashers.

3. Park on a level surface and apply the

parking brake. Shift the manual trans-
mission into R (Reverse) or the Continu-
ously Variable Transmission (CVT) into
P (Park).

4. Turn off the engine.

5. Raise the hood to warn other traffic

and to signal professional road assis-
tance personnel that you need assis-
tance.

6. Have all passengers get out of the ve-

hicle and stand in a safe place, away
from traffic and clear of the vehicle.

WARNING

∙ Make sure the parking brake is se-

curely applied and the manual trans-
mission is shifted into R (Reverse), or
the Continuously Variable Transmis-
sion (CVT) into P (Park).

∙ Never change tires when the vehicle is

on a slope, ice or slippery areas. This is
hazardous.

∙ Never change tires if oncoming traffic

is close to your vehicle. Wait for pro-
fessional road assistance.

In case of emergency

6-3

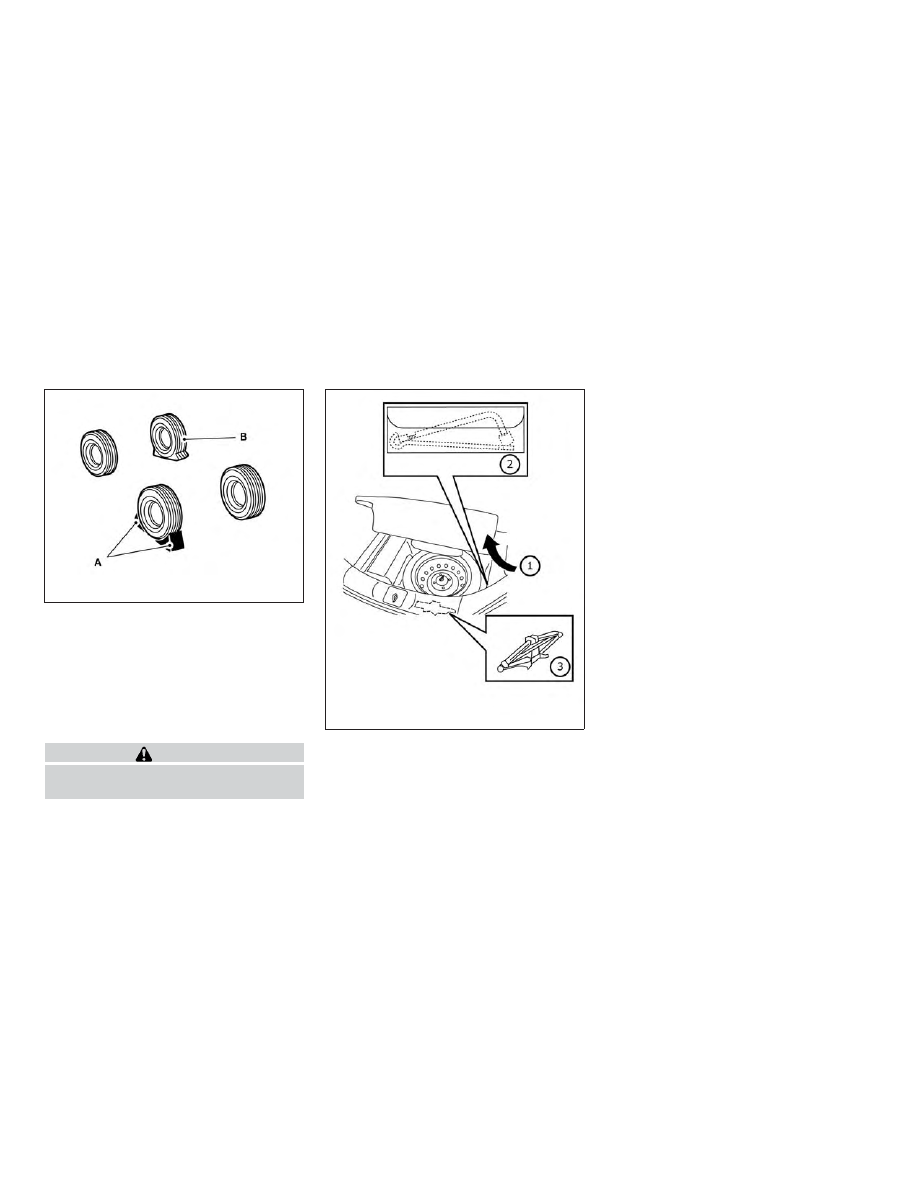

A.

Blocks

B.

Flat tire

Blocking wheels

Place suitable blocks at both the front and
back of the wheel diagonally opposite the
flat tire to prevent the vehicle from moving
when it is jacked up.

WARNING

Be sure to block the wheel as the vehicle
may move and result in personal injury.

Getting the spare tire and tools

Open the trunk. Lift the floorboard

1

.

Remove the bag containing the jacking rod
and wheel nut wrench.

2

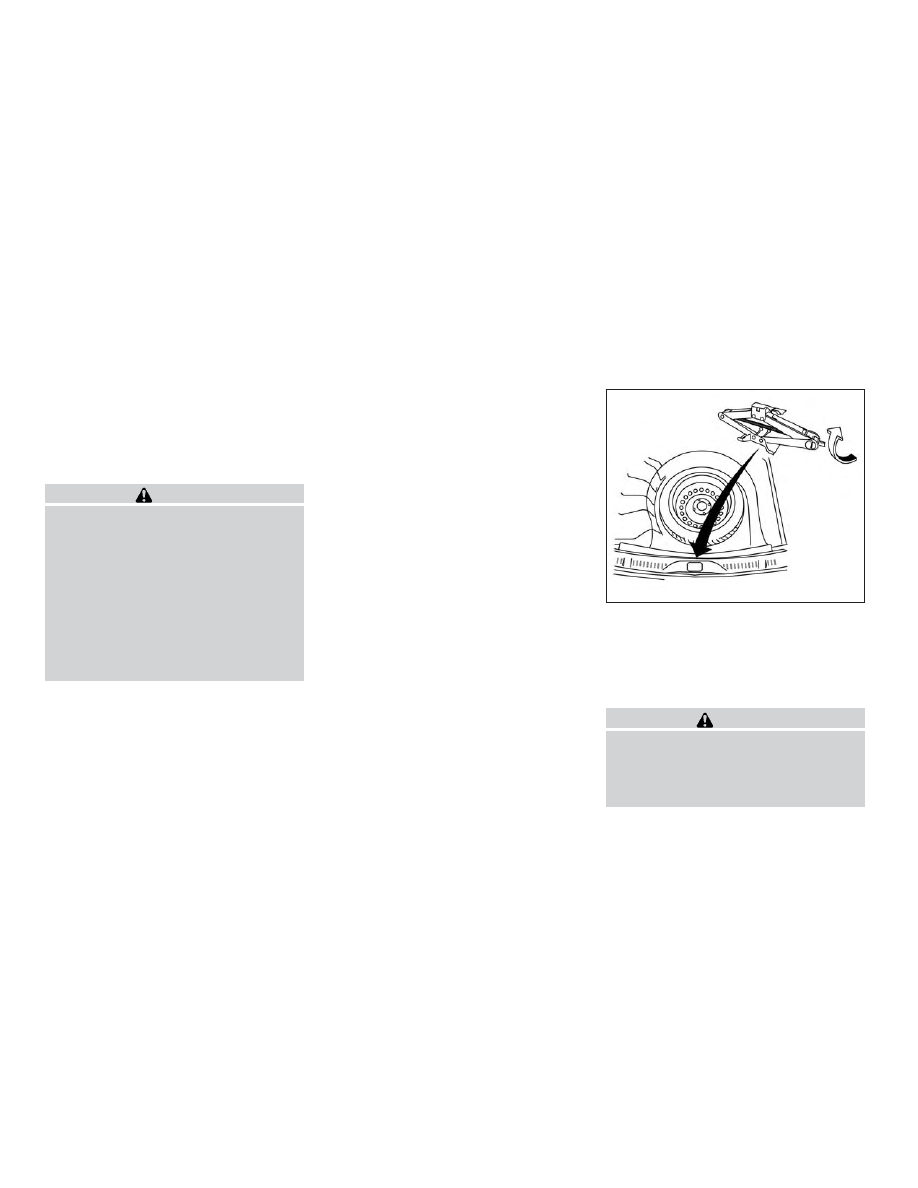

To remove the jack

3

, collapse the jack

from the storage location. If necessary, re-
move the spare tire first to easily access
the jack.

LCE2142

LCE2418

6-4

In case of emergency

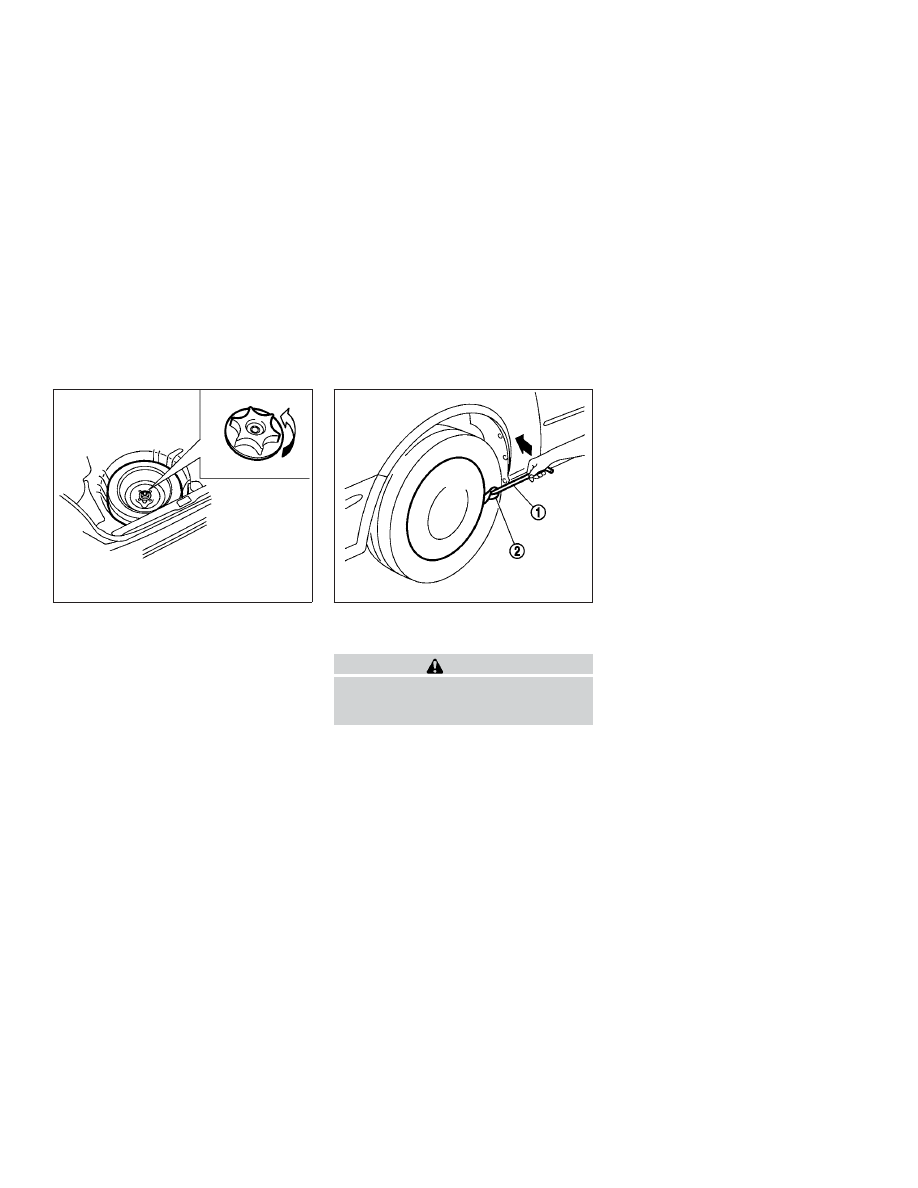

To remove the spare tire, loosen the bolt by
turning counterclockwise. Once free, re-
move the bolt. Remove the spare tire.

Removing wheel cover (if so
equipped)

CAUTION

Do not use your hands to pry off wheel
caps or wheel covers. Doing so could
result in personal injury.

To remove the wheel cover, use the jacking
rod

1

as illustrated.

Apply cloth

2

between the wheel and

jacking rod to prevent damaging the wheel
and wheel cover.

Use caution not to scratch the wheel cover
or wheel surface.

SCE0913

SCE0630

In case of emergency

6-5

Jacking up vehicle and removing
the damaged tire

WARNING

∙ Never get under the vehicle while it is

supported only by the jack. If it is nec-
essary to work under the vehicle, sup-
port it with safety stands.

∙ Use only the jack provided with your

vehicle to lift the vehicle. Do not use
the jack provided with your vehicle on
other vehicles. The jack is designed
for lifting only your vehicle during a
tire change.

∙ Use the correct jack-up points. Never

use any other part of the vehicle for
jack support.

∙ Never jack up the vehicle more than

necessary.

∙ Never use blocks on or under the jack.

∙ Do not start or run the engine while

vehicle is on the jack. It may cause the
vehicle to move. This is especially true
for

vehicles

with

limited

slip

differentials.

∙ Do not allow passengers to stay in the

vehicle while it is on the jack.

∙ Never run the engine with a wheel(s)

off the ground. It may cause the ve-
hicle to move.

LCE2235

6-6

In case of emergency

Always refer to the proper illustrations for
the correct placement and jack-up points
for your specific vehicle model and jack
type.

Carefully read the caution label attached
to the jack body and the following in-
structions.

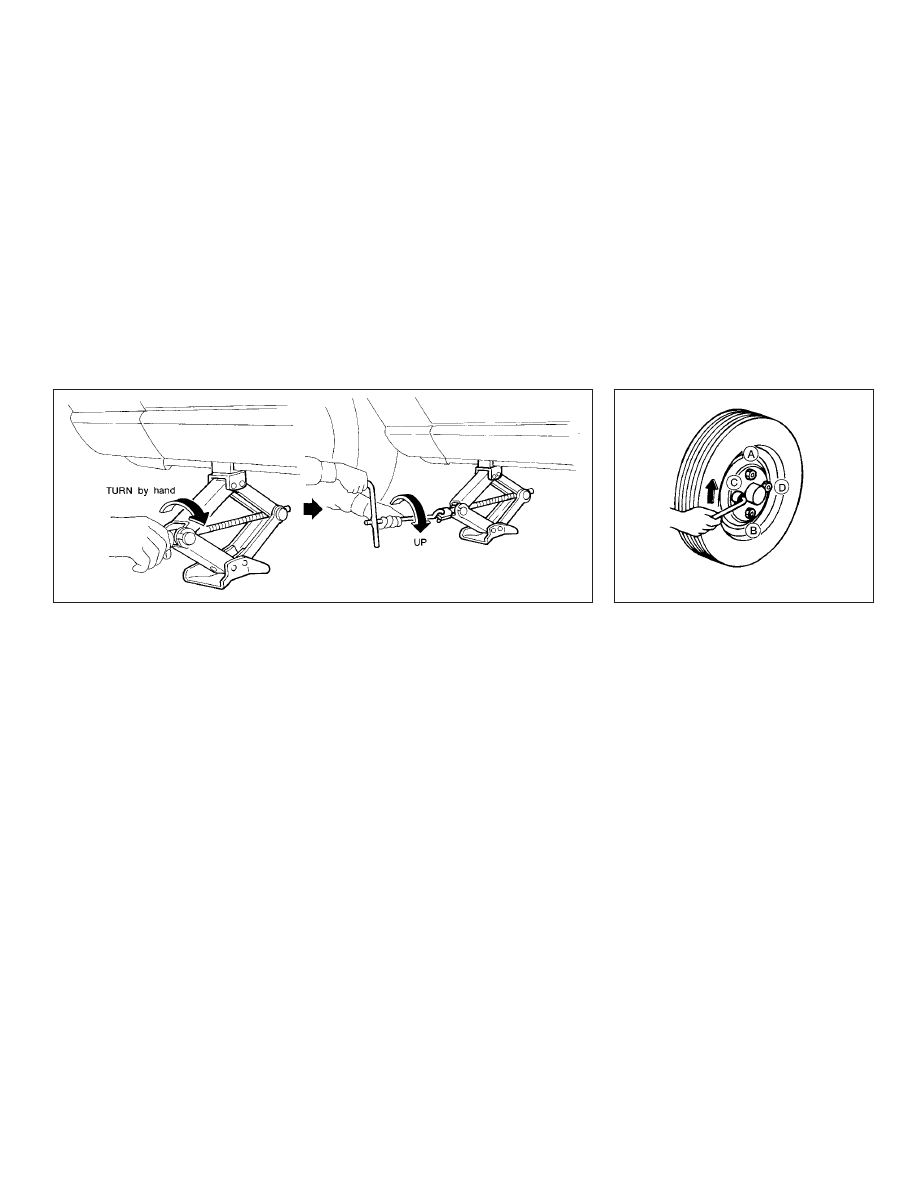

1. Loosen each wheel nut 1 or 2 turns by

turning

counterclockwise

with

the

wheel nut wrench. Do not remove the
wheel nuts until the tire is off the
ground.

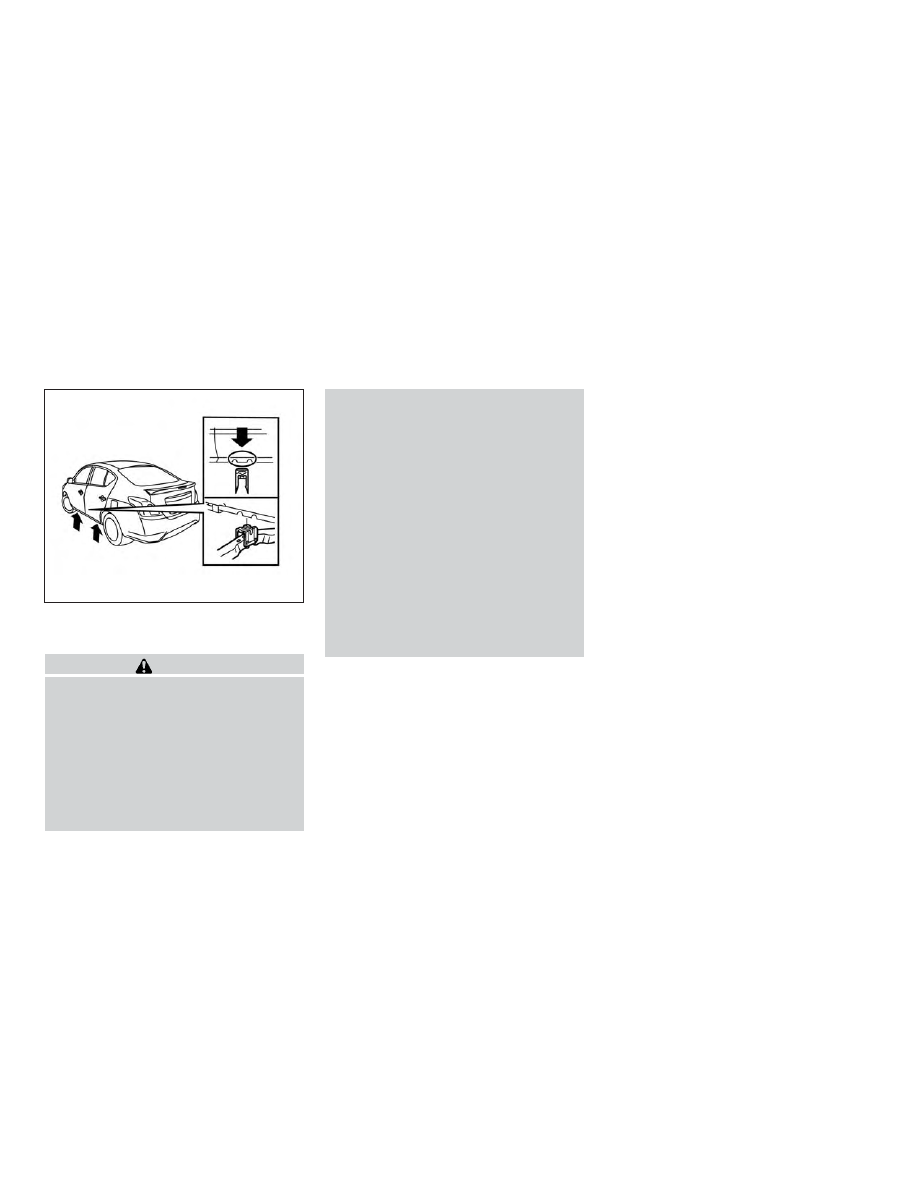

2. Place the jack directly under the

jack-up point as illustrated so the top
of the jack contacts the vehicle at the
jack-up point. Align the jack head be-
tween the 2 notches in the front or the
rear. Also fit the groove of the jack head
between the notches.

The jack should be used on firm and
level ground.

3. To lift the vehicle, securely hold the jack

lever and rod with both hands. Carefully
raise the vehicle until the tire clears the
ground. Remove the wheel nuts, and
then remove the tire.

Installing the spare tire

The spare tire is designed for emergency
use. For additional information, refer to
“Wheels and tires” in the “Do-it-yourself ”
section of this manual.

1. Clean any mud or dirt from the surface

between the wheel and hub.

2. Carefully put the spare tire on and

tighten the wheel nuts finger tight.

3. With the wheel nut wrench, tighten

wheel nuts alternately and evenly in the
sequence illustrated (

A

,

B

,

C

,

D

) until

they are tight.

SCE0002

WCE0048

In case of emergency

6-7

4. Lower the vehicle slowly until the tire

touches the ground. Then, with the
wheel nut wrench, tighten the wheel
nuts securely in the sequence as illus-
trated (

A

,

B

,

C

,

D

). Lower the vehicle

completely.

WARNING

∙ Incorrect wheel nuts or improperly

tightened wheel nuts can cause the
wheel to become loose or come off.
This could cause an accident.

∙ Do not use oil or grease on the wheel

studs or nuts. This could cause the
nuts to become loose.

∙ Retighten the wheel nuts when the

vehicle has been driven for 600 miles
(1,000 km) (also in cases of a flat tire,
etc.).

As soon as possible, tighten the wheel
nuts to the specified torque with a
torque wrench.

Wheel nut tightening torque:

83 ft-lb (113 N·m)

The wheel nuts must be kept tightened
to specification at all times. It is recom-
mended that wheel nuts be tightened to
specification at each lubrication interval.

Adjust tire pressure to the COLD pres-
sure.

COLD pressure: After vehicle has been
parked for 3 hours or more or driven less
than 1 mi (1.6 km).

COLD tire pressures are shown on the
Tire and Loading Information Label.

5. Securely store the flat tire in the vehicle.

NOTE:

You may need to remove the wheel cap
(if so equipped) to secure the damaged
tire using the spare tire clamp.

6. Install the jack in its storage area and

tighten the jack screw clockwise.

7. Place the spare tire cover and the trunk

floor carpeting over the damaged tire.

8. Close the trunk.

WARNING

∙ Always make sure that the spare tire

and jacking equipment are properly
secured after use. Such items can be-
come dangerous projectiles in an ac-
cident or sudden stop.

WCE0157

6-8

In case of emergency

∙ The spare tire is designed for emer-

gency use. For additional information,
refer to specific instructions under
the heading “Wheels and tires” in the
“Do-it-yourself ”

section

of

this

manual.

To start your engine with a booster battery,
the instructions and precautions below
must be followed.

WARNING

∙ If done incorrectly, jump starting can

lead to a battery explosion, resulting
in severe injury or death. It could also
damage your vehicle.

∙ Explosive hydrogen gas is always

present in the vicinity of the battery.
Keep all sparks and flames away from
the battery.

∙ Do not allow battery fluid to come into

contact with eyes, skin, clothing or
painted surfaces. Battery fluid is a
corrosive sulfuric acid solution which
can cause severe burns. If the fluid
should come into contact with any-
thing, immediately flush the con-
tacted area with water.

∙ Keep battery out of the reach of

children.

∙ The booster battery must be rated at

12 volts. Use of an improperly rated
battery can damage your vehicle.

∙ Whenever working on or near a bat-

tery, always wear suitable eye protec-
tors (for example, goggles or indus-
trial safety spectacles) and remove
rings, metal bands, or any other jew-
elry. Do not lean over the battery
when jump starting.

∙ Do not attempt to jump start a frozen

battery. It could explode and cause
serious injury.

∙ Your vehicle has an automatic engine

cooling fan. It could come on at any
time. Keep hands and other objects
away from it.

JUMP STARTING

In case of emergency

6-9

WARNING

Always follow the instructions below.
Failure to do so could result in damage
to the charging system and cause per-
sonal injury.

1. If the booster battery is in another ve-

hicle, position the 2 vehicles to bring
their batteries near each other.

Do not allow the 2 vehicles to touch.

2. Apply the parking brake. Move the shift

lever to N (Neutral) (manual transmis-
sion) or to P (Park) (Continuously Vari-
able Transmission (CVT)). Switch off all

unnecessary electrical systems (lights,
heater, air conditioner, etc.).

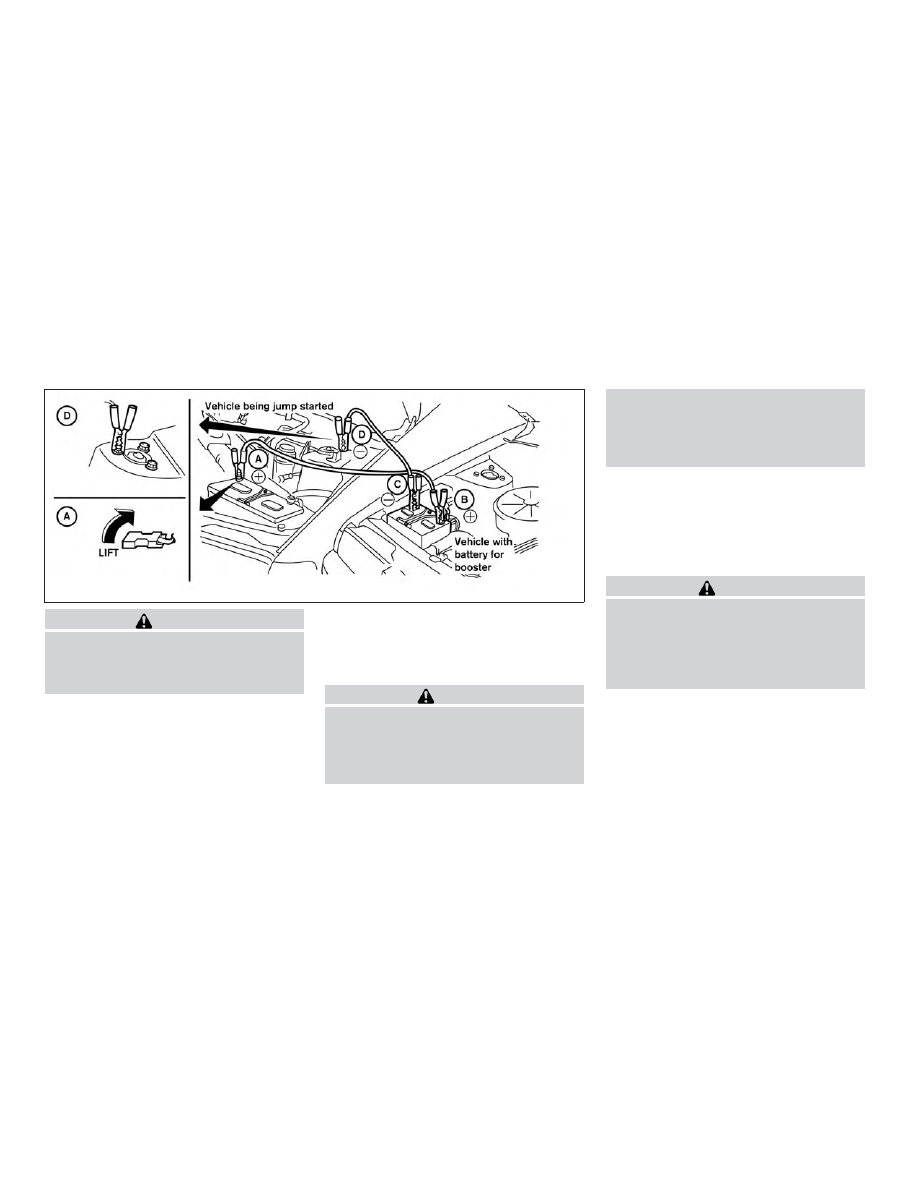

3. Connect jumper cables in the se-

quence illustrated (

A

,

B

,

C

,

D

).

CAUTION

∙ Always connect positive (

) to posi-

tive (

) and negative () to body

ground (for example, strut mounting
bolt, engine lift bracket, etc.) — not to
the battery.

∙ Make sure the jumper cables do not

touch moving parts in the engine
compartment and that the cable
clamps do not contact any other
metal.

4. Start the engine of the booster vehicle

and let it run for a few minutes.

5. Keep the engine speed of the booster

vehicle at about 2,000 rpm, and start
the engine of the vehicle being jump
started.

CAUTION

Do not keep the starter motor engaged
for more than 15 seconds. If the engine
does not start, place the ignition switch
in the OFF position and wait 10 seconds
before trying again, otherwise the
starter could be damaged.

6. After starting the engine, carefully dis-

connect the negative cable and then
the positive cable.

LCE2223

6-10

In case of emergency

CAUTION

∙ Do not push start this vehicle. The

three-way catalyst may be damaged.

∙ Continuously Variable Transmission

(CVT) and manual transmission mod-
els cannot be push-started or tow-
started. Attempting to do so may
cause transmission damage.

∙ For

manual

transmission

models,

never try to start the vehicle by tow-
ing it. When the engine starts, the for-
ward surge could cause the vehicle to
collide with the tow vehicle.

∙ Continuously Variable Transmission

(CVT) models cannot be push-started
or tow-started. Attempting to do so
may cause transmission damage.

If your vehicle is overheating, indicated by
an extremely high temperature gauge
reading (if so equipped) or a red high tem-
perature

warning

light

(if

so

equipped), or if you feel a lack of engine
power, detect abnormal noise, etc. take the
following steps.

WARNING

∙ Do not continue to drive if your vehicle

overheats. Doing so could cause en-
gine damage or a vehicle fire.

∙ To avoid the danger of being scalded,

never remove the radiator cap while
the engine is still hot. When the radia-
tor cap is removed, pressurized hot
water will spurt out, possibly causing
serious injury.

∙ Do not open the hood if steam is com-

ing out.

1. Move the vehicle safely off the road, ap-

ply the parking brake and move the
shift lever to N (Neutral) (manual trans-
mission) or to P (Park) (Continuously
Variable Transmission).

Do not stop the engine.

2. Turn off the air conditioner. Open all the

windows, move the heater or air condi-
tioner temperature control to maxi-
mum hot and fan control to high
speed.

3. Get out of the vehicle. Look and listen

for steam or coolant escaping from the
radiator before opening the hood. (If
steam or coolant is escaping, turn off
the engine). Do not open the hood fur-
ther until no steam or coolant can be
seen.

4. Open the engine hood.

WARNING

If steam or water is coming from the
engine, stand clear to prevent getting
burned.

5. Visually check drive belts for damage

or looseness. Also check if the cooling
fan is running. The radiator hoses and
radiator should not leak water. If cool-
ant is leaking, the water pump belt is
missing or loose, or the cooling fan
does not run, stop the engine.

PUSH STARTING

IF YOUR VEHICLE OVERHEATS

In case of emergency

6-11

WARNING

Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or
the engine cooling fan. The engine cool-
ing fan can start at any time.

6. After the engine cools down, check the

coolant level in the engine coolant res-
ervoir tank with the engine running.
Add coolant to the engine coolant res-
ervoir tank if necessary. Have your ve-
hicle repaired. It is recommended that
you visit a NISSAN dealer for this ser-
vice.

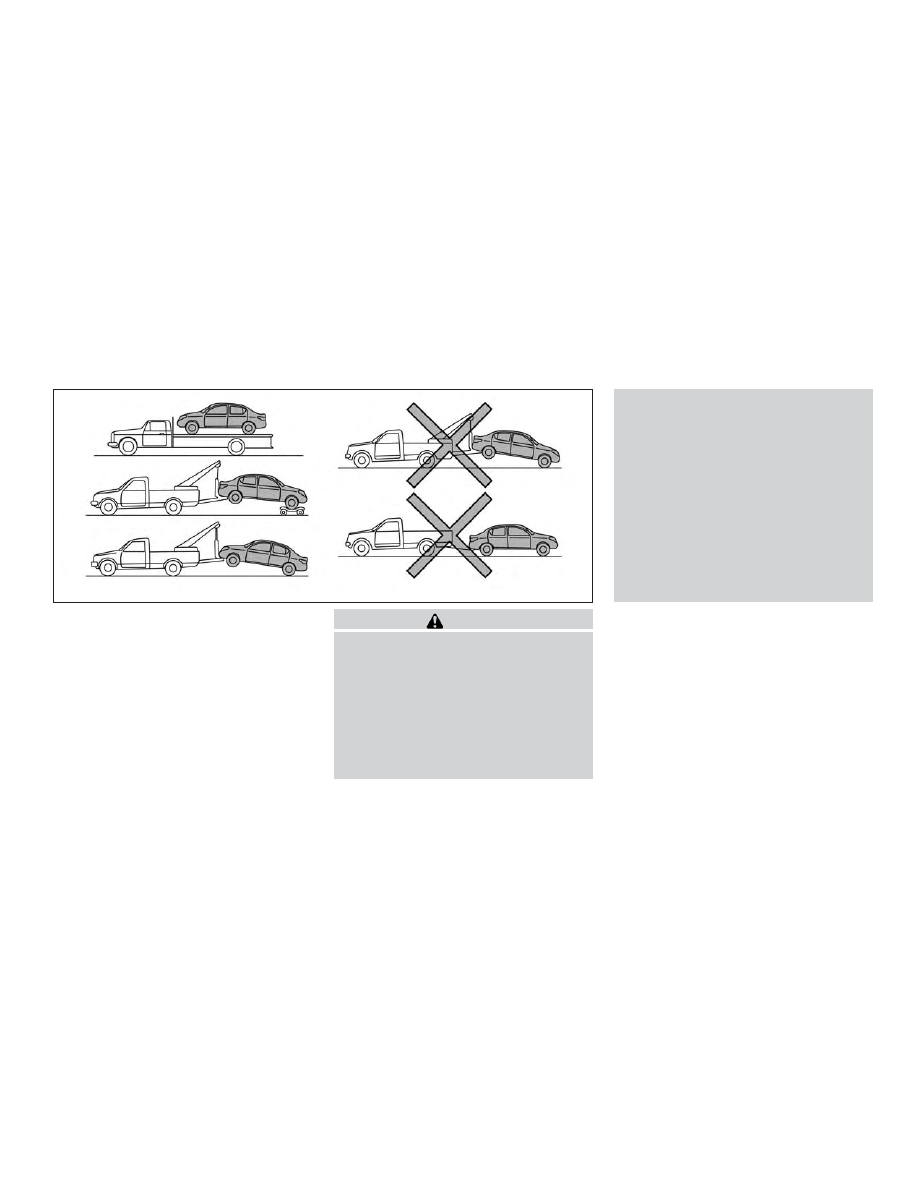

When towing your vehicle, all State (Provin-
cial in Canada) and local regulations for
towing must be followed. Incorrect towing
equipment could damage your vehicle.
Towing instructions are available from a
NISSAN dealer. Local service operators are
generally familiar with the applicable laws
and procedures for towing. To assure
proper towing and to prevent accidental
damage to your vehicle, NISSAN recom-
mends having a service operator tow your
vehicle. It is advisable to have the service
operator carefully read the following pre-
cautions:

WARNING

∙ Never ride in a vehicle that is being

towed.

∙ Never get under your vehicle after it

has been lifted by a tow truck.

CAUTION

∙ When towing, make sure that the

transmission, axles, steering system
and powertrain are in working condi-
tion. If any of these conditions apply,
dollies or a flatbed tow truck must be
used.

∙ Always attach safety chains before

towing.

For additional information, refer to “Flat
towing” in the “Technical and Consumer In-
formation” section of this manual.

TOWING RECOMMENDED BY
NISSAN

NISSAN recommends towing your vehicle
based upon the type of drivetrain. For addi-
tional information, refer to the diagrams in
this section to ensure that your vehicle is
properly towed.

TOWING YOUR VEHICLE

6-12

In case of emergency

Two-Wheel Drive models with
Continuously Variable
Transmission (CVT)

NISSAN recommends that your vehicle be
towed with the driving (front) wheels off the
ground or place the vehicle on a flatbed
truck as illustrated.

CAUTION

∙ Never

tow

Continuously

Variable

Transmission (CVT) models with the
front wheels on the ground or four
wheels on the ground (forward or
backward), as this may cause serious
and expensive damage to the trans-
mission. If it is necessary to tow the
vehicle with the rear wheels raised al-
ways use towing dollies under the
front wheels.

∙ When towing Continuously Variable

Transmission (CVT) models with the
rear wheels on the ground or on tow-
ing dollies:

– Place the ignition switch in the OFF

position, and secure the steering
wheel in a straight-ahead position
with a rope or similar device. Never
secure the steering wheel by plac-
ing the ignition switch in the LOCK
position. This may damage the
steering

lock

mechanism

(for

models

with

a

steering

lock

mechanism).

LCE2345

In case of emergency

6-13















Content   ..  14  15  16  17   ..
