Loose Fuel Cap warning message

The LOOSE FUEL CAP warning message dis-
plays in the odometer when the fuel-filler cap is
not tightened correctly after the vehicle has been
refueled. It may take a few driving trips for the
message to be displayed. To turn off the warning
message, perform the following:

1. Remove and install the fuel-filler cap as pre-

viously described as soon as possible.

2. Tighten the fuel-filler cap until it clicks.

3. Press the loose fuel cap warning reset but-

ton

䊊

in the meter for about 1 second to

turn off the LOOSE FUEL CAP warning
message after tightening the fuel-filler cap.

TILT OPERATION

Push the lock lever

䊊

down and adjust the

steering wheel up or down

䊊

to the desired

position.

Pull the lock lever

䊊

up to lock the steering

wheel in place.

WARNING

Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.

䊊

To block glare from the front, swing down the
sun visor.

䊊

To block glare from the side, remove the sun
visor from the center mount and swing the
visor to the side.

䊊

Slide the extension sun visor in or out as
needed.

LPD2025

LPD0355

WPD0315

STEERING WHEEL

SUN VISORS

Pre-driving checks and adjustments

3-29

CAUTION

● Do not store the sun visor before return-

ing

the

extension

its

original

position.

● Do not pull the extension sun visor forc-

ibly downward.

VANITY MIRROR (if so equipped)

To access the vanity mirror, pull the sun visor
down and flip open the mirror cover.

REARVIEW MIRROR

The night position

䊊

reduces glare from the

headlights of vehicles behind you at night.

Use the day position

䊊

when driving in daylight

hours.

WARNING

Use the night position only when neces-
sary, because it reduces rear view clarity.

SPA1733

WPD0126

MIRRORS

3-30

Pre-driving checks and adjustments

OUTSIDE MIRRORS

WARNING

● Objects viewed in the outside mirror on

the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.

● Do not adjust the mirrors while driving.

You could lose control of your vehicle
and cause an accident.

Electric control type

The outside mirror remote control will operate
only when the ignition switch is in the ACC or ON
position.

Move the small switch

䊊

to select the right or left

mirror. Adjust each mirror to the desired position
using the large switch

䊊

WARNING

● Objects viewed in the outside mirror on

● Do not adjust the mirrors while driving.

You could lose control of your vehicle
and cause an accident.

LPD0237

Pre-driving checks and adjustments

3-31

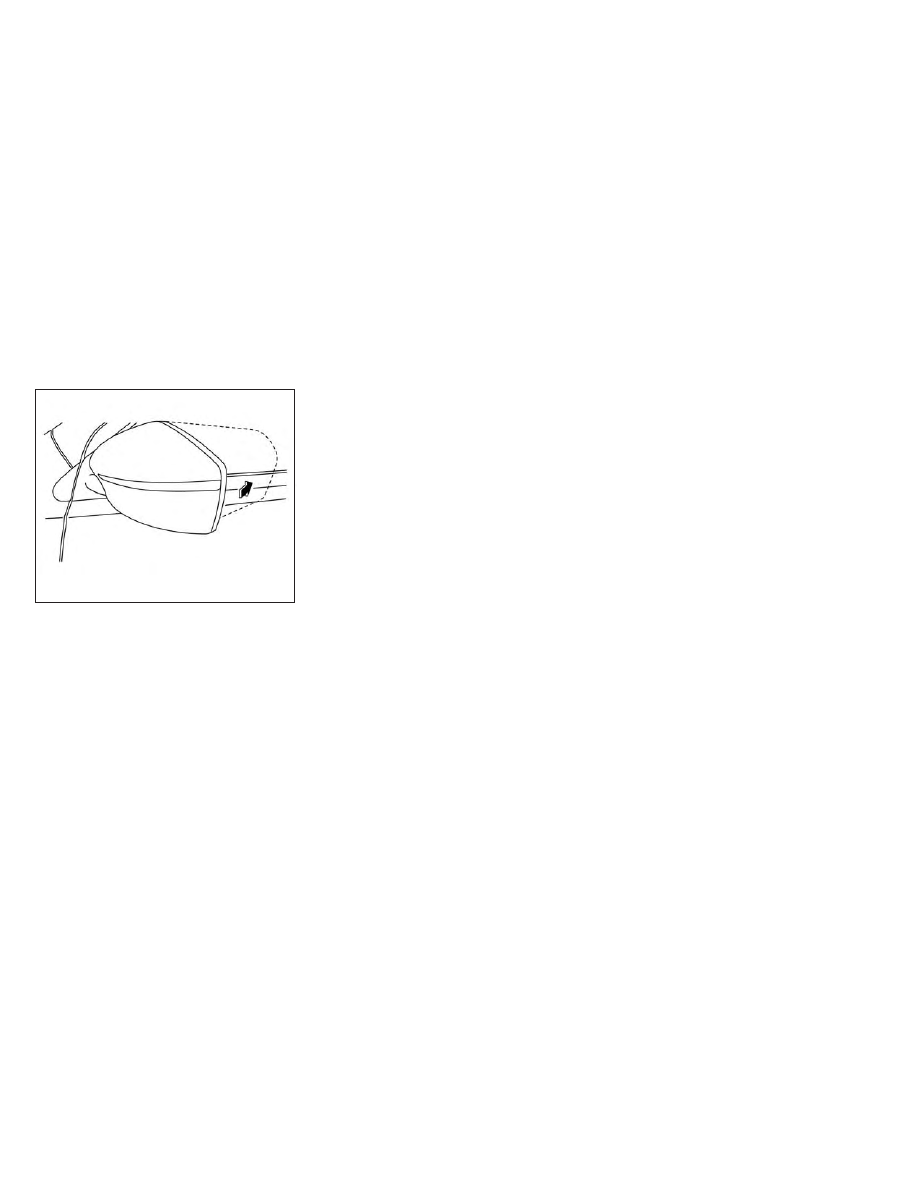

Manual folding outside mirrors

Pull the outside mirror toward the door to fold it.

Heated mirrors (Canada only)

Some outside mirrors can be heated to defrost,
defog, or de-ice for improved visibility. Push the
rear window defroster switch to activate the heat-
ing function. Push the switch again to deactivate,
or the heating function will automatically turn off
after approximately 15 minutes.

LPD2216

3-32

Pre-driving checks and adjustments

4 Monitor, climate, audio, phone and voice
recognition systems

Control panel buttons — color screen with
Navigation System (if so equipped) . . . . . . . . . . . . . . . . . . 4-4

How to use the touch-screen . . . . . . . . . . . . . . . . . . . . 4-5
How to use the BACK button . . . . . . . . . . . . . . . . . . . . 4-7

How to use the

button . . . . . . . . . . . . . . . . . . . . 4-7

button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

How to use the ON•OFF button/VOL
(volume) control knob . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
How to use the CAMERA button . . . . . . . . . . . . . . . . . 4-9

RearView Monitor (if so equipped). . . . . . . . . . . . . . . . . . 4-10

How to read the displayed lines . . . . . . . . . . . . . . . . . 4-11
Difference between predicted and actual
distances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
Adjusting the screen . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
Operating tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14

Vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
Heater and Air Conditioner (manual) . . . . . . . . . . . . . . . . 4-15

Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
Heater operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17
Air conditioner operation . . . . . . . . . . . . . . . . . . . . . . . 4-18
Air flow charts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19

Servicing air conditioner. . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23

Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23

Bluetooth® streaming audio without
Navigation System (if so equipped) . . . . . . . . . . . . . . 4-57
Bluetooth® streaming audio with Navigation
System (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . 4-58
CD care and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . 4-59
Steering wheel switch for audio control . . . . . . . . . . 4-59
Window antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-61

NissanConnect™ App Smartphone Integration
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-61

Registering with NissanConnect™ App. . . . . . . . . . . 4-61
Connect Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-61
Application Download. . . . . . . . . . . . . . . . . . . . . . . . . . 4-61

Car phone or CB radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-62
Bluetooth® Hands-Free Phone System without
Navigation System (if so equipped) . . . . . . . . . . . . . . . . . 4-62

Bluetooth® Hands-Free Phone System with
Navigation System (if so equipped) . . . . . . . . . . . . . . . . . 4-76

NISSAN Voice Recognition System
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-83

Using the system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-83
System features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-84
Bluetooth® Hands-Free Phone System
voice commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-85
Navigation System voice commands . . . . . . . . . . . . . 4-86
Audio system voice commands. . . . . . . . . . . . . . . . . . 4-86
Information voice commands. . . . . . . . . . . . . . . . . . . . 4-86

My Apps Voice Commands . . . . . . . . . . . . . . . . . . . . . 4-86
Help voice commands . . . . . . . . . . . . . . . . . . . . . . . . . 4-87

Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . . . . 4-87

WARNING

● Do not disassemble or modify this sys-

tem. If you do, it may result in accidents,
fire, or electrical shock.

● In case you notice any foreign object in

the system hardware, spill liquid on it,
or notice smoke or smell coming from it,
stop using the system immediately and
contact your nearest NISSAN dealer. Ig-
noring such conditions may lead to ac-
cidents, fire or electrical shock.

● Do not use this system if you notice any

abnormality, such as a frozen screen or
lack of sound. Continued use of the
system may result in accident, fire or
electric shock.

1. MAP button*

2. Display screen

button**

button

(brightness control) button

6. BACK button

7. ON•OFF button / VOL (volume) control knob

8. CAMERA button

LHA2898

CONTROL PANEL BUTTONS —
COLOR SCREEN WITH NAVIGATION
SYSTEM (if so equipped)

4-4

Monitor, climate, audio, phone and voice recognition systems

9. NAV button*

* For information regarding the Navigation system
control buttons, refer to the separate Navigation
System Owner’s Manual.

** For information regarding the Bluetooth®
Hands-Free Phone System control button, see
“Bluetooth® Hands-Free Phone System with
Navigation System” in this section.

When you use this system, make sure the engine
is running.

If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and the
engine will not start.

Reference symbols:

“Example” — Words marked in quotes refer to a
key shown only on the display. These keys can be
selected by touching the screen.

HOW TO USE THE TOUCH-
SCREEN

CAUTION

● The glass display screen may break if it

is hit with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.

● To clean the display, never use a rough

cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.

● Do not splash any liquid such as water

or car fragrance on the display. Contact
with liquid will cause the system to
malfunction.

To help ensure safe driving, some functions can-
not be operated while driving.

The on-screen functions that are not available
while driving will be “grayed out” or muted.

Park the vehicle in a safe location and then oper-
ate the navigation system.

WARNING

● ALWAYS give your full attention to

driving.

● Avoid using vehicle features that could

distract you. If distracted, you could
lose control of your vehicle and cause
an accident.

LHA2873

Monitor, climate, audio, phone and voice recognition systems

4-5

Touch-screen operation

Menu Item

Result

Selecting the item

Touch an item to select . To select the “Audio” key, touch the “Audio” key

䊊

on the screen. Touch the “BACK” key to return to

the previous screen.

Adjusting the item

Touch the “+” key or the “

⫺” key to adjust the settings of an item. Touch the up arrow to scroll up the page one item at a time,

or touch the double up arrow to scroll up an entire page. Touch the down arrow to scroll down the page one item at a time, or
touch the double down arrow to scroll down an entire page.

Inputting characters

Touch the letter or number key. There are some options available when inputting characters.

123/ABC

Changes the available character set to numbers.

Space

Inserts a space.

Delete

Deletes the last inputted character with one touch. Touch and hold the “Delete” key to delete all of the characters.

Completes the character input.

Touch-screen maintenance

If you clean the display screen, use a dry, soft
cloth. If additional cleaning is necessary, use a
small amount of neutral detergent with a soft
cloth. Never spray the screen with water or de-
tergent. Dampen the cloth first and then wipe the
screen.

4-6

Monitor, climate, audio, phone and voice recognition systems

HOW TO USE THE BACK BUTTON

Press the BACK button to return to the previous
screen.

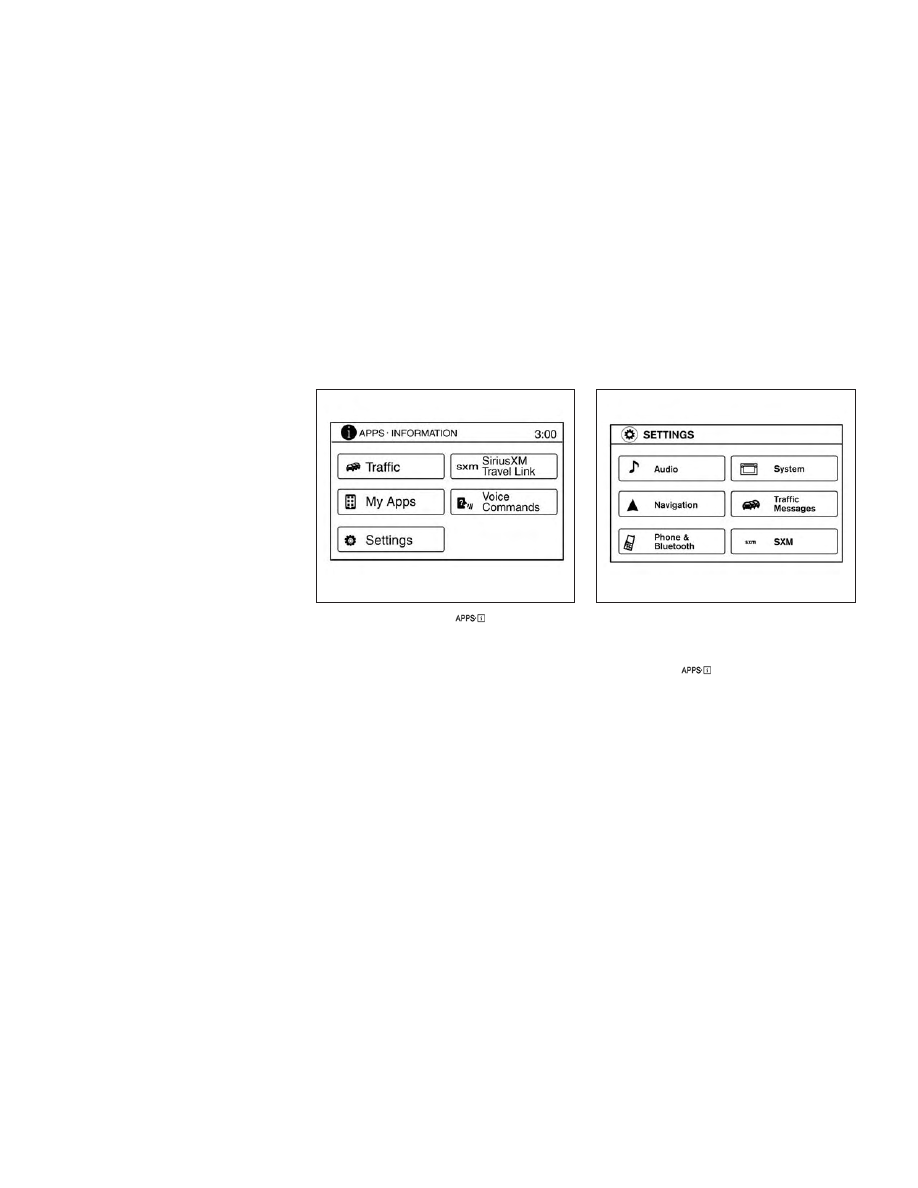

HOW TO USE THE

BUTTON

For more information about the “SiriusXM Travel
Link”, and “Traffic” features, see the separate
Navigation System Owner’s Manual.

For more information about the “My Apps” key,
see “NissanConnect™ App Smartphone Integra-
tion” in this section.

For more information about the “Voice Com-
mands” key, see “NISSAN Voice Recognition
System” in this section.

To select and/or adjust several functions, fea-
tures and modes that are available for your ve-
hicle:

1. Press the [

] button.

2. Touch the “Settings” key.

3. Touch the desired item.

LHA2924

LHA2852

Monitor, climate, audio, phone and voice recognition systems

4-7

Menu item

Result

Audio

See “Audio system” in this section for more information.

Navigation

See the separate Navigation System Owner’s Manual for more information.

Phone & Bluetooth

See “Bluetooth Hands-Free Phone System with Navigation System” in this section.

System

Touch this key to select and/or adjust various functions of this system. A screen with additional options will appear.

Display

Touch this key to adjust the appearance of the display.

Brightness

Adjusts the brightness of the display.

Display Mode

Adjusts to fit the level of lighting in the vehicle. Touch key to cycle through options. “Day” and “Night” modes are suited for the respec-
tive times of day while “Auto” controls the display automatically.

Scroll Direction

Adjusts the direction of the menu scroll. Choose to either move up or down.

Clock

Touch this key to adjust the time.

Time Format

The clock can be set to 12 hours or 24 hours.

Date Format

Select from five possible formats of displaying the day, month, and year.

Clock Mode

Adjust the mode for the clock. “Auto” uses the system’s GPS to automatically maintain the time. “Manual” allows you to set the clock
using the “Set Clock Manually” key.

Set Clock
Manually

Adjust the clock manually, Touch the “+” or “-” keys to adjust the hours, minutes, day, month and year up or down. “Clock Mode” must
be set to manual for this option to be available.

Daylight Sav-
ings Time

Adjusts the daylight savings time on or off.

Time Zone

Choose the applicable time zone from the list.

Language

Touch this key to change the language on the display.

Camera

Touch this key to change the camera settings.

Display Mode

Touch this key to select the touch-screen display mode (day, night, or automatic).

Brightness

Adjust touch-screen brightness.

Contrast

Adjust touch-screen contrast.

Color

Adjust touch-screen color.

4-8

Monitor, climate, audio, phone and voice recognition systems

Menu item

Result

Temperature Unit

Touch this key to change the temperature unit being displayed (Fahrenheit or Celsius).

Touchscreen click

Toggles the touch-screen click feature on or off. When activated a click sound will be heard every time a key on the screen is touched.

System Beeps

Toggle the system beep tones feature on or off. When activated, a beep sound will be heard when a pop-up message appears on the

screen or a button on the unit (such as the

button) is pressed and held for 2 seconds.

Return to Factory Settings/
Clear Memory

Touch this key to return all settings to default and to clear the memory.

Software Licenses

Touch this key to display software licensing information.

Traffic messages

Touch this key to display traffic settings. See the separate Navigation System Owner’s Manual for more information.

SXM

Touch this key to start SiriusXM® radio. For SXM setup, refer to “Audio system” in this section.

BUTTON

change

the

display

brightness,

press

the

button. Pressing the button again will

change the display to the day or the night display.

If no operation is performed within 5 seconds, the
display will return to the previous display.

Press and hold the

button for more than

two seconds to turn the display off. Press the
button again to turn the display on.

HOW TO USE THE ON•OFF
BUTTON/VOL (volume) CONTROL
KNOB

Press the ON•OFF button to turn audio function
on and off. Turn the VOL (volume) control knob to
adjust audio volume.

HOW TO USE THE CAMERA
BUTTON

For more information regarding the CAMERA
button, see “REARVIEW MONITOR” in this sec-
tion.

Monitor, climate, audio, phone and voice recognition systems

4-9

When the shift lever is shifted into the R (Re-
verse) position or the CAMERA button is
pressed, the monitor display shows the view to
the rear of the vehicle.

WARNING

Failure to follow the warnings and instruc-
tions for proper use of the RearView
Monitor could result in serious injury or
death.

● The RearView Monitor is a convenience

but it is not a substitute for proper back-
ing. Always turn and look out the win-
dows, and check mirrors to be sure that
it is safe to move before operating the
vehicle. Always back up slowly.

● The system is designed as an aid to the

driver in showing large stationary ob-
jects directly behind the vehicle, to help
avoid damaging the vehicle.

● The system cannot completely elimi-

nate blind spots and may not show ev-
ery object.

● Underneath the bumper and the corner

areas of the bumper cannot be viewed
on the RearView Monitor because of its
monitoring range limitation. The system
will not show small objects below the
bumper, and may not show objects
close to the bumper or on the ground.

● Objects viewed in the RearView Moni-

tor differ from actual distance because
a wide-angle lens is used.

● Objects in a RearView Monitor will ap-

pear

visually

opposite

than

when

viewed in the rear view and outside
mirrors.

● Make sure that the hatch is securely

close when backing up.

● Do not put anything on the rearview

camera. The rearview camera is in-
stalled above the license plate.

● When washing the vehicle with high

pressure water, be sure not to spray it
around the camera. Otherwise, water
may enter the camera unit causing wa-
ter condensation on the lens, a mal-
function, fire or an electric shock.

● Do not strike the camera. It is a preci-

sion instrument. Otherwise, it may mal-
function or cause damage resulting in a
fire or an electric shock.

CAUTION

There is a plastic cover over the camera.
Do not scratch the cover when cleaning
dirt or snow from the cover.

REARVIEW MONITOR (if so
equipped)

4-10

Monitor, climate, audio, phone and voice recognition systems

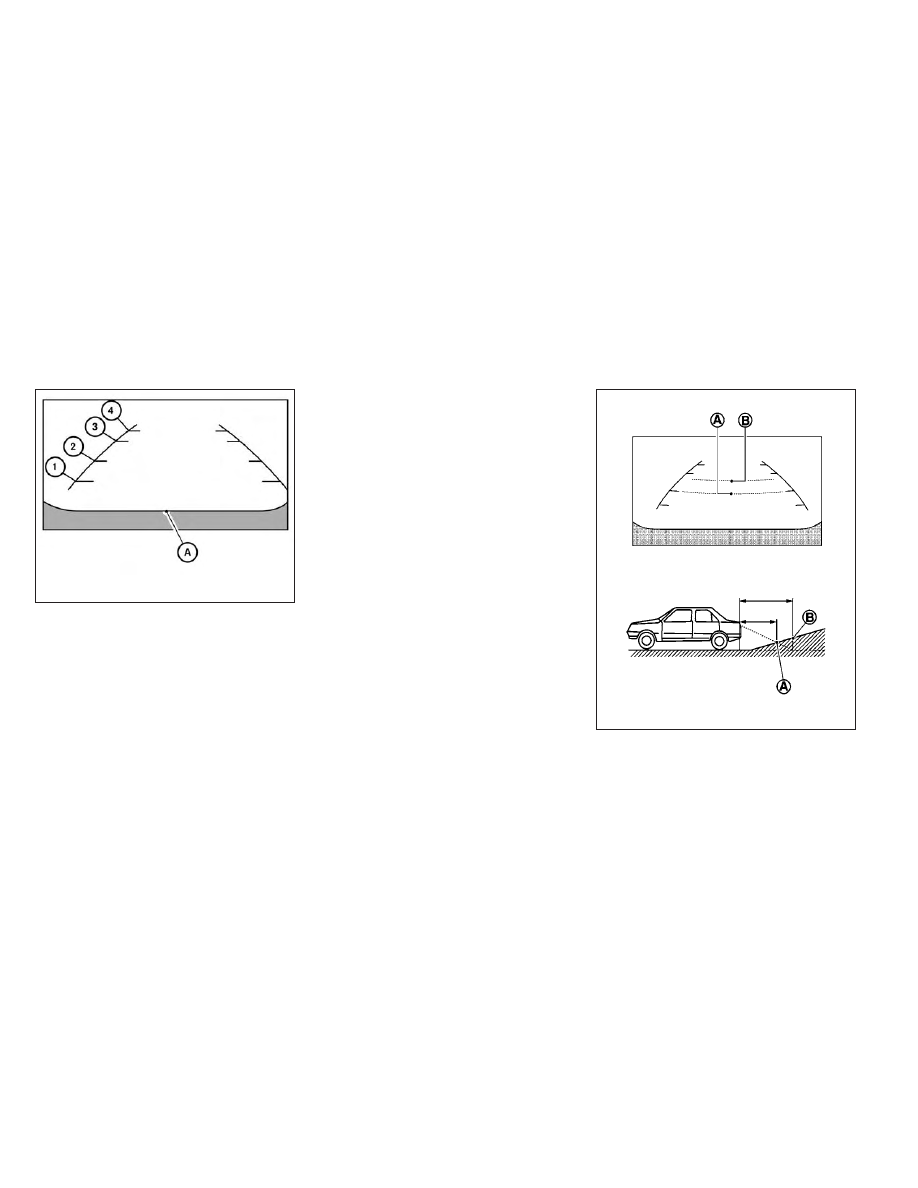

HOW TO READ THE DISPLAYED
LINES

Guiding lines which indicate the vehicle width
and distances to objects with reference to the
vehicle body line

䊊

are displayed on the monitor.

Distance guide lines:

Indicate distances from the vehicle body.

● Red line

䊊

: approx. 1.5 ft (0.5 m)

● Yellow line

䊊

: approx. 3 ft (1 m)

● Green line

䊊

: approx. 7 ft (2 m)

● Green line

䊊

: approx. 10 ft (3 m)

DIFFERENCE BETWEEN
PREDICTED AND ACTUAL
DISTANCES

The distance guide line and the vehicle width
guide line should be used as a reference only
when the vehicle is on a level, paved surface. The
distance viewed on the monitor is for reference
only and may be different than the actual distance
between the vehicle and displayed objects.

Backing up on a steep uphill

When backing up the vehicle up a hill, the dis-
tance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 3 ft (1.0 m) to the
place

䊊

, but the actual 3 ft (1.0 m) distance on

LHA0437

WHA1504

Monitor, climate, audio, phone and voice recognition systems

4-11

the hill is the place

䊊

. Note that any object on

the hill is further than it appears on the monitor.

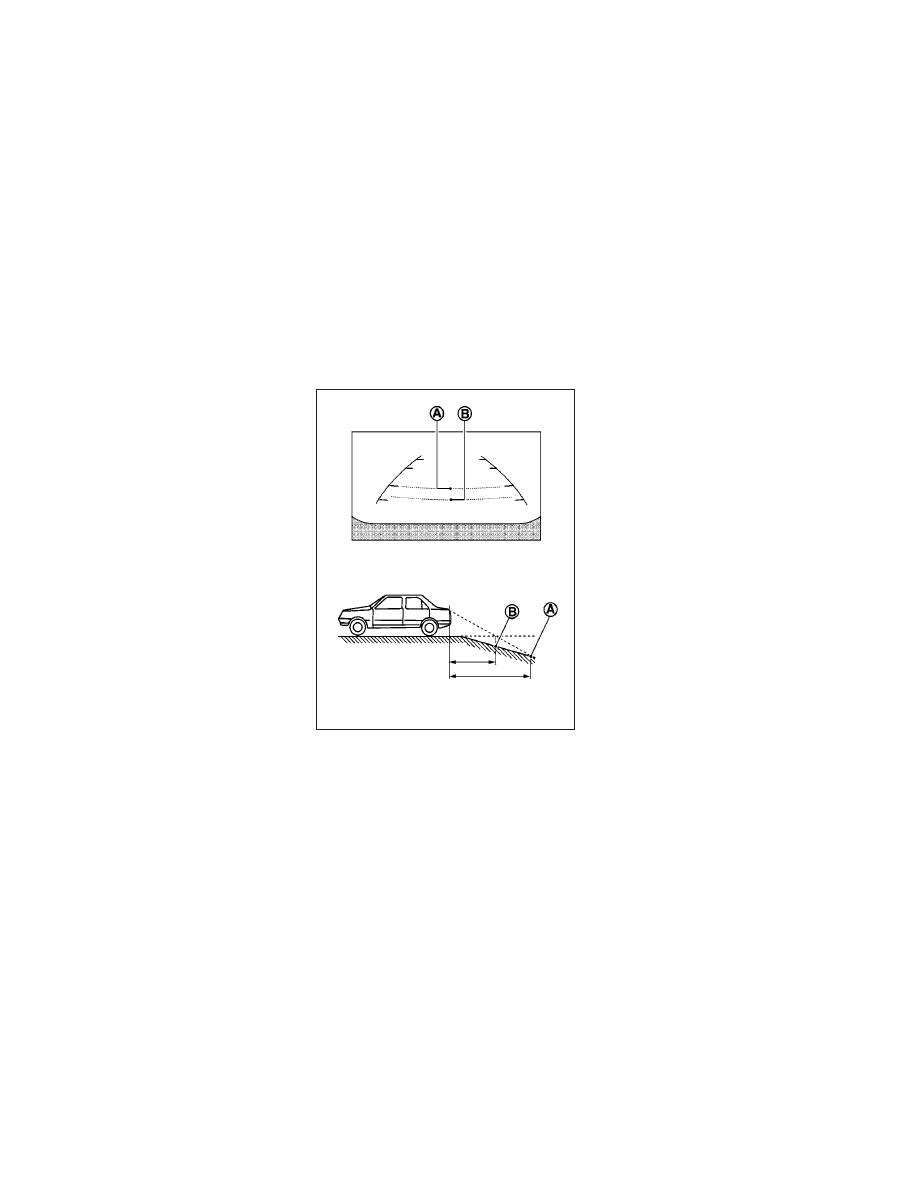

Backing up on a steep downhill

When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown farther than the actual distance.
For example, the display shows 3 ft (1.0 m) to the
place

䊊

, but the actual 3 ft (1.0 m) distance on

the hill is the place

䊊

. Note that any object on

the hill is closer than it appears on the monitor.

WHA1505

4-12

Monitor, climate, audio, phone and voice recognition systems

Content .. 7 8 9 10 ..
