Nissan Versa Hatchback (2012 year). Instruction - part 10

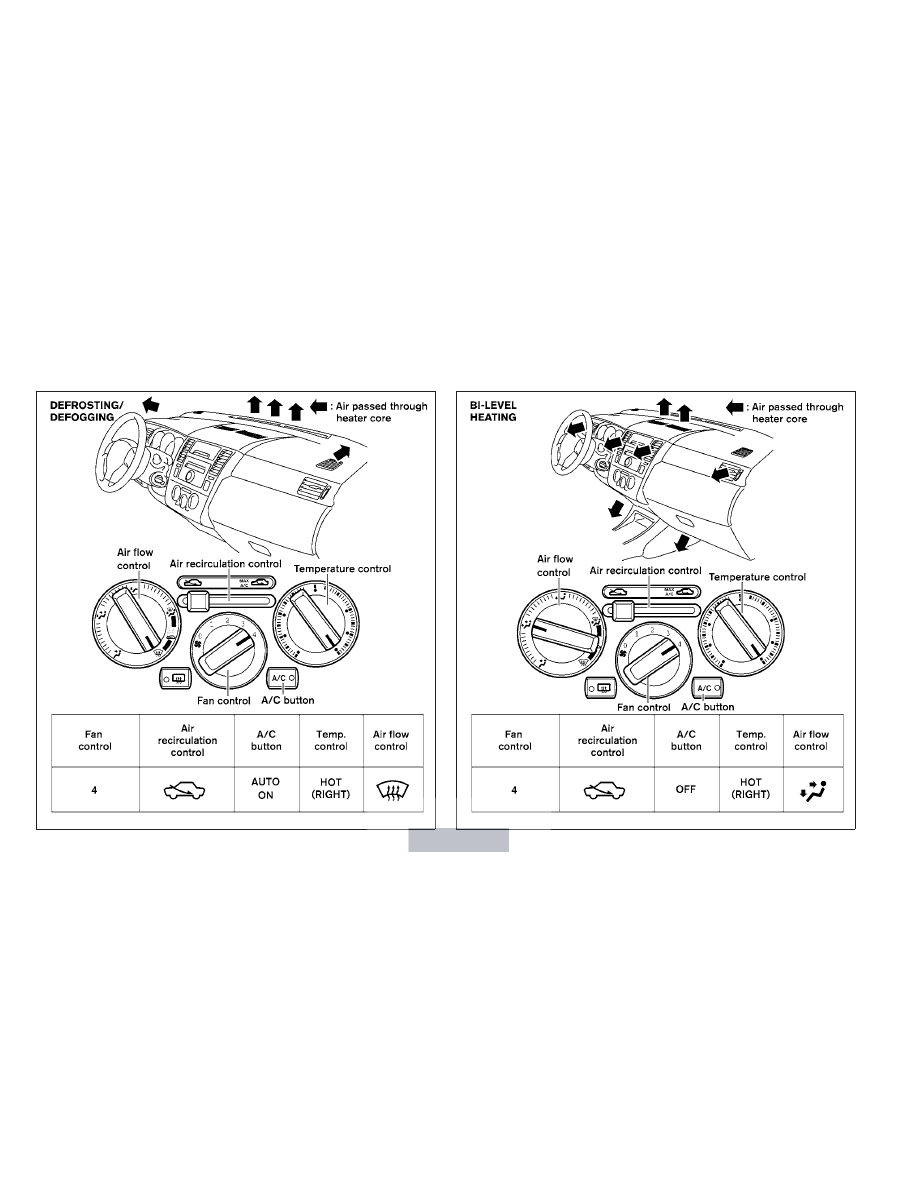

WHA1066

WHA1068

4-14

Display screen, heater, air conditioner, audio and phone systems

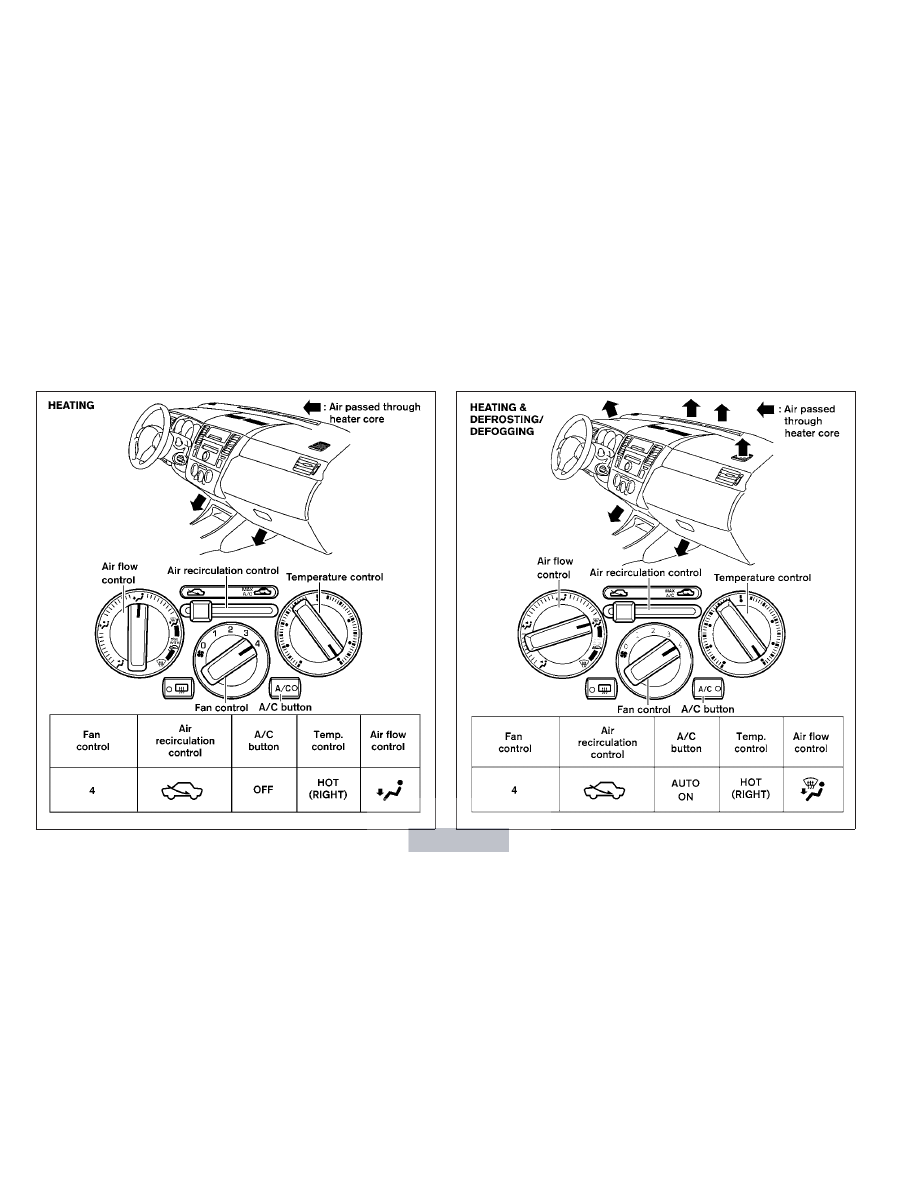

LHA0667

WHA1067

Display screen, heater, air conditioner, audio and phone systems

4-15

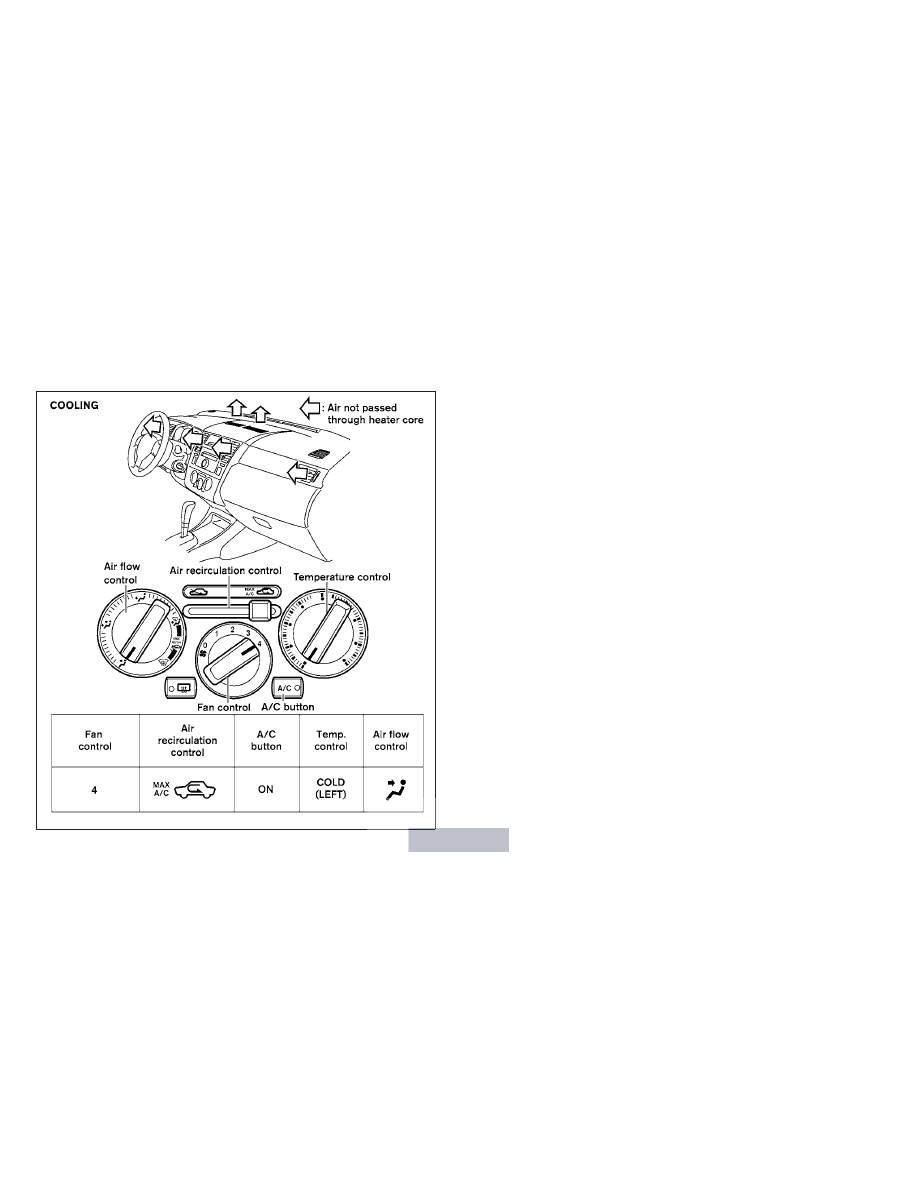

WHA1069

4-16

Display screen, heater, air conditioner, audio and phone systems

The air conditioner system in your NISSAN ve-
hicle is charged with a refrigerant designed with
the environment in mind.

This refrigerant does not harm the earth’s
ozone layer.

Special charging equipment and lubricant is re-
quired when servicing your NISSAN air condi-
tioner. Using improper refrigerants or lubricants
will cause severe damage to your air conditioner
system. See “Air conditioner system refrigerant
and oil recommendations” in the “Technical and
consumer information” section of this manual.

A NISSAN dealer is able to service your “environ-
mentally friendly” air conditioning system.

WARNING

The air conditioner system contains re-
frigerant under high pressure. To avoid
personal injury, any air conditioner ser-
vice should be done only by an experi-
enced technician with proper equipment.

RADIO

Place the ignition switch in the ACC or ON
position and press the PWR button to turn the
radio on. If you listen to the radio with the engine
not running, the ignition switch should be placed
in the ACC position.

Radio reception is affected by station signal
strength, distance from radio transmitter, build-
ings, bridges, mountains and other external influ-
ences. Intermittent changes in reception quality
normally are caused by these external influences.

Using a cellular phone in or near the ve-
hicle may influence radio reception quality.

Radio reception

Your NISSAN radio system is equipped with
state-of-the-art electronic circuits to enhance ra-
dio reception. These circuits are designed to
extend reception range, and to enhance the qual-
ity of that reception.

However, there are some general characteristics
of both FM and AM radio signals that can affect
radio reception quality in a moving vehicle, even
when the finest equipment is used. These char-
acteristics are completely normal in a given re-
ception area and do not indicate any malfunction
in your NISSAN radio system.

Reception conditions will constantly change be-
cause of vehicle movement. Buildings, terrain,
signal distance and interference from other ve-
hicles can work against ideal reception. De-
scribed below are some of the factors that can
affect your radio reception.

Some cellular phones or other devices may
cause interference or a buzzing noise to come
from the audio system speakers. Storing the de-
vice in a different location may reduce or elimi-
nate the noise.

FM RADIO RECEPTION

Range: FM range is normally limited to 25 – 30 mi
(40 – 48 km), with monaural (single channel) FM
having slightly more range than stereo FM. Exter-
nal influences may sometimes interfere with FM
station reception even if the FM station is within
25 mi (40 km). The strength of the FM signal is
directly related to the distance between the
transmitter and receiver. FM signals follow a line-
of-sight path, exhibiting many of the same char-
acteristics as light. For example, they will reflect
off objects.

Fade and drift: As your vehicle moves away from
a station transmitter, the signals will tend to fade
and/or drift.

SERVICING AIR CONDITIONER (if so
equipped)

AUDIO SYSTEM

Display screen, heater, air conditioner, audio and phone systems

4-17

Static and flutter: During signal interference from
buildings, large hills or due to antenna position
(usually in conjunction with increased distance
from the station transmitter), static or flutter can
be heard. This can be reduced by adjusting the
treble control to reduce treble response.

Multipath reception: Because of the reflective
characteristics of FM signals, direct and reflected
signals reach the receiver at the same time. The
signals may cancel each other, resulting in mo-
mentary flutter or loss of sound.

AM RADIO RECEPTION

AM signals, because of their low frequency, can
bend around objects and skip along the ground.
In addition, the signals can be bounced off the
ionosphere and bent back to earth. Because of
these characteristics, AM signals are also sub-
ject to interference as they travel from transmitter
to receiver.

Fading: Occurs while the vehicle is passing
through freeway underpasses or in areas with
many tall buildings. It can also occur for several
seconds during ionospheric turbulence even in
areas where no obstacles exist.

Static: Caused by thunderstorms, electrical
power lines, electric signs and even traffic lights.

SATELLITE RADIO RECEPTION (if so
equipped)

When the satellite radio is used for the first time
or the battery has been replaced, the satellite
radio may not work properly. This is not a mal-
function. Wait more than 10 minutes with satellite
radio ON and the vehicle outside of any metal or
large building for satellite radio to receive all of
the necessary data.

No satellite radio reception is available unless
there is an active XM

姞 satellite radio service

subscription. Satellite radio is not available in
Alaska, Hawaii and Guam. If satellite radio is not
operational then pressing the RADIO button will
switch between FM and AM bands.

Satellite radio performance may be affected if
cargo carried on the roof blocks the satellite radio
signal.

If possible, do not put cargo over the satellite
antenna.

A build up of ice on the satellite radio antenna can
affect satellite radio performance. Remove the
ice to restore satellite radio reception.

AUDIO OPERATION PRECAUTIONS

LHA0099

4-18

Display screen, heater, air conditioner, audio and phone systems

Compact disc (CD) player

CAUTION

● Do not force a compact disc into the CD

insert slot. This could damage the CD
and/or CD changer/player.

● Trying to load a CD with the CD door

closed could damage the CD and/or CD
changer.

● Only one CD can be loaded into the CD

player at a time.

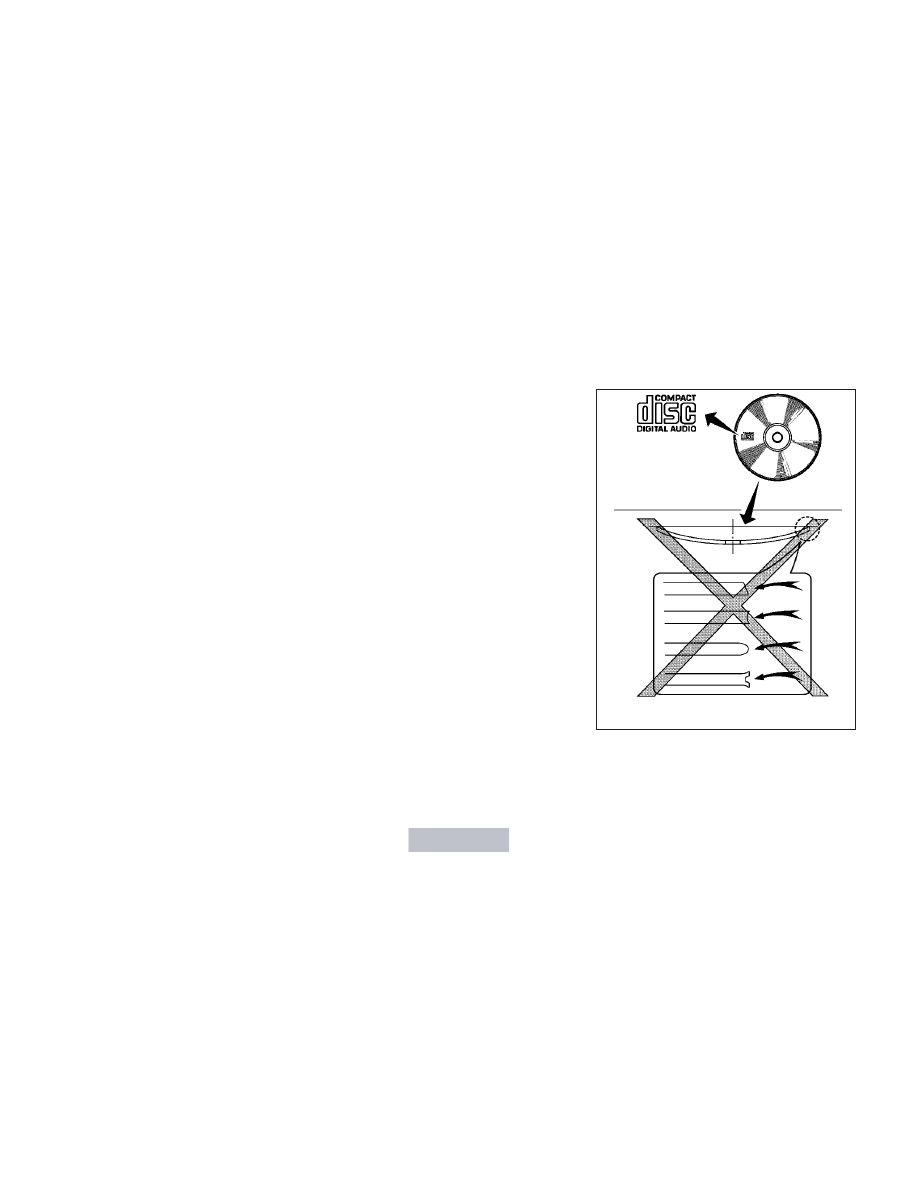

● Only use high quality 4.7 in (12 cm)

round discs that have the “COMPACT
disc DIGITAL AUDIO” logo on the disc
or packaging.

● During cold weather or rainy days, the

player may malfunction due to the hu-
midity. If this occurs, remove the CD
and dehumidify or ventilate the player
completely.

● The player may skip while driving on

rough roads.

● The CD player sometimes cannot func-

tion when the compartment tempera-
ture

extremely

high

low.

Decrease/increase

the

temperature

before use.

● Do not expose the CD to direct sun-

light.

● CDs that are in poor condition or are

dirty, scratched or covered with finger-
prints may not work properly.

● The following CDs may not work prop-

erly:

● Copy control compact discs (CCCD)
● Recordable compact discs (CD-R)
● Rewritable compact discs (CD-RW)

● Do not use the following CDs as they

may cause the CD player to malfunc-
tion:

● 3.1 in (8 cm) discs with an adapter
● CDs that are not round
● CDs with a paper label
● CDs that are warped, scratched, or

have abnormal edges

● This audio system can only play pre-

recorded CDs. It has no capability to
record or burn CDs.

● If the CD cannot be played, one of the

following messages will be displayed.

CHECK DISC:

● Confirm that the CD is inserted cor-

rectly (the label side is facing up,
etc.).

● Confirm that the CD is not bent or

warped and it is free of scratches.

PRESS EJECT:

This is an error due to excessive tem-
perature inside the player. Remove the
CD by pressing the EJECT button. After
a short time, reinsert the CD. The CD
can be played when the temperature of
the player returns to normal.

UNPLAYABLE:

The file is unplayable in this audio sys-
tem (only MP3 or WMA (if so equipped)
CD).

Display screen, heater, air conditioner, audio and phone systems

4-19

Compact disc with MP3 or WMA (if
so equipped)

Terms:

● MP3 — MP3 is short for Moving Pictures

Experts Group Audio Layer 3. MP3 is the
most well-known compressed digital audio
file format. This format allows for near “CD
quality” sound, but at a fraction of the size of
normal audio files. MP3 conversion of an
audio track from CD-ROM can reduce the
file size by approximately a 10:1 ratio with
virtually no perceptible loss in quality. MP3
compression removes the redundant and
irrelevant parts of a sound signal that the
human ear doesn’t hear.

● WMA — Windows Media Audio (WMA)* is a

compressed audio format created by Micro-
soft as an alternative to MP3. The WMA
codec offers greater file compression than
the MP3 codec, enabling storage of more
digital audio tracks in the same amount of
space when compared to MP3s at the same
level of quality.

● Bit rate — Bit rate denotes the number of

bits per second used by a digital music file.
The size and quality of a compressed digital
audio file is determined by the bit rate used
when encoding the file.

● Sampling frequency — Sampling frequency

is the rate at which the samples of a signal
are converted from analog to digital (A/D
conversion) per second.

● Multisession — Multisession is one of the

methods for writing data to media. Writing
data once to the media is called a single
session, and writing more than once is called
a multisession.

● ID3/WMA Tag — The ID3/WMA tag is the

part of the encoded MP3 or WMA file that
contains information about the digital music
file such as song title, artist, encoding bit
rate, track time duration, etc. ID3 tag infor-
mation is displayed on the Artist/song title
line on the display.

* Windows

姞 and Windows Media姞 are regis-

tered trademarks and trademarks in the United
States of America and other countries of Micro-
soft Corporation of the USA.

Playback order chart

WHA1078

4-20

Display screen, heater, air conditioner, audio and phone systems

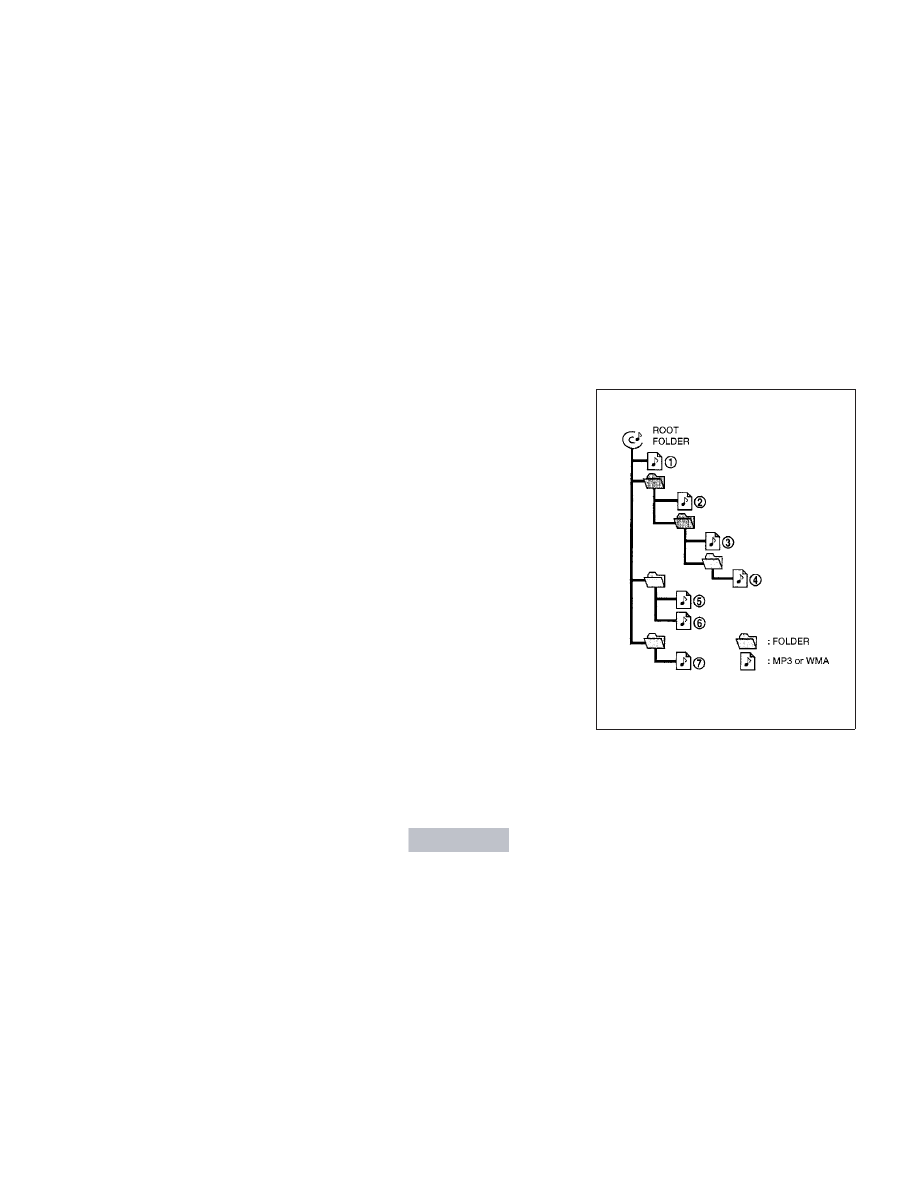

Playback order:

Music playback order of a CD with MP3 or WMA
files is as illustrated.

● The names of folders not containing MP3 or

WMA files are not shown in the display.

● If there is a file in the top level of the disc,

“Root Folder” is displayed.

● The playback order is the order in which the

files were written by the writing software.
Therefore, the files might not play in the
desired order.

Display screen, heater, air conditioner, audio and phone systems

4-21

Specification chart:

Supported media

CD, CD-R, CD-RW

Supported file systems

ISO9660 LEVEL1, ISO9660 LEVEL2, Apple ISO, Romeo, Joliet * ISO9660 Level 3 (packet writing) is not supported.

Supported
versions*1

MP3

Version

MPEG1, MPEG2, MPEG2.5

Sampling frequency

8 kHz - 48 kHz

Bit rate

8 kbps - 320 kbps, VBR

WMA

Version

WMA7, WMA8, WMA9

Sampling frequency

32 kHz - 48 kHz

Bit rate

48 kbps - 192 kbps, VBR

Tag information

ID3 tag VER1.0, VER1.1, VER2.2, VER2.3 (MP3 only)

Folder levels

Folder levels: 8, Max folders: 255 (including root folder), Files: 512 (Max. 255 files for one folder)

Text character number limitation

128 characters

Displayable character codes*2

01: ASCII, 02: ISO-8859-1, 03: UNICODE (UTF-16 BOM Big Endian), 04: UNICODE (UTF-16 Non-BOM Big Endian),
05: UNICODE (UTF-8), 06: UNICODE (Non-UTF-16 BOM Little Endian)

*1 Files created with a combination of 48 kHz sampling frequency and 64 kbps bit rate cannot be played.

*2 Available codes depend on what kind of media, versions and information are going to be displayed.

4-22

Display screen, heater, air conditioner, audio and phone systems

Troubleshooting guide:

Symptom

Cause and Countermeasure

Cannot play

Check if the disc was inserted correctly.

Check if the disc is scratched or dirty.

Check if there is condensation inside the player. If there is, wait until the condensation is gone (about 1 hour) before using the player.

If there is a temperature increase error, the CD player will play correctly after it returns to the normal temperature.

If there is a mixture of music CD files (CD-DA data) and MP3/WMA files on a CD, only the music CD files (CD-DA data) will be played.

Files with extensions other than “.MP3”,“.WMA”, “.mp3” or “.wma” cannot be played. In addition, the character codes and number of characters for
folder names and file names should be in compliance with the specifications.

Check if the finalization process, such as session close and disc close, is done for the disc.

Check if the disc is protected by copyright.

Poor sound quality

Check if the disc is scratched or dirty.

Bit rate may be too low.

It takes a relatively long time
before the music starts
playing.

If there are many folders or file levels on the MP3/WMA disc, or if it is a multisession disc, some time may be required before the music starts playing.

Music cuts off or skips

The writing software and hardware combination might not match, or the writing speed, writing depth, writing width, etc., might not match the
specifications. Try using the slowest writing speed.

Skipping with high bit rate
files

Skipping may occur with large quantities of data, such as for high bit rate data.

Moves immediately to the
next song when playing

When a non-MP3/WMA file has been given an extension of “.MP3”, “.WMA”, .“mp3”or “.wma”, or when play is prohibited by copyright protection, there
will be approximately 5 seconds of no sound and then the player will skip to the next song.

Songs do not play back in
the desired order

The playback order is the order in which the files were written by the writing software. Therefore, the files might not play in the desired order.

Display screen, heater, air conditioner, audio and phone systems

4-23

Universal Serial Bus (USB) memory (if
so equipped)

This system supports various USB memory
sticks, USB hard drives and iPod

姞 players. There

are some USB devices which may not be sup-
ported with this system.

● Make sure that the USB device is connected

correctly into the USB connector.

● Do not force the memory stick or USB cable

into the USB connector.

● During cold weather or rainy days, the player

may malfunction due to the humidity. If this
occurs, remove the USB memory stick and
dehumidify or ventilate the player com-
pletely.

● The player sometimes cannot function when

the passenger compartment temperature is
extremely high. Decrease the temperature
before use.

● Do not leave the USB memory in a place

prone to static electricity or where the air
conditioner blows directly. The data in the
USB memory may be damaged.

● Prepare the USB device by yourself be-

cause it is not equipped with the vehicle.

● The USB device cannot be formatted with

this system. If you want to format the USB
memory, use your personal computer.

● Partitioned USB devices may not be played

correctly.

● Some characters used in other languages

(Chinese, Japanese, etc.) are not displayed
properly on the vehicle center screen.
NISSAN recommends using English lan-
guage characters with USB devices.

● Do not connect the USB device if the con-

nector or cable is wet. Allow the cable
and/or connectors to dry completely before
connecting the USB device.

● Large video podcast files cause slow re-

sponses in the iPod

姞. The vehicle center

display may momentarily black out, but it will
soon recover.

● If the iPod姞 automatically selects large video

podcast files while in the shuffle mode, the
vehicle center display may momentarily
black out, but it will soon recover.

● Audiobooks may not play in the same order

as they appear on the iPod

姞.

● The iPod姞 nano (1st Generation) may re-

main in fast forward or rewind mode if it is
connected during a seek operation. In this
case, please manually reset the iPod

姞.

● The iPod姞 nano (2nd Generation) will con-

tinue to fast forward or rewind if it is discon-
nected during a seek operation.

● An incorrect song title may appear when the

Play Mode is changed while using the iPod

姞

nano (2nd generation).

● If you are using an iPod姞 (3rd Generation

with Dock connector), do not use very long
names for the song title, album name or artist
name to avoid the iPod

姞 resetting itself.

iPod

姞 is a trademark of Apple Inc., registered in

the U.S. and other countries.

iPod

姞* player (if so equipped)

● Some characters used in other languages

(Chinese, Japanese, etc.) are not displayed
properly on the vehicle center screen. We
recommend using English language charac-
ters with an iPod

姞.

● Large video podcast files cause slow re-

sponses in the iPod

姞. The vehicle center

display may momentarily black out, but it will
soon recover.

4-24

Display screen, heater, air conditioner, audio and phone systems

● If the iPod姞 automatically selects large video

podcast files while in the shuffle mode, the
vehicle center display may momentarily
black out, but it will soon recover.

● Improperly plugging in the iPod姞 may cause

a checkmark to be displayed on and off
(flickering). Always make sure that the iPod

姞

is connected properly.

● The iPod姞 nano (2nd Generation) will con-

tinue to fast forward or rewind if it is discon-
nected during a seek operation.

● An incorrect song title may appear when the

Play Mode is changed while using the iPod

姞

nano (2nd Generation).

● Audiobooks may not play in the same order

as they appear on the iPod

姞.

● The iPod姞 nano (1st Generation) may re-

main in fast forward or rewind mode if it is
connected during a seek operation. In this
case, please manually reset the iPod

姞.

● If you are using an iPod姞 (3rd Generation

with Dock connector), do not use very long
names for the song title, album name or artist
name to prevent the iPod

姞 from resetting

itself.

● Be careful not to do the following, or the

cable could be damaged and a loss of func-
tion may occur:

● Bend the cable excessively (1.6 in (40

mm) radius maximum).

● Twist the cable excessively (more than

180 degrees).

● Pull or drop the cable.
● Close the center console lid on the cable

or connectors.

● Store objects with sharp edges in the

storage where the cable is stored.

● Spill liquids on the cable and connectors.

● Do not connect the cable to the iPod姞 if the

cable and/or connectors are wet. It may
damage the iPod

姞.

● If the cable and connectors are exposed to

water, allow the cable and/or connectors to
dry completely before connecting the cable
to the iPod

姞 (wait 24 hours for it to dry).

● If the connector is exposed to fluids other

than water, evaporative residue may cause a
short between the connector pins. In this
case, replace the cable, otherwise damage
to the iPod

姞 and a loss of function may

occur.

● If the cable is damaged (insulation cut, con-

nectors cracked, contamination such as liq-
uids, dust, dirt, etc. in the connectors), do
not use the cable and contact a NISSAN
dealer to replace the cable with a new one.

● When not in use for extended periods of

time, store the cable in a clean, dust free
environment at room temperature and with-
out direct sun exposure.

● Do not use the cable for any other purposes

other than its intended use in the vehicle.

*iPod

姞 is a trademark of Apple Inc., registered in

the U.S. and other countries.

Display screen, heater, air conditioner, audio and phone systems

4-25

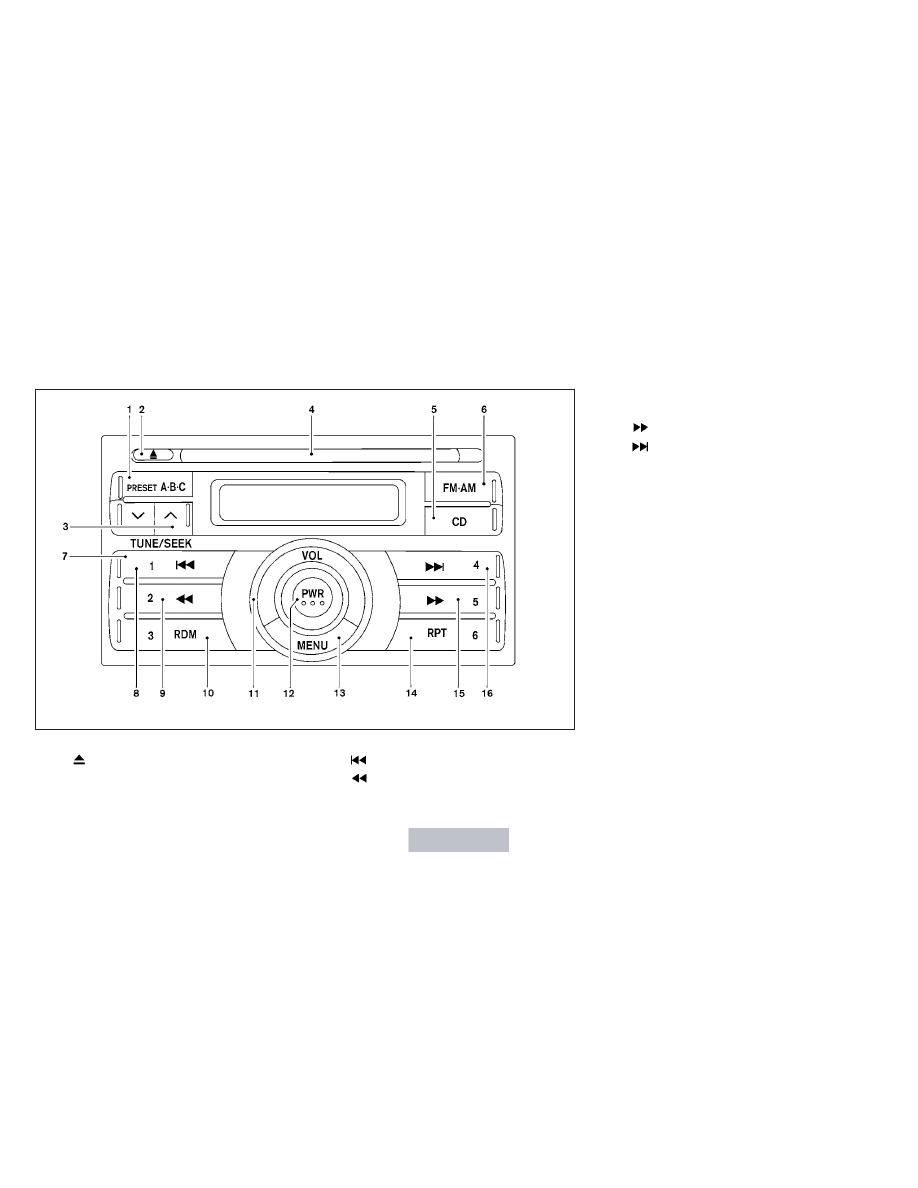

PRESET A·B·C button

CD eject button

TUNE/SEEK buttons

CD insert slot

CD button

FM·AM button

Station select (1 - 6) buttons

(CD seek/track) button

(CD rewind) button

10. RDM button
11. VOL control knob
12. PWR button

13. MENU button
14. RPT button
15.

(CD fast forward) button

16.

(CD seek/track) button

FM/AM RADIO WITH COMPACT
DISC (CD) PLAYER (if so equipped)

For all operation precautions, see

⬙Audio opera-

tion precautions

⬙ earlier in this section.

Audio main operation

PWR button and VOL control knob

Place the ignition switch in the ACC or ON
position, then press the PWR button. If you listen
to the radio with the engine not running, place the
ignition switch in the ACC position. The mode
(radio or CD) that was playing immediately before
the system was turned off resumes playing.

When no CD is loaded, the radio comes on.
Pressing the PWR button again turns the system
off.

Turn the VOL control knob to the right to increase
volume or to the left to decrease volume.

LHA0657

4-26

Display screen, heater, air conditioner, audio and phone systems

MENU button (BASS, TREBLE, FADE,
BALANCE and CLOCK):

Press the MENU button to change the mode as
follows:

BAS

→ TRE → FAD → BAL → CLK → Audio →

BAS

To adjust Bass, Treble, Fade and Balance, press
the MENU button until the desired mode appears
in the display. Press the TUNE/SEEK button to
adjust Bass and Treble to the desired level. You
can also use the TUNE/SEEK button to adjust
Fade and Balance modes. Fade adjusts the
sound level between the front and rear speakers
and Balance adjusts the sound between the right
and left speakers.

Once you have adjusted the sound quality to the
desired level, press the MENU button repeatedly
until the radio or CD display reappears. Other-
wise, the radio or CD display will automatically
reappear after about 10 seconds.

Clock operation

Press the MENU button until CLK-ON or CLK-
OFF is displayed, use the TUNE/SEEK button to
turn the clock display on or off.

Clock set

If the clock is not displayed with the ignition
switch in the ACC or ON position, you need to
select the CLK-ON mode. Press the MENU but-
ton repeatedly until CLK-OFF mode is displayed.
Use the TUNE/SEEK button to enable CLK-ON
mode.

1. Press the MENU button repeatedly until

CLK-ON mode appears.

2. Press the MENU button again, the time will

start flashing.

3. Press

the

TUNE/SEEK

button

to adjust the hour.

4. Press the MENU button again; the display

will switch to the minute adjustment mode.

5. The minutes will start flashing. Press

TUNE/SEEK button

to ad-

just the minutes.

6. Press the MENU button again to exit the

clock set mode.

The display will return to the regular clock display
after 10 seconds, or press the MENU button
again to return to the regular clock display.

Resetting the time

Hold the MENU button down and then press the
TUNE/SEEK button; the time will reset as fol-
lows:

● If the displayed minutes before the reset are

in the range of :00 - :29, the hour displayed
before the reset will stay the same and the
minutes will be reset to :00.

● If the displayed minutes before the reset are

in the range of :30 - :59, the hour displayed
before the reset will advance by one hour
and the minutes will be reset to :00.

For example, if the MENU button and the
TUNE/SEEK button are pressed while the time
displayed is between 8:00 and 8:29, the display
will be reset to 8:00. If the buttons were pressed
while the time was between 8:30 and 8:59, the
display will be reset to 9:00. At the same time the
display will return to the audio.

FM/AM radio operation

FM·AM button:

Press the FM·AM button to change from AM

←→

FM reception.

The FM stereo indicator, ST, illuminates during
FM stereo reception. When the stereo broadcast
signal is weak, the radio automatically changes
from stereo to monaural reception.

Display screen, heater, air conditioner, audio and phone systems

4-27

TUNE/SEEK buttons:

Manual tuning

Press the

button for less than 0.5

seconds for manual tuning.

SEEK tuning

Press the

button for more than

1.5 seconds to seek through the frequencies.
Seek tuning begins from low to high frequencies,
or high to low frequencies depending on which
button is pressed, and stops at the next broad-
casting station. Once the highest broadcasting
station is reached, the radio continues in the seek
mode at the lowest broadcasting station.

Station memory operations:

18 stations can be set for the FM and AM radio to
the A, B and C preset button in any combination
of AM or FM stations.

1. Press the PRESET A·B·C button to change

between storage banks. The radio displays
the icon A, B or C to indicate which set of
presets are active.

2. Tune to the desired station using manual

TUNE or SEEK tuning. Press and hold any of
the desired station memory buttons (1 – 6)
until a beep sound is heard. (The radio mutes
when the select button is pressed.)

3. The channel indicator will then come on and

the sound will resume. Programming is now
complete.

4. Other buttons can be set in the same man-

ner.

If the battery cable is disconnected, or if the fuse
opens, the radio memory will be canceled. In that
case, reset the desired stations.

Compact disc (CD) player operation

If the radio is already operating, it automatically
turns off and the compact disc begins to play.

CD button:

When the CD button is pressed with a compact
disc loaded and the radio playing, the radio turns
off and the last used compact disc starts to play.

Rewind and Fast Forward

buttons:

When the

button is pressed

while the compact disc is playing, the compact
disc plays at an increased speed while rewinding
or fast forwarding. When the button is released,
the compact disc returns to normal play speed.

SEEK/TRACK buttons:

When

is pressed while the compact disc

is playing, the next track following the present
one

starts

play

from

the

beginning.

Press

several times to skip several tracks.

Each time the button is pressed, the CD ad-
vances 1 additional track. The track number ap-
pears in the display window. (When the last track
on the compact disc is skipped, the first track is
played).

When

is pressed, the track being played

returns to the beginning. Press

several

times to skip back several tracks. Each time the
button is pressed the CD moves back 1 track.

RPT button:

When the RPT button is pressed while the com-
pact disc is being played, the play pattern can be
changed as follows:

1 TRACK RPT

←→ Normal

1 TRACK RPT: The track that is currently playing
will be repeated.

4-28

Display screen, heater, air conditioner, audio and phone systems

RDM button:

When the RDM button is pressed while the com-
pact disc is being played, the play pattern can be
changed as follows:

RDM

←→ Normal

RDM: Tracks from the disc that is currently play-
ing will be played randomly.

CD EJECT button:

When the

button is pressed with a com-

pact disc loaded, the compact disc will be
ejected.

When the

button is pressed twice with a

compact disc loaded, the compact disc will be
ejected further, for easier CD removal.

When the

button is pressed while the

compact disc is being played, the compact disc
will eject and the system will turn off.

CD IN indicator:

CD IN indicator appears on the display when the
CD is loaded with the system on.

Display screen, heater, air conditioner, audio and phone systems

4-29

Content .. 8 9 10 11 ..
