Nissan Qashqai (2018 year). Instruction

0-2

Illustrated table of contents

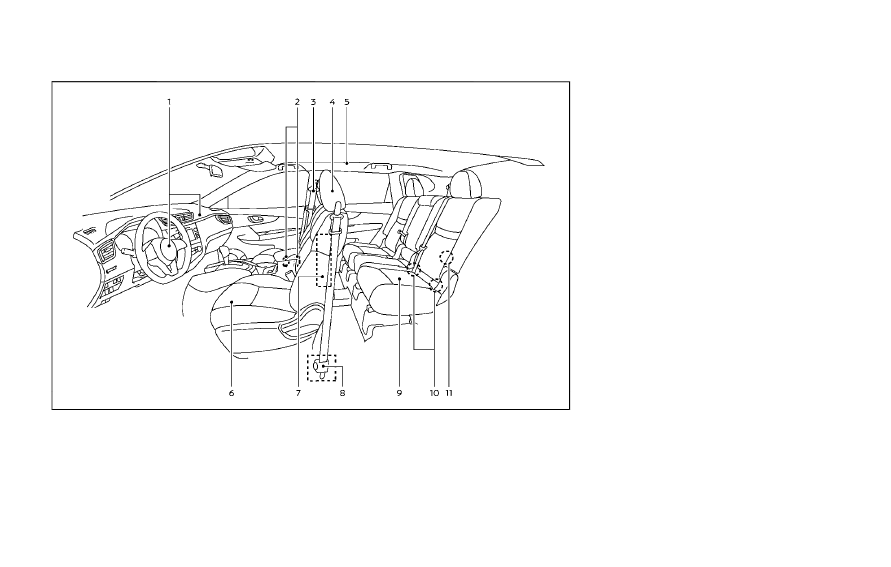

JVC1140X

Supplemental front-impact air bags
(P.1-40)

Occupant classification sensors (weight
sensors) (P.1-40)

Seat belts (P.1-10)

Head restraints (P.1-6)

Roof-mounted curtain side-impact and
rollover supplemental air bags (P.1-40)

Front seats (P.1-3)

Front seat-mounted side-impact supple-
mental air bags (P.1-40)

Seat belt pretensioner (P.1-55)

Rear seats (P.1-5)
— Child restraints (P.1-20)

10.

LATCH (Lower Anchors and Tethers for
CHildren) system (for rear seats) (P.1-22)

11.

Child restraint anchor point (for top tether
strap) (P.1-36)

SEATS, SEAT BELTS AND SUPPLEMENTAL
RESTRAINT SYSTEM (SRS)

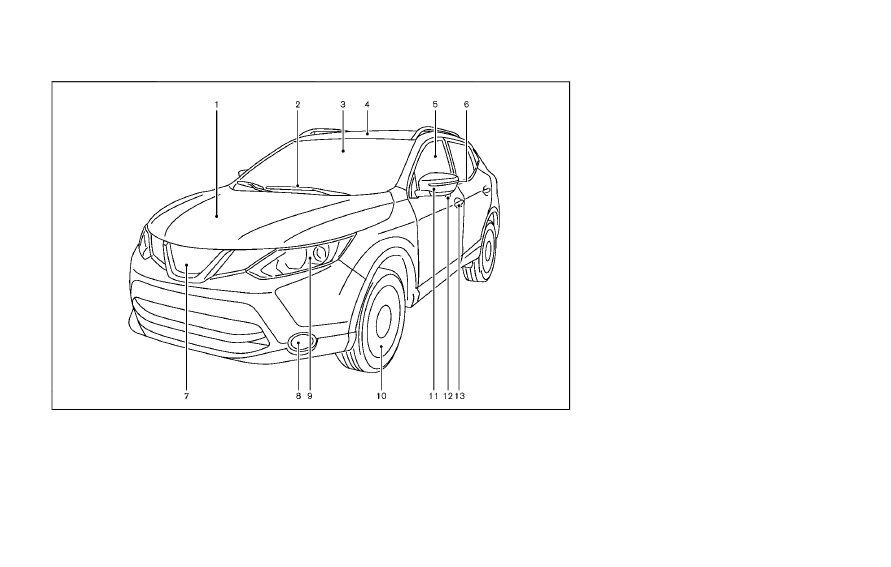

JVC1065X

Hood (P.3-24)

Windshield wiper and washer
— Switch operation (P.2-39)
— Window washer fluid (P.8-10)

Front camera* (P.5-32, P.5-37, P.5-89)

Moonroof* (P.2-63)

Power windows (P.2-60)

Side turn signal light* (P.2-48)

Front view camera* (P.4-14)

Fog lights* (P.2-48)

Headlights and turn signal lights (P.2-43)

10.

Tires
— Wheels and tires (P.8-29, P.10-7)
— Flat tire (P.6-3)

— Tire Pressure Monitoring System
(TPMS) (P.2-13, P.5-5)

11.

Outside mirrors (P.3-31)

12.

Side view camera* (P.4-14)

13.

Doors
— Keys (P.3-2)
— Door locks (P.3-5)
— Intelligent Key system* (P.3-11)
— Remote keyless entry system* (P.3-8)
— Security system (P.2-36)
— Remote engine start* (P.3-22)

*: if so equipped

Illustrated table of contents

0-3

EXTERIOR FRONT

0-4

Illustrated table of contents

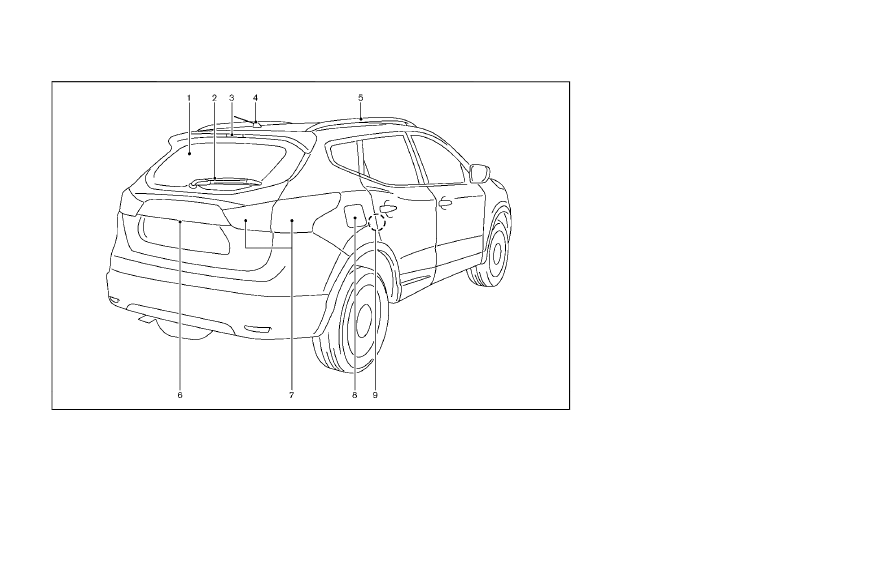

JVC1066X

Rear window defroster (P.2-42)

Rear window wiper and washer
— Switch operation (P.2-41)
— Window washer fluid (P.8-10)

High-mounted stop light (P.8-25)

Antenna (P.4-77)

Roof rack* (P.2-59)

Liftgate (P.3-25)
— Intelligent Key system* (P.3-11)
— Remote keyless entry system* (P.3-8)
— Rear view camera* (P.4-8, P.4-14)

Rear combination light (P.8-25)

Fuel-filler door (P.3-27)
— Fuel information (P.10-3)

Child safety rear door locks (P.3-7)

*: if so equipped

EXTERIOR REAR

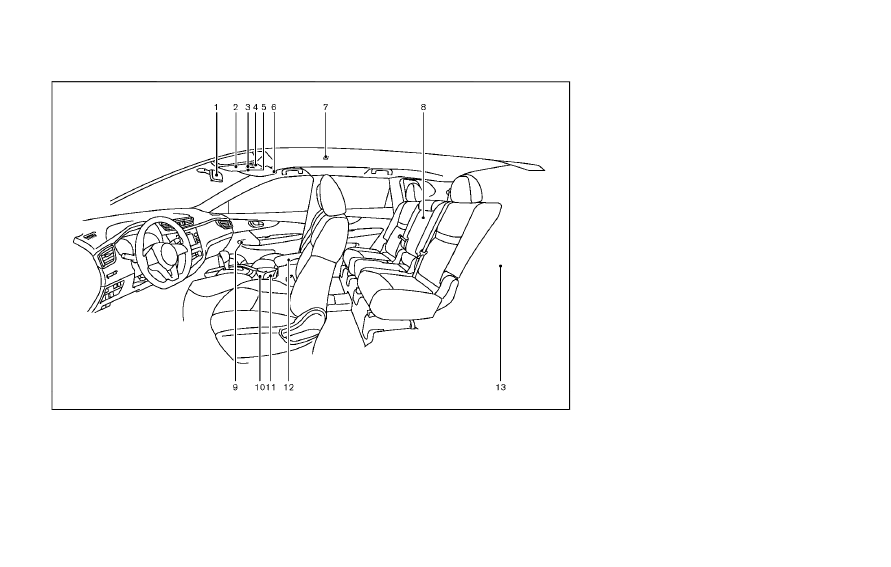

JVC1067X

Inside mirror (P.3-31)

Sunglasses holder (P.2-56)

Map lights (P.2-65)
— Microphone (P.4-83, P.4-93, P.4-103)

Moonroof switch* (P.2-63)

SOS call switch**

Sun visors (P.3-30)

Room light (P.2-66)

Rear armrest* (P.1-6)
— Rear cup holders (P.2-54)

Door armrest
— Power window switch (P.2-60)
— Power door lock switch (P.3-7)
— Outside rearview mirror remote control

switch (Driver’s side) (P.3-31)

10.

Front cup holders (P.2-54)

11.

Heated seat switch* (P.2-50)

12.

Console box (P.2-56)

13.

Cargo area
— Storage (P.2-54)
— Luggage hooks (P.2-57)
— Parcel shelf (P.2-58)
— Spare tire (P.6-3)
— Cargo light (P.2-67)

*: if so equipped
**: Refer to the separate Navigation Sys-
tem Owner’s Manual (if so equipped).

Illustrated table of contents

0-5

PASSENGER COMPARTMENT

0-6

Illustrated table of contents

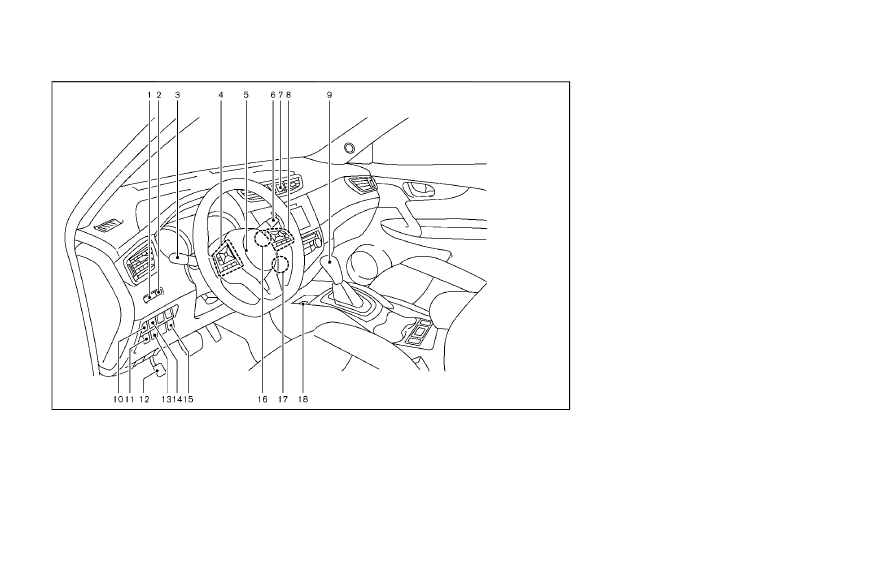

JVC1068X

Instrument brightness control (P.2-9)

TRIP RESET switch (P.2-6)

Headlight and turn signal switch (P.2-43)/
Fog light switch* (P.2-48)

Steering-wheel-mounted controls (left
side)
— Audio control (P.4-75 or Navigation
system**)

— Vehicle information display control
(P.2-19)

Steering wheel (P.3-29)
— Horn (P.2-49)

Wiper and washer switch (P.2-39)

Hazard indicator flasher switch (P.6-2)

Steering-wheel-mounted controls (right
side)

— Cruise control switches* (P.5-60)
— Intelligent Cruise Control (ICC) system*
(P.5-62)
— Bluetooth® Hands-Free Phone System
(without navigation system )* (P.4-83)
— Bluetooth® Hands-Free Phone System
(with navigation system)* (P.4-93)
— Voice Recognition system switch*
(P.4-100)
— Siri® Eyes Free (P.4-79)

Shift lever
— Continuously Variable Transmission
(CVT) (P.5-20)
— Manual Transmission (MT) (P.5-25)

10.

Vehicle Dynamic Control (VDC) OFF switch
(P.2-52)

11.

Heated steering wheel switch* (P.2-49)

12.

Parking brake (Pedal type) (P.5-27)

13.

Intelligent 4x4 LOCK switch* (P.2-52)

14.

Intelligent Lane Intervention (I-LI) switch*
(P.2-51, P.5-37) or Blind Spot Warning
(BSW) switch* (P.2-51, P.5-42)

15.

ECO switch (P.5-29)

16.

Push-button ignition switch (model with
Intelligent Key system) (P.5-14)

17.

Ignition switch (model without Intelligent
Key system) (P.5-12)

18.

Parking brake (Switch type) (P.5-27)

if so equipped

**:

See the separate Navigation System
Owner’s Manual (if so equipped).

COCKPIT

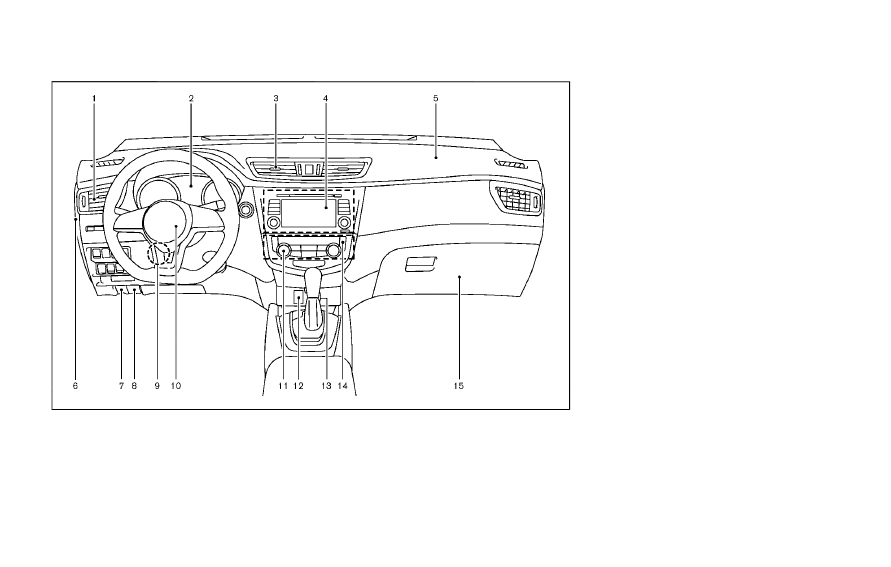

JVC1090X

Side ventilator (P.4-29)

Meters and gauges (P.2-5)/Clock (P.2-36)

Center ventilator (P.4-29)

Audio system* (P.4-38) or Navigation sys-
tem**
— RearView Monitor* (P.4-8)
— Intelligent Around View® Monitor*
(P.4-14)

— Bluetooth® Hands-Free Phone System*
(P.4-83, P.4-93)

Front passenger supplemental air bag
(P.1-40)

Fuse box cover (P.8-20)

Fuel-filler door release handle (P.3-27)

Hood release handle (P.3-24)

Steering wheel lock lever (P.3-29)

10.

Driver’s front-impact air bag (P.1-40)/Horn
(P.2-49)

11.

Heater/air conditioner control (P.4-30)

12.

Auxiliary input jack (P.4-62) and USB con-
nection port (P.4-59, P.4-69)

13.

Power outlet (P.2-53)

14.

Defroster switch (P.2-42)

15.

Glove box (P.2-56)

if so equipped

**:

See the separate Navigation System
Owner’s Manual (if so equipped).

Illustrated table of contents

0-7

INSTRUMENT PANEL

0-8

Illustrated table of contents

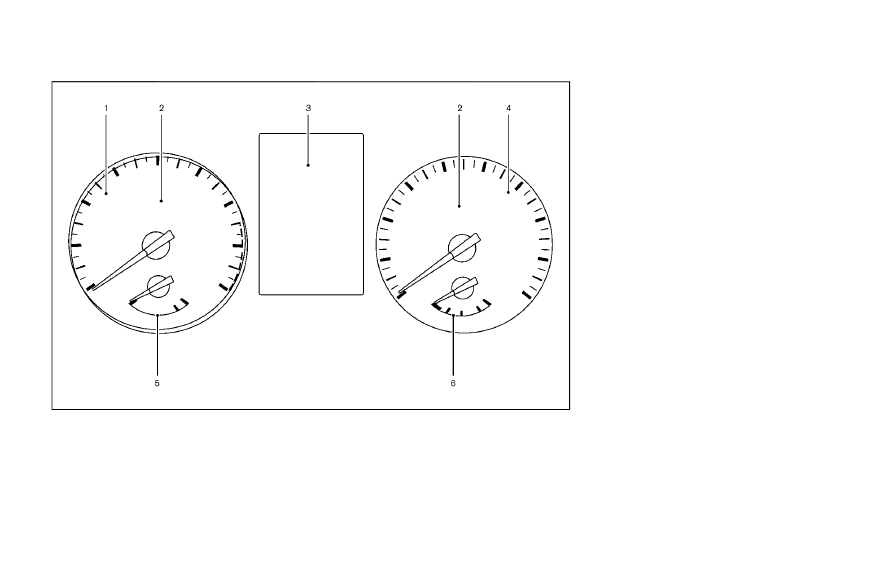

JVC0581X

Tachometer (P.2-7)

Warning/indicator lights (P.2-10)

Vehicle information display (P.2-18)
— Odometer/twin trip odometer (P.2-6)

Speedometer (P.2-6)

Engine coolant temperature gauge (P.2-7)

Fuel gauge (P.2-8)

METERS AND GAUGES

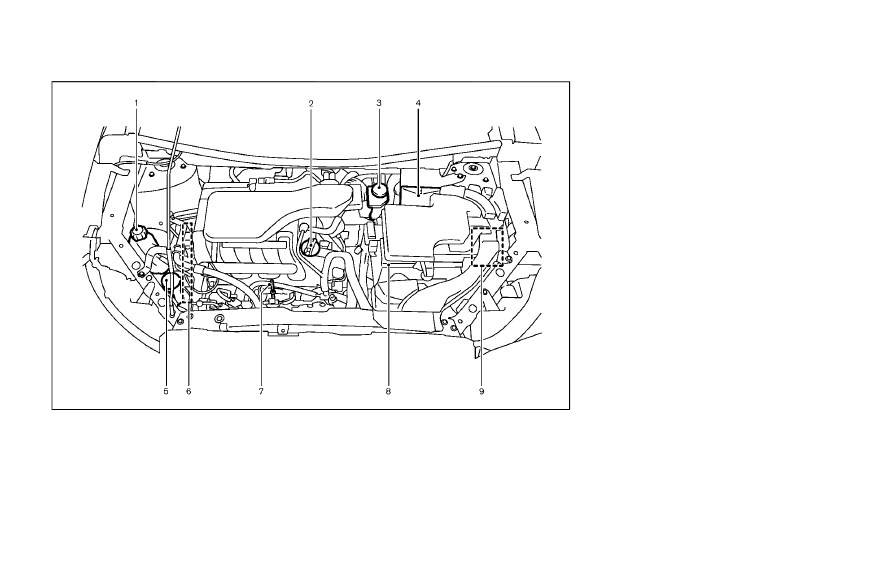

JVC1070X

MR20DD ENGINE MODEL

Engine coolant reservoir (P.8-5)

Engine oil filler cap (P.8-6)

Brake and clutch* fluid reservoir (P.8-9)

Air cleaner (P.8-15)

Window washer fluid reservoir (P.8-10)

Drive belt (P.8-13)

Engine oil dipstick (P.8-6)

Battery (P.8-11)

Fuse/fusible link box (P.8-18)

For Manual Transmission (MT) Model

Illustrated table of contents

0-9

ENGINE COMPARTMENT

0-10

Illustrated table of contents

Warning

light

Name

Page

Anti-lock Braking System
(ABS) warning light

2-10

Brake warning light (red)

2-11

Charge warning light

2-11

Electric power steering
warning light

2-12

Electronic parking brake
system warning light (yel-
low) (if so equipped)

2-12

Electronic parking brake
warning light (if so
equipped)

2-12

Automatic Emergency
Braking (AEB) system
warning light (if so
equipped)

2-12

Low tire pressure warning
light

2-13

Master warning light

2-14

Seat belt warning light

2-15

Supplemental air bag
warning light

2-15

Vehicle Dynamic Control
(VDC) warning light

2-15

Indica-

tor light

Name

Page

All-Wheel Drive (AWD) LOCK
indicator light (if so
equipped)

2-16

Exterior light indicator

2-16

Front fog light indicator
light (if so equipped)

2-16

High beam assist indicator
light (if so equipped)

2-16

High beam indicator light

2-16

Malfunction Indicator Light
(MIL)

2-16

Security indicator light

2-17

Turn signal/hazard indica-
tor lights

2-17

Vehicle Dynamic Control
(VDC) off indicator light

2-17

WARNING AND INDICATOR LIGHTS

1-2

Safety — Seats, seat belts and supplemental restraint system

SSS0133

WARNING

. Do not ride in a moving vehicle

when the seatback is reclined.
This can be dangerous. The
shoulder belt will not be against
your body. In an accident, you
could be thrown into it and re-
ceive neck or other serious inju-
ries. You could also slide under
the lap belt and receive serious
internal injuries.

. For the most effective protection

when the vehicle is in motion, the
seat should be upright. Always sit

well back and upright in the seat
with both feet on the floor and
adjust the seat properly. See
“Precautions on seat belt usage”
(P.1-10).

. After adjustment, gently rock in

the seat to make sure it is se-
curely locked.

. Do not leave children unattended

inside the vehicle. They could
unknowingly activate switches
or controls. Unattended children
could become involved in serious
accidents.

. To help avoid risk of injury or

death through unintended opera-
tion of the vehicle and/or its
systems, do not leave children,
people who require the assis-
tance of others or pets unat-
t e n d e d

i n

y o u r

v e h i c l e .

Additionally, the temperature in-
side a closed vehicle on a warm
day can quickly become high
enough to cause a significant risk
of injury or death to people and
pets.

. Do not adjust the driver’s seat

while driving so full attention may
be given to vehicle operation. The
seat may move suddenly and
could cause loss of control of
the vehicle.

. The seatback should not be re-

clined any more than needed for
comfort. Seat belts are most ef-
fective when the passenger sits
well back and straight up in the
seat. If the seatback is reclined,
the risk of sliding under the lap
belt and being injured is in-
creased.

SEATS

CAUTION

When adjusting the seat positions,
be sure not to contact any moving
parts to avoid possible injuries and/
or damage.

JVR0332X

FRONT SEATS

Front manual seat adjustment

Forward and backward:

Pull up the adjusting lever

2. Slide the seat to the desired position.
3. Release the adjusting lever to lock the

seat in position.

Reclining:

Pull up the adjusting lever

2. Tilt the seatback to the desired posi-

tion.

3. Release the adjusting lever to lock the

seatback in position.

The reclining feature allows the adjust-
ment of the seatback for occupants of
different sizes to help obtain the proper
seat belt fit. (See “Seat belts” (P.1-10).)
The seatback may be reclined to allow
occupants to rest when the vehicle is
parked.

Safety — Seats, seat belts and supplemental restraint system

1-3

1-4

Safety — Seats, seat belts and supplemental restraint system

JVR0333X

Seat lifter (if so equipped):

Pull up or push down the adjusting lever
to adjust the seat height until the desired
position is achieved.

Front power seat adjustment

Operating tips:
. The power seat motor has an auto-

reset overload protection circuit. If the
motor stops during the seat adjust-
ment, wait 30 seconds, then reacti-
vate the switch.

. To avoid discharge of the battery, do

not operate the power seats for a long
period of time when the engine is not
running.

JVR0334X

Forward and backward:

Move forward or backward the adjusting
switch

to the desired position.

Reclining:

Move forward or backward the adjusting
switch

to the desired position.

JVR0119X

Seat lifter:

Move the switch as shown to adjust the
seat height until the desired position is
achieved.

SSS1053

Lumbar support:

The lumbar support feature provides low-
er back support to the driver.
Push the switch as shown to adjust the
seat lumbar area until the desired posi-
tion is achieved.

JVR0467X

REAR SEATS

Folding

Pull up the lever and fold the seatback
flat.

2. To return the seats to a seating

position, push up on the seatback
until it latches in place.

WARNING

. Never allow anyone to ride in the

cargo area or on the rear seats
when they are in the fold-down
position. Use of these areas by
passengers without proper re-

Safety — Seats, seat belts and supplemental restraint system

1-5

1-6

Safety — Seats, seat belts and supplemental restraint system

straints could result in serious
injury in an accident or sudden
stop.

. Do not fold down the rear seats

when occupants are in the rear
seat area or any cargo is on the
rear seats.

. Properly secure all cargo to help

prevent it from sliding or shifting.
Do not place cargo higher than
the seatbacks.

. When returning the seatbacks to

the upright position, be certain
they are completely secured in
the latched position. If they are
not completely secured, passen-
gers may be injured in an acci-
dent or sudden stop.

JVR0327X

Rear seats

ARMREST (if so equipped)

Pull the armrest down as shown.

WARNING

Head restraint/headrest supplement
the other vehicle safety systems.
They may provide additional protec-
tion against injury in certain rear end
collisions. Adjustable head re-
straints/headrests must be adjusted
properly, as specified in this section.
Check the adjustment after someone
else uses the seat. Do not attach
anything to the head restraint/head-
rest stalks or remove the head re-
straint/headrest. Do not use the seat
if the head restraint/headrest has
been removed. If the head restraint/
headrest was removed, reinstall and
properly adjust the head restraint/
headrest before an occupant uses
the seating position. Failure to follow
these instructions can reduce the
effectiveness of the head restraint/
headrest. This may increase the risk
of serious injury or death in a colli-
sion.

HEAD RESTRAINTS/HEADRESTS

JVR0530X

The illustration shows the seating posi-
tions equipped with head restraint/head-
rest.

Indicates the seating position is

equipped with a head restraint.

Indicates the seating position is

equipped with a headrest.
+ Indicates the seating position is not
equipped with a head restraint or head-
rest.
. Your vehicle is equipped with a head

restraint/headrest that may be inte-
grated, adjustable or non-adjustable.

. Adjustable head restraints/headrests

have multiple notches along the stalk
to lock them in a desired adjustment

position.

. The non-adjustable head restraints/

headrests have a single locking notch
to secure them to the seat frame.

. Proper Adjustment:

— For the adjustable type, align the

head restraint/headrest so the
center of your ear is approximately
level with the center of the head
restraint/headrest.

— If your ear position is still higher

than the recommended alignment,
place the head restraint/headrest
at the highest position.

. If the head restraint/headrest has

been removed, ensure that it is re-
installed and locked in place before
riding in that designated seating posi-
tion.

SSS0992

ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS

Removable head restraint/headrest

2. Multiple notches
3. Lock knob
4. Stalks

Safety — Seats, seat belts and supplemental restraint system

1-7

Nissan Qashqai (2018 year). Instruction - part 1
