∙ Use only an original equipment type

fuel-filler cap as a replacement. It has
a built-in safety valve needed for
proper operation of the fuel system
and emission control system. An in-
correct cap can result in a serious mal-
function and possible injury. It could
also cause the

Malfunction Indi-

cator Light (MIL) to come on.

∙ Never pour fuel into the throttle body

to attempt to start your vehicle.

∙ Do not fill a portable fuel container in

the vehicle or trailer. Static electricity
can cause an explosion of flammable
liquid, vapor or gas in any vehicle or
trailer. To reduce the risk of serious
injury or death when filling portable
fuel containers:

– Always place the container on the

ground when filling.

– Do not use electronic devices when

filling.

– Keep the pump nozzle in contact

with the container while you are
filling it.

– Use only approved portable fuel

containers for flammable liquid.

CAUTION

∙ Do not use a fuel containing more

than 15% ethanol in your vehicle. For
additional information, refer to “Fuel
recommendation” in the “Technical
and consumer information” section of
this manual.

∙ The Loose Fuel Cap warning message

will be displayed/warning will appear
if the fuel-filler cap is not properly
tightened. It may take a few driving
trips for the message to be displayed.
Failure to tighten the fuel-filler cap
properly after the Loose Fuel Cap
warning

message

displayed/warning

appears

may

cause the

Malfunction Indicator

Light (MIL) to illuminate.

∙ Failure to tighten the fuel-filler cap

properly may cause the

Mal-

function Indicator Light (MIL) to illumi-
nate. If the

light illuminates be-

cause the fuel-filler cap is loose or
missing, tighten or install the cap and
continue

drive

the

vehicle.

The

light should turn off after a

few driving trips. If the

light does

not turn off after a few driving trips,
have the vehicle inspected. It is rec-
ommended that you visit a NISSAN
dealer for this service.

∙ For additional information, refer to

“Malfunction Indicator Light (MIL)” in
the “Instruments and controls” sec-
tion of this manual.

∙ If fuel is spilled on the vehicle body,

flush it away with water to avoid paint
damage.

Pre-driving checks and adjustments

3-39

To remove the fuel-filler cap:

1. Turn the fuel-filler cap counterclock-

wise to remove.

2. Put the fuel-filler cap on the cap holder

䊊

while refueling.

To install the fuel-filler cap:

1. Insert the fuel-filler cap straight into the

fuel-filler tube.

2. Turn the fuel-filler cap clockwise until a

single click is heard.

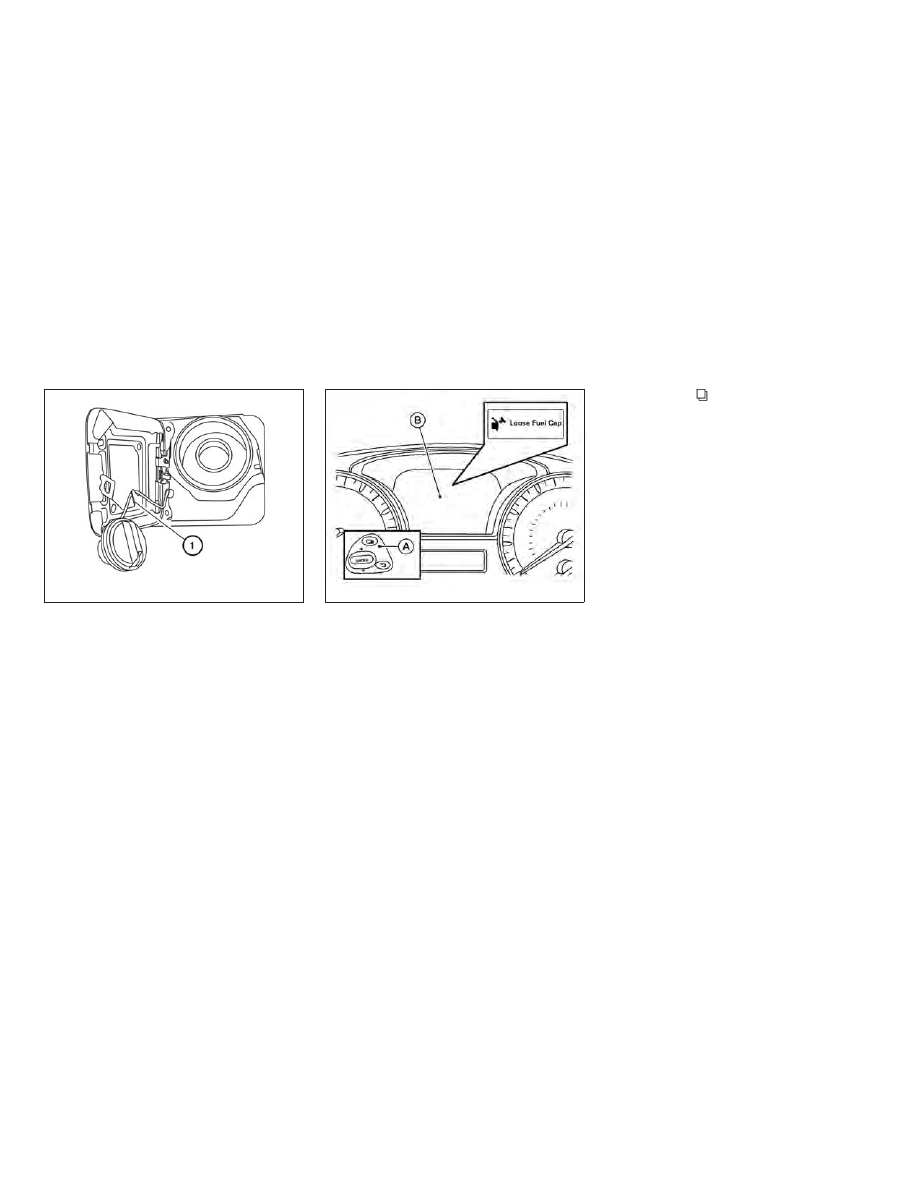

Loose Fuel Cap warning

The Loose Fuel Cap warning appears in the
vehicle information display when the fuel-
filler cap is not tightened correctly after the
vehicle has been refueled. It may take a few
driving trips for the message to be dis-
played. To turn off the warning, perform the
following:

1. Remove and install the fuel-filler cap as

soon as possible. For additional infor-
mation, refer to “Fuel-filler cap” in this
section.

2. Tighten the fuel-filler cap until it clicks.

3. Press the

button

䊊

on the steer-

ing wheel for about 1 second to turn off
the Loose Fuel Cap warning

䊊

after

tightening the fuel-filler cap.

LPD2621

LPD2066

3-40

Pre-driving checks and adjustments

WARNING

∙ Do not adjust the steering wheel while

driving. You could lose control of your
vehicle and cause an accident.

∙ Do not adjust the steering wheel any

closer to you than is necessary for
proper steering operation and com-
fort. The driver’s air bag inflates with
great force. If you are unrestrained,
leaning forward, sitting sideways or
out of position in any way, you are at
greater risk of injury or death in a
crash. You may also receive serious or
fatal injuries from the air bag if you
are up against it when it inflates. Al-
ways sit back against the seatback
and as far away as practical from the
steering wheel. Always use the seat
belts.

MANUAL OPERATION (if so
equipped)

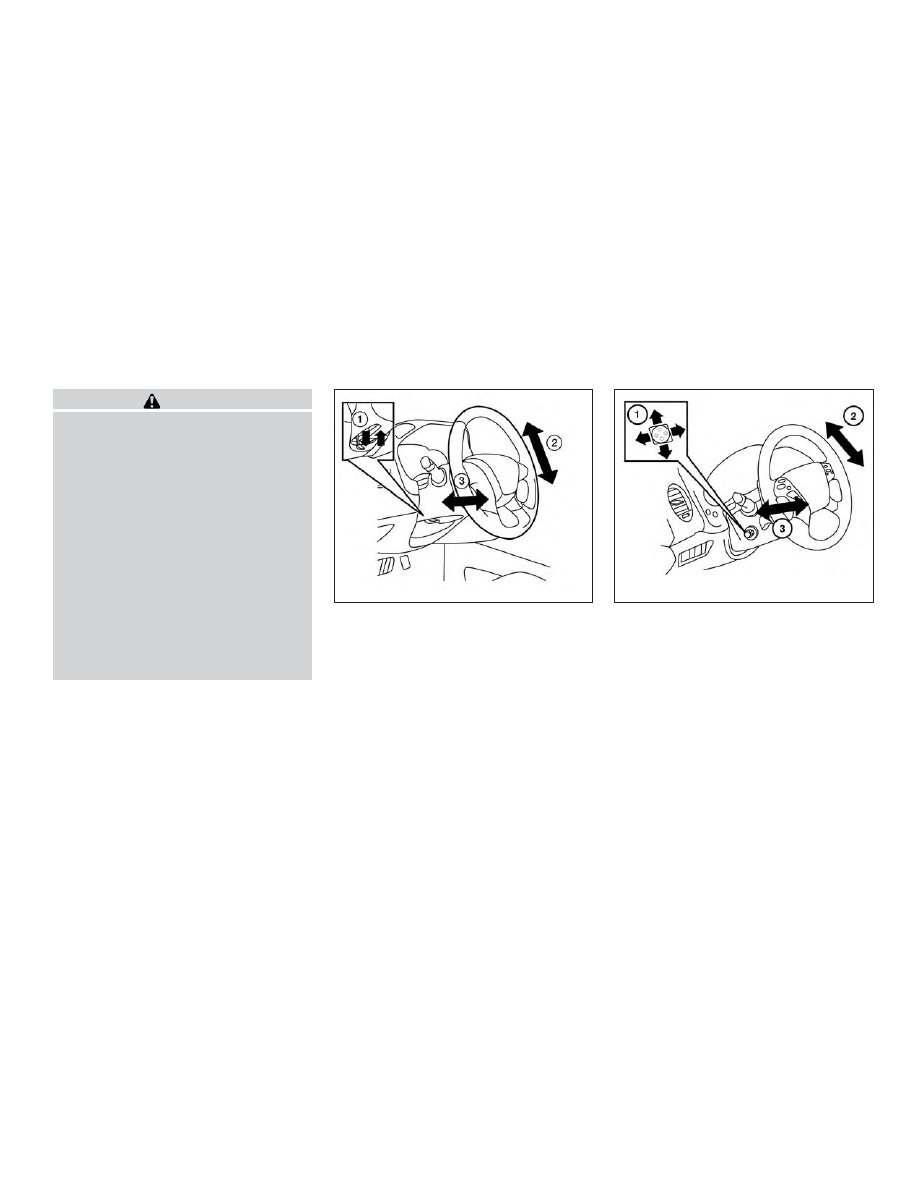

Tilt and telescopic operation

Pull the lock lever

䊊

down:

∙ Adjust the steering wheel up or down in

direction

䊊

to the desired position.

∙ Adjust the steering wheel forward or

backward in direction

䊊

to the desired

position.

Push the lock lever

䊊

up firmly to lock the

steering wheel in place.

AUTOMATIC OPERATION (if so
equipped)

Tilt and telescopic operation

To adjust the steering wheel move the
switch

䊊

in the following directions:

∙ Adjust the steering wheel up or down in

direction

䊊

to the desired tilt position.

∙ Adjust the steering wheel forward or

backward in direction

䊊

to the desired

telescopic position.

LPD2111

LPD2410

STEERING WHEEL

Pre-driving checks and adjustments

3-41

CAUTION

For vehicles with automatic drive posi-
tioner: Failure to reset the tilt and tele-
scoping

functions

the

steering

wheel, after the vehicle’s battery has
been discharged, may prevent the
steering wheel position from being
adjusted.

For vehicles with automatic drive posi-
tioner: Both the tilt and telescopic steering
operation must be reset after the vehicle’s
battery has been discharged in order to
prevent the tilt and telescopic operation
from locking in one position. When the bat-
tery has been recharged or replaced, per-
form the following:

∙ For tilt operation, adjust the switch

䊊

so the steering wheel moves to the
highest

position

䊊

that

can

reached.

∙ For telescopic operation, adjust the

switch

䊊

so the steering wheel moves

to the most forward and backward po-
sition

䊊

that can be reached.

Performing these operations resets the
range of the steering wheel’s tilt and tele-
scopic function.

Entry/Exit function (if so
equipped)

The automatic drive positioner system (if
so equipped) will make the steering wheel
move up automatically when the driver’s
door is opened and the ignition switch is in
the LOCK position. This lets the driver get
into and out of the seat more easily. The
steering wheel moves back into position
when the driver’s door is closed and the
ignition switch is pushed.

For additional information, refer to “Auto-
matic drive positioner” in this section.

WPD0297

SUN VISORS

3-42

Pre-driving checks and adjustments

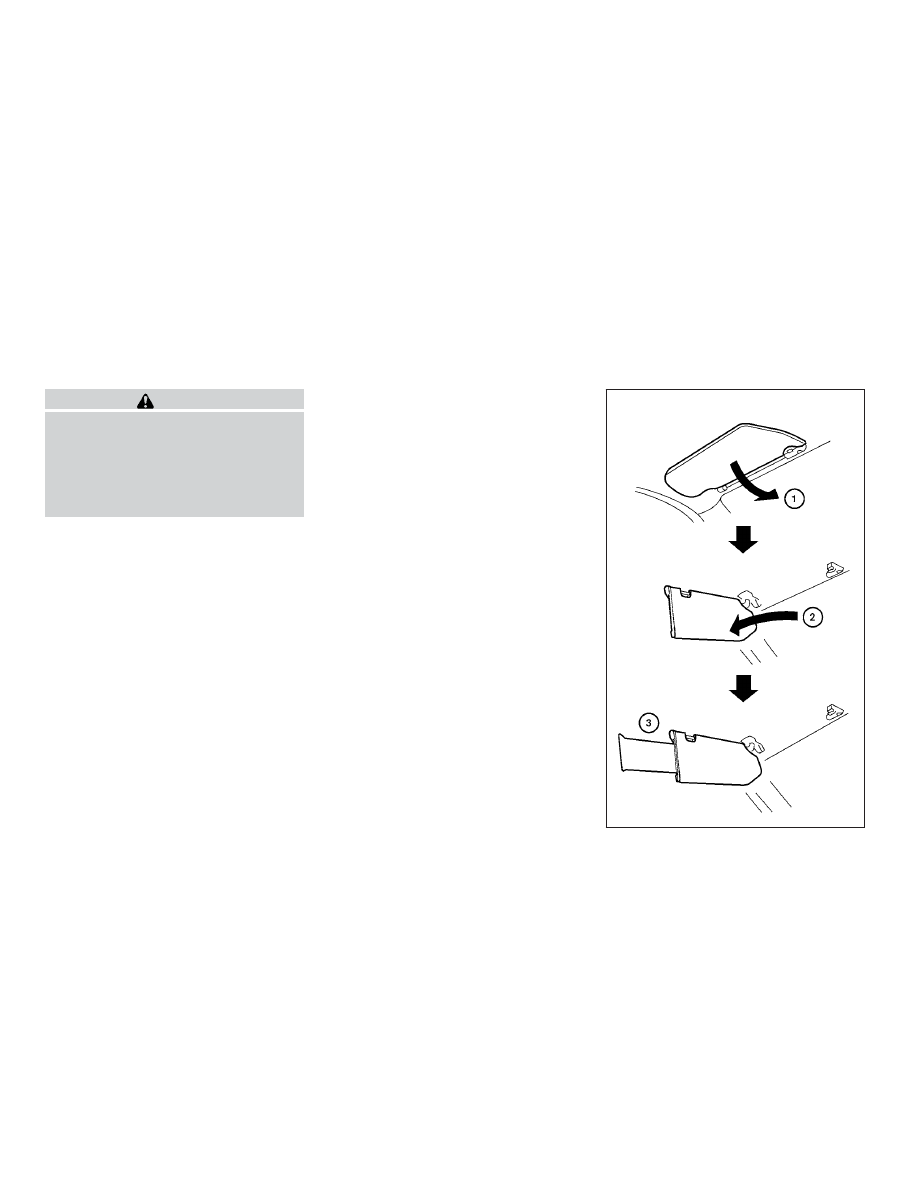

1. To block glare from the front, swing

down the sun visor

䊊

2. To block glare from the side, remove

the sun visor from the center mount
and swing the visor to the side

䊊

3. Slide the extension

䊊

sun visor in or

out as needed.

CAUTION

∙ Do not store the sun visor before re-

turning the extension to its original
position.

∙ Do not pull the extension sun visor

forcibly downward.

VANITY MIRRORS

To access the vanity mirror, pull the sun
visor down and flip open the mirror cover.
Some vanity mirrors are illuminated (if so
equipped) and turn on when the mirror
cover is open.

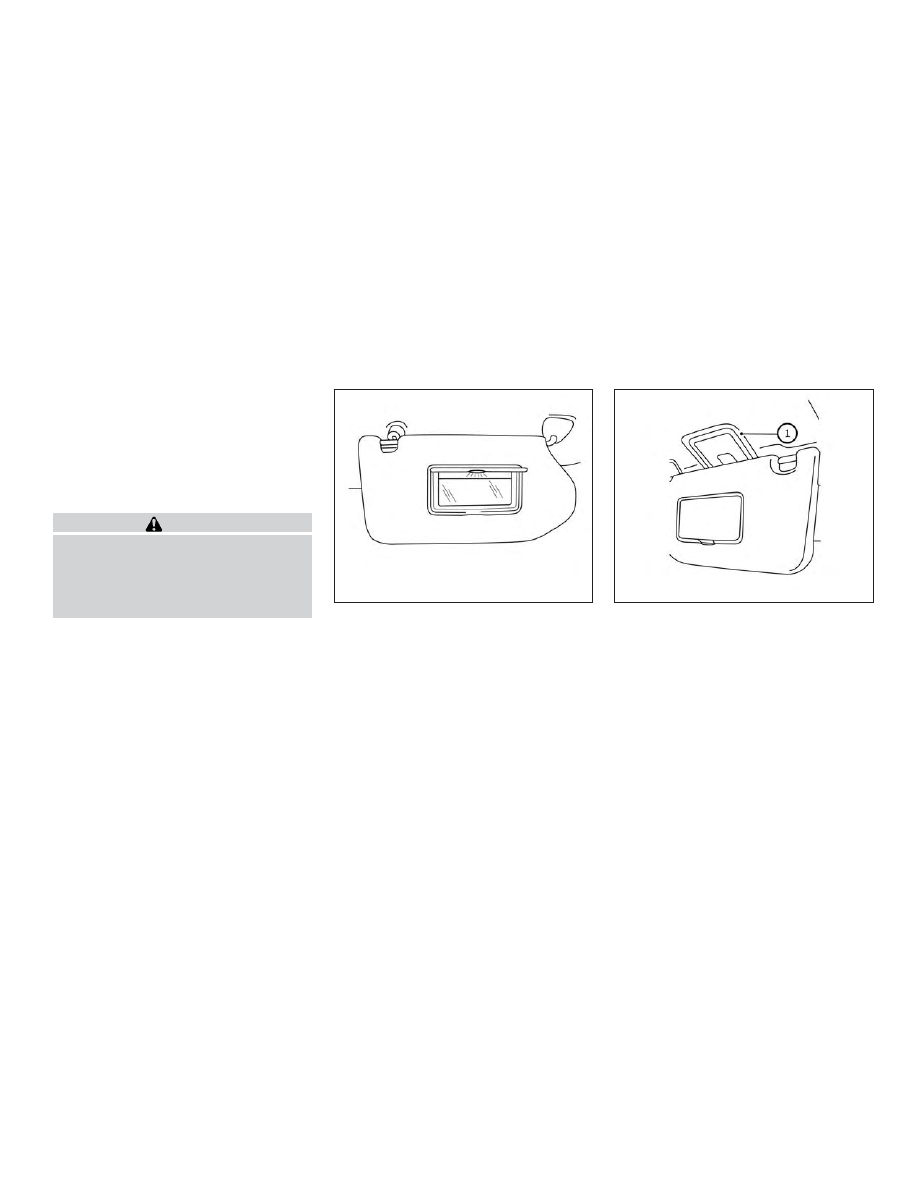

CARD HOLDER

To access the card holder located on the
ceiling, pull the driver’s side sun visor down
and slide the card into the card holder

䊊

Do not view information while operating
the vehicle.

LPD2067

LPD2644

Pre-driving checks and adjustments

3-43

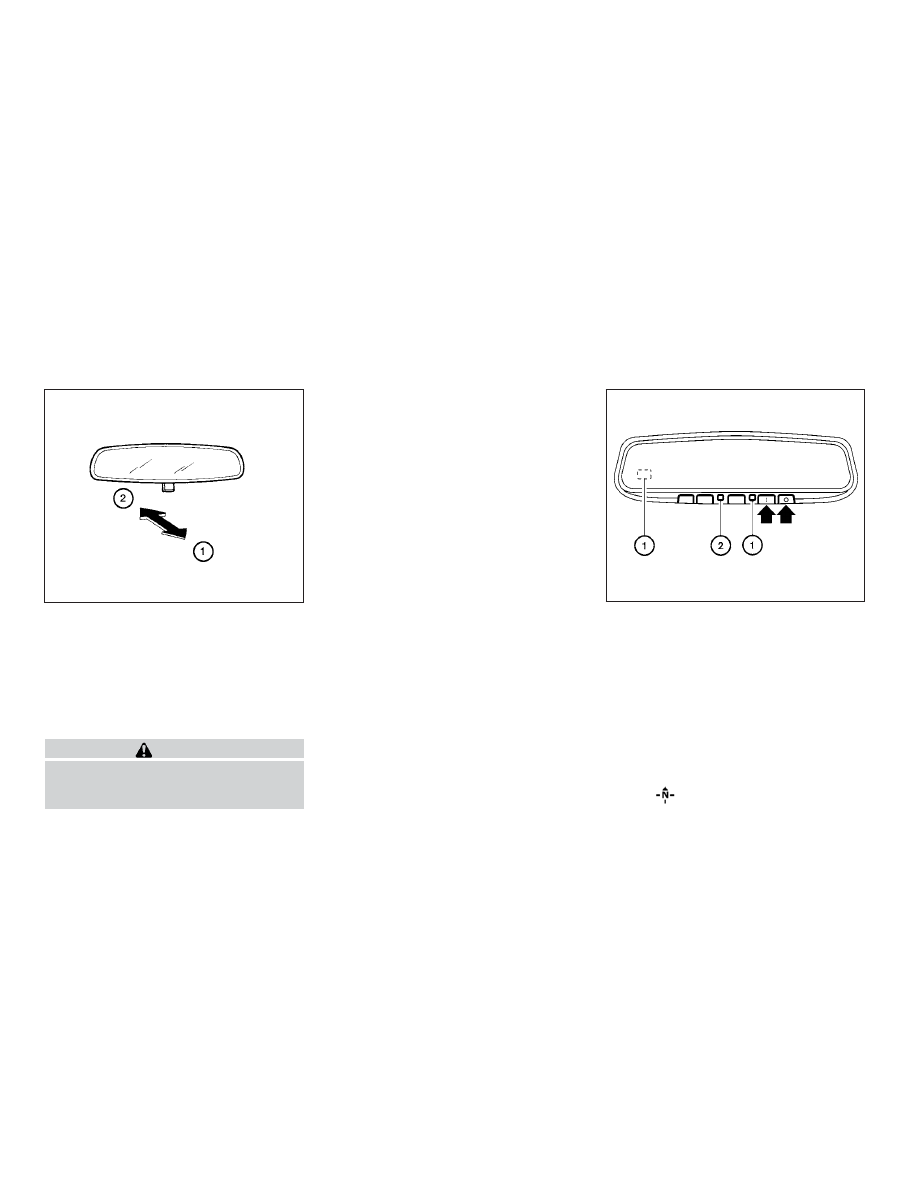

MANUAL ANTI-GLARE REARVIEW
MIRROR (if so equipped)

Use the night position

䊊

to reduce glare

from the headlights of vehicles behind you
at night.

Use the day position

䊊

when driving in

daylight hours.

WARNING

Use the night position only when neces-
sary, because it reduces rear view
clarity.

AUTOMATIC ANTI-GLARE
REARVIEW MIRROR (if so equipped)

The inside mirror is designed so that it au-
tomatically dims during night time condi-
tions and according to the intensity of the
headlights of the vehicle following you. The
automatic anti-glare feature is activated
when the ignition switch is in the ON posi-
tion.

The indicator light

䊊

will illuminate when

the automatic anti-glare feature is operat-
ing.

NOTE:

Do not hang any objects over the sen-
sors

䊊

or apply glass cleaner to the sen-

sors. Doing so will reduce the sensitivity
of the sensors, resulting in improper op-
eration.

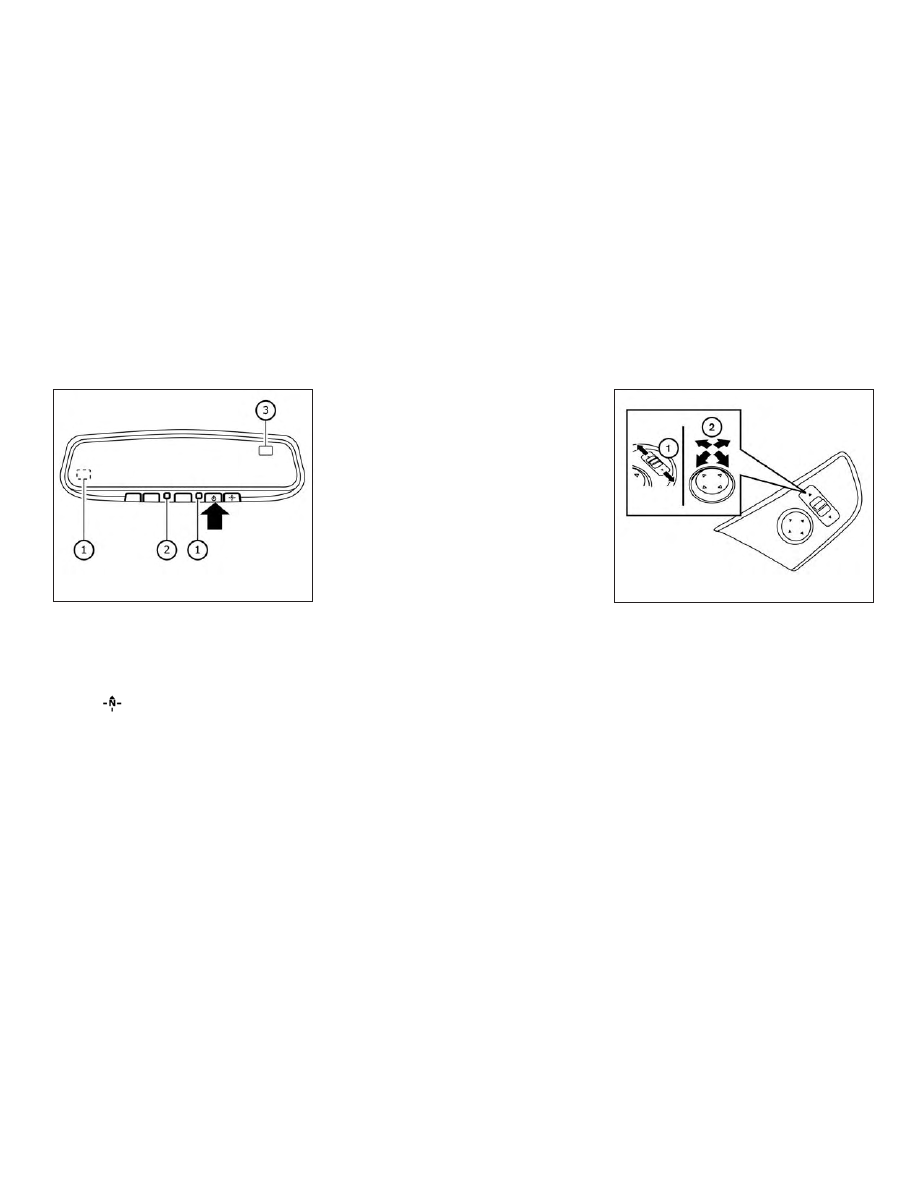

Type A and Type B (if so equipped)

The indicator light

䊊

will illuminate when

the automatic anti-glare feature is operat-
ing.

To turn off the automatic anti-glare feature,
press:

∙ The

button for inside mirrors with-

out compass.

∙ The

button for inside mirrors with

compass.

The indicator light will turn off.

WPD0126

Type A - Without compass

(if so equipped)

LPD0469

MIRRORS

3-44

Pre-driving checks and adjustments

To turn on the automatic anti-glare feature
again, press:

∙ The

button for inside mirrors with-

out compass.

∙ The

button for inside mirrors with

compass.

The indicator light will turn on.

For additional information on HomeLink®
Universal Transceiver (if so equipped) op-
eration, refer to “HomeLink® Universal
Transceiver” in the “Instruments and con-
trols” section of this manual.

For additional information on the compass
display

䊊

(if so equipped), refer to “Com-

pass display” in the “Instruments and con-
trols” section of this manual.

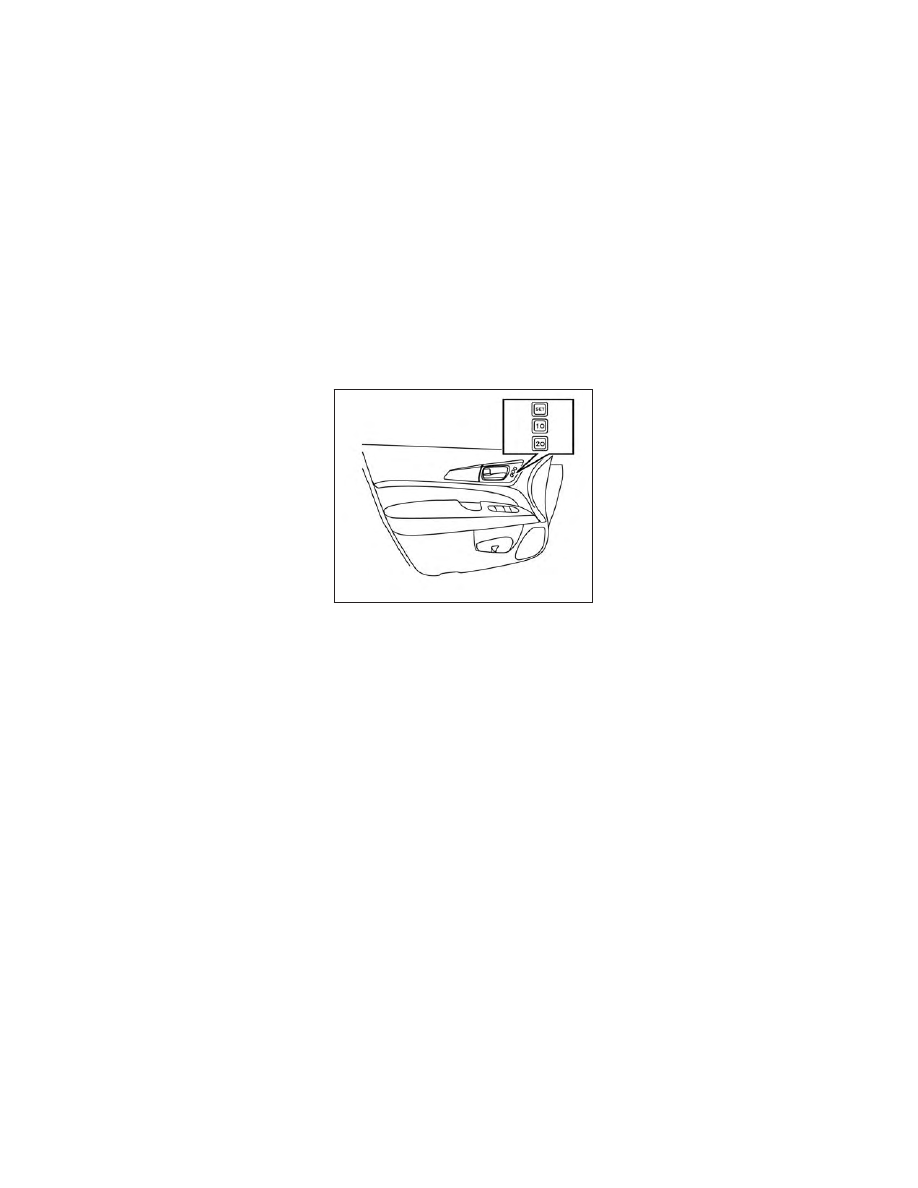

OUTSIDE MIRRORS

The outside mirror remote control will op-
erate only when the ignition switch is in the
ACC or ON position.

Move the small switch

䊊

to select the left

or right mirror. Adjust each mirror to the
desired position using the large switch

䊊

Move the small switch

䊊

to the center

(neutral) position to prevent accidentally
moving the mirror.

Type B - With compass (if so equipped)

LPD2660

LPD2452

Pre-driving checks and adjustments

3-45

WARNING

∙ Objects viewed in the outside mirror

on the passenger side are closer than
they appear. Be careful when moving
to the right. Using only this mirror
could cause an accident. Use the in-
side mirror or glance over your shoul-
der to properly judge distances to
other objects.

∙ Do not adjust the mirrors while driv-

ing. You could lose control of your ve-
hicle and cause an accident.

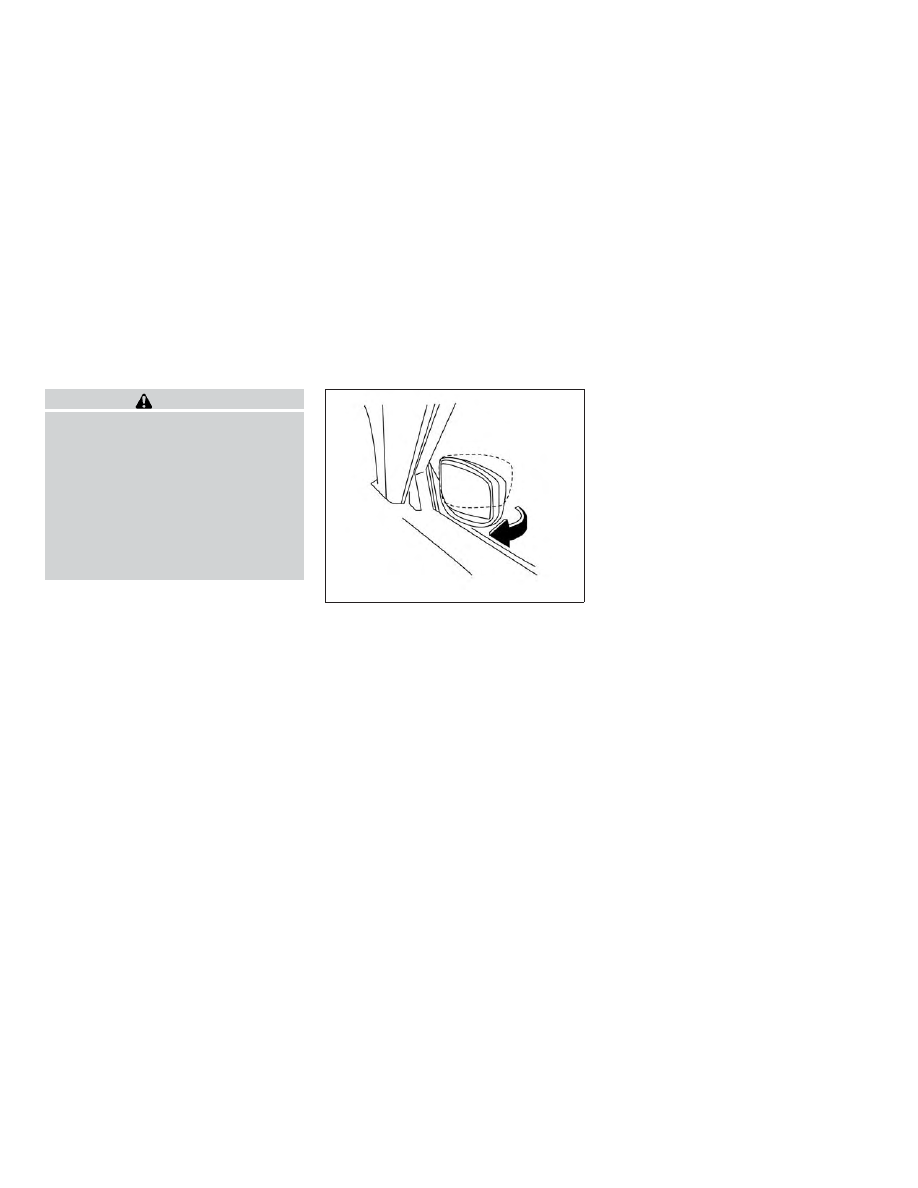

Manual folding outside mirrors

Pull the outside mirror toward the door to
fold it.

Reverse tilt-down feature (if so
equipped)

The reverse tilt-down feature will turn both
outside mirror surfaces downward to pro-
vide better rear visibility close to the vehicle
when the mirror control switch is in either
the L or R position.

The mirrors automatically return to their
original position when you shift out of R
(Reverse).

The outside mirror surfaces will return to
their original position when one of the fol-
lowing conditions has occurred:

∙ The shift lever is moved to any position

other than R (Reverse).

∙ The outside mirror control switch is set

to the neutral or center position.

∙ The ignition switch is placed in the OFF

position.

NOTE:

If the outside mirror control switch is in
the “center” position, the mirror surface
will NOT turn downward when the shift
lever is moved to R (Reverse).

For additional information, refer to “Auto-
matic drive positioner” in this section.

Heated mirrors (if so equipped)

Some outside mirrors can be heated to
defrost, defog, or de-ice for improved vis-
ibility. For additional information, refer to
“Rear window and outside mirror (if so
equipped) defroster switch” in the “Instru-
ments and controls” section of this manual.

LPD2112

3-46

Pre-driving checks and adjustments

The automatic drive positioner system has
two features:

∙ Memory storage function

∙ Entry/exit function

MEMORY STORAGE FUNCTION

Two positions for the driver’s seat, auto-
matic adjustable steering wheel (if so
equipped), and outside mirrors can be
stored in the automatic drive positioner
memory. Follow these procedures to use
the memory system.

1. Place the ignition in the ON or ACC po-

sition (the vehicle should be stopped
while setting the memory).

2. Adjust the driver’s seat, automatic ad-

justable steering wheel (if so equipped),
and outside mirrors to the desired po-
sitions by manually operating each ad-

justing switch. For additional informa-
tion,

refer

“Seats”

the

“Safety—Seats, seat belts and supple-
mental restraint system” section of this
manual, and “Tilt/Telescopic steering”
and “Outside mirrors” in this section.

3. Push the SET switch and, within 5 sec-

onds, push the memory switch (1 or 2).

4. The indicator light for the pushed

memory switch will come ON and stay
ON for approximately 5 seconds.

5. The chime will sound if the memory

has been stored.

NOTE:

If a new memory position is stored in the
same memory switch, the previous
memory position will be overwritten by
the new stored position.

Confirming memory storage

Push the SET switch.

∙ If a memory position has not been

stored in the switch (1 or 2) the indicator
light for the respective switch will come
ON for approximately 0.5 seconds.

LPD2508

AUTOMATIC DRIVE POSITIONER (if so
equipped)

Pre-driving checks and adjustments

3-47

∙ If a memory position has been stored in

the switch (1 or 2) then the indicator light
for the respective switch will stay ON for
approximately 5 seconds.

Linking a key fob to a stored
memory position

Each key fob can be linked to a stored
memory position (memory switch 1 or 2)
with the following procedure.

1. Follow steps 1-3 in the “Memory storage

function”

section

for

storing

the

memory position.

2. The indicator light for the pushed

memory switch will come ON. While the
indicator light is ON for 5 seconds,
press the

button on the key fob.

The

indicator

light

the

linked

memory switch will blink. After the indi-
cator light goes off, the key fob is linked
to that memory setting.

Once it is linked, when the ignition switch is
placed

the

OFF

position, pressing

the

button on the key fob will move

the driver’s seat, steering wheel and out-
side mirrors to the linked memory switch
position.

NOTE:

If a new memory position is stored in the
linked memory switch, then the key fob
will link the new position and overwrites
the previous position.

ENTRY/EXIT FUNCTION

This system is designed so that the driver’s
seat and automatic operation steering col-
umn will automatically move when the
shift lever is in the P (Park) position. This
allows the driver to get into and out of the
driver’s seat more easily.

The driver’s seat will slide backward and
the steering column will move up:

∙ When the driver’s door is opened with

the ignition switch placed in the OFF
position.

∙ When the ignition switch is changed

from ACC to OFF with the driver’s door
open.

The driver’s seat and steering wheel will
return to the previous position:

∙ When the ignition switch is changed

from ACC or ON while the shift lever is in
the P (Park) position.

The entry/exit function can be adjusted or
canceled through the “Vehicle Settings” in
the vehicle information display by perform-
ing the following:

∙ Switch the Exit Seat Slide from ON to

OFF.

∙ Switch the Exit Steering UP from ON to

OFF.

Restarting the entry/exit function

If the battery cable is disconnected, or if the
fuse opens, the stored memory positions
will be lost and some of the functions will
be restricted:

1. Drive the vehicle over 25 mph (40 km/h).

2. Open and close the driver’s door more

than two times with the ignition switch
in the OFF position.

The entry/exit function should now work
properly.

3-48

Pre-driving checks and adjustments

SETTING MEMORY FUNCTION

The position of the following settings can
be linked to the Intelligent Key and the
memorized settings can be available for
each Intelligent Key.

∙ Climate control system

∙ Navigation system (if so equipped)

∙ Audio system

To use the memory function, set the cli-
mate, navigation and audio systems to the
driver’s preferred settings. Lock the doors
with the Intelligent Key. Each Intelligent Key
may be set with the driver’s individual pref-
erences. When a new Intelligent Key is used,
“Connection with the key has been done”
will be displayed on the screen and the
memorized settings are available.

To engage the memorized settings, per-
form the following:

1. Carry the Intelligent Key that is linked to

the memorized settings.

2. Unlock the doors by pushing the driv-

er’s door handle request switch or
the

button on the Intelligent Key.

3. Place the ignition switch in the “ON” po-

sition. The settings linked to the Intelli-
gent Key will start.

For additional information, refer to “Heater
and air conditioner (automatic)” in the
“Monitor, climate, audio, phone and voice
recognition

systems”

section

this

manual.

For additional information on using the
Navigation System, refer to the Navigation
System Owner’s Manual.

For additional information on using the Au-
dio system, refer to “Audio system” in the
“Monitor, climate, audio, phone and voice
recognition

systems”

section

this

manual.

SYSTEM OPERATION

The automatic drive positioner system will
not work or will stop operating under the
following conditions:

∙ When the vehicle speed is above 0 mph

(0 km/h) or 4 mph (7km/h) for some
limited functions such as linking a key
fob to the meter when the power
source is turned on from off or during
the exit function.

∙ When any of the memory switches are

pushed while the automatic drive posi-
tioner is operating.

∙ When the adjusting switch for the driv-

er’s seat and steering column is turned
on while the automatic drive positioner
is operating.

∙ When the seat has already been moved

to the memorized position.

∙ When no seat position is stored in the

memory switch.

∙ When the shift lever is moved from P

(Park) to any other position.

Pre-driving checks and adjustments

3-49

4 Monitor, climate, audio, phone and
voice recognition systems

NissanConnect

Owner’s Manual. . . . . . . . . . . . . . . 4-2

RearView Monitor (if so equipped) . . . . . . . . . . . . . . . 4-3

Intelligent Around View Monitor
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-11

Intelligent Around View Monitor system
limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
System maintenance. . . . . . . . . . . . . . . . . . . . . . . . 4-22

Camera Aiding Sonar (parking sensor)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22

Sonar System Operation . . . . . . . . . . . . . . . . . . . . 4-23
Turning ON and OFF the sonar function . . . . . 4-24
Sonar System Limitations . . . . . . . . . . . . . . . . . . . 4-25
System Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 4-25

Moving Object Detection (MOD) (if so
equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-26

MOD system operation . . . . . . . . . . . . . . . . . . . . . . 4-27
Turning MOD on and off . . . . . . . . . . . . . . . . . . . . . 4-28
MOD system limitations . . . . . . . . . . . . . . . . . . . . . 4-29
System maintenance. . . . . . . . . . . . . . . . . . . . . . . . 4-30

Vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-30
Heater and air conditioner (automatic)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-31

Automatic operation . . . . . . . . . . . . . . . . . . . . . . . . 4-32
Manual operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-33
Operating tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-34
Rear automatic air conditioning system . . . . . 4-36

Servicing air conditioner . . . . . . . . . . . . . . . . . . . . . . . . 4-39

USB/iPod® charging ports (if so equipped) . . . . . . 4-39
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-40

Window antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-40

Car phone or CB radio . . . . . . . . . . . . . . . . . . . . . . . . . . 4-40

Refer to the NissanConnect

Owner’s

Manual that includes the following infor-
mation.

∙ NissanConnect

Services

∙ Navigation system (if so equipped)

∙ Audio system

∙ Bluetooth® Hands-Free Phone system

∙ Viewing information

∙ Other settings

∙ Voice recognition (if so equipped)

∙ General system information

NISSANCONNECT

OWNER’S

MANUAL

4-2

Monitor, climate, audio, phone and voice recognition systems

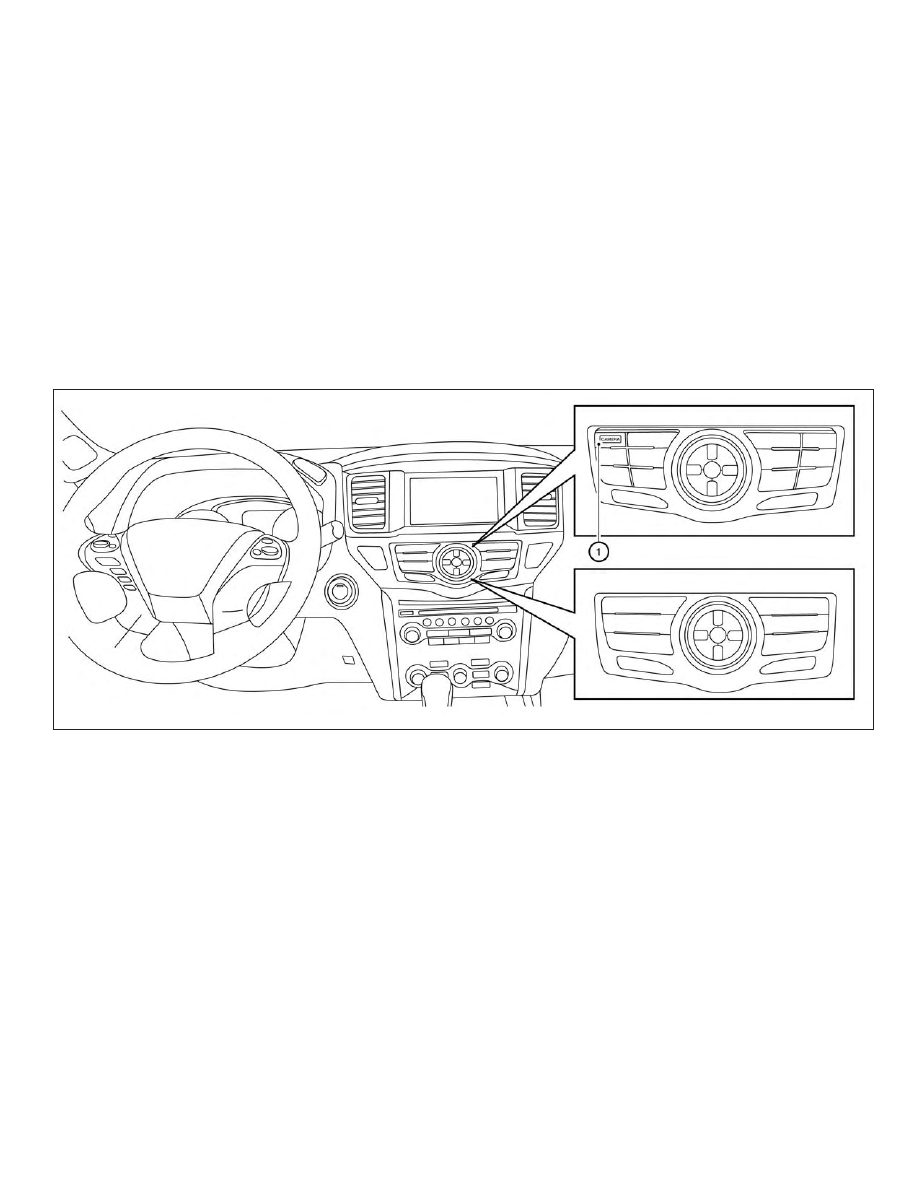

1. CAMERA button (if so equipped)

LHA3756

REARVIEW MONITOR (if so
equipped)

Monitor, climate, audio, phone and voice recognition systems

4-3

WARNING

∙ Failure to follow the warnings and in-

structions for proper use of the Rear-
View Monitor system could result in
serious injury or death.

∙ RearView Monitor is a convenience

feature and is not a substitute for
proper backing. Always turn and look
out the windows and check mirrors to
be sure that it is safe to move before
operating the vehicle. Always back up
slowly.

∙ The system is designed as an aid to

the driver in showing large stationary
objects directly behind the vehicle, to
help avoid damaging the vehicle.

∙ The distance guide line and the ve-

hicle width line should be used as a
reference only when the vehicle is on a
level paved surface. The distance
viewed on the monitor is for reference
only and may be different than the
actual distance between the vehicle
and displayed objects.

CAUTION

Do not scratch the camera lens when
cleaning dirt or snow from the front of
the camera.

The RearView Monitor system automati-
cally shows a rear view of the vehicle when
the shift lever is shifted into the R (Reverse)
position or when the CAMERA button (if so
equipped) is pressed. The radio can still be
heard while the RearView Monitor is active.

To display the rear view, the RearView Moni-

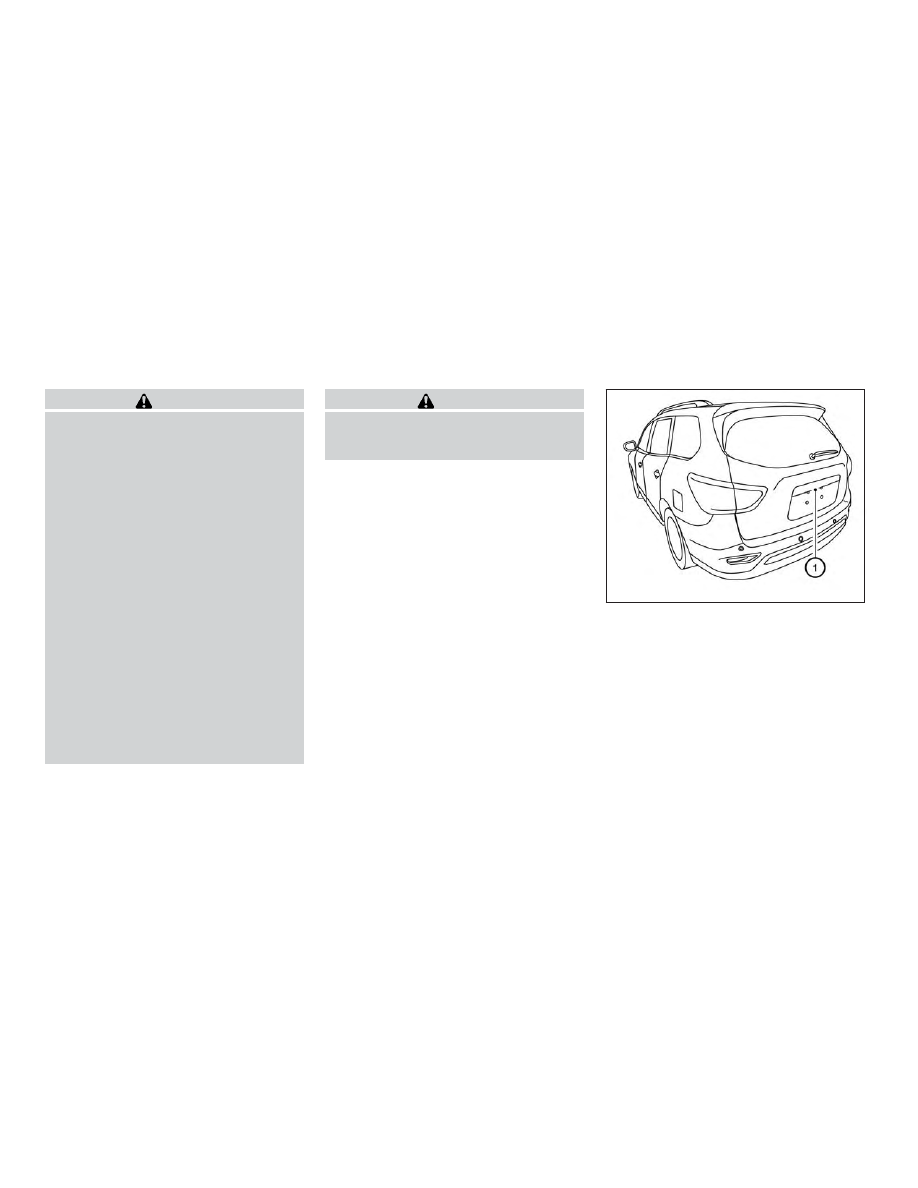

tor system uses a camera located just
above the vehicle’s license plate

䊊

REARVIEW MONITOR SYSTEM
OPERATION

With the ignition switch in the ON position,
move the shift lever to the R (Reverse) po-
sition or press the CAMERA button (if so
equipped) to operate the RearView Moni-
tor.

LHA3757

4-4

Monitor, climate, audio, phone and voice recognition systems

Content .. 12 13 14 15 ..
